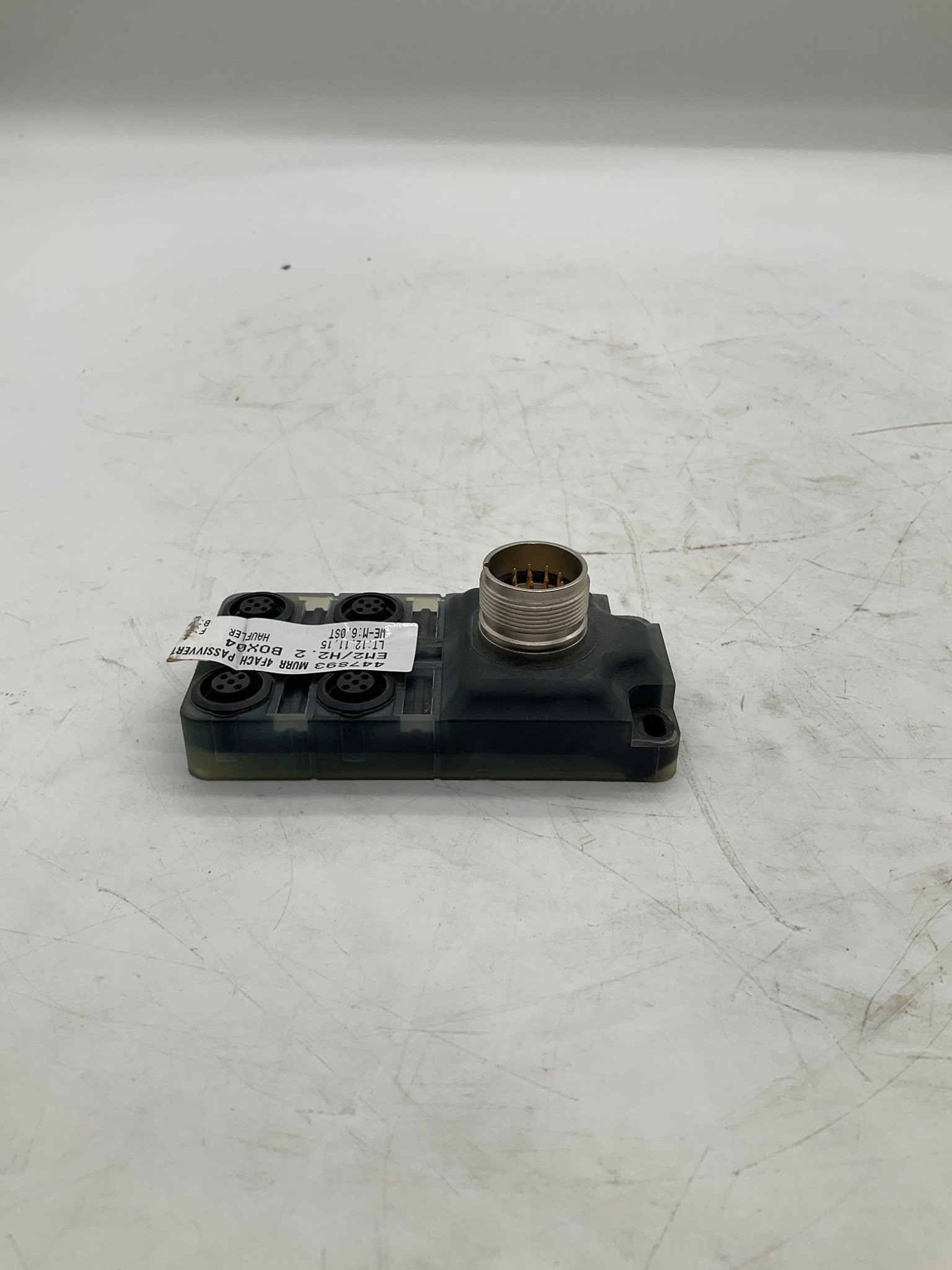

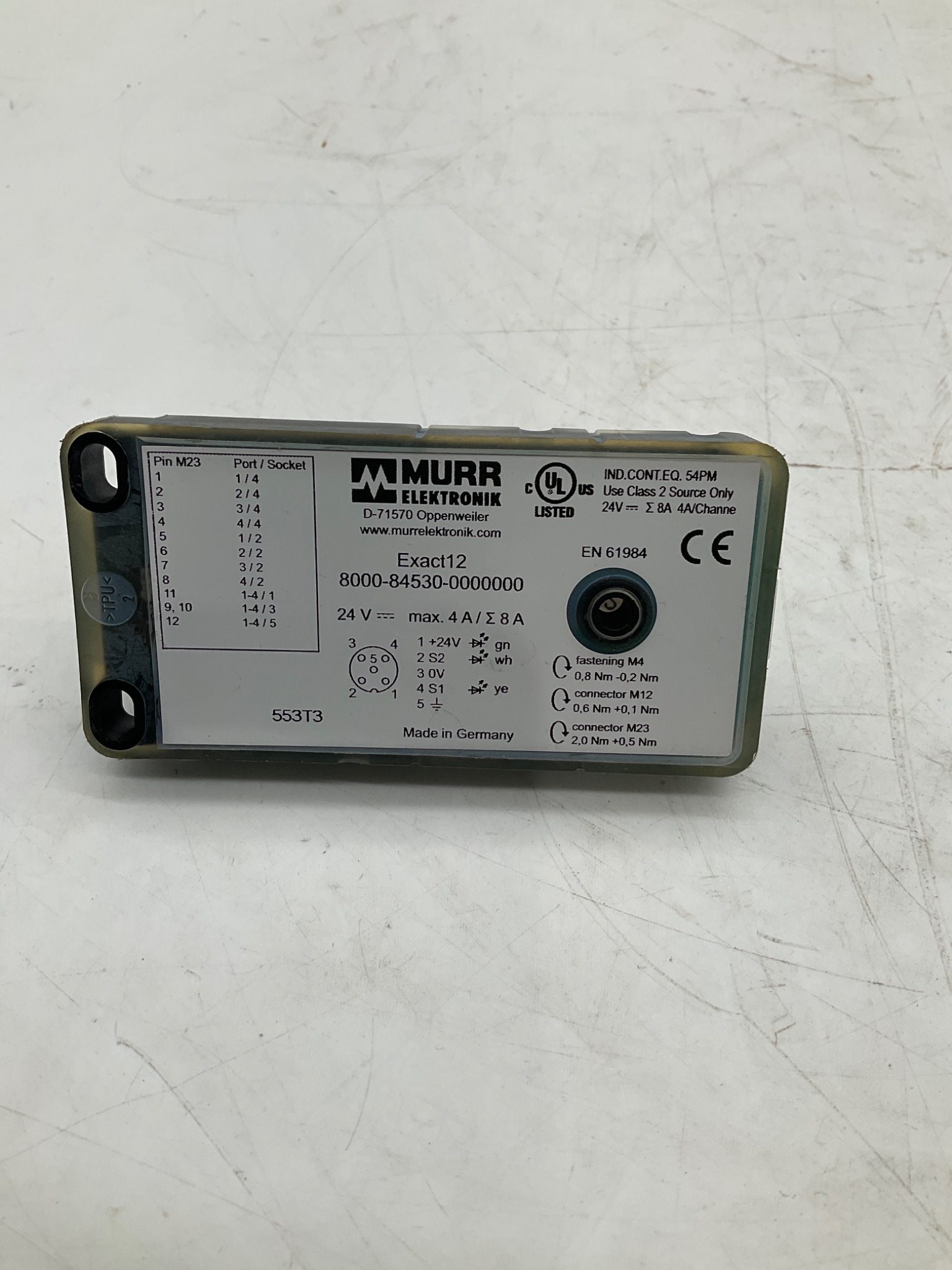

MURR ELEKTRONIK 8000-84530-0000000 Exact12 4-Port Passive Distributor USED

Specification Table

Manufacturer: Murrelektronik Series: Exact12 Part Number: 8000-84530-0000000 Condition: USED YOM: n/a   Product Type: Passive Distributor Distribution Type: Sensor / Actuator Distribution Block   Input Connection: M23 Male Output Ports: 4 x M12 Female   Number of Ports: 4 Connector Style: Circular Connectors Port Configuration: 4-Port   Operating Voltage: 24 VDC Current Rating: 4 A Per Channel Total Current Rating: 8 A Maximum   Power Source Requirement: Class 2 Source Only   Protection Standard: EN 61984   Port Pin Count: 4-Pin M12   Pin Assignment: Pin 1 (M23): Port 1 / Pin 4 Pin 2 (M23): Port 2 / Pin 4 Pin 3 (M23): Port 3 / Pin 4 Pin 4 (M23): Port 4 / Pin 4 Pin 5 (M23): Port 1 / Pin 2 Pin 6 (M23): Port 2 / Pin 2 Pin 7 (M23): Port 3 / Pin 2 Pin 8 (M23): Port 4 / Pin 2 Pin 11 (M23): Ports 1-4 / Pin 1 Pin 9,10 (M23): Ports 1-4 / Pin 3 Pin 12 (M23): Ports 1-4 / Pin 5   LED Indicators: Green, White, Yellow   Fastener Size: M4 Mounting Torque: 0.8 Nm ±0.2 Nm M12 Connector Torque: 0.6 Nm ±0.1 Nm M23 Connector Torque: 2.0 Nm ±0.5 Nm   Approvals: UL Listed Compliance: CE   Country of Manufacture: Germany   UL Class: Industrial Control Equipment Temperature Rating: Not specified Ingress Protection: Not specified
