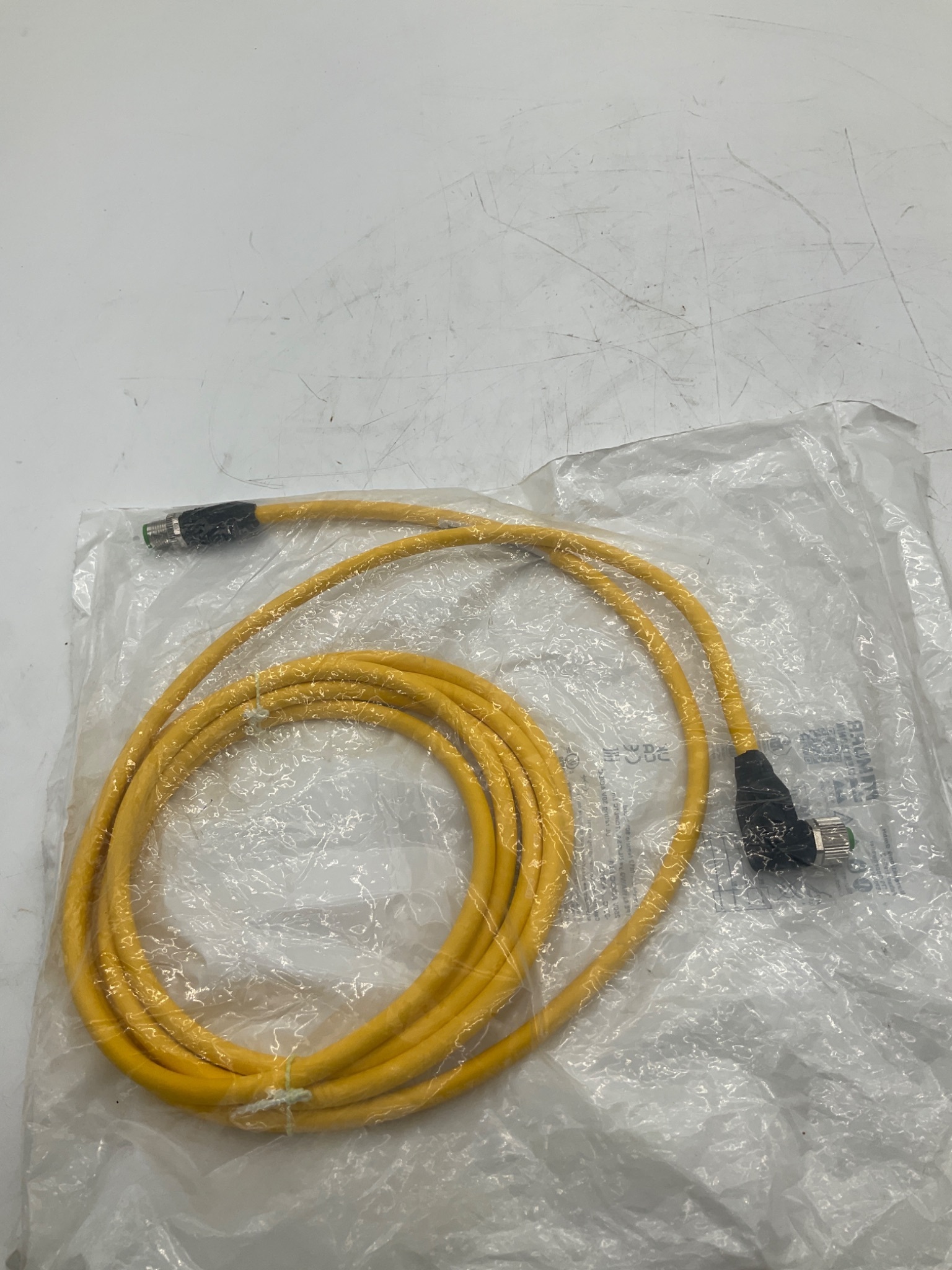

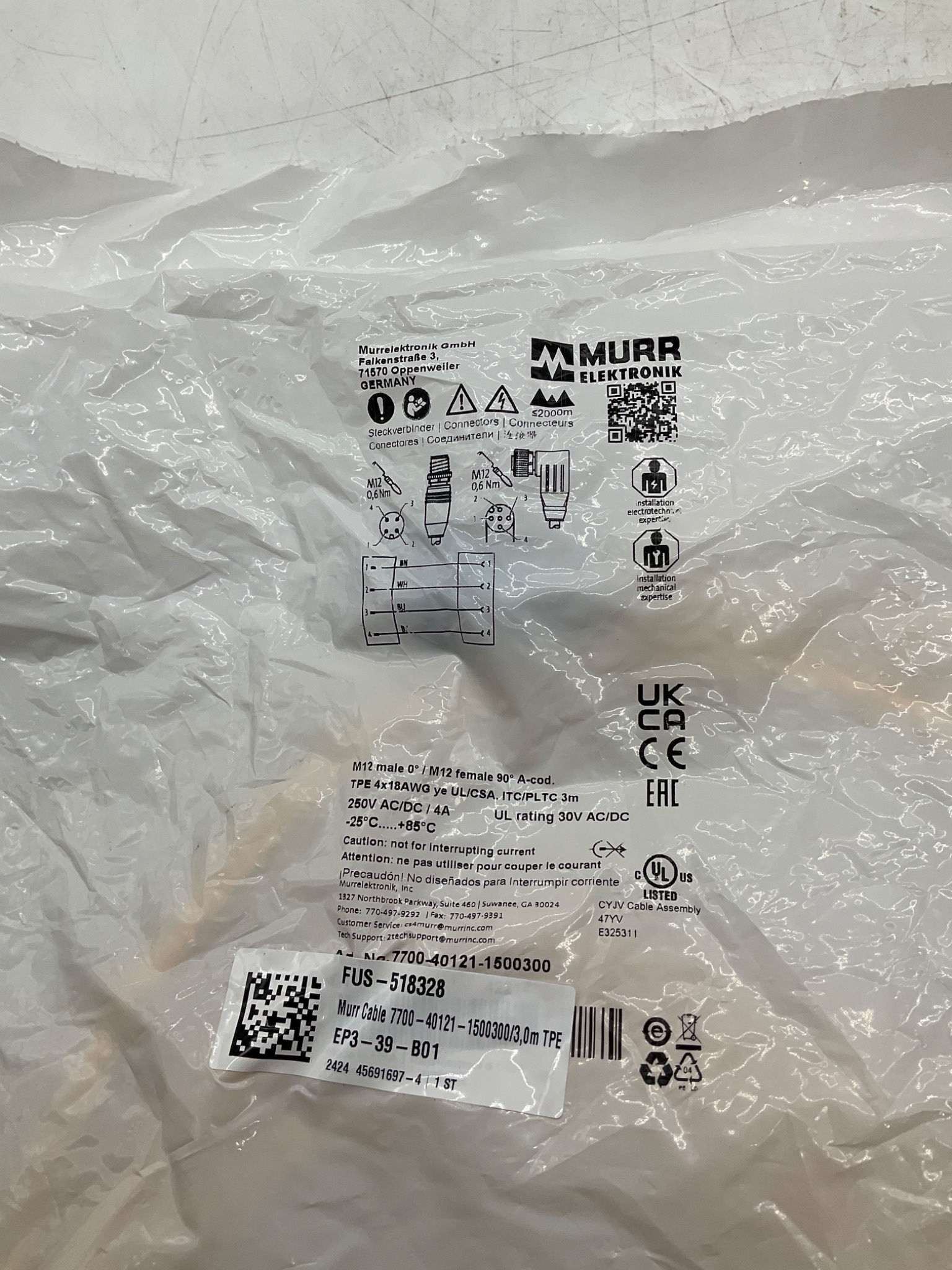

MURR ELEKTRONIK 7700-40121-1500300 M12 Male to M12 Female A-Coded Cordset 3M NEW

Specification Table

Manufacturer: Murrelektronik Part Number: 7700-40121-1500300 Condition: NEW YOM: n/a   Product Type: Sensor / Actuator Cordset   Connector 1: M12 Male Straight (0°) Connector 2: M12 Female 90°   Connector Interface: M12 Connector Coding: A-Coded   Number of Poles: 4 Pin Count: 4-Pin   Cable Length: 3 m Cable Length: 9.84 ft   Cable Construction: 4 x 18 AWG Conductor Size: 18 AWG   Cable Jacket Material: TPE Cable Color: Yellow   Rated Voltage: 250V AC/DC UL Voltage Rating: 30V AC/DC   Rated Current: 4 A   Cable Designation: ITC Cable Designation: PLTC   Wiring Configuration: Pin-to-Pin   Pin 1 Wire Color: BN (Brown) Pin 2 Wire Color: WH (White) Pin 3 Wire Color: BU (Blue) Pin 4 Wire Color: BK (Black)   Connector Tightening: 0.6 Nm   Approvals: UL Listed Approvals: CSA   UL Category Code: 47YV UL File Number: E325311   Compliance: CE Compliance: UKCA Compliance: EAC   Country of Manufacture: Germany
