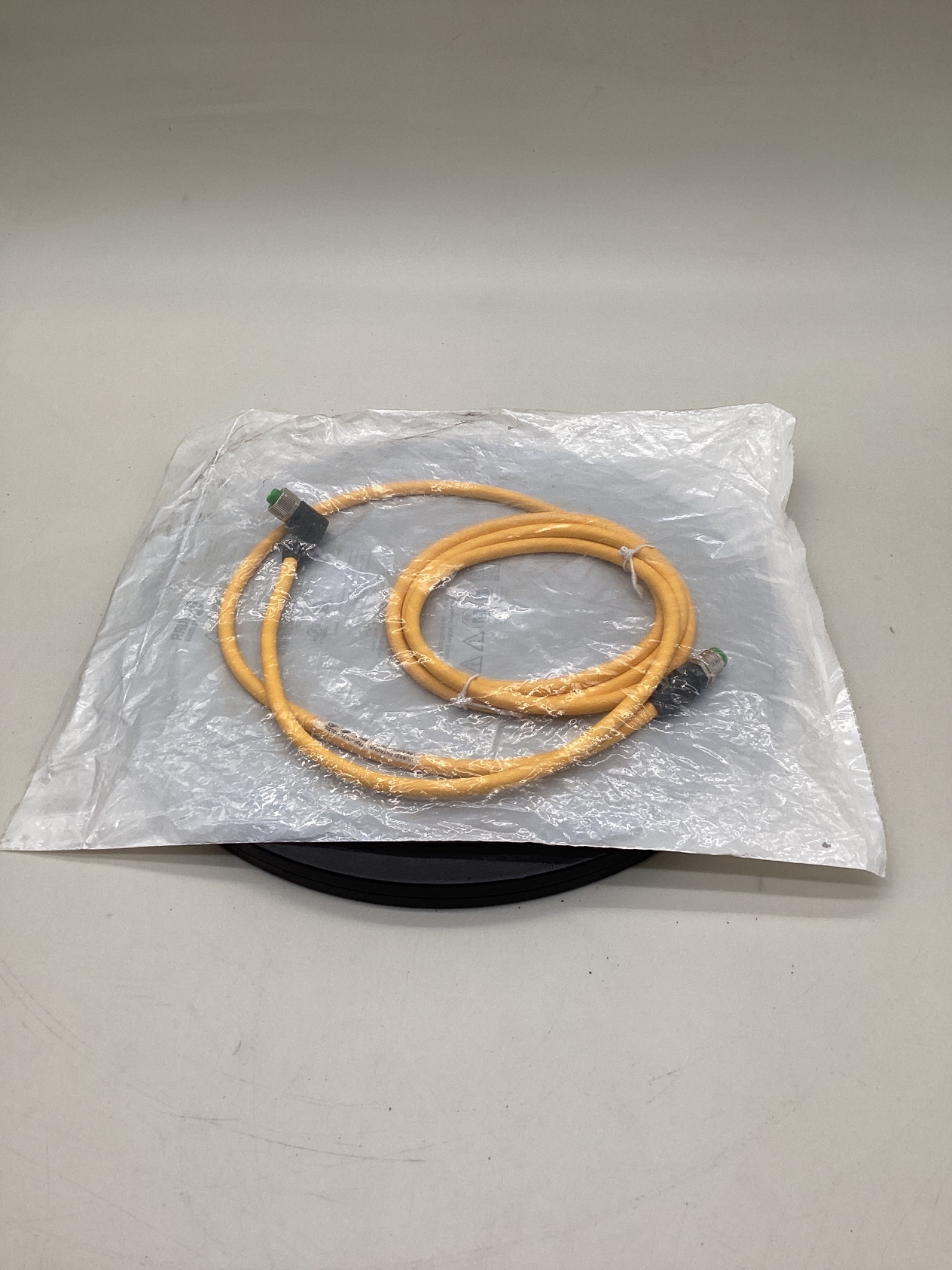

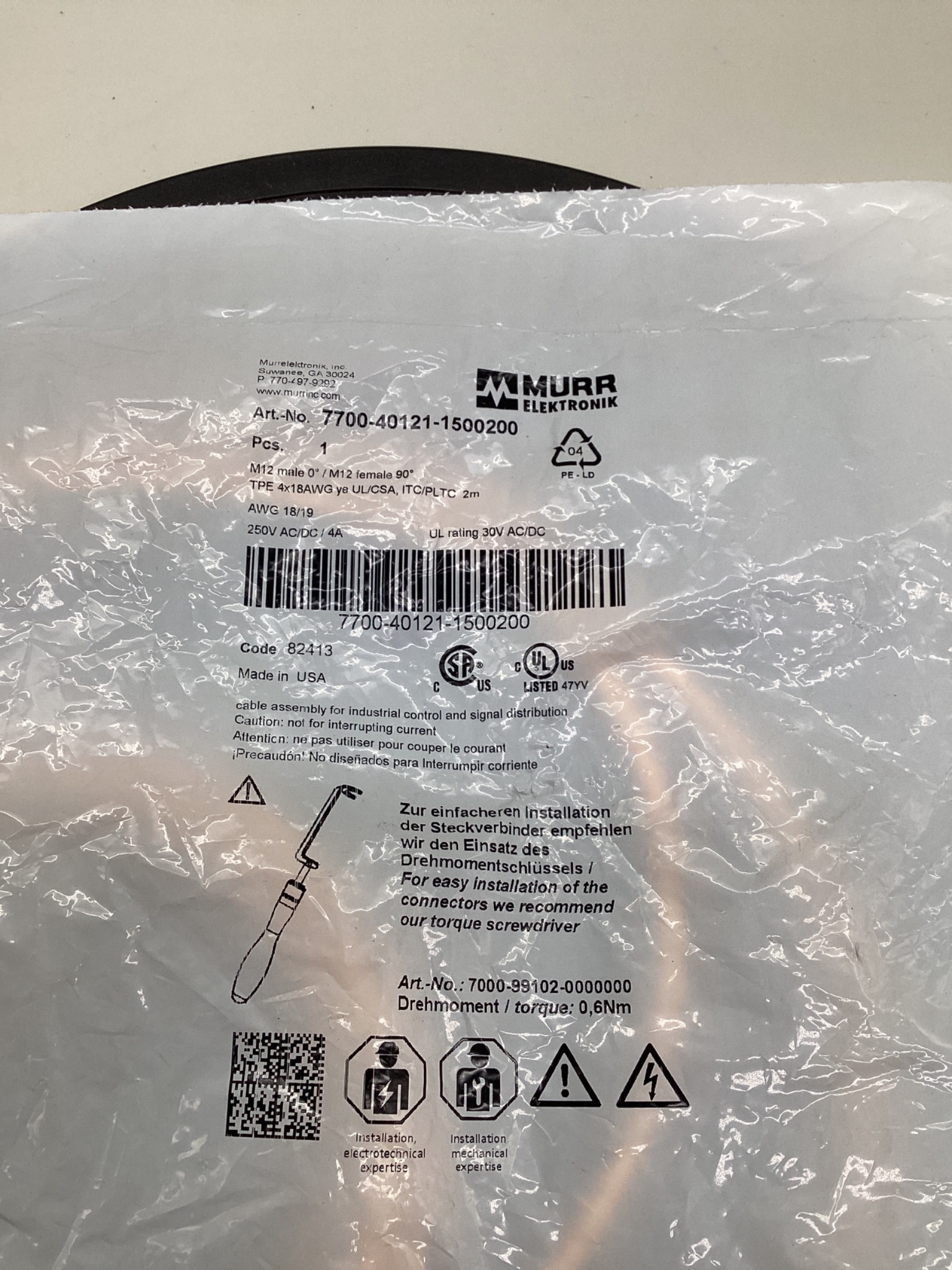

MURR ELEKTRONIK 7700-40121-1500200 M12 Male to M12 Female A-Coded Cordset 2M NEW

Specification Table

Manufacturer: Murrelektronik Part Number: 7700-40121-1500200 Condition: NEW YOM: n/a   Product Type: Sensor / Actuator Cordset Cable Family: M12 Connection Cable   Connector 1: M12 Male Straight (0°) Connector 2: M12 Female 90°   Connector Interface: M12 Connector Coding: A-Coded   Number of Poles: 4 Pin Count: 4-Pin   Cable Length: 2 m Cable Length: 6.56 ft   Cable Construction: 4 x 18 AWG Conductor Size: 18 AWG Cable Jacket Material: TPE Cable Color: Yellow   Rated Voltage: 250V AC/DC UL Voltage Rating: 30V AC/DC Rated Current: 4 A   Cable Designation: ITC Cable Designation: PLTC   Wiring Configuration: Pin-to-Pin   Pin 1 Wire Color: BN (Brown) Pin 2 Wire Color: WH (White) Pin 3 Wire Color: BU (Blue) Pin 4 Wire Color: BK (Black)   Connector Tightening: 0.6 Nm Torque Tool Reference: 7000-99102-0000000   Approvals: UL Listed Approvals: CSA   UL Category Code: 47YV Manufacturer Code: 82413   Country of Manufacture: USA   Factory Terminated: Yes Pre-Wired Assembly: Yes   Application Type: Industrial Control Application Type: Signal Distribution   Shielding: Not specified Protection Rating: Not specified Operating Temperature: Not specified   Quantity: 1
