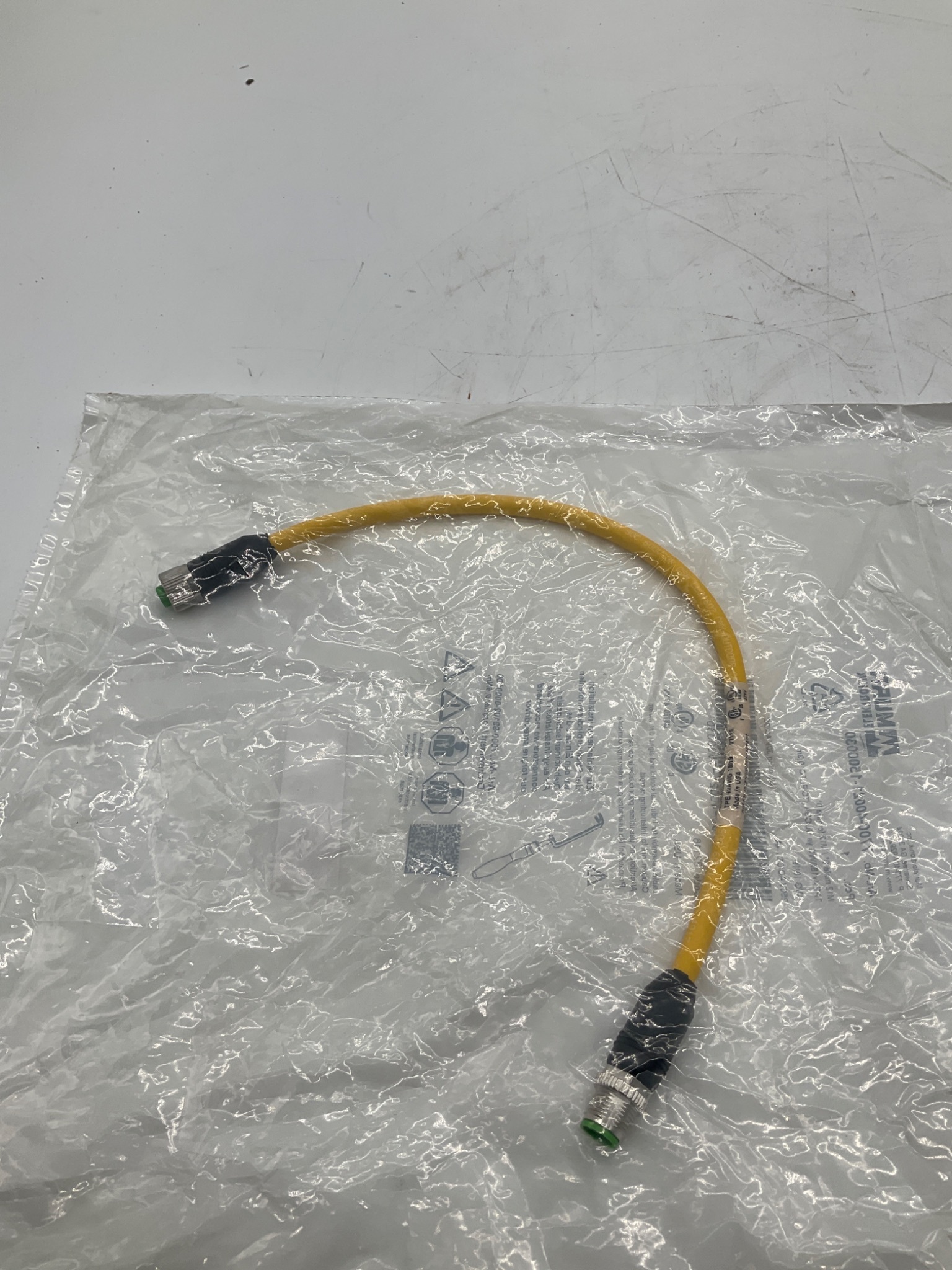

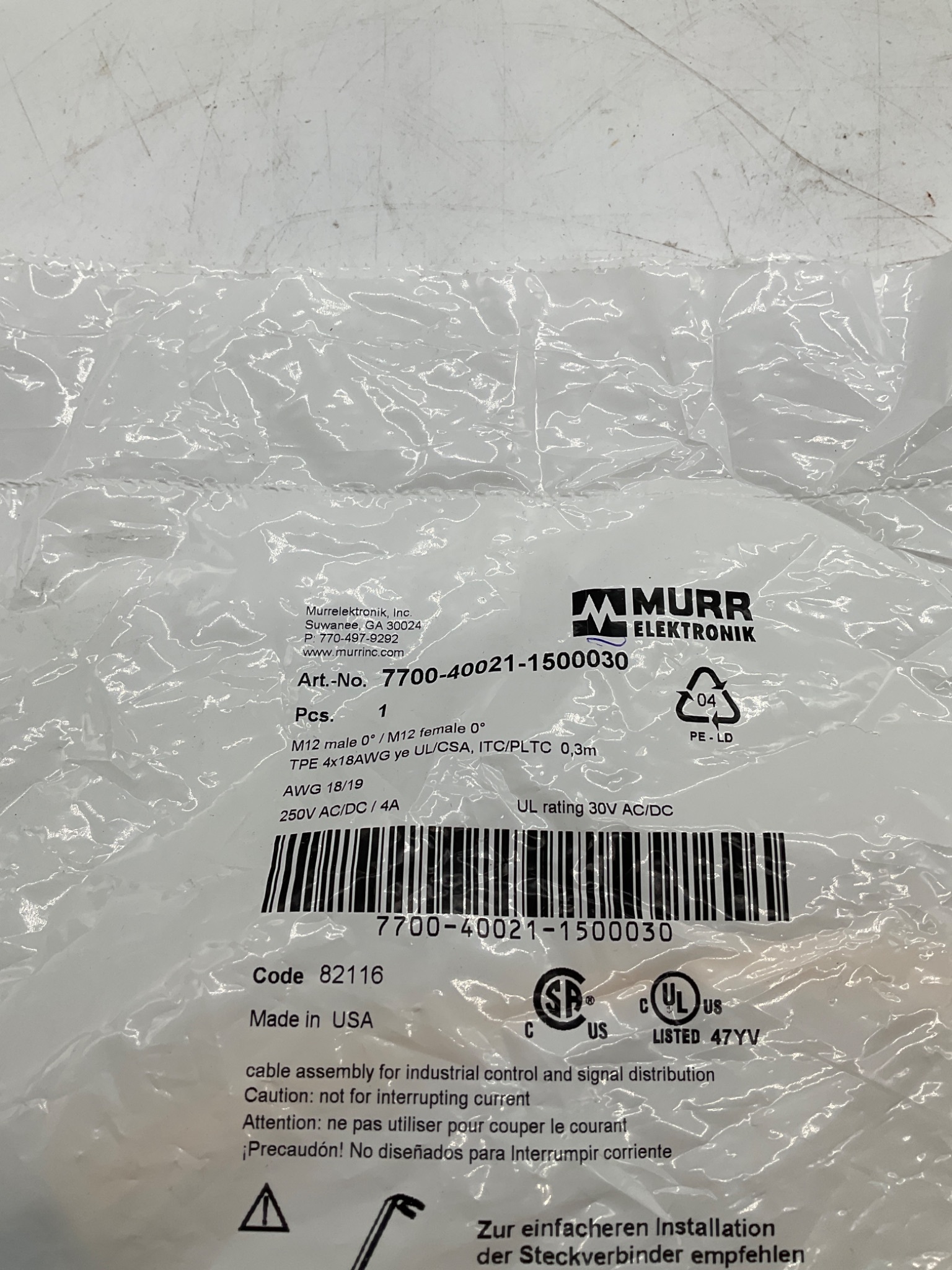

MURR ELEKTRONIK 7700-40021-1500030 M12 A-Coded Male/Female Cordset 0.3M NEW

Specification Table

Manufacturer: Murrelektronik Part Number: 7700-40021-1500030 Condition: NEW YOM: n/a   Product Type: Sensor / Actuator Cordset   Connector 1: M12 Male Straight (0°) Connector 2: M12 Female Straight (0°)   Connector Interface: M12 Connector Coding: A-Coded   Number of Poles: 4 Pin Count: 4-Pin   Cable Length: 0.3 m Cable Length: 0.98 ft   Cable Construction: 4 x 18 AWG Conductor Size: 18/19 AWG   Cable Jacket Material: TPE Cable Color: Yellow   Rated Voltage: 250V AC/DC UL Voltage Rating: 30V AC/DC   Rated Current: 4 A   Cable Designation: ITC Cable Designation: PLTC   Wiring Configuration: Pin-to-Pin   Pin 1 Conductor: BN (Brown) Pin 2 Conductor: WH (White) Pin 3 Conductor: BU (Blue) Pin 4 Conductor: BK (Black)   Approvals: UL Listed Approvals: CSA Certified   UL Category Code: 47YV   Country of Manufacture: USA   Connector Torque: 0.6 Nm Torque Tool Reference: 7000-99102-0000000   Application: Industrial Control Application: Signal Distribution
