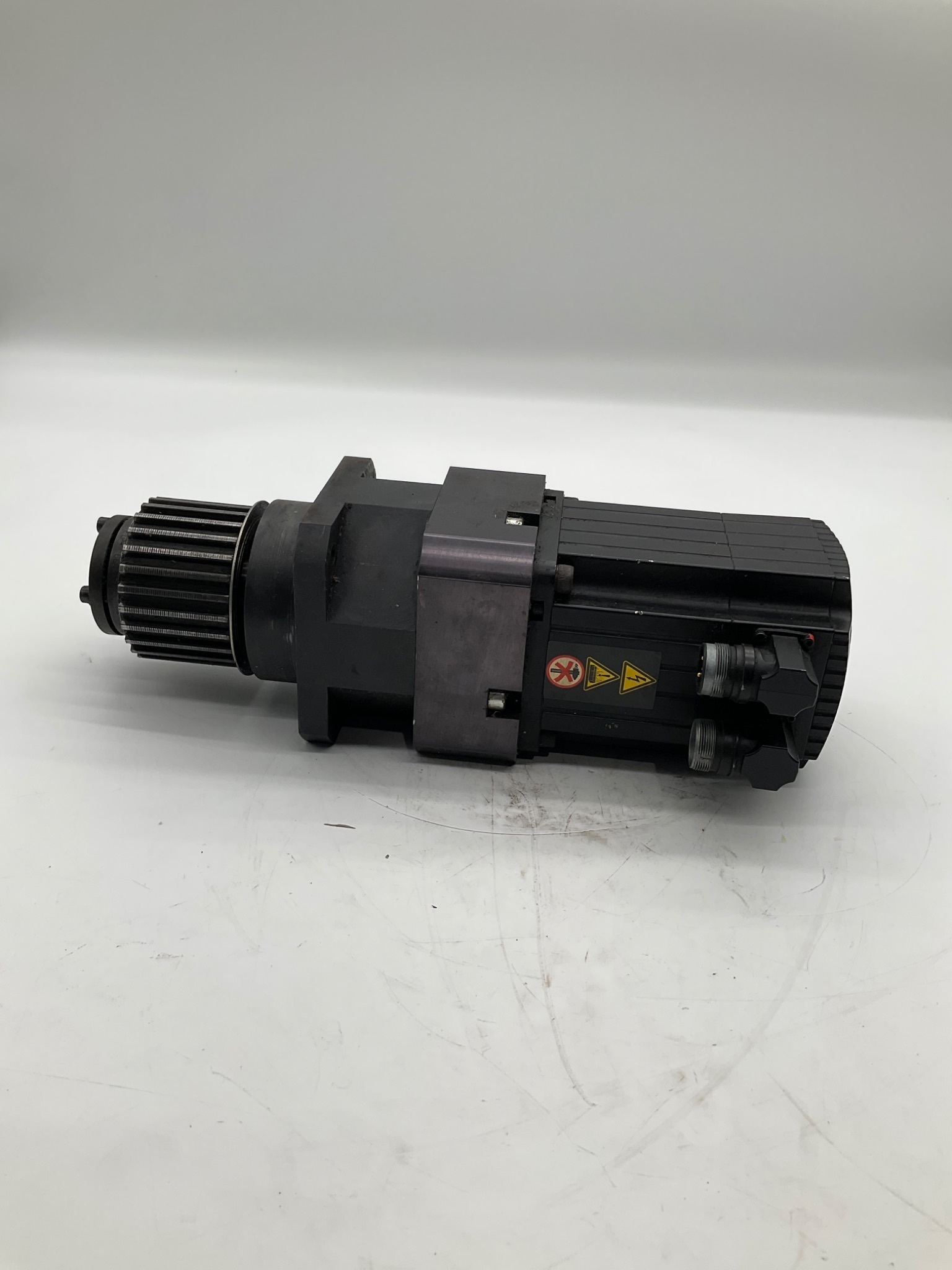

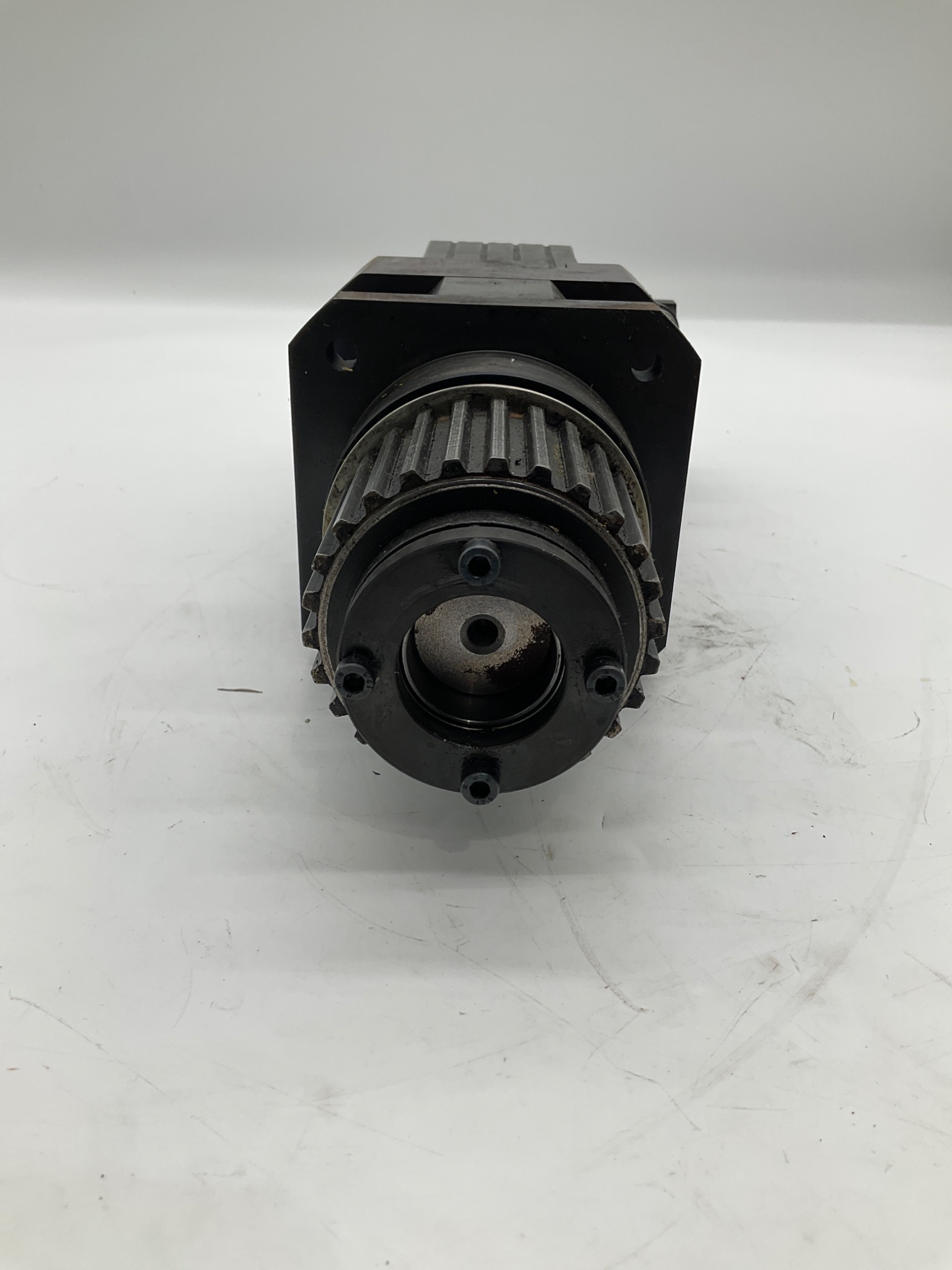

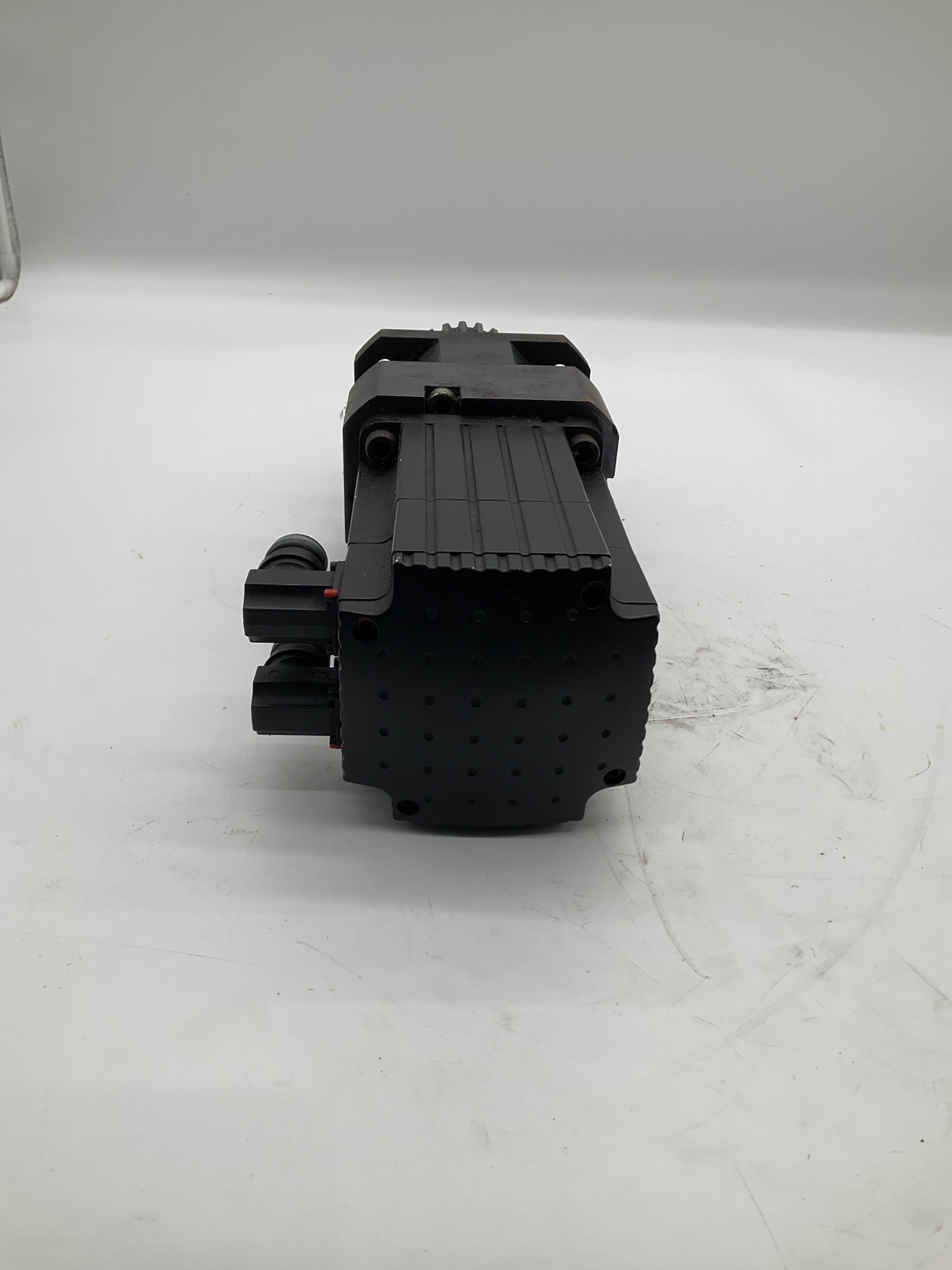

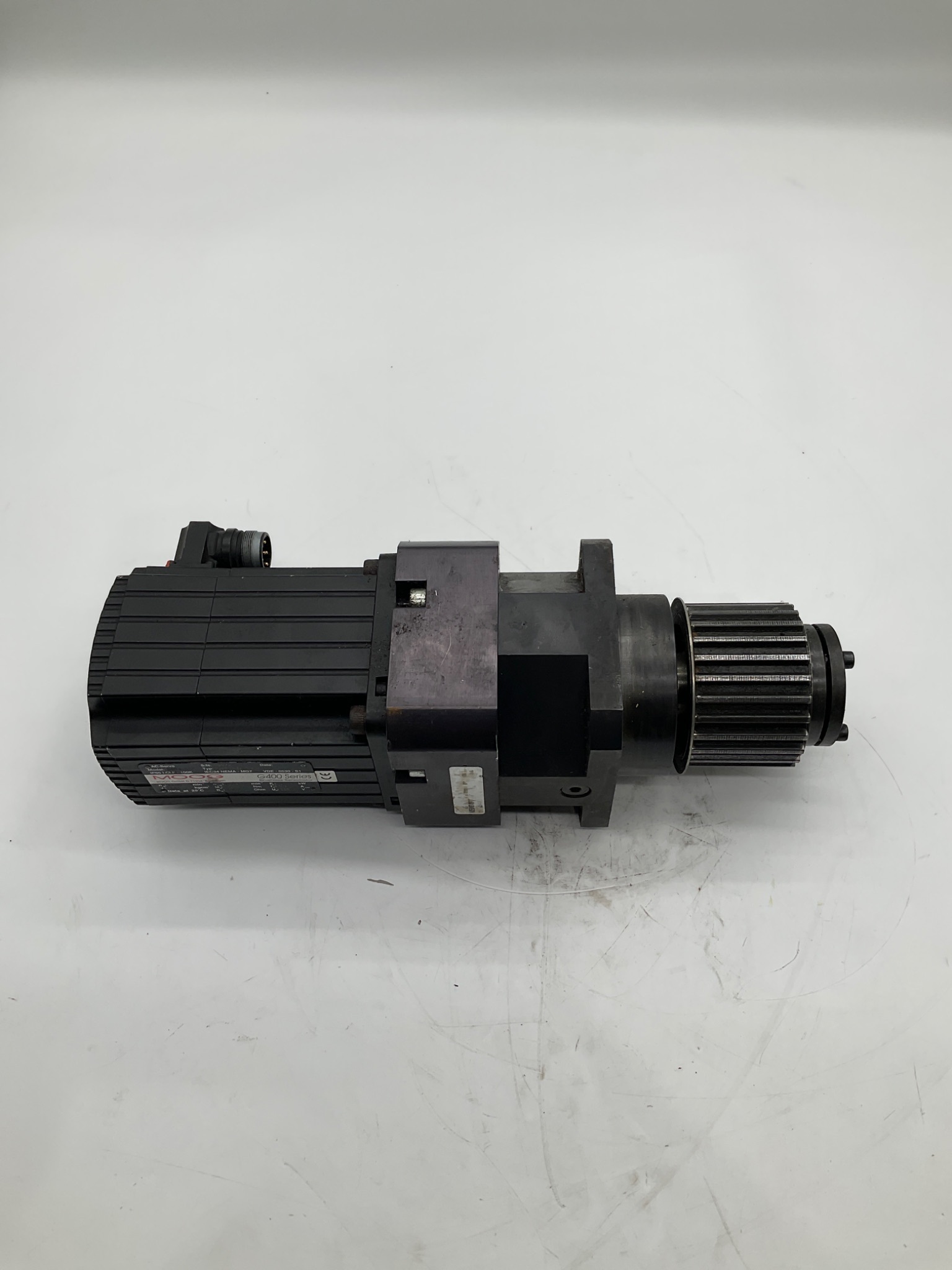

MOOG G404-543 Brushless Servo Motor USED

$350.00
Availability:

1 in stock
BRAND: MOOG MODEL: G404-543 CONDITION: used
SKU: IGAM2850066 Weight: 26 lbs Shipping Calculated at Checkout

1 in stock

Make an offer

Overview

This listing is for a USED Moog G404-543 brushless servo motor. The G400 Series motor provides precision rotary motion for servo-controlled machinery and automated equipment. This configuration incorporates a brushless AC servo design and is intended for motion control, positioning, and machine drive applications.

Specification Table

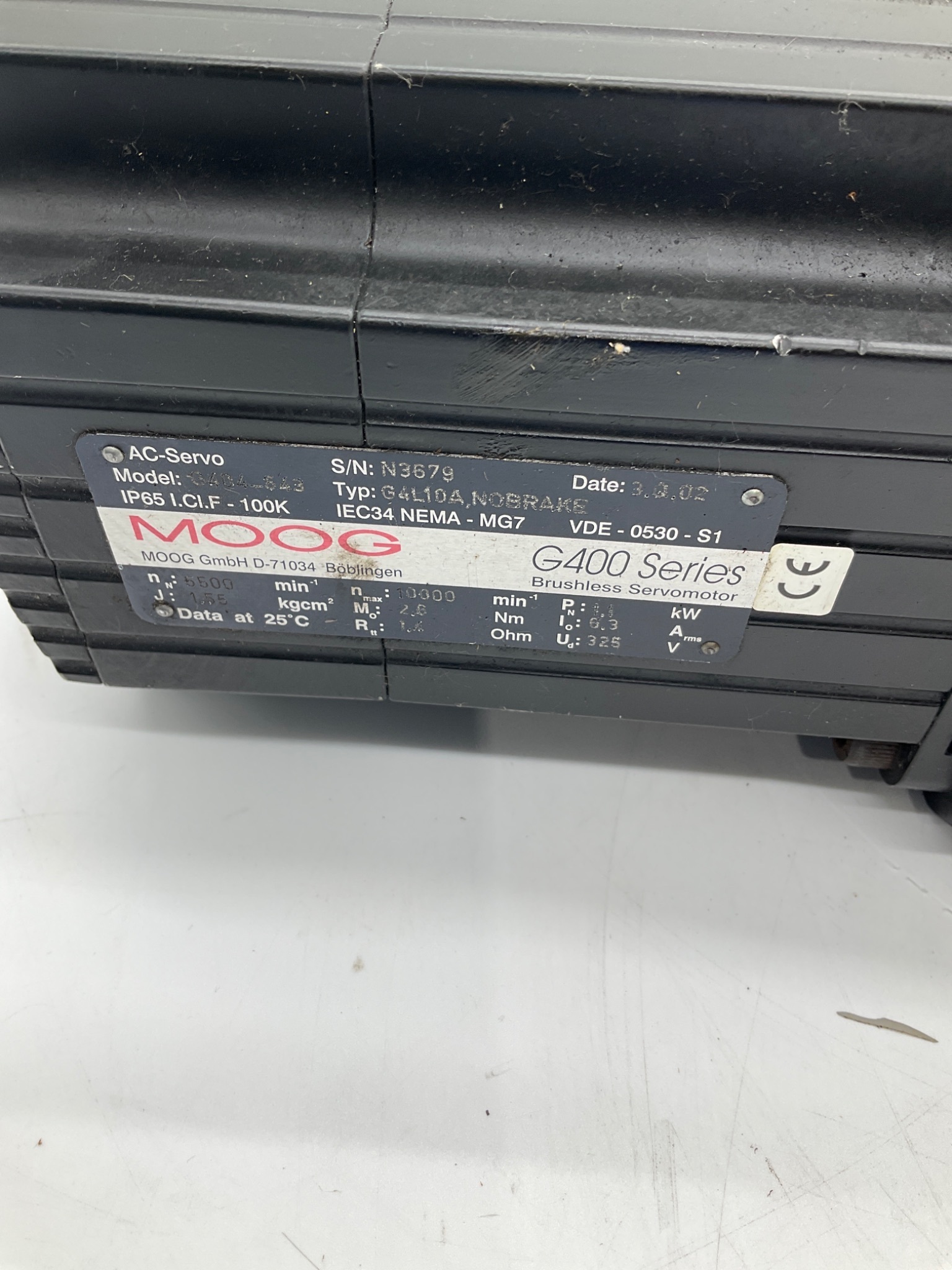

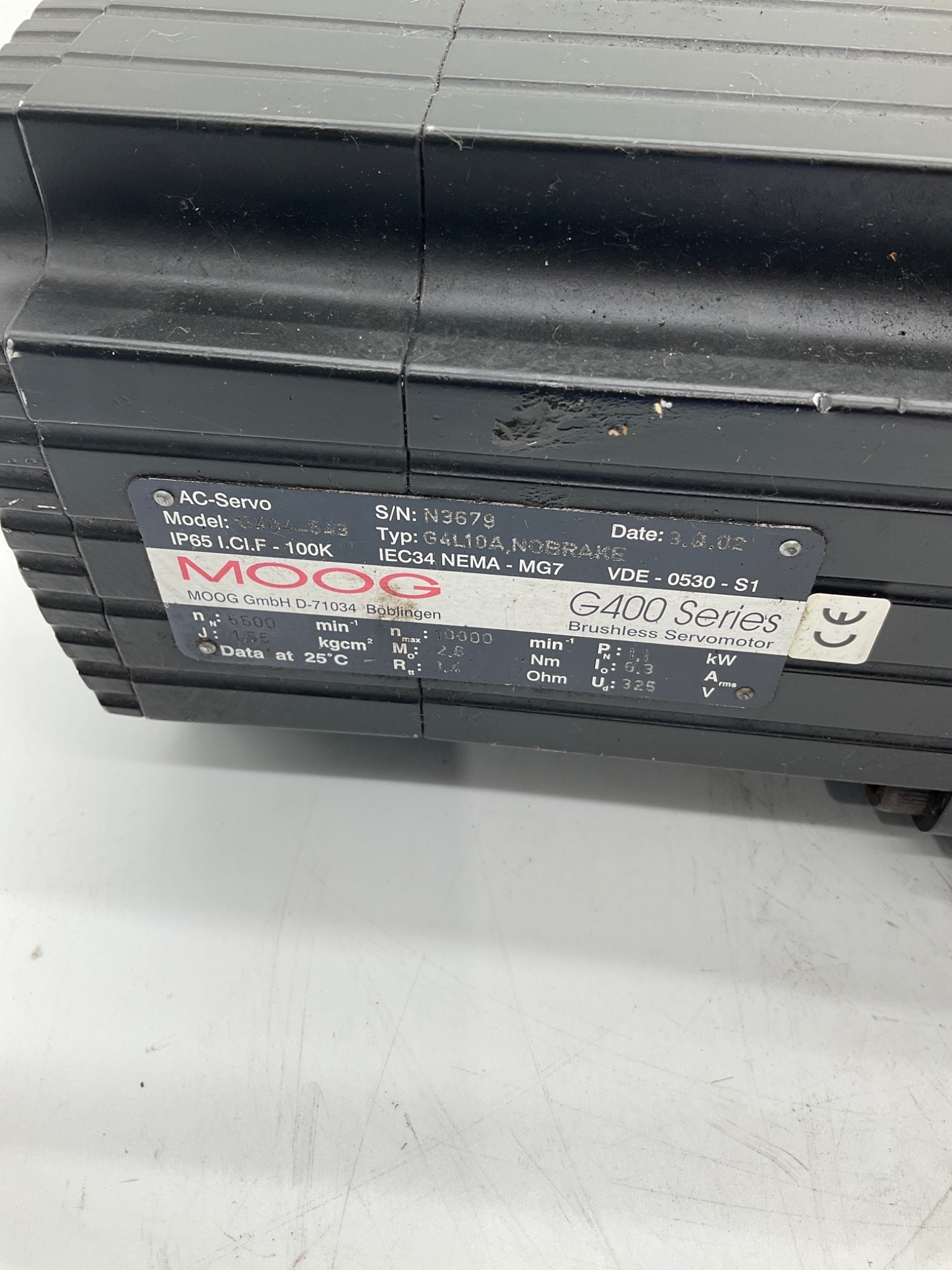

Manufacturer: Moog Part Number: G404-543 Series: G400 Series Product Type: Brushless Servo Motor Condition: USED   Motor Type: AC Servo Motor Motor Design: Brushless Enclosure Rating: IP65 Insulation Class: F Temperature Rise: 100K   Rated Speed: 5500 RPM Maximum Speed: 10000 RPM   Rated Torque: 2.8 Nm Rotor Inertia (J): 1.55 kgcm²   Rated Power: 1.3 kW Rated Current (Io): 6.3 Arms Rated Voltage (Ud): 325 V   Motor Constant (Kt): 0.48 Nm/A Phase Resistance (Rt): 1.4 Ohm   Frame Standard: IEC34 / NEMA MG7   Drive-End Component: Installed Drive-End Component Type: Not specified   Serial Number: N3679   Country of Origin: Germany
