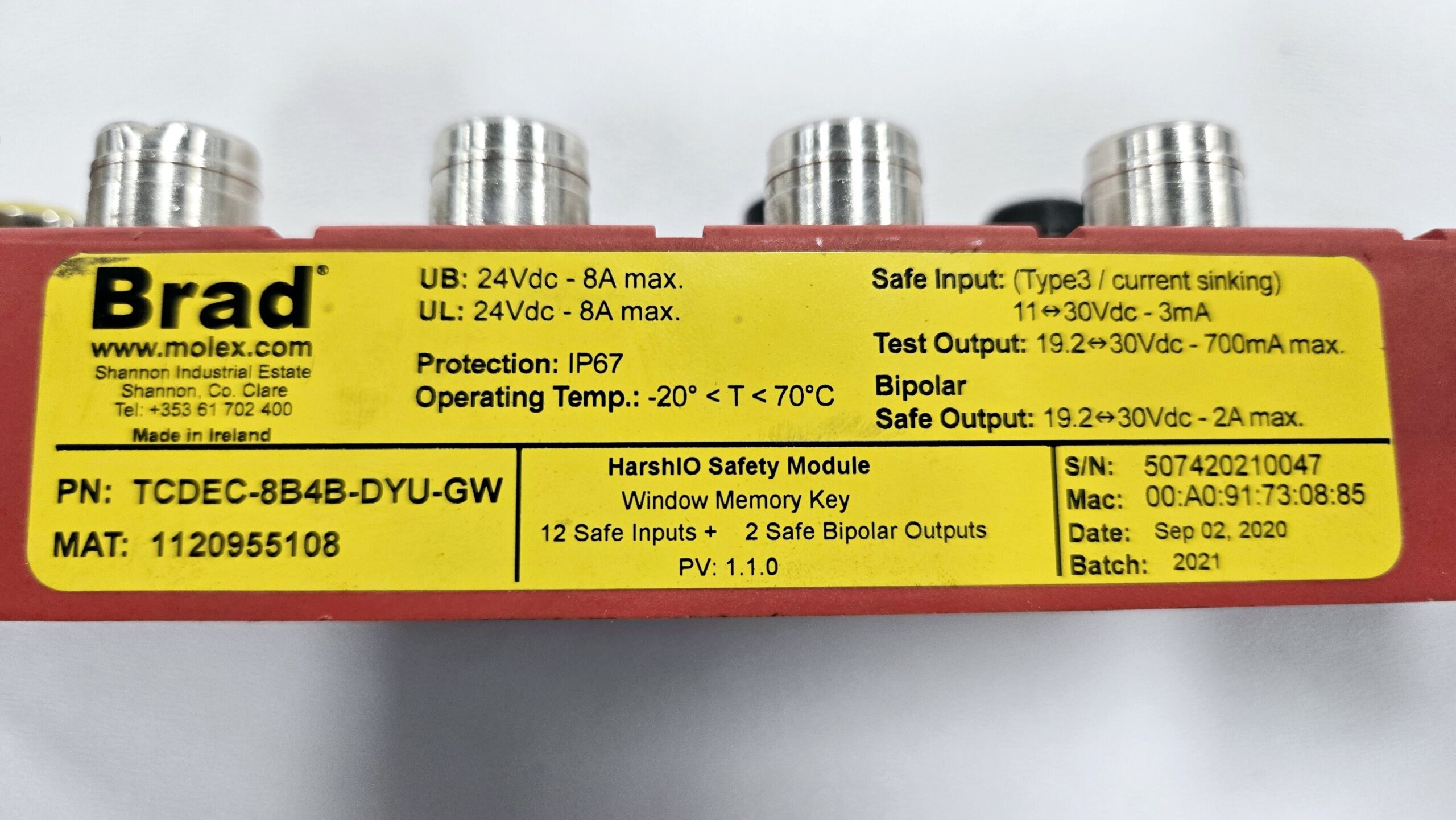

Specification Table
Manufacturer: Molex (Brad / Woodhead)

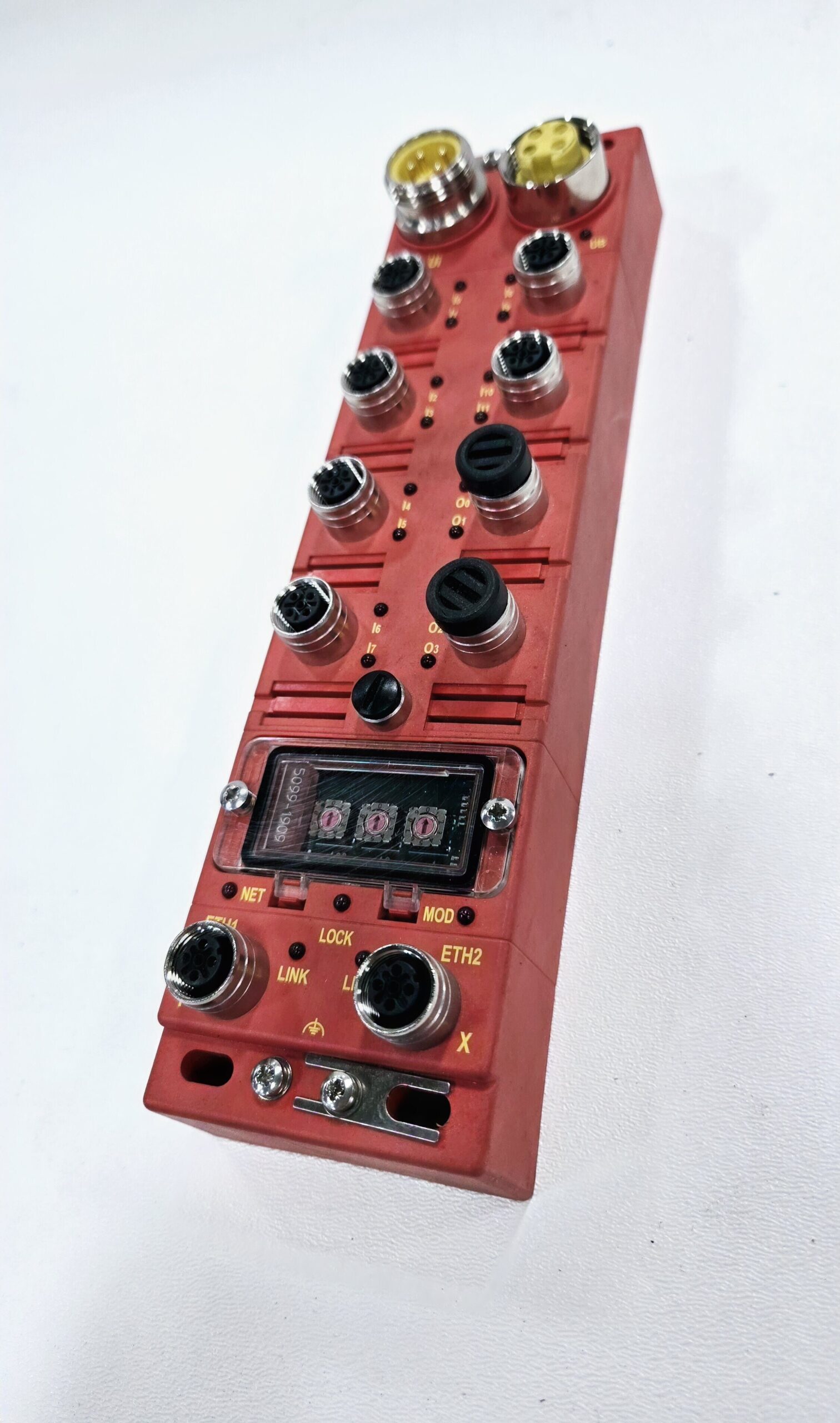

Model/Series: HarshIO Safety Module
Part Number: TCDEC-8B4B-DYU-GW
Condition: USED
YOM: 2020
Function: Distributed Safety I/O Module
Inputs: 12 Safe Inputs (Type 3, current sinking)
Outputs: 2 Safe Bipolar Outputs
Input Voltage: 11–30 VDC
Output Voltage: 19.2–30 VDC
Output Current: Up to 2A max
Supply Voltage: 24 VDC (8A max)
Protection Rating: IP67
Operating Temperature: -20°C to +70°C
Communication: Industrial Ethernet (Dual Port)
Connection Type: M12 Circular Connectors
Product Specifications
-
Manufacturer: Molex (Brad Automation)
-
Model Number: TCDEC-8B4B-DYU-GW
-
Type: Digital I/O Module
-
Input Channels: 8 digital inputs
-
Output Channels: 4 digital outputs (PNP)
-
Communication Protocol: Ethernet/IP
-
Connector Type: M12 (A-coded) ports for I/O and network
-
Mounting: Machine-mountable
-
Protection Rating: IP67
-
Power Supply: 24V DC
Key Features
-
Integrated Ethernet/IP communication for fast, reliable data exchange
-
Robust IP67 housing for use in harsh or wet environments
-
LED indicators for I/O and network diagnostics
-
Compact design supports space-constrained installations
-
Simplifies wiring with direct sensor/actuator connections via M12 ports
-
Compatible with Rockwell, Siemens, and other major control platforms
-
Designed for plug-and-play integration with modular fieldbus systems
Applications
-
Automotive manufacturing lines
-
Packaging and bottling systems
-
Food and beverage automation
-
Distributed I/O in material handling systems
-
Robotics and assembly cell integration
