MILCO 665-16001-66 Pinch-Type Weld Gun USED – Weld & Water Tested

Product Specifications:

• Manufacturer: MILCO

• Model Number: 665-16001-66

• Weld Type: Pinch-Type Resistance Spot/Projection Welding

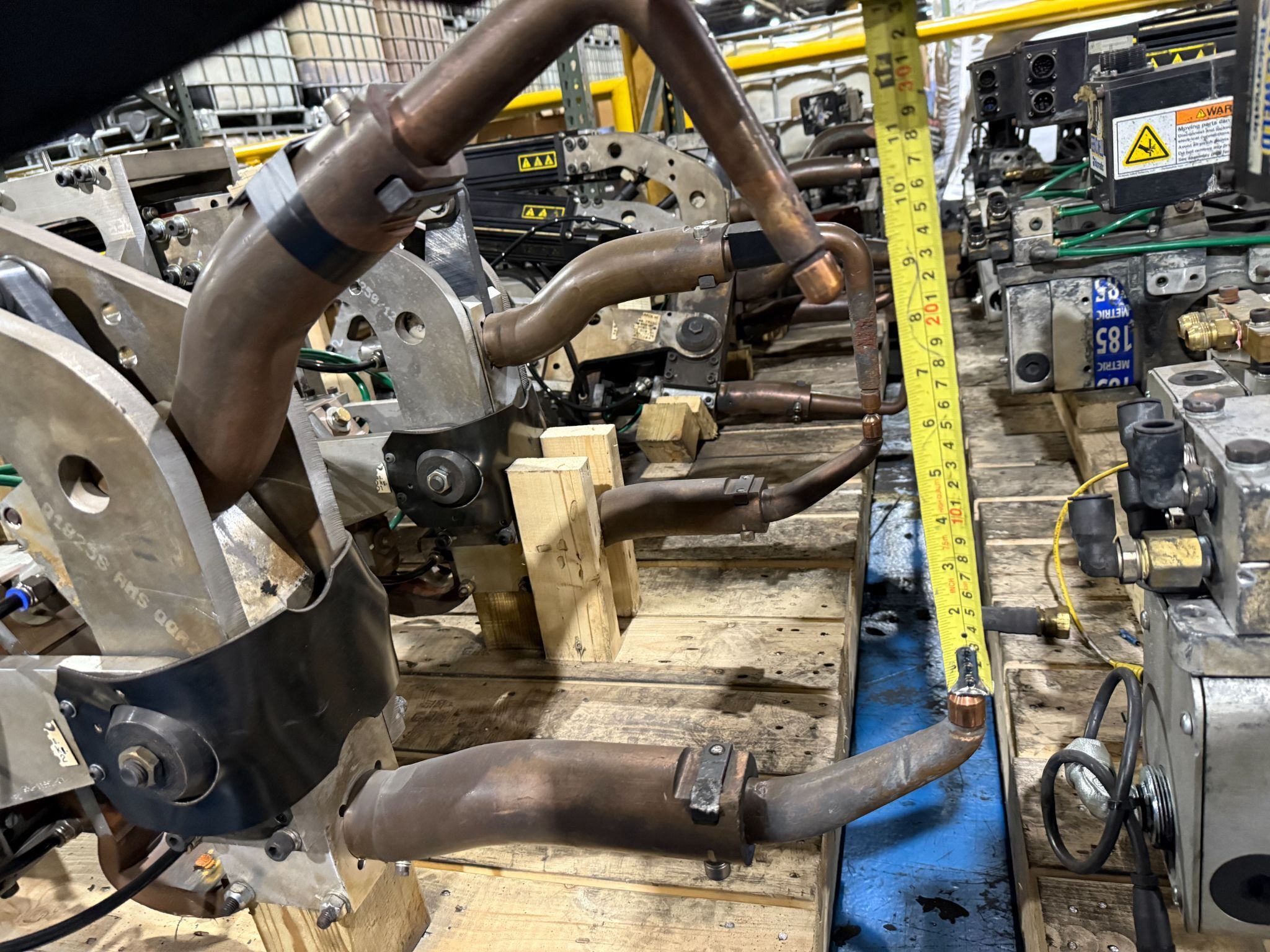

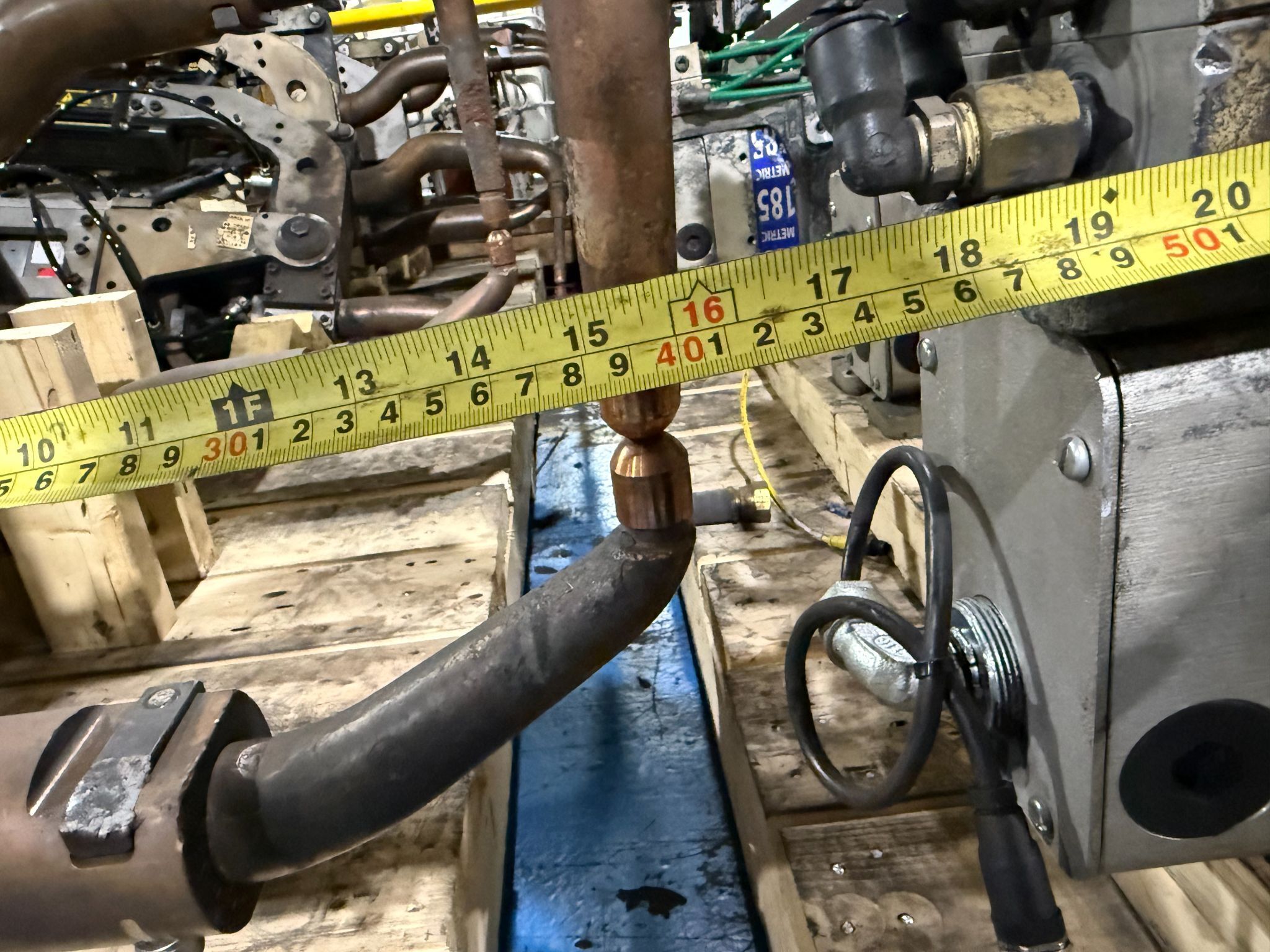

• Max Tip Opening: 8.25 inches

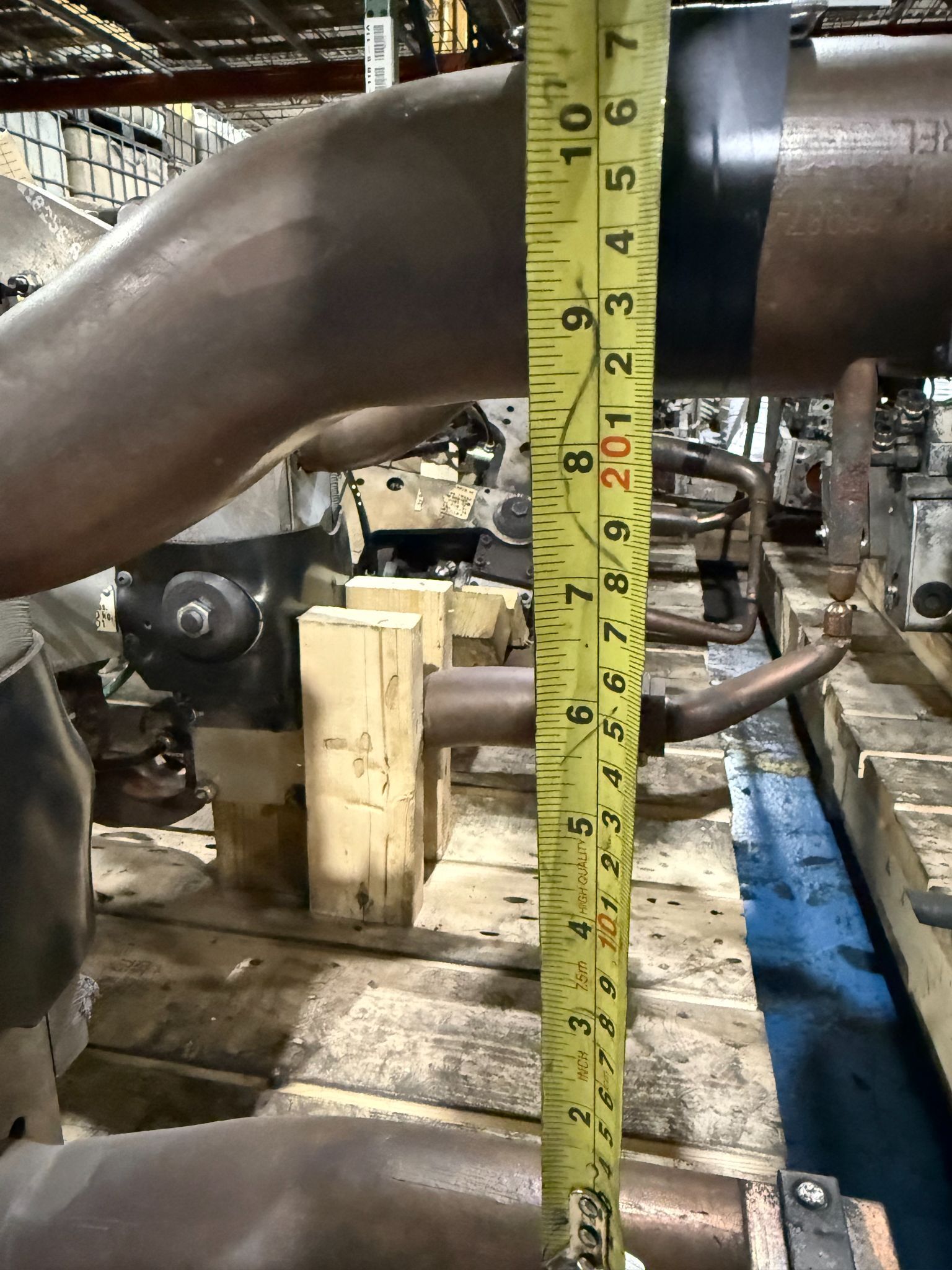

• Jaw Height (Closed): 8.5 inches

• Throat Depth: 15.5 inches

• Actuation: Pneumatic or hydraulic (confirm per unit setup)

• Cooling System: Water-cooled (tested and verified)

• Mounting: Robotic or fixture-compatible

• Condition: Used (weld & water tested)

Key Features:

• Wide 8.25″ tip opening accommodates thick or wide assemblies

• 15.5″ throat depth enables access to deep weld points

• Weld and water tested to ensure operational integrity and cooling efficiency

• Heavy-duty construction for long life in high-cycle environments

• Compatible with both robotic automation and manual welding setups

Applications:

• Automotive Chassis and Frame Assembly

• Appliance and Equipment Fabrication

• Heavy-Duty Sheet Metal Welding

• Structural Component Production

• Robotic Welding Integration
