Specification Table
| CNC Control |
Professional 5 |
| # Axis |
3 |
| Table-L |
33.5″ |
| Table-W |
19.5″ |
| Max Table Load |
660 |
| X-axis Travel |
23.6″ |
| Y-axis Travel |
17.7″ |
| Z-axis Travel |
17.7″ |
| Spindle Taper |
30 |
| Spindle Speed |
29,000 RPM |
| Main Motor |
18.5 hp |
| # ATC |
25 |
| Machine Weight |
16100 |
Professional 5 Control
Fanuc 310is Model A
BLUM laser
X-axis 25.6″, Y-axis 17.7″, Z-axis 17.7″
40,000 RPM spindle speed.

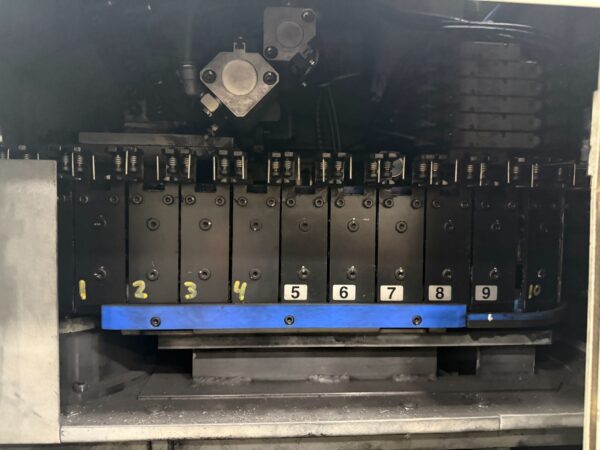

30-tool automatic tool changer.
Maximum Tool Length 9.84″
Maximum Tool Weight 2.3 LBS
Extor graphite dust collector
Oilmatic Spindle Chiller
Ideal for graphite precision and efficiency.
Equipped With
Professional 5 Control
Fanuc 310is Model A
BLUM laser
X-axis 25.6″, Y-axis 17.7″, Z-axis 17.7″
40,000 RPM spindle speed.
30-tool automatic tool changer.
Maximum Tool Length 9.84″
Maximum Tool Weight 2.3 LBS
Extor graphite dust collector
Oilmatic Spindle Chiller
Ideal for graphite precision and efficiency.
Product Specifications
-
Model: Makino E33
-
Year: 2005
-
Machine Type: Graphite Vertical Machining Center
-
Control: Professional 5 (Fanuc 310is Model A)
-
X-Axis Travel: 25.6 inches
-
Y-Axis Travel: 17.7 inches
-
Z-Axis Travel: 17.7 inches
-
Spindle Speed: 40,000 RPM
-
Tool Changer Capacity: 30-tool automatic tool changer (ATC)
-
Maximum Tool Length: 9.84 inches
-
Maximum Tool Weight: 2.3 lbs
-
Auxiliary Equipment: BLUM laser, Extor graphite dust collector, Oilmatic spindle chiller
Key Features
-
40,000 RPM high-speed spindle ideal for fine, detailed graphite machining
-
Professional 5 control with Fanuc 310is for precise, intuitive CNC operation
-
BLUM laser system ensures high-accuracy tool measurement and compensation
-
Graphite dust management via Extor system ensures clean operation and part integrity
-
Oilmatic spindle chiller maintains thermal stability for consistent tolerances
-
30-position ATC supports complex toolpaths and high mix machining
-
Compact yet spacious work envelope for mold making, EDM electrode machining, and more
Applications
-
Graphite electrode manufacturing for EDM processes
-
Precision mold and die work requiring tight tolerances and high finish
-
Aerospace and automotive prototyping involving carbon-based materials
-
Medical and electronics parts from brittle, dust-sensitive materials
-
Clean machining environments where dust collection is critical
