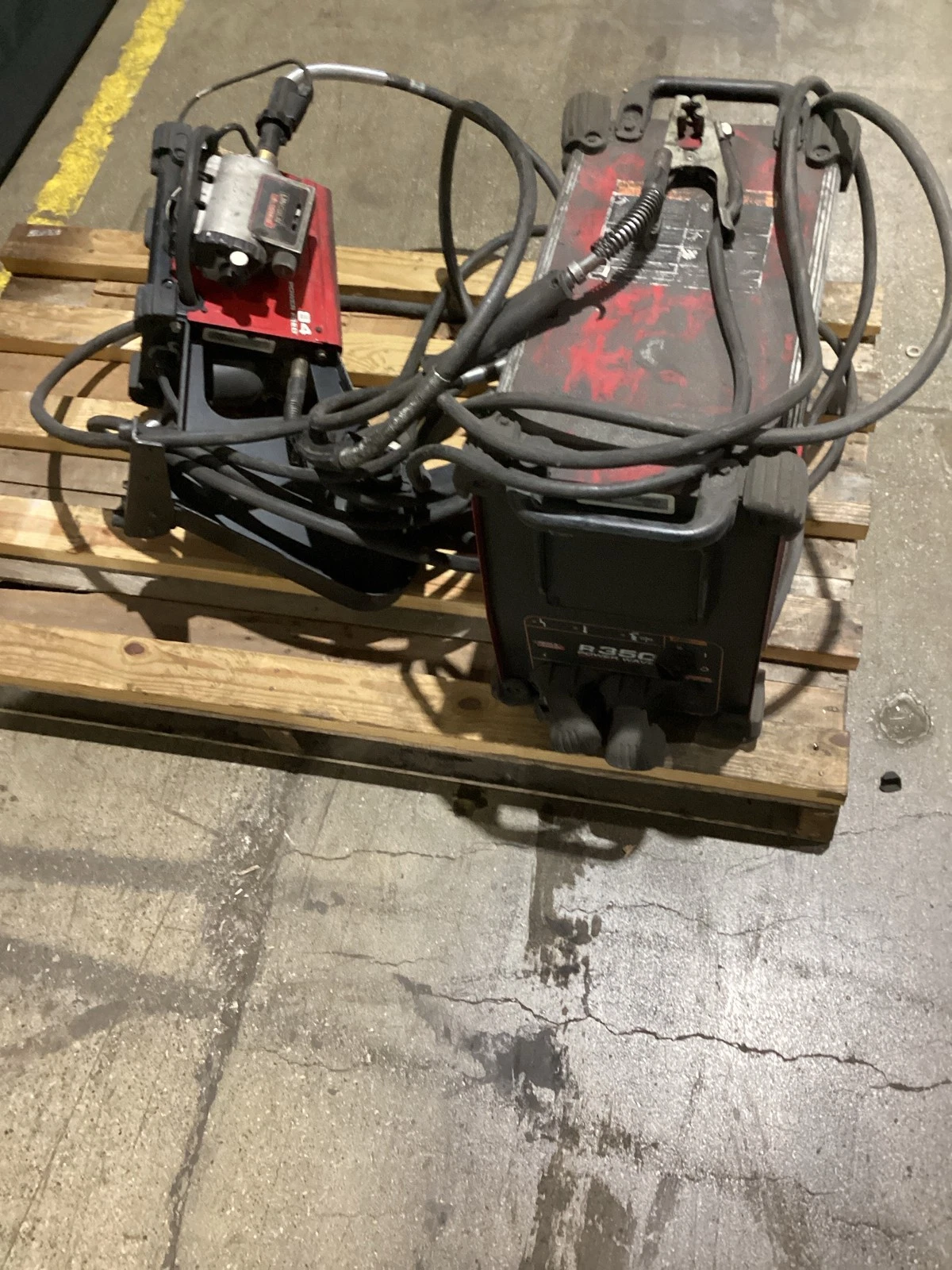

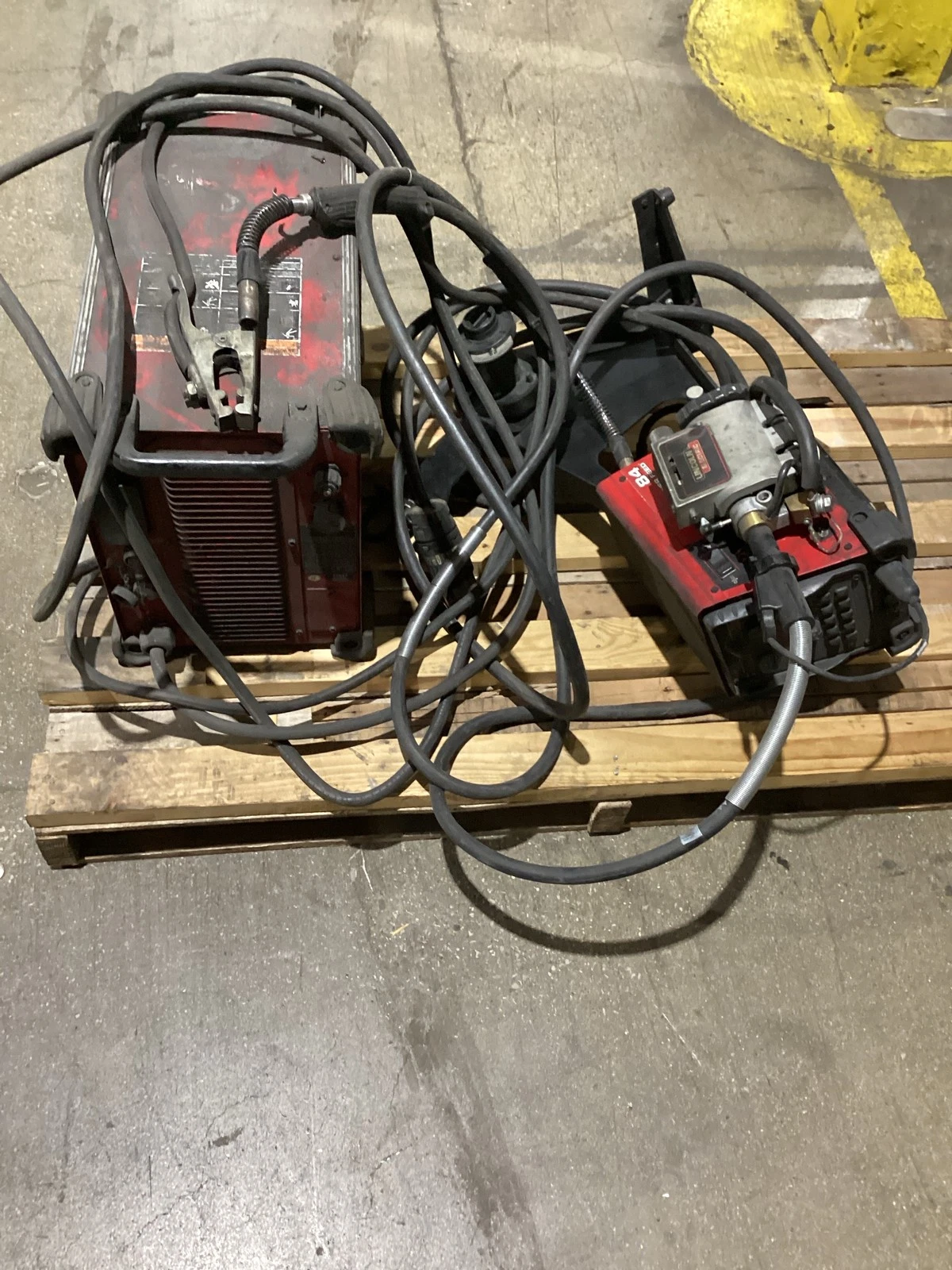

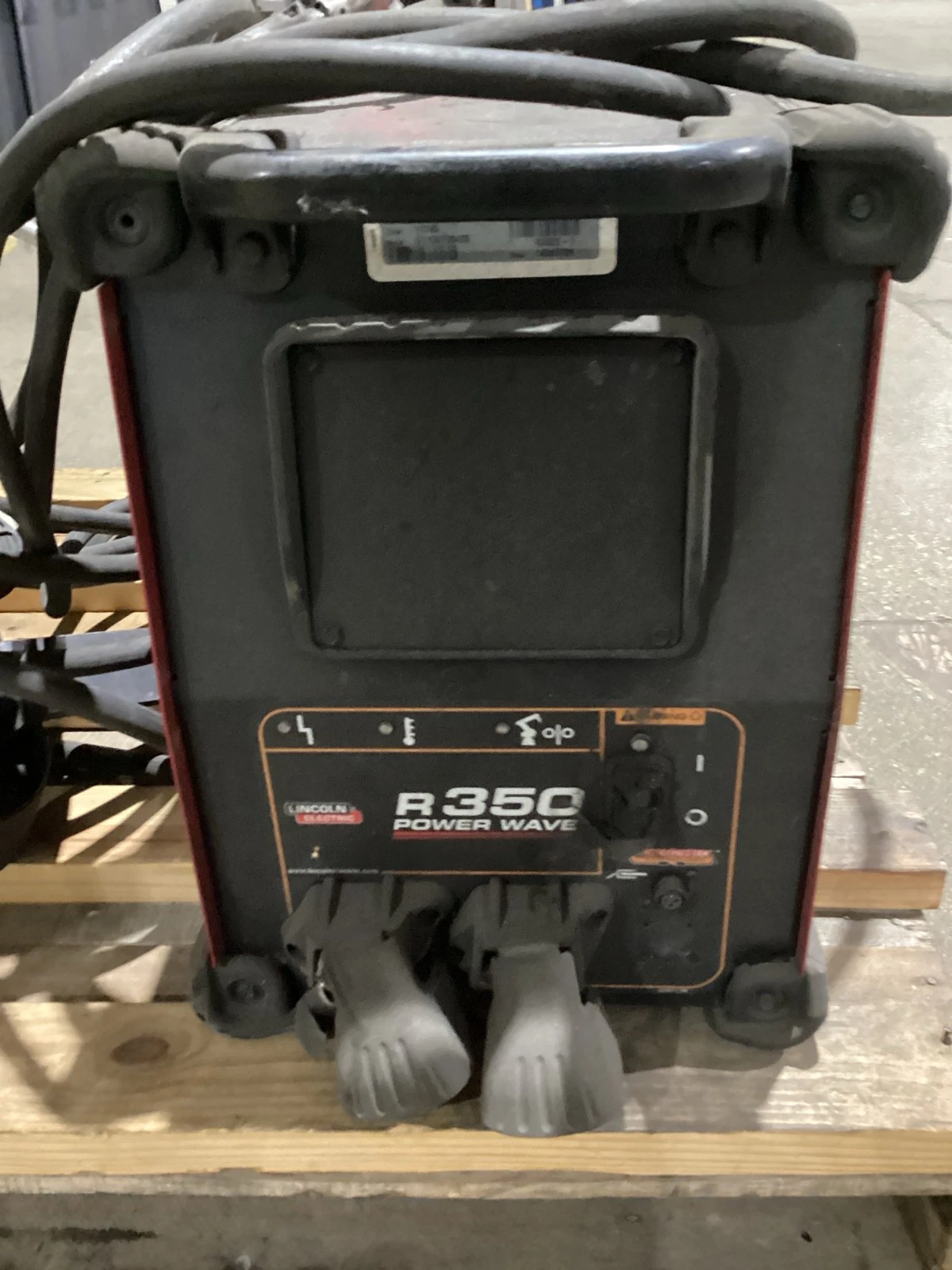

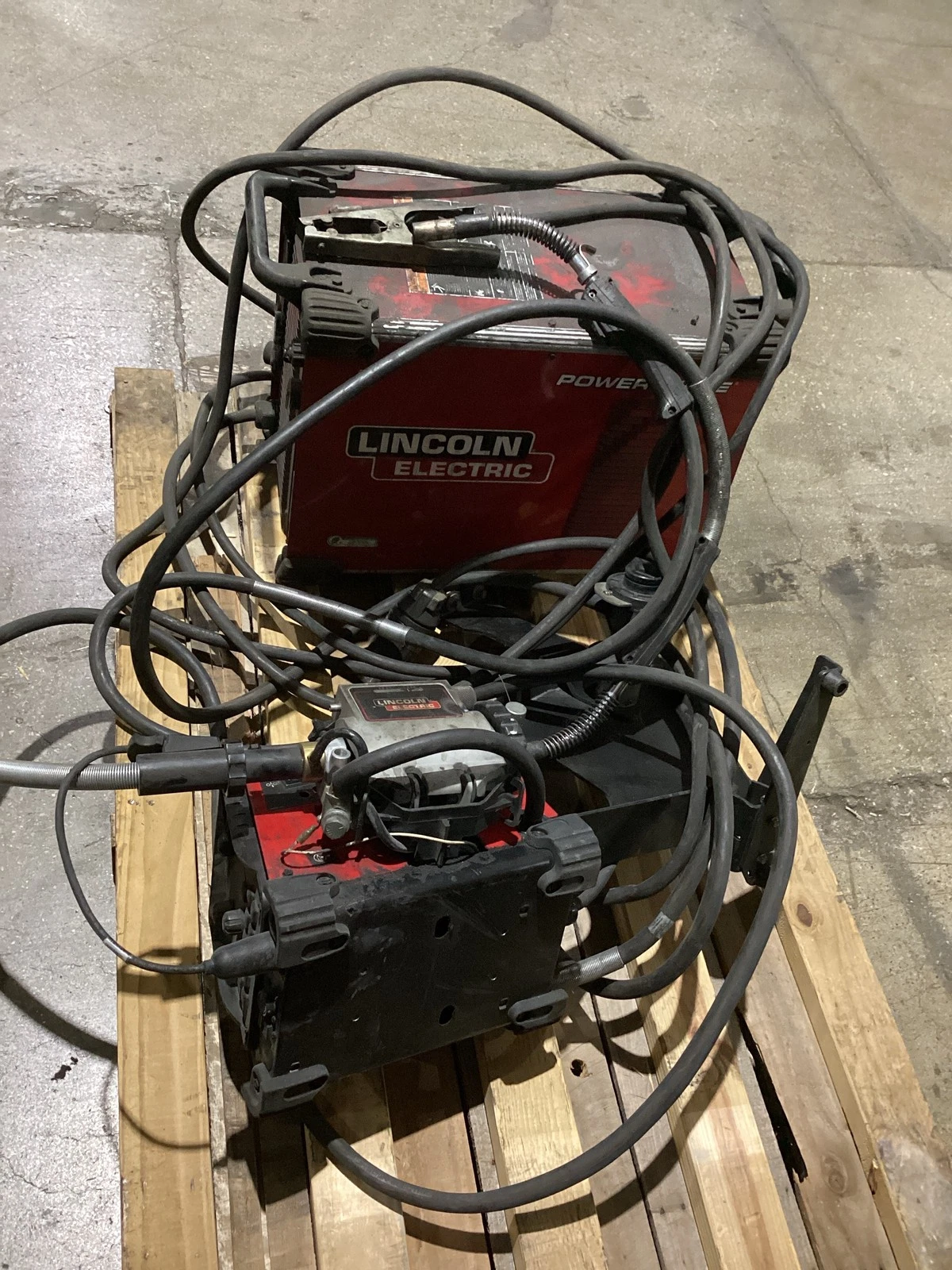

LINCOLN ELECTRIC POWER WAVE R350 With POWER FEED 84 Wire Feeder USED

Specification Table

Input Voltage

220/460

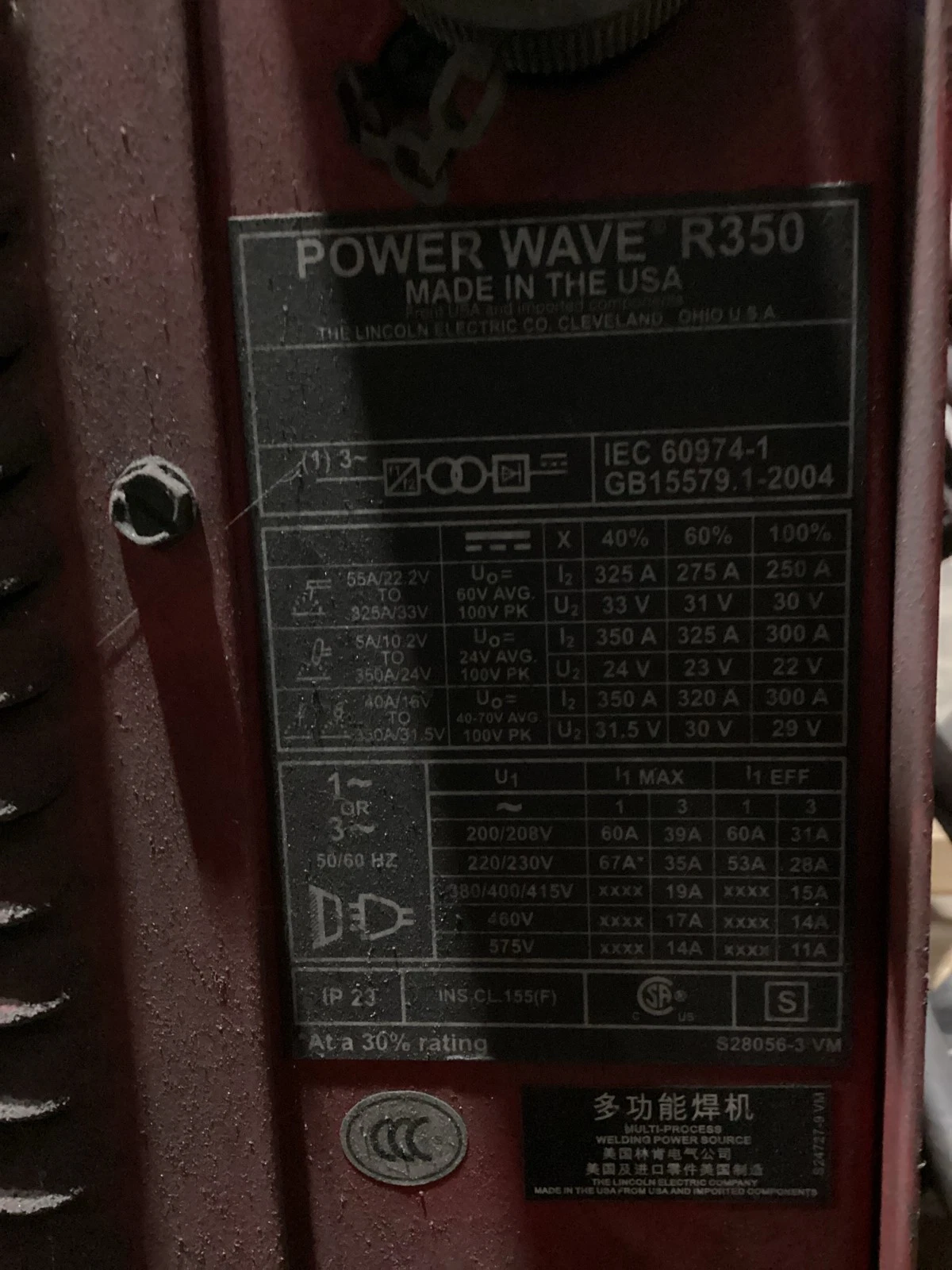

IDENTIFICATION Manufacturer:               Lincoln Electric Power Source Model:         Power Wave R350 Wire Feeder Model:          Power Feed 84 Product Type:               Multi-Process Welding System Condition:                  USED Country of Origin:          USA YOM:                        n/a WELDING PROCESSES MIG Welding:                Supported Flux-Cored Welding:         Supported Stick Welding (SMAW):       Supported TIG Welding (GTAW):         Supported Pulse Welding:              Supported Advanced Waveform Control:  Supported POWER SOURCE OUTPUT Maximum Output Current:     350 A 40% Duty Cycle:             325 A @ 33 V 60% Duty Cycle:             275 A @ 31 V 100% Duty Cycle:            250 A @ 30 V 40% Duty Cycle:             350 A @ 24 V 60% Duty Cycle:             325 A @ 23 V 100% Duty Cycle:            300 A @ 22 V 40% Duty Cycle:             350 A @ 31.5 V 60% Duty Cycle:             320 A @ 30 V 100% Duty Cycle:            300 A @ 29 V OUTPUT CHARACTERISTICS Open Circuit Voltage:       60 V Average Peak Voltage:               100 V Peak Output Range:               40-70 V Average INPUT POWER Input Phase:                Single or Three Phase Frequency:                  50/60 Hz Input Voltage:              200/208 VAC Input Voltage:              220/230 VAC Input Voltage:              380/400/415 VAC Input Voltage:              460 VAC Input Voltage:              575 VAC INPUT CURRENT 200/208V 1Ø Max:            60 A 200/208V 3Ø Max:            39 A 220/230V 1Ø Max:            67 A 220/230V 3Ø Max:            35 A 460V 3Ø Max:                17 A 460V 3Ø Effective:          14 A 575V 3Ø Max:                14 A 575V 3Ø Effective:          11 A WIRE FEEDER Manufacturer:               Lincoln Electric Model:                      Power Feed 84 Input Voltage:              40 VDC Input Current:              9 A Output Rating:              600 A @ 60% Duty Cycle Output Rating:              500 A @ 60% Duty Cycle Output Rating:              600 A @ 30% Duty Cycle Protection Rating:          IP2X COMMUNICATION ArcLink Compatible:         Yes Digital Process Control:    Yes PROTECTION Power Source Rating:        IP23 Wire Feeder Rating:         IP2X Insulation Class:           Class 155 (F) CERTIFICATIONS CSA Certified:              Yes IEC 60974-1:
