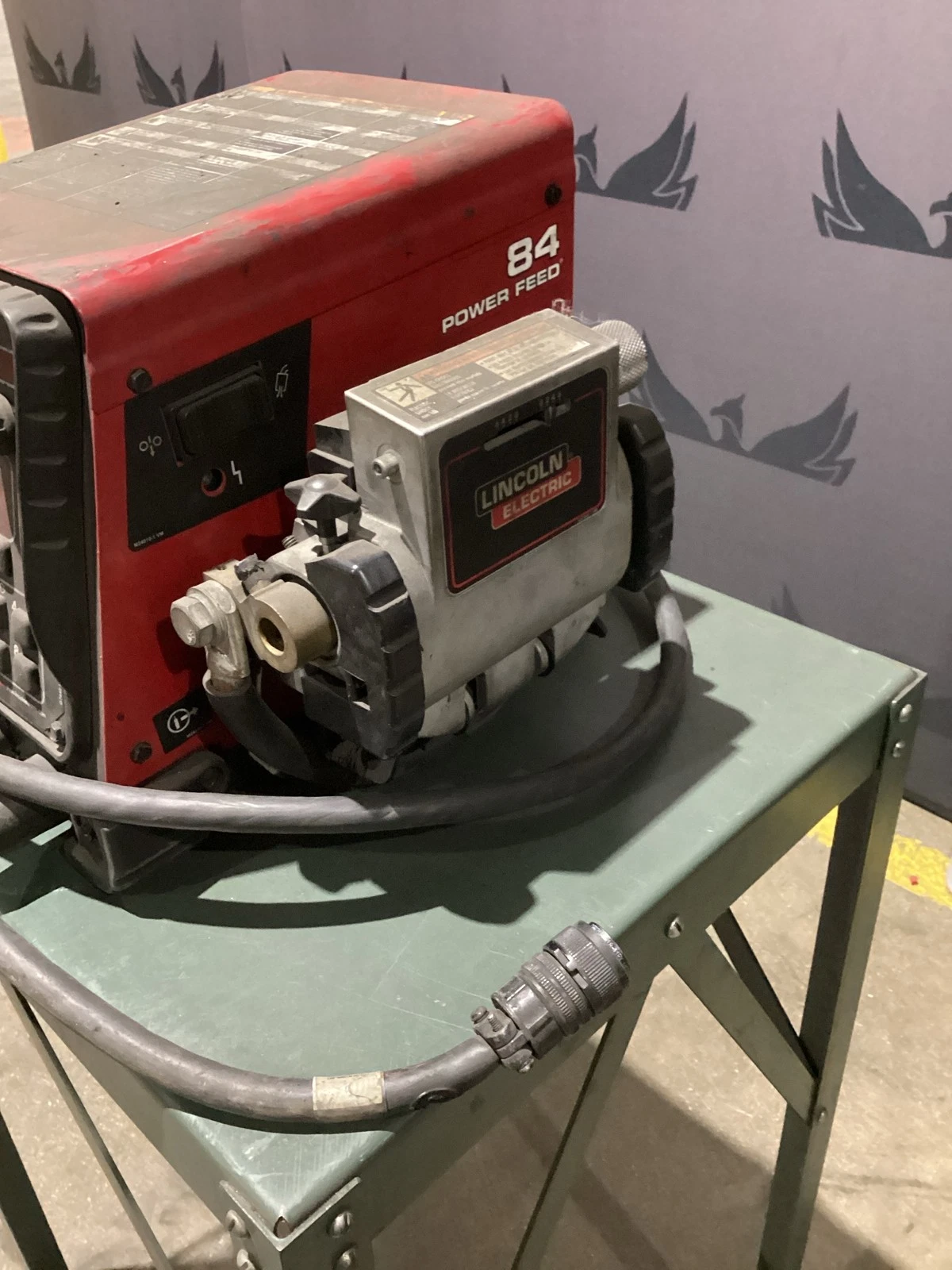

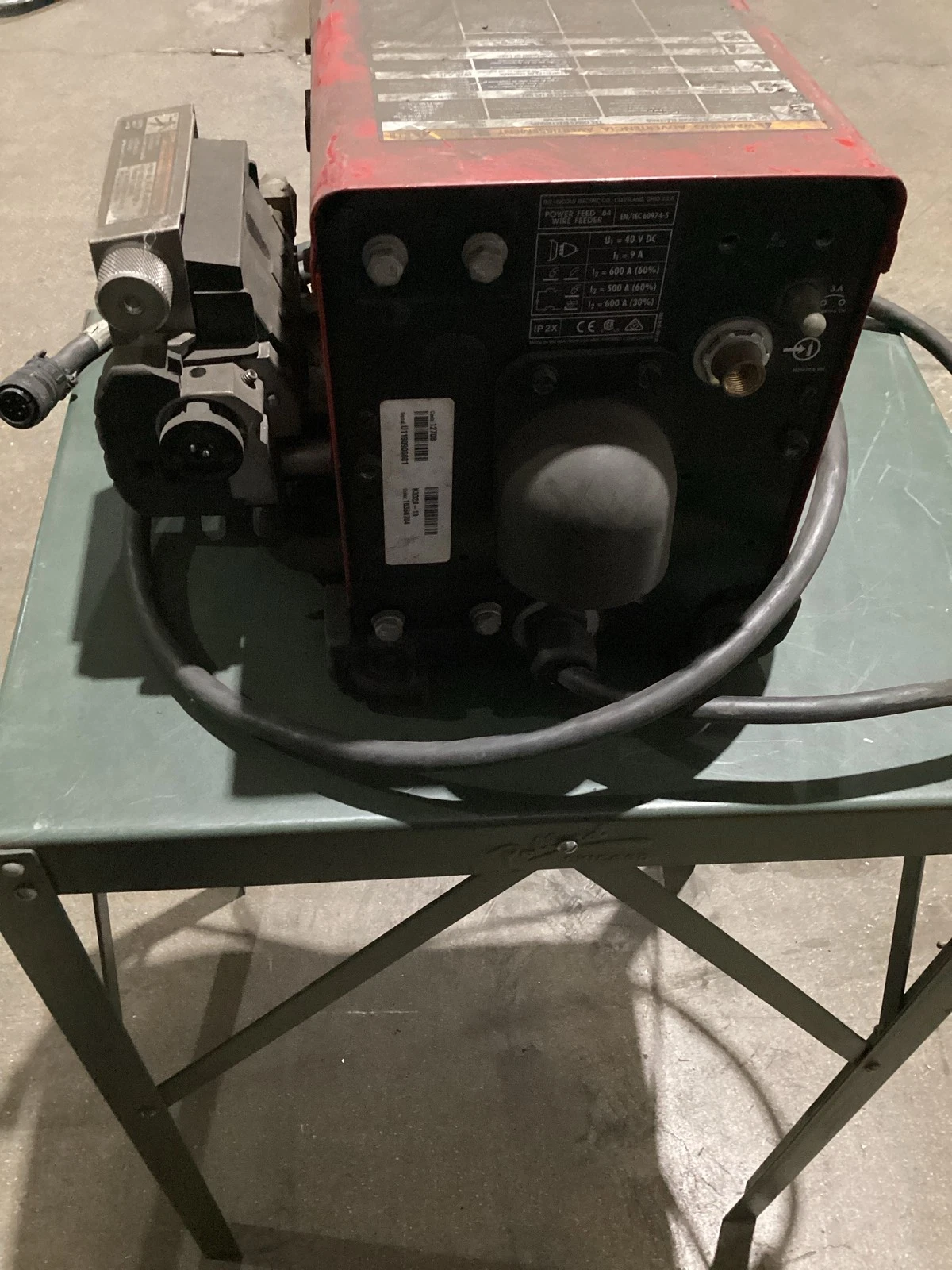

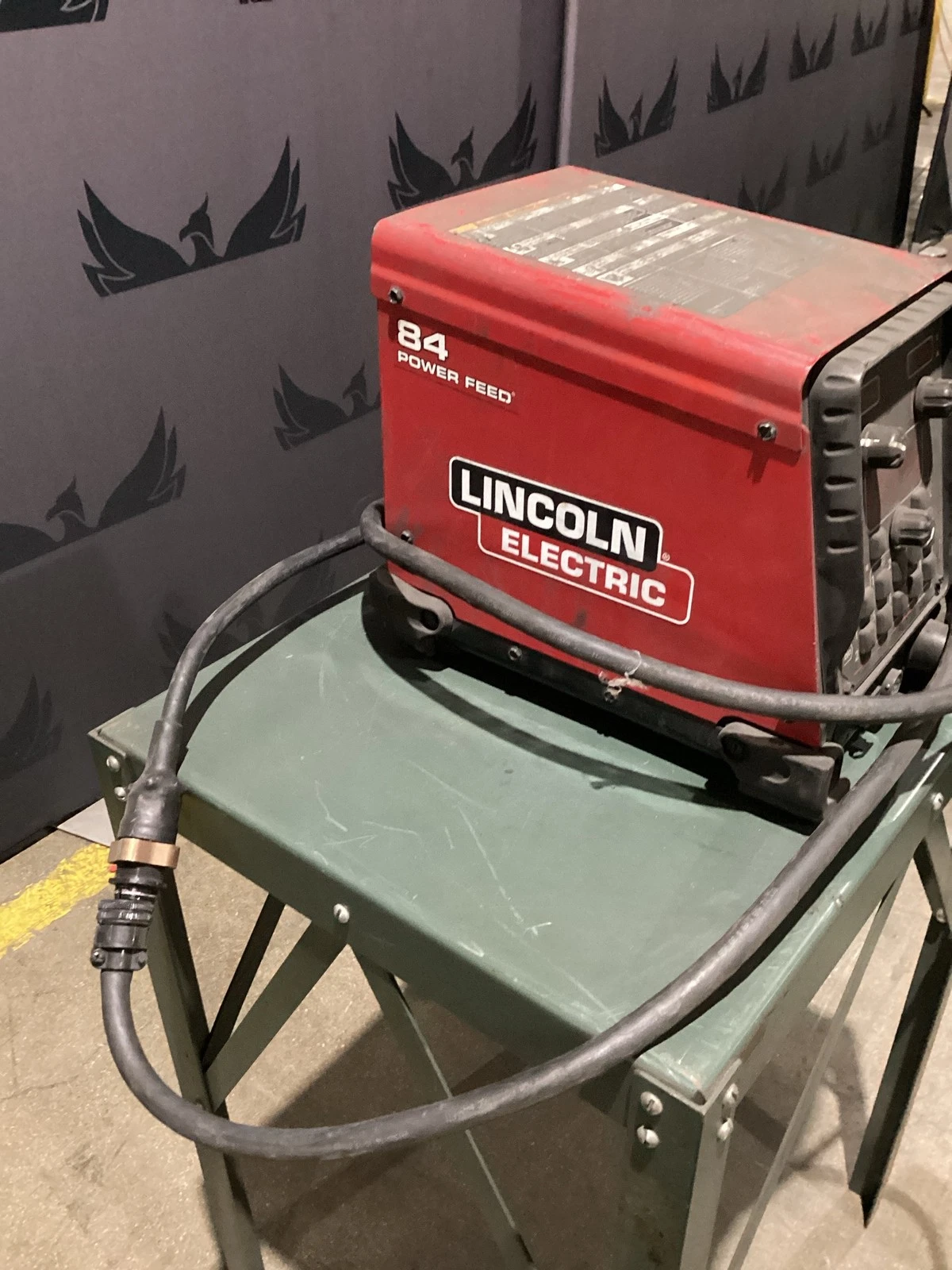

LINCOLN ELECTRIC K3328-13 POWER FEED 84 Digital Wire Feeder USED

Specification Table

IDENTIFICATION Manufacturer:               Lincoln Electric Model:                      Power Feed 84 Catalog Number:             K3328-13 Product Type:               Digital Wire Feeder Condition:                  USED Country of Origin:          USA YOM:                        n/a PROCESS CAPABILITY MIG:                        Supported Pulsed MIG:                 Supported MIG-STT:                    Supported Flux-Cored:                 Supported Stick:                      Supported TIG:                        Supported Gouging:                    Supported HyperFill:                  Supported WIRE FEED SYSTEM Wire Feed Platform:         Digital Feed System Type:           Motor Driven Wire Drive Assembly:        Installed Drive Roll Assembly:        Installed Pressure Arm Assembly:      Installed Drive Roll Cover:           Installed Wire Reel Stand:            Not Installed WIRE FEED PERFORMANCE Wire Feed Speed Range:      50-750 IPM Wire Feed Speed Range:      1.3-19.0 m/min WIRE CAPACITY Solid Wire Range:           0.025-1/16 In Solid Wire Range:           0.6-1.6 mm Cored Wire Range:           0.035-5/64 In Cored Wire Range:           0.9-2.0 mm ELECTRICAL Input Voltage:              40 VDC Input Current:              9 A OUTPUT RATINGS Rated Output:               600 A @ 60% Duty Cycle Rated Output:               500 A @ 60% Duty Cycle Rated Output:               600 A @ 30% Duty Cycle COMMUNICATION Communication Platform:     ArcLink Digital Controls:           Integrated PROTECTION Protection Rating:          IP2X CERTIFICATIONS EN/IEC 60974-5:             Yes CE Marked:                  Yes CSA Certified:              Yes OPERATOR INTERFACE Digital Display:            Integrated Dual Status Displays:       Present User Memory Locations:      8 Keypad Controls:            Present Cold Feed Function:         Present Gas Purge Function:         Present CONSTRUCTION Housing Construction:       Metal Industrial Configuration:   Yes Wire Feed Enclosure:        Enclosed CONNECTIONS Power/Control Connection:   Present ArcLink Connection:         Present Control Cable:              Present Interconnect Cable:         Present Gun Connection Assembly:    Installed
