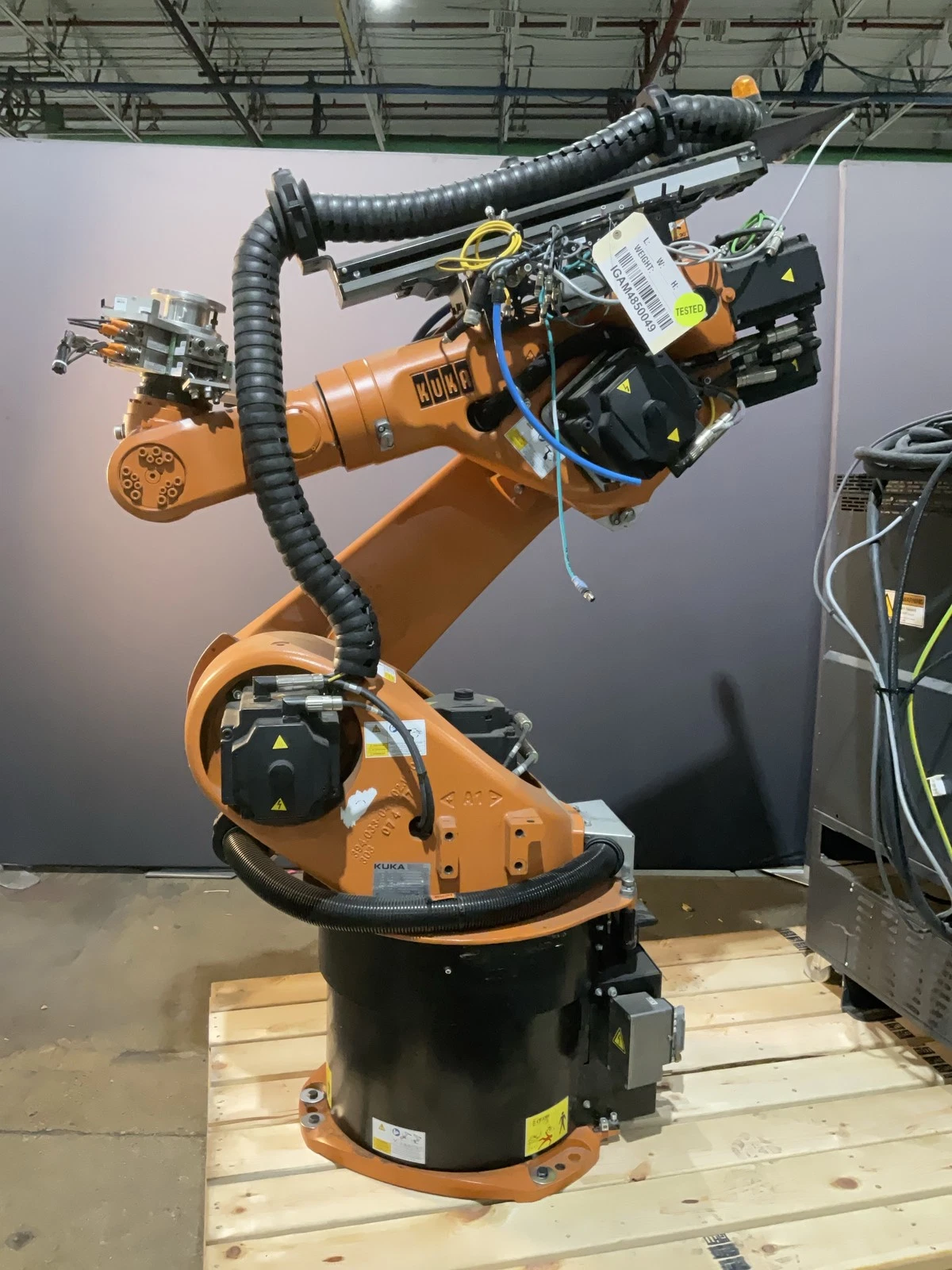

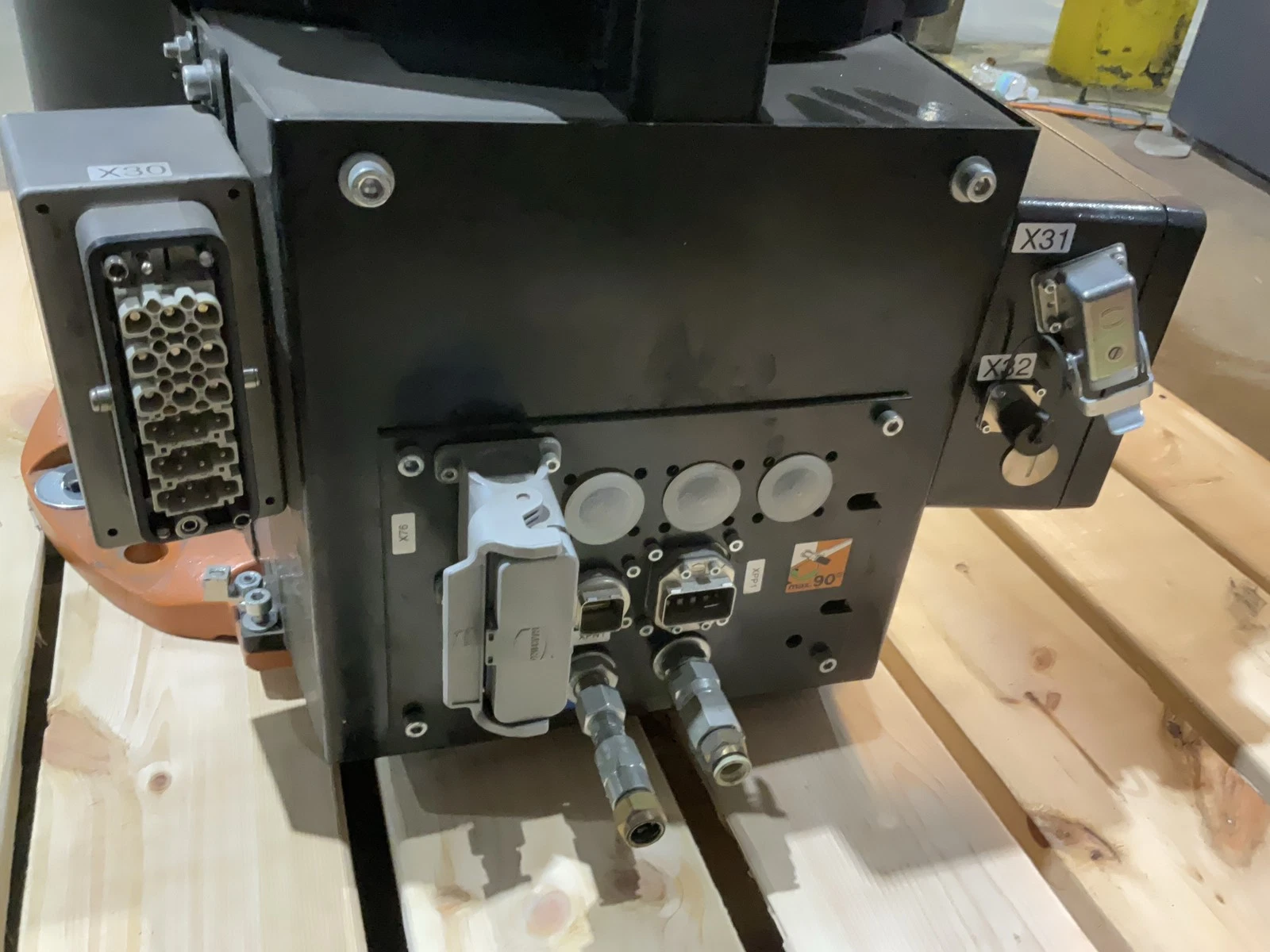

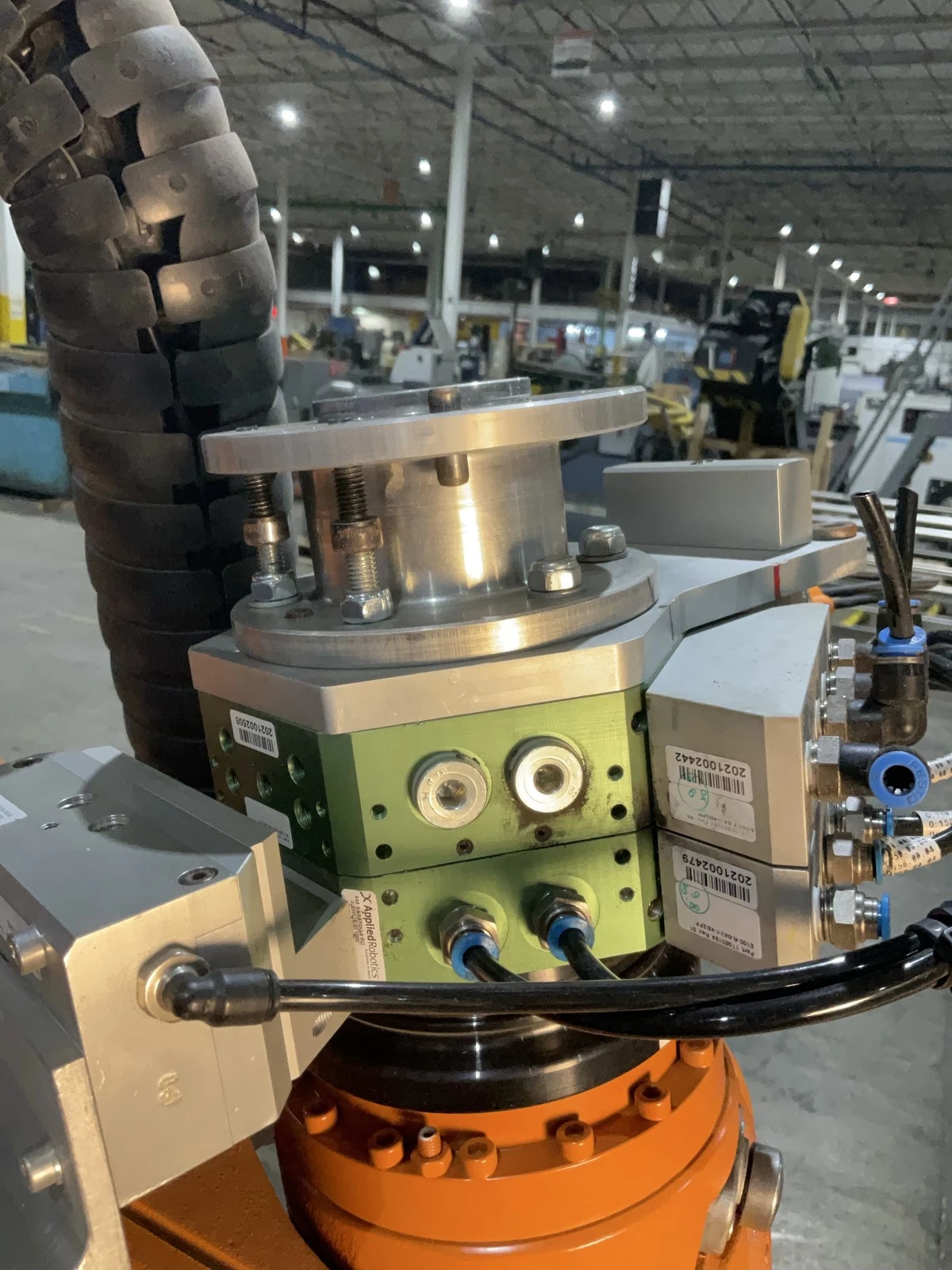

KUKA KR 60-3 Complete with KR C4 NA UL Controller USED

Specification Table

No. of Axis	6
Payload Capacity	60 KG
Arm Reach	2033 MM
Repeatability	0.06 MM
Robot Mass	665 KG

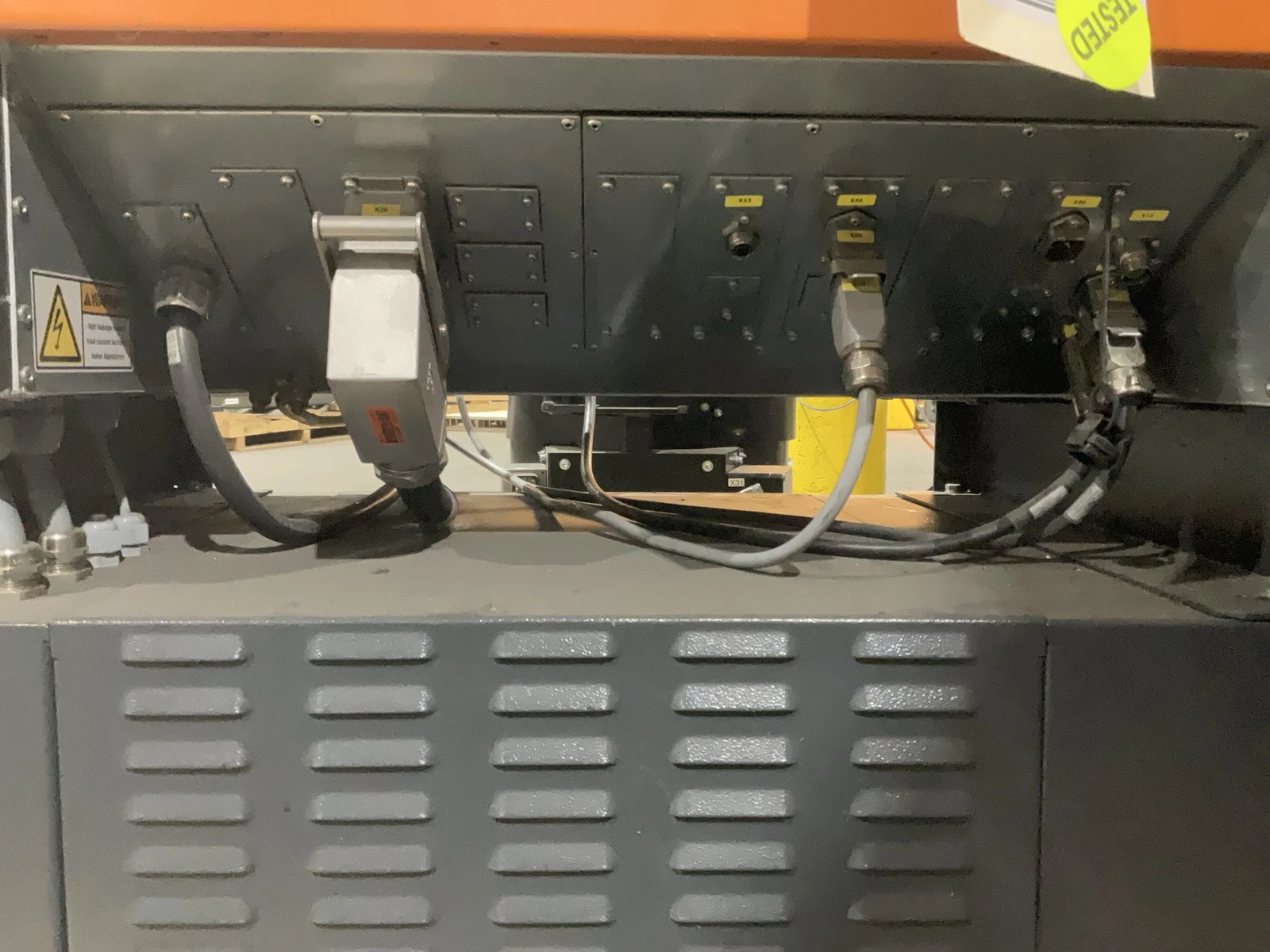

Controller	KR C4 NA UL
Mounting	FLOOR

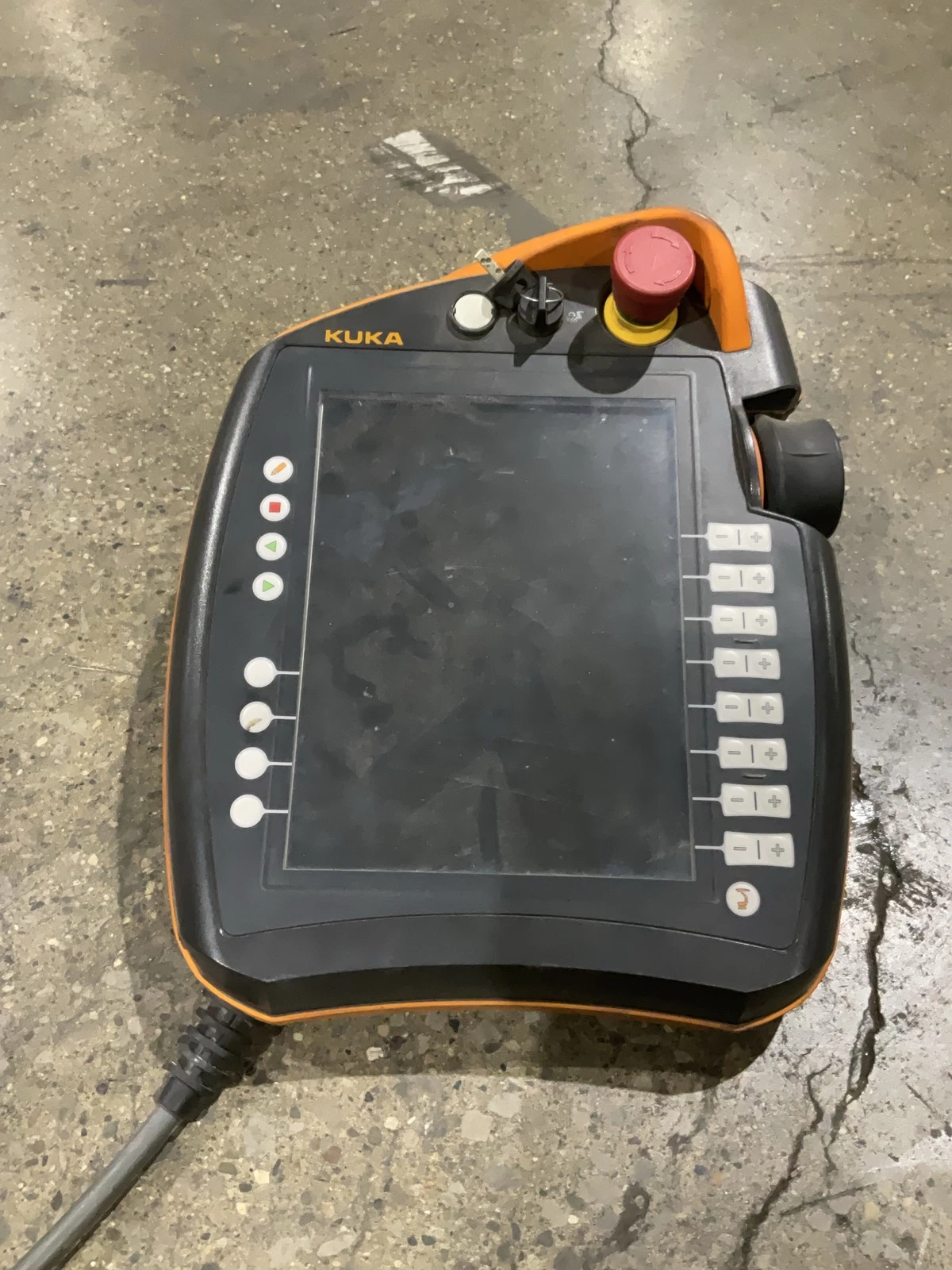

Teach Pendant Model	SMARTPAD INCLUDED

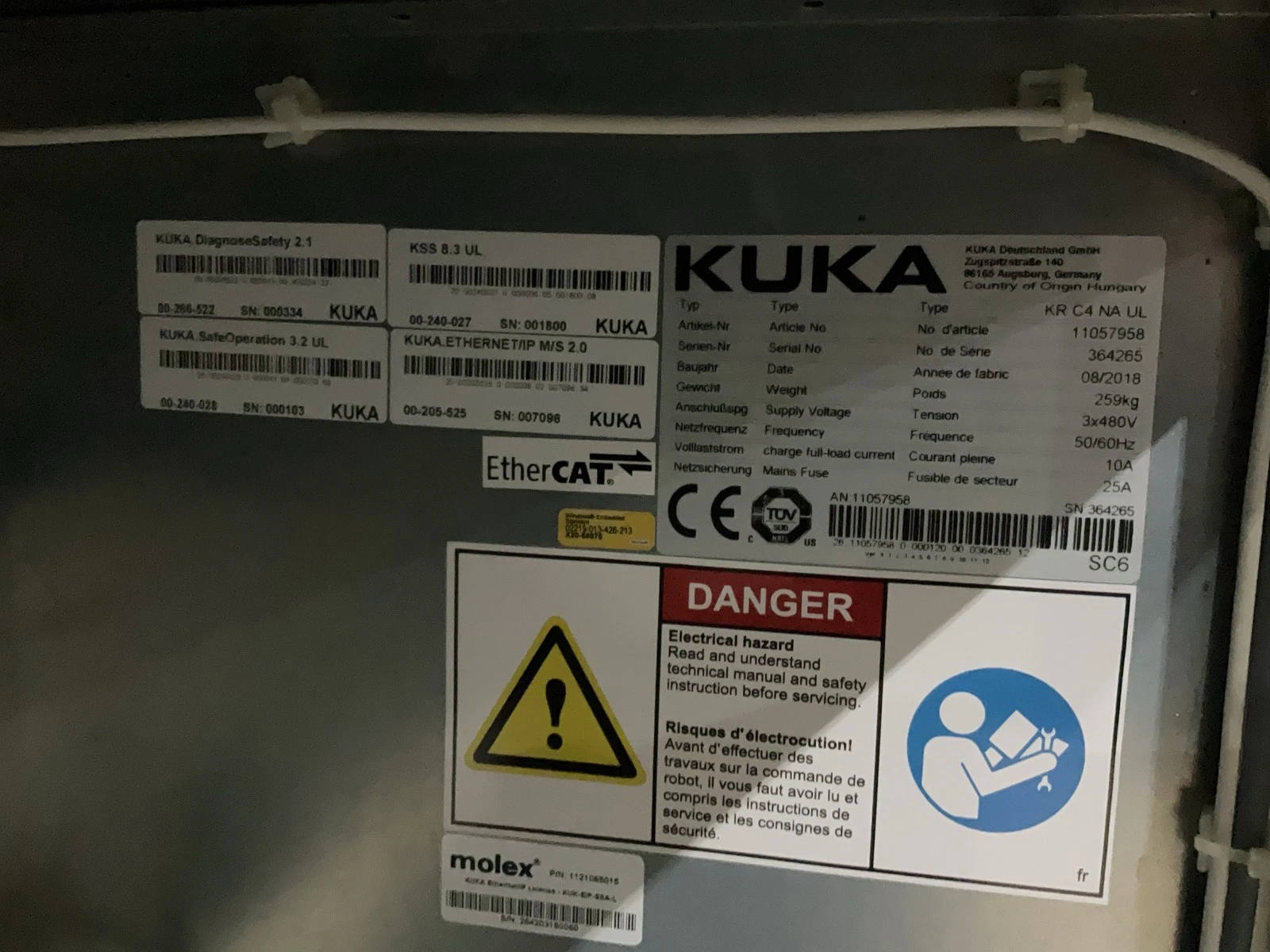

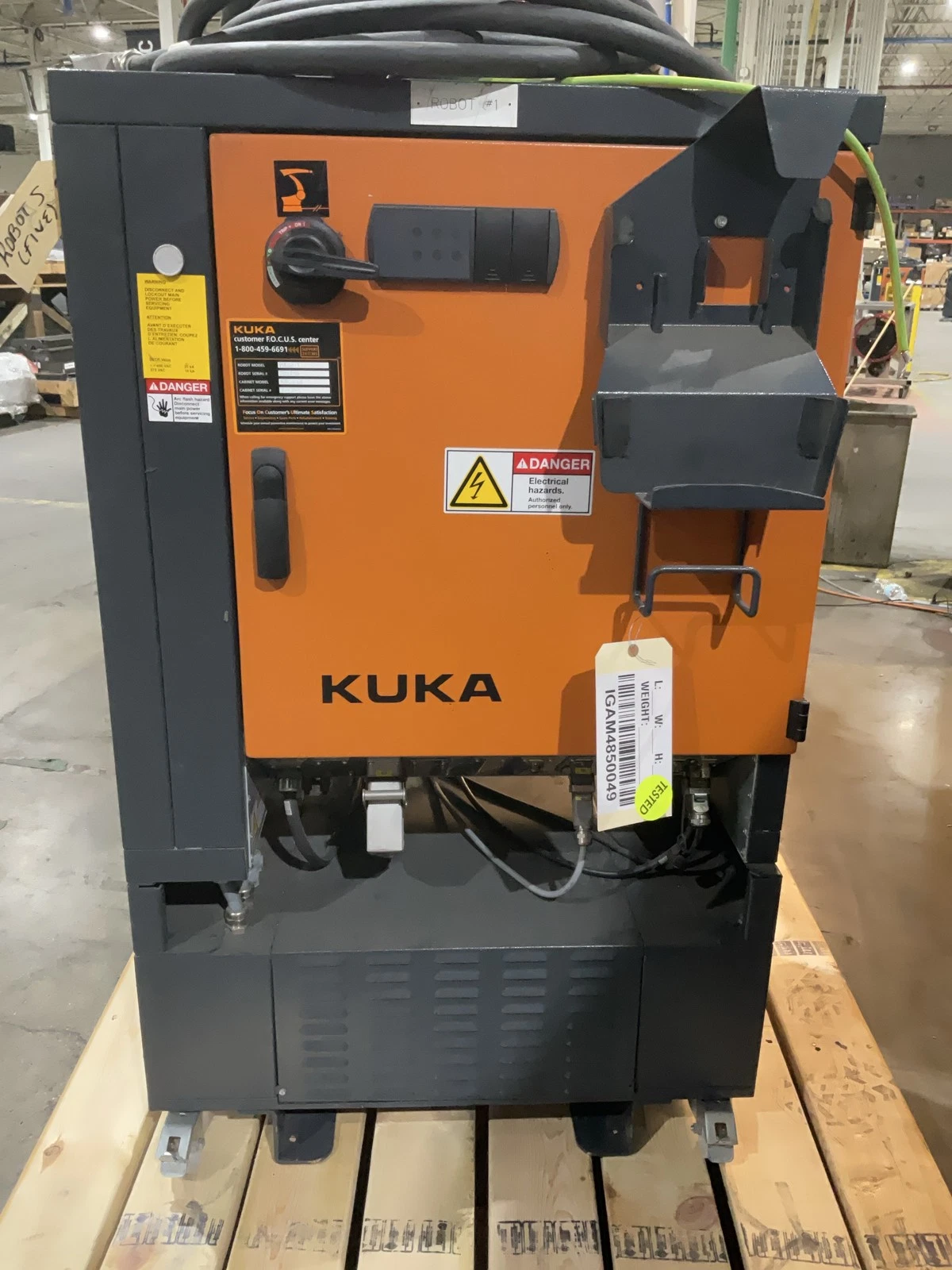

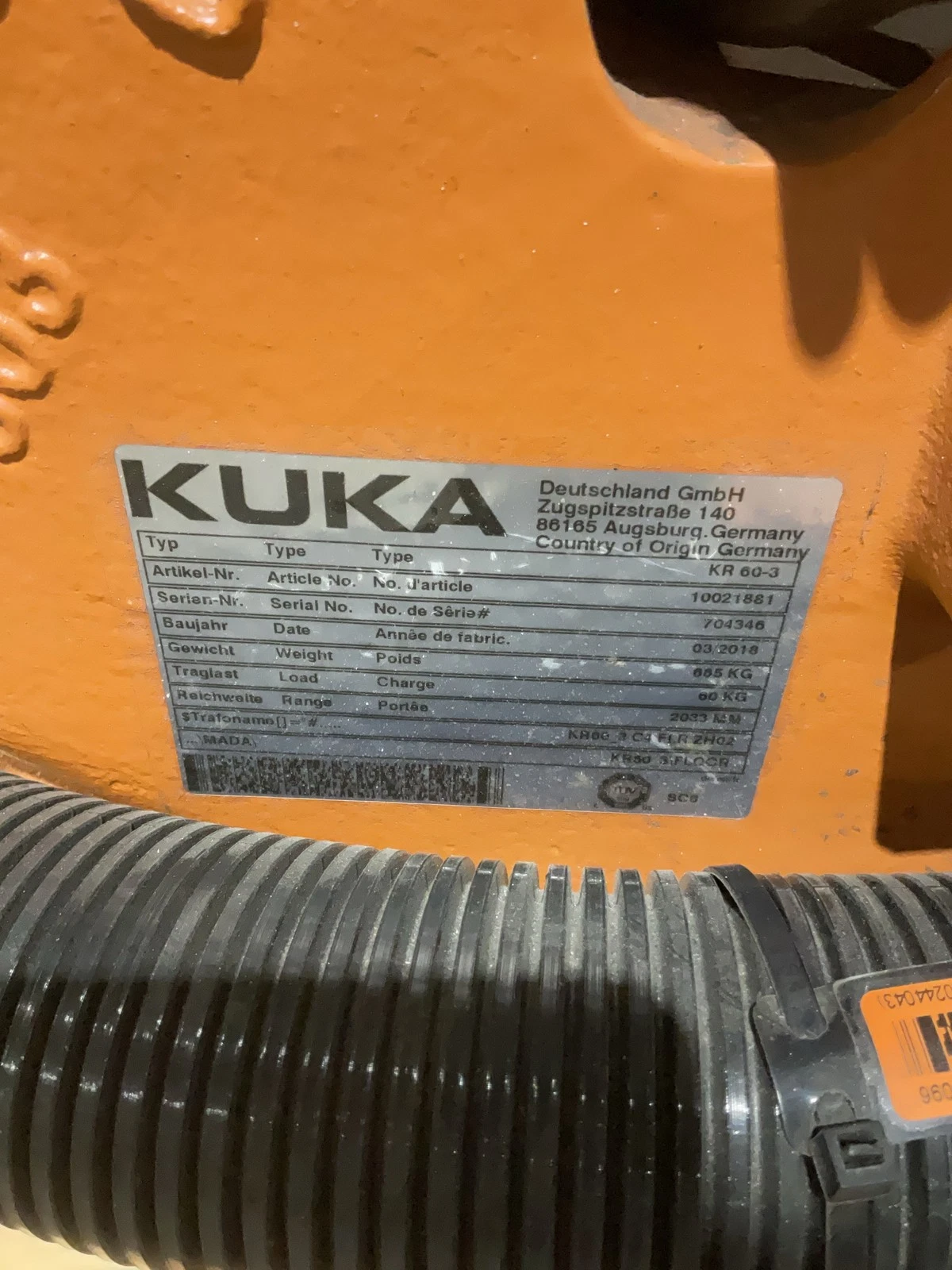

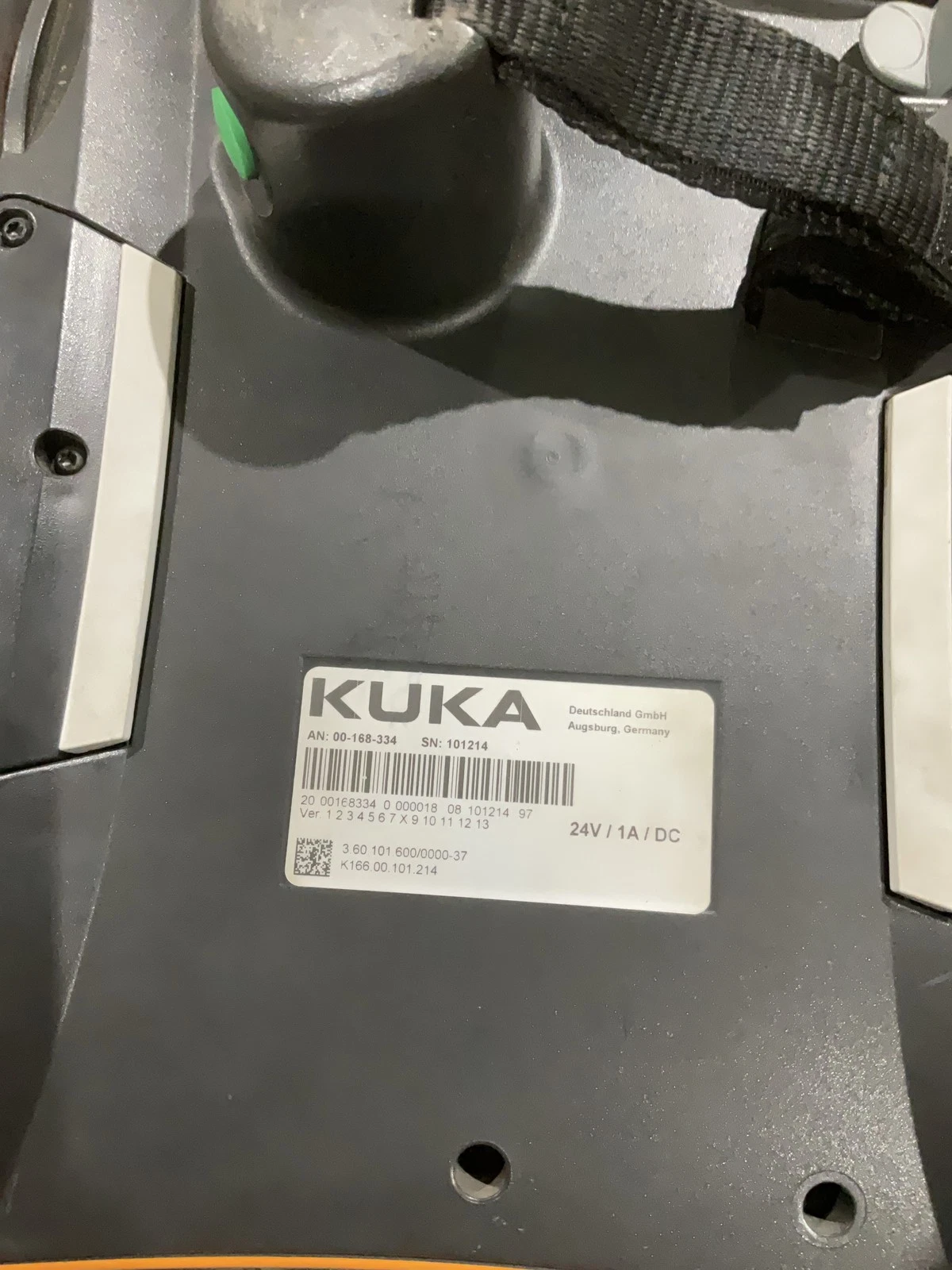

IDENTIFICATION -------------- Manufacturer: KUKA Robot Model: KR 60-3 Robot Article Number: 10021881 Robot Serial Number: 704346 Controller Model: KR C4 NA UL Controller Article Number: 11057958 Controller Serial Number: 364265 Condition: USED Robot YOM: 03/2018 Controller YOM: 08/2018 Country of Manufacture: Germany ROBOT CONFIGURATION ------------------- Robot Type: 6-Axis Articulated Robot Payload Capacity: 60 kg Maximum Reach: 2033 mm Mounting Position: Floor Robot Weight: 665 kg Number of Axes: 6 Robot Variant: KR60-3 C4 FLR ZH02 MADA Configuration: KR60-3/FLOOR PERFORMANCE ----------- Repeatability (ISO 9283): ±0.06 mm MOTION RANGE ------------ Axis A1: ±185° Axis A2: -140° / +5° Axis A3: -120° / +156° Axis A4: ±350° Axis A5: ±125° Axis A6: ±350° AXIS SPEEDS ----------- Axis A1: 110°/s Axis A2: 110°/s Axis A3: 128°/s Axis A4: 260°/s Axis A5: 245°/s Axis A6: 322°/s CONTROLLER INFORMATION ---------------------- Controller Model: KR C4 NA UL Controller Type: Freestanding Cabinet Controller Weight: 259 kg Controller Architecture: KR C4 TEACH PENDANT ------------- Pendant Type: KUKA smartPAD Part Number: 00-168-334 Serial Number: 101214 Supply Voltage: 24V / 1A DC SOFTWARE & COMMUNICATION ------------------------ KUKA System Software: KSS 8.3 UL KUKA.SafeOperation: 3.2 UL KUKA.DiagnoseSafety: 2.1 KUKA EtherNet/IP M/S: 2.0 EtherCAT Support: Present EtherNet/IP Support: Present ELECTRICAL ---------- Supply Voltage: 3 x 480 VAC Input Frequency: 50/60 Hz Full Load Current: 10 A Mains Fuse Rating: 25 A ENVIRONMENTAL ------------- Protection Rating: IP65 Operating Temperature: 0°C to 55°C INSTALLED EQUIPMENT ------------------- ATI Tool Interface Assembly: Installed Robot-Mounted Interface Modules: Installed Connector Distribution Assemblies: Installed Industrial Connector Assemblies: Installed Process Interface Components: Installed Dress Package: Installed Status Beacon Light: Installed CABLES & CONNECTIONS -------------------- Robot Interconnect Cables: Included Controller Connection Cables: Included Field Cables: Included Pneumatic Connections: Installed Industrial Ethernet Connections: Installed TOOLING ------- ATI Industrial Automation Tool Interface Assembly: Installed Tool Mounting Plate: Installed Pneumatic Utility Connections: Installed Electrical Utility Connections: Installed Application-Specific End Tool: Not Installed CERTIFICATIONS -------------- CE Marked: Yes TUV Marked: Yes UL Configuration: Yes Safety Classification: SC6
