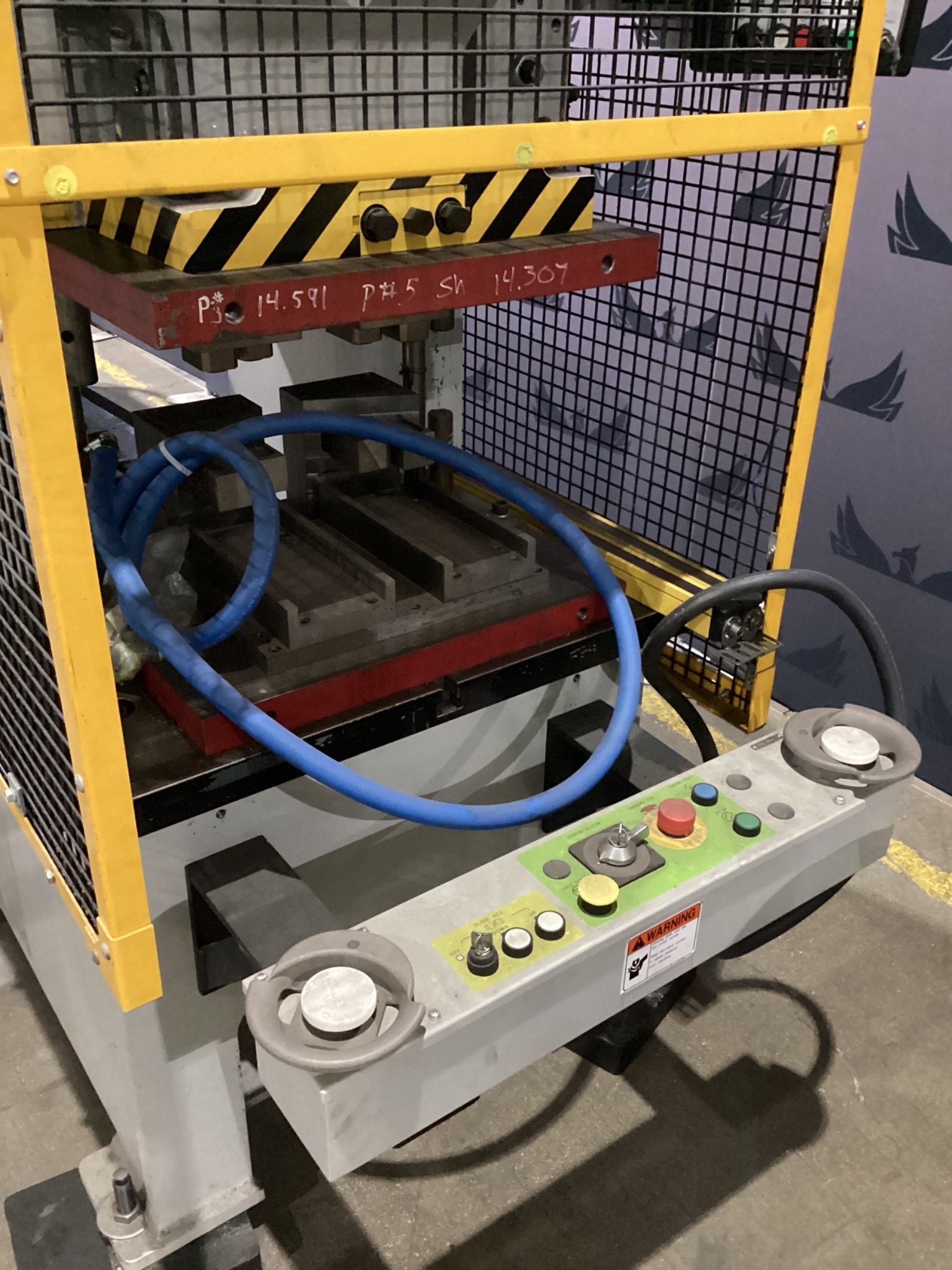

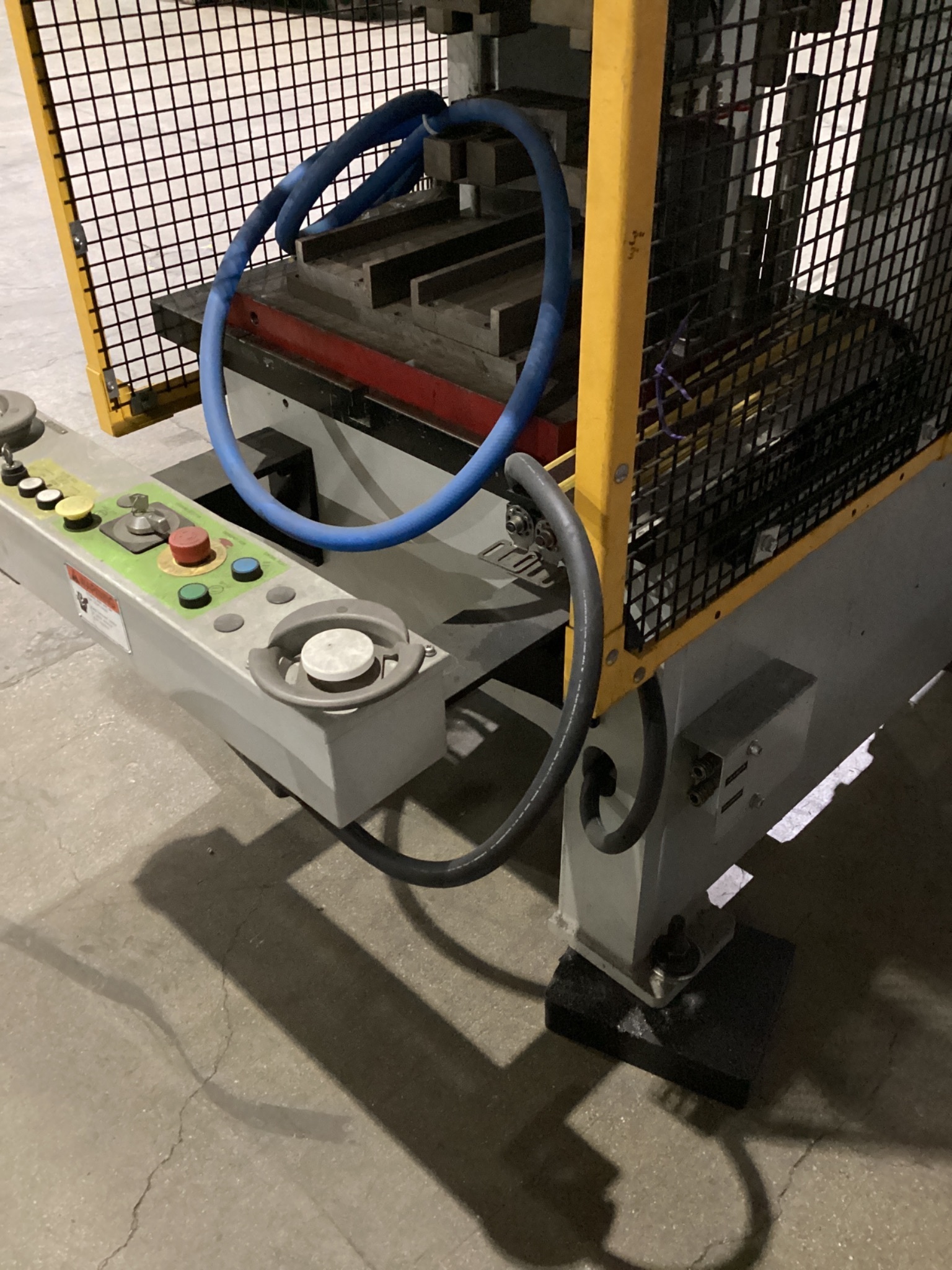

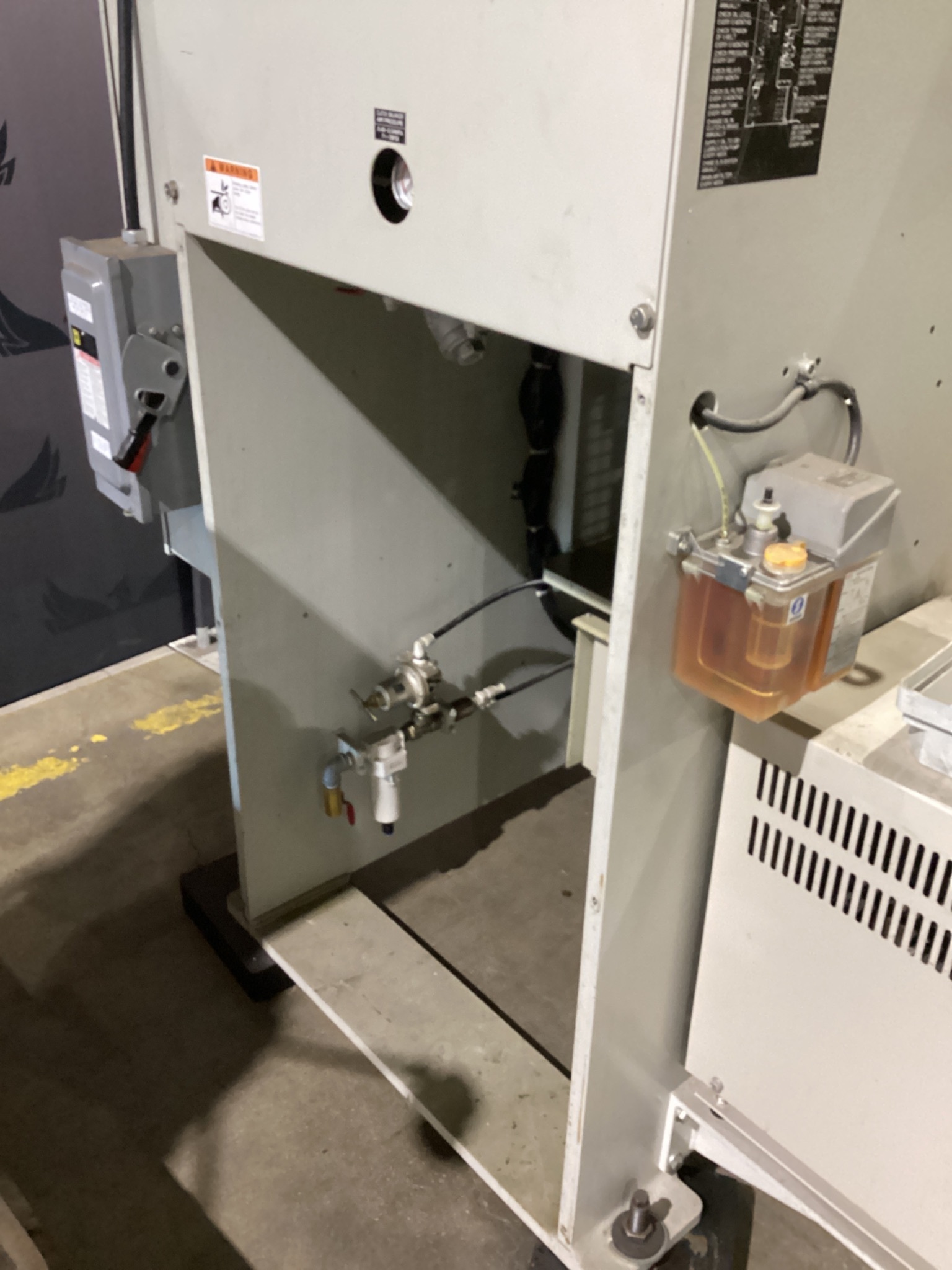

KOMATSU OBS60-34 66-Ton Single-Point Mechanical Gap Frame Press USED

Specification Table

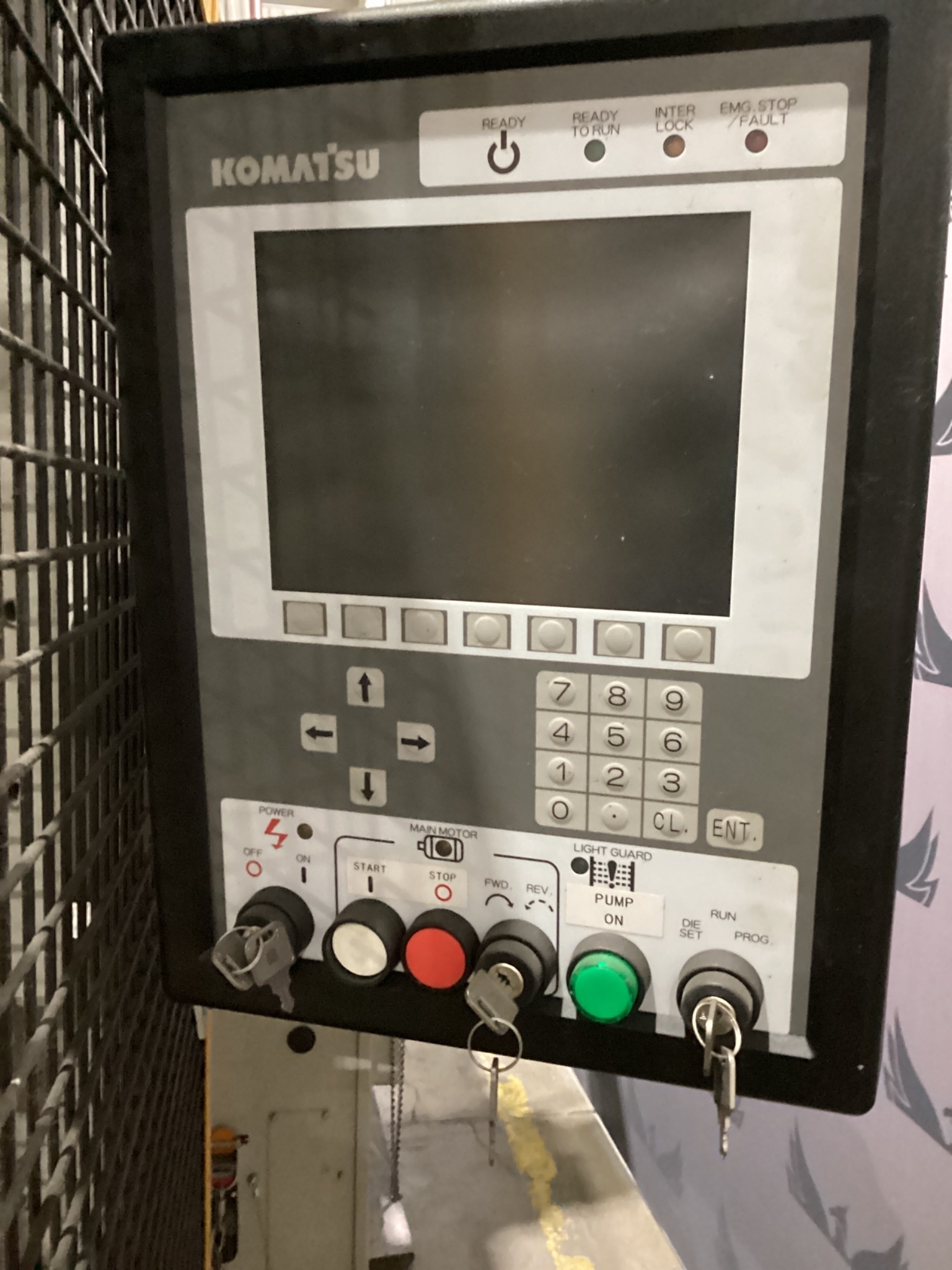

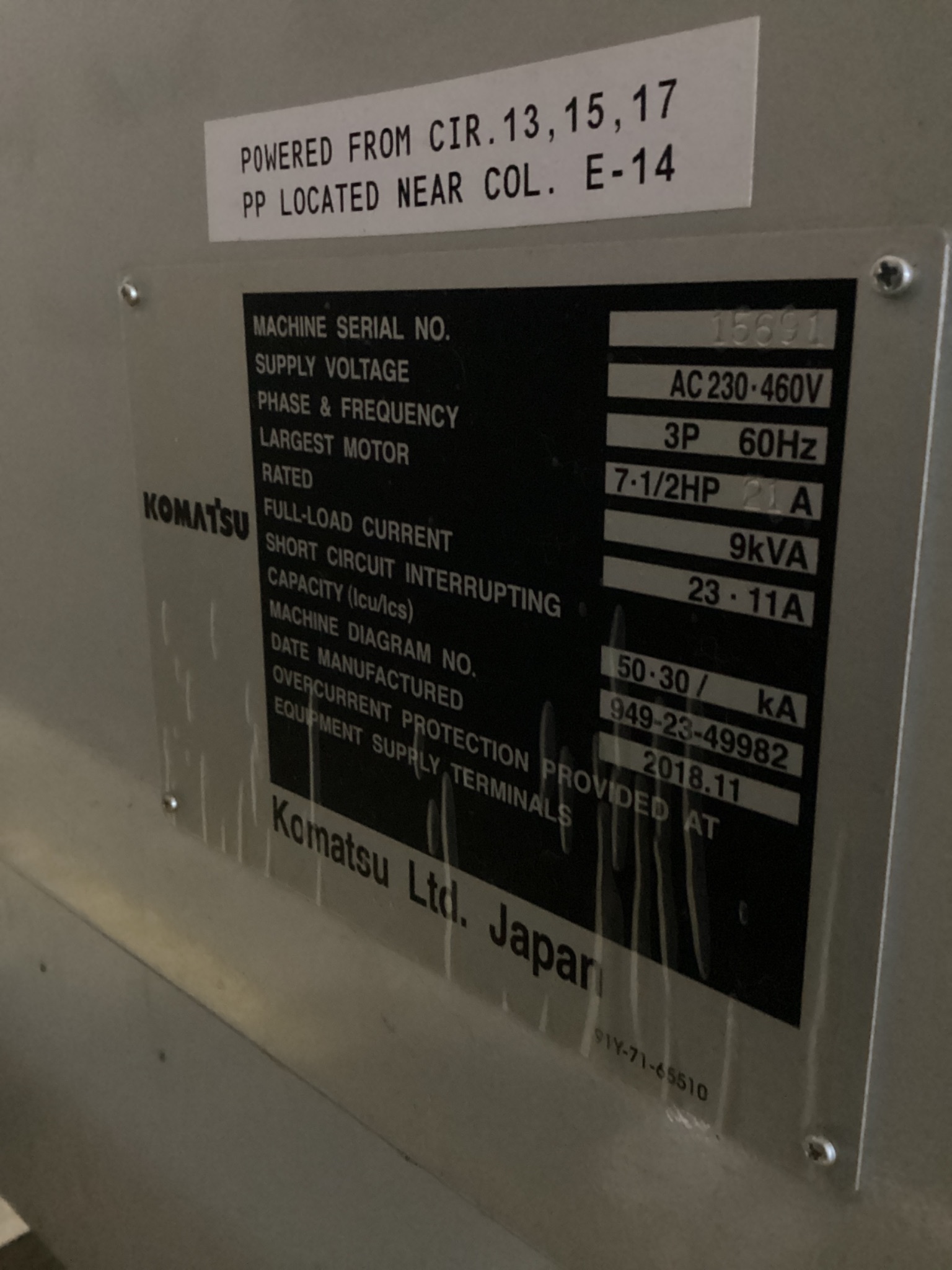

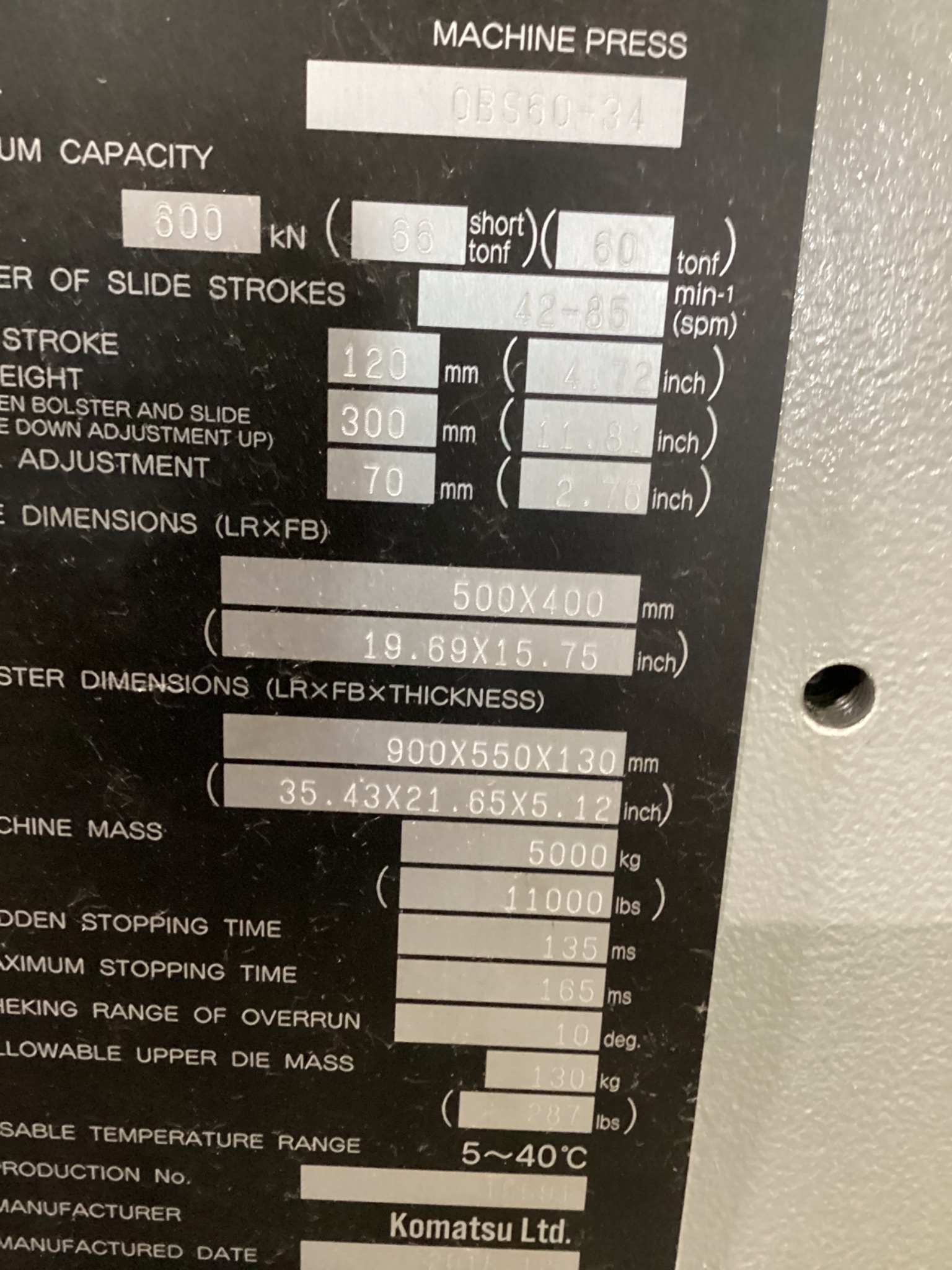

IDENTIFICATION Manufacturer: Komatsu Ltd. Model: OBS60-34 Product Type: Single-point mechanical gap frame press Machine Serial Number: 16691 Condition: USED YOM: 2018-11 Country of Manufacture: Japan   PRESS CAPACITY / PERFORMANCE Maximum Capacity: 600 kN Capacity - Short Tons: 66 tonf Capacity - Metric Tons: 60 tonf Slide Stroke Rate: 48-85 spm Slide Stroke: 120 mm / 4.72 in Shut Height: 300 mm / 11.81 in Slide Adjustment: 70 mm / 2.76 in Allowable Upper Die Mass: 130 kg / 287 lb   SLIDE Slide Dimensions - LR x FB: 500 x 400 mm 19.69 x 15.75 in   BOLSTER Bolster Dimensions LR x FB x Thickness: 900 x 550 x 130 mm 35.43 x 21.65 x 5.12 in   STOPPING / SAFETY DATA Sudden Stopping Time: 135 ms Maximum Stopping Time: 165 ms Overrun Checking Range: 10 deg   MACHINE MASS Machine Mass: 5000 kg / 11,000 lb   ELECTRICAL Supply Voltage: 230 / 460 VAC Phases: 3 Frequency: 60 Hz Largest Motor: 7-1/2 HP Full Load Current: 23 / 11 A Rated Electrical Load: 9 kVA   ELECTRICAL PROTECTION Short-Circuit Interrupting Capacity: 50 / 30 kA Machine Diagram Number: 949-23-49982   OPERATOR INTERFACE Operator Display: Integrated Numeric Keypad: Present Navigation Keys: Present Function Keys: Present Main Power Key Switch: Present Main Motor Start Control: Present Main Motor Stop Control: Present Motor Direction Selector: Forward / reverse Pump Control: Present Operating Mode Selector: Run / die set / program   STATUS / DIAGNOSTICS Ready Indicator: Present Ready-to-Run Indicator: Present Interlock Indicator: Present Emergency Stop / Fault Indicator: Present Light Guard Indicator: Present   SECONDARY OPERATOR CONTROLS Dual-Hand Controls: Present Emergency Stop: Present Key Selector: Present Additional Pushbuttons: Present   GUARDING Perimeter Guarding: Present Guard Construction: Metal mesh Press Area Enclosure: Present Light Guard Interface: Present   ENVIRONMENTAL Usable Temperature Range: 5 to 40 °C
