KF Contromatics PAS 300-4 DLS M6 Automated Ball Valve USED

Specification Table

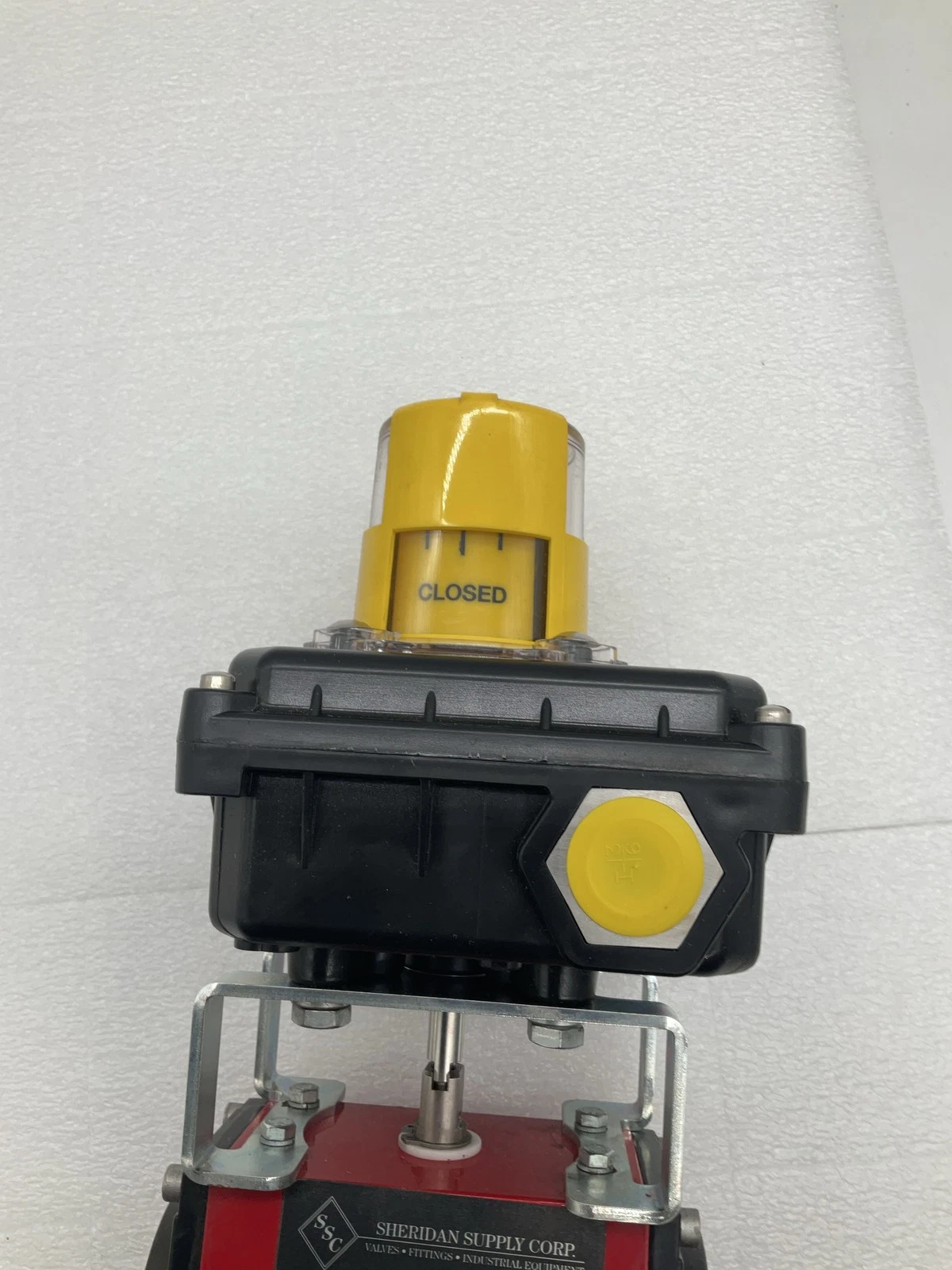

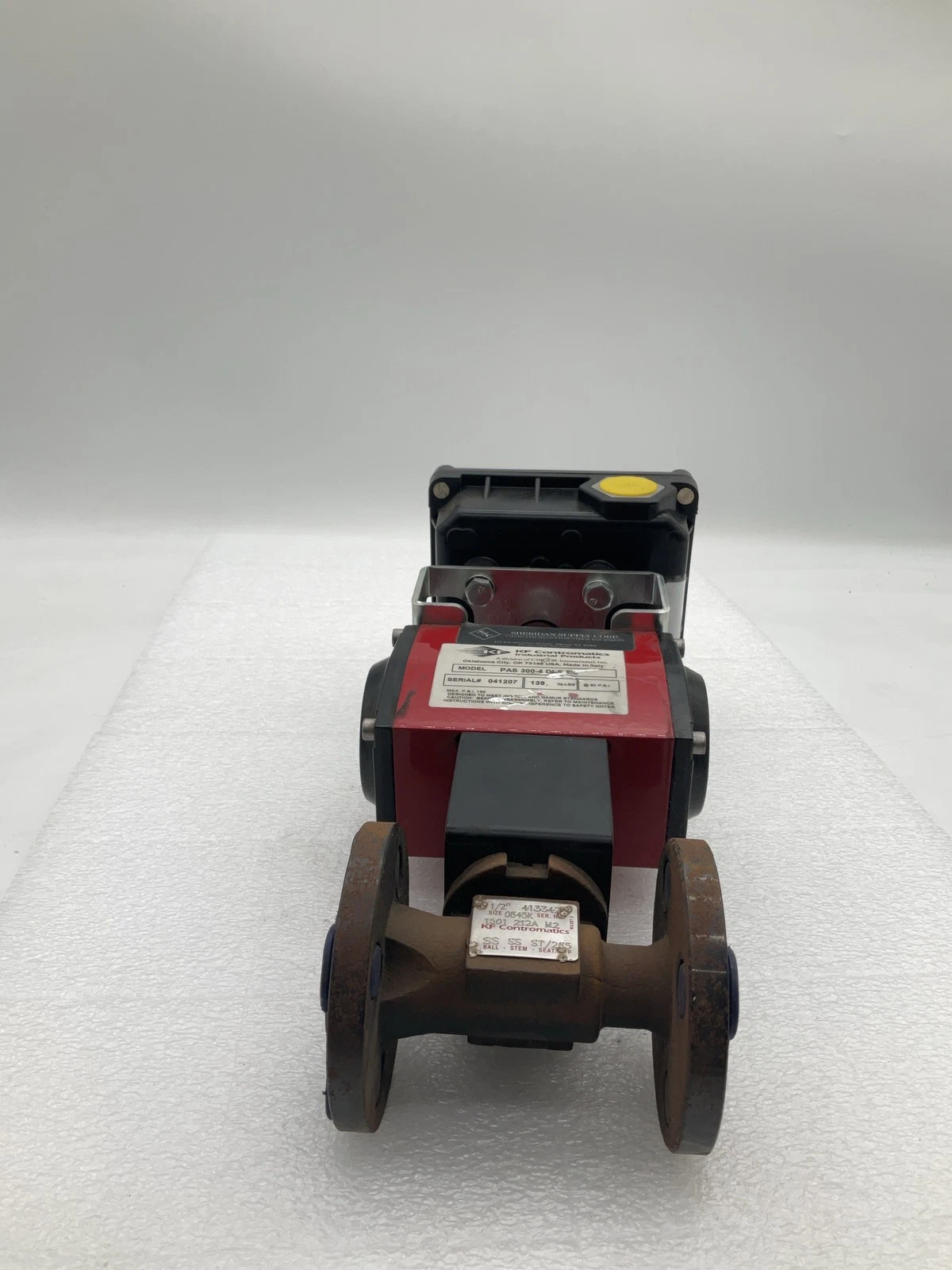

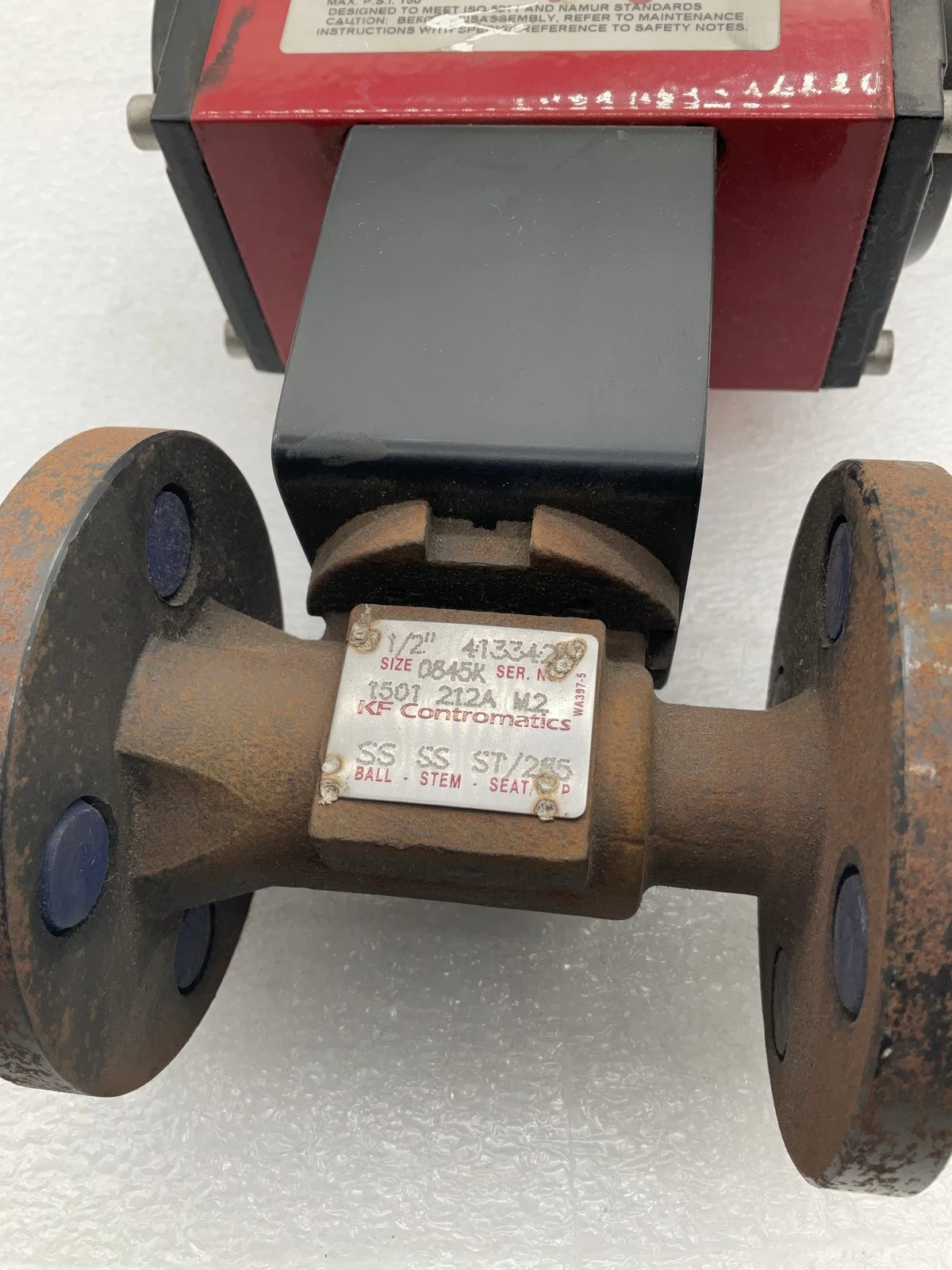

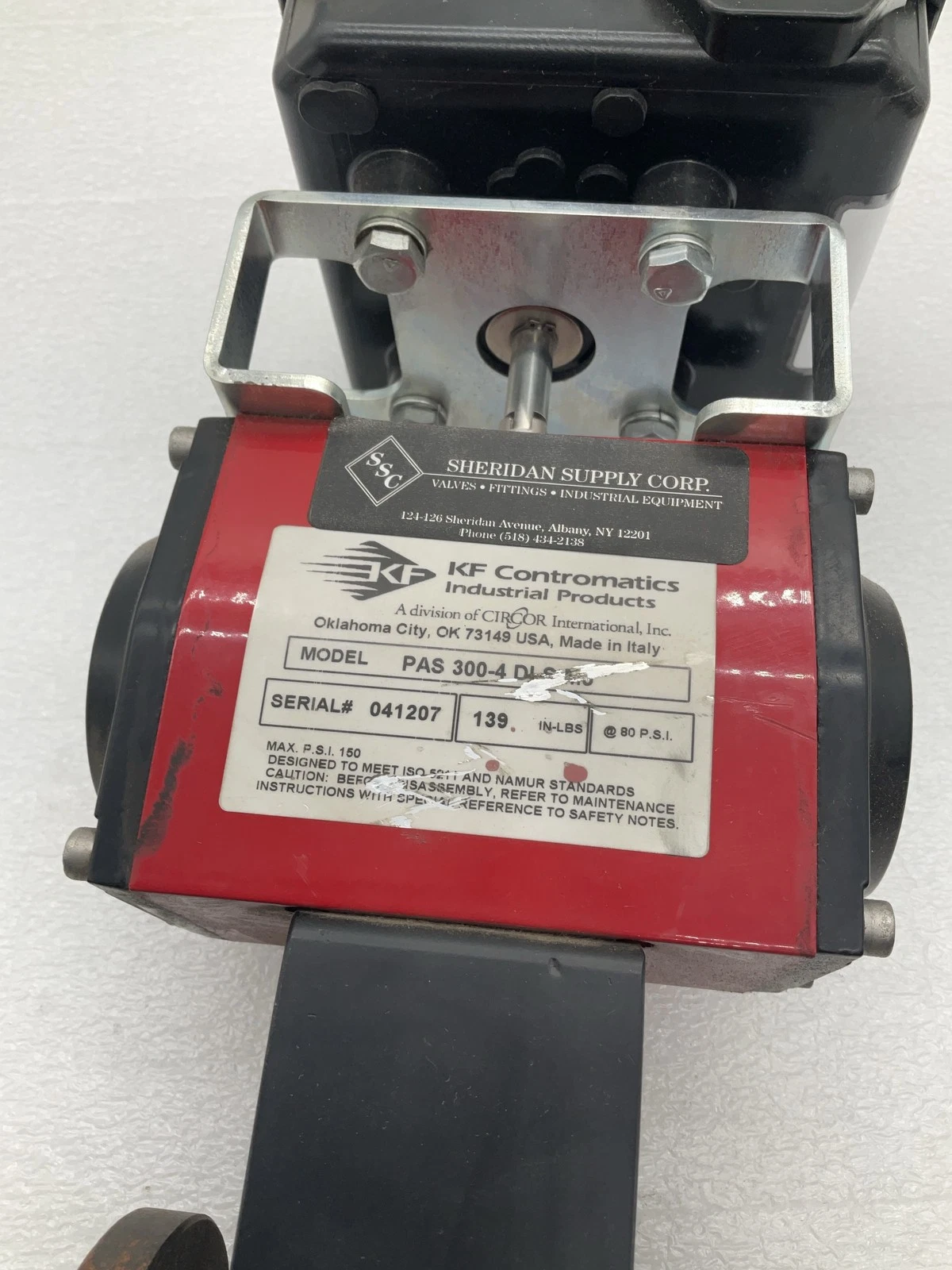

IDENTIFICATION Manufacturer: KF Contromatics Actuator Model: PAS 300-4 DLS M6 Actuator Serial Number: 041207 Valve Series: 0845K Valve Size: 1/2 in. Condition: USED Country of Manufacture: Italy ACTUATOR DATA Series: M6 Actuator Type: Pneumatic Rotary Actuator Operation: Double Acting Rotation: 90° Torque Output: 139 in-lbs @ 80 PSI Operating Pressure Range: 20-150 PSIG Travel Stops: Double Limit Stops (DLS) VALVE DATA Valve Type: Ball Valve Valve Size: 1/2 in. End Connection: Flanged Quarter Turn Operation: Yes TRIM MATERIALS Ball Material: Stainless Steel Stem Material: Stainless Steel Seat Material: ST/286 INTERFACE DATA Valve Interface: ISO 5211 Accessory Interface: NAMUR Top Interface: VDI/VDE 3845 CONSTRUCTION Actuator Body Material: 6005T5 Extruded Aluminum End Caps: Cast Aluminum Pinion Material: Alloy Steel Body Finish: Red Epoxy Coated Housing Position Indicator: Visual Indicator Limit Switch Enclosure: Installed TEMPERATURE DATA Standard Temperature Range: -4°F to 176°F Standard Temperature Range: -20°C to 80°C ASSEMBLED COMPONENTS Pneumatic Actuator: Included Ball Valve: Included Limit Switch Enclosure: Included Mounting Bracket: Included Coupling: Installed APPLICATION DATA Automated Flow Control: Yes Process Control: Yes Fluid Handling Systems: Yes Industrial Automation: Yes Manufacturing Facilities: Yes Remote Valve Operation: Yes
