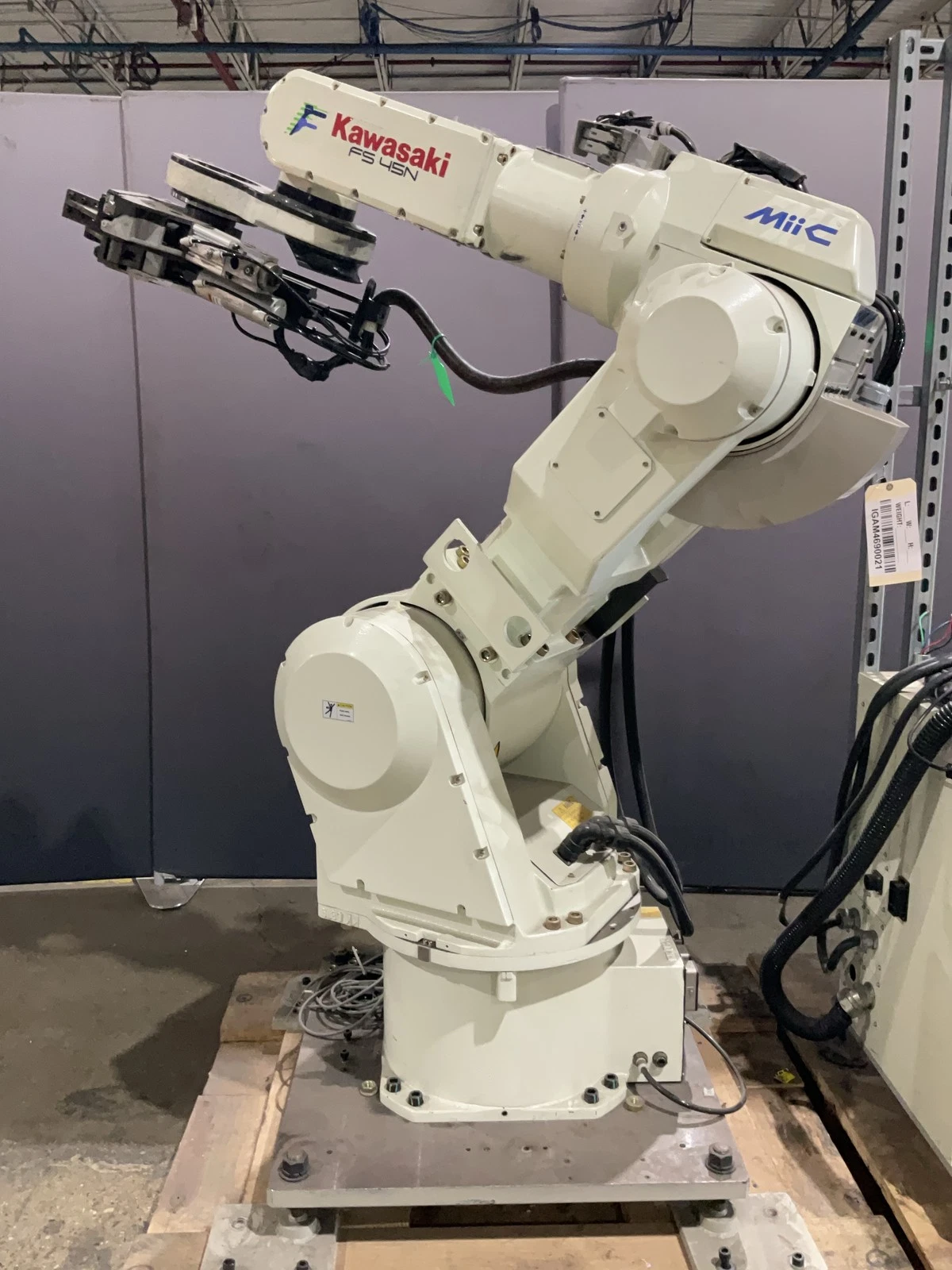

KAWASAKI FS045N-C Robot with D220-F001 Controller & MiiC T-WIN20-ST-R USED

Specification Table

No. of Axis	6
Payload Capacity	45 KG
Arm Reach	2605 MM
Repeatability	0.2 MM
Controller	D002-F001
Mounting	FLOOR
Teach Pendant Model	NOT INCLUDED

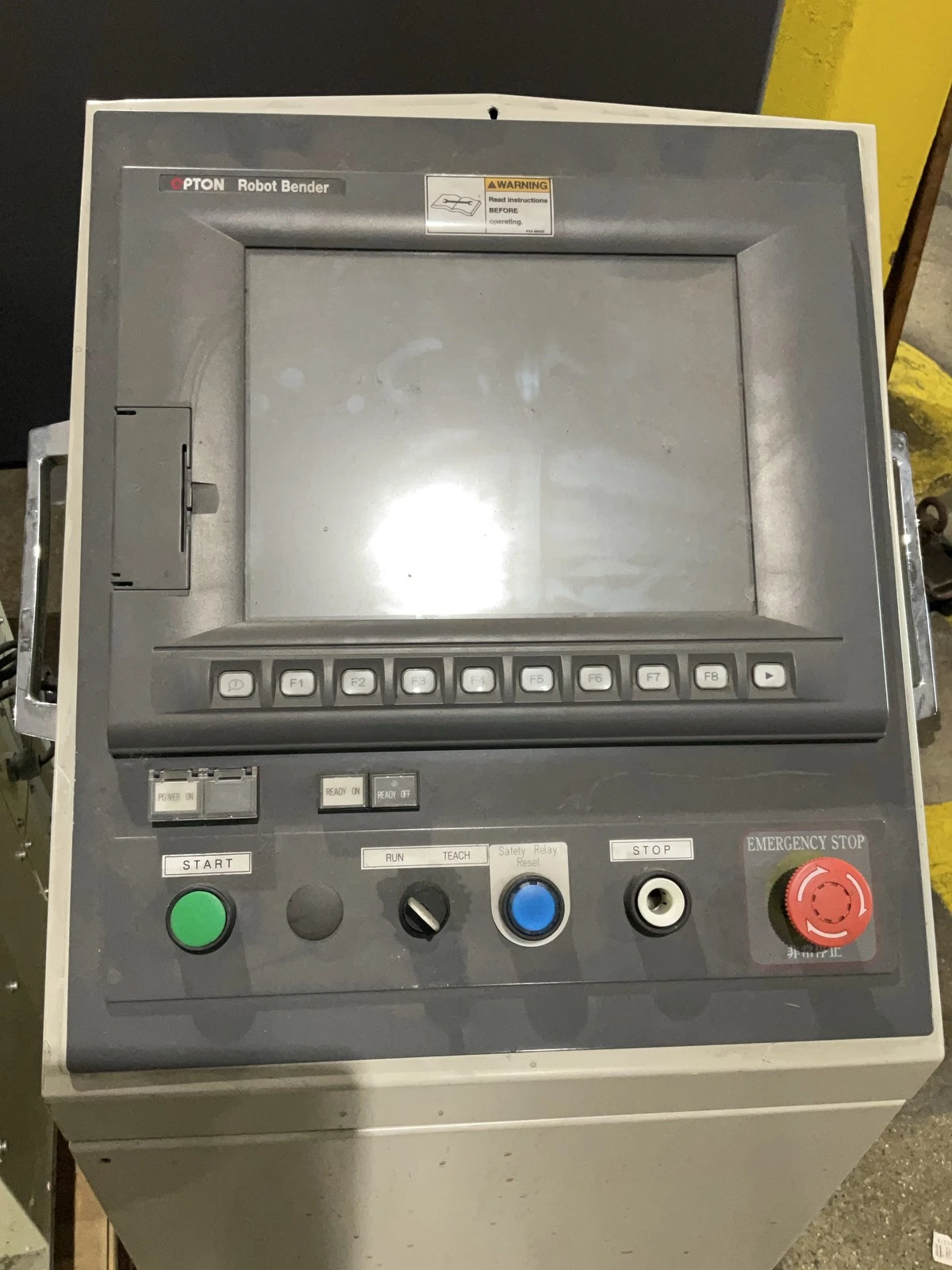

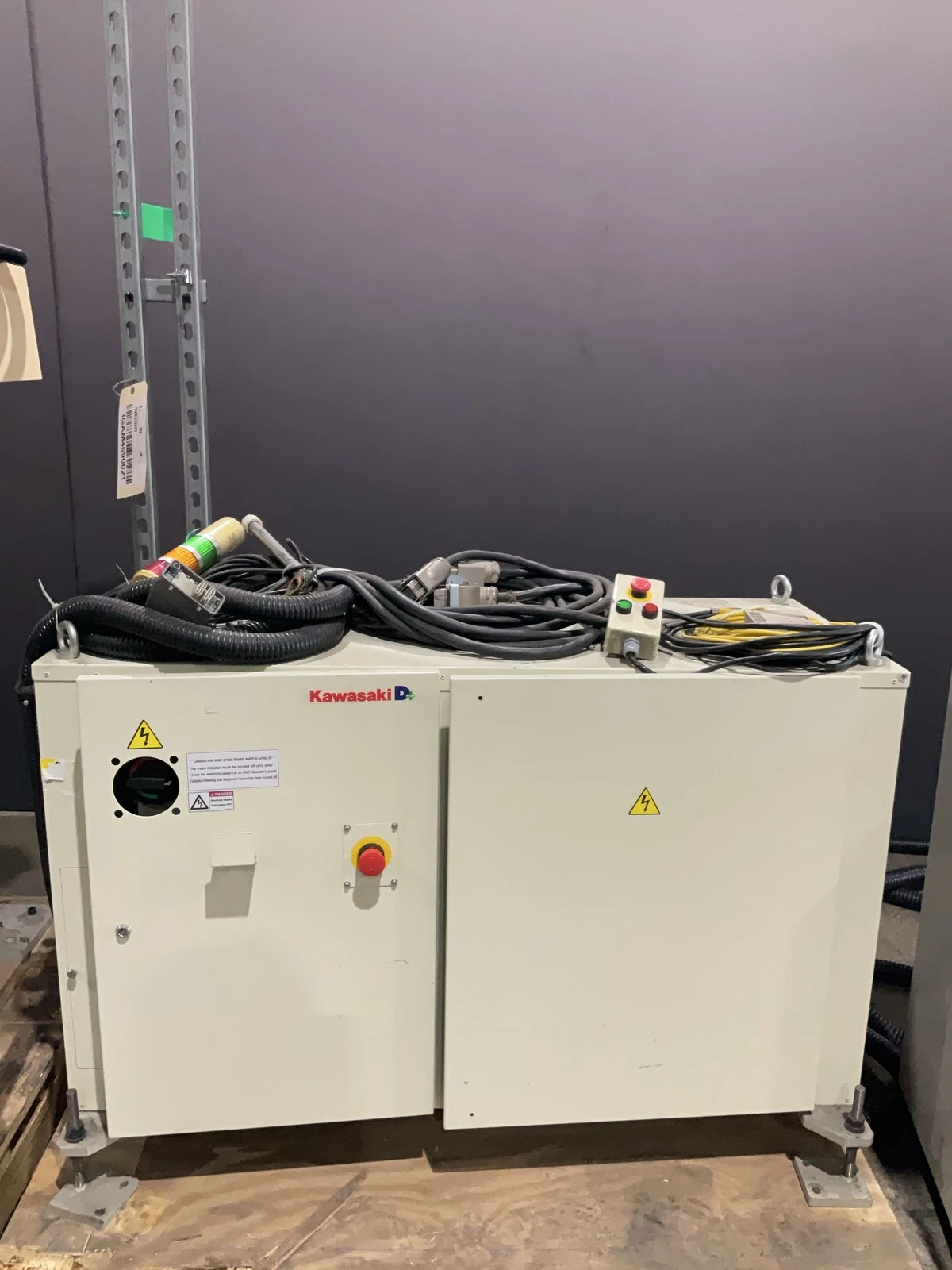

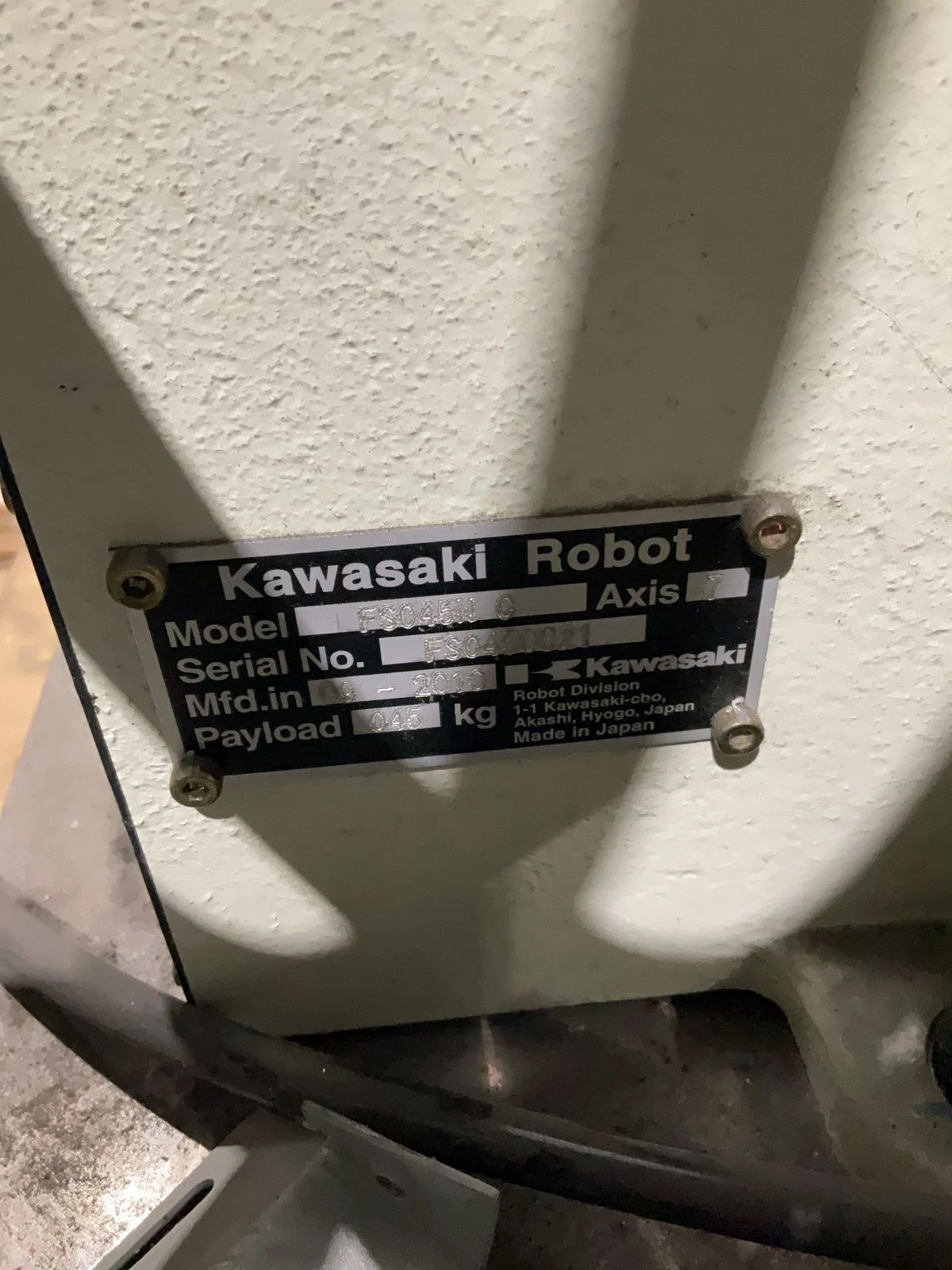

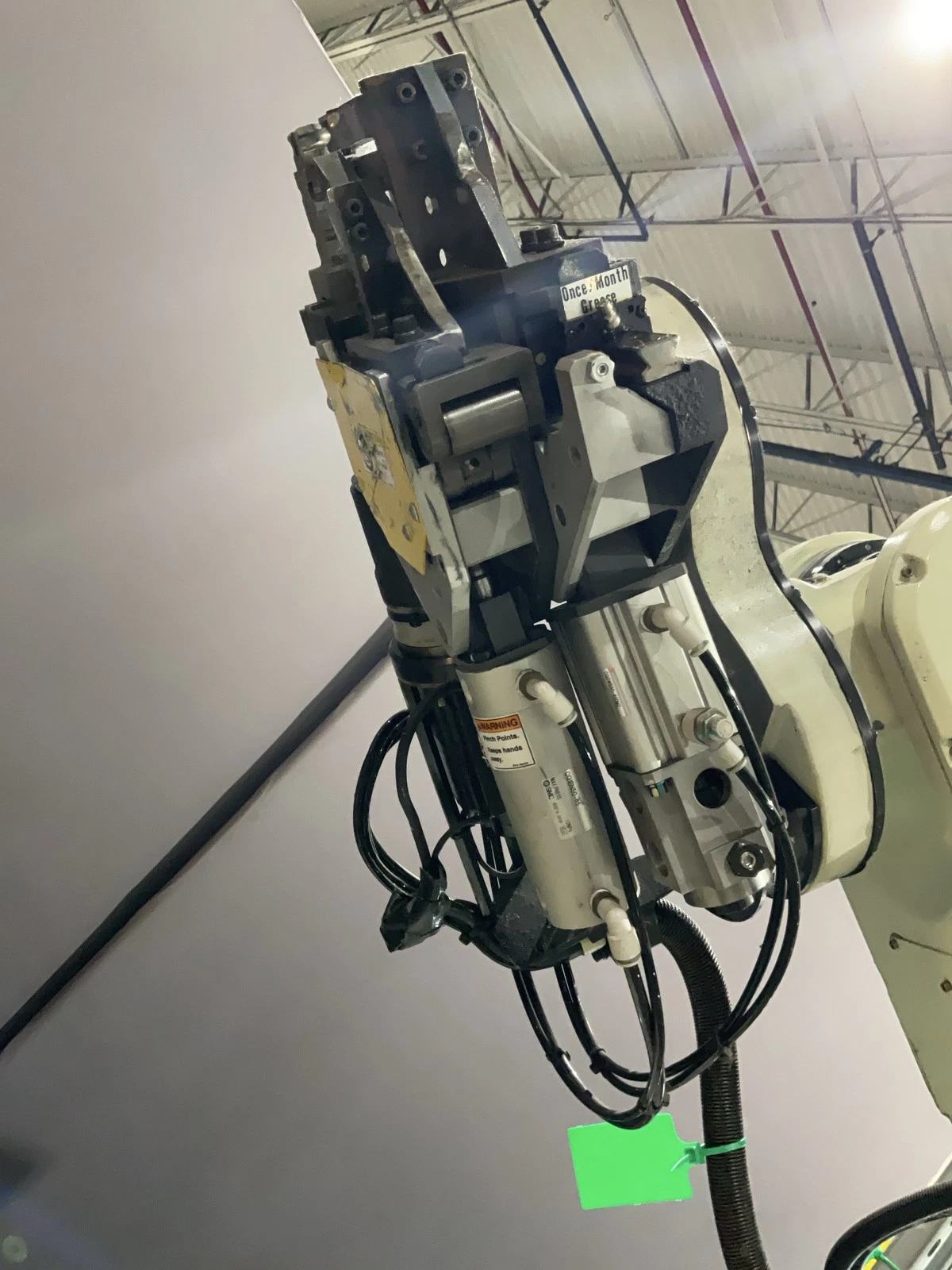

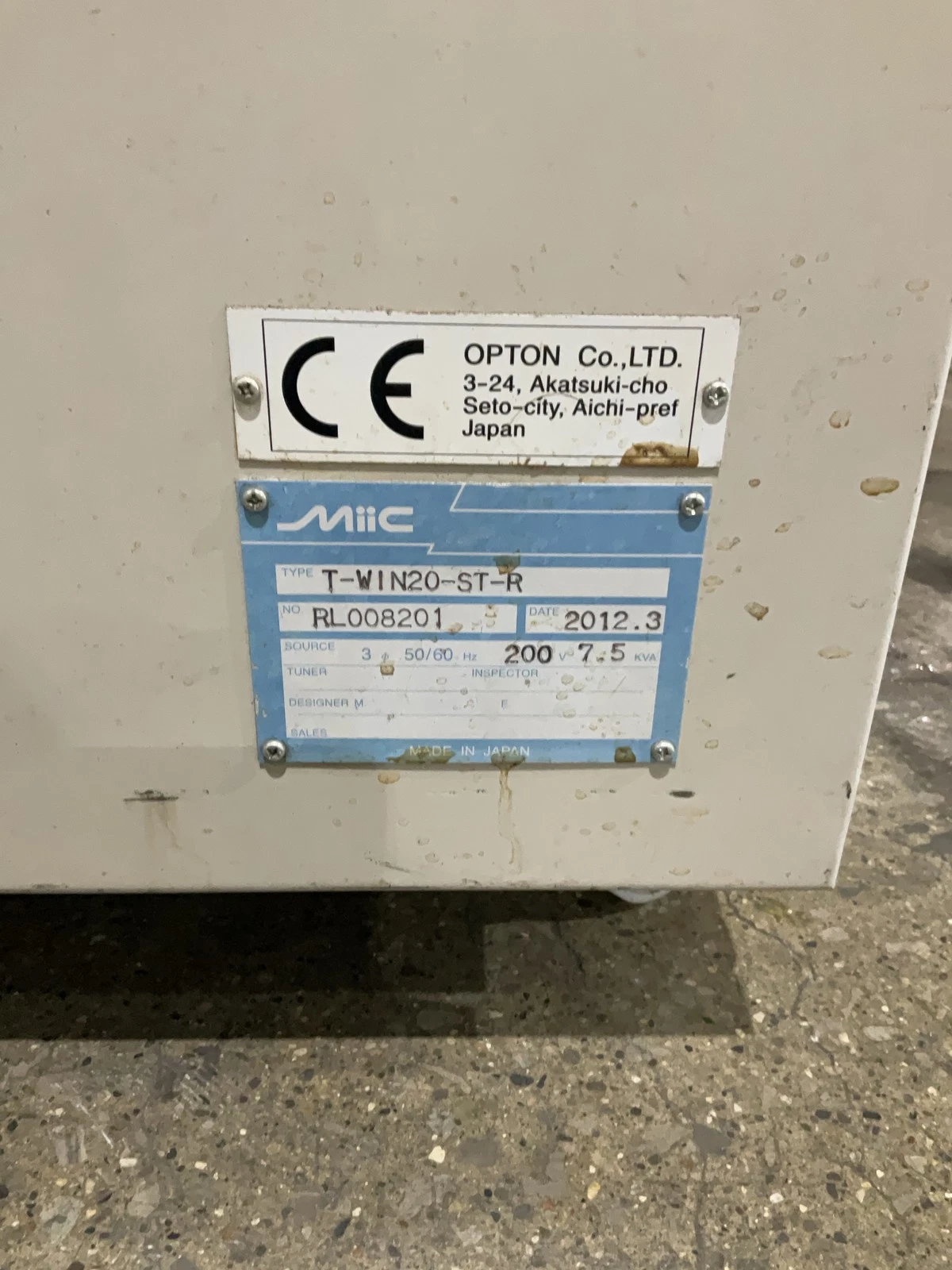

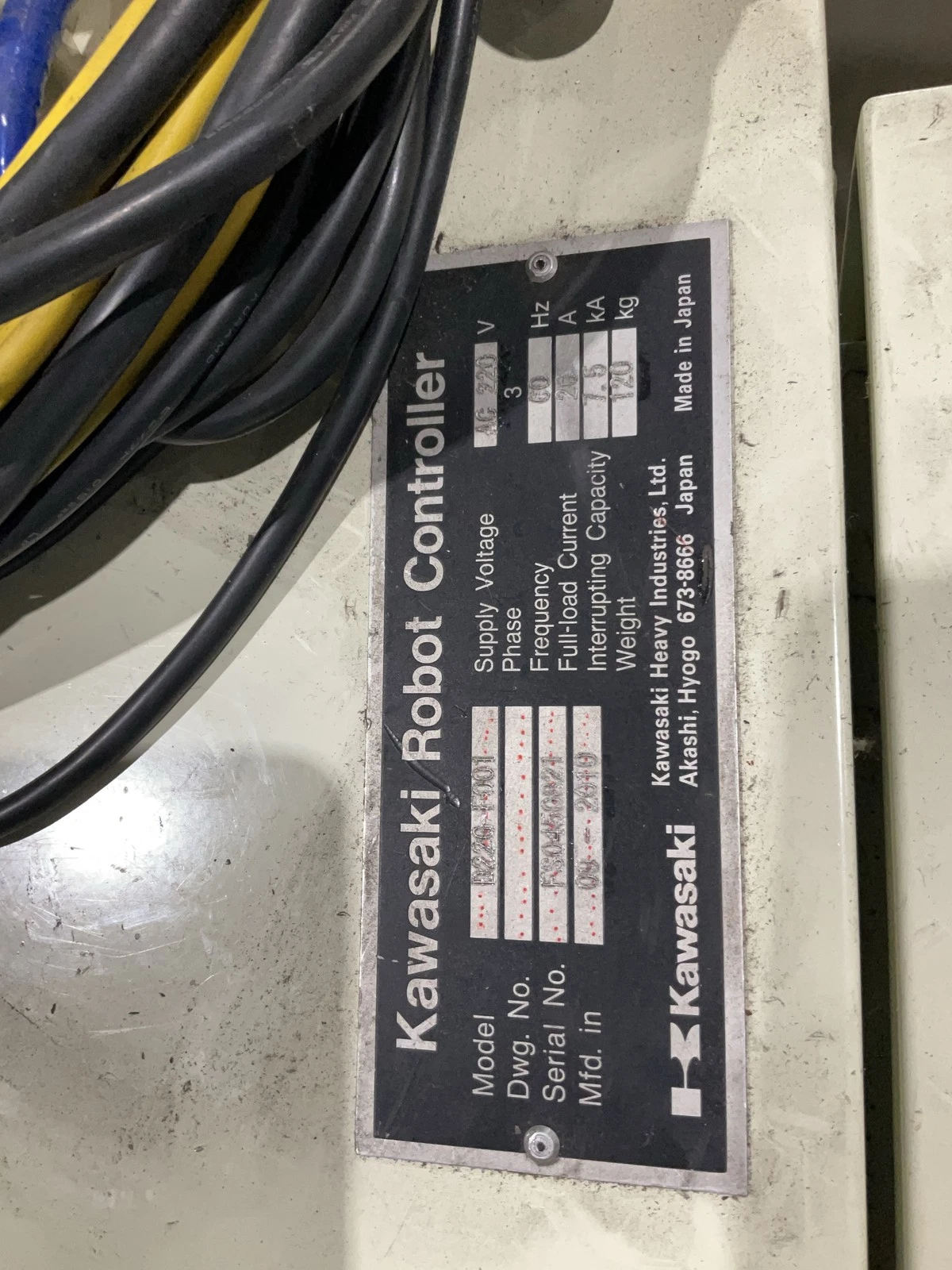

IDENTIFICATION Manufacturer: Kawasaki Robot Model: FS045N-C Robot Serial Number: FS0450821 Controller Model: D220-F001 Controller Serial Number: D2200010001 Condition: USED Robot Manufacture Date: 2010 Controller Manufacture Date: 2010 Country of Manufacture: Japan SYSTEM COMPONENTS Robot: Included D220-F001 Controller: Included MiiC T-WIN20-ST-R HMI Station: Included Robot-to-Controller Cables: Included End-of-Arm Tooling: Included Teach Pendant: Not Included ROBOT DATA Configuration: 6-Axis Articulated Payload Capacity: 45 kg Maximum Reach: 2605 mm Repeatability: ±0.2 mm Robot Family: FS Series Robot Mounting: Floor Mount Number of Controlled Axes: 6 WORK ENVELOPE Horizontal Reach: 2605 mm Vertical Reach: 4208 mm Robot Motion Envelope: Extended Reach MOTION DATA JT1 Motion Range: ±160° JT2 Motion Range: +150° / -65° JT3 Motion Range: +70° / -190° JT4 Motion Range: ±720° JT5 Motion Range: ±135° JT6 Motion Range: ±360° CONTROLLER DATA Controller Model: D220-F001 Supply Voltage: AC 220 V Input Phase: 3 Phase Frequency: 50/60 Hz Full Load Current: 30 A Interrupting Capacity: 7.5 kA Controller Weight: 170 kg
