Ingersoll MasterMill 5-Axis CNC Bridge Mill, X-196″ w/Pallet Shuttle USED

CALL FOR PRICE
Availability:

Out of stock
BRAND: INGERSOLL MODEL: Mastermill CONDITION: used
SKU: iGAM01029611 Weight: 99999 lbs Freight (Item Must Ship Freight)

Out of stock

Get Shipping Quote

Overview

Ingersoll MasterMill 5-Axis CNC Bridge Mill, 2016 model, features an impressive 196-inch X-axis with pallet shuttle and Fanuc controls. Ideal for precision machining. Used condition, ready to enhance your manufacturing capabilities. Has Fanuc Controls

Specification Table

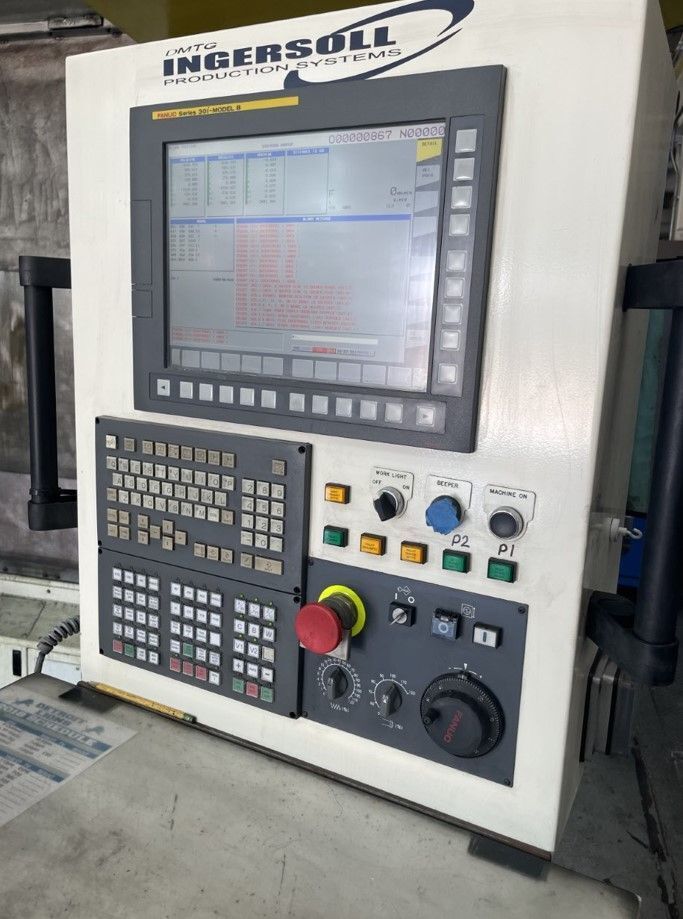

CNC Control Fanuc 30i-B
Table-L 157.48"
Table-W 98.42"
Number of Pallets 2
Distance Between Columns 118.11"
Maximum Height Pallet To Ram Face 108.3"
X-axis Travel 196.85"
Y-axis Travel 157.42"
Z-axis Travel 39.37"
W-axis, Rail Travel 59.05"
A-axis Head Swivel 0 - 180°
C-axis Head Rotation 0.001°
Spindle Taper #50 ANSI B5.5
Spindle Speed (rpm) 4,000 RPM
Spindle Motor (hp) 50 hp
# ATC 60

Equipped With

- Fanuc 30i Model B CNC Control - Automatic Attachment Changer - Automatic Tool Changer - 5-Axis Milling Attachment - Straight Milling Attachment - Right Angle Milling Attachment - Sliding Steel Way Covers - 50 HP Digital AC Spindle Motor NOTE: Reconditioned & CNC Upgraded in 2016 With New Fanuc CNC Controls

Specifications:

CNC Control Fanuc 30i-B
Table-L 157.48″
Table-W 98.42″
Number of Pallets 2
Distance Between Columns 118.11″
Maximum Height Pallet To Ram Face 108.3″
X-axis Travel 196.85″
Y-axis Travel 157.42″
Z-axis Travel 39.37″
W-axis, Rail Travel 59.05″
A-axis Head Swivel 0 – 180°
C-axis Head Rotation 0.001°
Spindle Taper #50 ANSI B5.5
Spindle Speed (rpm) 4,000 RPM
Spindle Motor (hp) 50 hp
# ATC 60

Equipped With:

– Fanuc 30i Model B CNC Control- Automatic Attachment Changer- Automatic Tool Changer- 5-Axis Milling Attachment- Straight Milling Attachment- Right Angle Milling Attachment- Sliding Steel Way Covers- 50 HP Digital AC Spindle MotorNOTE:Reconditioned & CNC Upgraded in 2016 With New Fanuc CNC Controls
