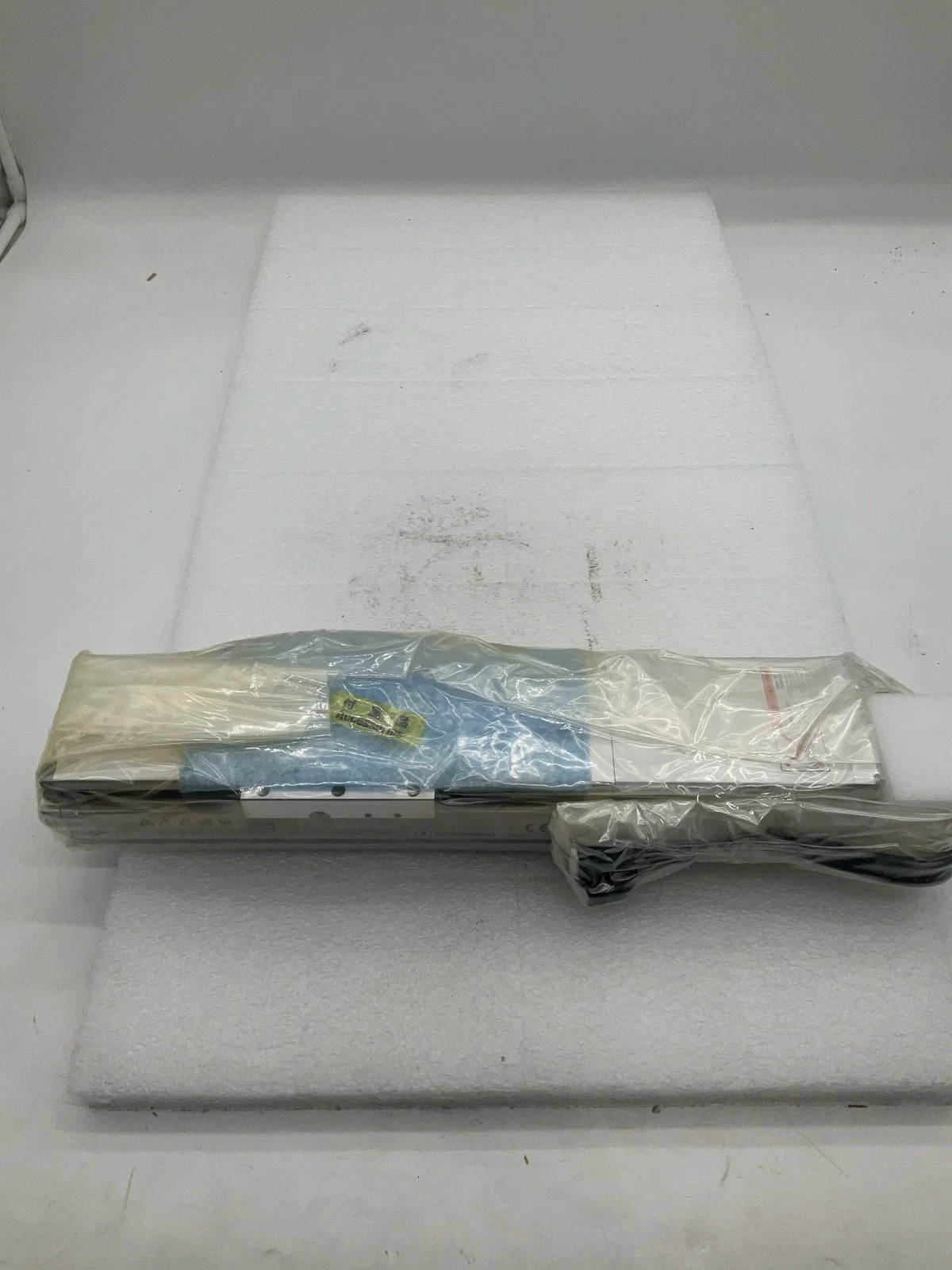

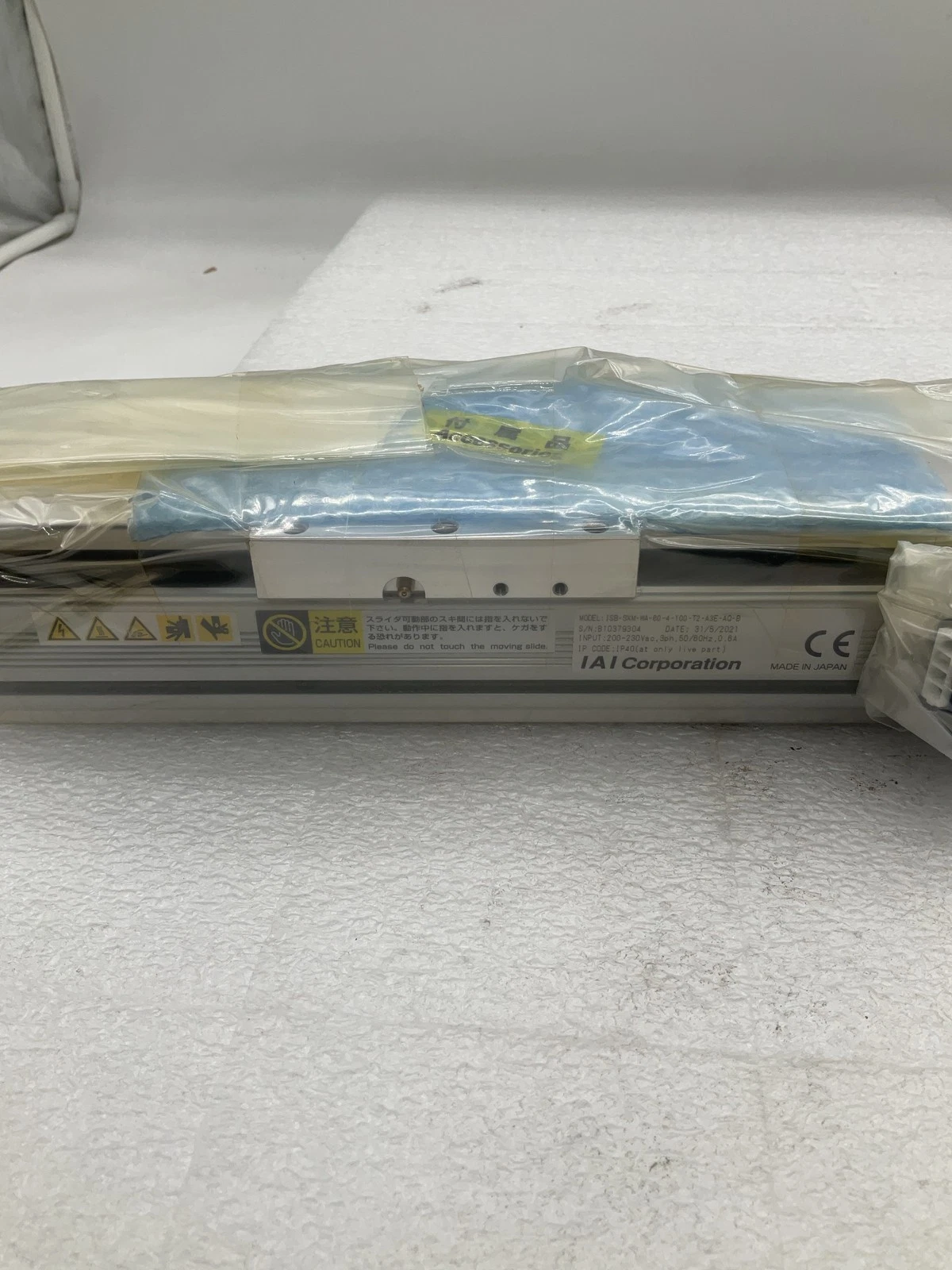

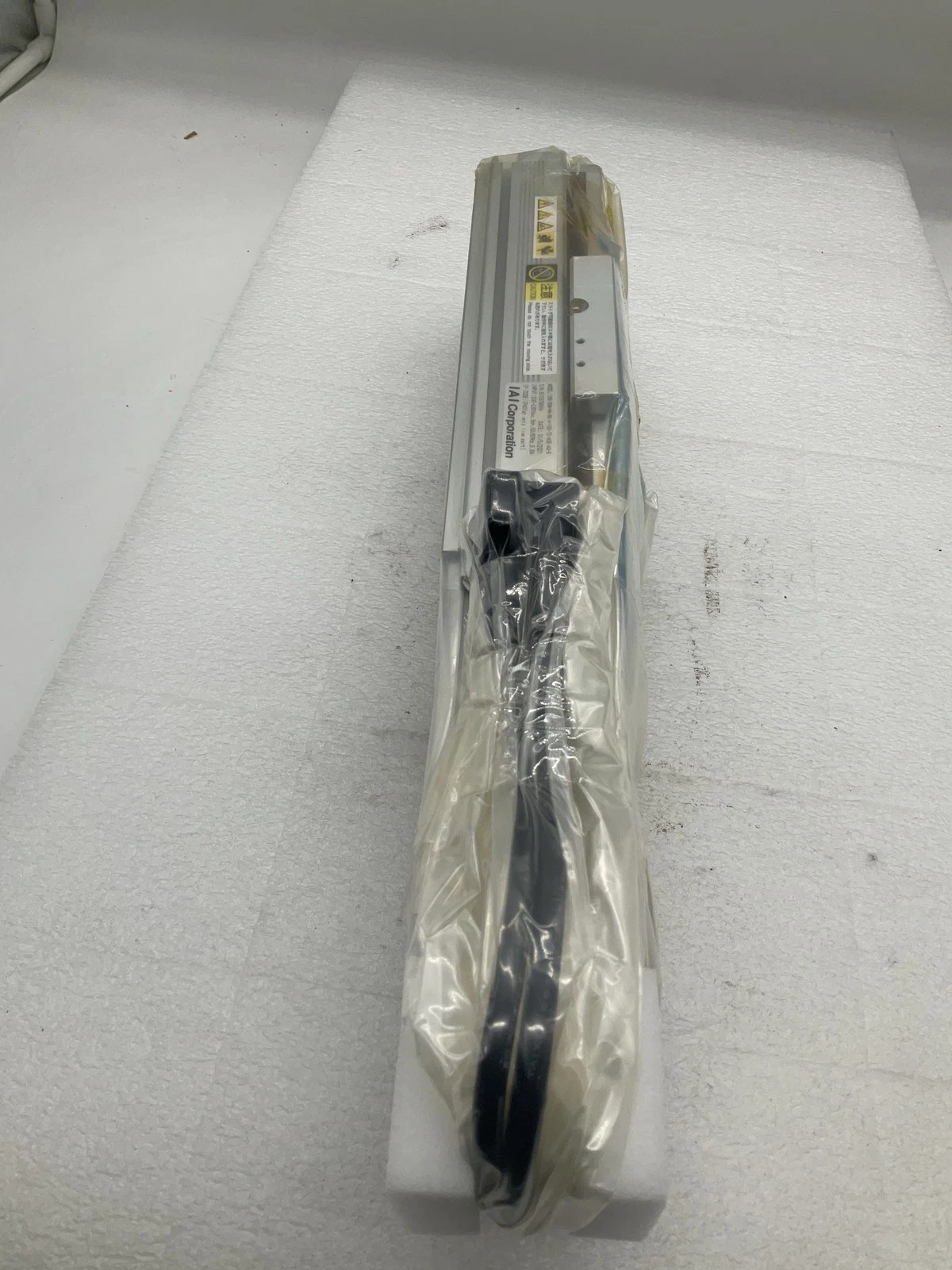

IAI ISB-SXM-WA-60-4-100-T2-A3E-AQ-B Electric Actuator 100mm Stroke NEW

Specification Table

IDENTIFICATION Manufacturer: IAI Corporation Series: ISB-SXM Model: ISB-SXM-WA-60-4-100-T2-A3E-AQ-B Serial Number: B10379304 Condition: NEW YOM: 2021 Country of Origin: Japan ACTUATOR Product Type: Electric Actuator Actuator Type: Slider Type Encoder Type: Battery-less Absolute Motor Output: 60 W MOTION Stroke Length: 100 mm Lead: 4 mm PERFORMANCE Positioning Repeatability: ±0.01 mm Rated Thrust: 212.3 N Payload Capacity (Horizontal): 55 kg Payload Capacity (Vertical): 14 kg MECHANICAL Drive Method: Ball Screw Ø12 mm Ball Screw Grade: Rolled C10 Dynamic Allowable Load Moment Ma: 32.9 N·m Mb: 47.0 N·m Mc: 76.8 N·m Overhang Load Length Ma Direction: 450 mm Max Mb Direction: 450 mm Max Mc Direction: 450 mm Max Dynamic Straightness: 0.02 mm/m Max ELECTRICAL Input Voltage: 200-230 VAC Phase: 3 Phase Frequency: 50/60 Hz Current Rating: 0.6 A PROTECTION IP Rating: IP40 Protection Scope: Live Part Only CONFIGURATION Applicable Controller: T2 Cable Exit Direction: A3E AQ Seal: Included CONSTRUCTION Base Material: Aluminum Surface Finish: White Alumite Treatment ENVIRONMENTAL Operating Temperature: 0°C to 40°C Humidity: 85% RH Max (Non-Condensing)
