I-TA FM22 7:1 Gearmotor 1 HP 220/380V 3-Phase USED

I-TA FM22 7:1 Gearmotor 1 HP 220/380V 3-Phase USED - Image 2

I-TA FM22 7:1 Gearmotor 1 HP 220/380V 3-Phase USED - Image 3

I-TA FM22 7:1 Gearmotor 1 HP 220/380V 3-Phase USED - Image 4

I-TA FM22 7:1 Gearmotor 1 HP 220/380V 3-Phase USED - Image 5

SOLD!

I-TA FM22 7:1 Gearmotor 1 HP 220/380V 3-Phase USED

Name: I-TA FM22 7:1 Gearmotor 1 HP 220/380V 3-Phase USED
Brand: ITA
SKU: IGAM1050321
Price: 125 USD
Availability: InStock

Availability:

1 in stock

BRAND: ITA MODEL: FM22 CONDITION: Used

SKU: IGAM1050321 Weight: 33 lbs Shipping Calculated at Checkout

1 in stock

Make an offer

Overview

This listing is for a USED I-TA FM22 gearmotor. The assembly combines a 1 HP three-phase induction motor with a 7:1 gear reducer for reduced-speed power transmission in industrial machinery and automation equipment. The motor is rated for 50/60 Hz operation and supports dual-voltage configuration.

Description
Tags

Specification Table

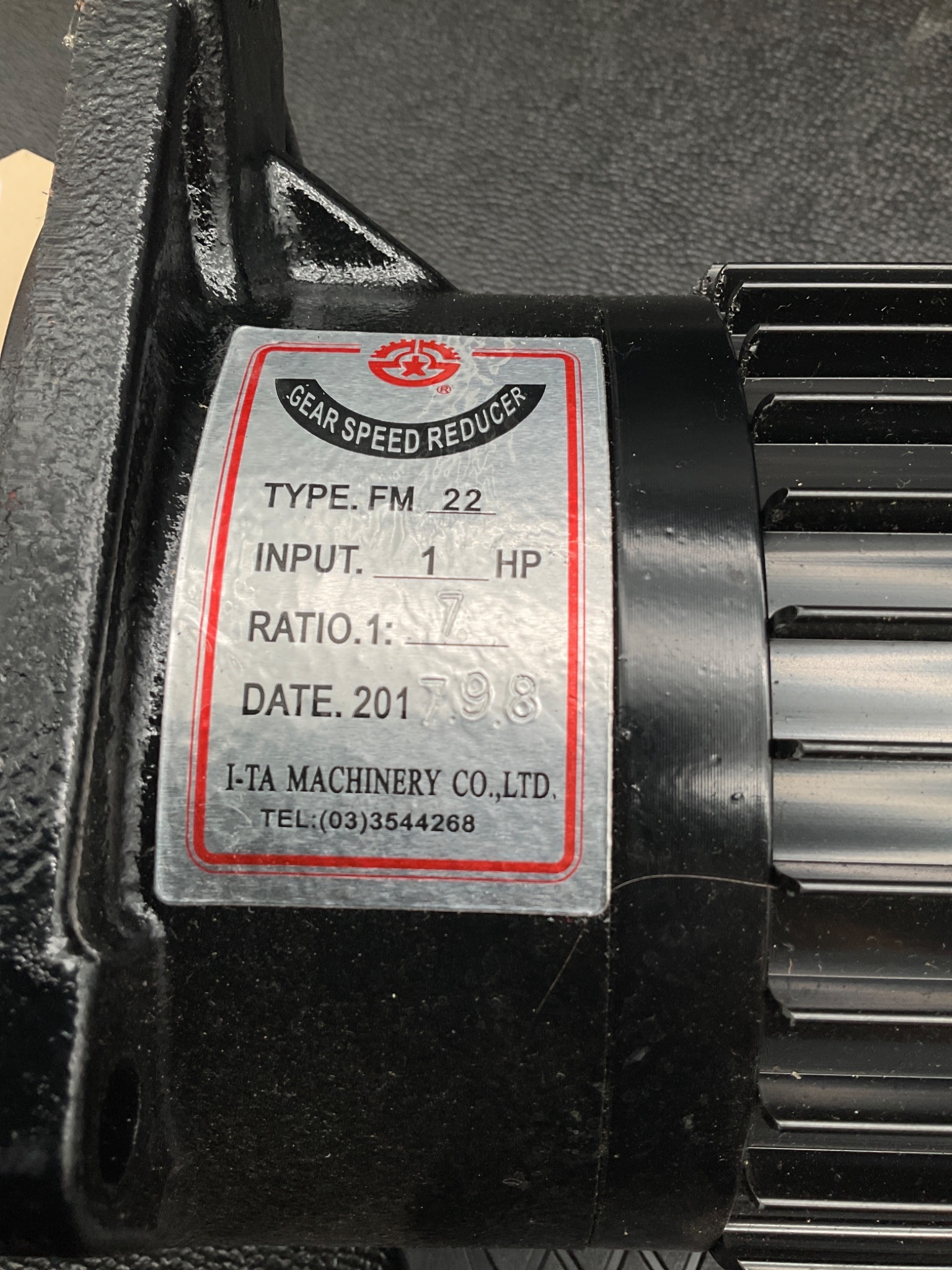

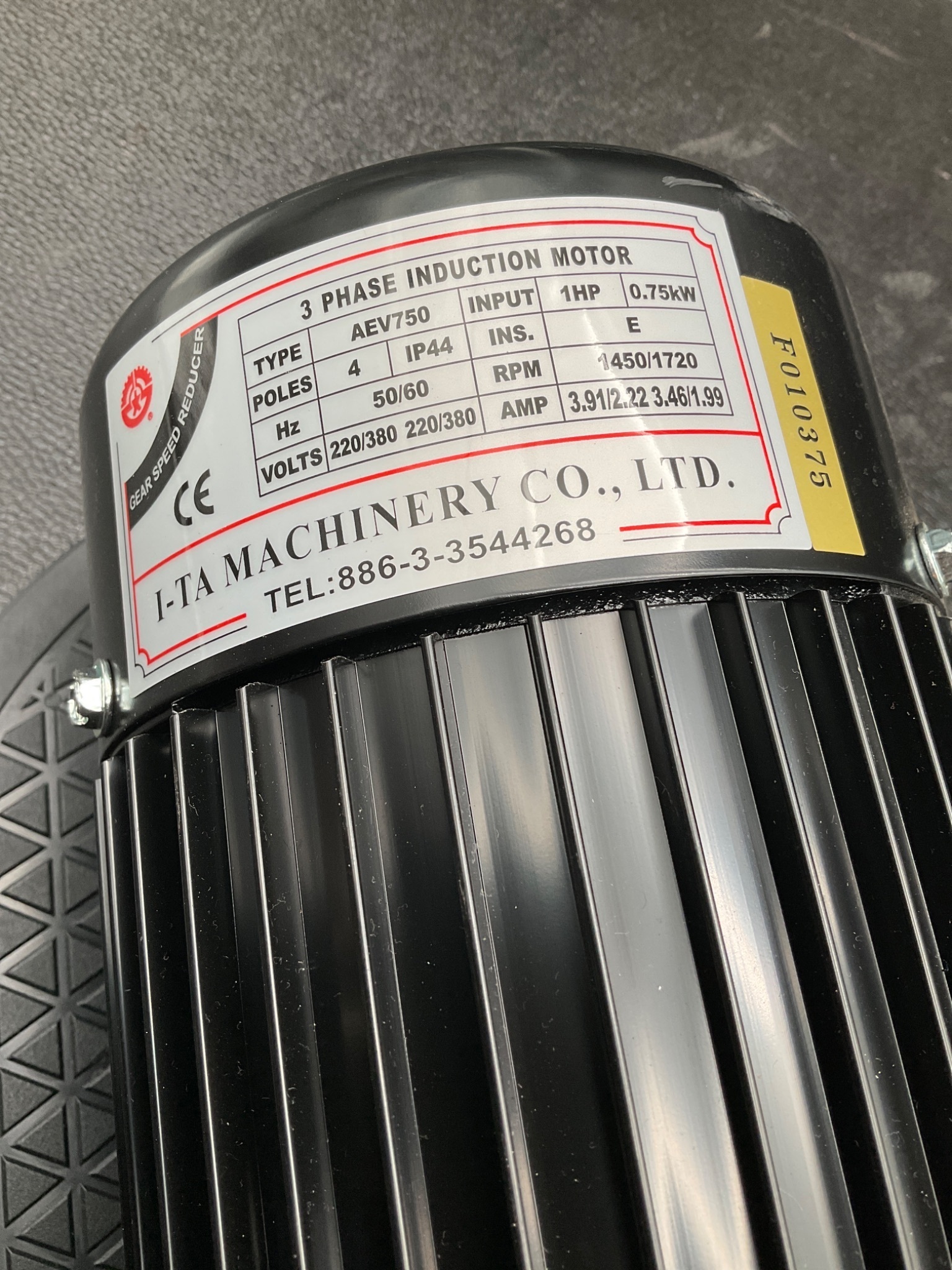

IDENTIFICATION Manufacturer: I-TA Machinery Co., Ltd. Gear Reducer Model: FM22 Motor Model: AEV750 Product Type: Gearmotor Condition: USED YOM: 2017 GEAR REDUCER Reducer Type: Gear Speed Reducer Model: FM22 Input Power Rating: 1 HP Reduction Ratio: 7:1 Reducer Date: 2017.9.8 MOTOR Motor Type: 3-Phase Induction Motor Model: AEV750 Rated Power: 1 HP (0.75 kW) Poles: 4 Ingress Protection: IP44 Insulation Class: E 60 HZ ELECTRICAL Voltage: 230 / 380 VAC Frequency: 60 Hz Full Load Current: 3.46 / 1.99 A Rated Speed: 1720 RPM 50 HZ ELECTRICAL Voltage: 220 / 380 VAC Frequency: 50 Hz Full Load Current: 3.91 / 2.22 A Rated Speed: 1450 RPM CONSTRUCTION Mounting Configuration: Foot Mounted Motor Housing: Finned Gear Reducer Housing: Cast Metal Terminal Box: Top Mounted
