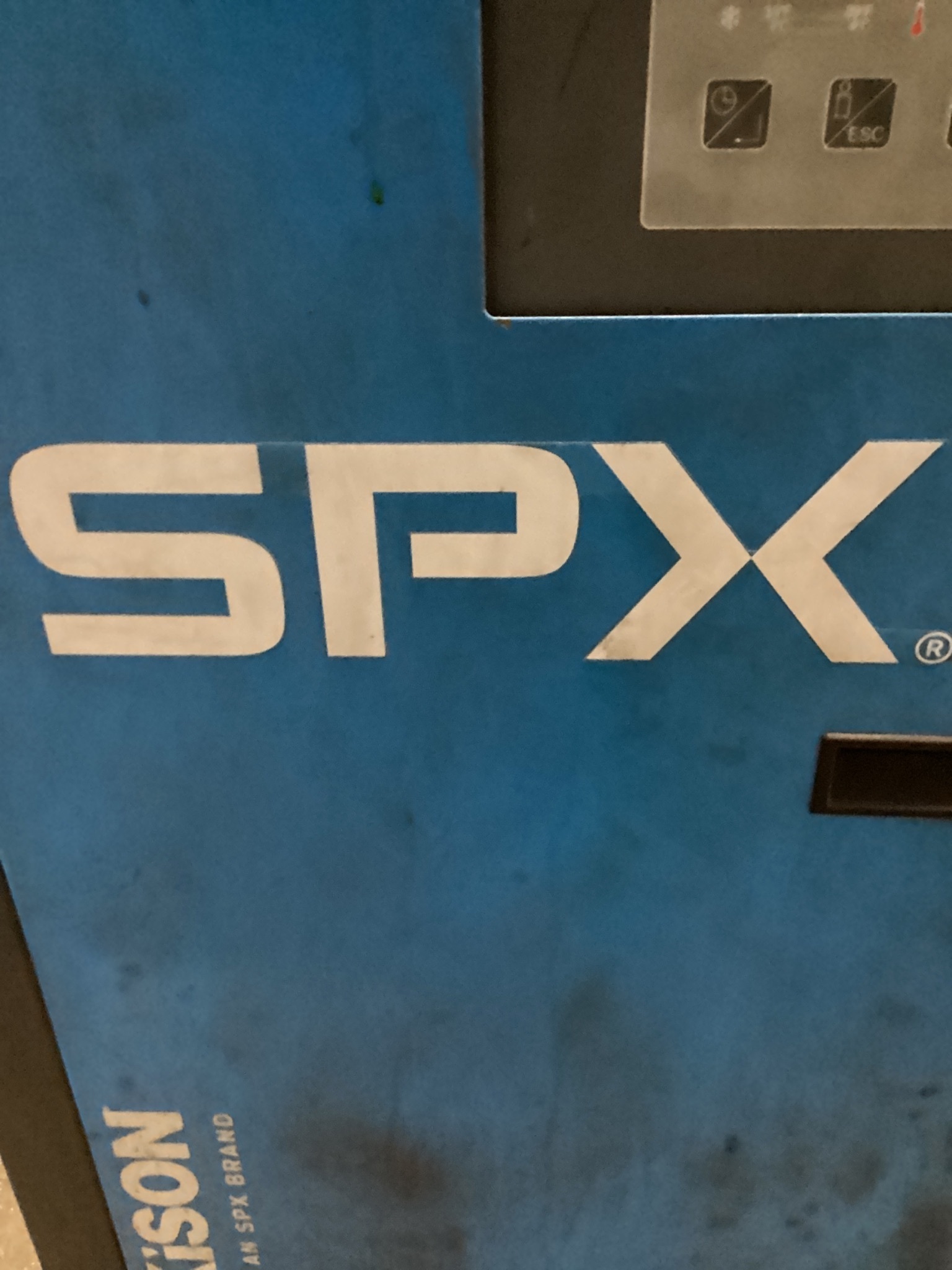

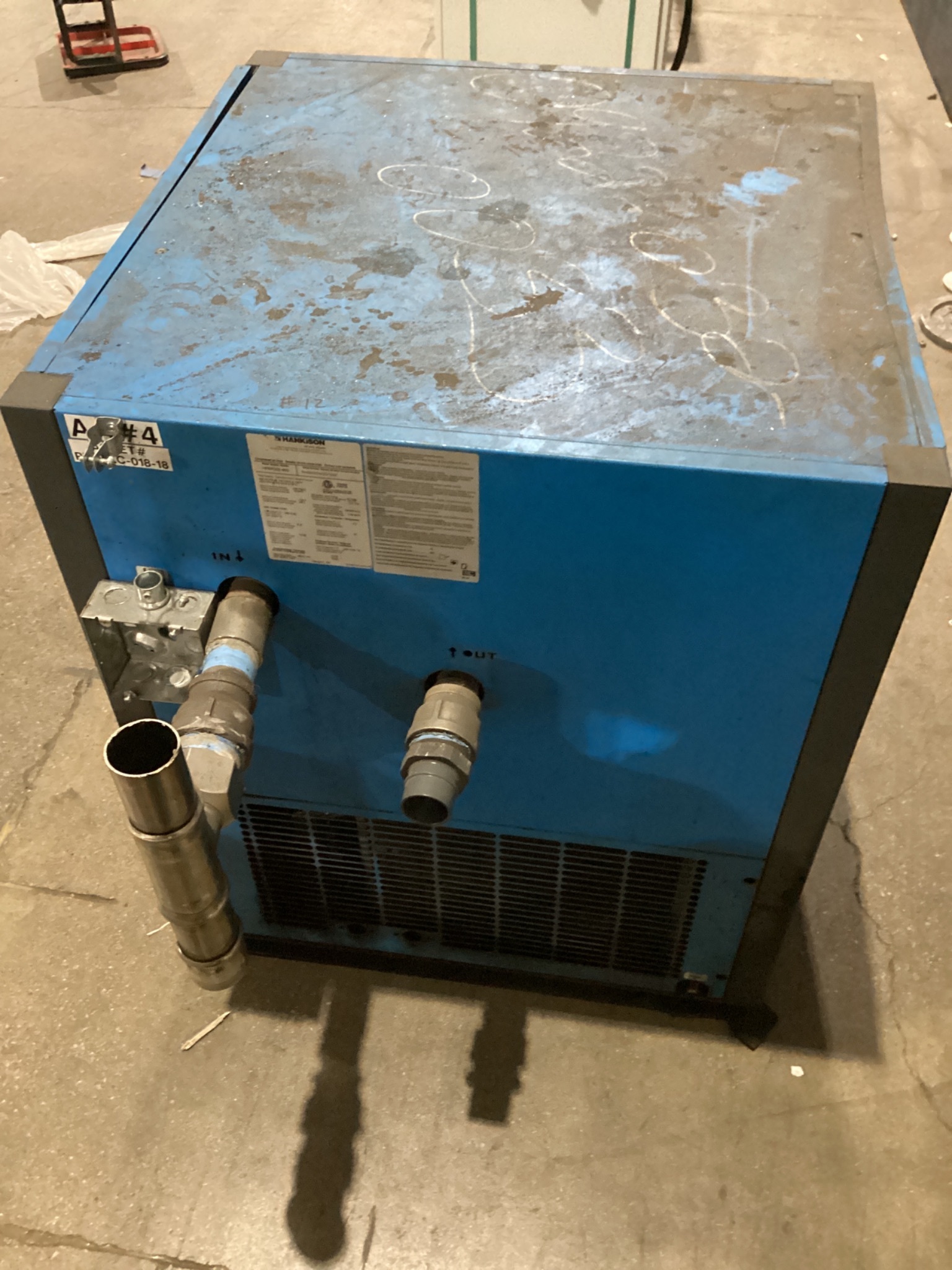

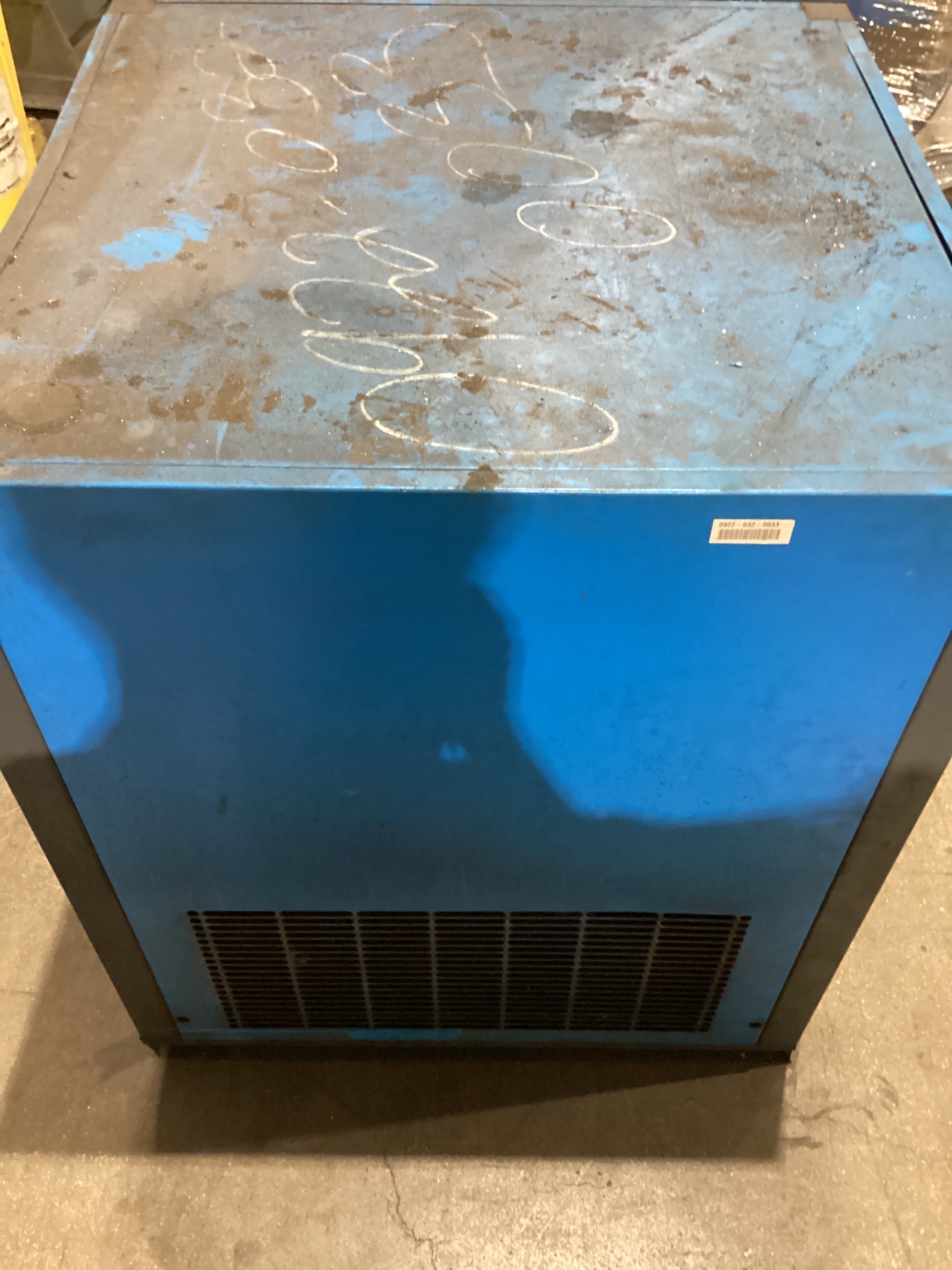

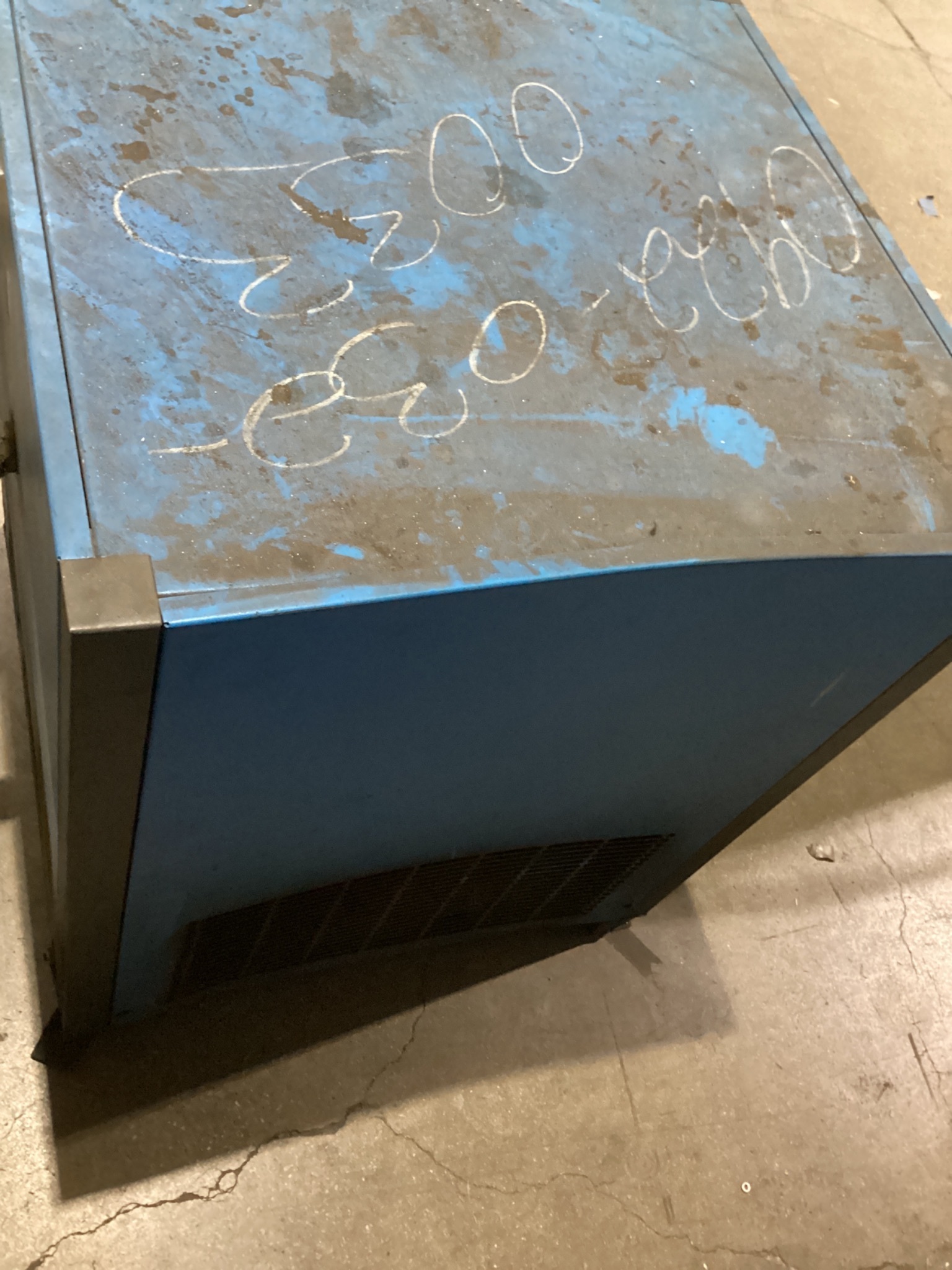

Hankison HPRP250-460 Refrigerated Compressed Air Dryer USED

Specification Table

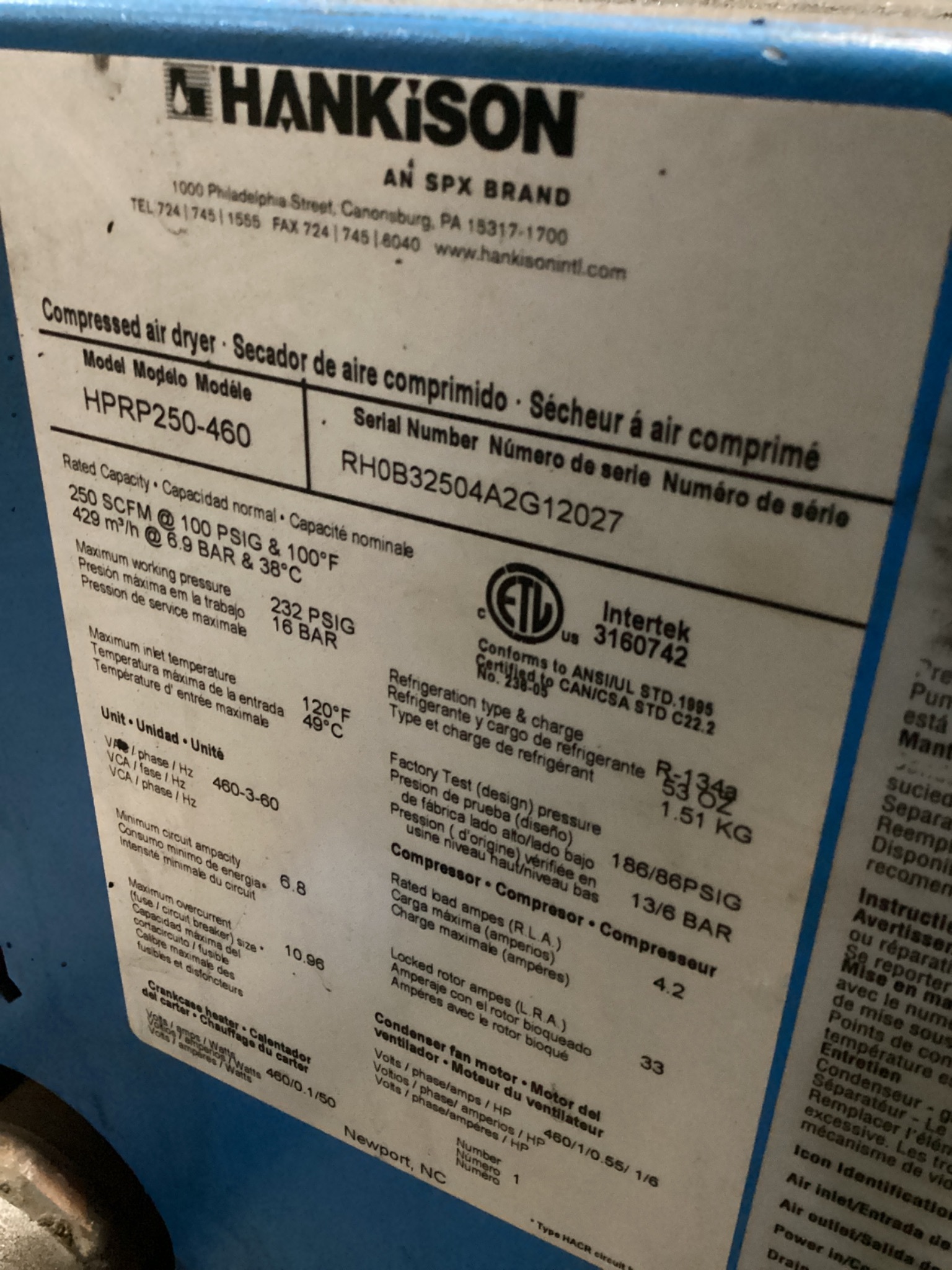

Manufacturer: Hankison Model: HPRP250-460 Condition: USED Serial Number: RH0B32504A2G12027 Rated Capacity: 250 SCFM @ 100 PSIG & 100°F Rated Capacity: 429 m³/h @ 6.9 Bar & 38°C Electrical Specifications Voltage: 460 VAC Phase: 3 Frequency: 60 Hz Power System Minimum Circuit Ampacity: 6.8 A Maximum Overcurrent Device: 10.96 A Compressed Air Specifications Maximum Working Pressure: 232 PSIG Maximum Working Pressure: 16 Bar Maximum Inlet Temperature: 120°F Maximum Inlet Temperature: 49°C Refrigeration System Refrigerant Type: R-134a Refrigerant Charge: 53 oz Refrigerant Charge: 1.51 kg Pressure Ratings Factory Test Pressure: 186 PSIG Factory Test Pressure: 13 Bar Compressor Rated Load Amps (RLA): 4.2 A Locked Rotor Amps (LRA): 33 A Crankcase Heater Voltage: 460 VAC Phase: 1 Frequency: 50/60 Hz Condenser Fan Motor Voltage: 460 VAC Phase: 1 Horsepower: 1/6 HP Construction Electronic Control Panel: Present Enclosed Cabinet: Present Country of Manufacture: USA
