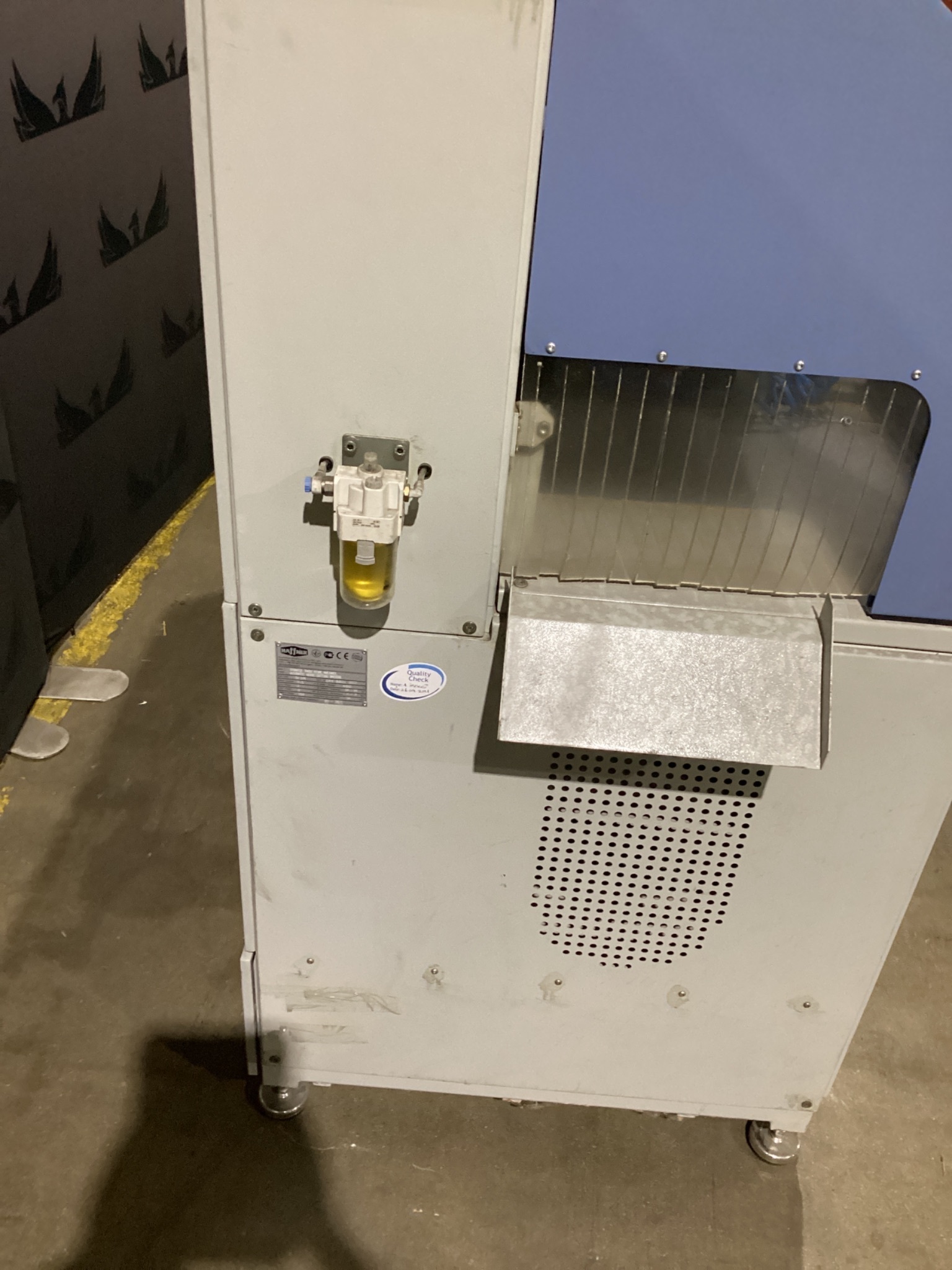

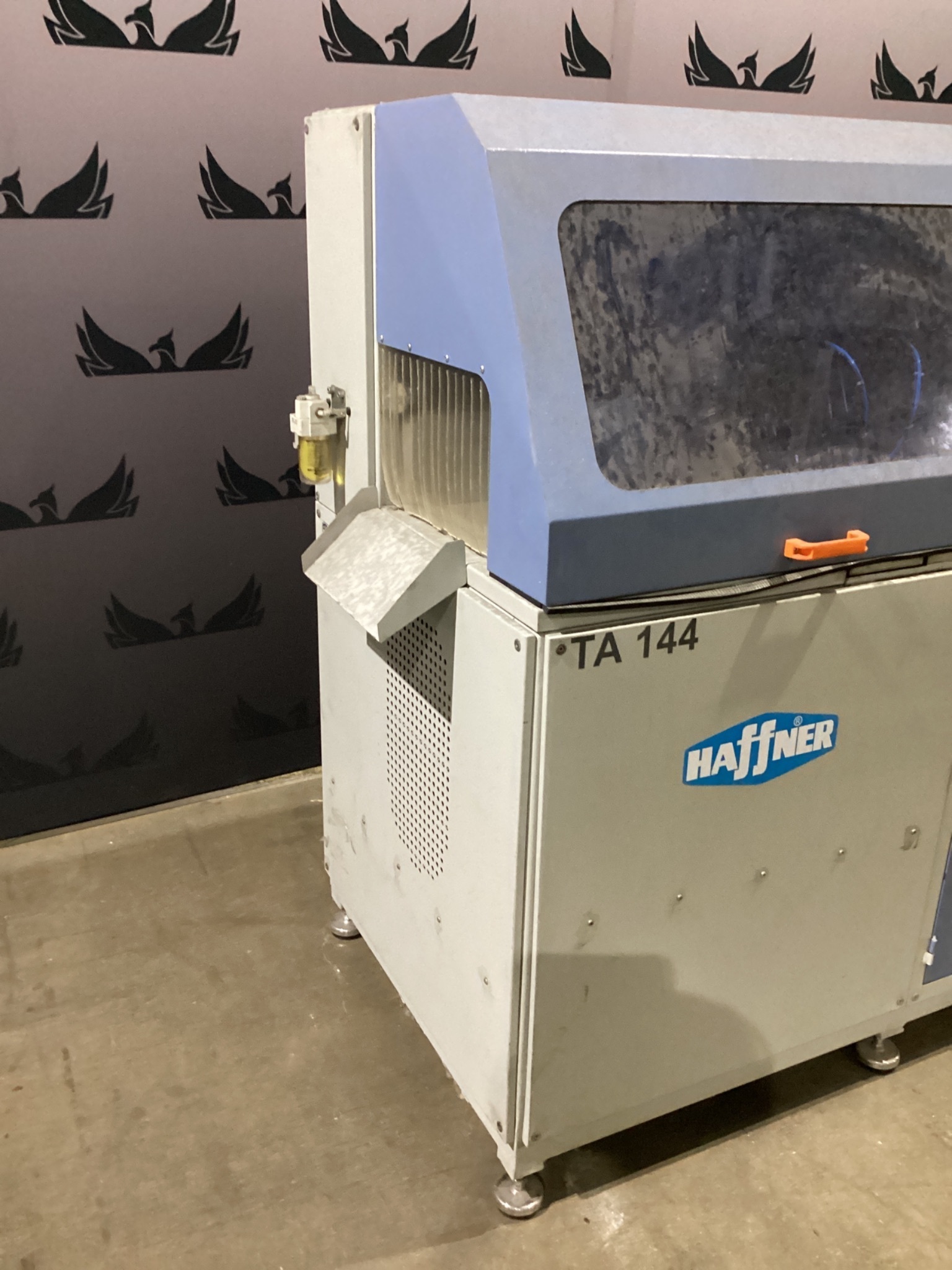

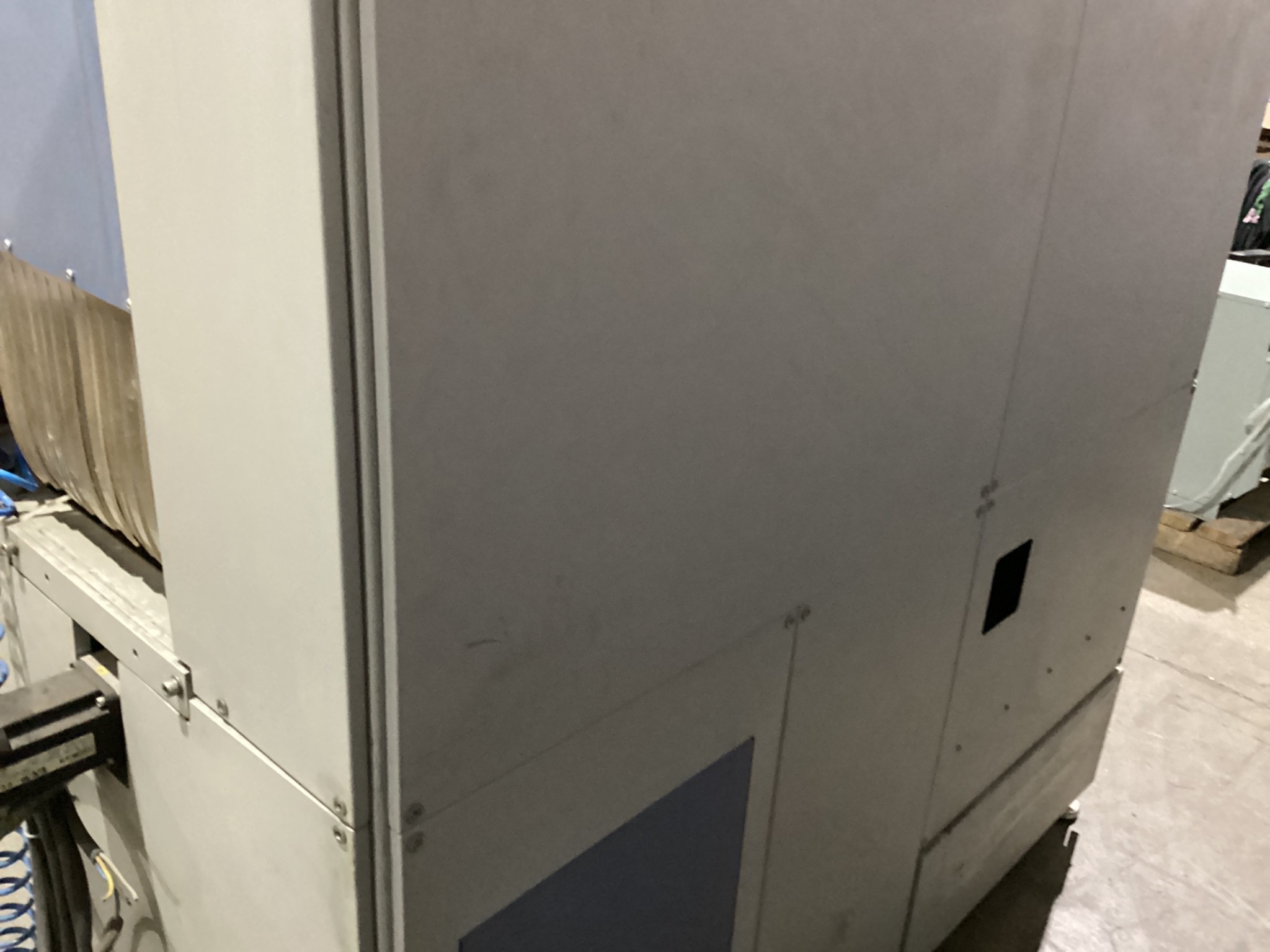

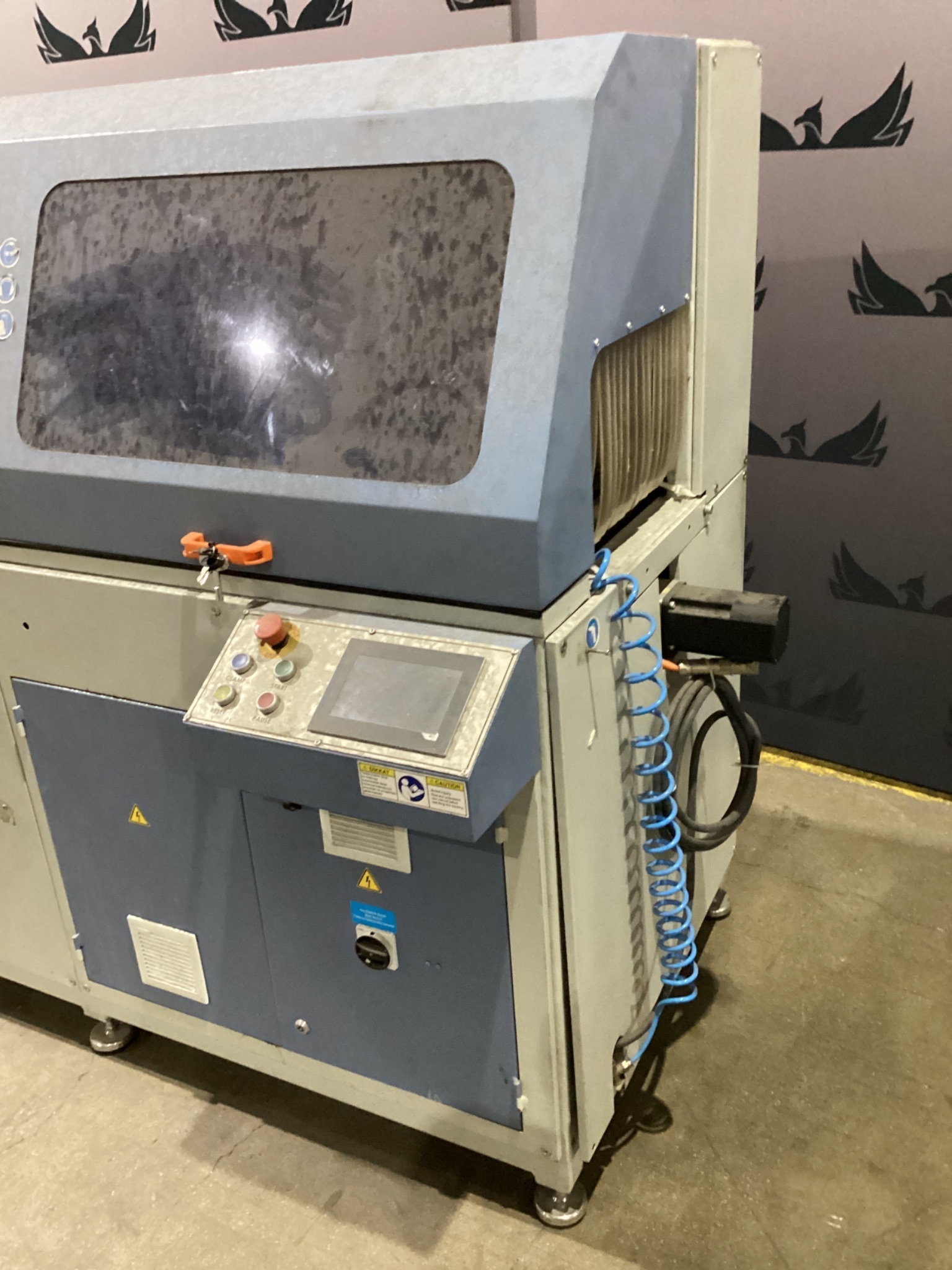

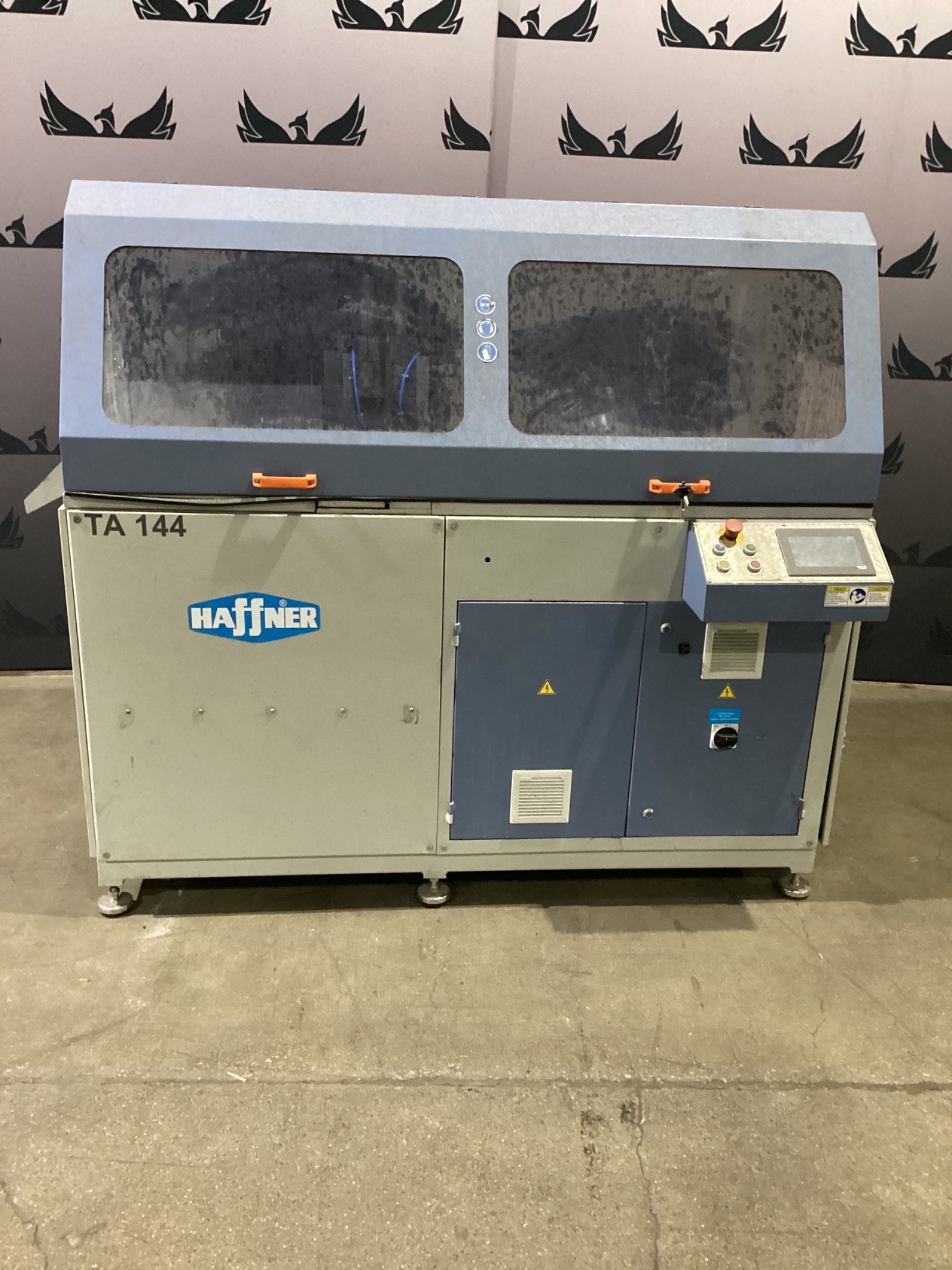

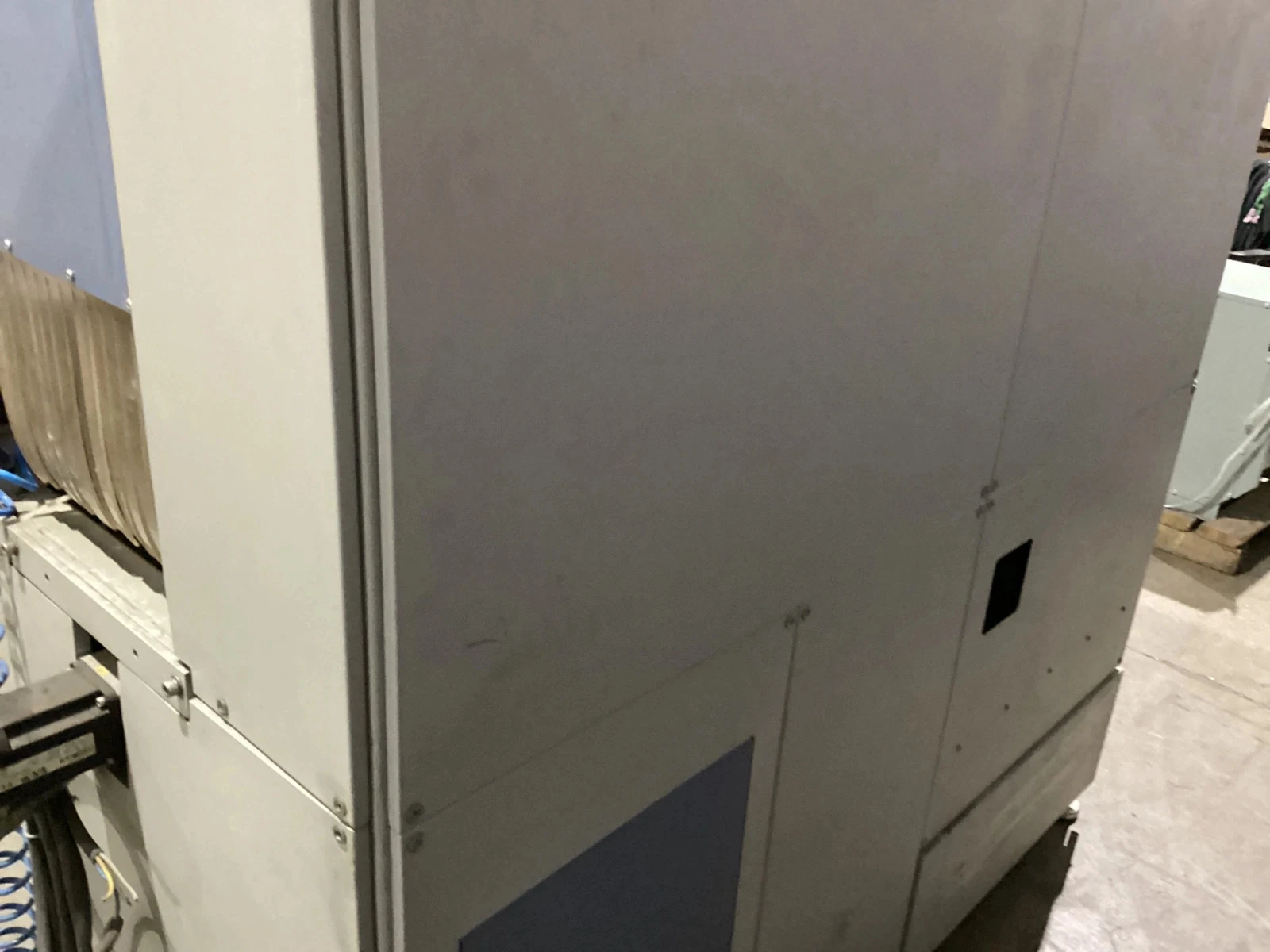

HAFFNER TA 144 Automatic Aluminum Cleat Cutting Saw 600mm 8kW NEW

Specification Table

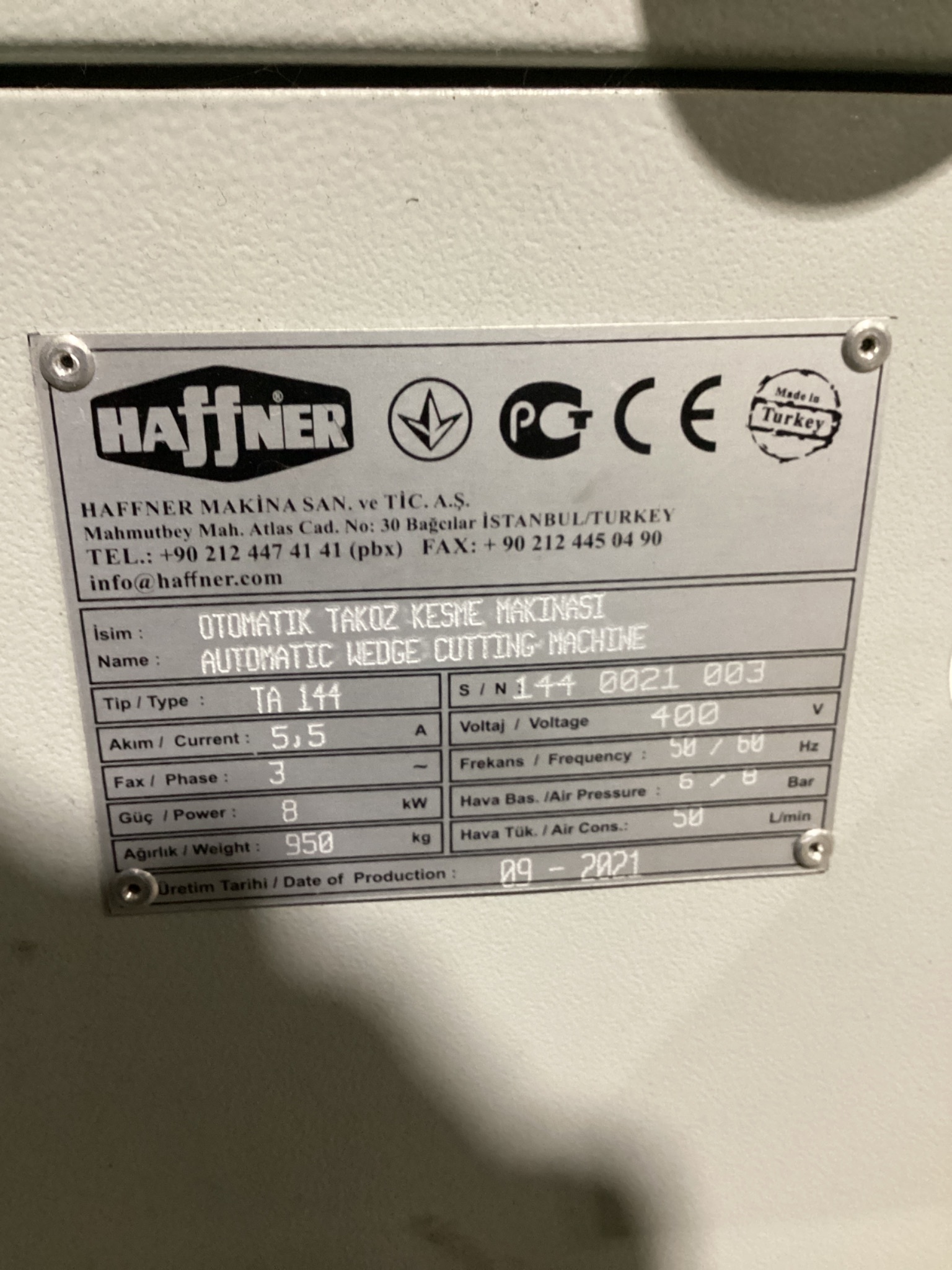

IDENTIFICATION Manufacturer: Haffner Model: TA 144 Product Type: Automatic aluminum cleat cutting saw Serial Number: 144 0021 003 Condition: NEW YOM: 2021-09 Country of Manufacture: Turkey   CUTTING Operation: Automatic Material Application: Aluminum profiles Saw Blade Diameter: 600 mm Spindle Speed at 50 Hz: 2,800 RPM Spindle Speed at 60 Hz: 3,360 RPM Maximum Profile Height: 200 mm Minimum Profile Width: 200 mm Feed Length Range: 5-700 mm   FEED / CLAMPING Profile Feed: Automatic Profile Clamping: Pneumatic Horizontal Clamping: Present Vertical Clamping: Present Infeed Roller Conveyor: 3 m Cutting List: Programmable Cutting List Data Transfer: Network / USB   CONTROL / OPERATOR INTERFACE Control System: CNC Operator Interface: Industrial PLC panel Touchscreen Size: 7 in USB Interface: Present Network Connection: Present Safety Cover Switch: Present Emergency Stop: Present   COOLING / LUBRICATION Saw Cooling: Automatic spray Blade Lubrication: Pulse spray mist   ELECTRICAL Supply Voltage: 400 VAC Current: 5.5 A Phase: 3 Frequency: 50 / 60 Hz Power: 8 kW   PNEUMATIC Air Pressure: 6-8 bar Air Consumption: 50 L/min   CONSTRUCTION / INSTALLATION Machine Configuration: Floor standing Cutting Area: Enclosed Viewing Windows: Present Leveling Feet: Present Roller Support: Included   PHYSICAL Machine Height: 1,700 mm Machine Length: 2,000 mm Machine Width: 1,100 mm Machine Weight: 950 kg
