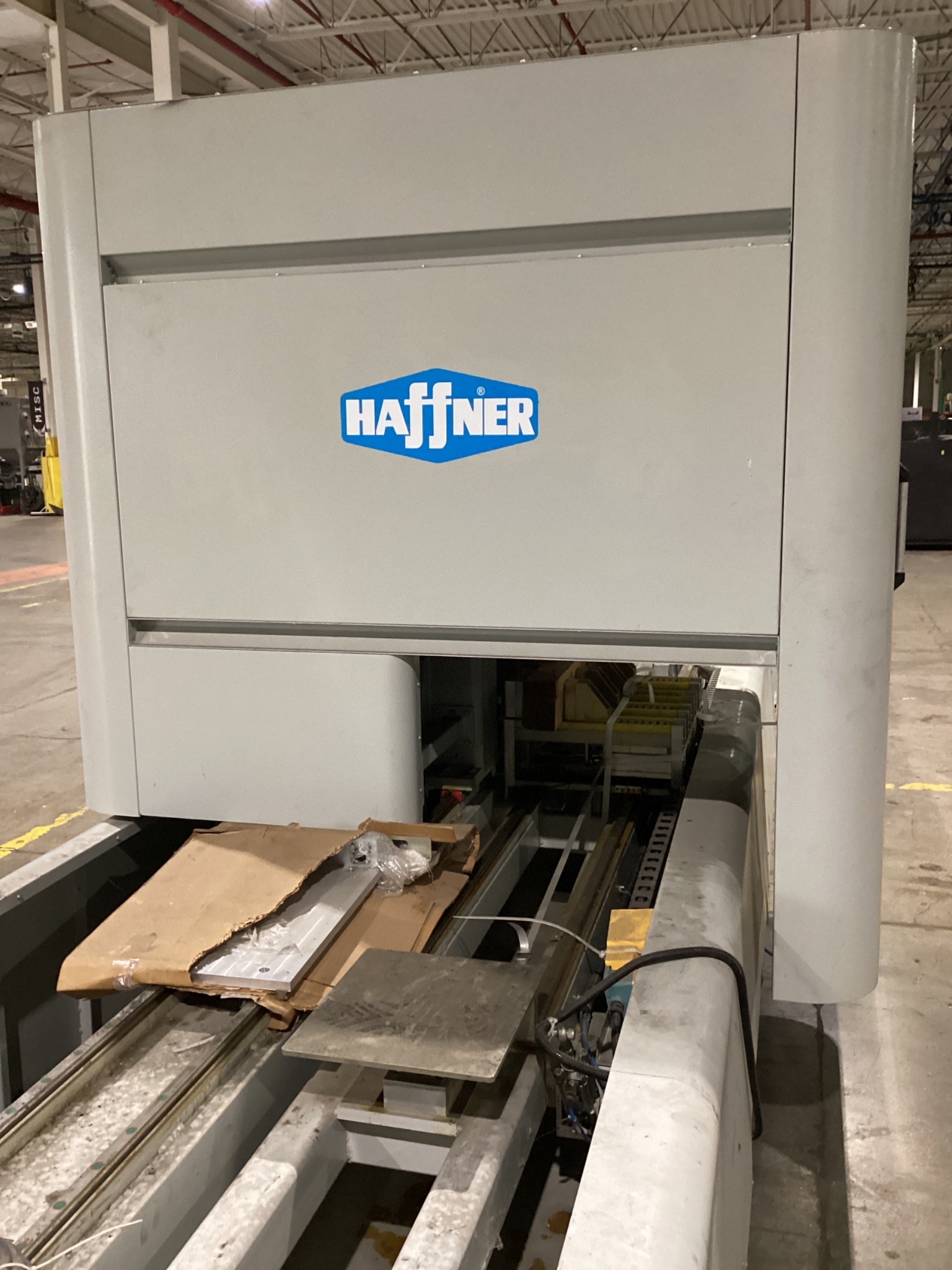

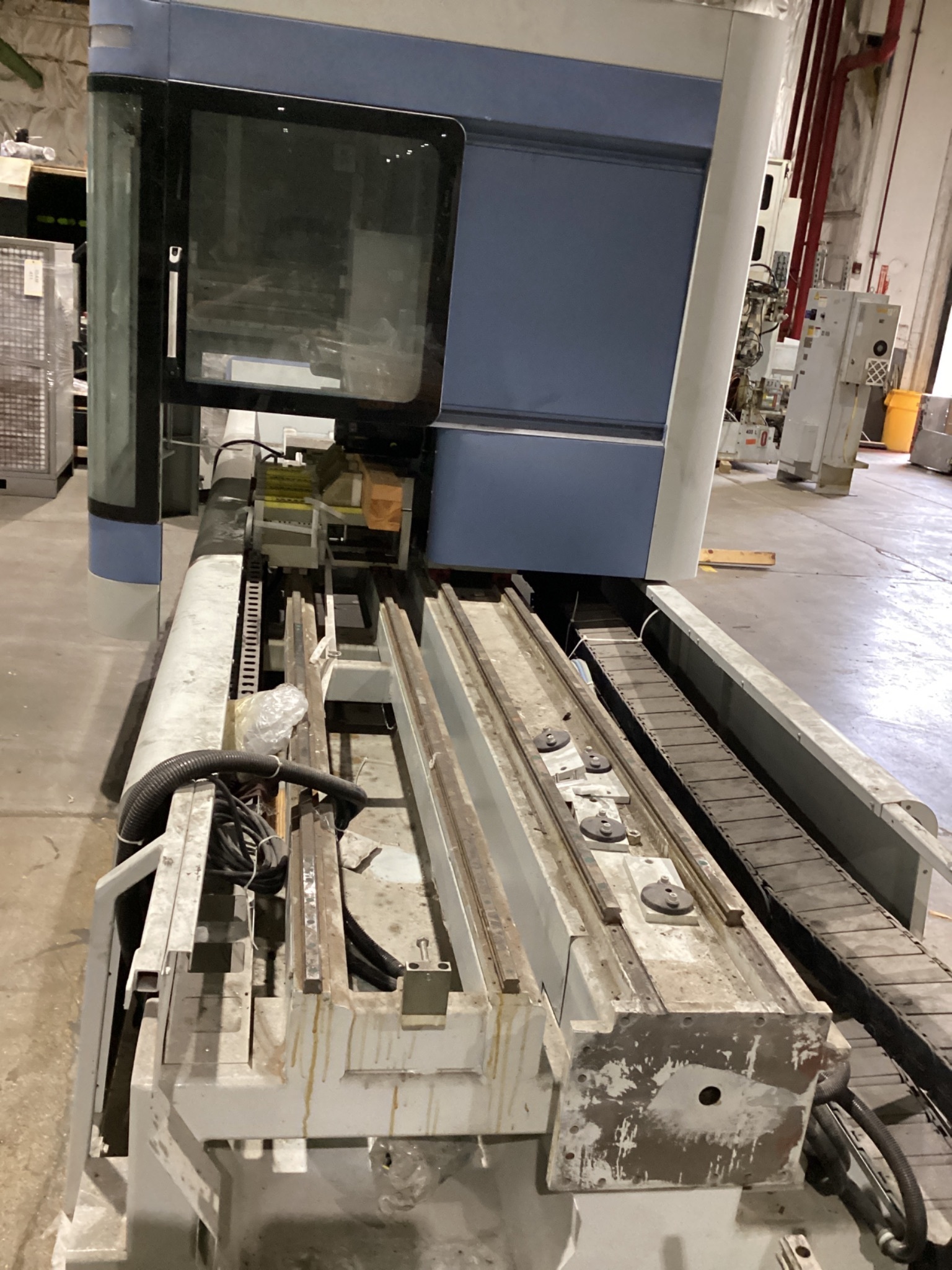

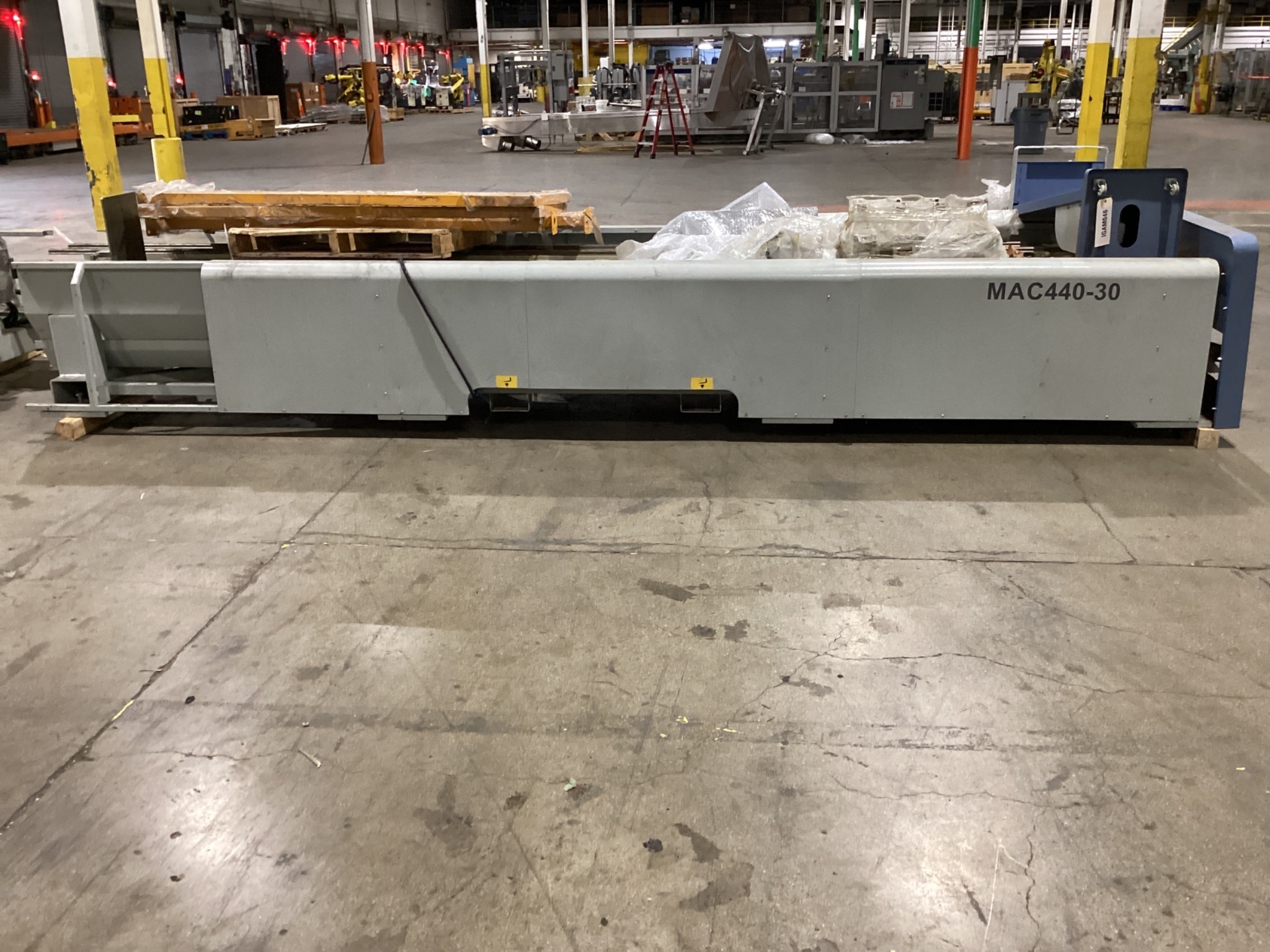

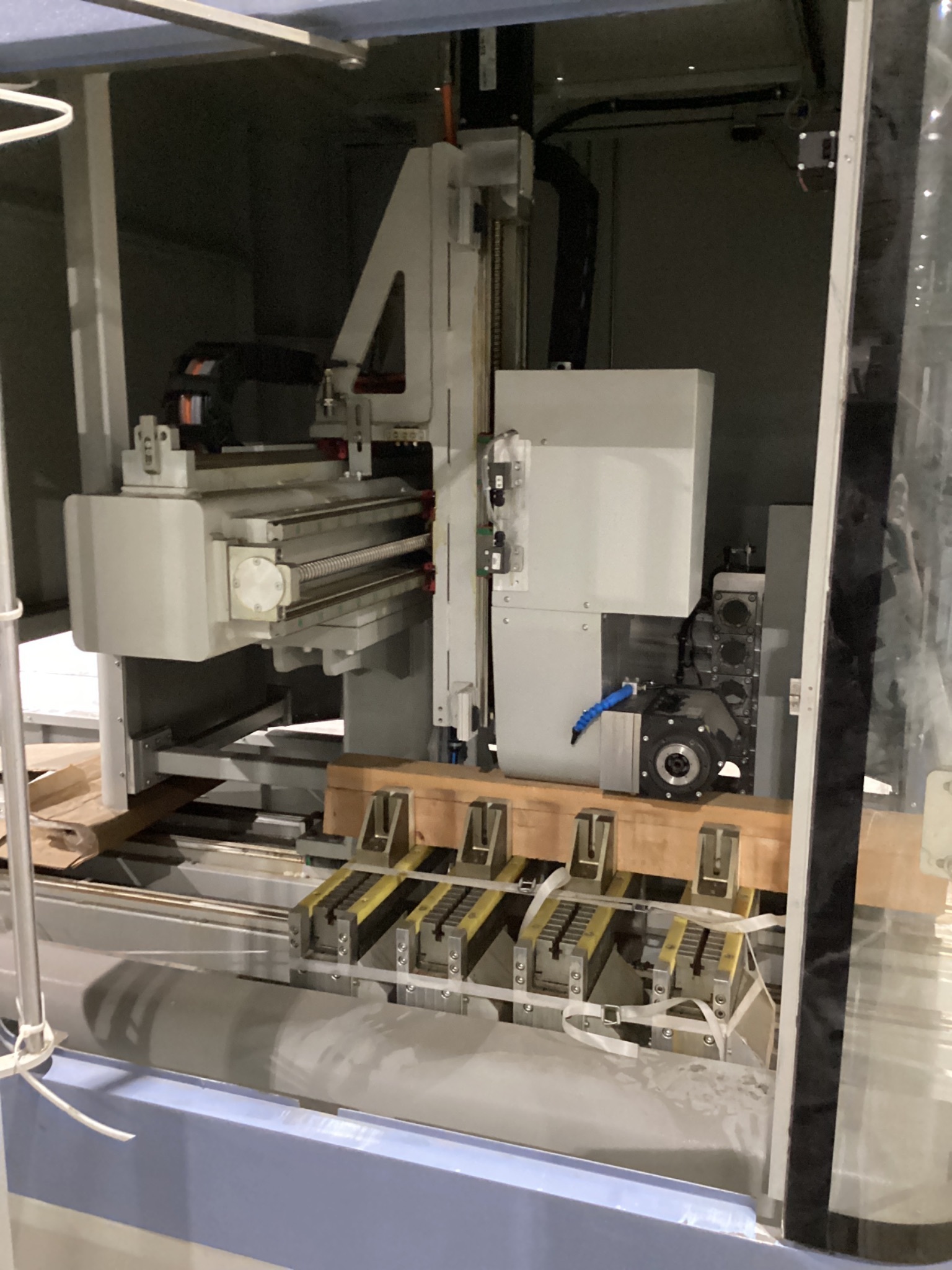

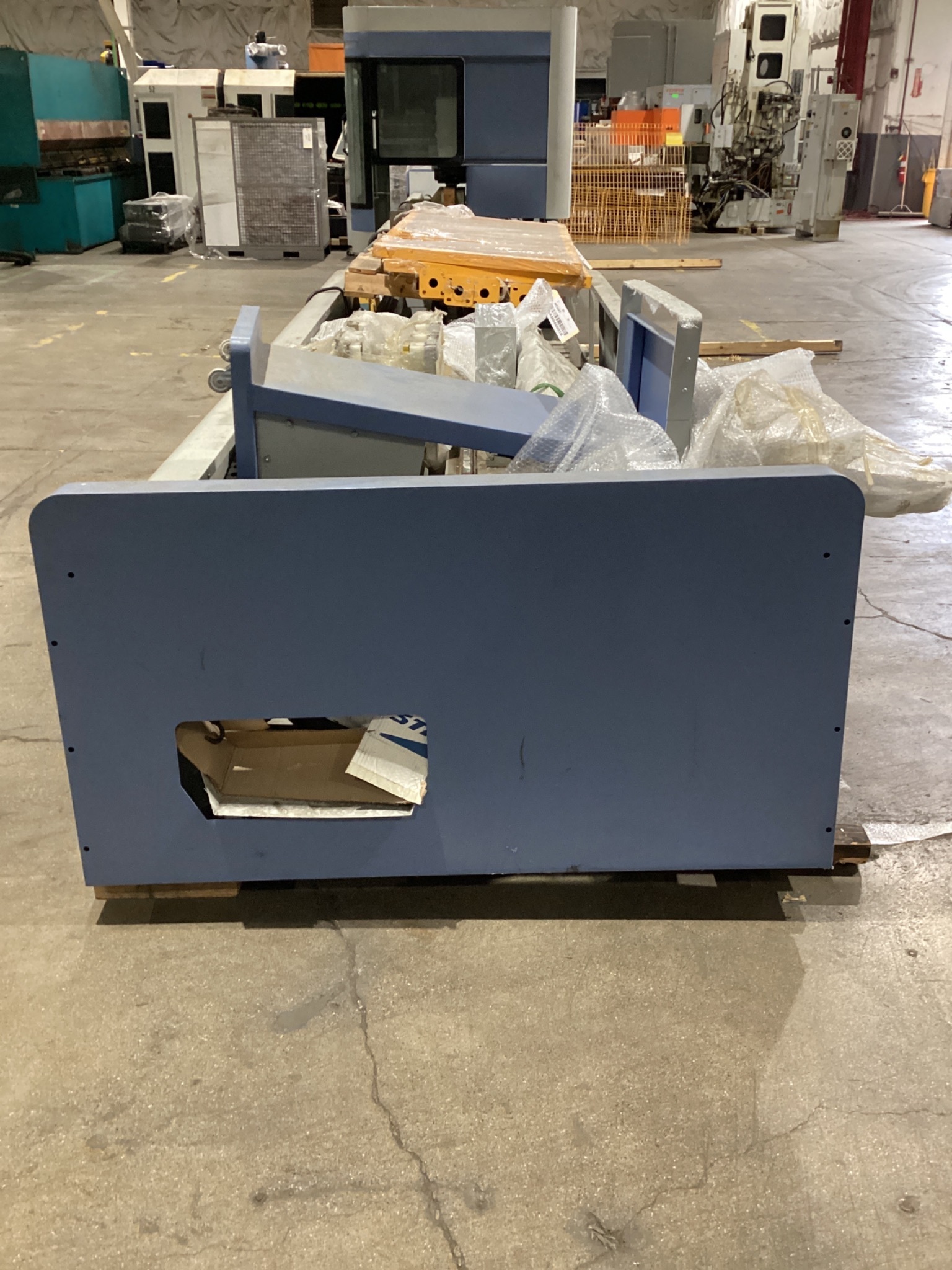

HAFFNER MAC440-30 4-Axis Aluminum Profile Processing Center 15kW USED

Specification Table

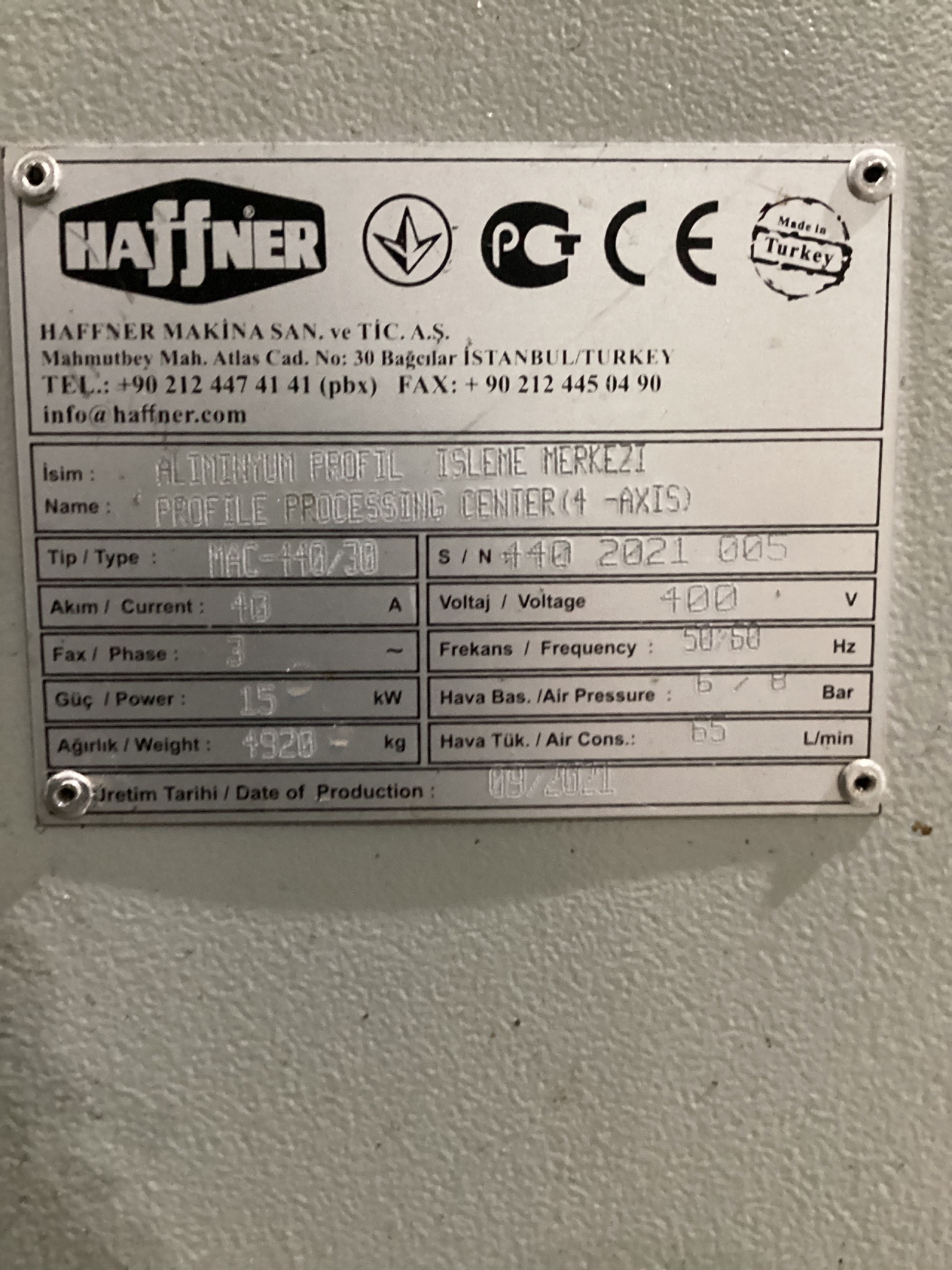

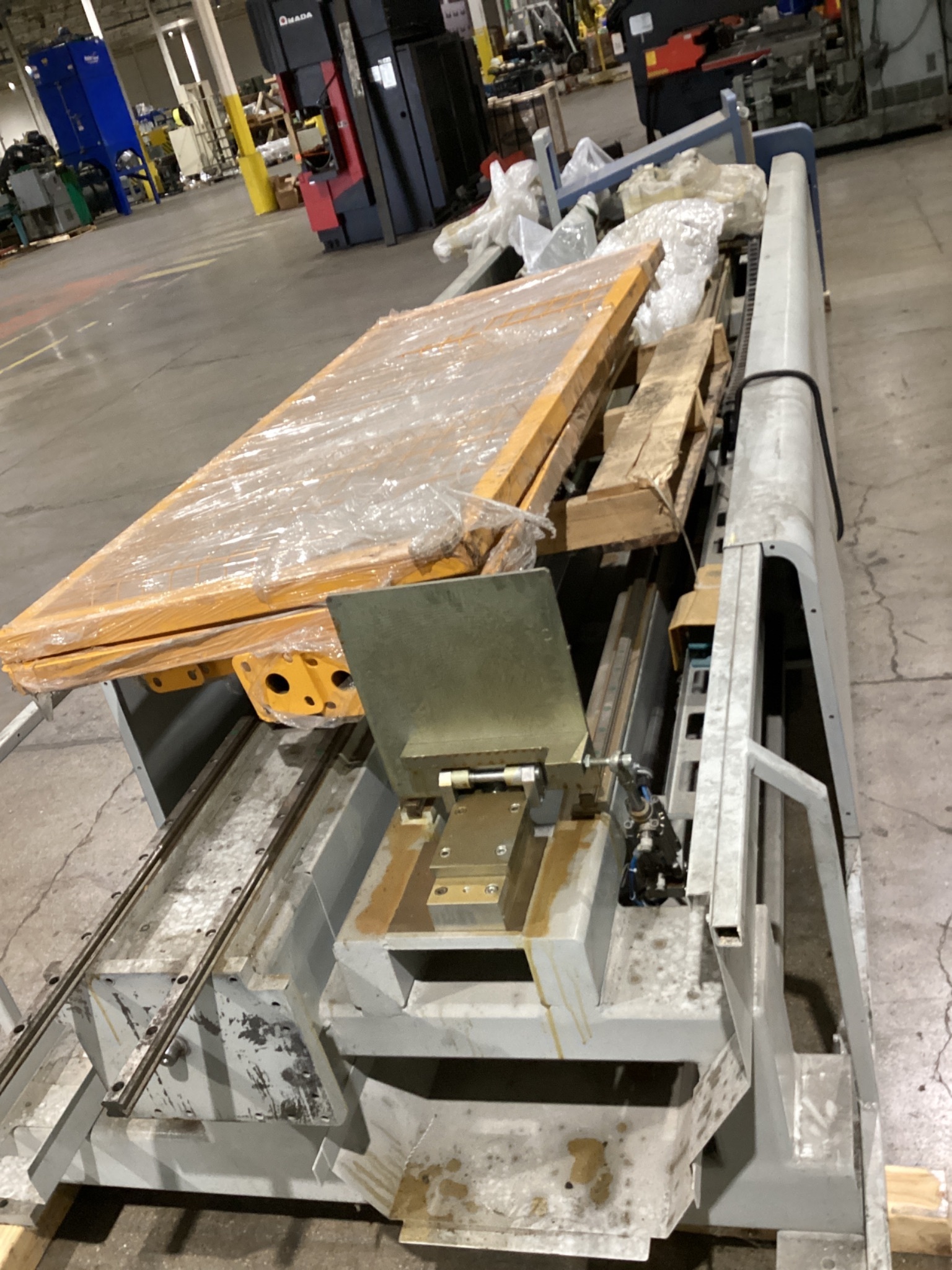

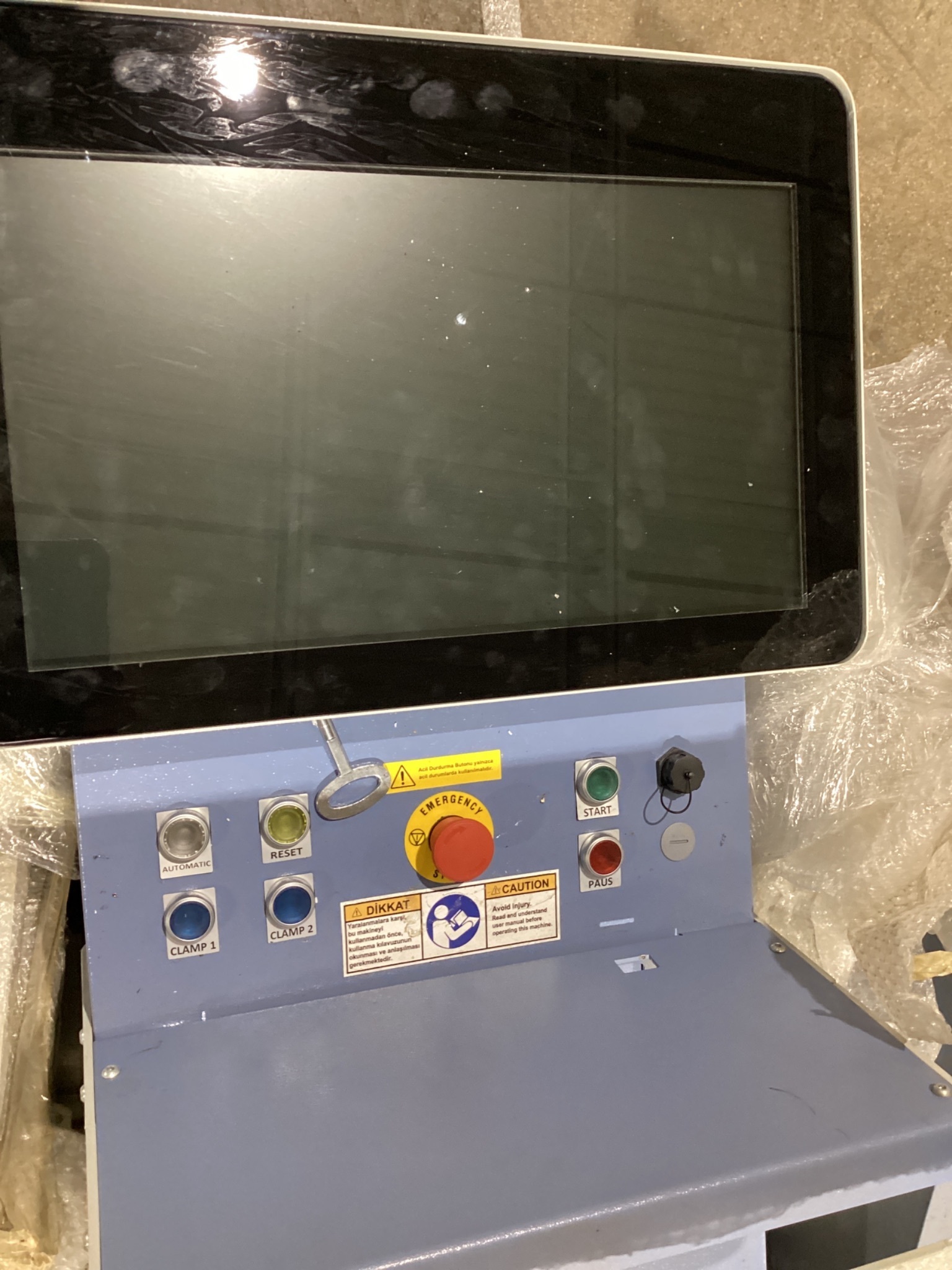

IDENTIFICATION Manufacturer: Haffner Model: MAC440-30 Product Type: 4-axis aluminum profile processing center Serial Number: 440 2021 005 Condition: USED YOM: 2021-08 Country of Manufacture: Turkey   MACHINING Controlled Axes: 4 Machining Operations: Milling / drilling / cutting / tapping Additional Operations: Flow drilling / countersinking A-Axis Processing Range: -120° to +120° Maximum Milling Blade Dia.: 150 mm Maximum Machinable Length: 4100 mm Standard Processing Length: 4000 mm   AXIS TRAVEL / SPEED X-Axis Travel: 4600 mm X-Axis Maximum Speed: 120 m/min Y-Axis Travel: 930 mm Y-Axis Maximum Speed: 60 m/min Z-Axis Travel: 625 mm Z-Axis Maximum Speed: 60 m/min   SPINDLE Spindle Type: Water-cooled electro spindle Spindle Power: 8 kW Maximum Spindle Speed: 24,000 RPM Tool Interface: HSK F63   TOOLING Tool Magazine Capacity: 6 Tool Change: Automatic Maximum Tool Diameter: 150 mm   WORKHOLDING Standard Vices: 4 Vice Positioning: Automatic by machine head Clamp Recognition: Automatic Clamp Positioning: Automatic Stop References: 2 Stop Operation: Pneumatic Profile Support Bed: Integrated   CONTROL / OPERATOR INTERFACE Control Type: CNC Operating System: Windows 10 Display Size: 19 in Handheld Operator Terminal: Present CAD/CAM Operation: Supported Automatic Control: Present Reset Control: Present Clamp Controls: Present Start Control: Present Pause Control: Present Emergency Stop: Present Key-Operated Control: Present   ELECTRICAL Supply Voltage: 400 VAC Current: 40 A Phase: 3 Frequency: 50 / 60 Hz Machine Power: 15 kW   PNEUMATIC Air Pressure: 6-8 bar Air Consumption: 65 L/min Pneumatic Workholding: Present   COOLING / LUBRICATION Spindle Cooling: Water cooled Central Lubrication: Present   CONSTRUCTION / INSTALLATION Machine Configuration: Floor standing Machining Area: Fully enclosed Extended Profile Bed: Integrated Viewing Panels: Present Linear Motion Hardware: Present Ballscrew Drives: Present Cable Carriers: Present   PHYSICAL Machine Height: 2300 mm Machine Length: 6200 mm Machine Width: 1800 mm Machine Weight: 4920 kg
