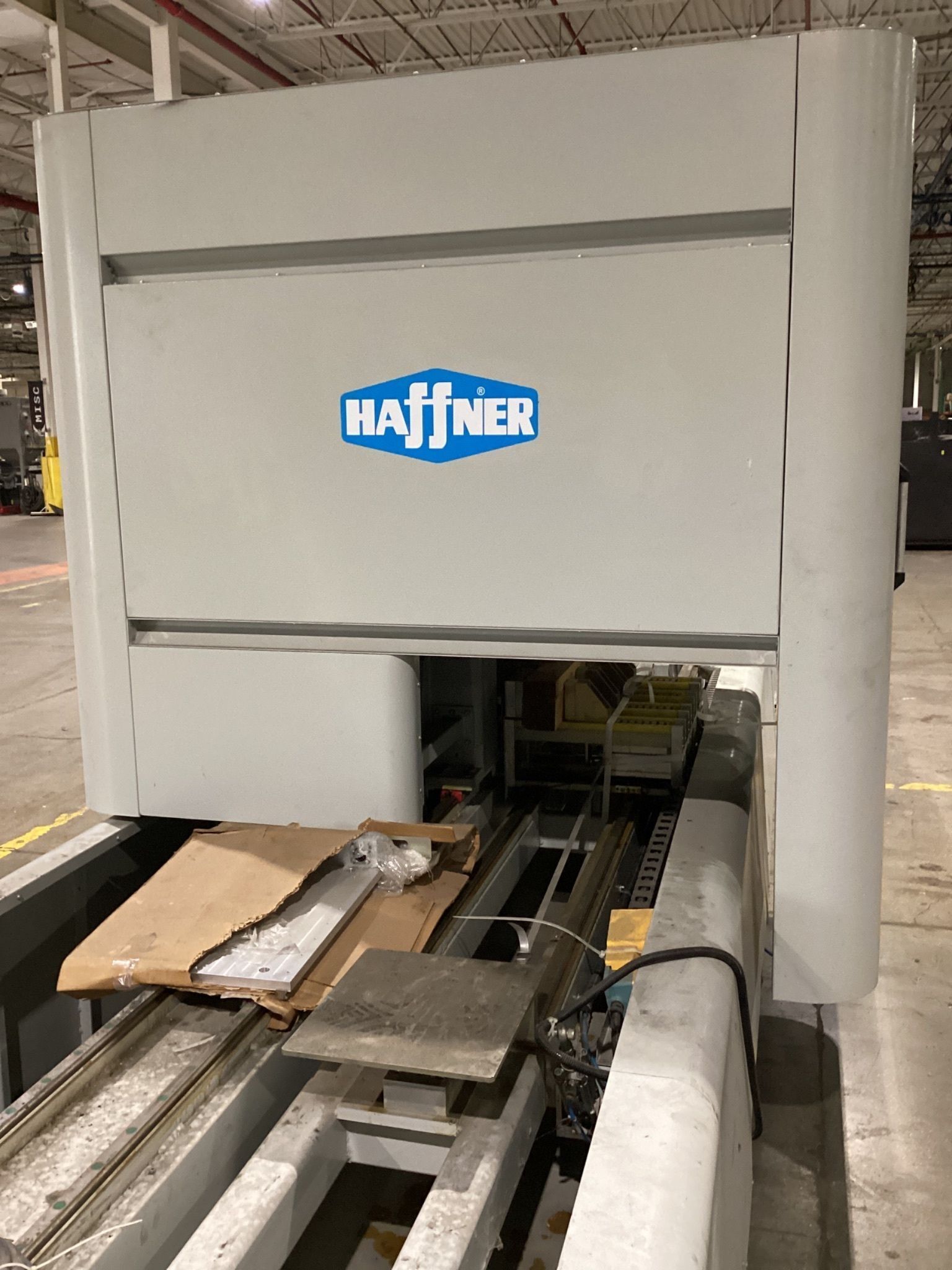

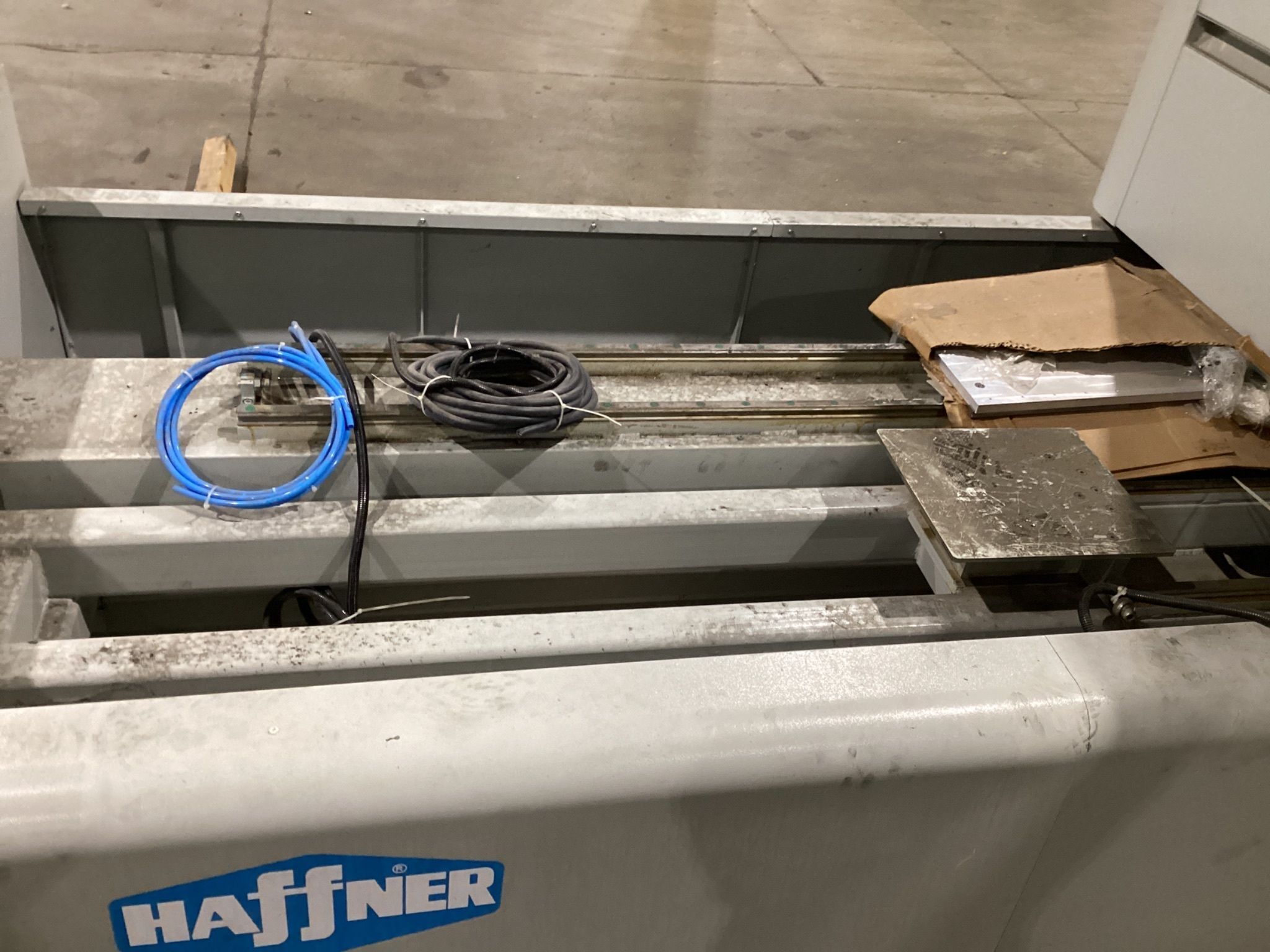

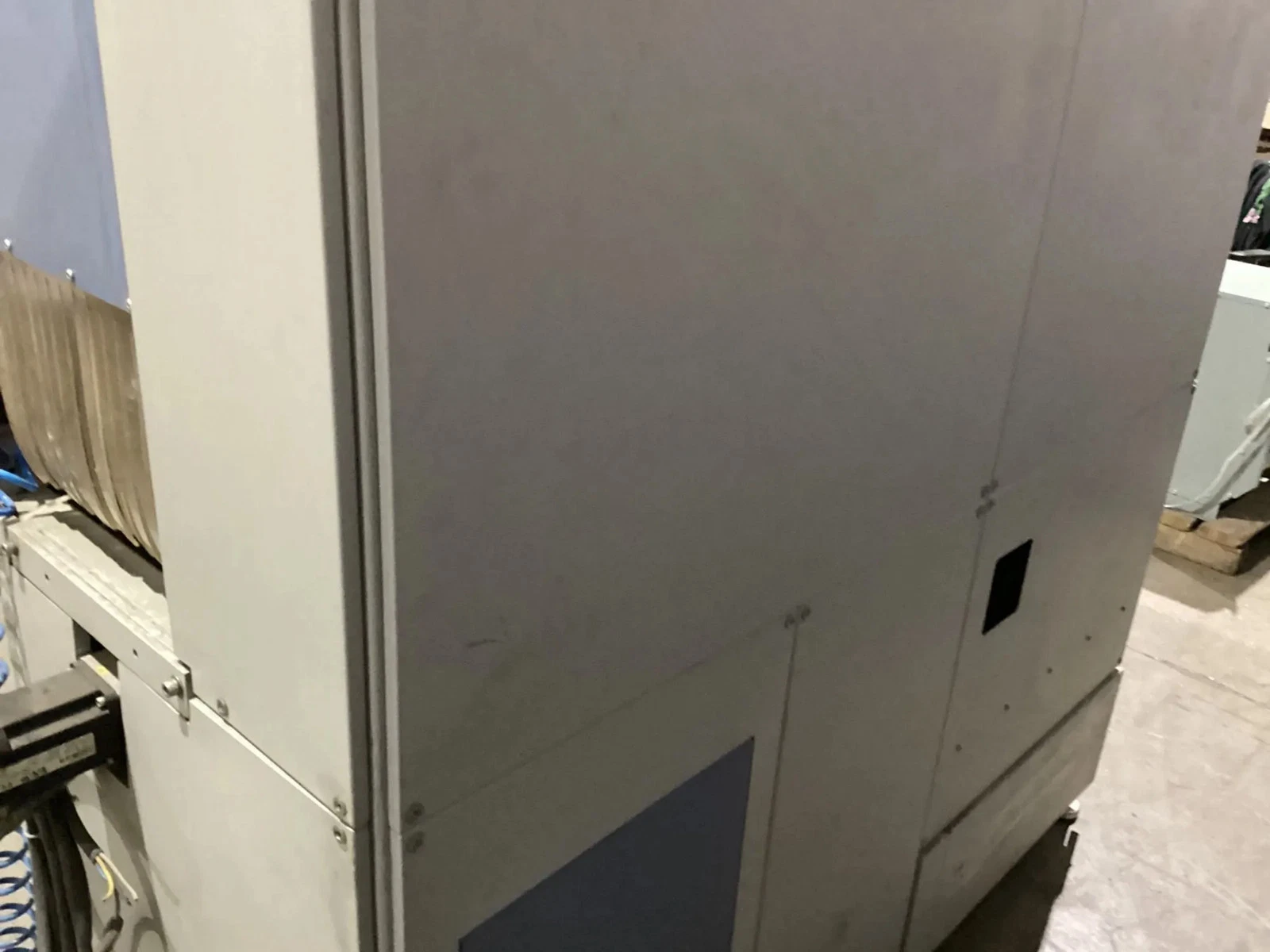

HAFFNER ALUMINUM PROFILE CNC MACHINING & AUTOMATIC CUTTING CELL–MAC440-30 + TA144 – NEW

Specification Table

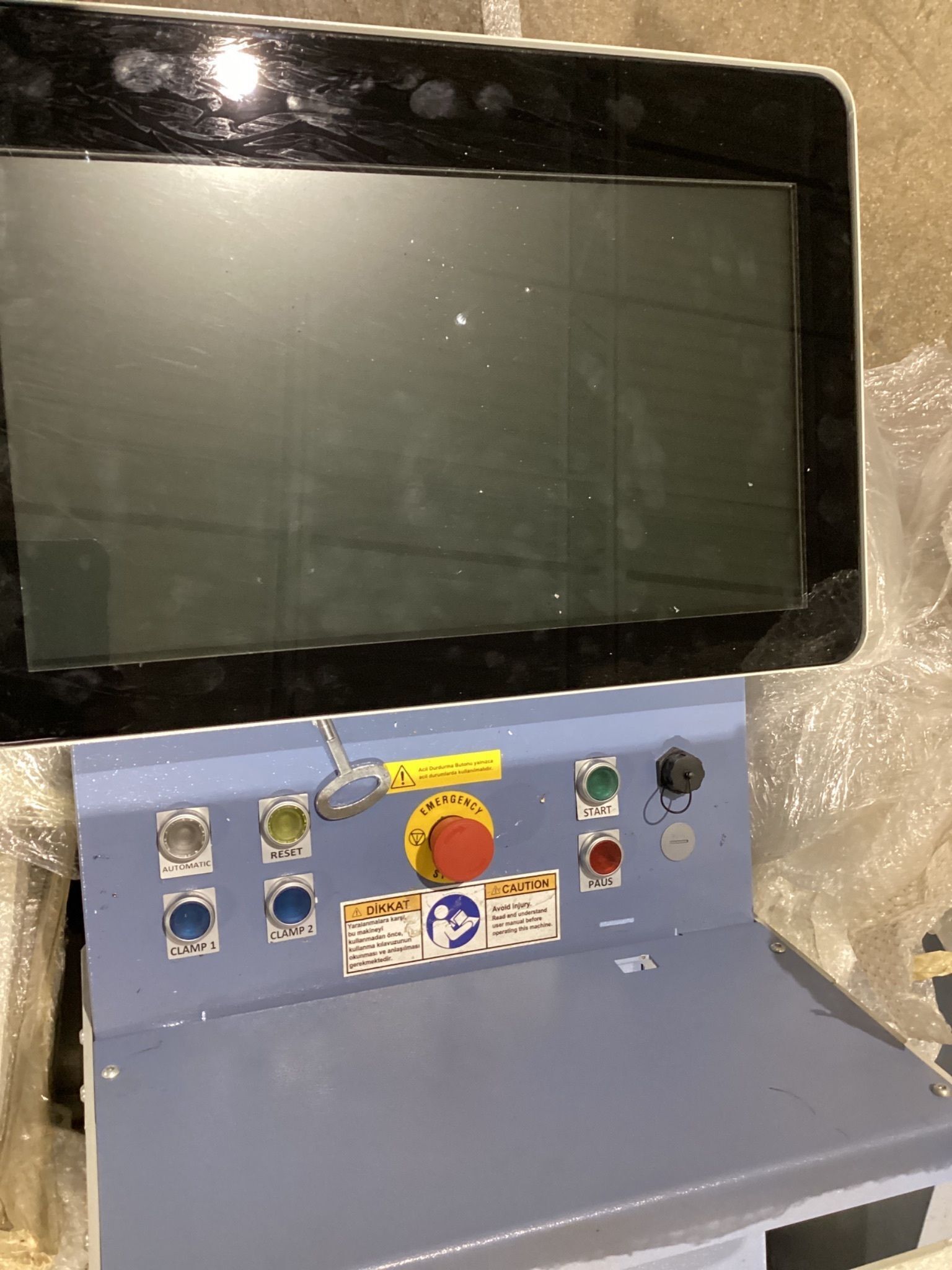

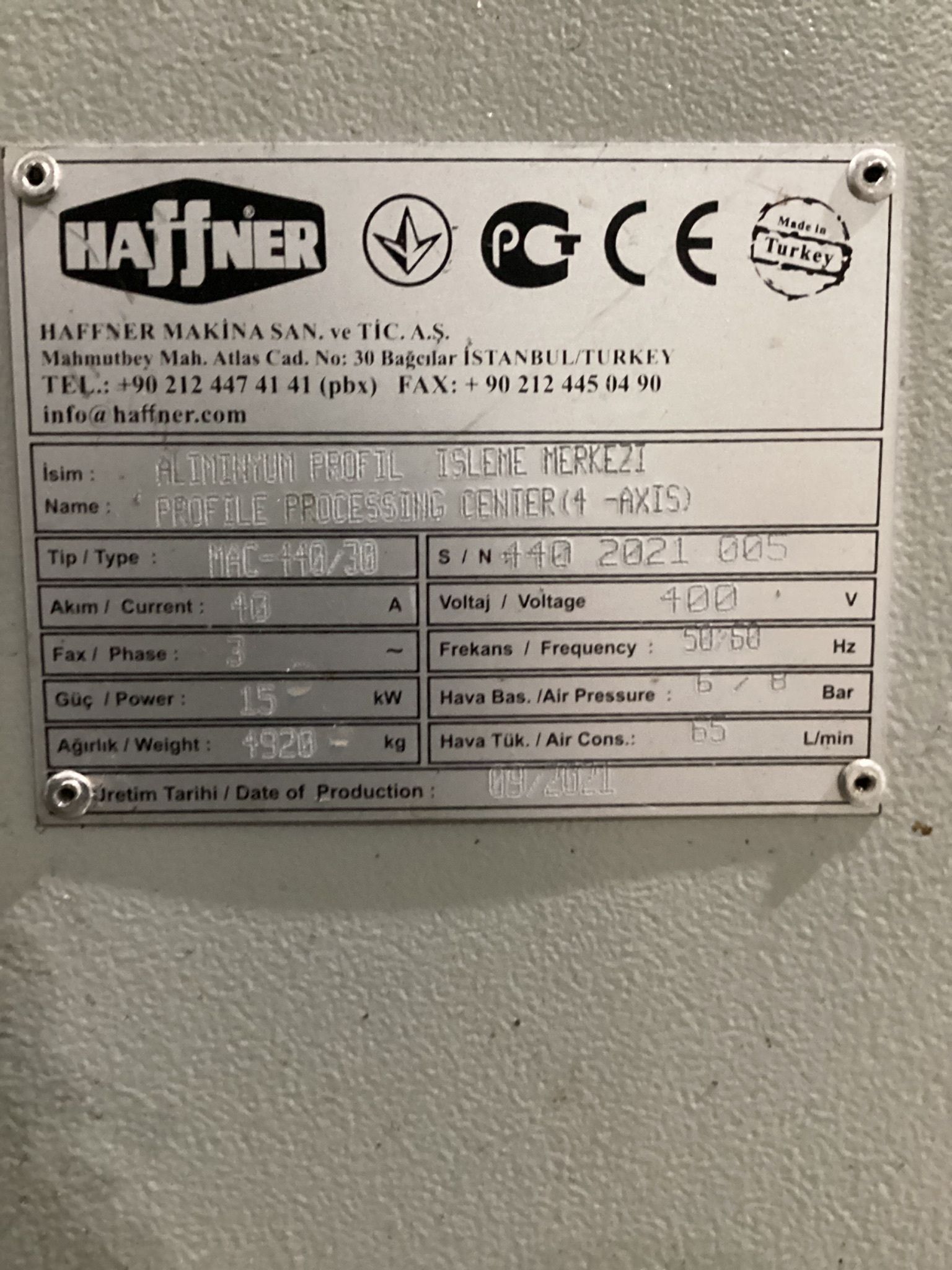

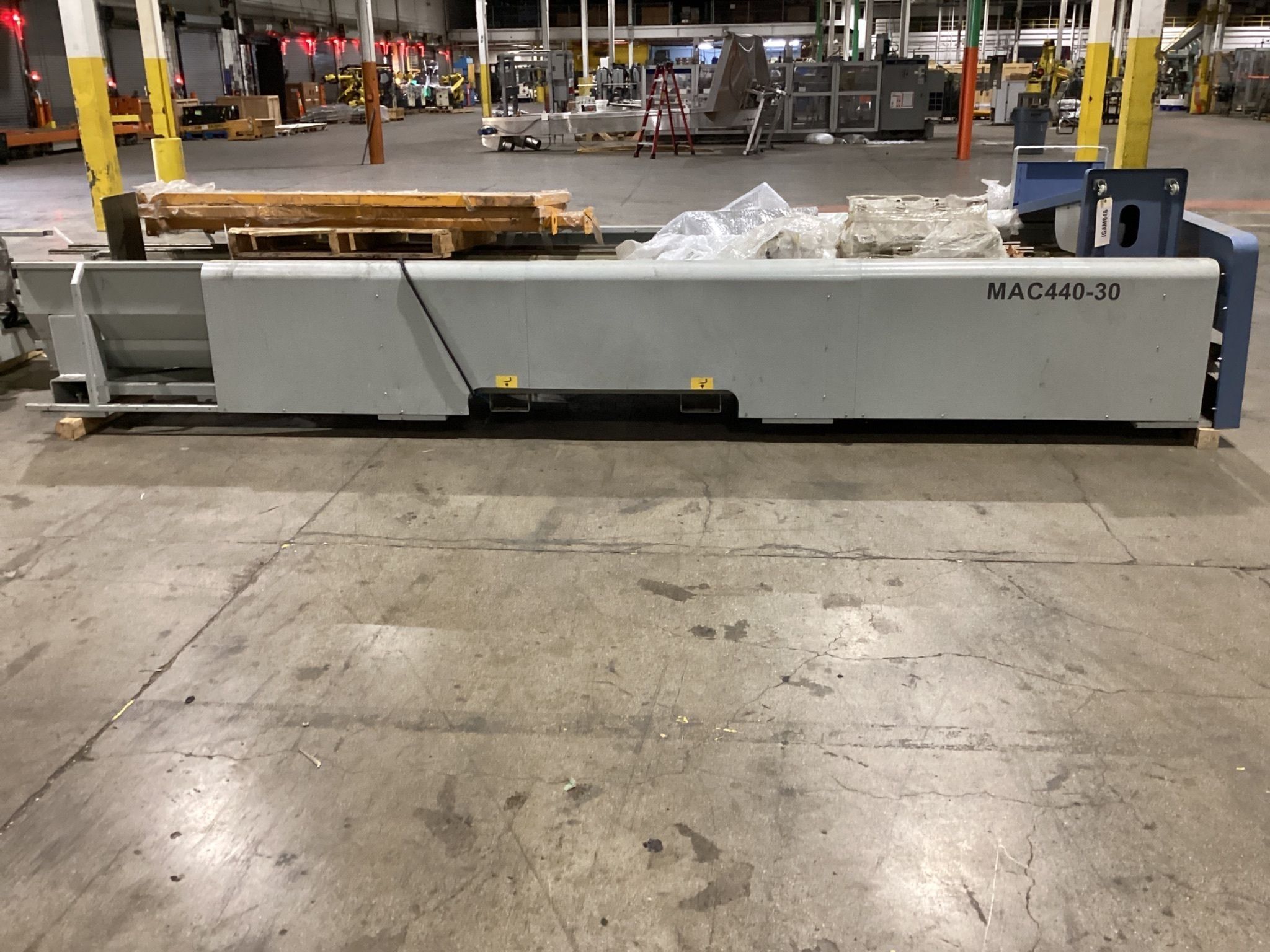

Manufacturer: Haffner Models: MAC440-30 + TA144 Cell Type: Aluminum Profile CNC Machining & Automatic Cutting Cell   =========================== MAC440-30 CNC PROCESSING CENTER ===========================   Product Type: 4-Axis Aluminum Profile Processing Center Serial Number: 440 2021 005 Year of Manufacture: 2021-08 Controlled Axes: 4   Machining Operations: Milling, Drilling, Cutting, Tapping Additional Operations: Flow Drilling, Countersinking A-Axis Range: -120° to +120° Maximum Milling Blade: 5.9 in (150 mm) Max Machinable Length: 161.4 in (4100 mm) Standard Length: 157.5 in (4000 mm)   X-Axis Travel: 181.1 in (4600 mm) X-Axis Speed: 120 m/min Y-Axis Travel: 36.6 in (930 mm) Y-Axis Speed: 60 m/min Z-Axis Travel: 24.6 in (625 mm) Z-Axis Speed: 60 m/min   Spindle Type: Water-Cooled Electro Spindle Spindle Power: 8 kW Max Spindle Speed: 24,000 RPM Tool Interface: HSK F63   Tool Magazine: 6 Position Tool Change: Automatic Max Tool Diameter: 5.9 in (150 mm)   Standard Vices: 4 Vice Positioning: Automatic Clamp Recognition: Automatic Clamp Positioning: Automatic Stop References: 2 Stop Operation: Pneumatic Profile Support Bed: Integrated   Control Type: CNC Operating System: Windows 10 Display Size: 19 in Handheld Terminal: Included CAD/CAM Operation: Supported   Supply Voltage: 400 VAC Current: 40 A Phase: 3 Frequency: 50/60 Hz Machine Power: 15 kW   Air Pressure: 6-8 Bar Air Consumption: 65 L/min   Spindle Cooling: Water Cooled Central Lubrication: Included   Machine Configuration: Floor Standing Machining Area: Fully Enclosed   Dimensions (LxWxH): 244.1 x 70.9 x 90.6 in Weight: 10,847 lbs   =========================== TA144 AUTOMATIC CLEAT CUTTING SAW ===========================   Product Type: Automatic Aluminum Cleat Cutting Saw Serial Number: 144 0021 003 Year of Manufacture: 2021-09   Operation: Automatic Material Application: Aluminum Profiles   Blade Diameter: 23.6 in (600 mm) Spindle Speed @50Hz: 2,800 RPM Spindle Speed @60Hz: 3,360 RPM   Maximum Profile Height: 7.9 in (200 mm) Minimum Profile Width: 7.9 in (200 mm) Feed Length Range: 0.2 - 27.6 in (5 - 700 mm)   Profile Feed: Automatic Profile Clamping: Pneumatic Horizontal Clamping: Included Vertical Clamping: Included Infeed Roller Conveyor: 9.8 ft (3 m)   Control System: CNC Operator Interface: Industrial PLC Panel USB Interface: Included Network Interface: Included   Saw Cooling: Automatic Spray Blade Lubrication: Pulse Spray Mist   Supply Voltage: 400 VAC Current: 5.5 A Phase: 3 Frequency: 50/60 Hz Power: 8 kW   Air Pressure: 6-8 Bar Air Consumption: 50 L/min   Machine Configuration: Floor Standing Cutting Area: Enclosed Viewing Windows: Included Leveling Feet: Included Roller Support: Included   Dimensions (LxWxH): 78.7 x 43.3 x 66.9 in Weight: 2,094 lbs
