GRACO SN9102 / U3369 EFR 4:1 Electric Fixed Ratio Dispensing System – Severe Duty NEW

$30,000.00
Availability:

2 in stock
BRAND: GRACO MODEL: SN9102 EFR CONDITION: new
SKU: IGAM1702014 Weight: 570 lbs Freight (Item Must Ship Freight)

2 in stock

Make an offer
Get Shipping Quote

Overview

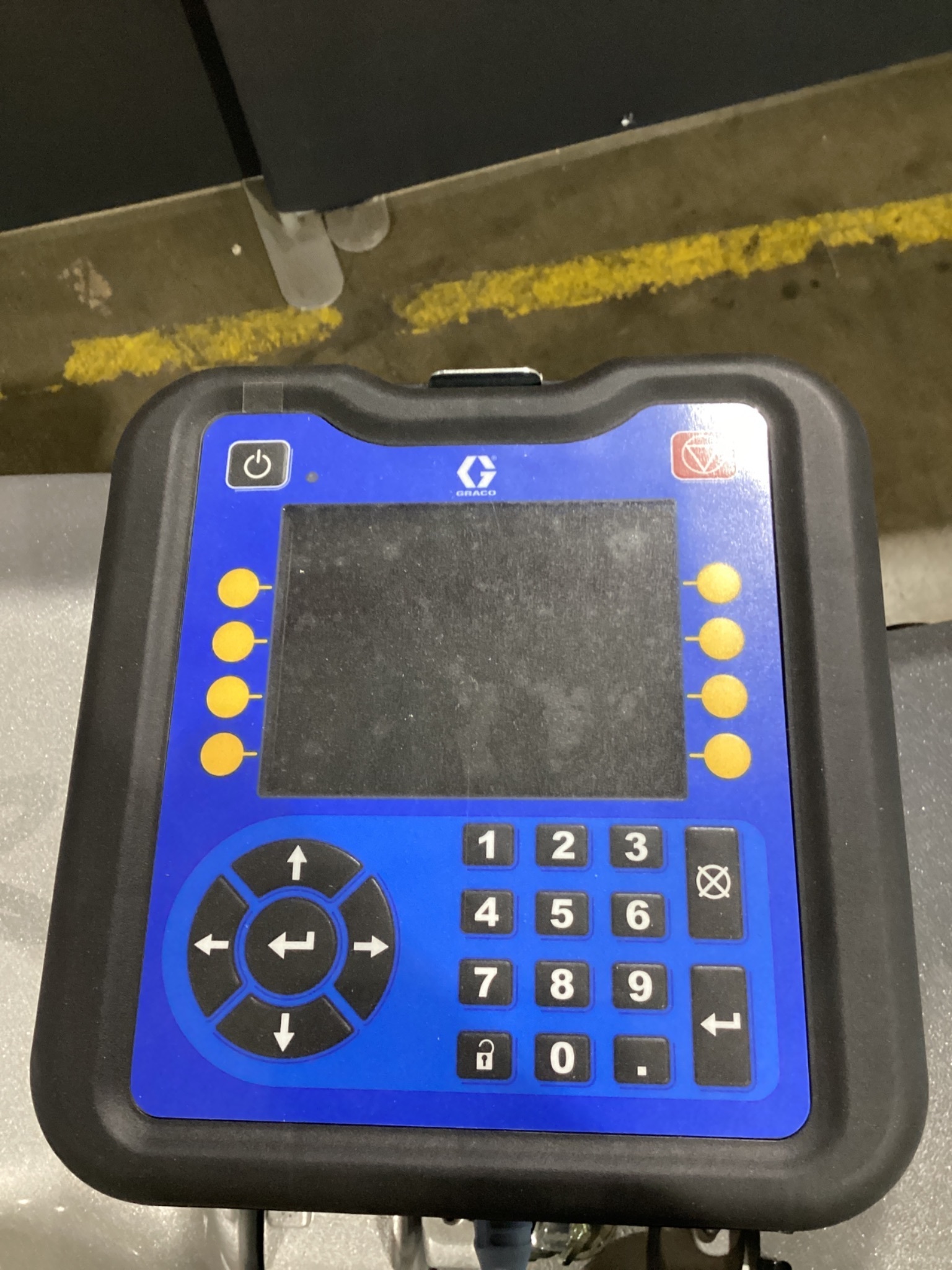

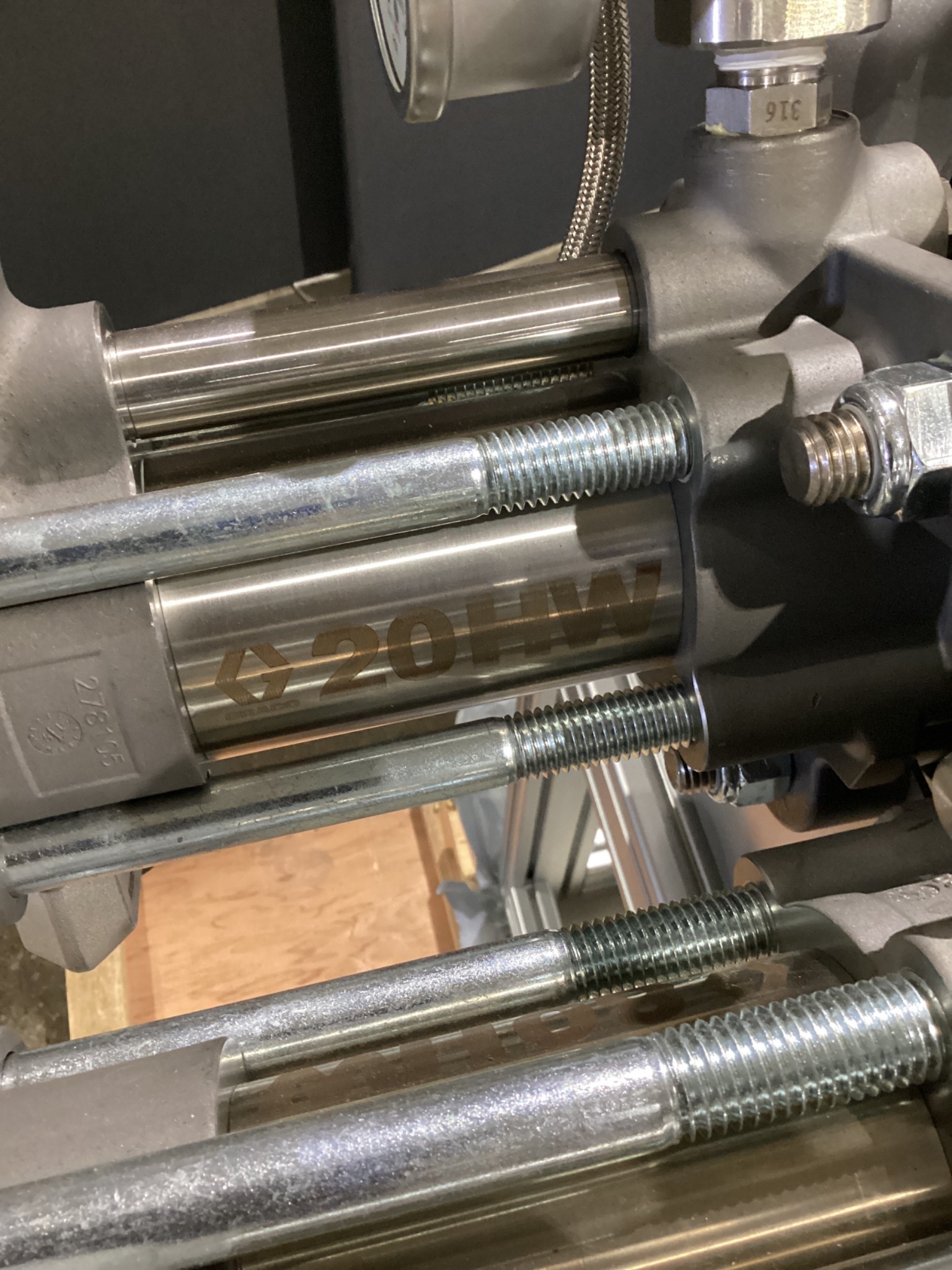

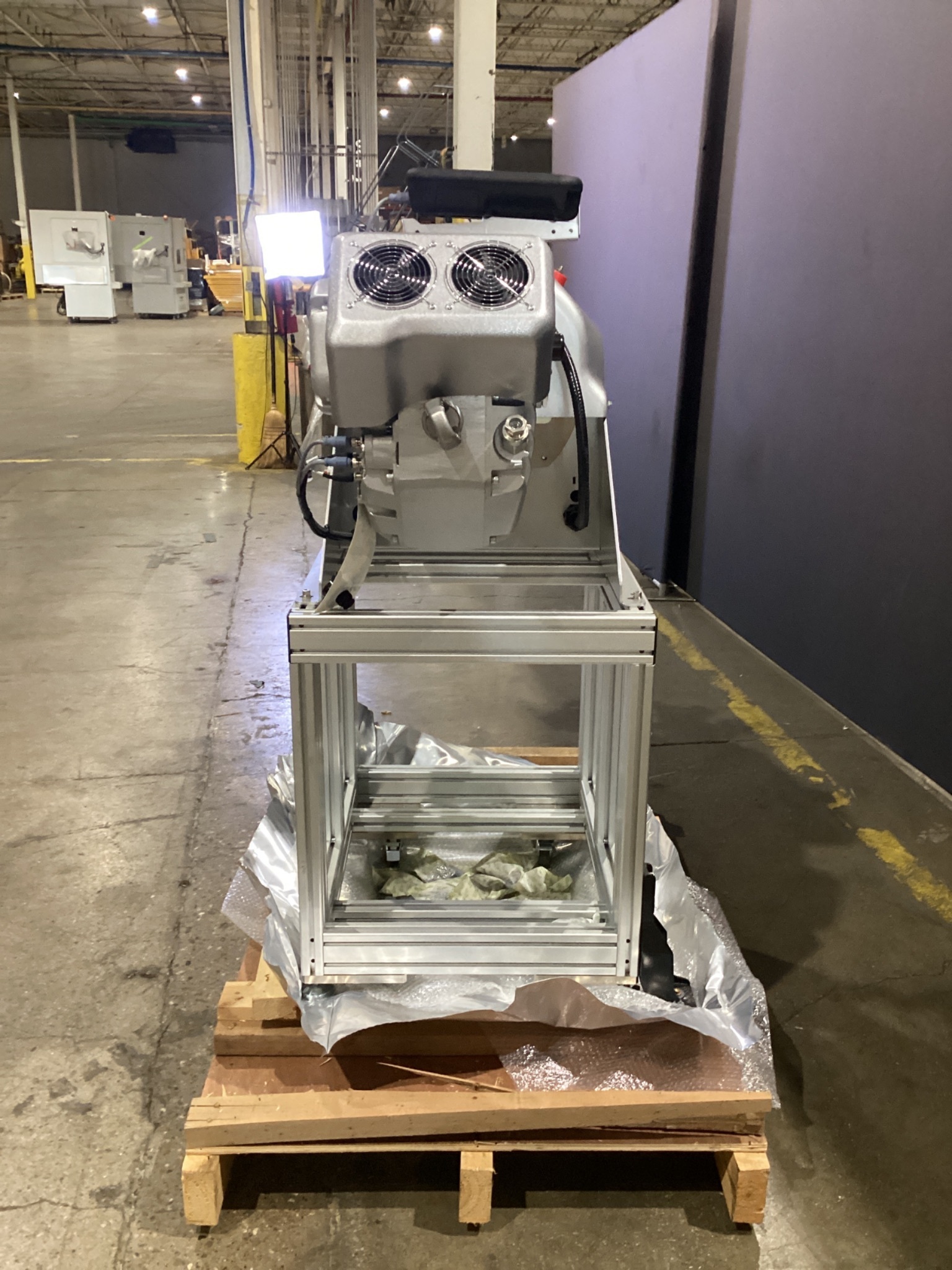

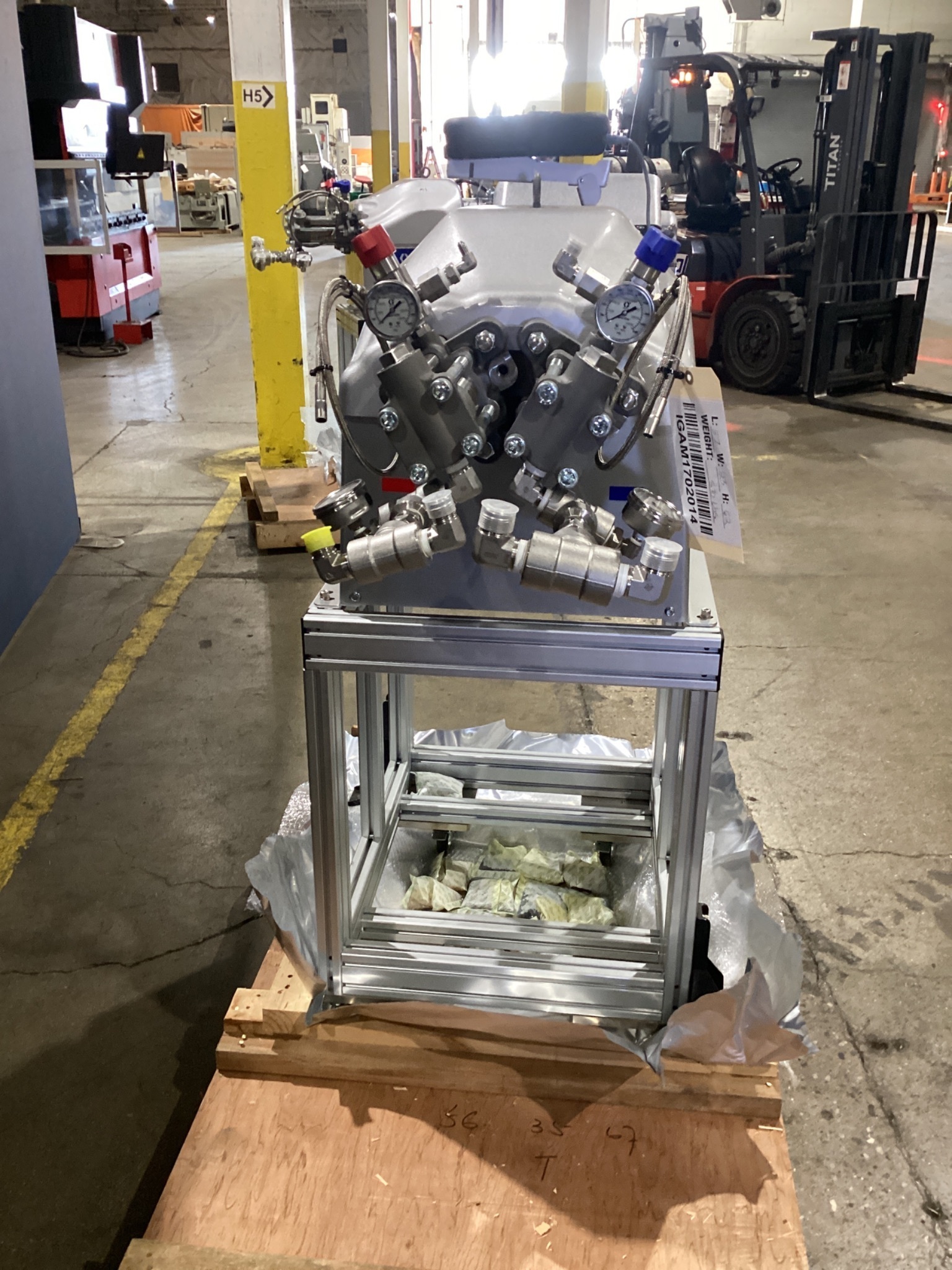

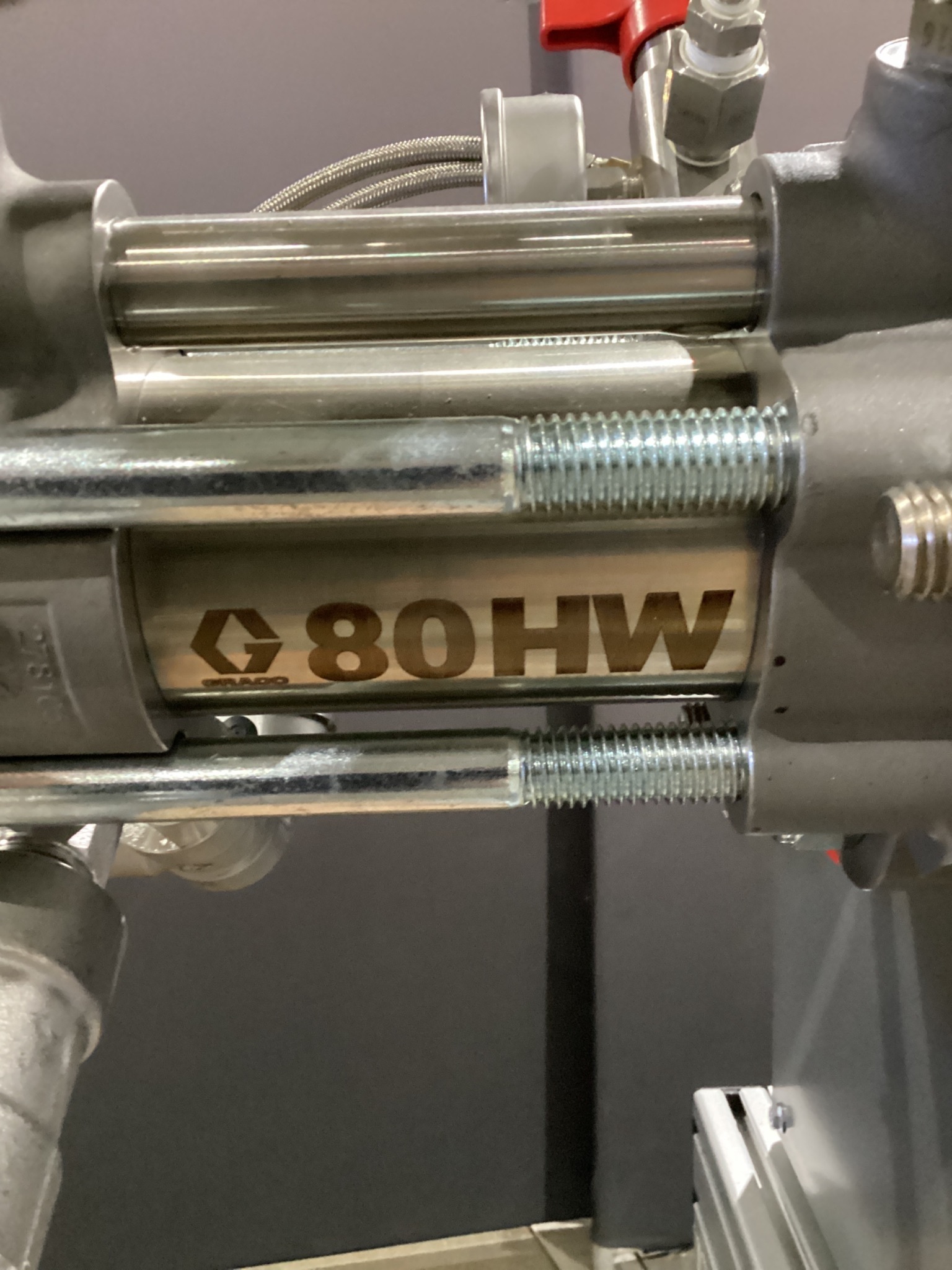

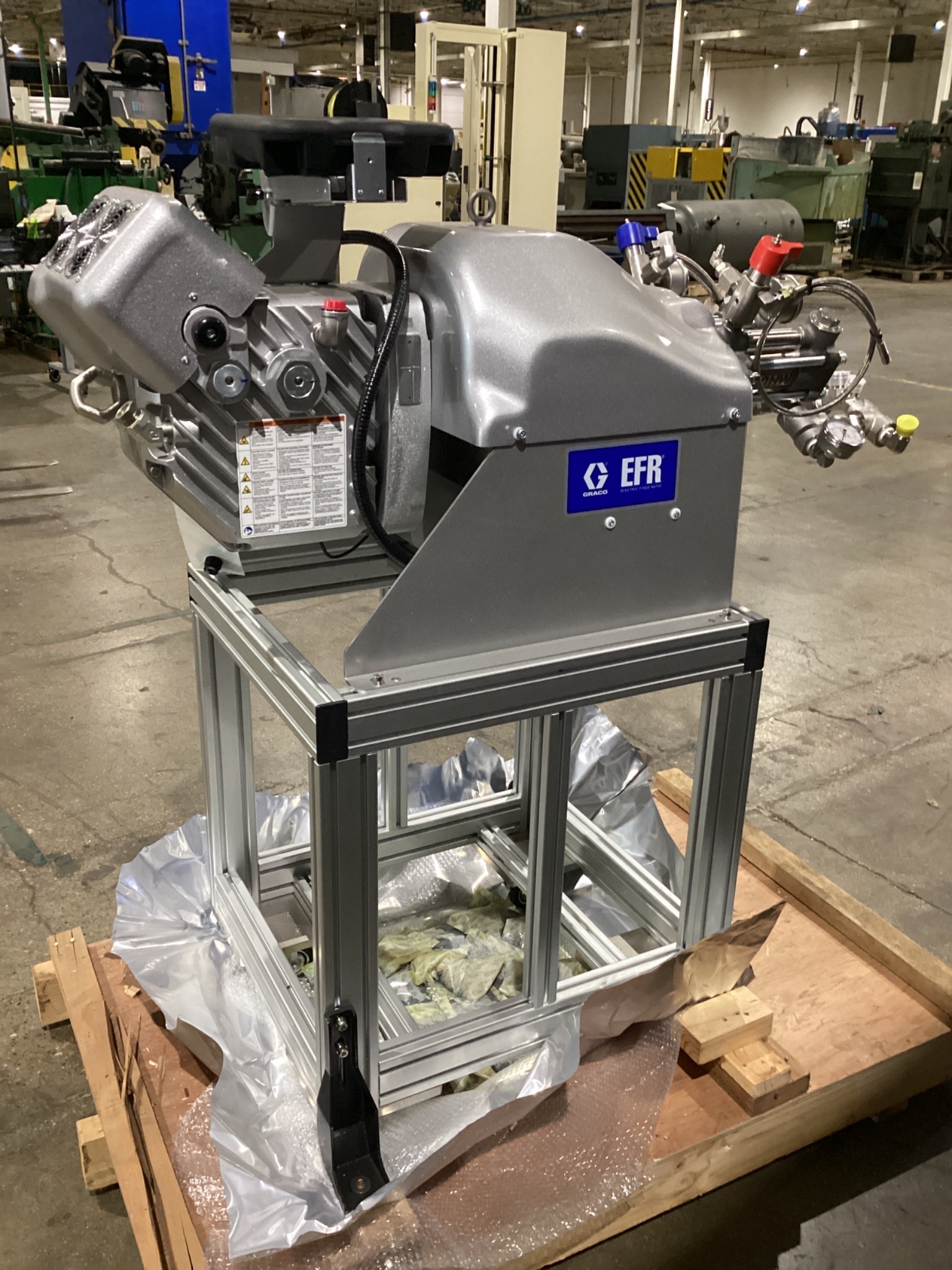

This listing is for a NEW Graco SN9102 EFR Electric Fixed Ratio Dispensing System. The system is configured for precision metering, mixing, and dispensing of industrial materials used in adhesive, sealant, coating, and material application processes. This configuration incorporates an EFR platform, 80HW and 20HW Severe Duty Z-pump fluid sections, a 4:1 displacement ratio, a 25N520 electric drive, and a Graco Advanced Display Module (ADM) operator interface.

Specification Table

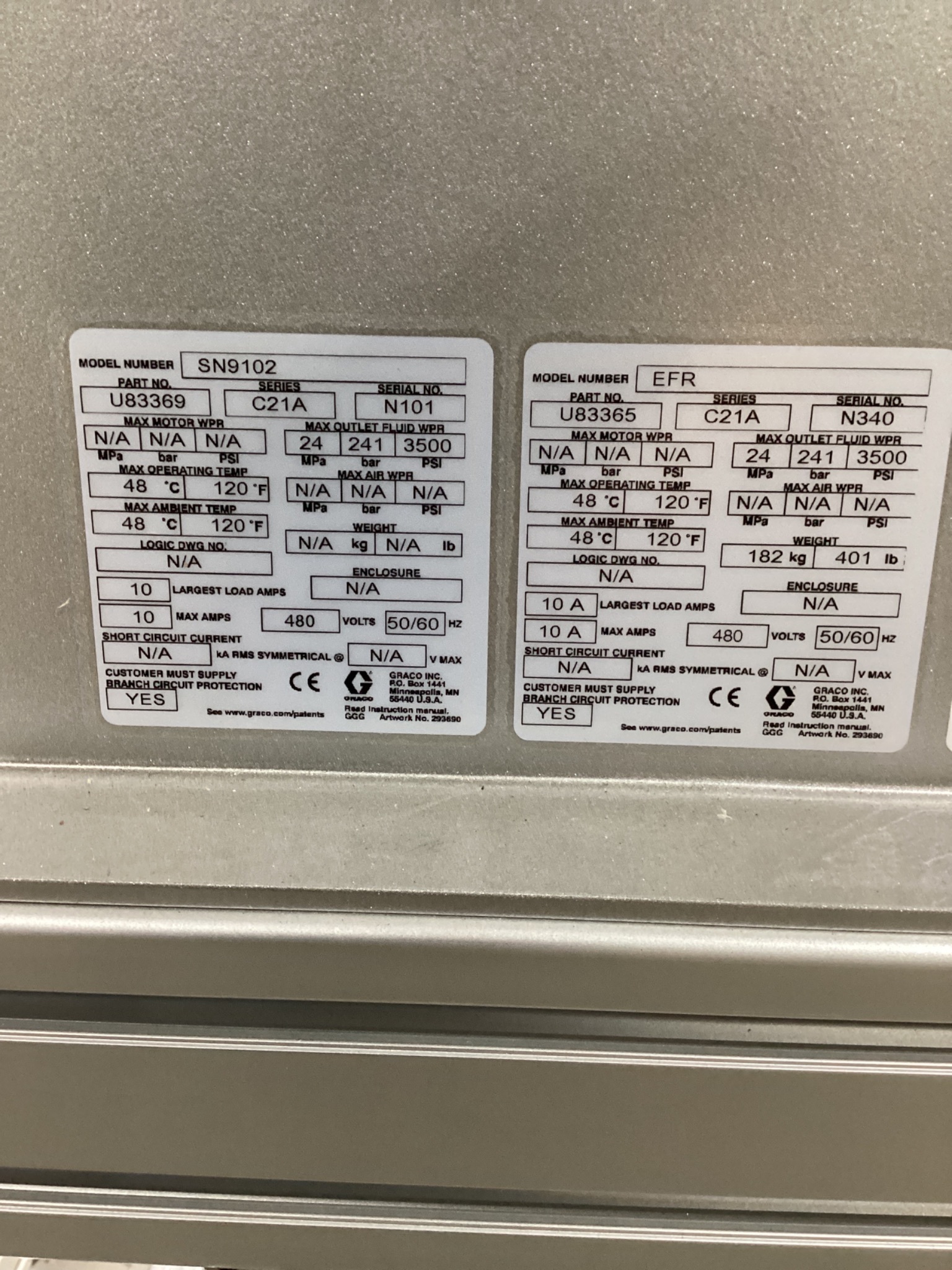

System Information ------------------ Manufacturer: Graco Model: SN9102 Product Type: Electric Fixed Ratio Dispensing System Condition: NEW   Primary Assembly ---------------- Part Number: U83369 Series: C21A Serial Number: N101   System Platform --------------- EFR Platform: Installed   Fluid Section Configuration --------------------------- Pump Type: Graco Z-Pump   Fluid Section A: 80HW Displacement A: 80 cc   Fluid Section B: 20HW Displacement B: 20 cc   Nominal Displacement Ratio:4:1   Fluid Performance ----------------- Maximum Outlet Pressure: 3500 PSI Maximum Outlet Pressure: 241 bar Maximum Outlet Pressure: 24 MPa   Operator Interface ------------------ Display Module: Graco Advanced Display Module ADM Part Number: 24E451   Input Voltage: 12-30 VDC Current Rating: 4 A   USB Connectivity: Supported   Electrical Requirements ------------------------ Supply Voltage: 480 VAC Frequency: 50/60 Hz   Largest Load: 10 A Maximum Current: 10 A   Drive Information ----------------- Drive Model: 25N520 Drive Voltage: 200-240 VAC Drive Current: 20 A Drive Frequency: 50/60 Hz   Drive YOM: 2020   Secondary Identification ------------------------- EFR Part Number: U83365 EFR Serial Number: N340   Weight: 401 lb Weight: 182 kg   Construction ------------ Dispensing Head: Installed Support Frame: Aluminum Extrusion   Identification -------------- Country of Origin: USA
