GRACO SN9070 38L LV Tank Module 24D569 Series L20A NEW

$18,250.00
Availability:

2 in stock
BRAND: GRACO MODEL: SN9070 CONDITION: new
SKU: IGAM1700067 Weight: 245 lbs Freight (Item Must Ship Freight)

2 in stock

Make an offer
Get Shipping Quote

Overview

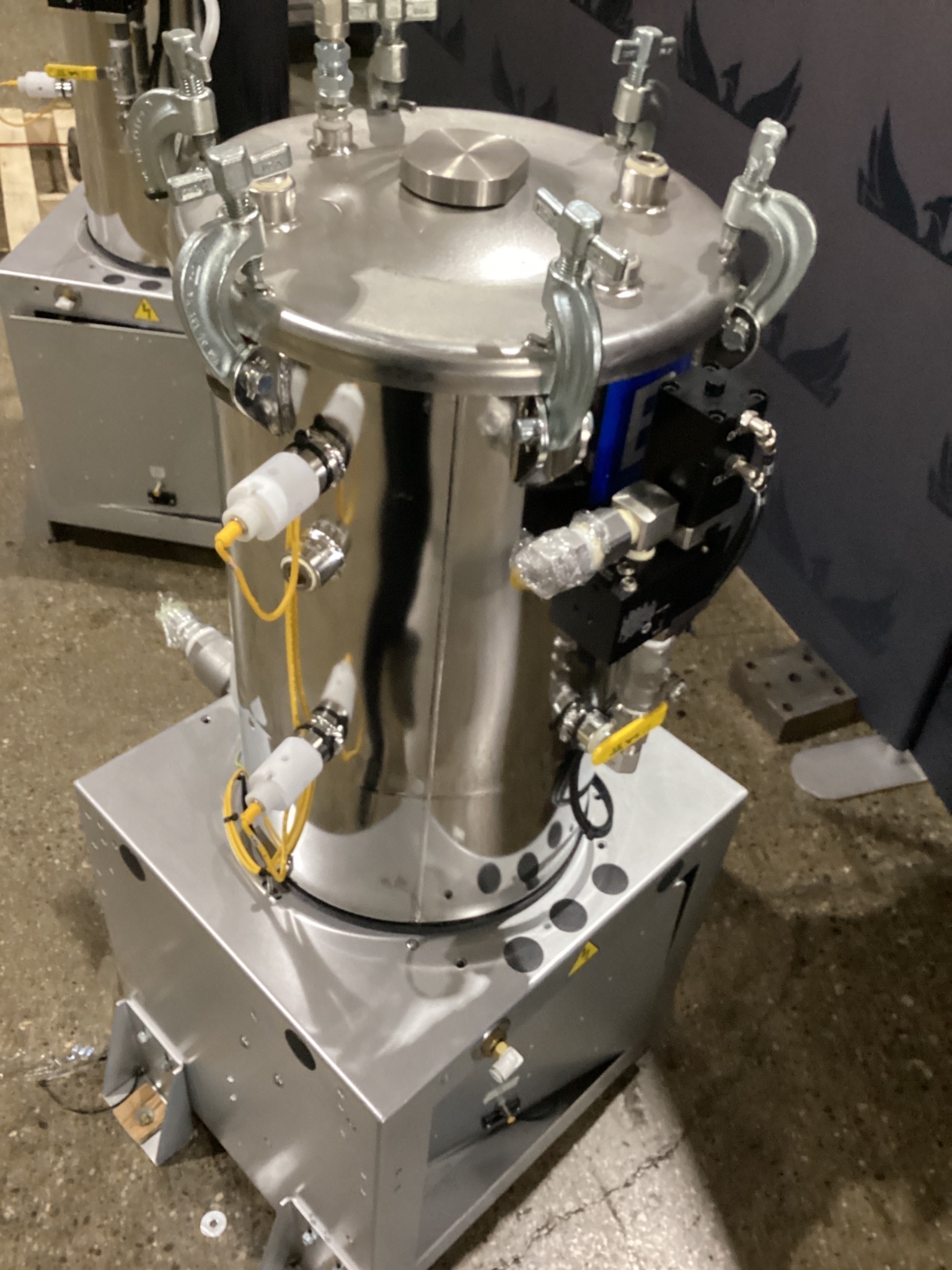

This unit is a NEW Graco SN9070 low‑volume tank module with a 38‑liter stainless steel pressure vessel, part number 24D569, Series L20A. This module is designed to store, condition, and supply fluid materials within Graco engineered dispensing and fluid management systems, supporting controlled delivery of adhesives, sealants, and coatings in OEM manufacturing and industrial process applications.

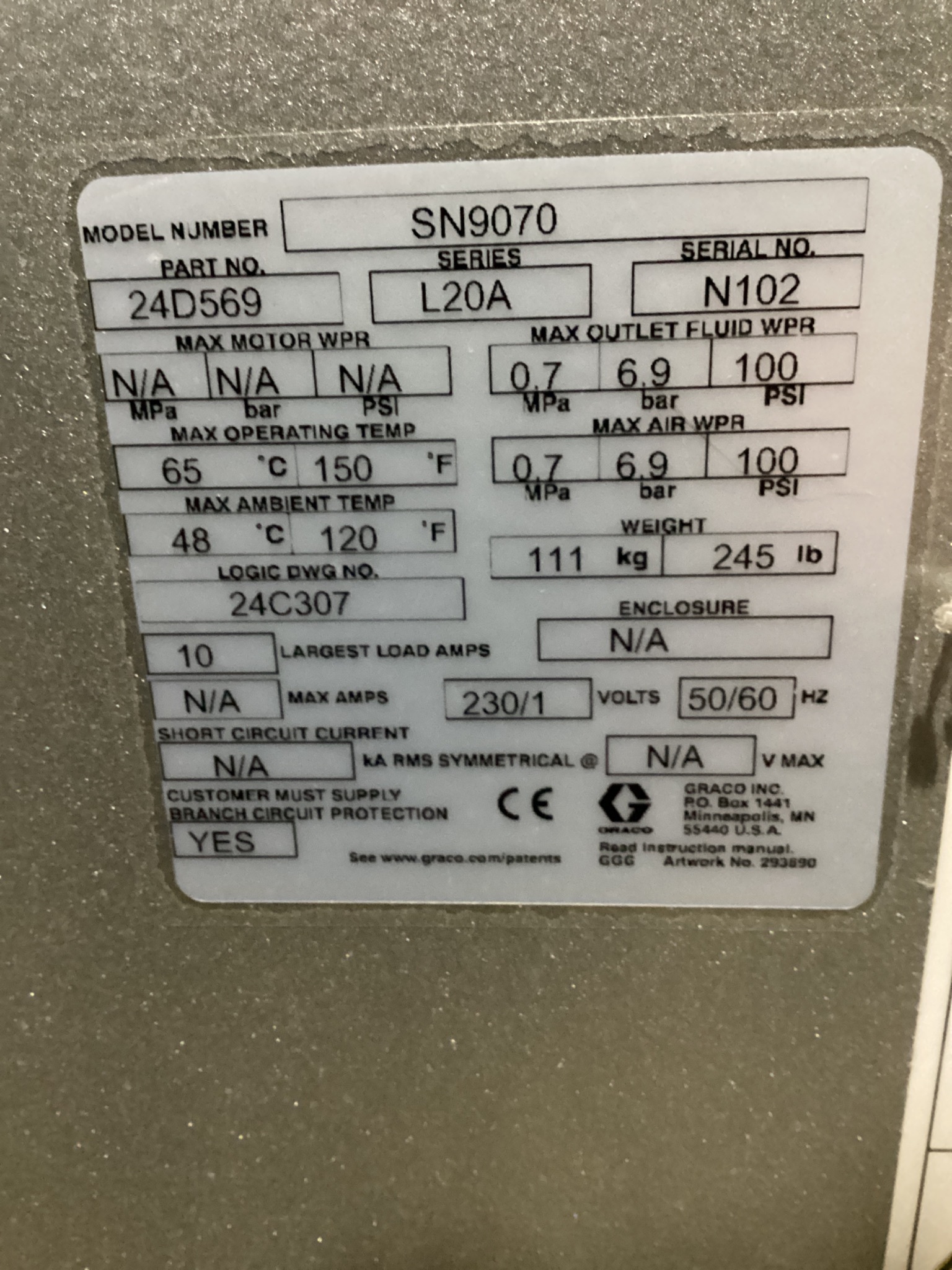

Specification Table

Manufacturer : Graco
Model Number : SN9070
Part Number : 24D569
Series : L20A

Tank Type : Low‑Volume Pressure Tank Module
Tank Capacity : 38 liters

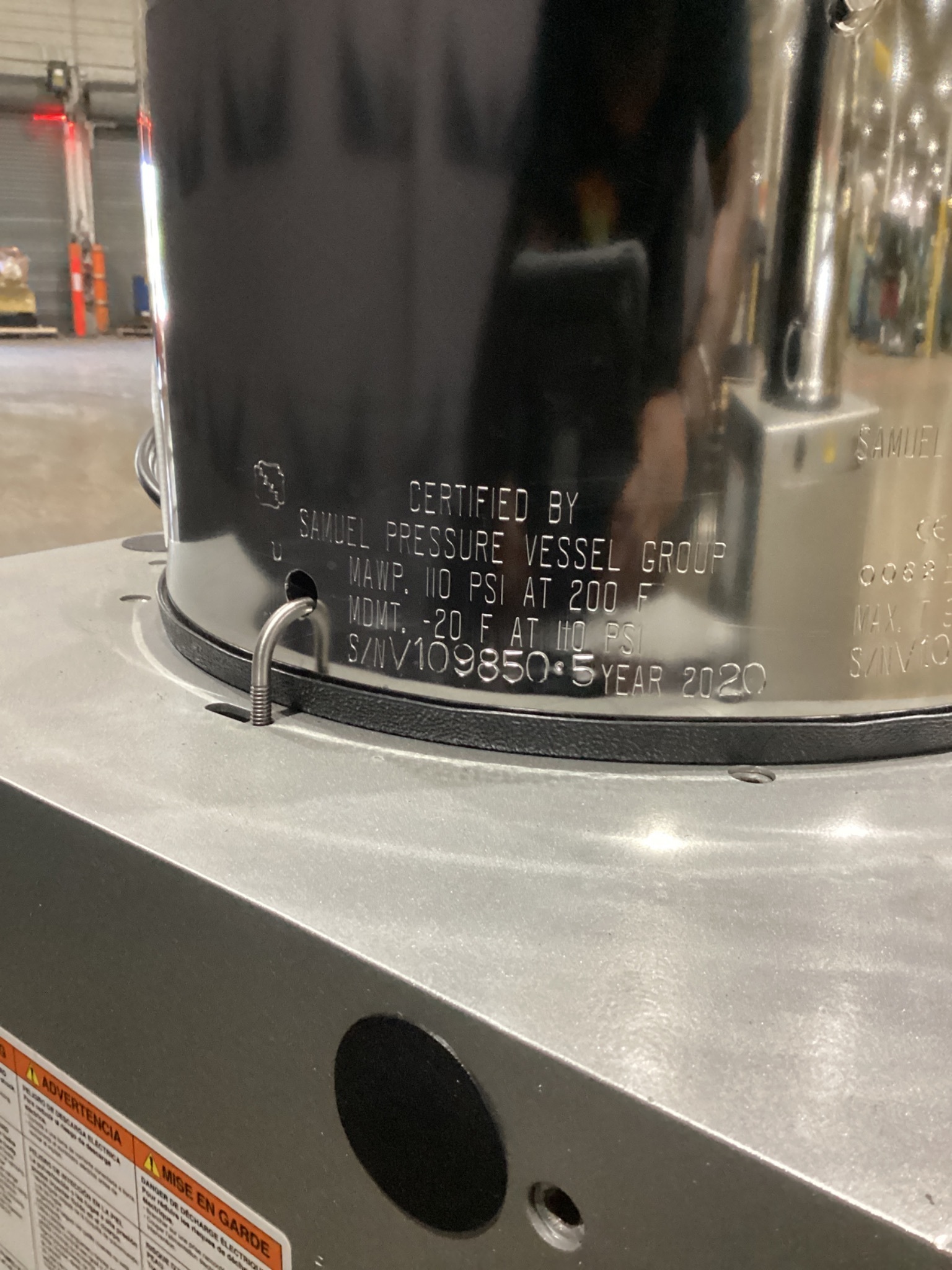

Tank Material : Stainless Steel
Wetted Materials : Stainless steel (standard Graco LV tank construction)

Maximum Outlet Fluid WPR : 0.7 MPa / 6.9 bar / 100 PSI
Maximum Air WPR : 0.7 MPa / 6.9 bar / 100 PSI

Maximum Operating Temp : 65 °C / 150 °F
Maximum Ambient Temp : 48 °C / 120 °F

Electrical Supply : 230 V AC
Frequency : 50 / 60 Hz
Largest Load Amps : 10 A

Weight : 111 kg / 245 lb

Mounting : Floor‑mounted, fixed installation
Enclosure : N/A

Condition : NEW
Quantity : 1
Year of Manufacture : n/a

▸ Key Features:
• 38-liter fluid tank module
• 230V single-phase, 50/60 Hz
• Max fluid pressure: 100 PSI (6.9 bar)
• Max air pressure: 100 PSI (6.9 bar)
• Max operating temp: 65°C (150°F)
▸ Applications:
• Industrial paint spray systems
• Fluid handling and storage
• OEM system integration
▸ Alternative Model Numbers:
24D569
SN9070-24D569
L20A-24D569
24D569-TANK-MODULE
GRACO-24D569
▸ Common Misspellings or Phrasing:
SN9700
GRACO Tank Module
24D569 Tank
GRACO L20A
SN9070 Tank Assembly
