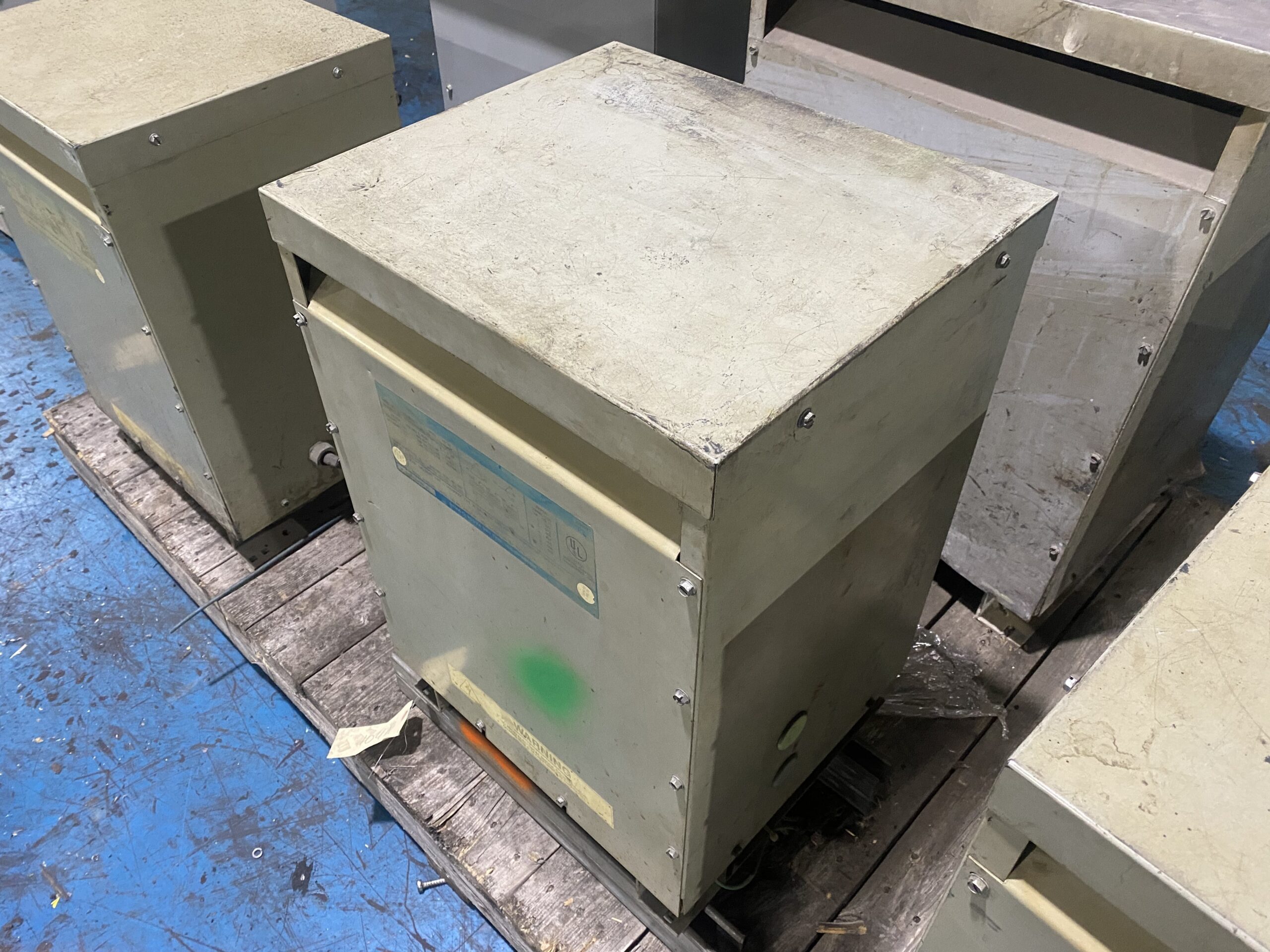

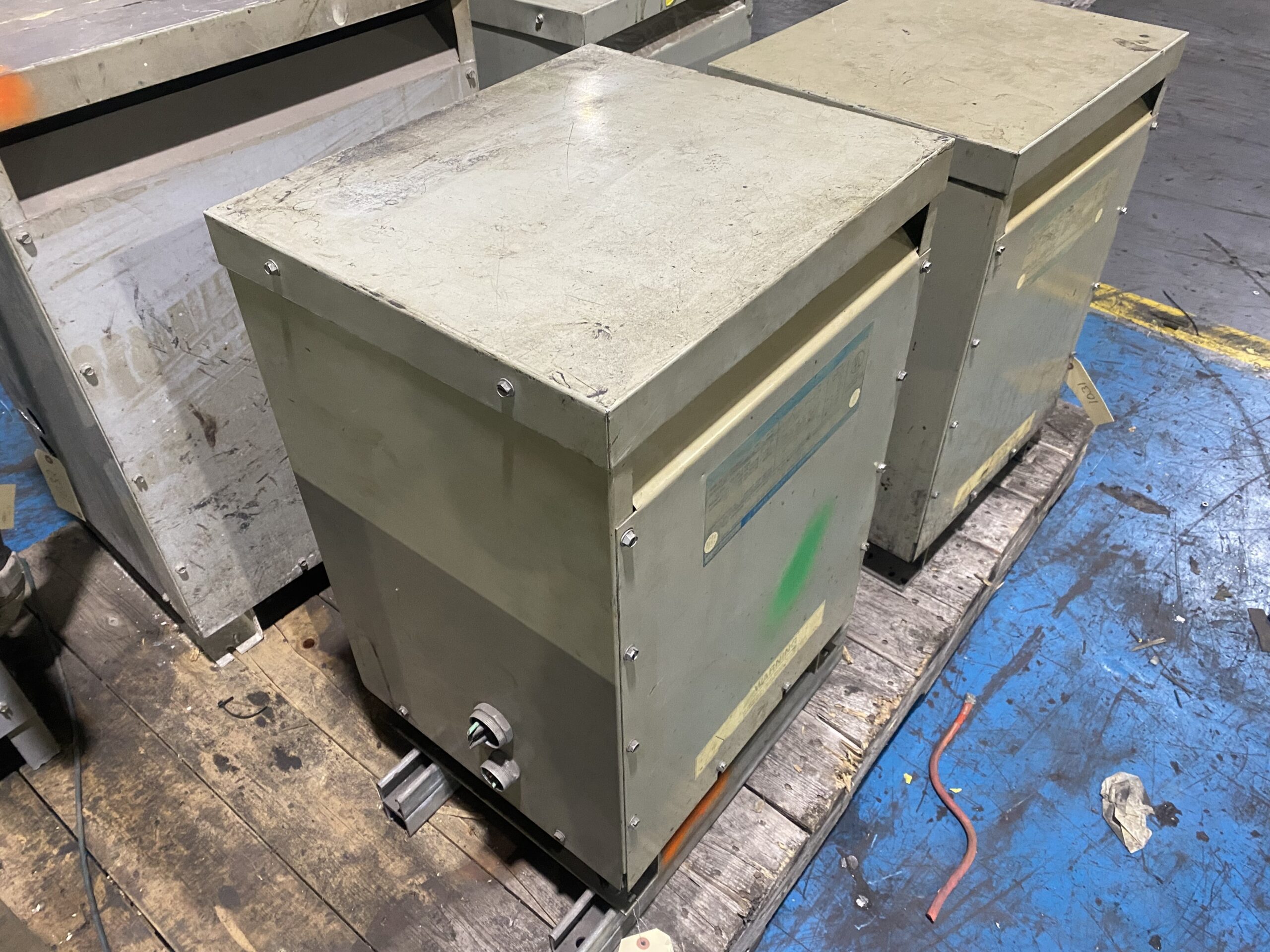

GENERAL ELECTRIC 9T23B3871 15 kVA Dry Type Transformer USED

Specification Table

Power

15 kV·A

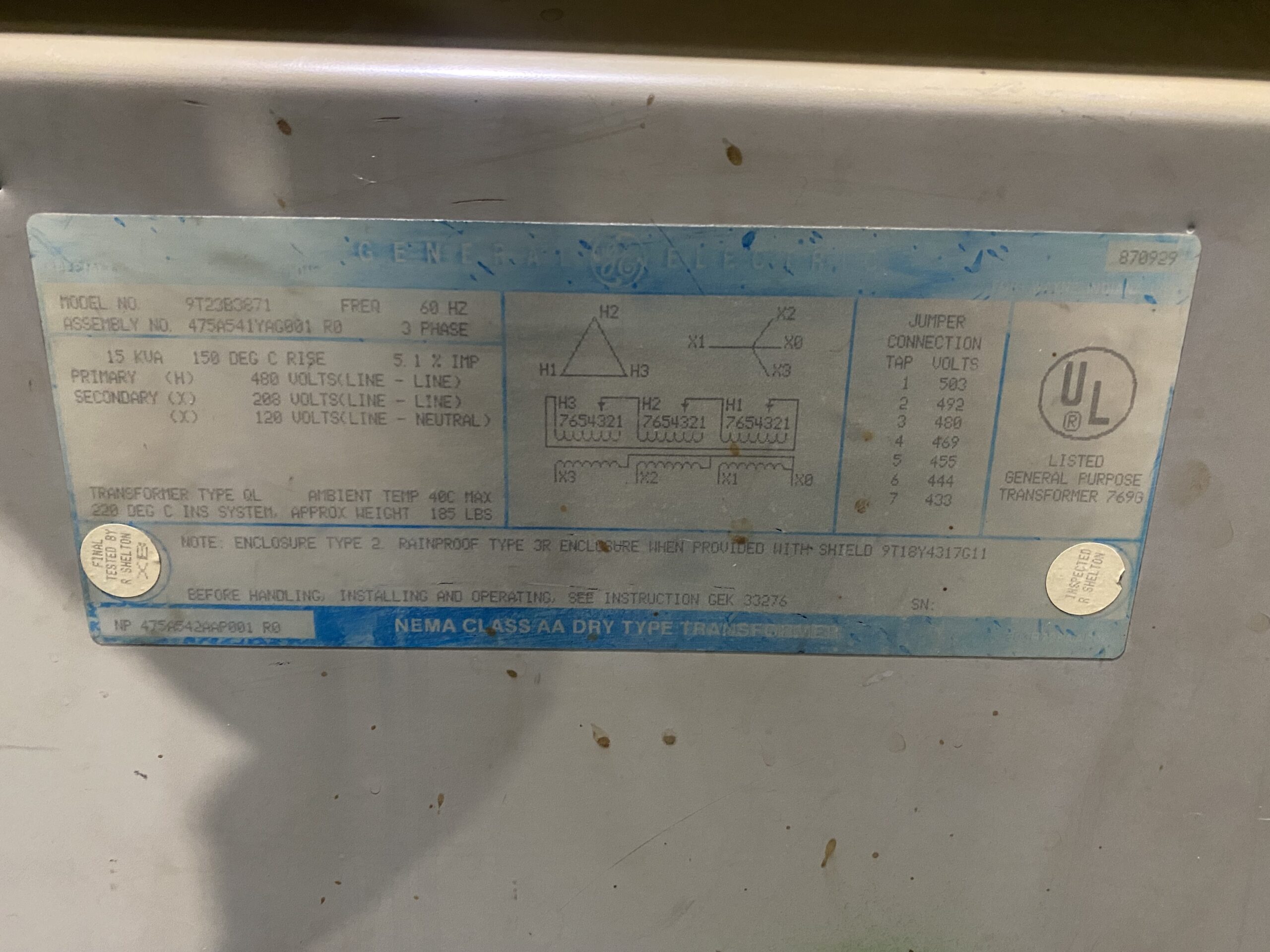

Manufacturer: General Electric Model / Part Number: 9T23B3871 Condition: USED YOM: n/a General Information: Device Type: Dry type power distribution transformer Primary Application Role: Step-down power distribution Intended Use: Industrial and commercial electrical systems Electrical Ratings (per nameplate): Power Rating: 15 kVA Frequency: 60 Hz Phase: 3-phase Primary Voltage: 480 V (line-to-line) Secondary Voltage: 208 V (line-to-line) 120 V (line-to-neutral) Primary Tap Connections: 500 V 492 V 480 V 469 V 455 V Thermal / Insulation: Temperature Rise: 150 °C Insulation System: 220 °C Ambient Temperature: 40 °C maximum Construction: Transformer Type: Dry type Enclosure: Type 2 Cooling: Air cooled NEMA Rating: Class AA Certifications: UL Listed – General Purpose Transformer Manufacturing: Manufacturer Origin: General Electric Included: Includes: Transformer unit Cosmetic Condition: Used, visible surface wear and handling marks consistent with prior service
