GALILEO TP BK LEAK N 4.008.2.002 Leak Testing System USED

$3,000.00
Availability:

1 in stock

BRAND: GALILEO TP MODEL: BK Leak N CONDITION: Used
SKU: IGAM4850117 Weight: 400 lbs Freight (Item Must Ship Freight)

1 in stock

Overview

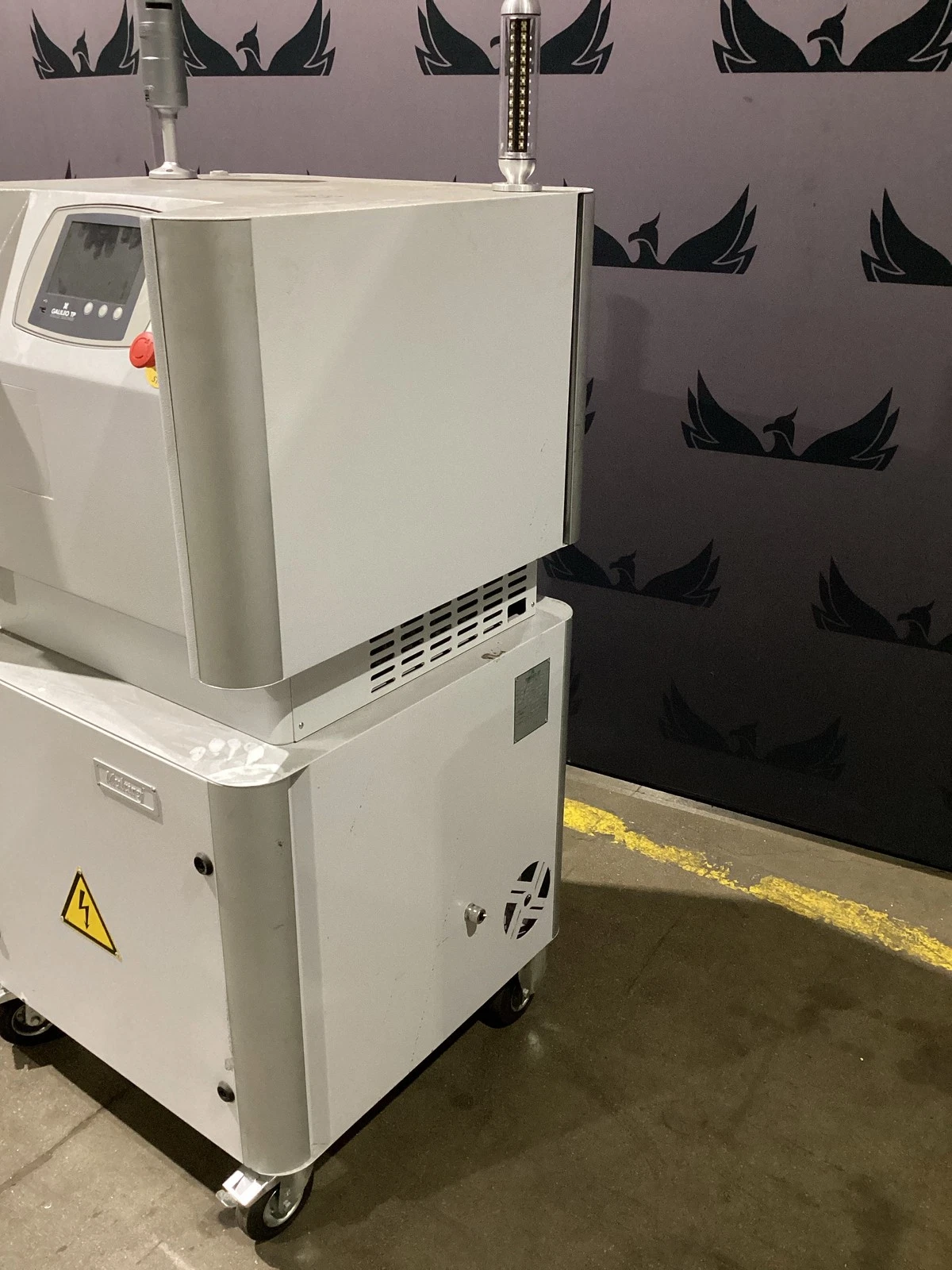

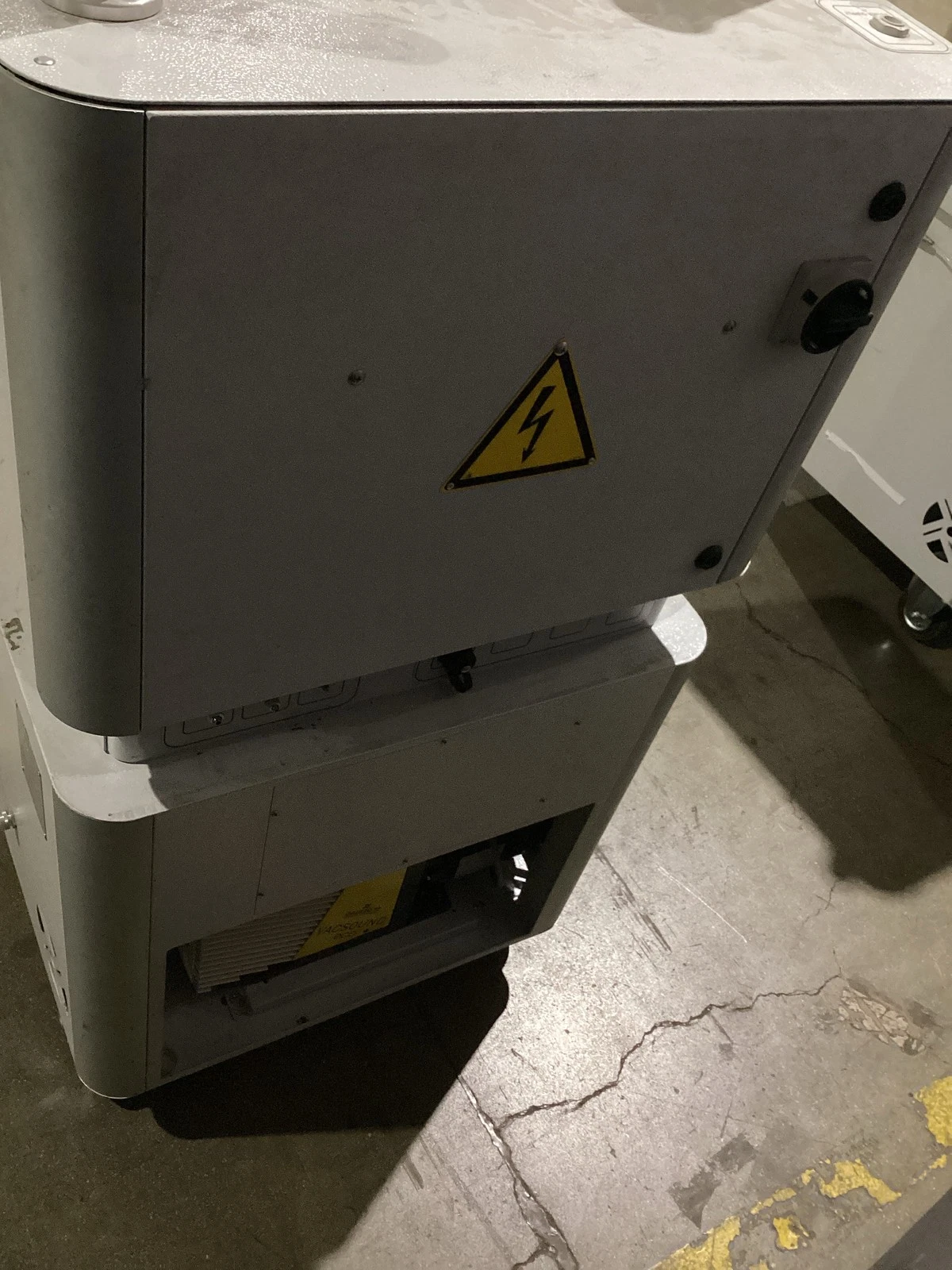

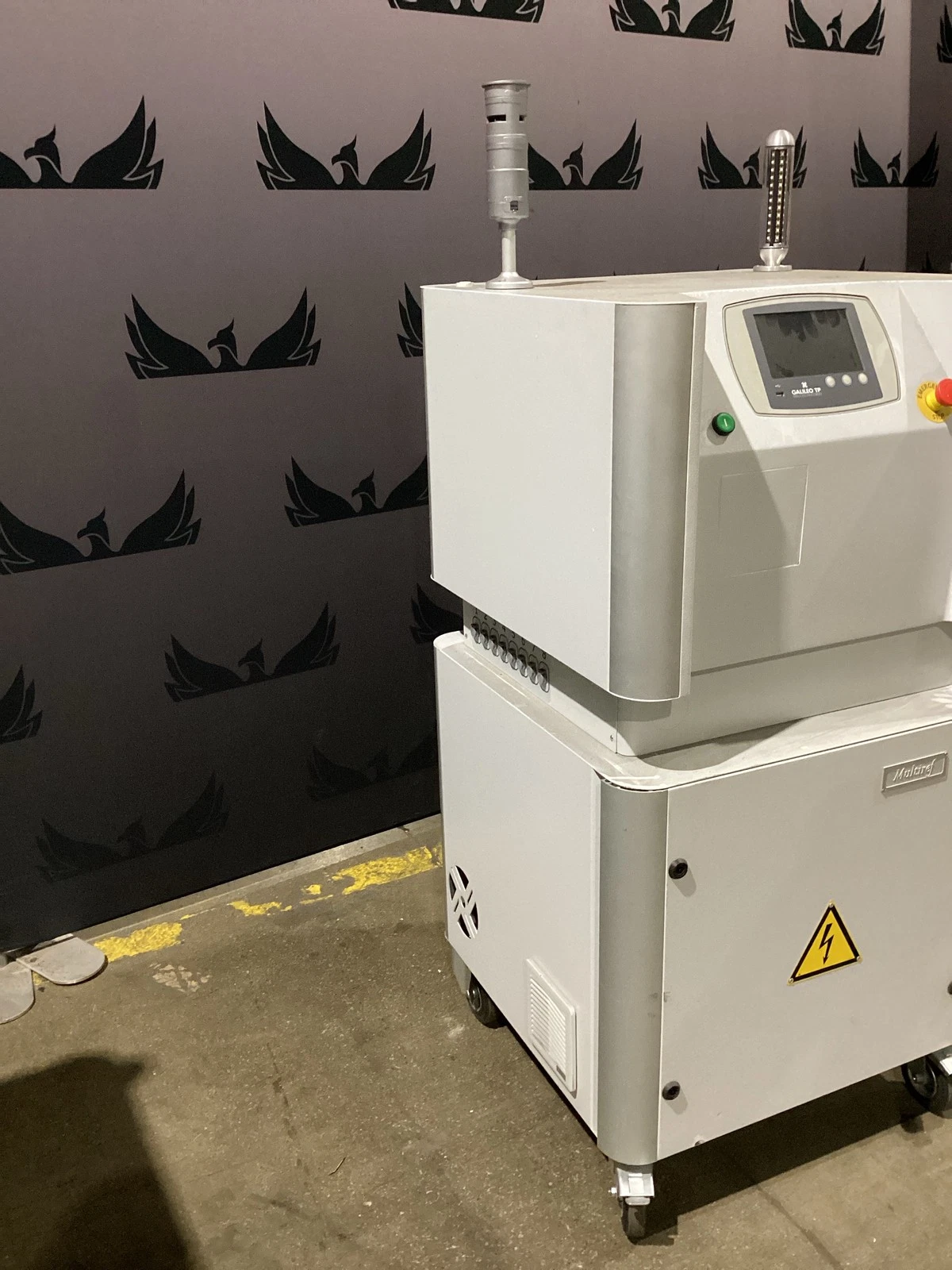

This listing is for a USED GALILEO TP BK LEAK N 4.008.2.002 leak testing system. The unit incorporates an operator interface, integrated vacuum generation equipment, process controls, and a mobile cabinet design for leak testing and production verification applications. An integrated GALILEO TP VACSOUND Eco vacuum unit is installed within the system. Please note this unit does not include any cables, cords, sniffer lines, probes, etc.

Specification Table

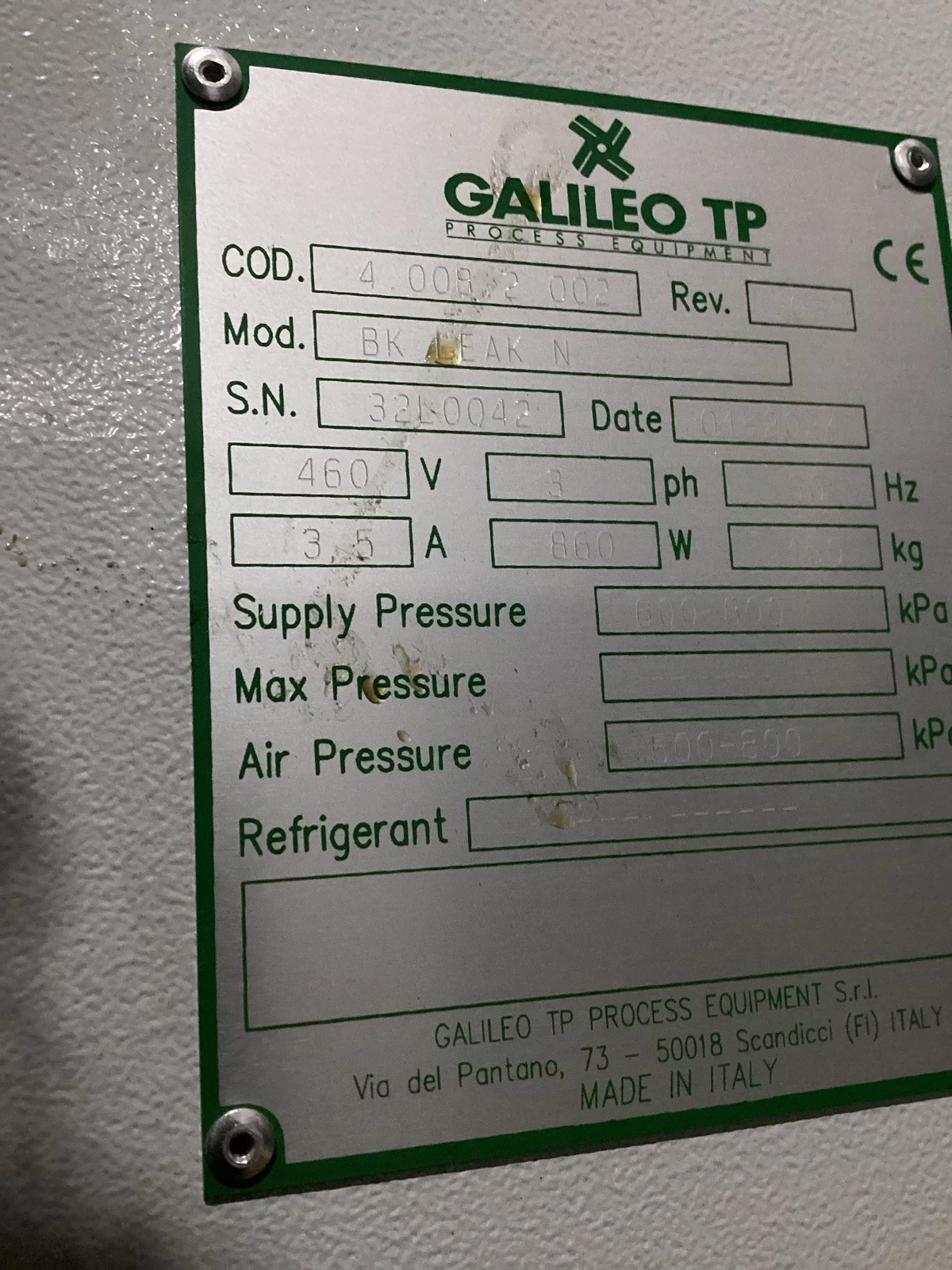

IDENTIFICATION

--------------

Manufacturer: GALILEO TP

Model: BK LEAK N

Code Number: 4.008.2.002

Serial Number: 32L0042

Condition: USED

YOM: 01/2024

Country of Manufacture: Italy


FUNCTION

--------

Equipment Type: Leak Testing System

System Configuration: Mobile Test Station

Operator Interface: Integrated HMI Display

Integrated Vacuum System: Present


ELECTRICAL

----------

Supply Voltage: 460 VAC

Phase Configuration: 3 Phase

Frequency: 60 Hz

Current Rating: 3.5 A

Power Consumption: 860 W


PNEUMATIC

----------

Supply Pressure Range: 600-800 kPa

Air Pressure Range: 500-800 kPa


VACUUM SYSTEM

-------------

Vacuum Unit Manufacturer: GALILEO TP

Vacuum Unit Model: VACSOUND Eco

Vacuum Pump Assembly: Present


VACUUM PUMP MOTOR

-----------------

Motor Manufacturer: MT Motori Elettrici

Motor Type: TN80A/4

Protection Rating: IP55

Duty Rating: S1

Insulation Class: F

Power Factor: 0.67


50 Hz Voltage: 230/400 VAC

50 Hz Output Power: 0.55 kW
