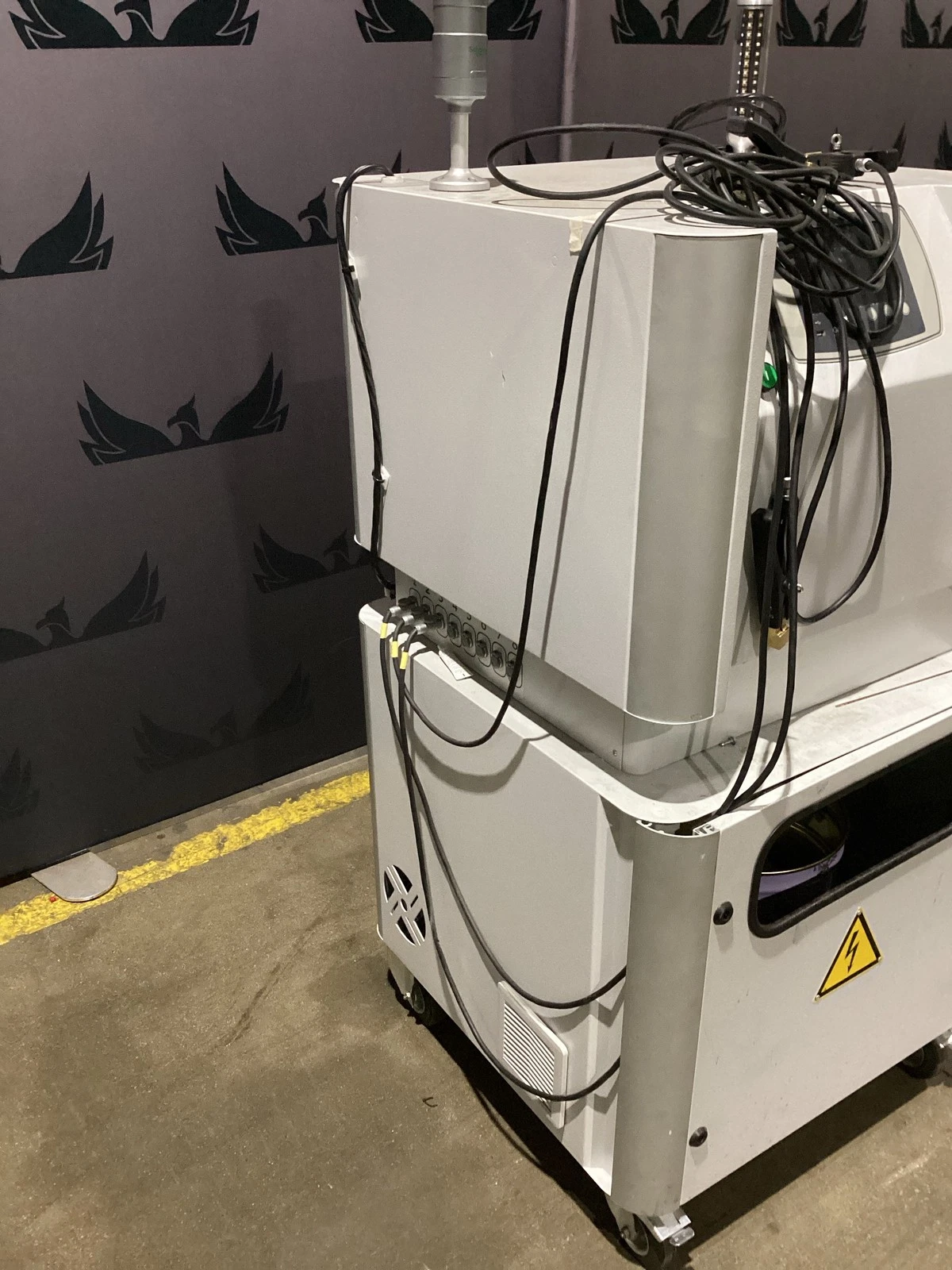

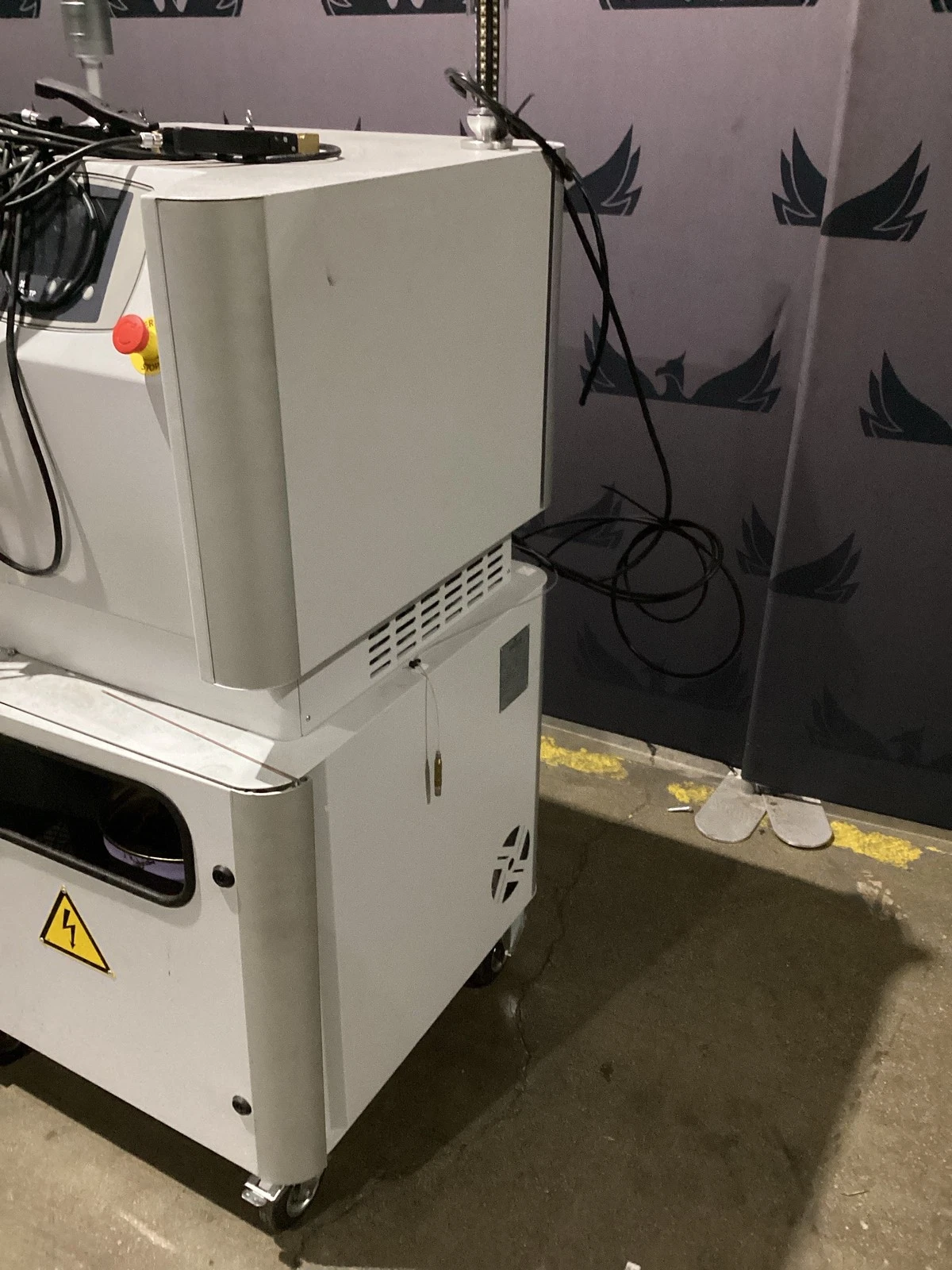

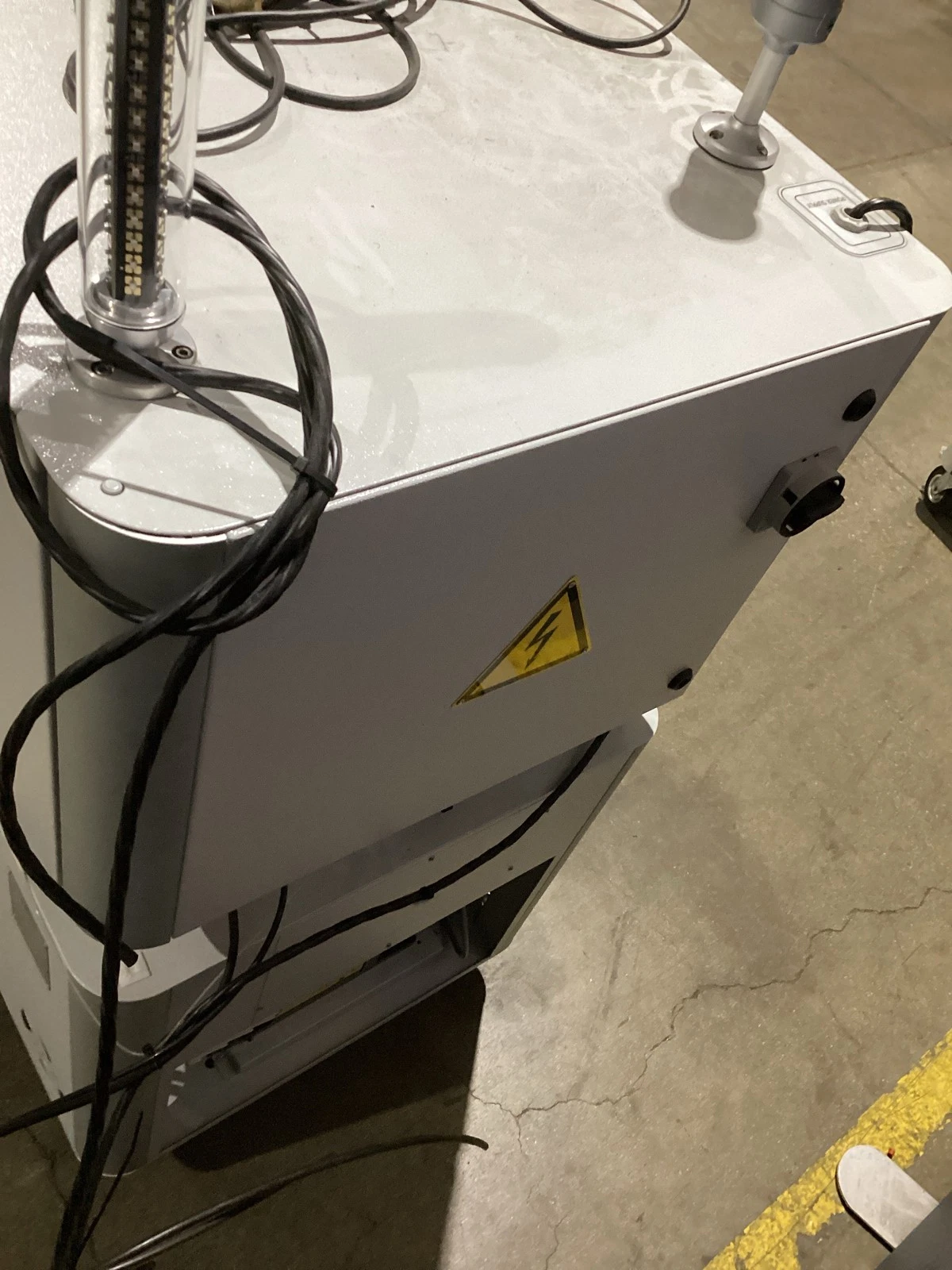

GALILEO TP BK LEAK N 4.006.2.002 Leak Testing System USED

Specification Table

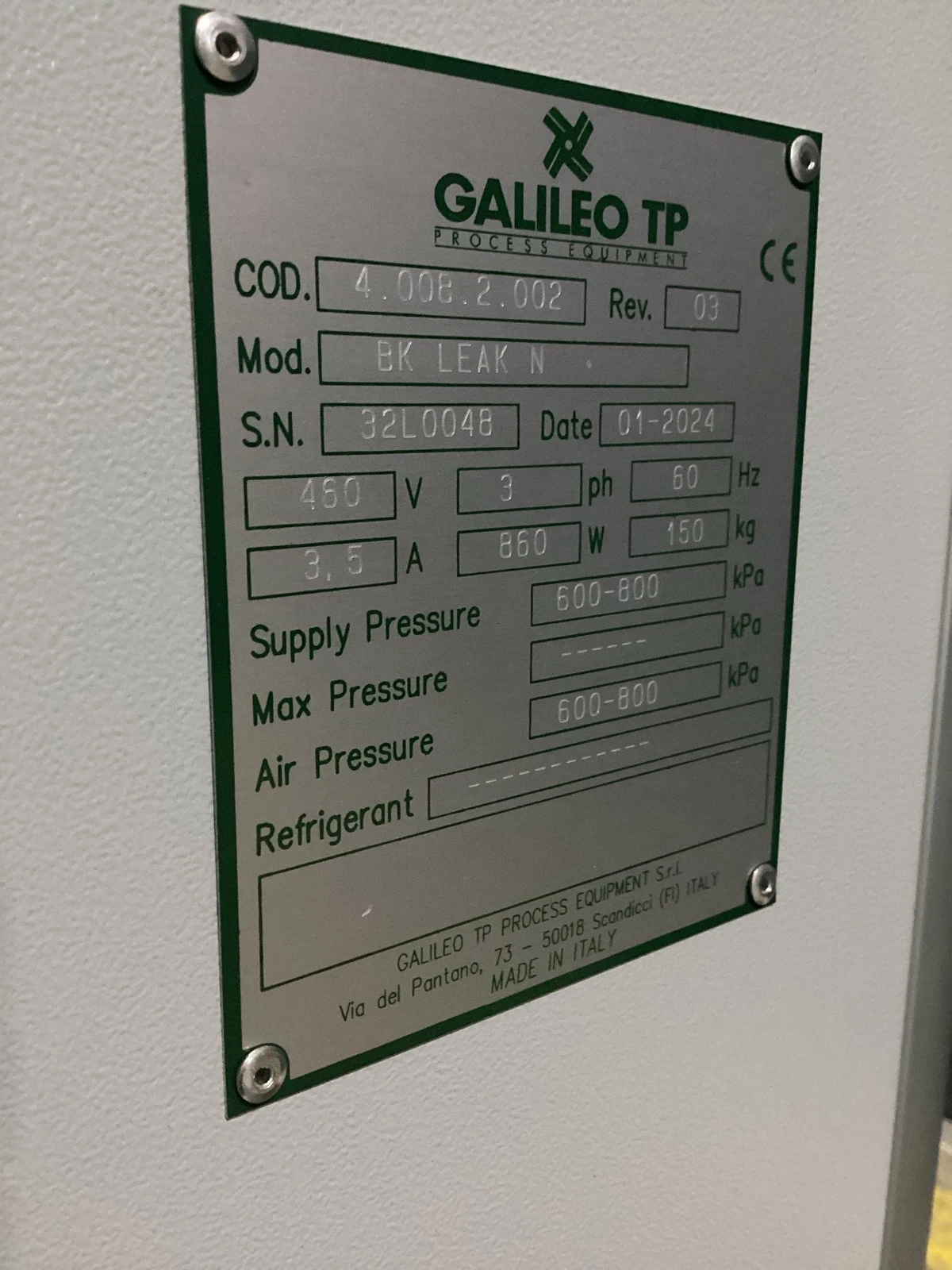

IDENTIFICATION -------------- Manufacturer: GALILEO TP Model: BK LEAK N Code Number: 4.006.2.002 Revision: 03 Serial Number: 32L0048 Condition: USED YOM: 01/2024 Country of Manufacture: Italy FUNCTION -------- Equipment Type: Leak Testing System System Configuration: Mobile Test Station Operator Interface: Integrated HMI Display Integrated Vacuum System: Present ELECTRICAL ---------- Supply Voltage: 460 VAC Phase Configuration: 3 Phase Frequency: 60 Hz Current Rating: 3.5 A Power Consumption: 860 W PNEUMATIC ---------- Supply Pressure Range: 600-800 kPa Air Pressure Range: 600-800 kPa VACUUM SYSTEM ------------- Vacuum Unit Manufacturer: GALILEO TP Vacuum Unit Model: VACSOUND Eco Vacuum Pump Assembly: Present VACUUM PUMP MOTOR ----------------- Motor Manufacturer: MT Motori Elettrici Motor Type: TN80A/4 Protection Rating: IP55 Duty Rating: S1 Insulation Class: F Power Factor: 0.67 50 Hz Voltage: 230/400 VAC 50 Hz Output Power: 0.55 kW 50 Hz Horsepower: 0.75 HP 50 Hz Speed: 1440 RPM 60 Hz Voltage: 280/480 VAC 60 Hz Output Power: 0.66 kW 60 Hz Horsepower: 0.90 HP 60 Hz Speed: 1730 RPM INTERFACE & CONTROLS -------------------- HMI Display: Present Function Keys: Present Emergency Stop Pushbutton: Present Status Indicator Beacon: Present ACCESSORIES ----------- Clamp-Style Test Leads: 3 Included Associated Cables: Present Probe Wand: Not Included Handheld Probe: Not Included CONSTRUCTION ------------ Cabinet Type: Floor Standing Cabinet Mobility: Casters Installed Integrated Equipment Compartments: Present PHYSICAL -------- Weight: 150 kg CERTIFICATIONS -------------- CE Marked: Yes ATEX Motor Certification: Present
