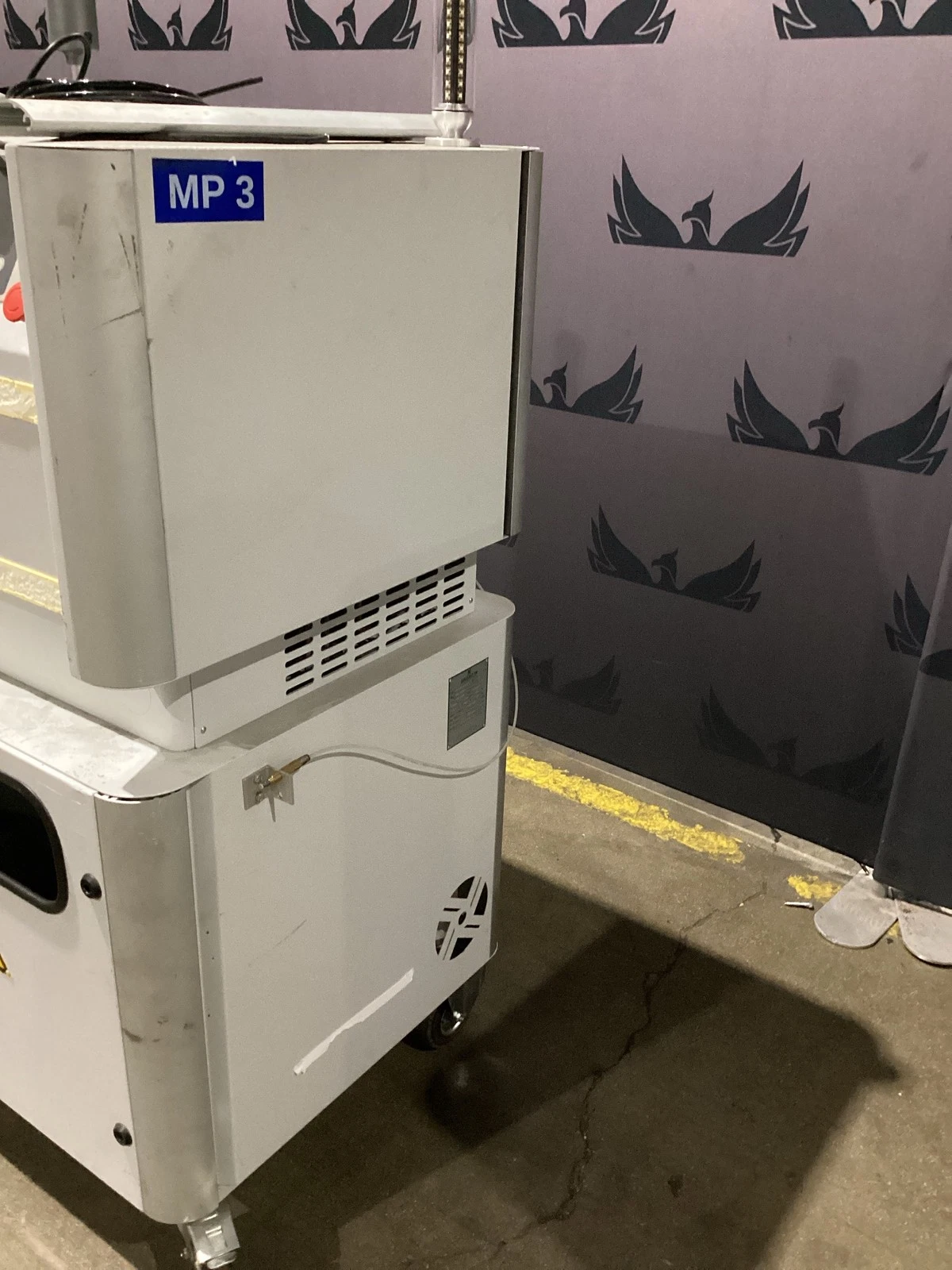

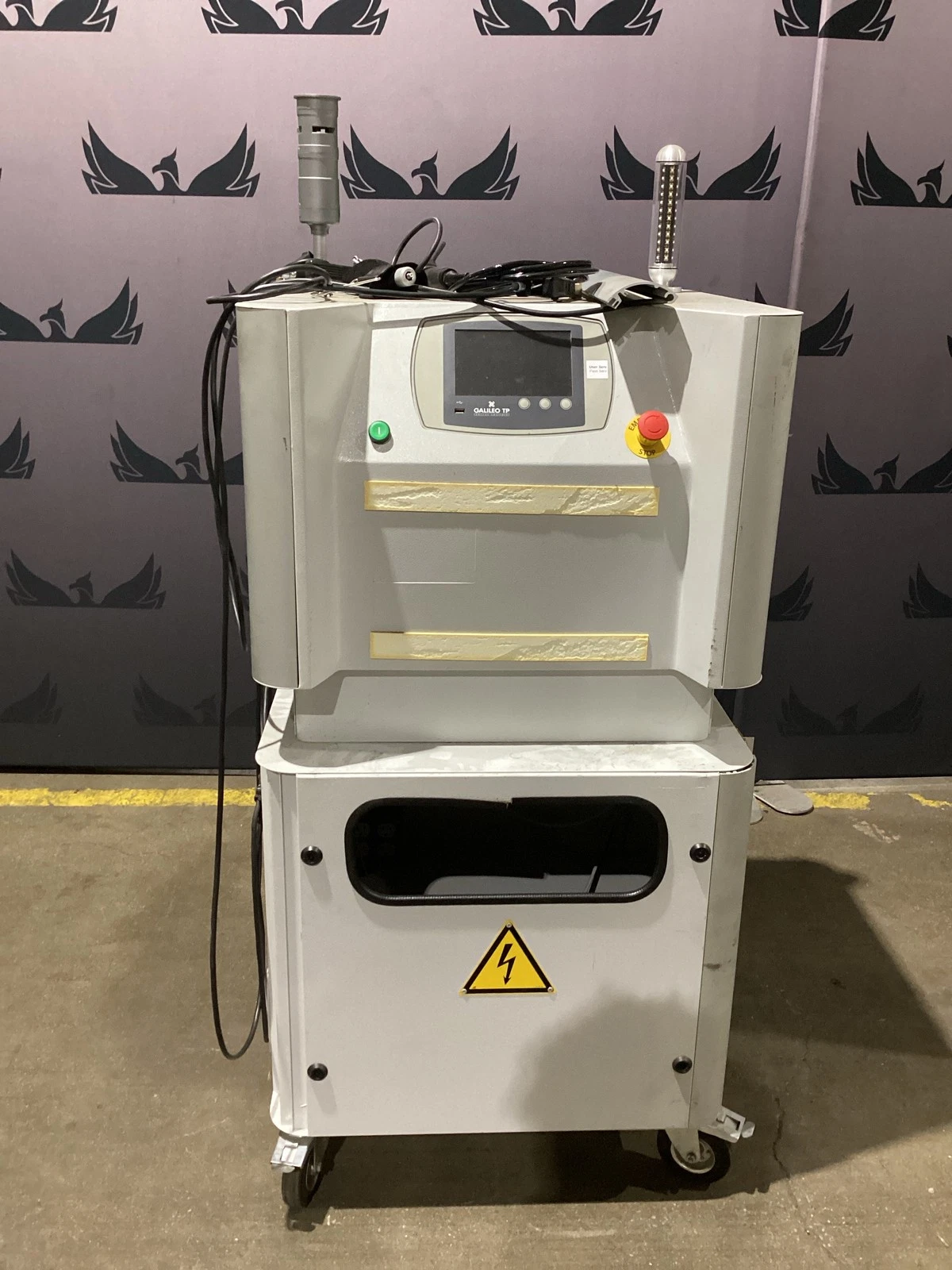

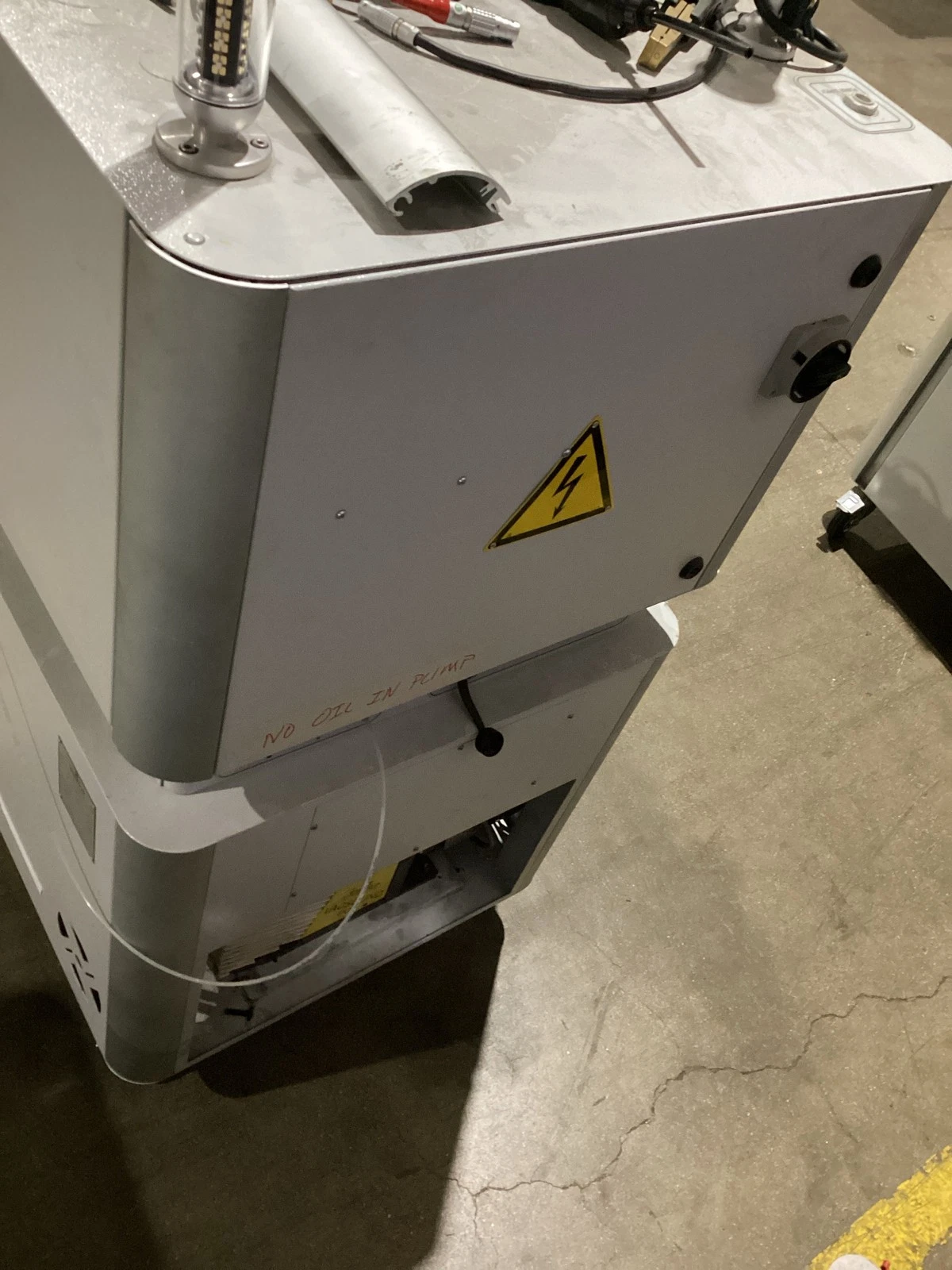

GALILEO TP MULTIREF Leak Testing System USED

Specification Table

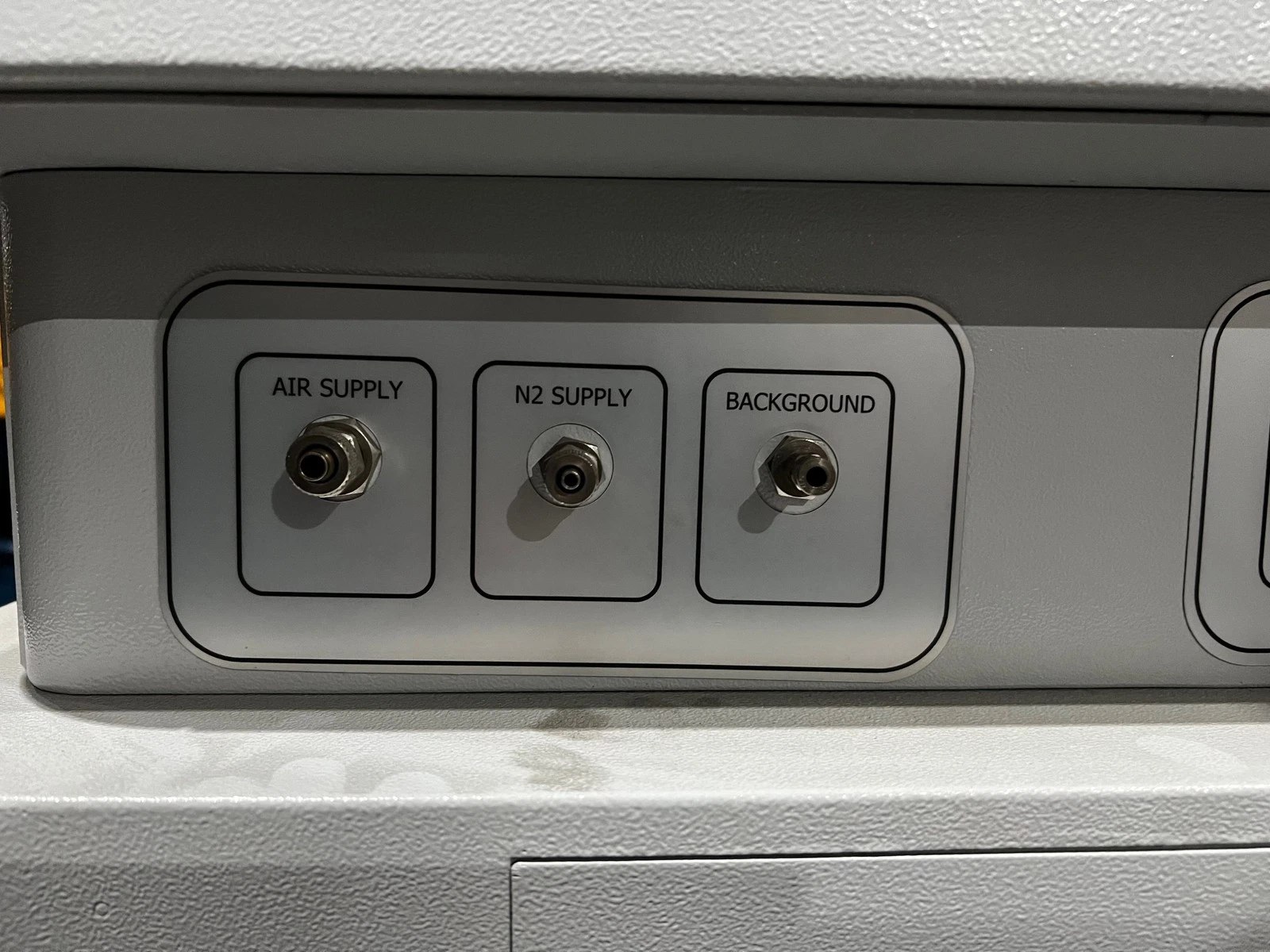

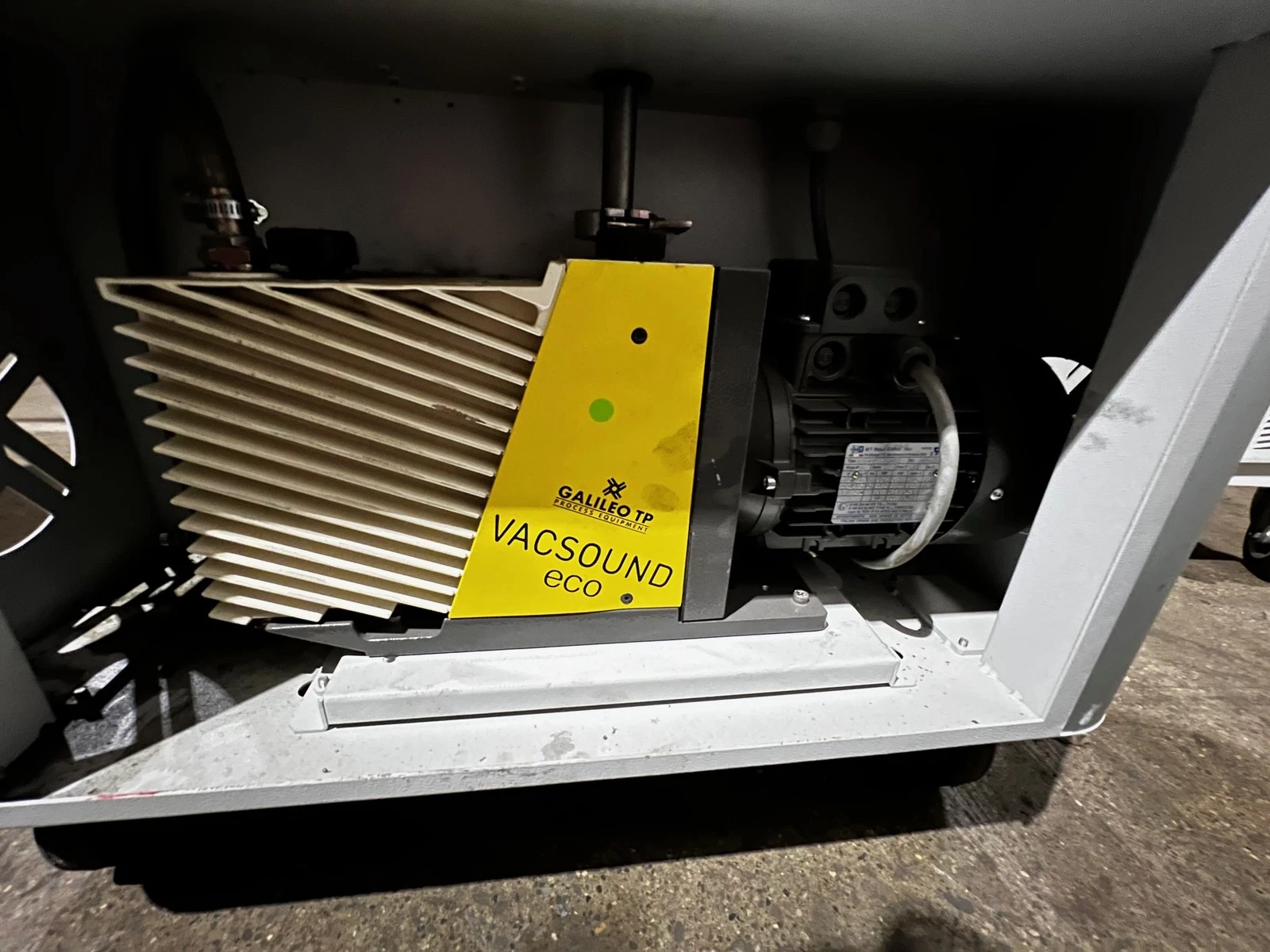

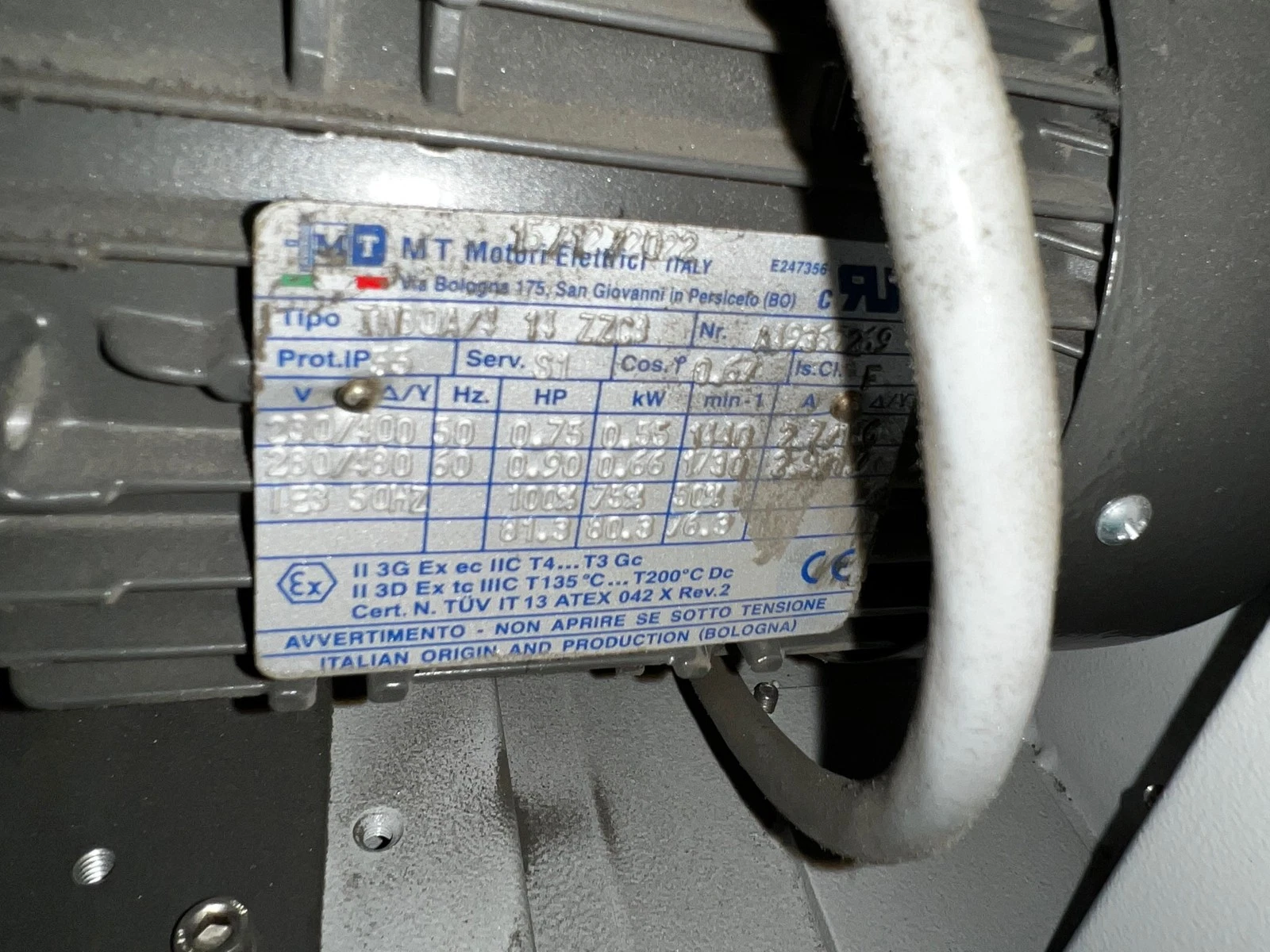

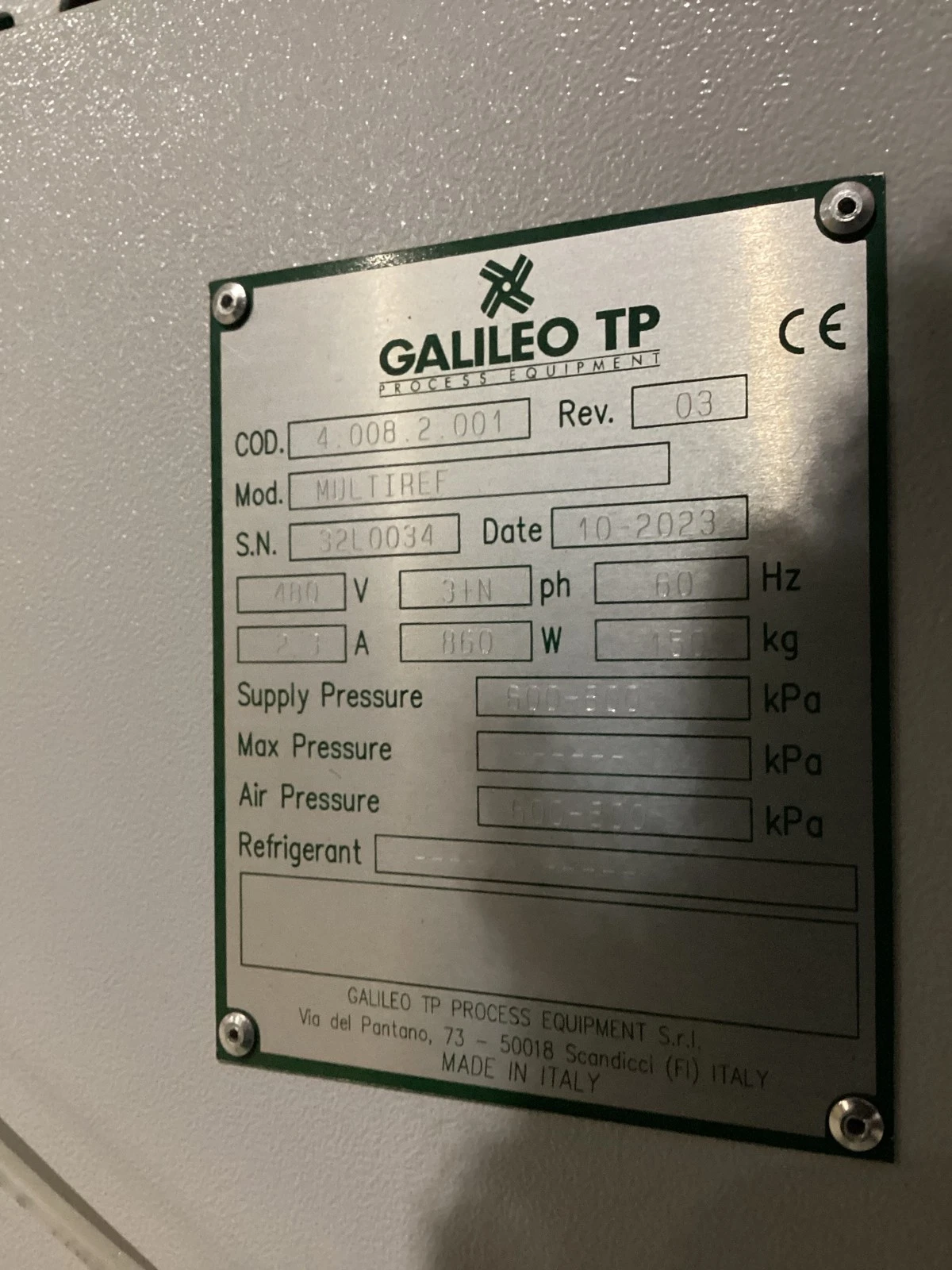

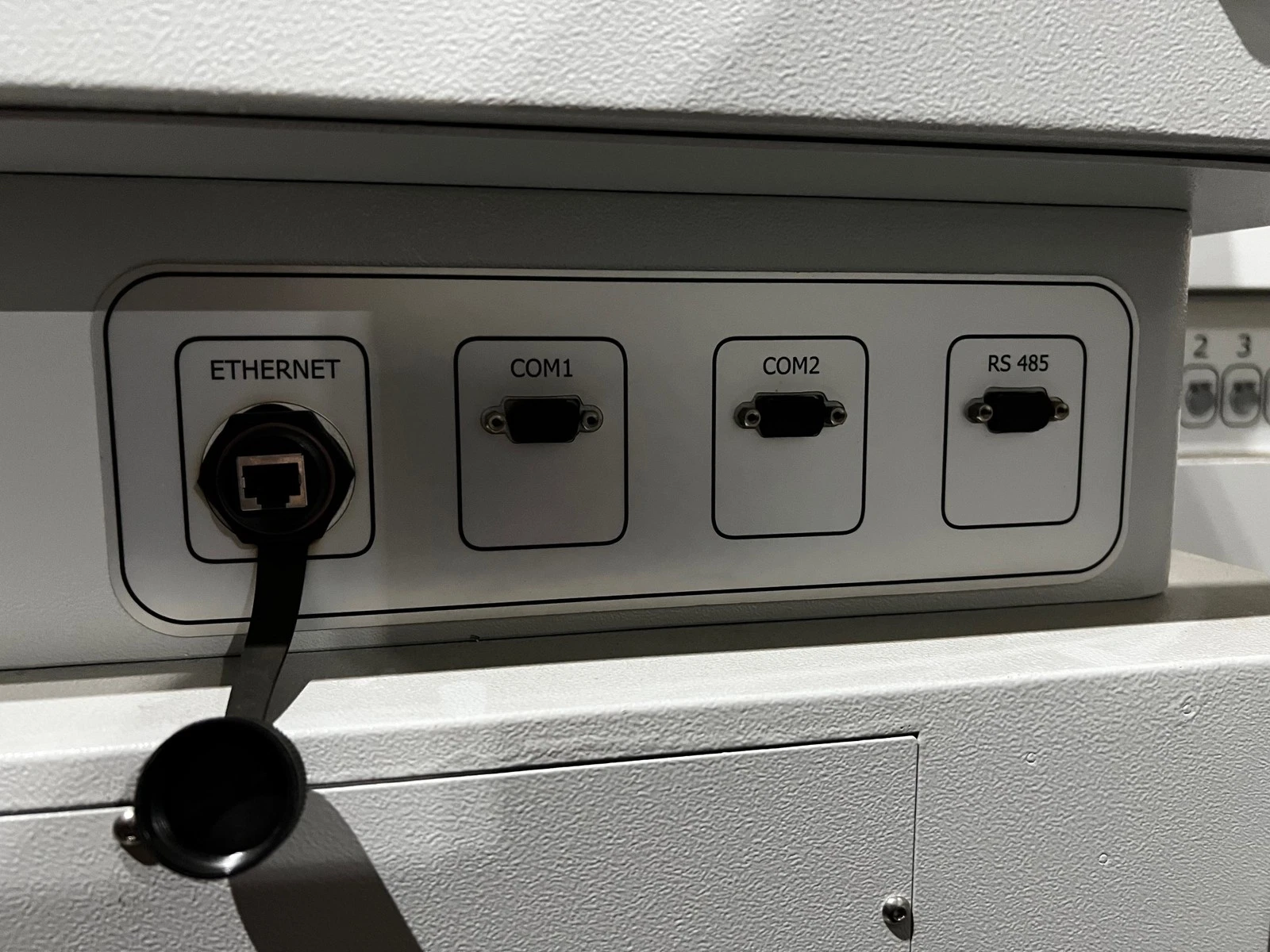

IDENTIFICATION -------------- Manufacturer: GALILEO TP Model: MULTIREF Code Number: 4.008.2.001 Revision: 03 Serial Number: 32L0034 Condition: USED YOM: 10/2023 Country of Manufacture: Italy FUNCTION -------- Equipment Type: Refrigerant Charging & Leak Testing System System Configuration: Mobile Test Station Testing Functions: Evacuation, Leak Testing, Refrigerant Charging Operator Interface: Integrated HMI Display Integrated Vacuum System: Present ELECTRICAL ---------- Supply Voltage: 480 VAC Phase Configuration: 3 + N Frequency: 60 Hz Current Rating: 2.3 A Power Consumption: 860 W PNEUMATIC ---------- Compressed Air Requirement: 600-800 kPa Supply Pressure Range: 600-800 kPa Air Pressure Range: 600-800 kPa VACUUM SYSTEM ------------- Vacuum Unit Manufacturer: GALILEO TP Vacuum Unit Model: VACSOUND Eco Vacuum Pump Assembly: Present VACUUM PUMP MOTOR ----------------- Motor Manufacturer: MT Motori Elettrici Motor Type: TN80A/2 Protection Rating: IP55 Duty Rating: S1 Insulation Class: F 50 Hz Voltage: 230/400 VAC 50 Hz Output Power: 0.55 kW 50 Hz Speed: 2840 RPM 60 Hz Voltage: 280/480 VAC 60 Hz Output Power: 0.66 kW 60 Hz Speed: 3350 RPM INTERFACE & CONTROLS -------------------- HMI Display: Present Function Keys: Present Start Pushbutton: Present Emergency Stop Pushbutton: Present Status Indicator Tower Light: Present TOOLING ------- Handheld Charging Tool: Present Handheld Test Probe: Present Associated Process Cables: Present Process Connections: Present Quick-Coupler Tooling: Present CONSTRUCTION ------------ Cabinet Type: Floor Standing Cabinet Mobility: Casters Installed Integrated Equipment Compartments: Present PHYSICAL -------- Weight: 150 kg CERTIFICATIONS -------------- CE Marked: Yes
