Fireye EB-700 Burner Safety Control w/ EP160 E1R1 ED500 Modules USED

Specification Table

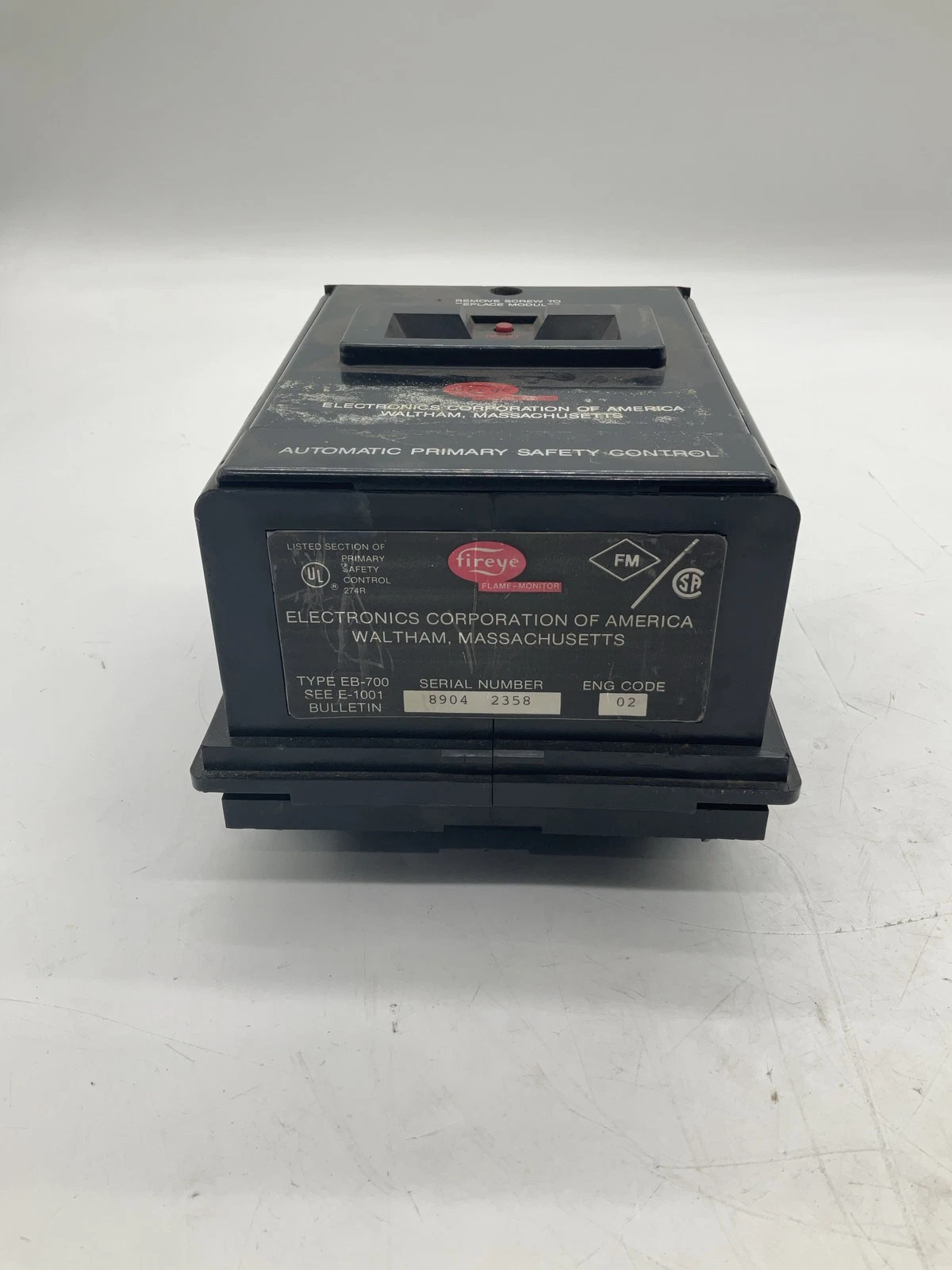

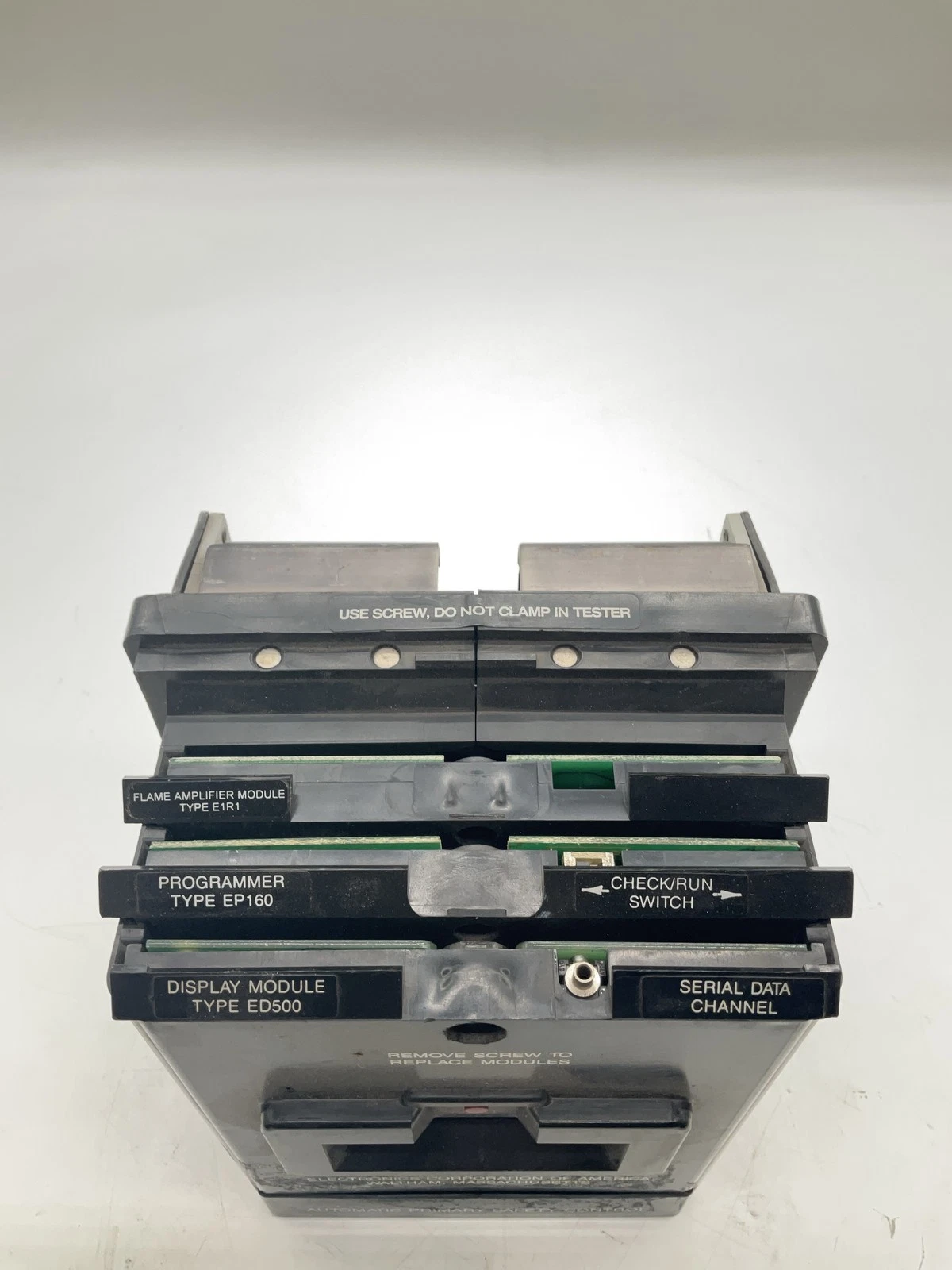

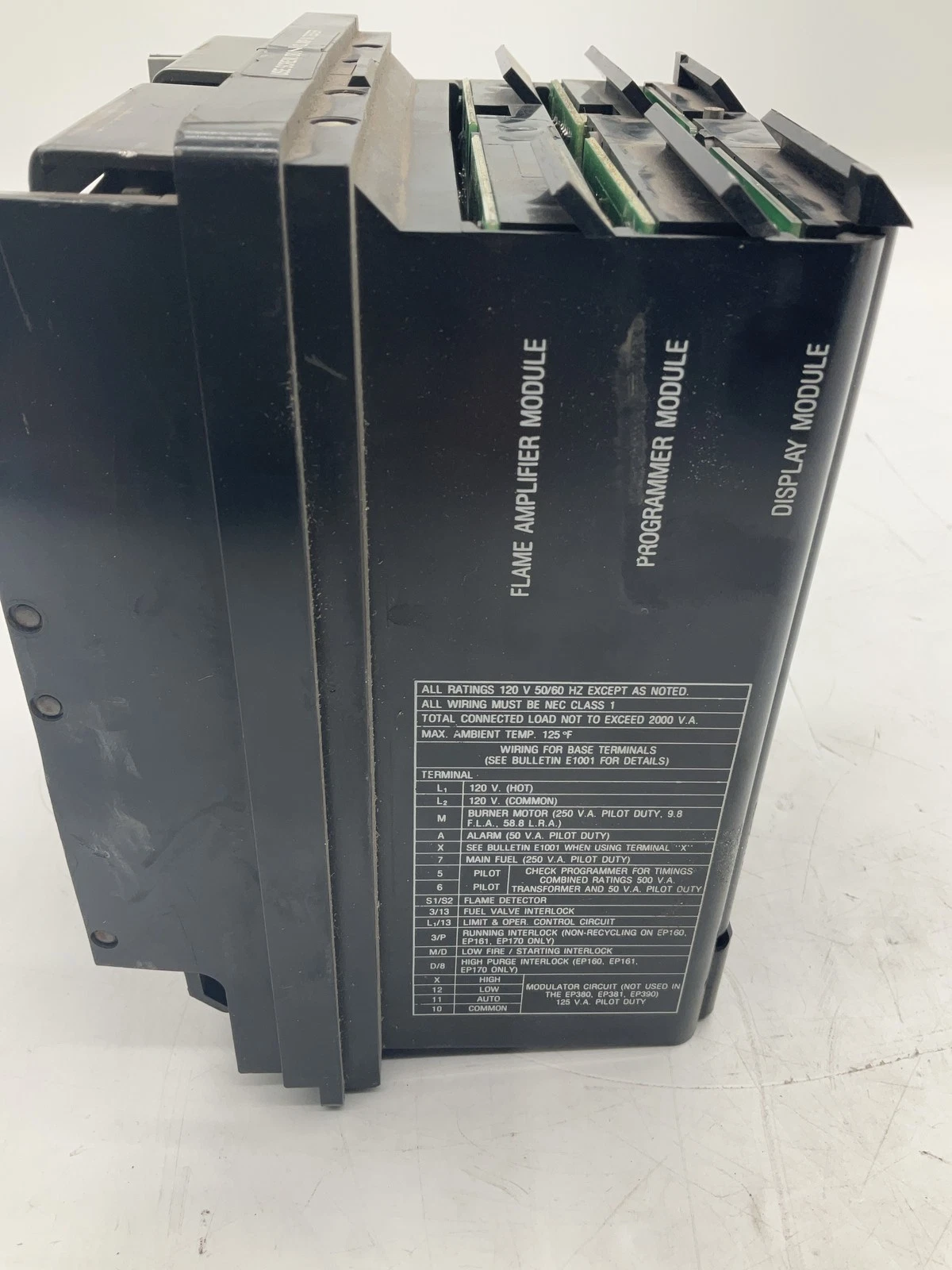

IDENTIFICATION Manufacturer: Fireye Type: EB-700 Product Type: Automatic Primary Safety Control Serial Number: 8904 2358 Engineering Code: 02 Condition: USED YOM: n/a INSTALLED MODULES Flame Amplifier: E1R1 Programmer: EP160 Display Module: ED500 INTERFACE / CONTROL Serial Data Channel: Provided Check / Run Switch: Provided Reset Control: Manual Flame Detector Input: S1 / S2 ELECTRICAL Supply Voltage: 120 VAC Frequency: 50/60 Hz Maximum Connected Load: 2000 VA Wiring Classification: NEC Class 1 Maximum Ambient Temperature: 125°F LOAD RATINGS Burner Motor: 250 VA Pilot Duty; 9.8 FLA; 58.8 LRA Main Fuel: 250 VA Pilot Duty Pilot Transformer: 50 VA Pilot Duty Pilot Combined Rating: 500 VA TERMINAL FUNCTIONS L1: 120 V Hot L2: 120 V Common M: Burner Motor A: Alarm 7: Main Fuel 5: Pilot 6: Pilot Transformer S1 / S2: Flame Detector 3 / 13: Fuel Valve Interlock L / 13: Limit & Operating Control Circuit 3 / P: Running Interlock M / D: Low Fire / Starting Interlock D / 8: High Purge Interlock MODULATOR CIRCUIT X: High 12: Low 11: Auto 10: Common CONSTRUCTION / INSTALLATION Module Configuration: Removable / Plug-In Base Connection: Wiring Base Terminals Module Retention: Screw Retained APPROVALS UL: Listed FM: Marked CSA: Marked
