FESTO EMMT‑AS‑100‑S‑HS‑RMB Servo Motor USED

Specification Table

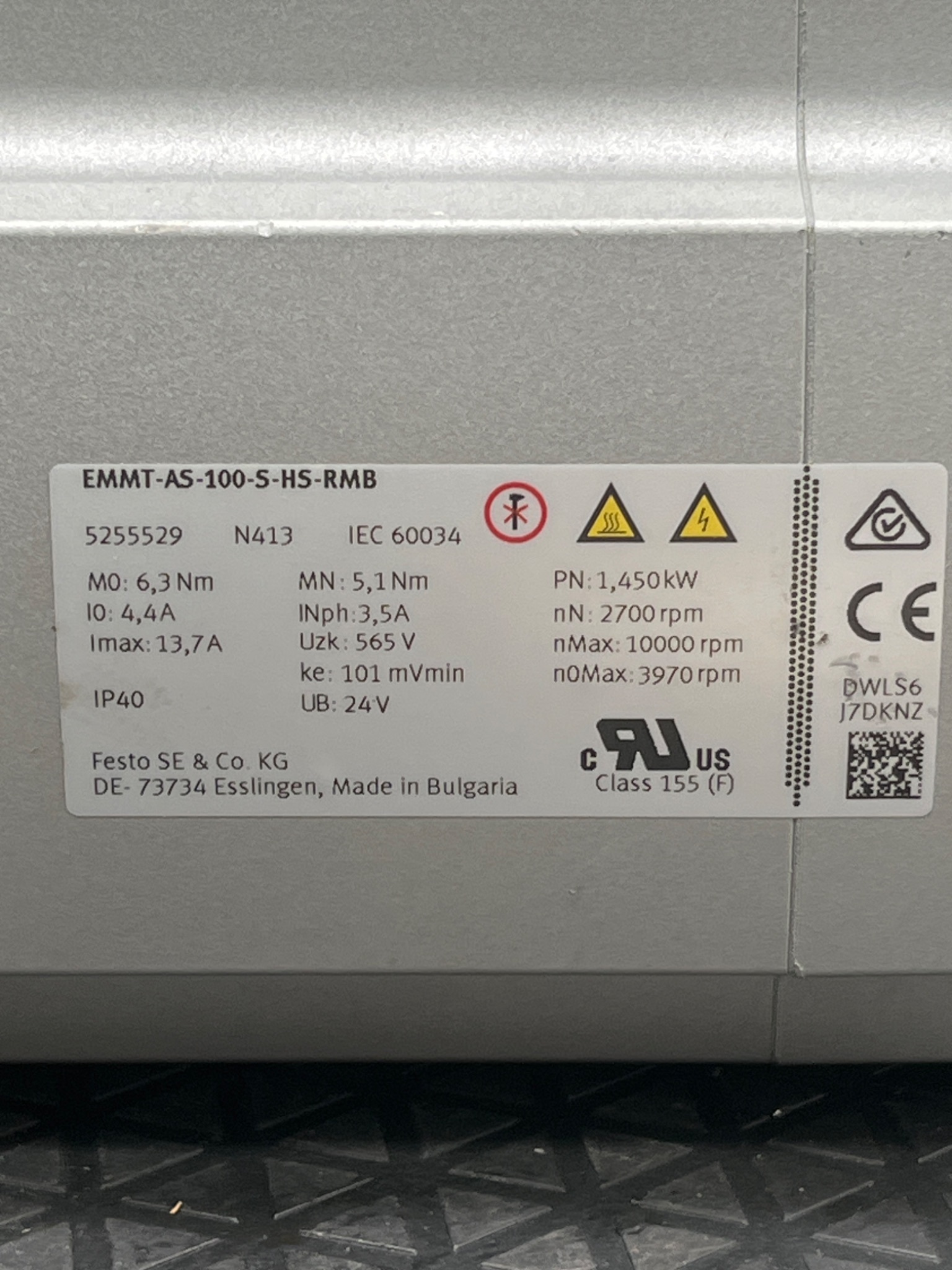

Manufacturer: Festo Series: EMMT-AS Model / Type: EMMT-AS-100-S-HS-RMB Condition: USED YOM: n/a General Information: Device Type: Brushless AC servo motor Primary Application Role: Precision motion control Intended Use: Industrial automation and servo-driven systems Electrical Ratings (from nameplate): Rated Torque (Mo): 6.3 Nm Rated Torque (Mn): 5.1 Nm Rated Current (Io): 4.4 A Rated Current (In): 3.5 A Maximum Current (Imax): 13.7 A Rated Speed (nn): 2700 rpm Maximum Speed (nmax): 10000 rpm Rated Voltage (UzK): 565 V Brake Voltage: 24 V DC Brake Holding Torque: 3.3 Nm Mechanical: Frame Size: 100 Shaft Type: Straight shaft Protection Rating: IP40 Cooling Method: Natural convection Feedback: Encoder Type: Incremental encoder (from nameplate) Thermal: Thermal Class: Class 155 (F) Weight: Motor Weight: 10.1 kg Manufacturing: Manufacturer: Festo SE & Co. KG Manufacturing Location: Made in Bulgaria Included: Includes: Servo motor with integrated encoder and brake Cosmetic Condition: Used, visible handling marks and shaft wear consistent with prior service
