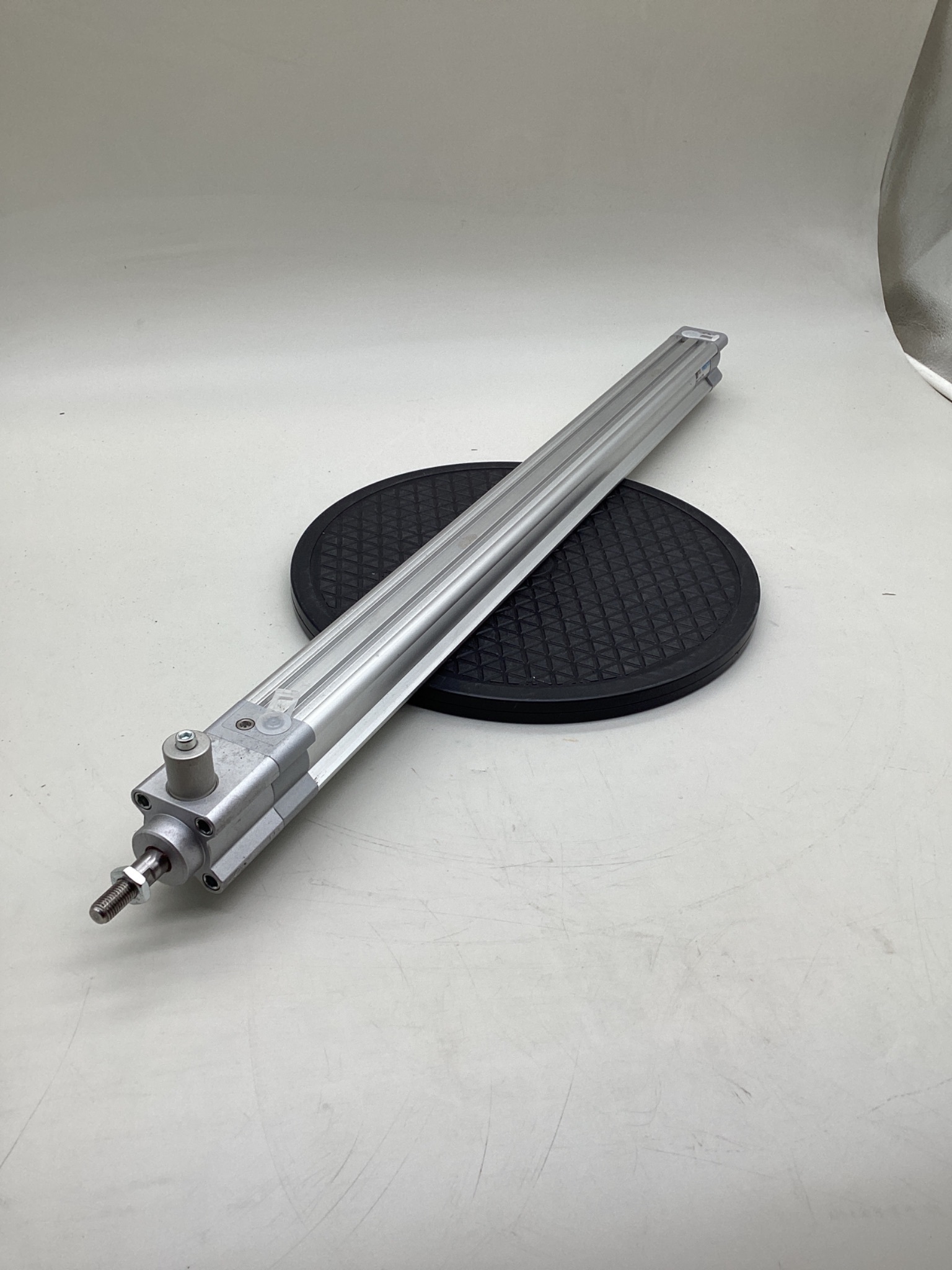

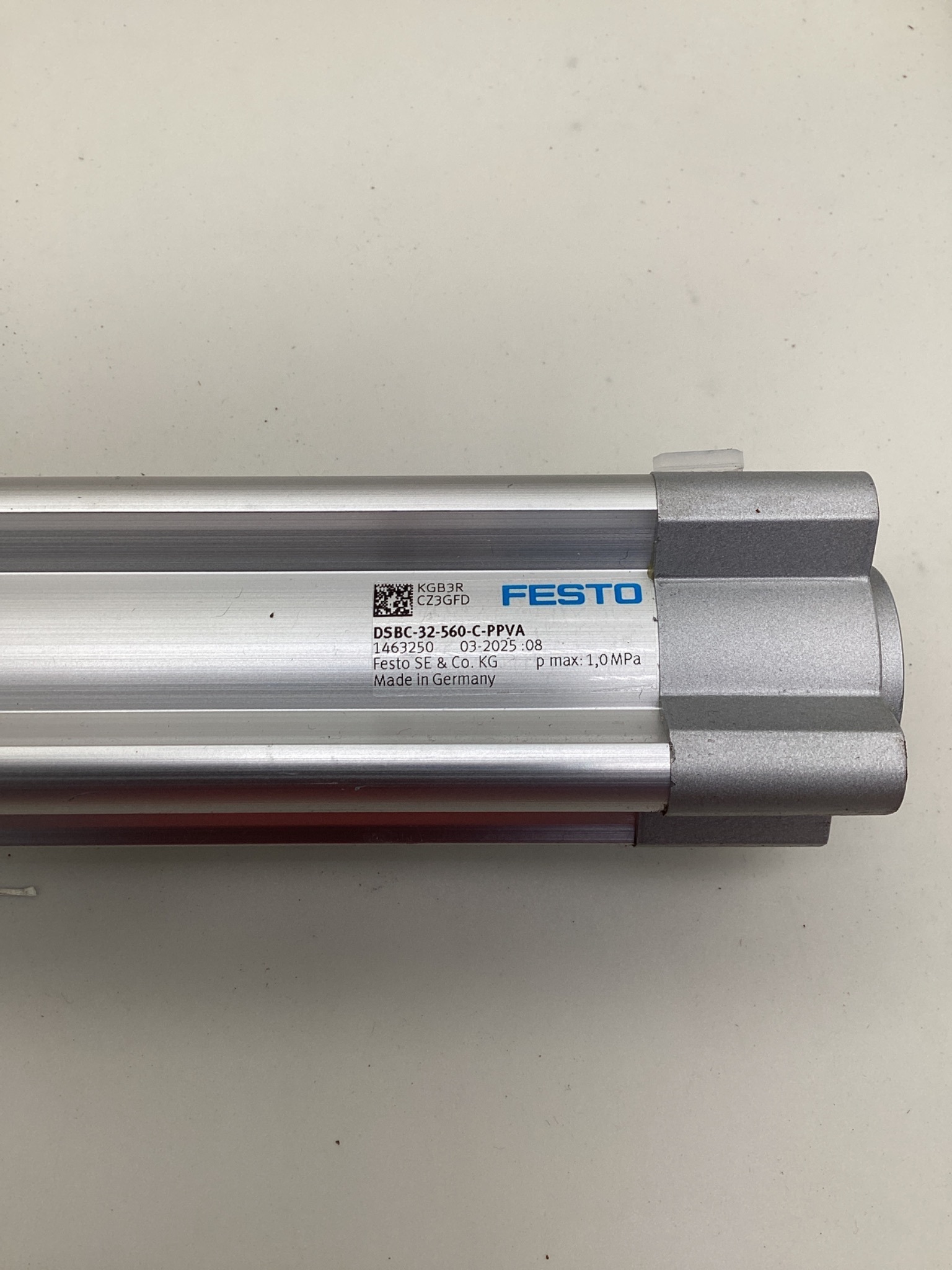

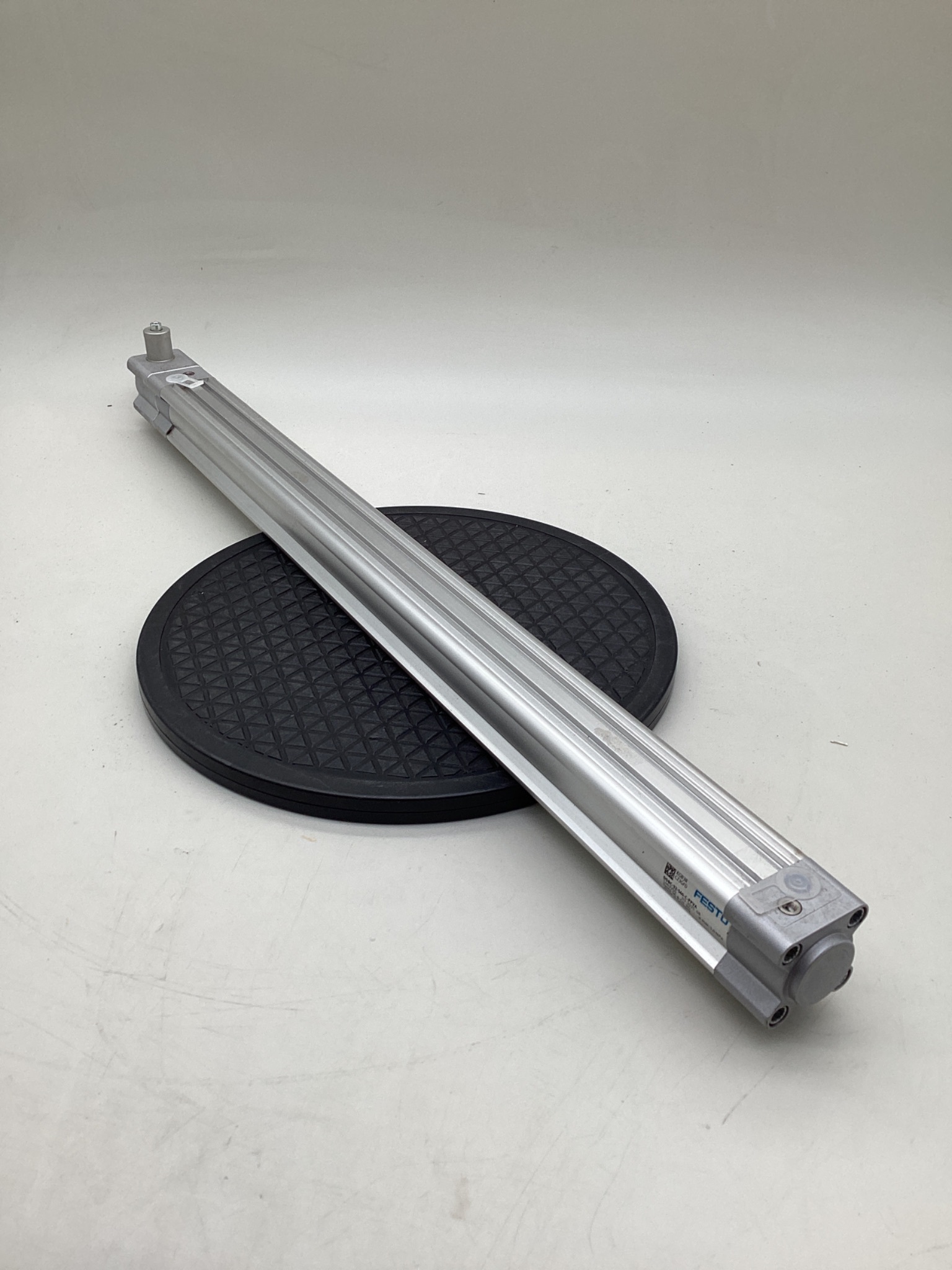

FESTO DSBC-32-560-C-PPVA ISO Pneumatic Cylinder USED

Specification Table

IDENTIFICATION   Manufacturer: Festo Series: DSBC Model: DSBC-32-560-C-PPVA Part Number: 1463250 Condition: USED YOM: n/a Country of Manufacture: Germany   TYPE   Series: DSBC Cylinder Standard: ISO 15552 Operation: Double Acting Cushioning System: PPVA Self-Adjusting Pneumatic Cushioning Piston Technology: Magnetic Piston   PERFORMANCE   Bore Diameter: 32 mm Stroke Length: 560 mm Maximum Operating Pressure: 1.0 MPa Maximum Operating Pressure: 10 bar Operating Pressure Range: 0.6 to 10 bar Theoretical Force @ 6 Bar Extension: 483 N Theoretical Force @ 6 Bar Retraction: 435 N   CONSTRUCTION   Cylinder Body: Profile Barrel Barrel Material: Aluminum End Cap Material: Die-Cast Aluminum Piston Rod Material: High-Alloy Steel Sensor Mounting: Integrated Sensor Grooves End Position Cushioning: Pneumatic Cushioning Both Ends Piston Rod Configuration: Single Rod   INSTALLATION   Mounting Standard: ISO 15552 Port Connection Size: G1/8 Rod End Thread: M10 x 1.25
