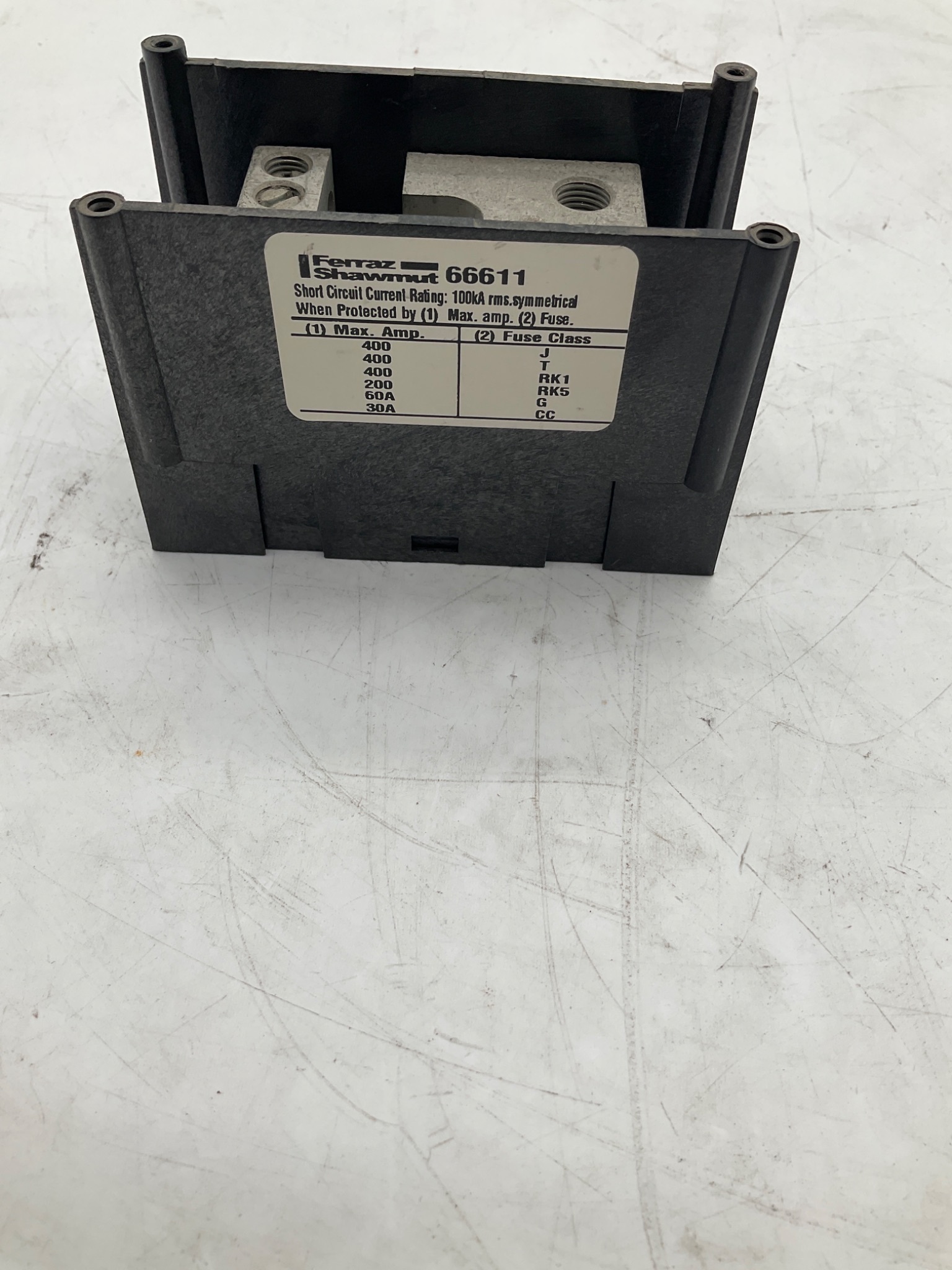

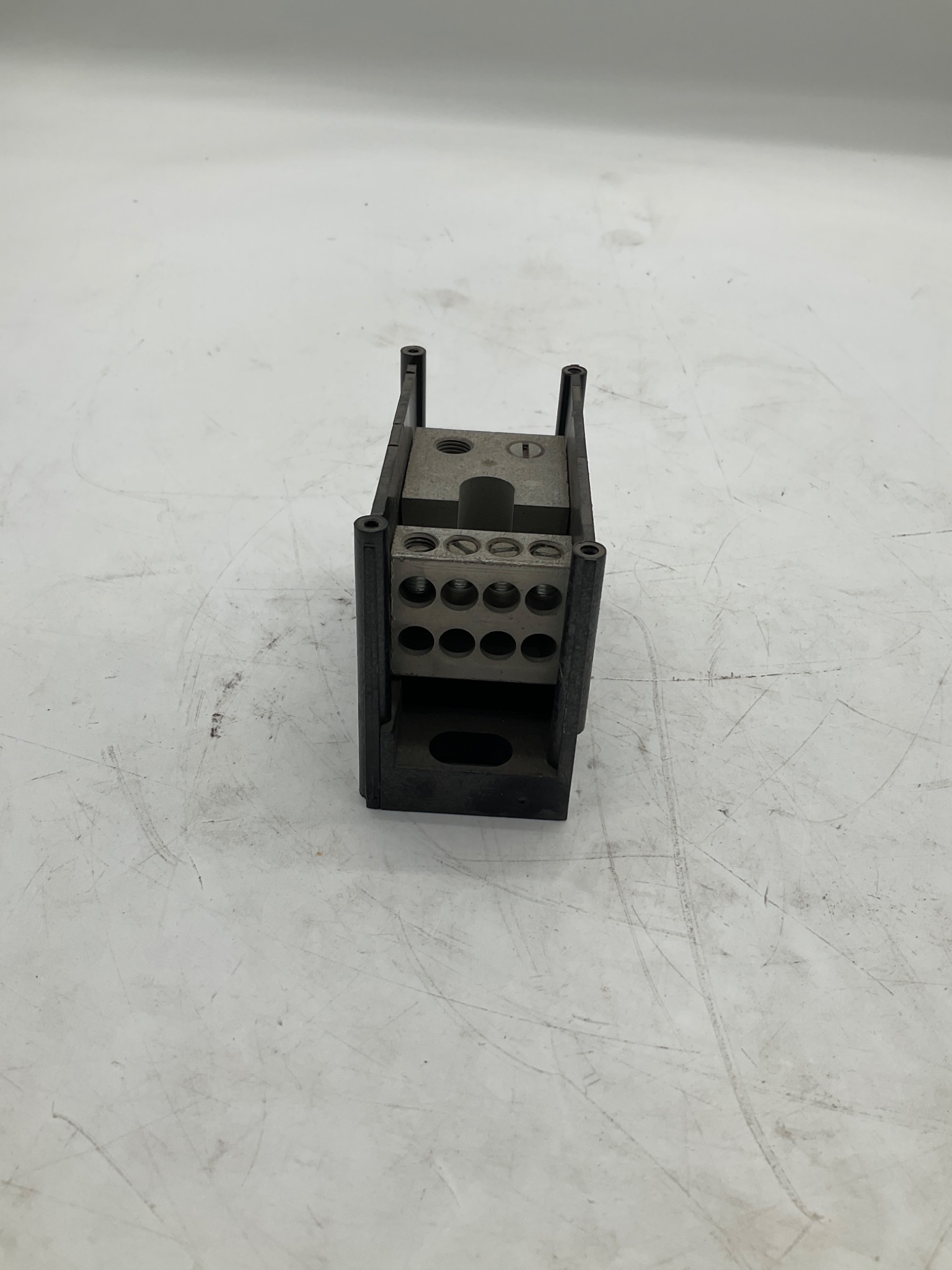

Ferraz Shawmut 66611 Power Distribution Block USED

Specification Table

IDENTIFICATION Manufacturer: Ferraz Shawmut Part Number: 66611 Product Type: Power Distribution Block (PDB) Configuration: Single Pole Condition: USED YOM: 2010   FUNCTION Primary Function: Power distribution and conductor termination Feed Configuration: 1 Primary Feed Branch Configuration: 8 Secondary Outputs Pole Count: 1   ELECTRICAL Voltage Rating: 600 VAC Conductor Material: Copper Only Short Circuit Current Rating: 100 kA RMS Symmetrical   CONDUCTOR CAPACITY - PRIMARY Quantity of Primary Conductors: 1 Primary Wire Range: 2/0 AWG to 14 AWG Copper   CONDUCTOR CAPACITY - SECONDARY Quantity of Secondary Conductors: 8 Secondary Wire Range: 2 AWG to 14 AWG Copper   TERMINAL TORQUE - PRIMARY 2/0 AWG to 3 AWG: 50 lb-in 4 AWG to 6 AWG: 45 lb-in 8 AWG: 40 lb-in 10 AWG to 14 AWG: 35 lb-in   TERMINAL TORQUE - SECONDARY 2 AWG to 3 AWG: 50 lb-in 4 AWG to 6 AWG: 35 lb-in 8 AWG: 20 lb-in 10 AWG to 14 AWG: 20 lb-in   PROTECTION COORDINATION Maximum Upstream Fuse Class J: 400 A Maximum Upstream Fuse Class T: 400 A Maximum Upstream Fuse Class RK1: 400 A Maximum Upstream Fuse Class RK5: 200 A Maximum Upstream Fuse Class G: 60 A Maximum Upstream Fuse Class CC: 30 A   CONSTRUCTION Housing Material: Insulated Molded Housing Terminal Material: Aluminum Alloy Block Termination Method: Set Screw Compression Mounting Style: Panel Mount   COMPLIANCE UL Recognized: Yes CSA Certified: Yes   ADDITIONAL INFORMATION Distribution Style: One Line Side to Multiple Load Side Co
