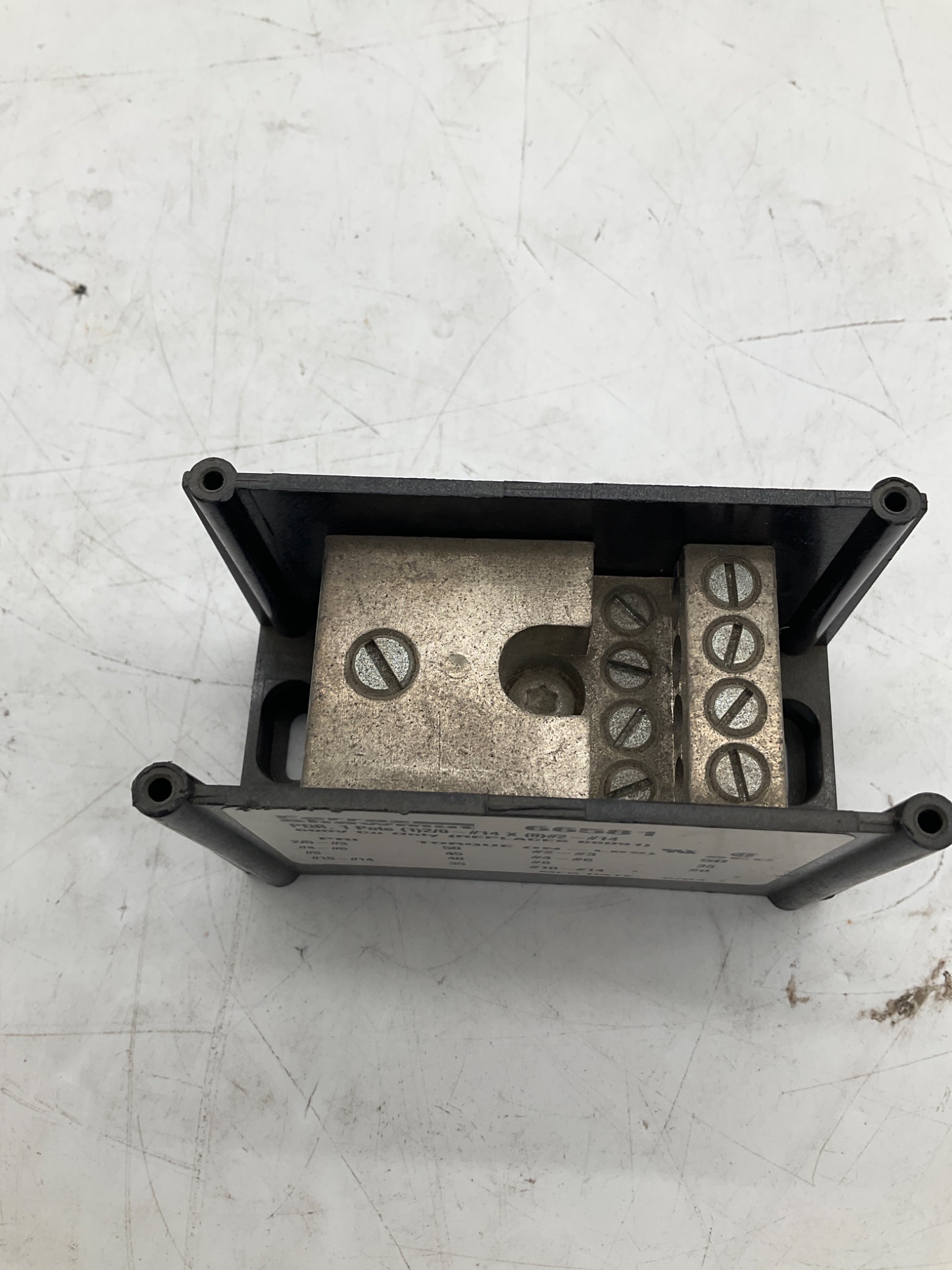

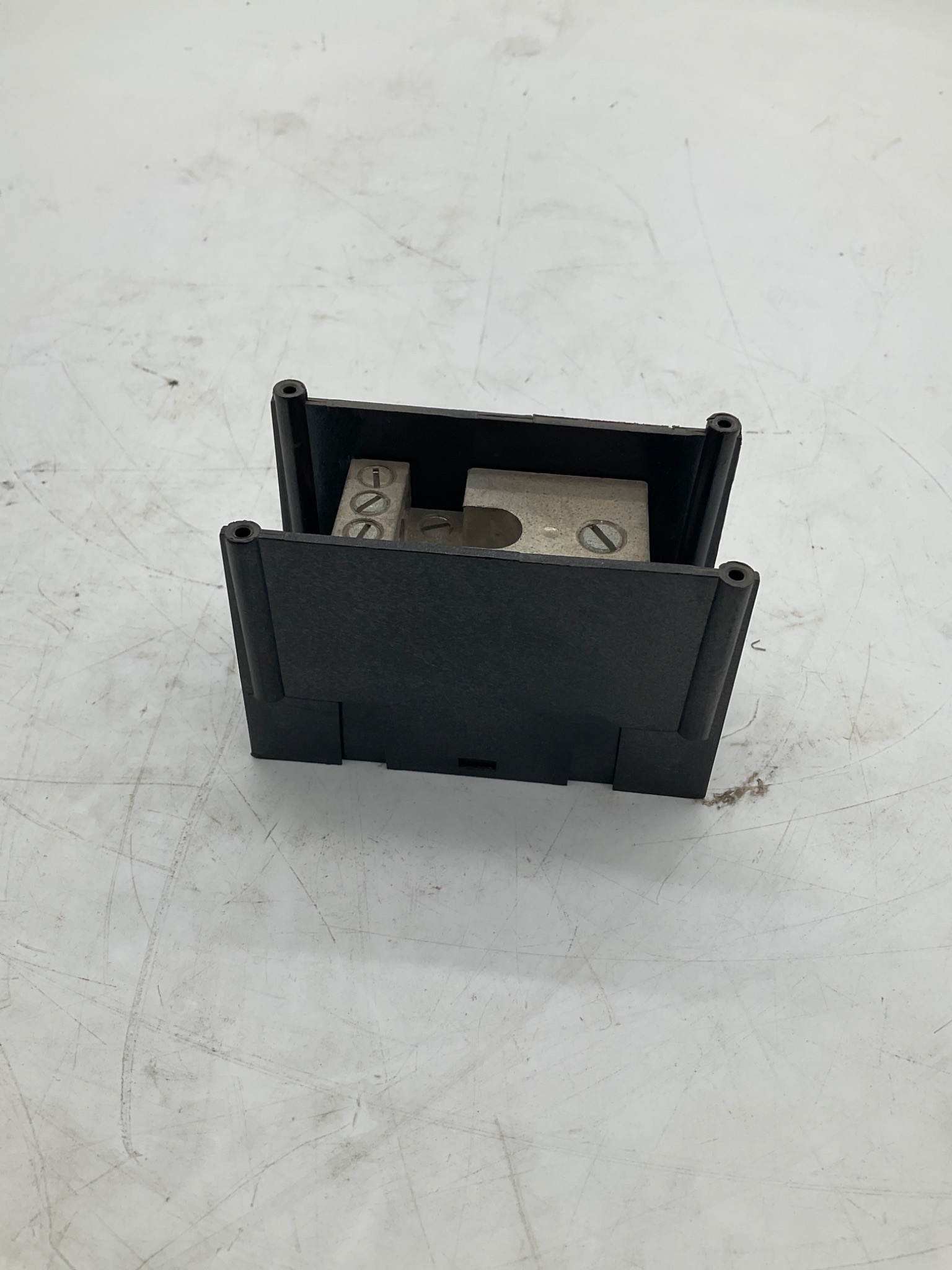

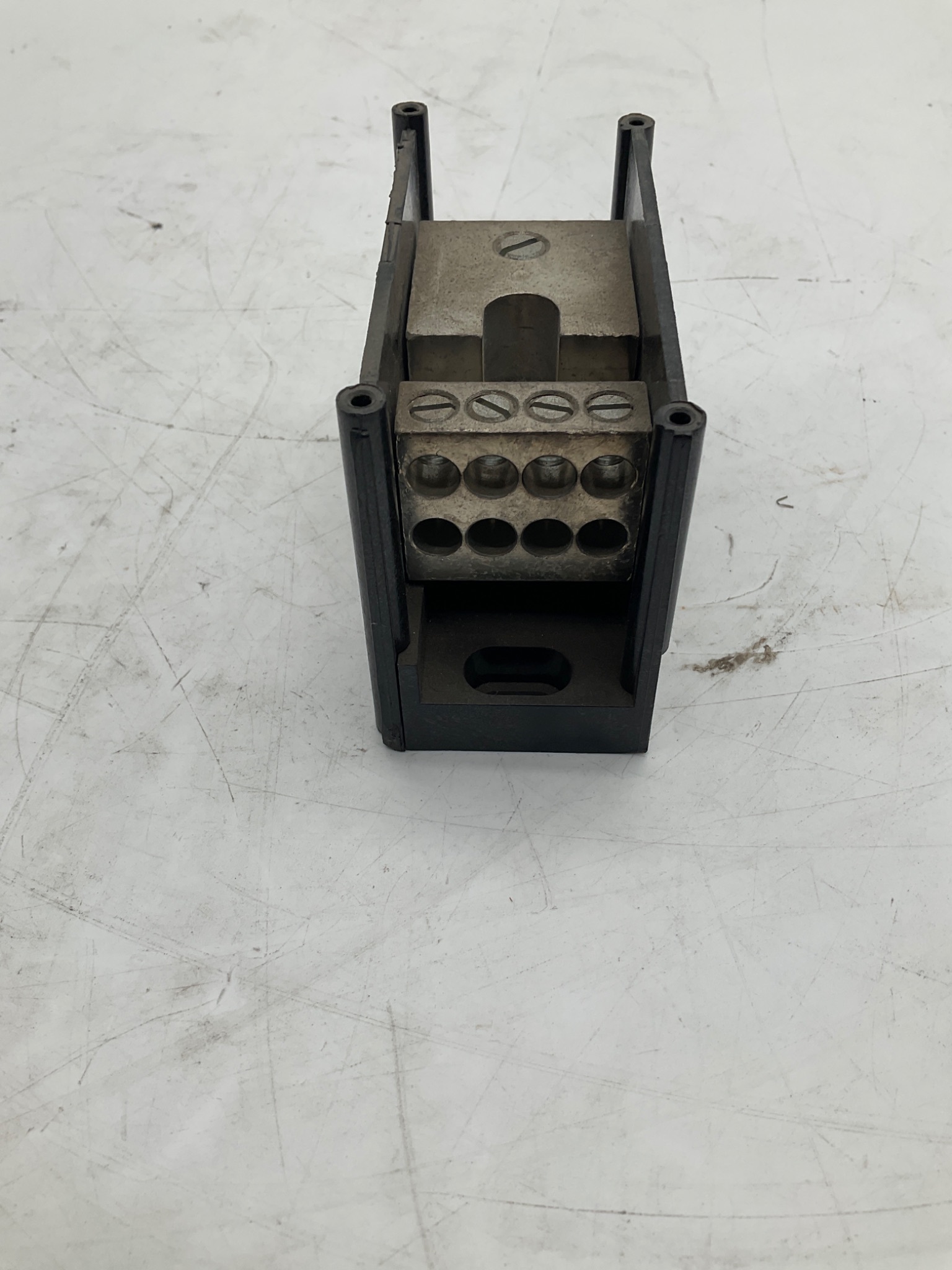

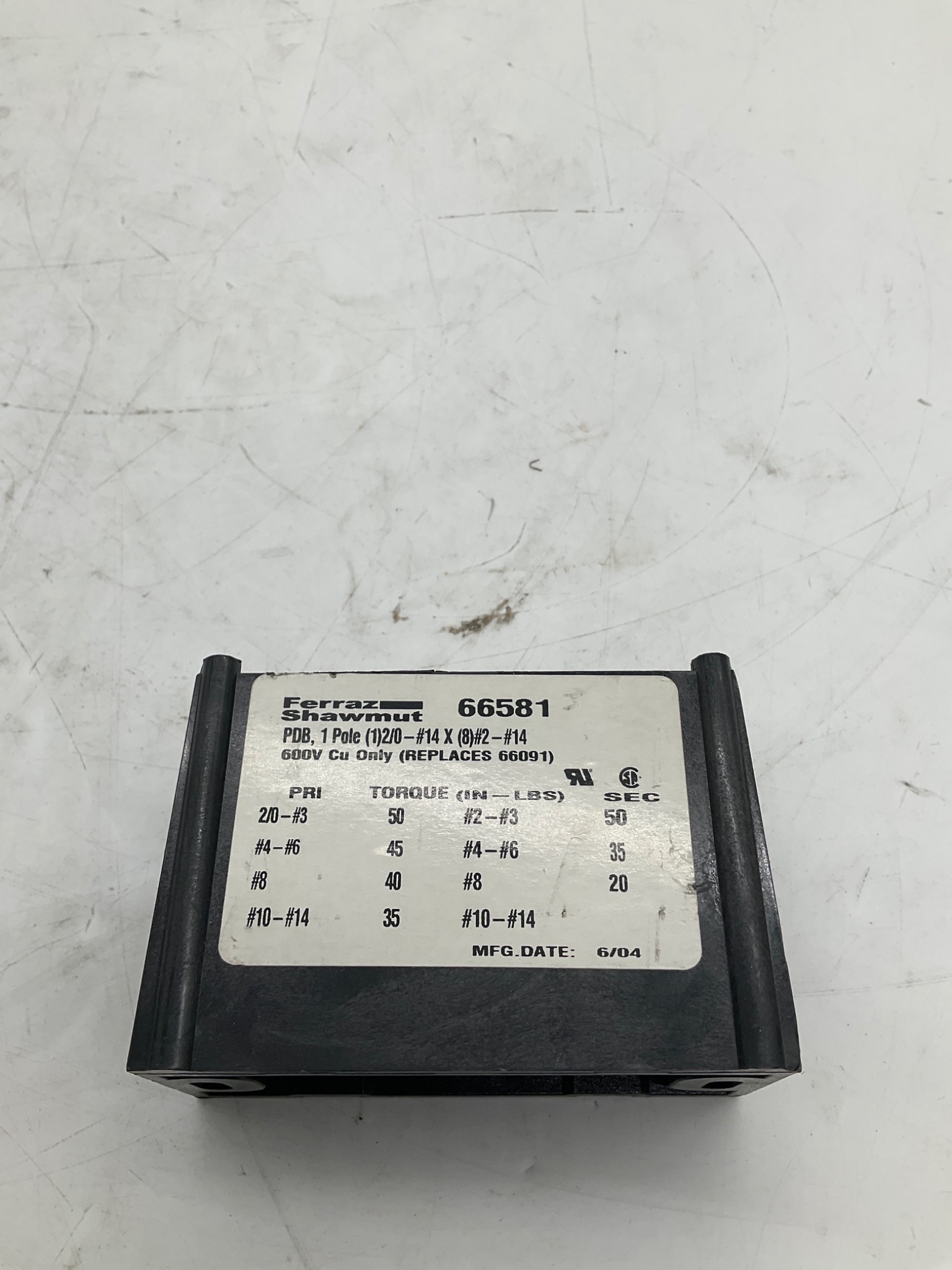

Ferraz Shawmut 66581 1-Pole 600V Power Distribution Block USED

Specification Table

IDENTIFICATION Manufacturer: Ferraz Shawmut Part Number: 66581 Product Type: Power Distribution Block Configuration: 1 Pole Condition: USED YOM: 2004   ELECTRICAL Voltage Rating: 600 V Conductor Material: Copper Only Pole Count: 1 Primary Connections: 1 Secondary Connections: 8   PRIMARY CONNECTION Primary Conductor Quantity: 1 Primary Conductor Range: 2/0 AWG to 14 AWG Termination Method: Mechanical Screw Clamp   SECONDARY CONNECTIONS Secondary Conductor Quantity: 8 Secondary Conductor Range: 2 AWG to 14 AWG Termination Method: Mechanical Screw Clamp   PRIMARY TERMINAL TORQUE 2/0 AWG to 3 AWG: 50 lb-in 4 AWG to 6 AWG: 45 lb-in 8 AWG: 40 lb-in 10 AWG to 14 AWG: 35 lb-in   SECONDARY TERMINAL TORQUE 2 AWG to 3 AWG: 50 lb-in 4 AWG to 6 AWG: 35 lb-in 8 AWG: 20 lb-in 10 AWG to 14 AWG: 20 lb-in   CONSTRUCTION Housing Type: Molded Insulating Base Terminal Configuration: One Primary to Eight Secondary Primary Terminal: Mechanical Secondary Terminals: Mechanical Cover: Not specified   INSTALLATION Mounting Style: Panel Mount Conductor Type: Copper Connection Arrangement: 1 Input / 8 Outputs   CERTIFICATIONS UL Recognition Mark: Present CSA Mark: Present
