Specification Table
| No. of Axis |
6 |
| Payload Capacity |
210 KG |
| Arm Reach |
2655 MM |
| Repeatability |
0.05 MM |
| Robot Mass |
1090 KG |
| Controller |
R-30IB PLUS |
| Mounting |
FLOOR |
| Teach Pendant Model |
NO |
IDENTIFICATION

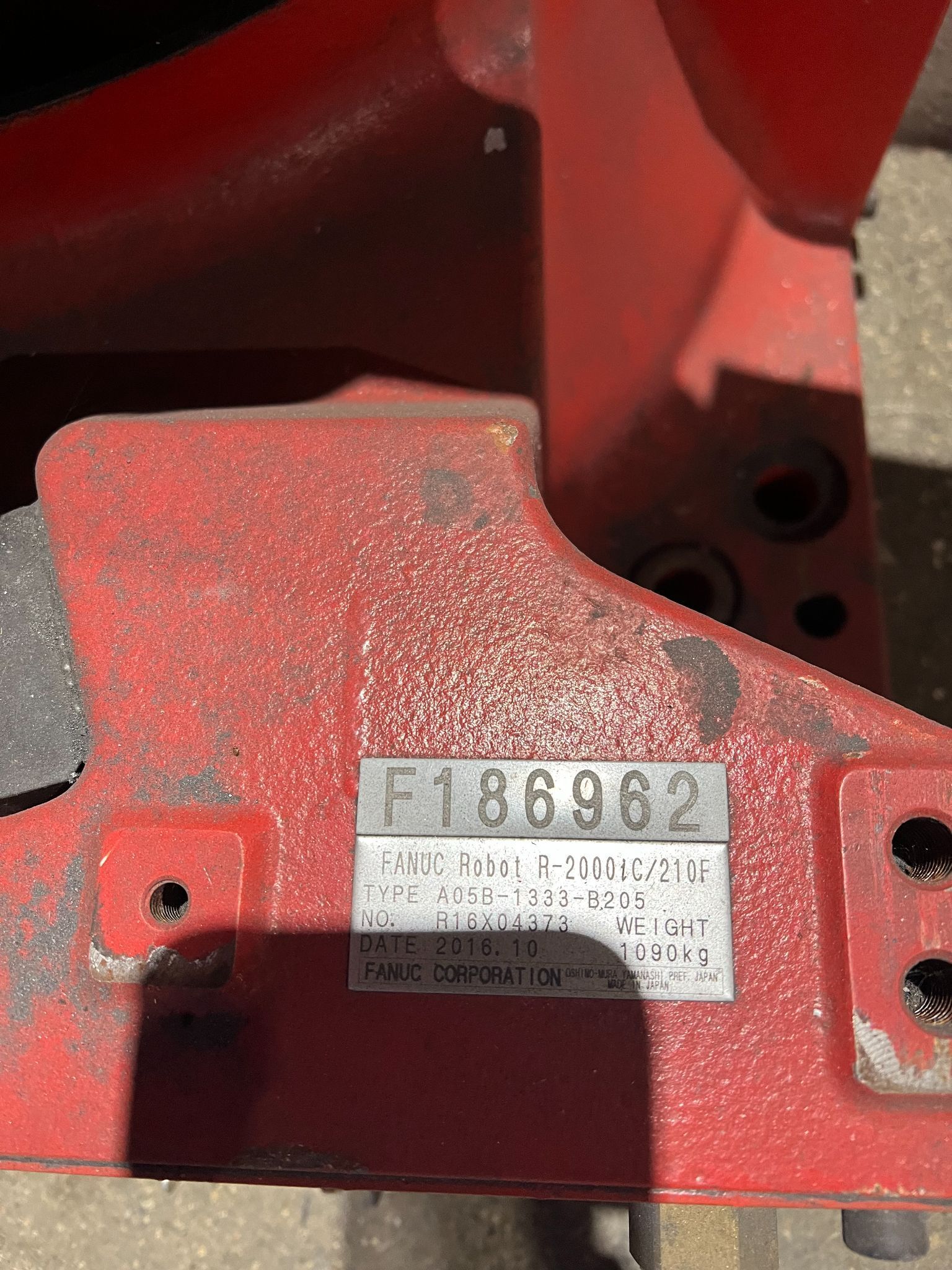

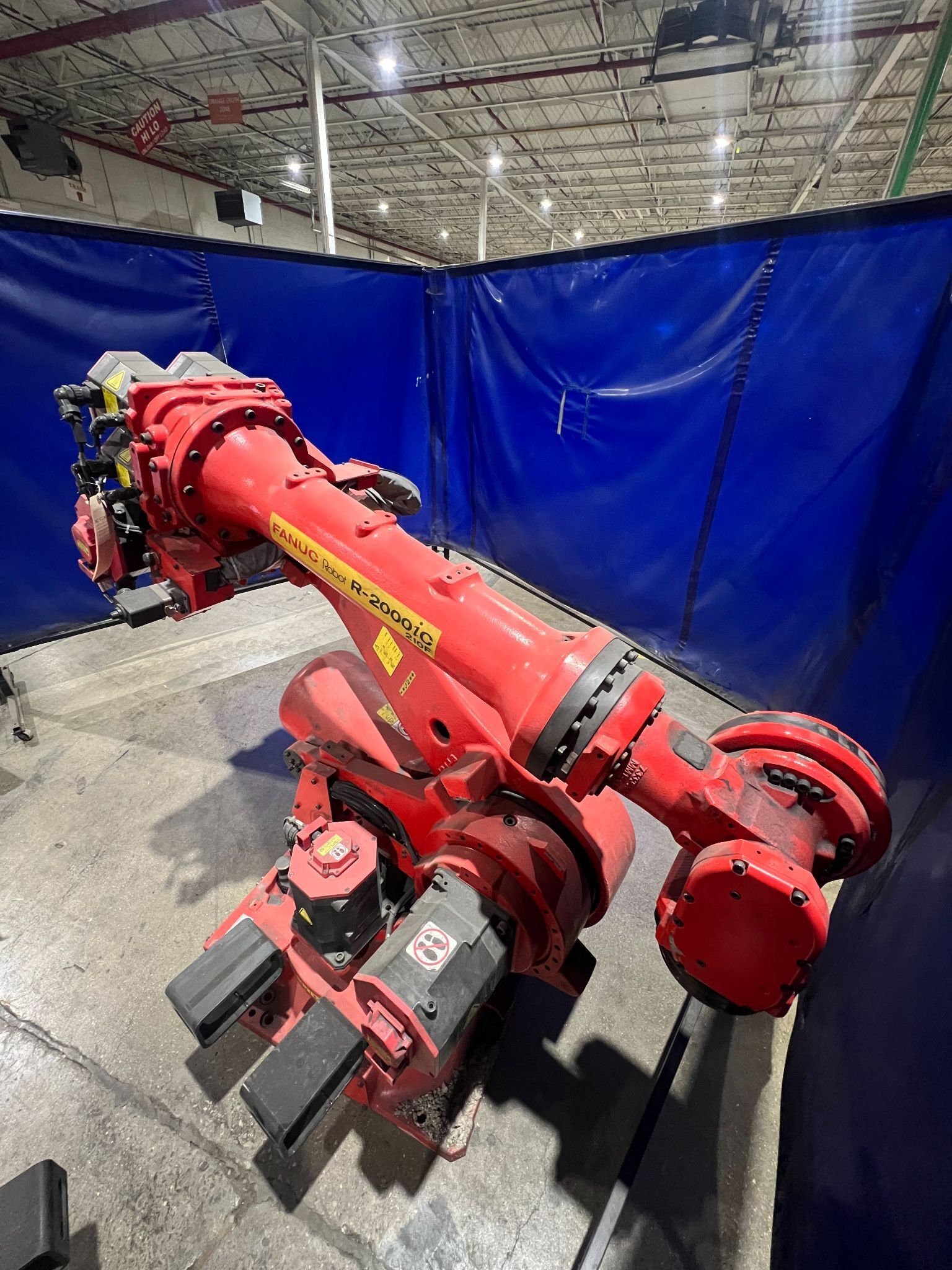

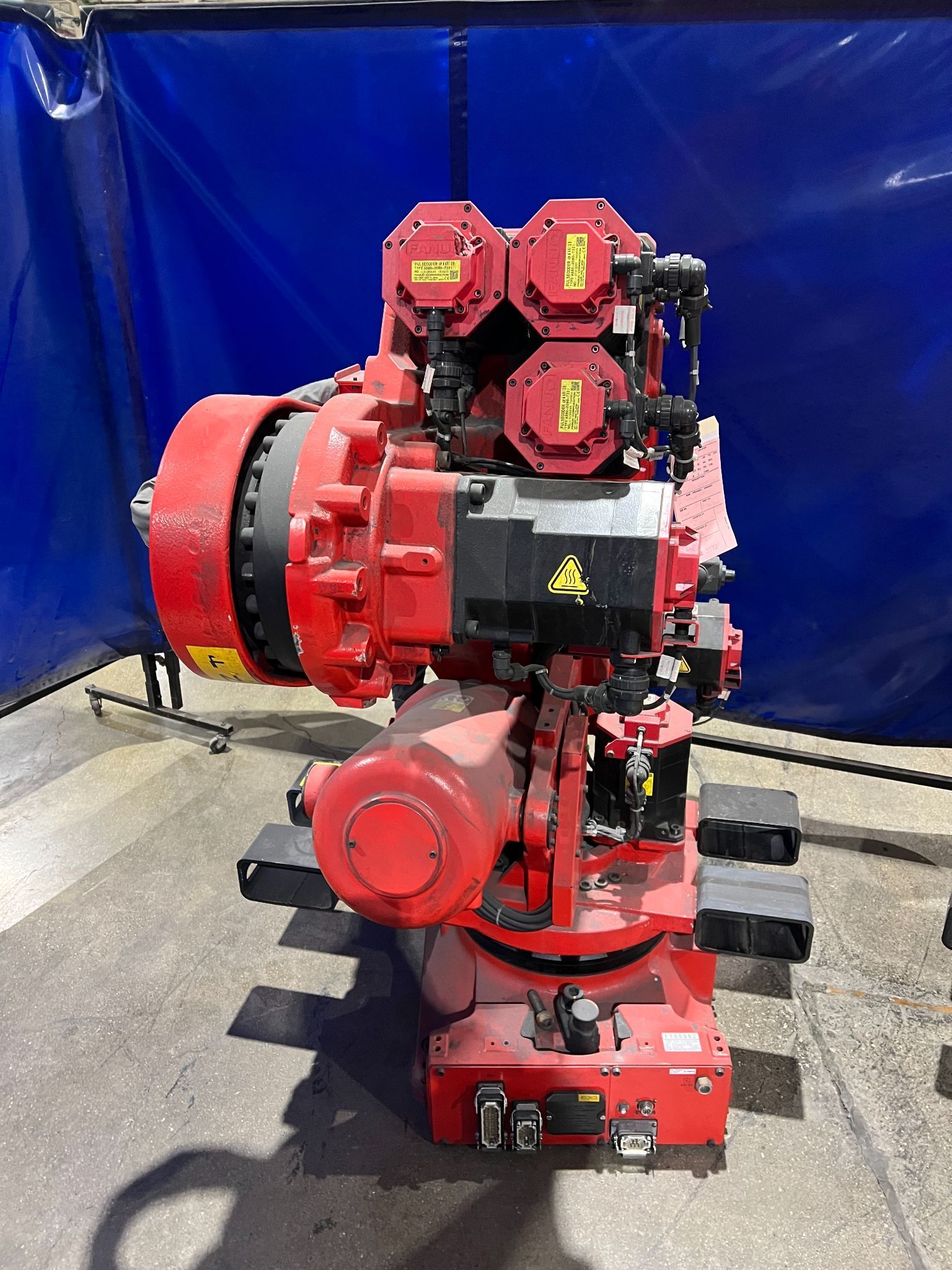

Manufacturer: FANUC
Robot Model: R-2000iC/210F
Robot Type Number: A05B-1338-B205
Robot Serial Number: R16X04373

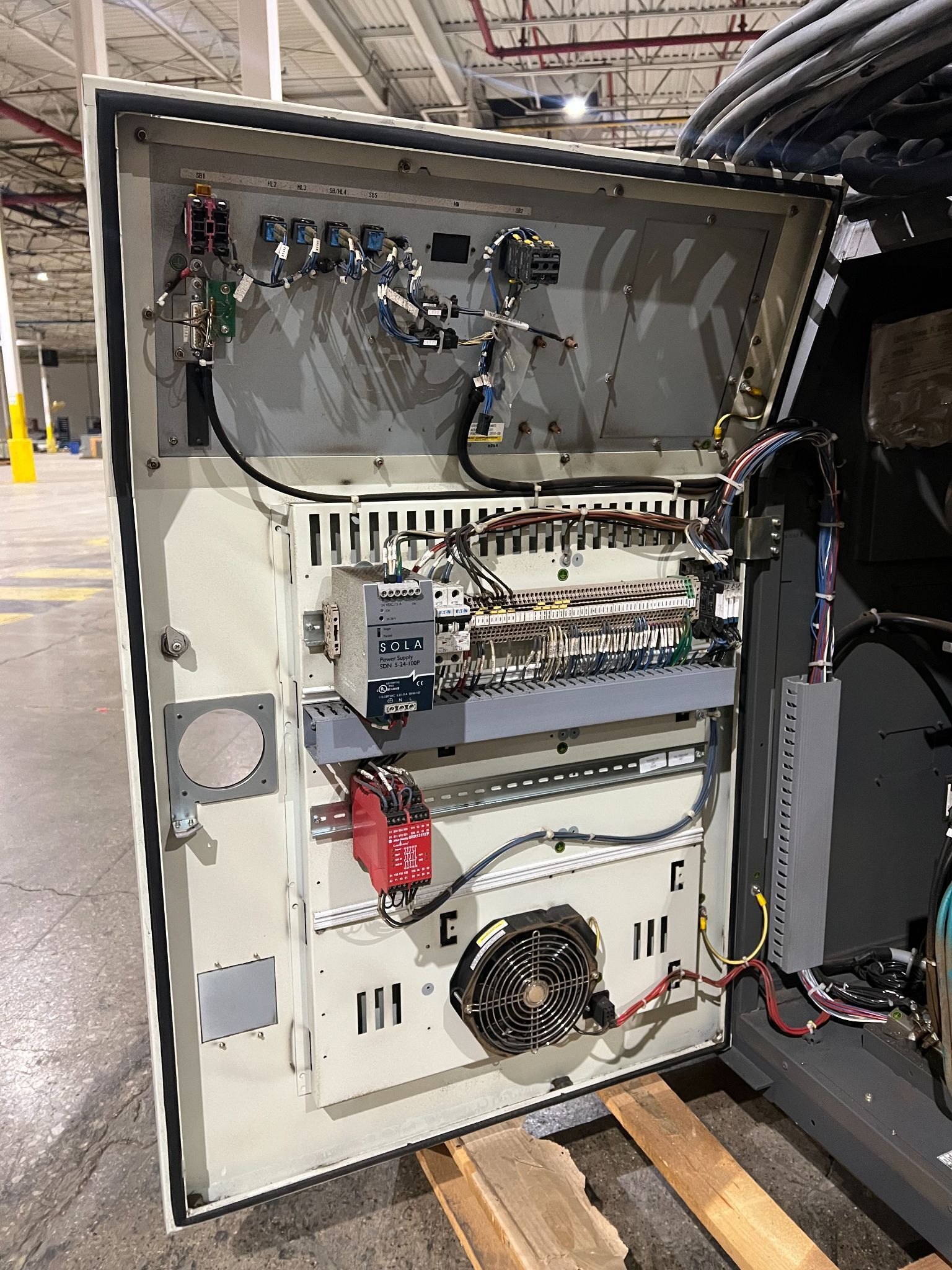

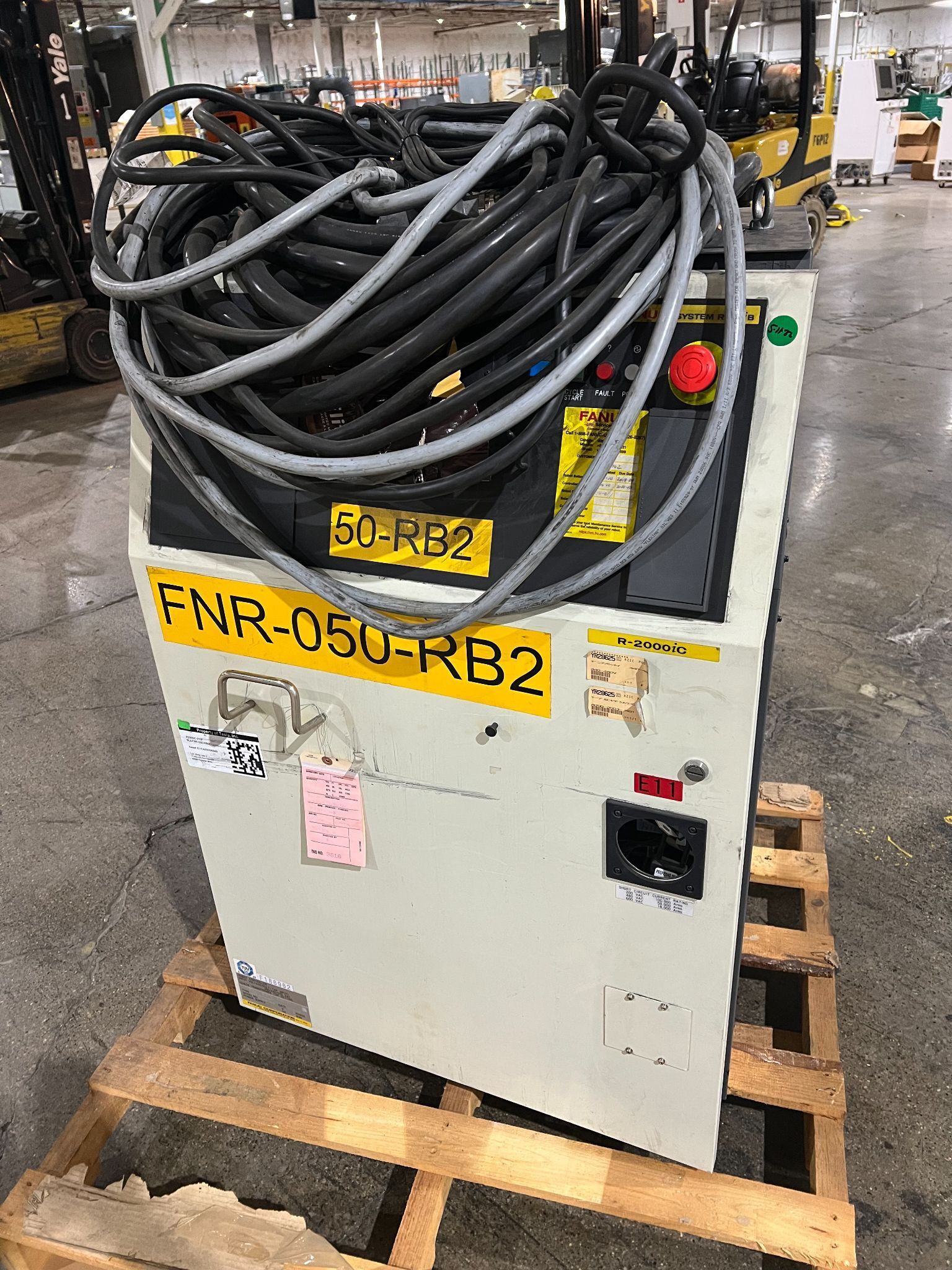

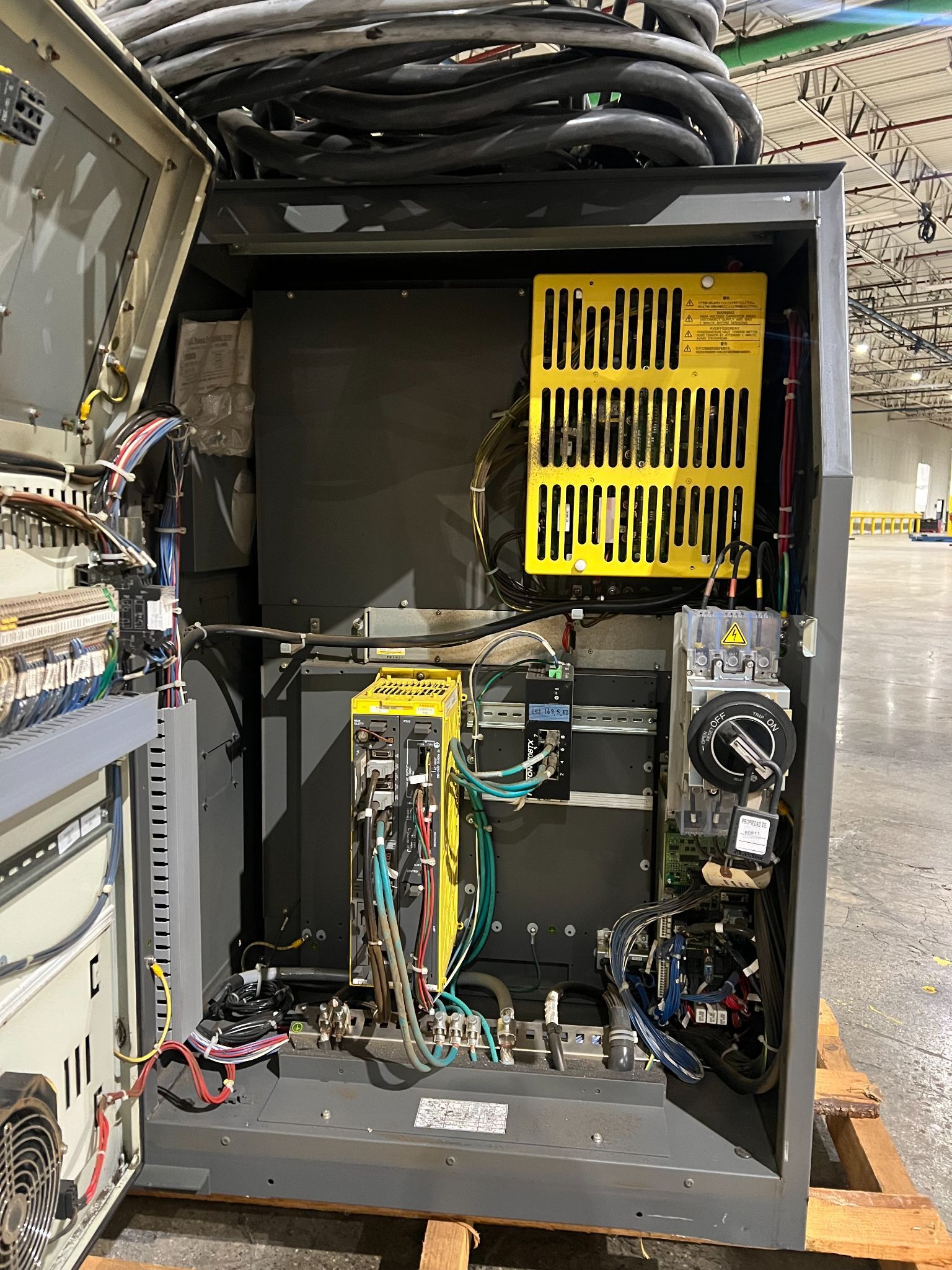

Controller Model: R-30iB Plus
Controller Type Number: A05B-2635-B022
Controller Serial Number: E22Y31133
Condition: USED
Hours: 48923
Robot Manufacture Date: 2016-10
Controller Manufacture Date: 2022-01
Country of Manufacture: Japan
SYSTEM COMPONENTS
Robot: Included
Controller: Included
Robot-to-Controller Cables: Included
Teach Pendant: Not Included
ROBOT DATA
Configuration: 6-Axis Articulated
Payload Capacity: 210 kg
Maximum Reach: 2655 mm
Repeatability: ±0.05 mm
Robot Weight: 1090 kg
Mounting Configuration: Floor Mount
WORK ENVELOPE
Robot Family: R-2000iC
Robot Variant: 210F
Controlled Motion: Multi-Axis Articulated Motion
Application Class: Heavy Payload
MOTION DATA
J1 Motion Range: ±185°
J2 Motion Range: +75° / -60°
J3 Motion Range: +230° / -132°
J4 Motion Range: ±360°
J5 Motion Range: ±125°
J6 Motion Range: ±360°
CONTROLLER DATA
Controller Family: R-30iB Plus
Controller Architecture: Open Air Cabinet

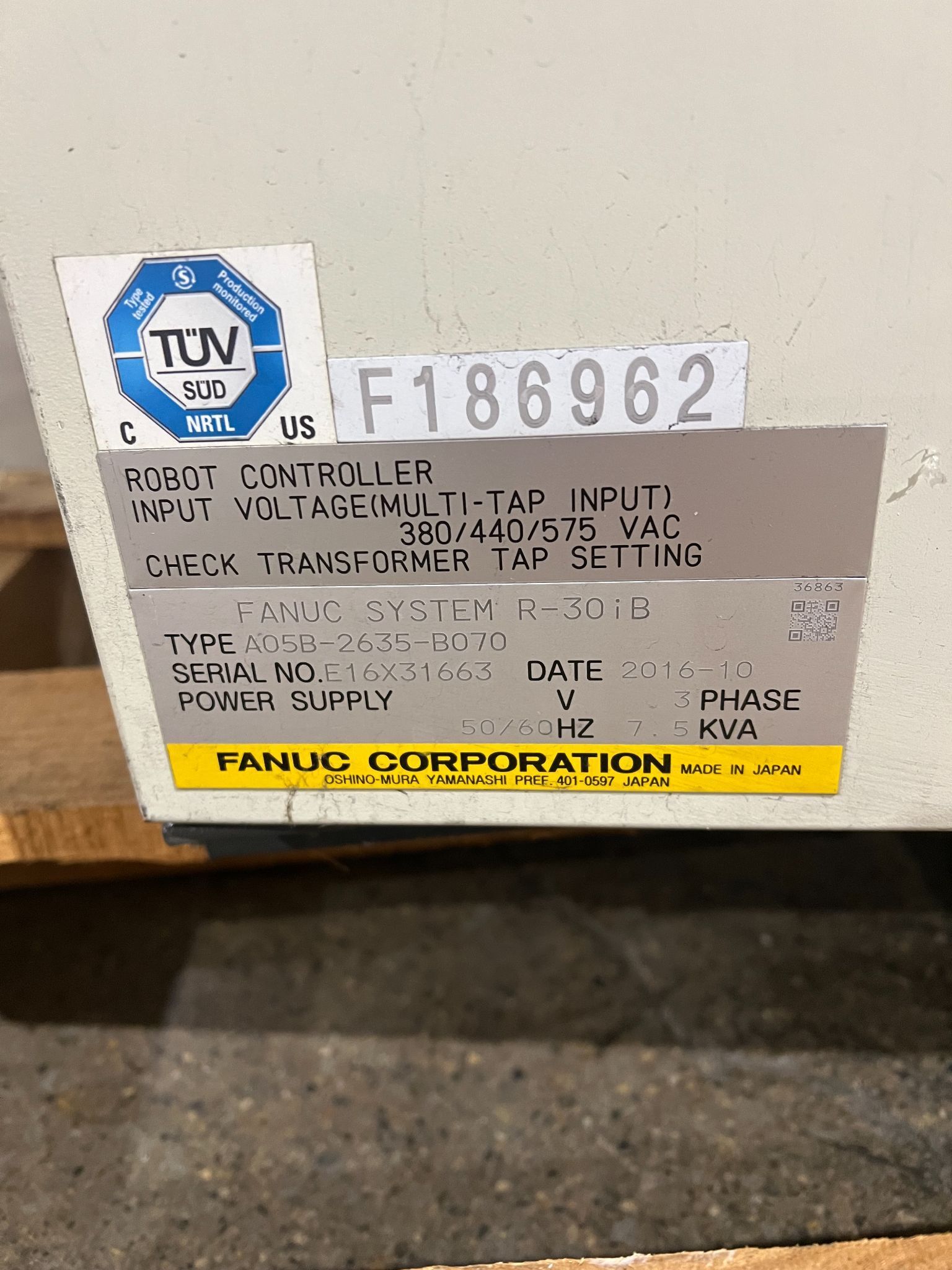

Input Voltage: 380 / 440 / 575 VAC
Input Phase: 3 Phase
Frequency: 50 / 60 Hz
Power Requirement: 7.5 kVA
COMMUNICATION & I/O
Integrated Signals on Upper Arm: 8 Inputs / 8 Outputs
Integrated Air Supply: 2 Circuits
PROTECTION
Body Protection Rating: IP54 / IP56
Wrist Protection Rating: IP67
J3 Arm Protection Rating: IP67
ENVIRONMENTAL
Ambient Operating Temperature: 0°C to 45°C
Acoustic Noise Level: 70.5 dB
APPLICATION DATA
Material Handling: Yes
Machine Tending: Yes
Spot Welding: Yes
Press Tending: Yes
Palletizing: Yes
Depalletizing: Yes
Part Transfer: Yes
General Automation: Yes
Product Specifications:
- Robot Model: FANUC R-2000iC/210F
- Controller: FANUC R-30iB
- Axes: 6-axis articulated arm
- Payload Capacity: 210 kg
- Maximum Reach: 2,655 mm
- Repeatability: ±0.05 mm
- Mounting Type: Floor-mounted
- Condition: Used
- Pendant: Not included
Key Features:
- High Payload Capability: Handles large, heavy components with ease
- Extended Reach: Designed for wide work envelopes and deep-cell access
- Durable Construction: Built for continuous operation in industrial environments
- R-30iB Control Performance: Supports advanced motion, network integration, and energy savings
- Slim-Arm Design: Reduces interference in multi-robot and tight-space applications
Applications:
- Automotive Spot Welding: Ideal for large body components and multi-robot stations
- Material Handling: Moves heavy parts between machines, lines, or stations
- Palletizing & Bulk Stacking: Automates high-volume, heavy-load pallet operations
- Press Tending: Loads and unloads large dies or workpieces from forming equipment
- Heavy Industrial Assembly: Used in production of machinery, vehicles, and structural components
