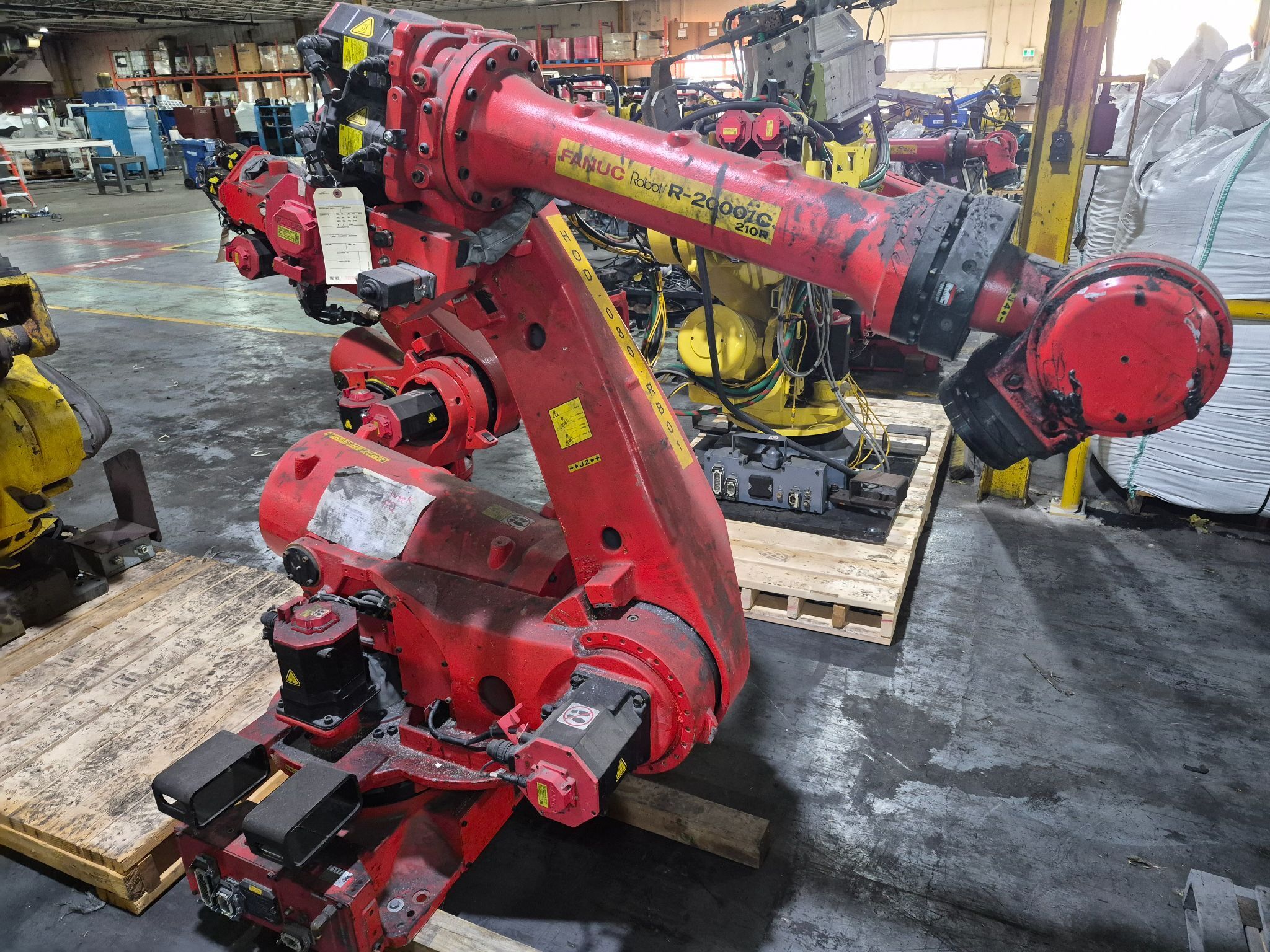

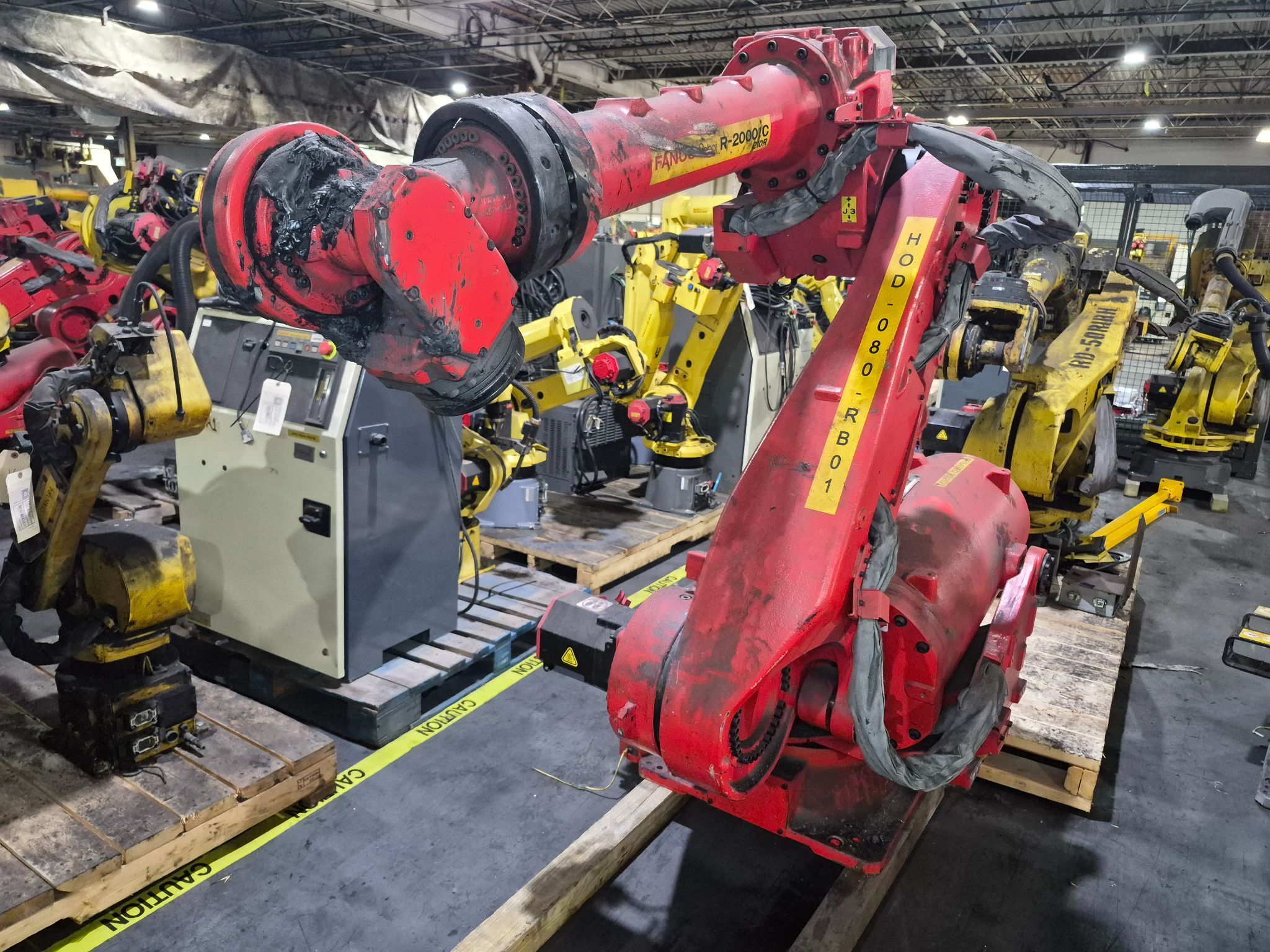

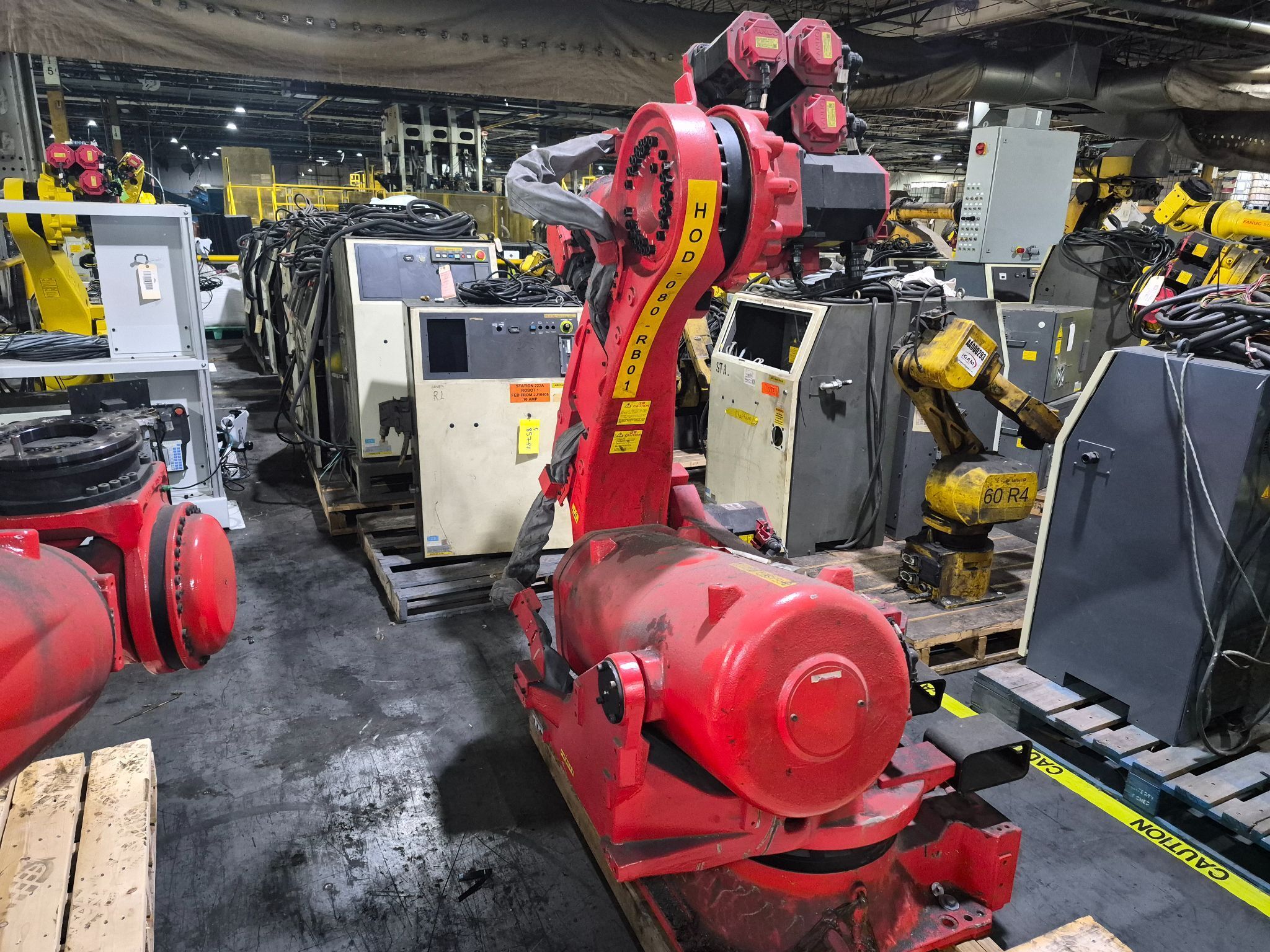

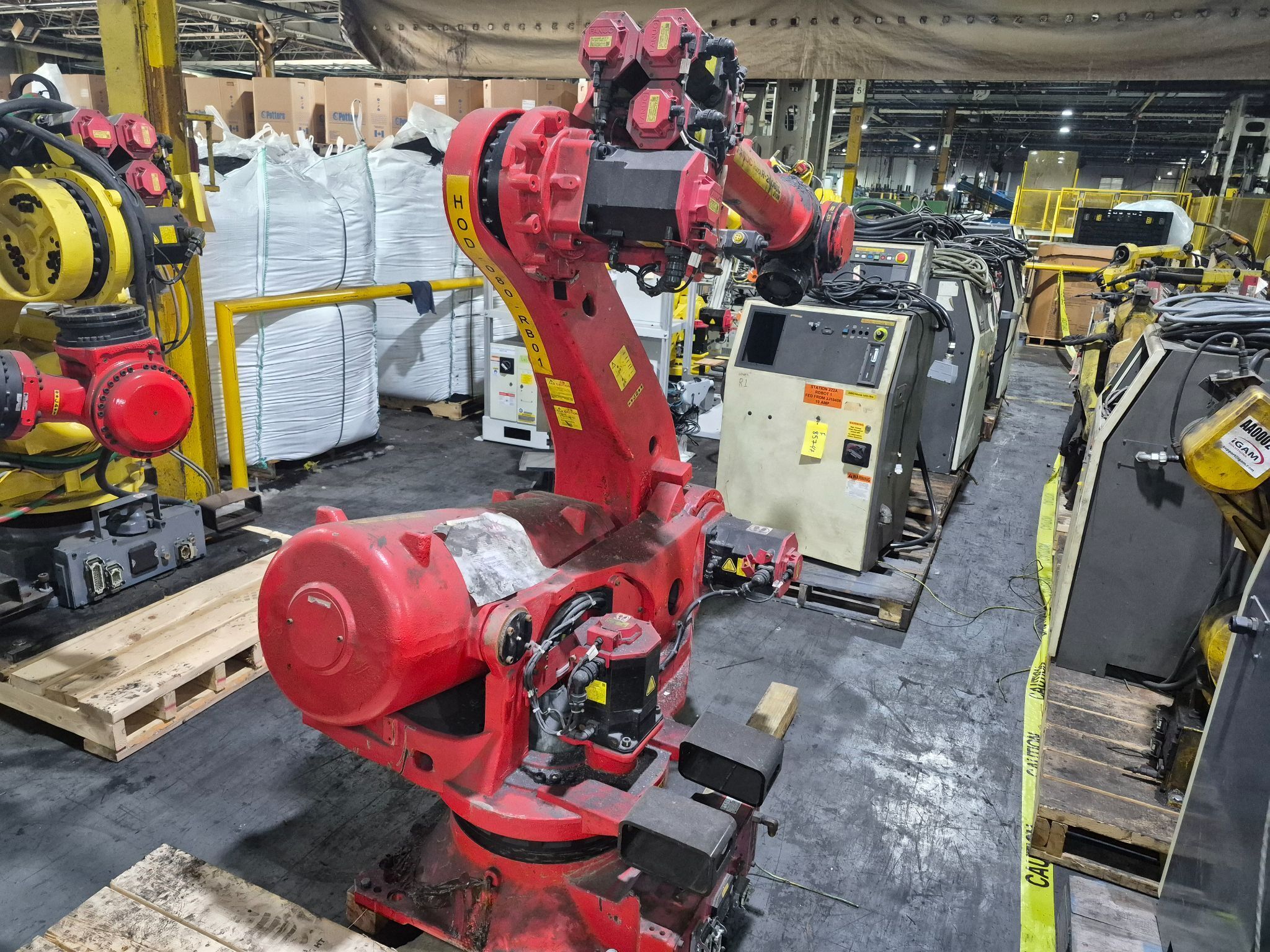

FANUC R-2000iC/210R Robot with R-30iB Controller USED

Specification Table

No. of Axis	6
Payload Capacity	210 KG
Arm Reach	3095 MM
Repeatability	0.05 MM
Robot Mass	1370 KG
Controller	R-30IB
Mounting	FLOOR/RACK
Teach Pendant Model	NO PENDANT

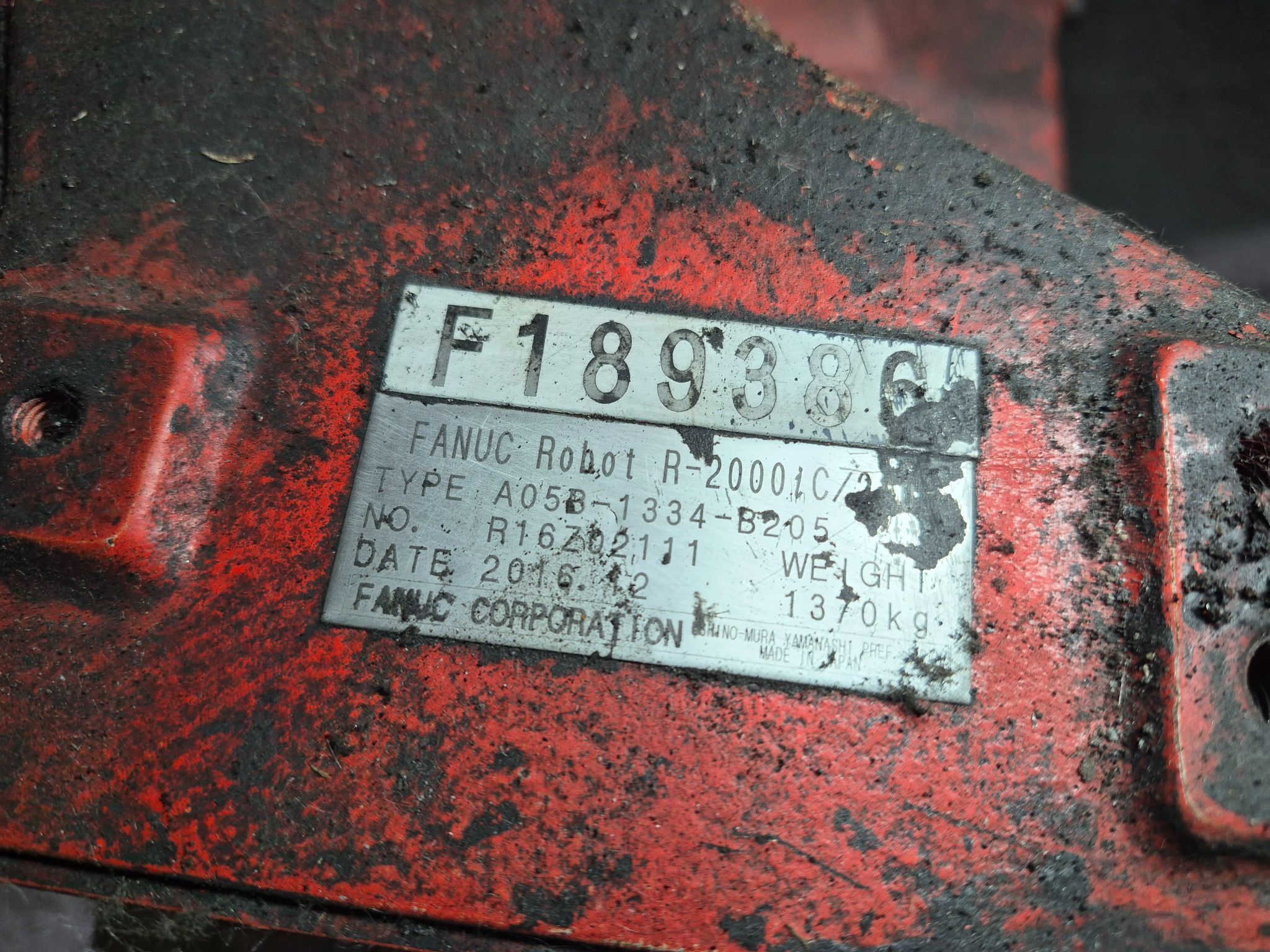

IDENTIFICATION Manufacturer: FANUC Robot Model: R-2000iC/210R Robot Type: A05B-1334-B205 Controller Model: R-30iB Controller Type: A05B-2610-B270 Condition: USED Robot Serial Number: R16702111 Controller Serial Number: E17232938 Robot Manufacturing Date: 2016-12 Controller Manufacturing Date: 2017-02 Country of Manufacture: Japan   SYSTEM COMPONENTS Robot: Included Controller: Included Robot-to-Controller Cables: Included Teach Pendant: Not Included   ROBOT DATA Robot Configuration: 6-Axis Articulated Robot Robot Variant: Extended-Reach Payload Capacity: 210 kg Maximum Reach: 3095 mm Controlled Axes: 6 Repeatability: ±0.05 mm Mechanical Weight: 1370 kg Robot Footprint: 771 x 610 mm   MOUNTING CONFIGURATION Primary Mounting Style: Rack Mount Floor Mount Capability: Yes Angle Mount Capability: Yes Upside-Down Mount Capability: Yes   MOTION DATA J1 Motion Range: ±185° J2 Motion Range: Not Specified J3 Motion Range: Not Specified J4 Motion Range: Not Specified J5 Motion Range: Not Specified J6 Motion Range: Not Specified   CONTROLLER DATA Controller Platform: FANUC R-30iB Input Power: Three Phase Input Voltage: 380 / 440 / 575 VAC Input Frequency: 50 / 60 Hz Power Requirement: 7.5 kVA   CONSTRUCTION Robot Structure: Heavy-Duty Industrial Construction Controller Style: Free-Standing Cabinet Body Protection Rating: IP54 / IP56 Wrist & J3 Arm Protection Rating: IP67   ELECTRICAL CONNECTIONS Integrated Signals on Upper Arm: 8 Inputs / 8 Outputs Integrated Air Supply: 2 Circuits   PERFORMANCE DATA Maximum Payload at Wrist: 210 kg Average Power Consumption: 2.5 kW Acoustic Noise Level: 70.5 dB   ENVIRONMENTAL Ambient Operating Temperature: 0°C to 45°C   APPLICATION DATA Material Handling: Yes Machine Tending: Yes Press Tending: Yes Spot Welding: Yes Palletizing: Yes Depalletizing: Yes Part Transfer: Yes General Automation: Yes
