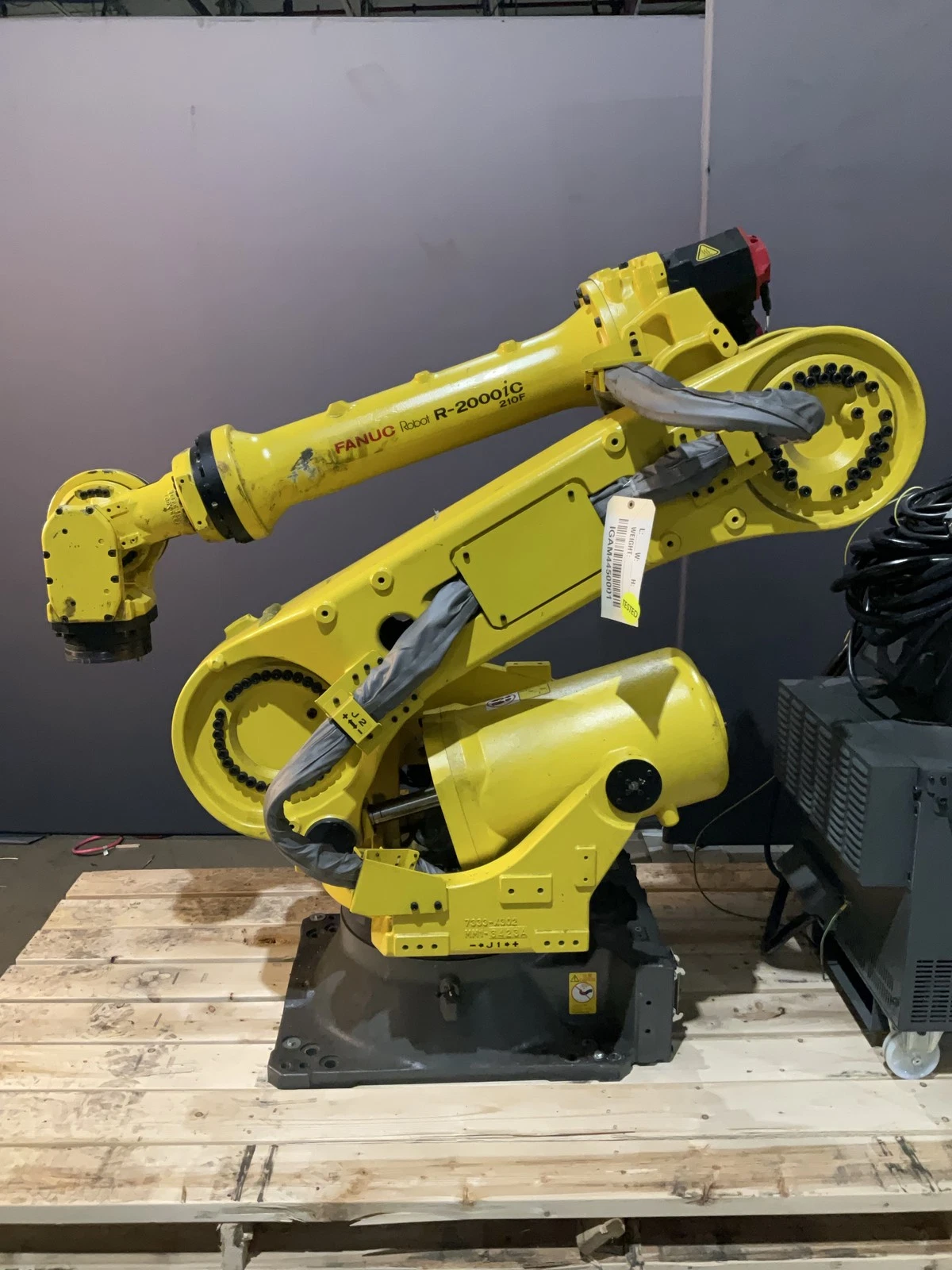

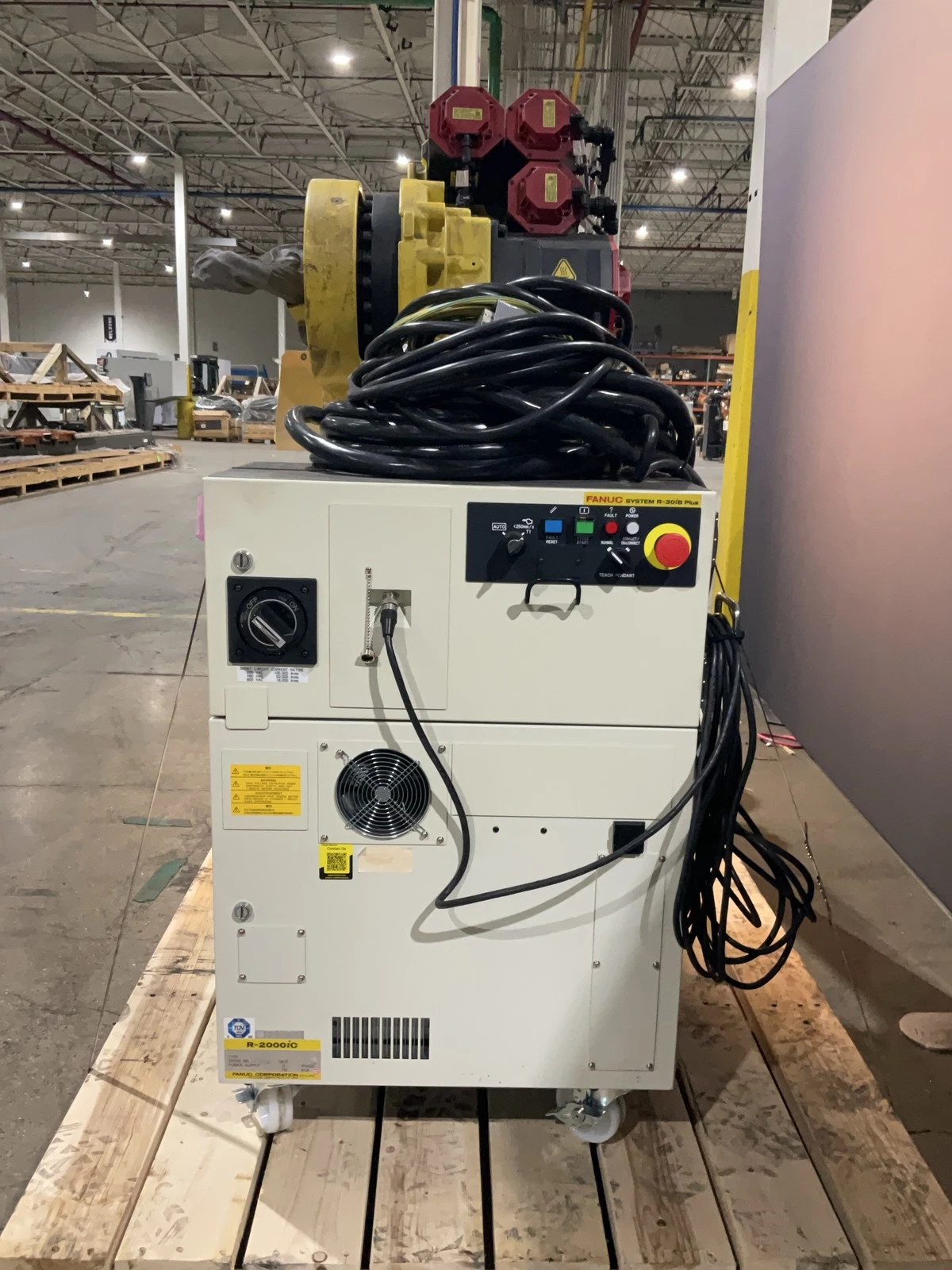

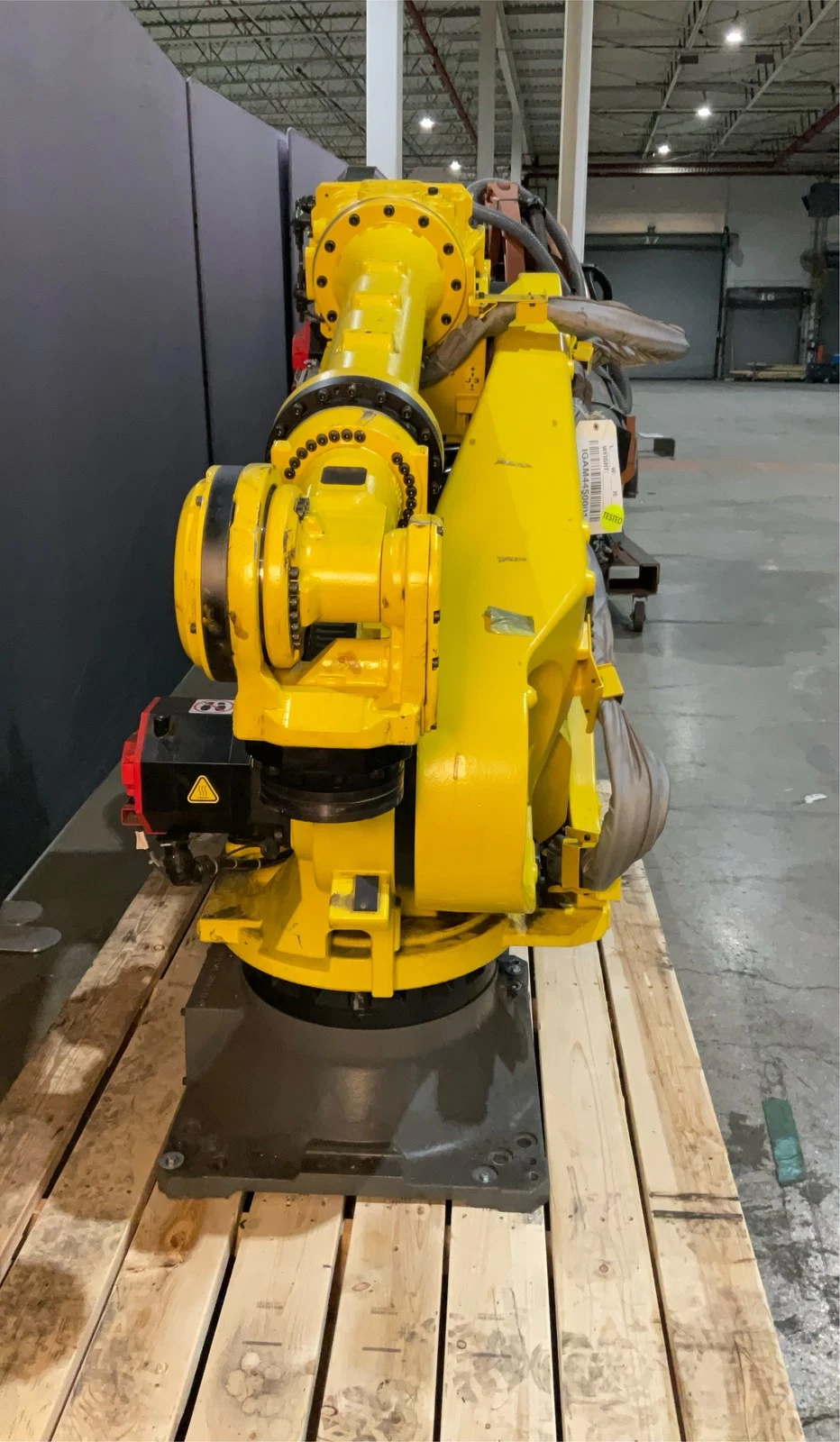

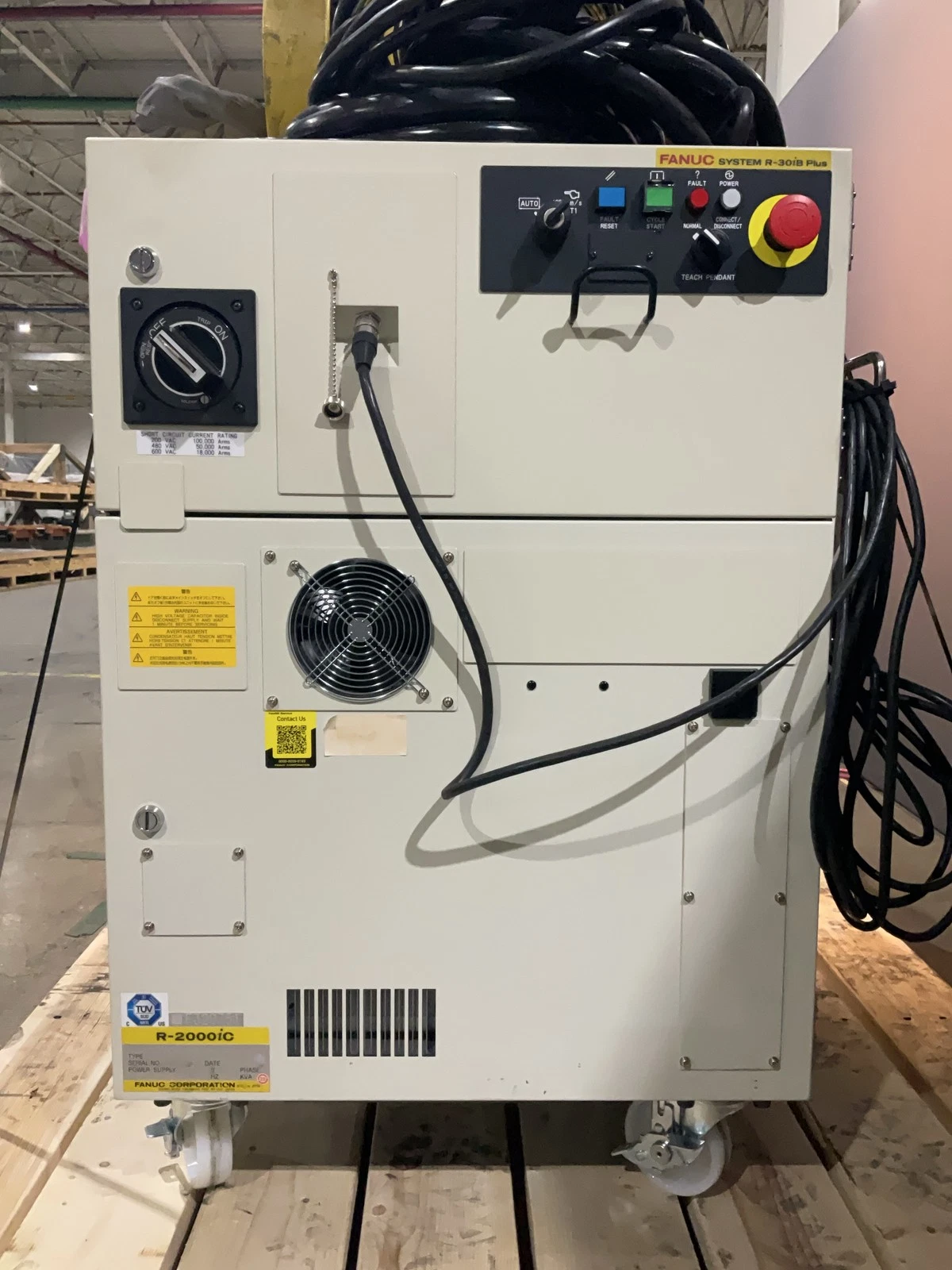

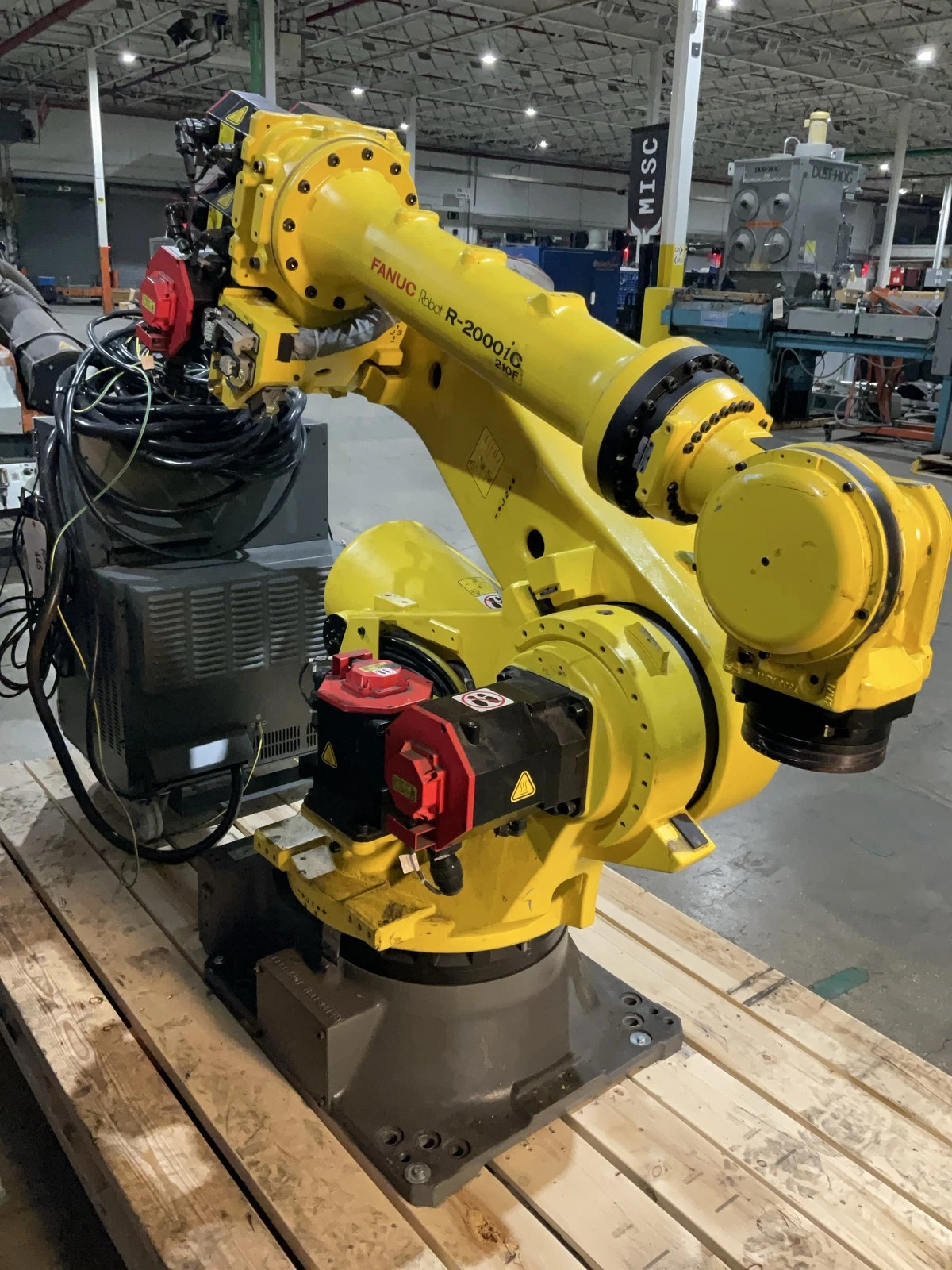

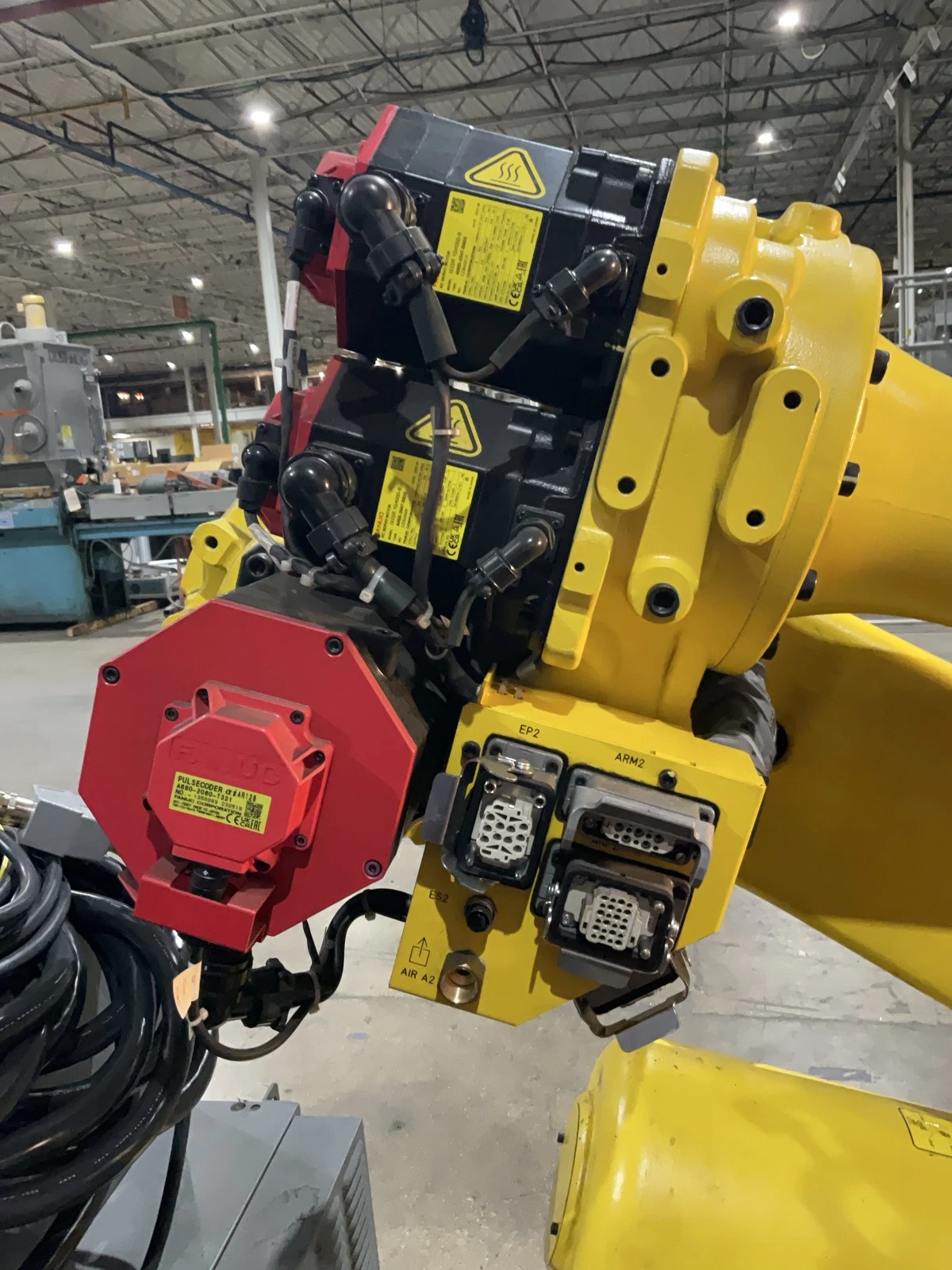

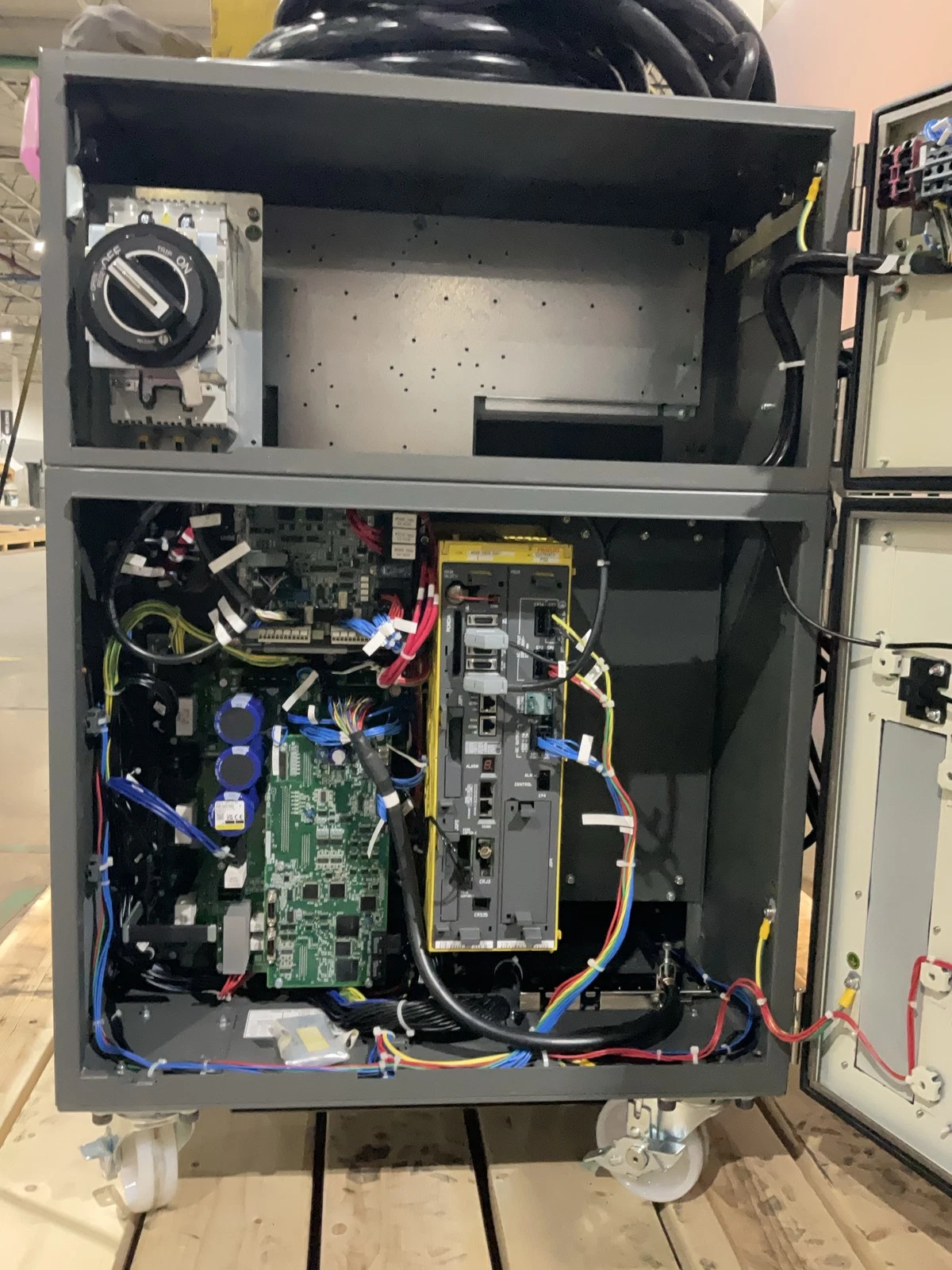

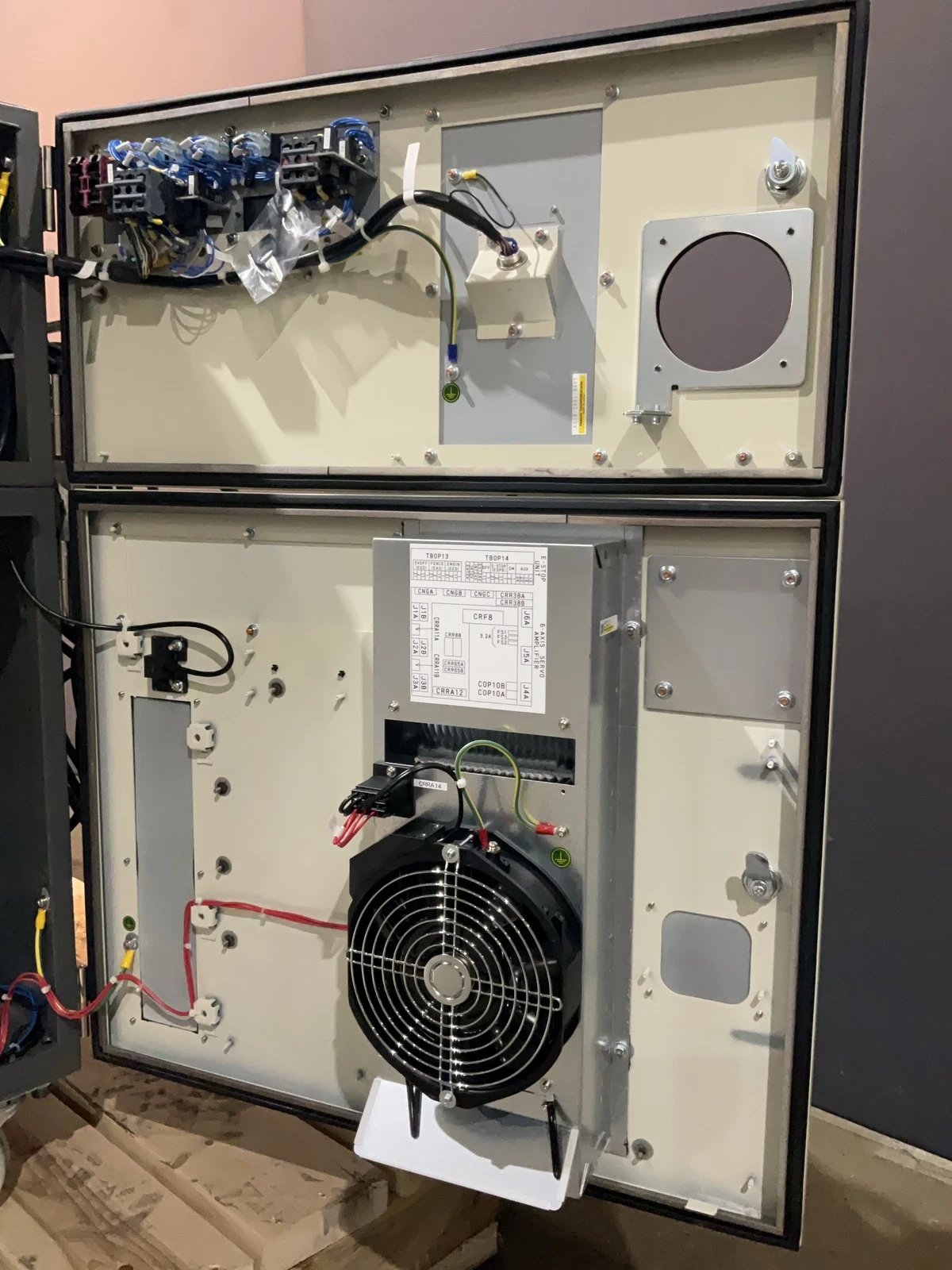

FANUC R-2000iC/210F With R-30iB Plus Controller USED

Specification Table

No. of Axis	6
Payload Capacity	210 KG
Arm Reach	2655 MM
Repeatability	0.05 MM
Controller	R-30IB PLUS
Mounting	FLOOR
Teach Pendant Model	NO PENDANT

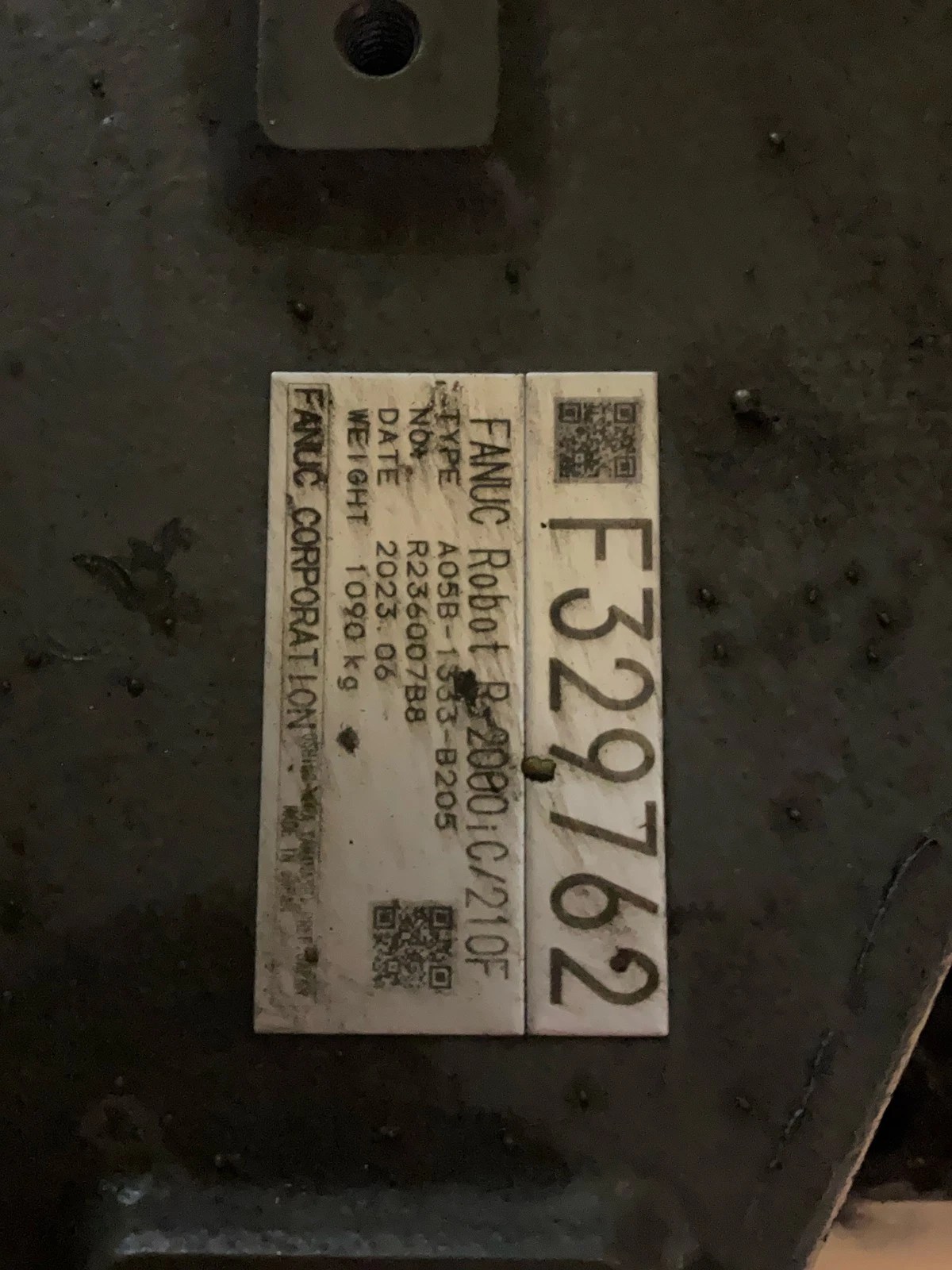

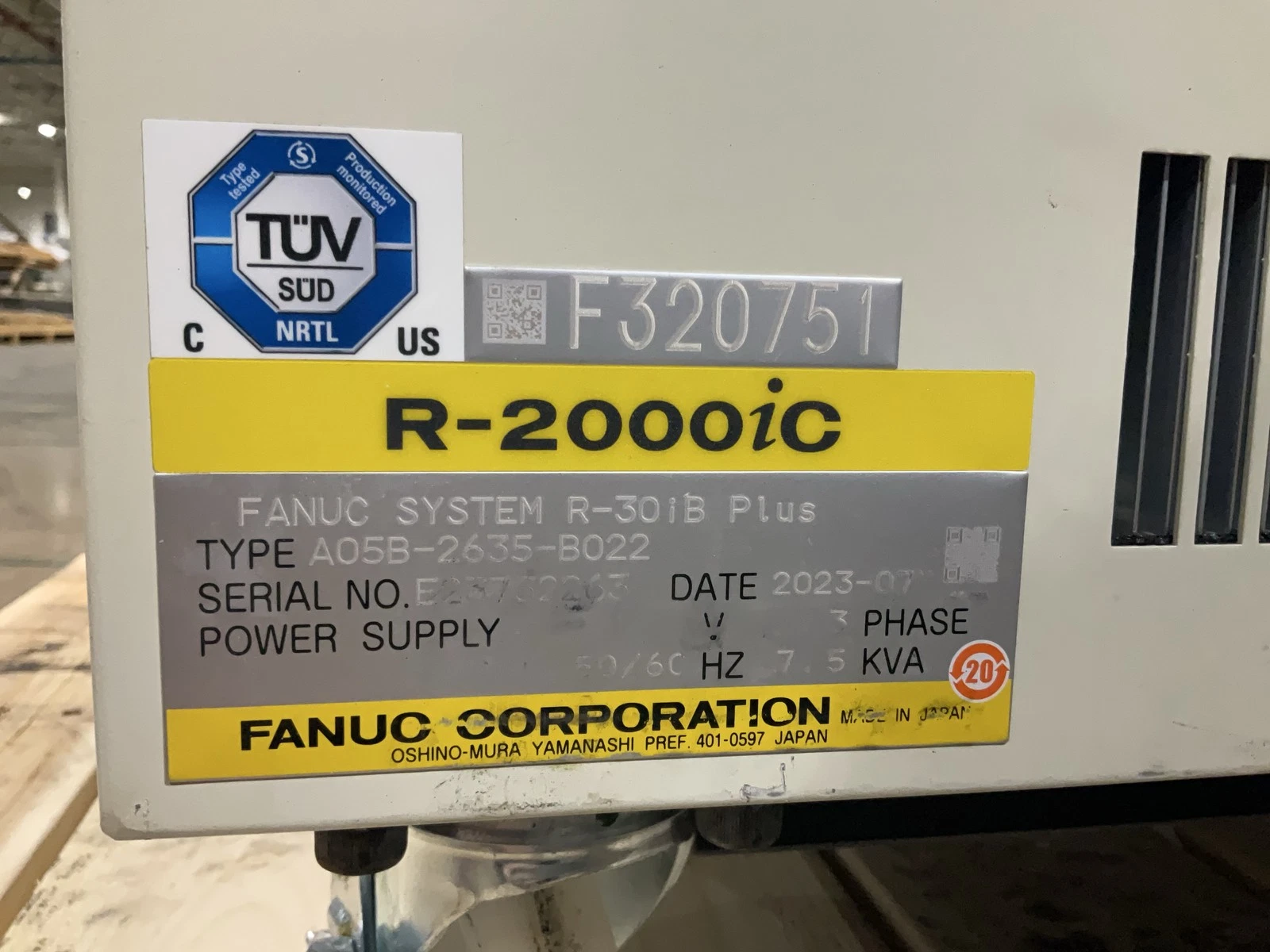

IDENTIFICATION Manufacturer: FANUC Robot Model: R-2000iC/210F Robot Type Number: A05B-1333-B205 Robot Serial Number: F329762 Controller Model: R-30iB Plus Controller Type Number: A05B-2635-B022 Condition: USED Robot YOM: 2023 Controller YOM: 2023 Country of Origin: Japan ROBOT SPECIFICATIONS Axis Count: 6 Payload Capacity: 210 kg Maximum Reach: 2655 mm Repeatability: ±0.05 mm ROBOT PERFORMANCE Average Power Consumption: 2.5 kW Axis 1 Range: 370° Axis 2 Range: 136° Axis 3 Range: 312° Axis 4 Range: 720° Axis 5 Range: 250° Axis 6 Range: 720° Axis 1 Speed: 120°/sec Axis 2 Speed: 105°/sec Axis 3 Speed: 110°/sec Axis 4 Speed: 140°/sec Axis 5 Speed: 140°/sec Axis 6 Speed: 220°/sec Body Protection Rating: IP54/IP56 Wrist Protection Rating: IP67 CONTROLLER Controller Platform: R-30iB Plus Input Voltage: 480 VAC Phase: 3 Phase Frequency: 50/60 Hz Power Requirement: 7.5 kVA CONTROLLER FEATURES Gigabit Ethernet: Supported USB Support: Supported iHMI Interface: Supported iRVision Interface: Supported ROBOT CONFIGURATION Mounting Configuration: Floor Articulated Robot Design: Yes Dress Package Routing: Installed WRIST & TOOL INTERFACE Pulse Coder System: Installed Air Utility Connections: Present Electrical Utility Connections: Present Tool Mounting Face: Present EOAT Installed: No SYSTEM COMPONENTS Robot: Included R-30iB Plus Controller: Included Robot Interconnect Cables: Included Teach Pendant: Not Included
