SOLD!

FANUC R-2000iB/210F Complete with R-30iA Controller & WTC WT6000 MFDC Inverter USED

$9,500.00
Availability:

1 in stock
BRAND: FANUC MODEL: R-2000iB/210F + R-30iA CONDITION: used
SKU: IGAM2630052 Weight: 4608 lbs Freight (Item Must Ship Freight)

1 in stock

Make an offer
Get Shipping Quote

Overview

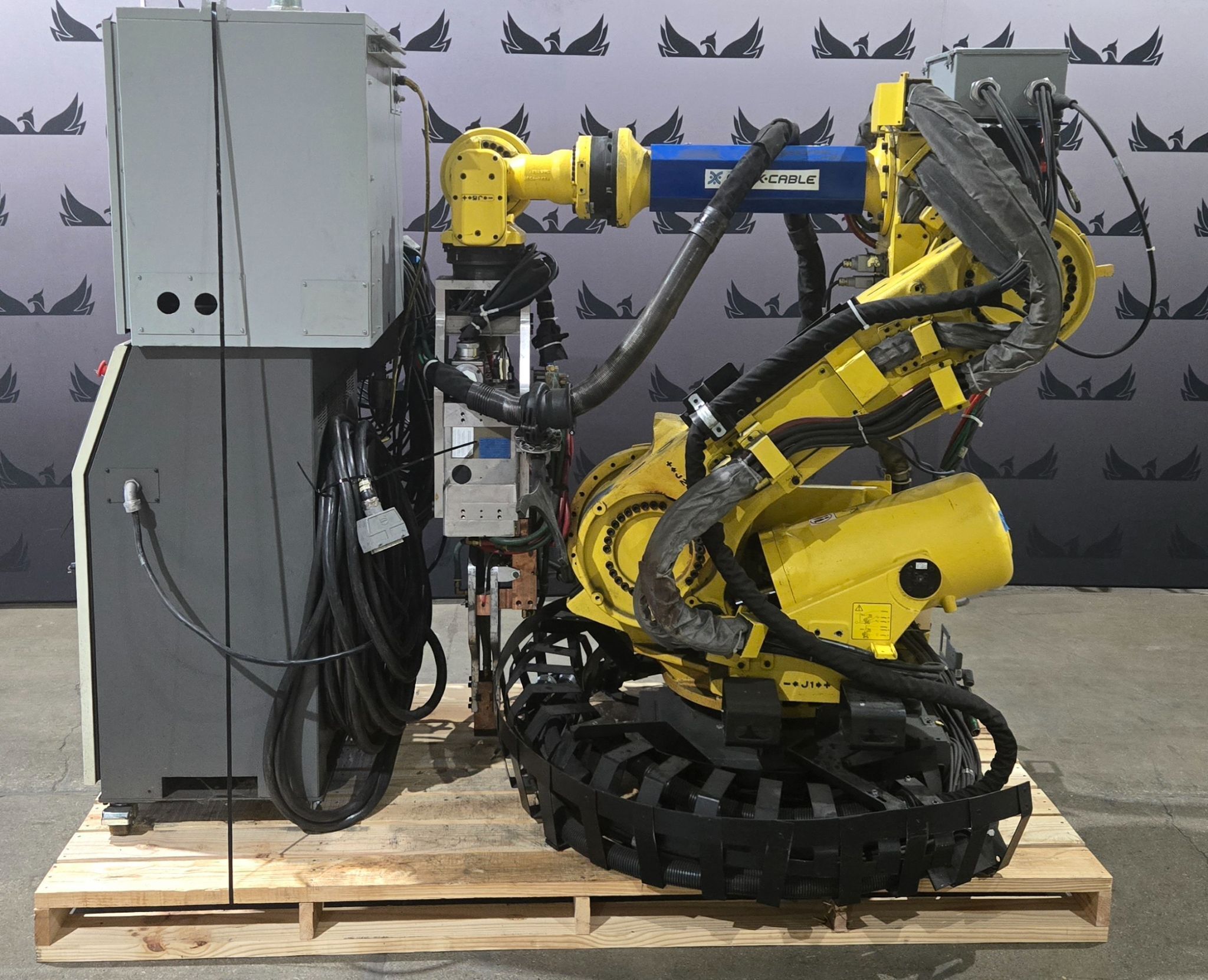

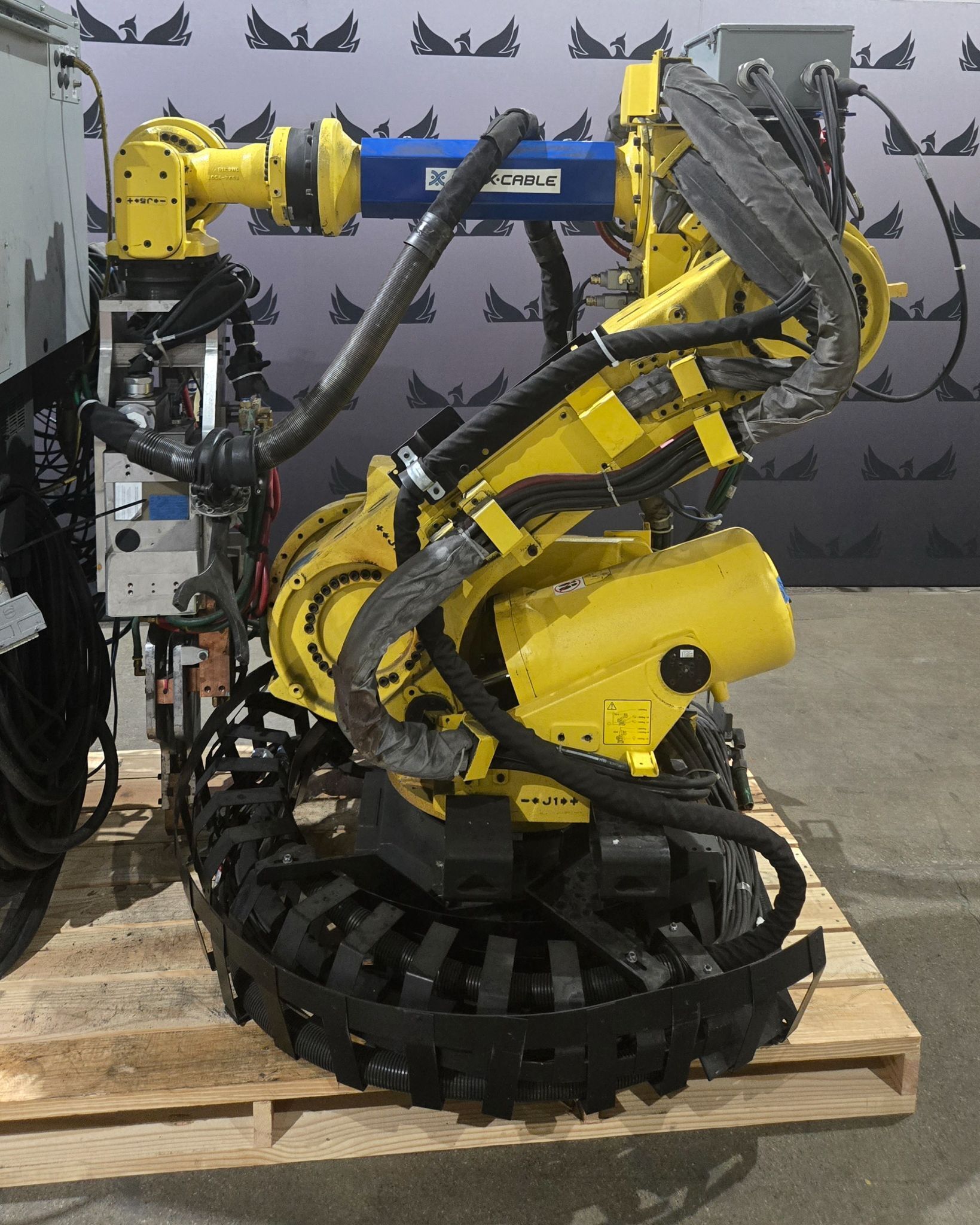

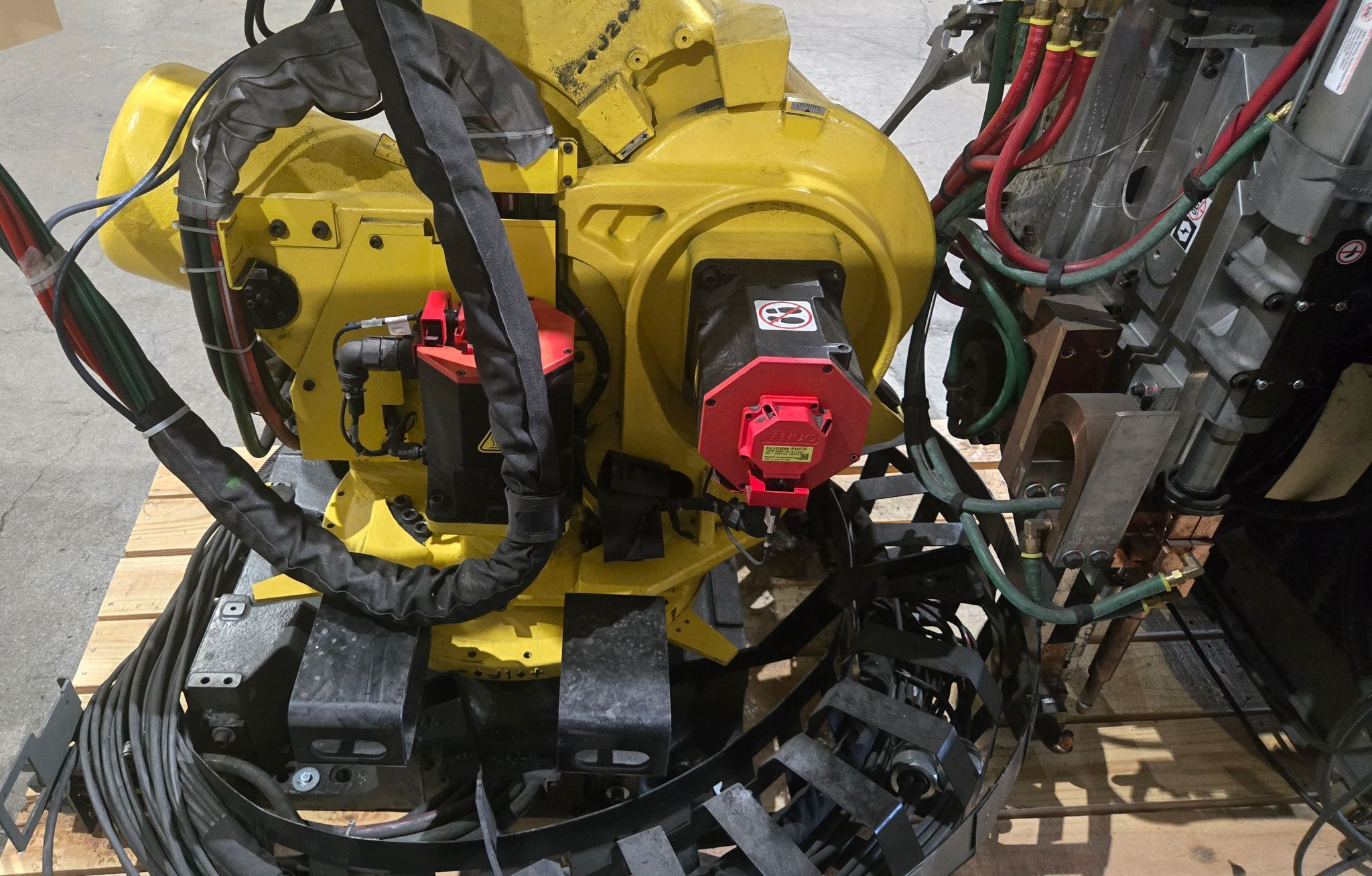

This listing is for a USED FANUC R-2000iB/210F complete system with R-30iA controller, WTC WT6000 MFDC inverter, and teach pendant. This system provides coordinated six-axis robotic motion integrated with medium frequency DC resistance welding capability, supporting high payload welding processes with synchronized motion control, weld power delivery, and operator interaction through the FANUC iPendant interface.

Specification Table

# Axis 6
Payload 210 kg
Horizontal Reach 2,655 mm

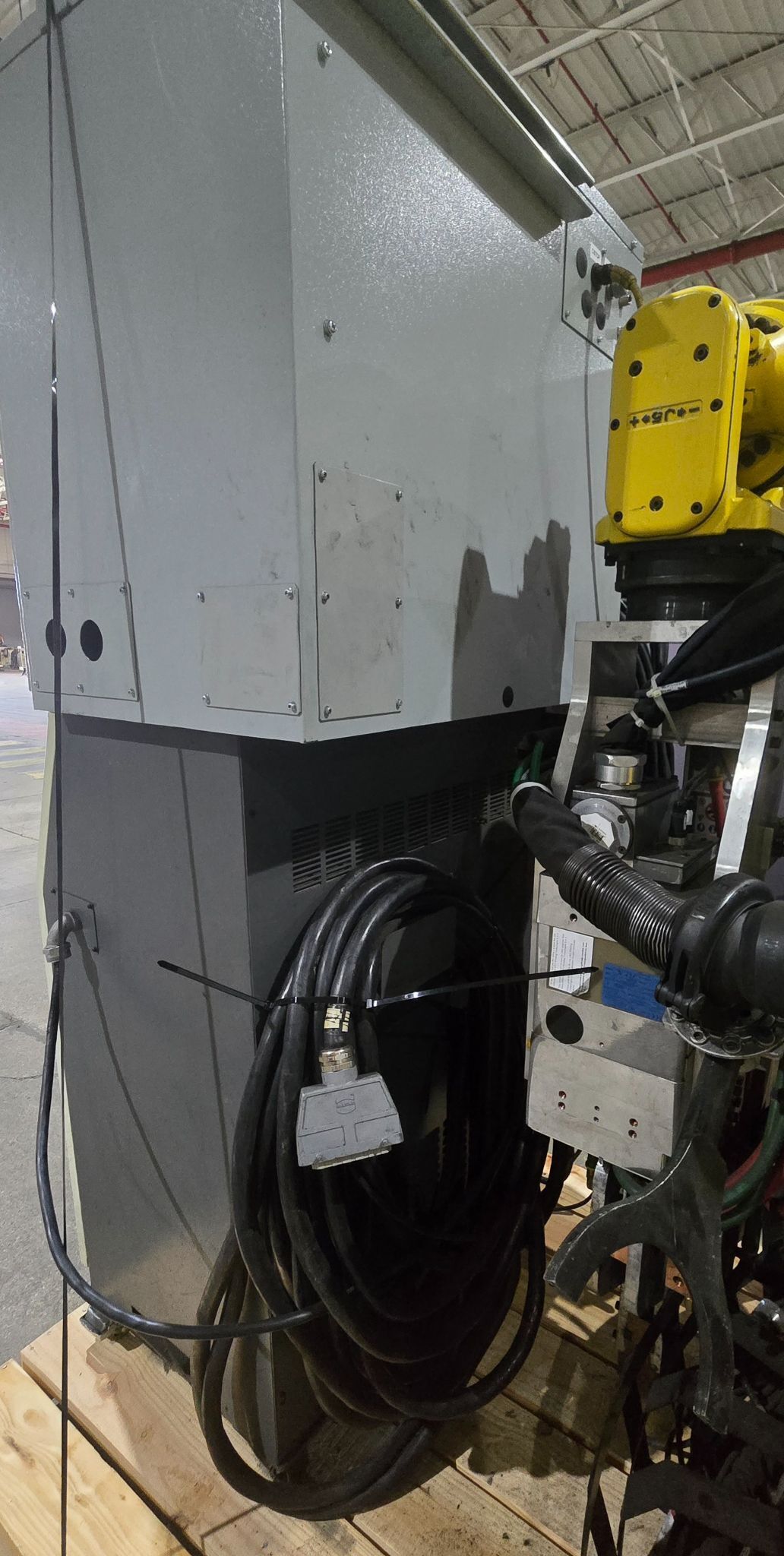

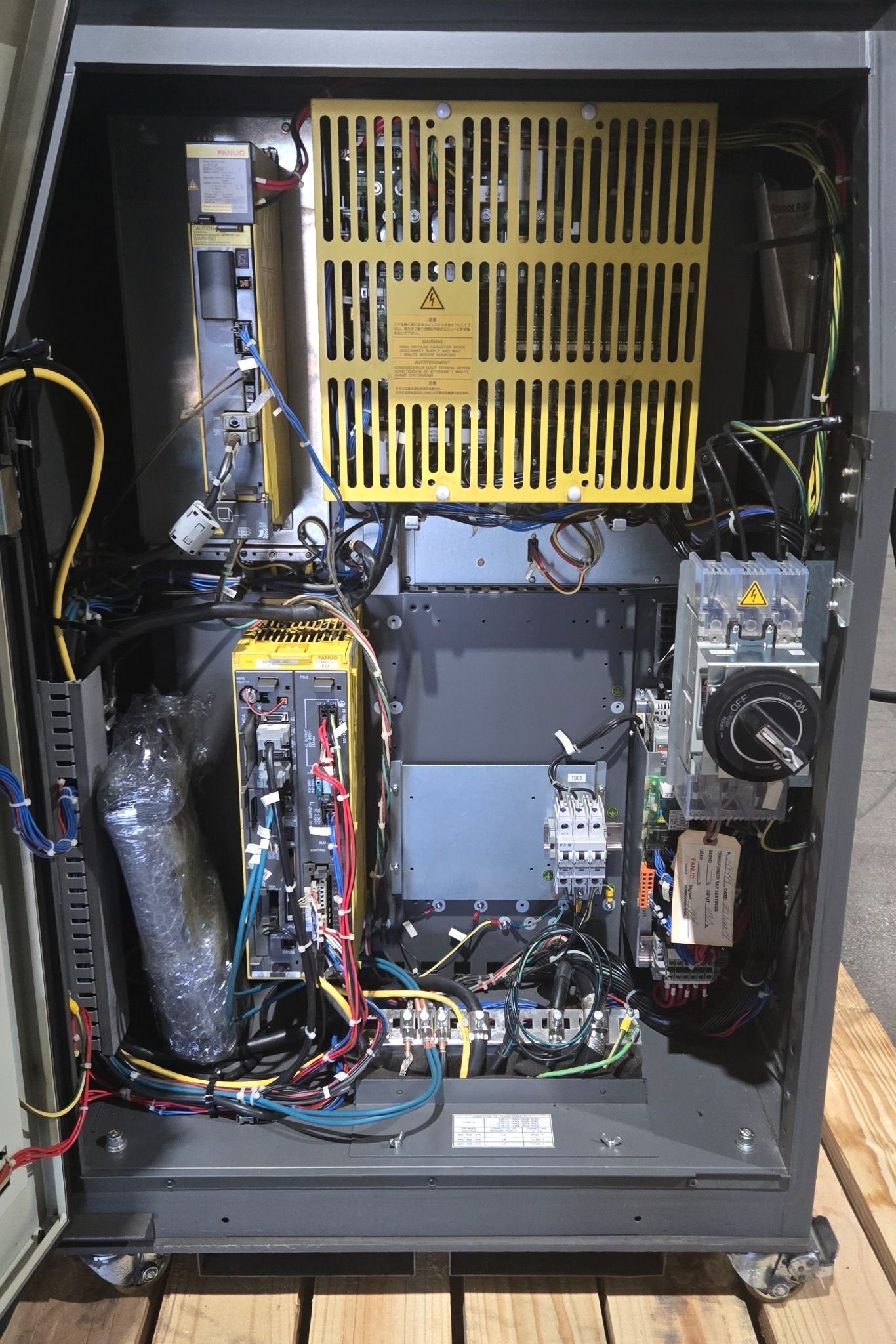

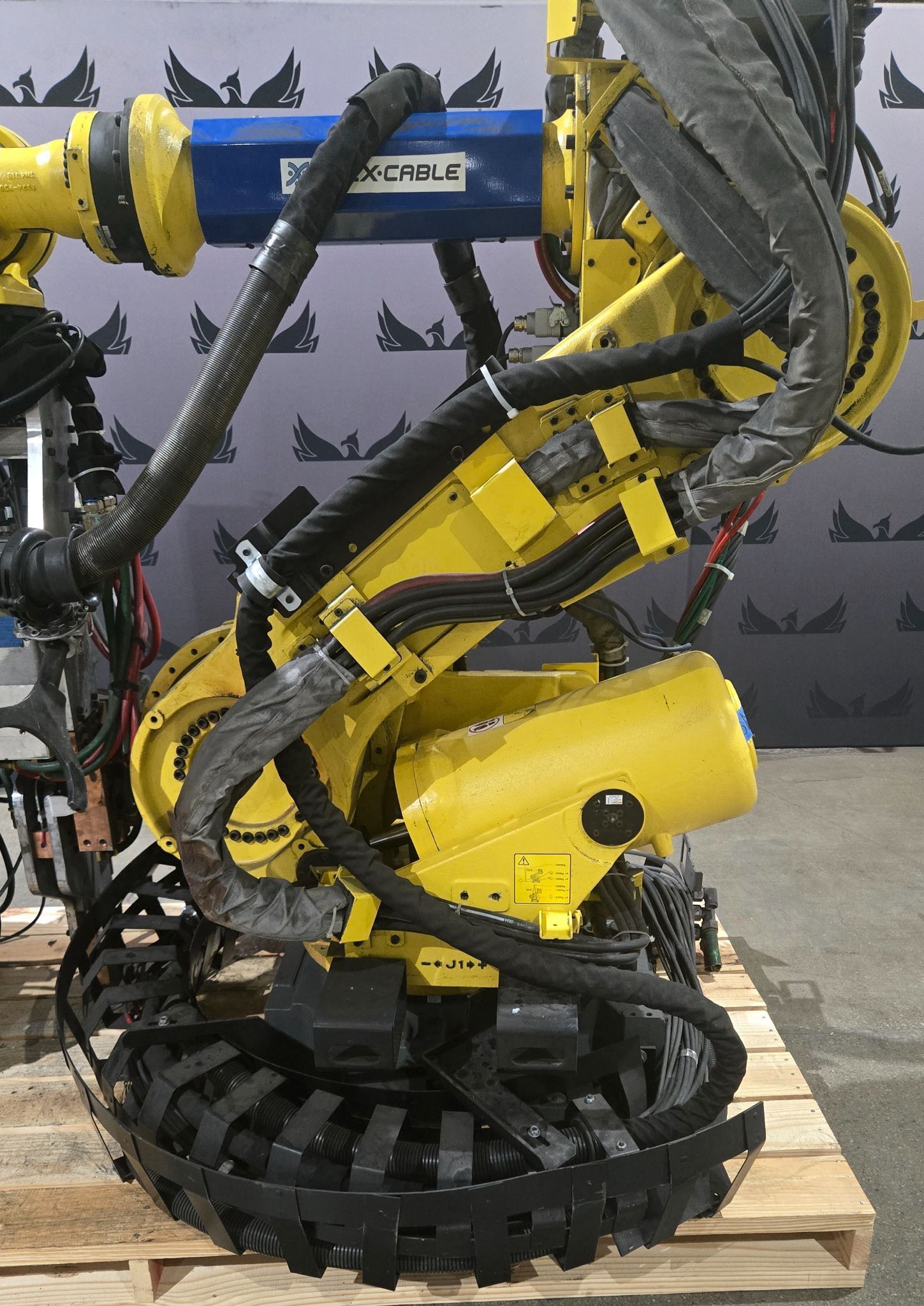

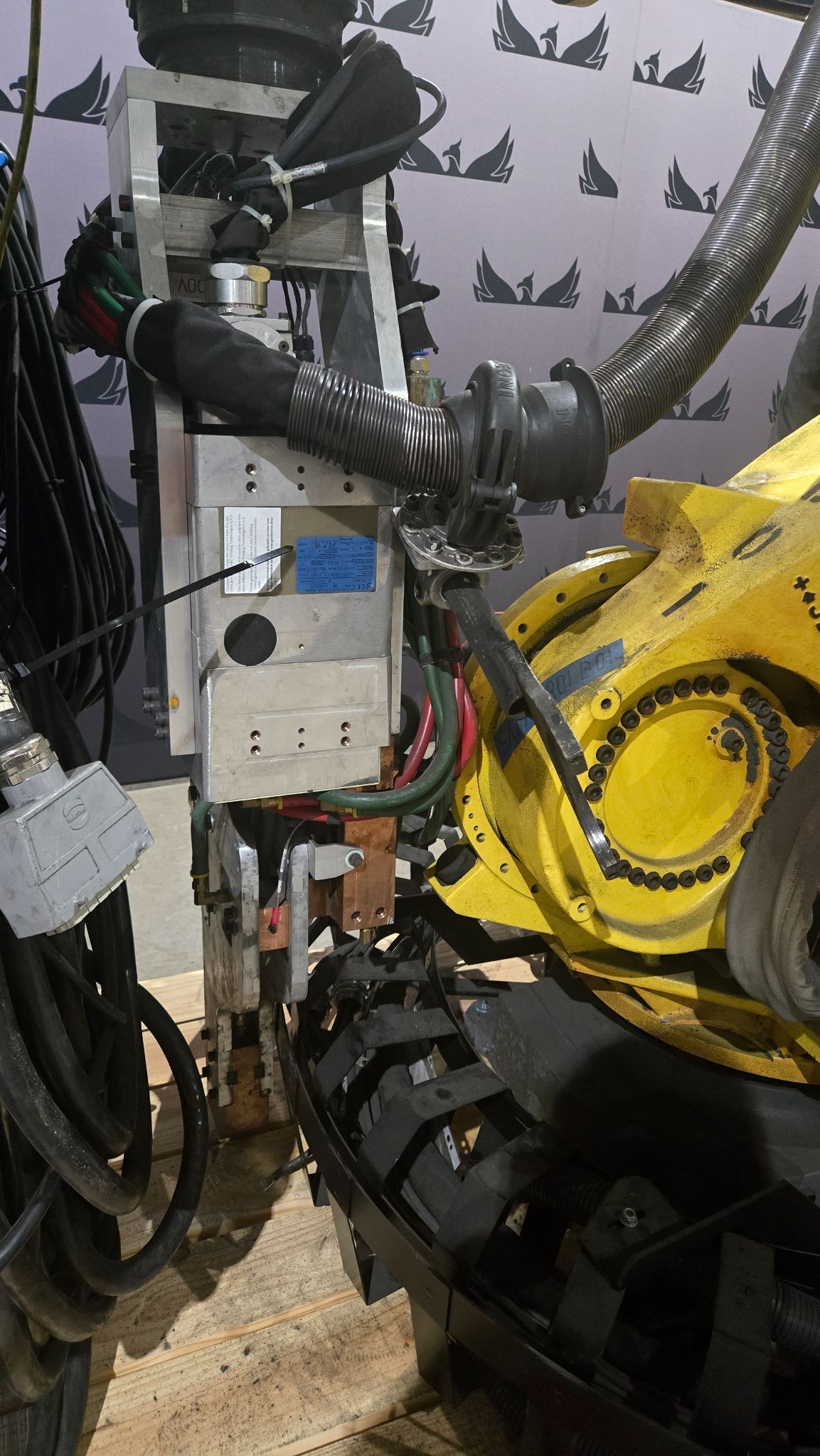

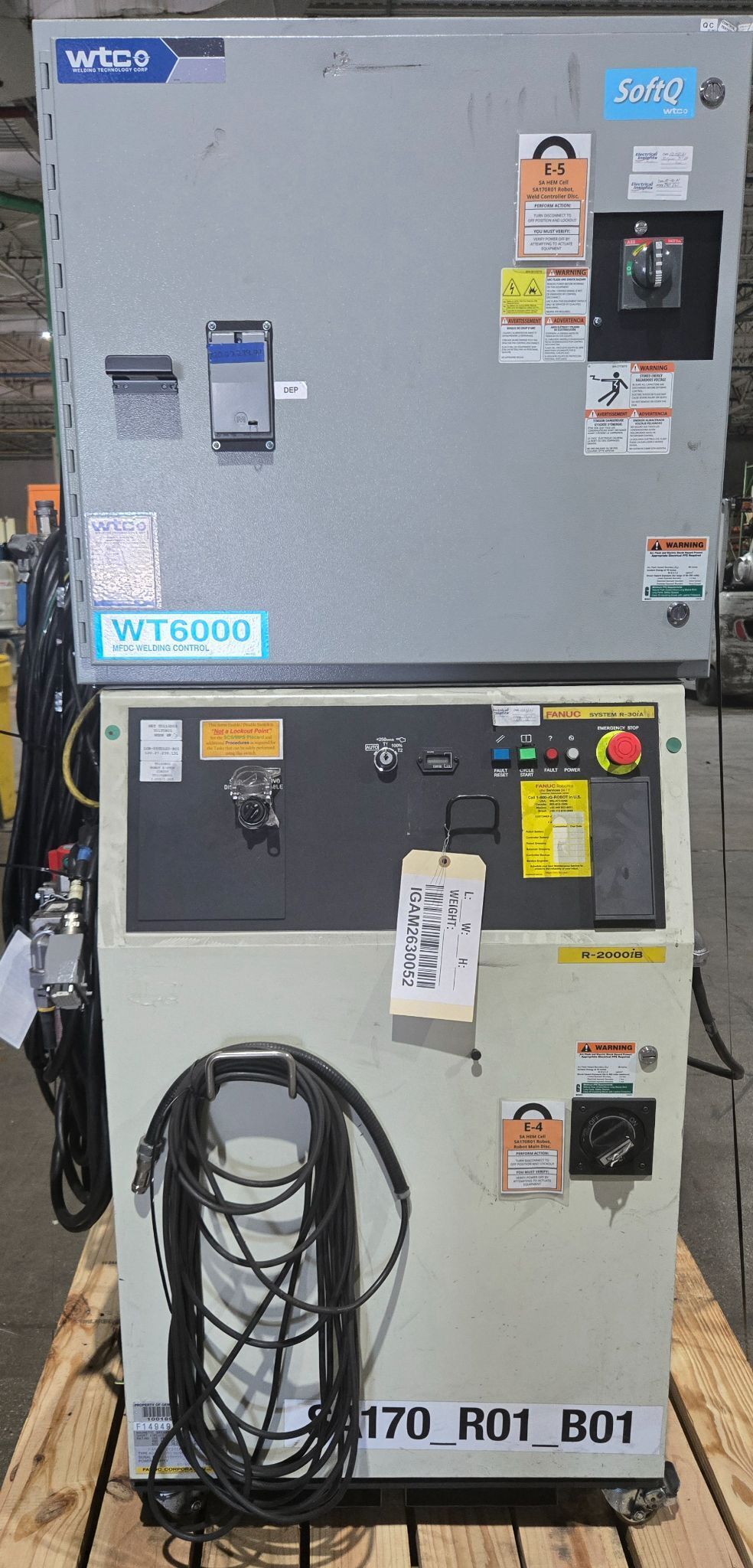

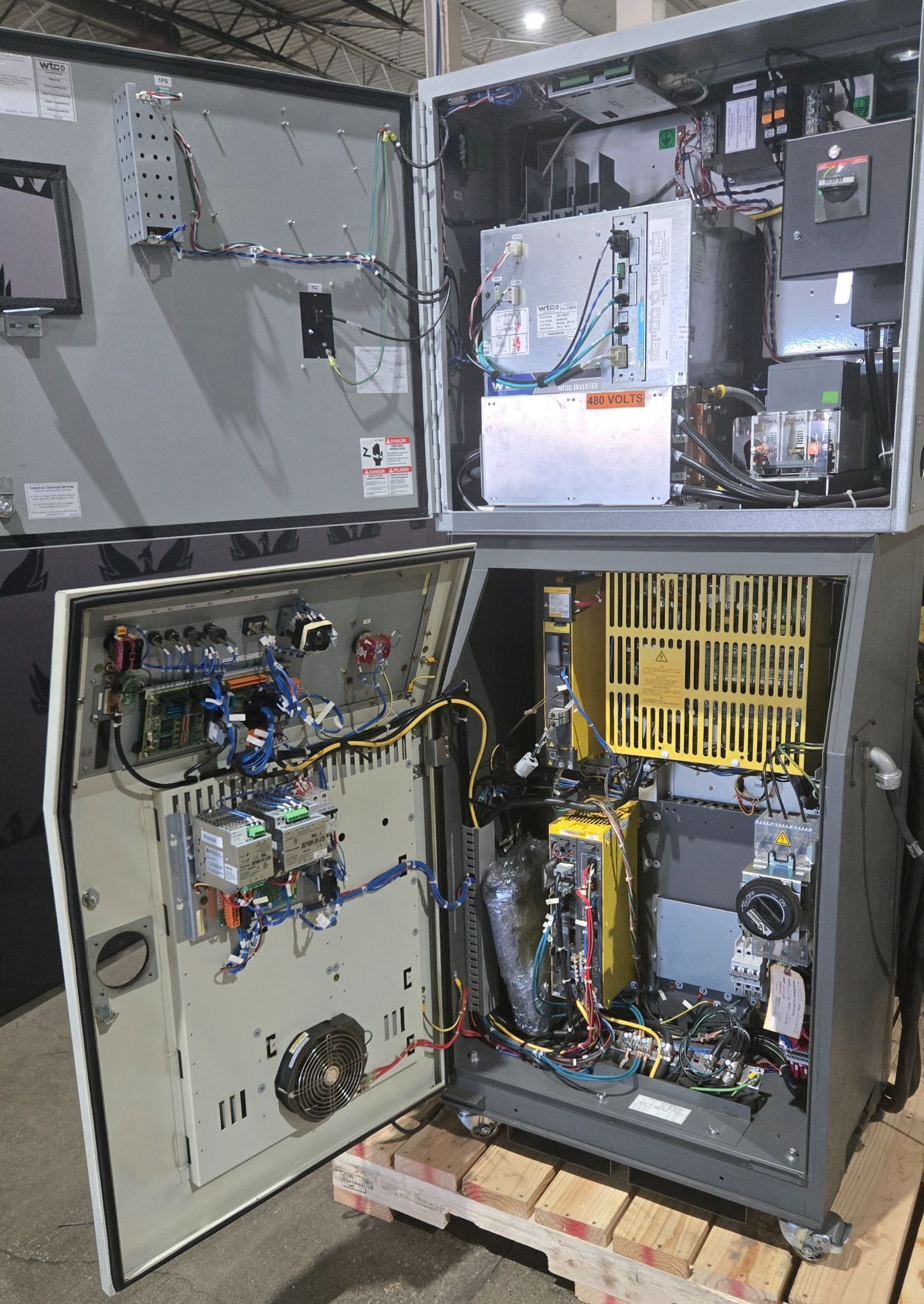

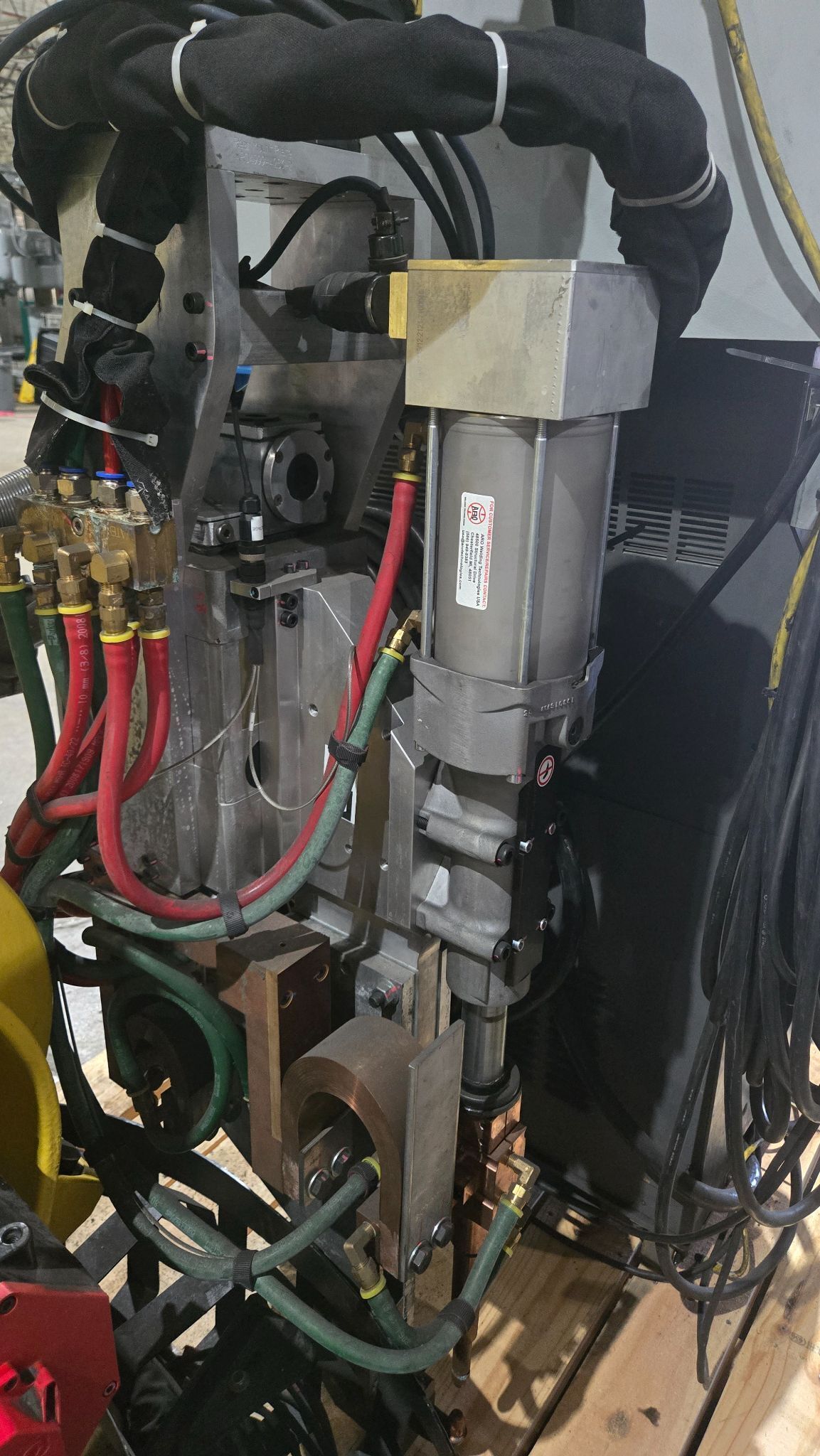

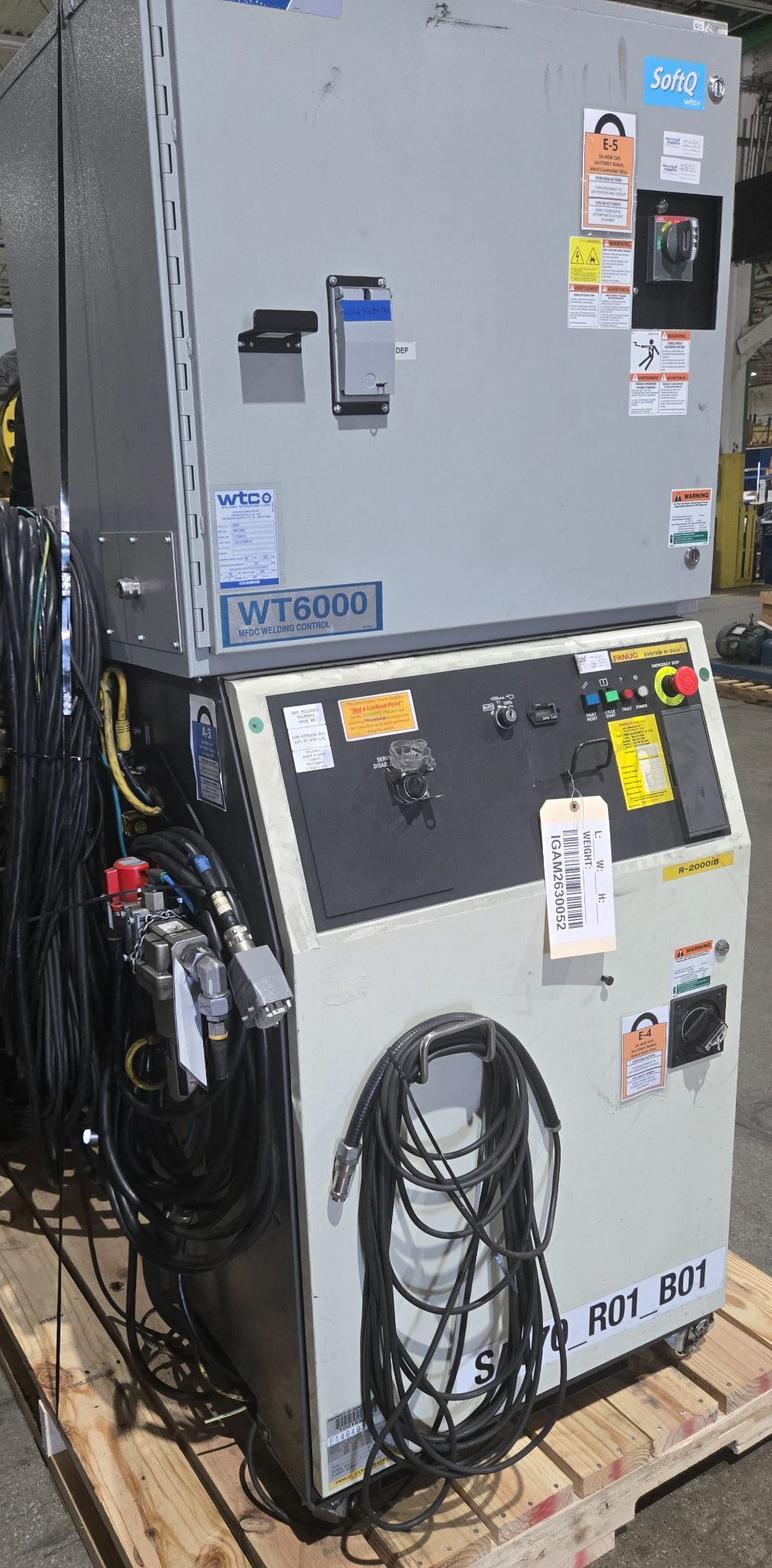

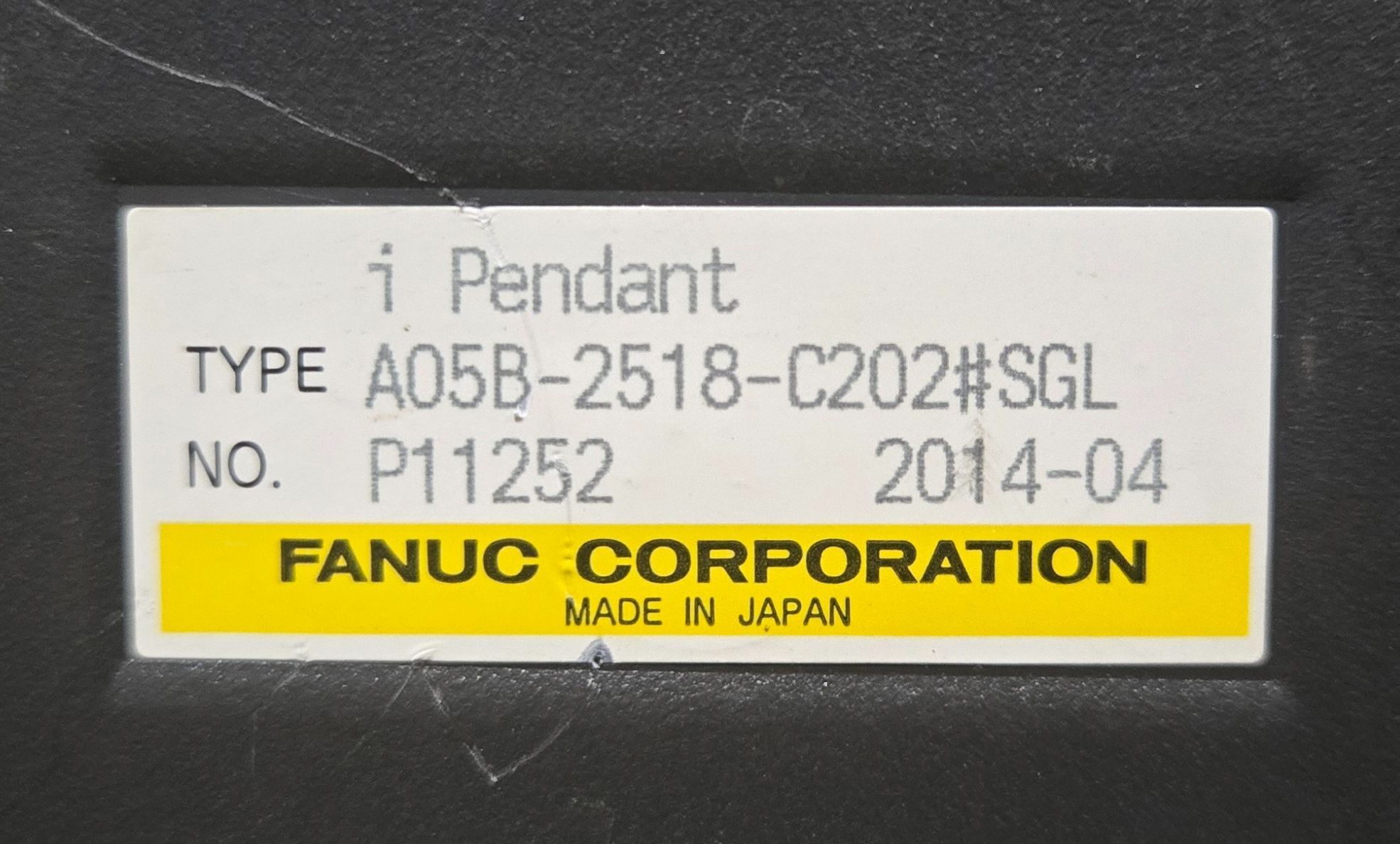

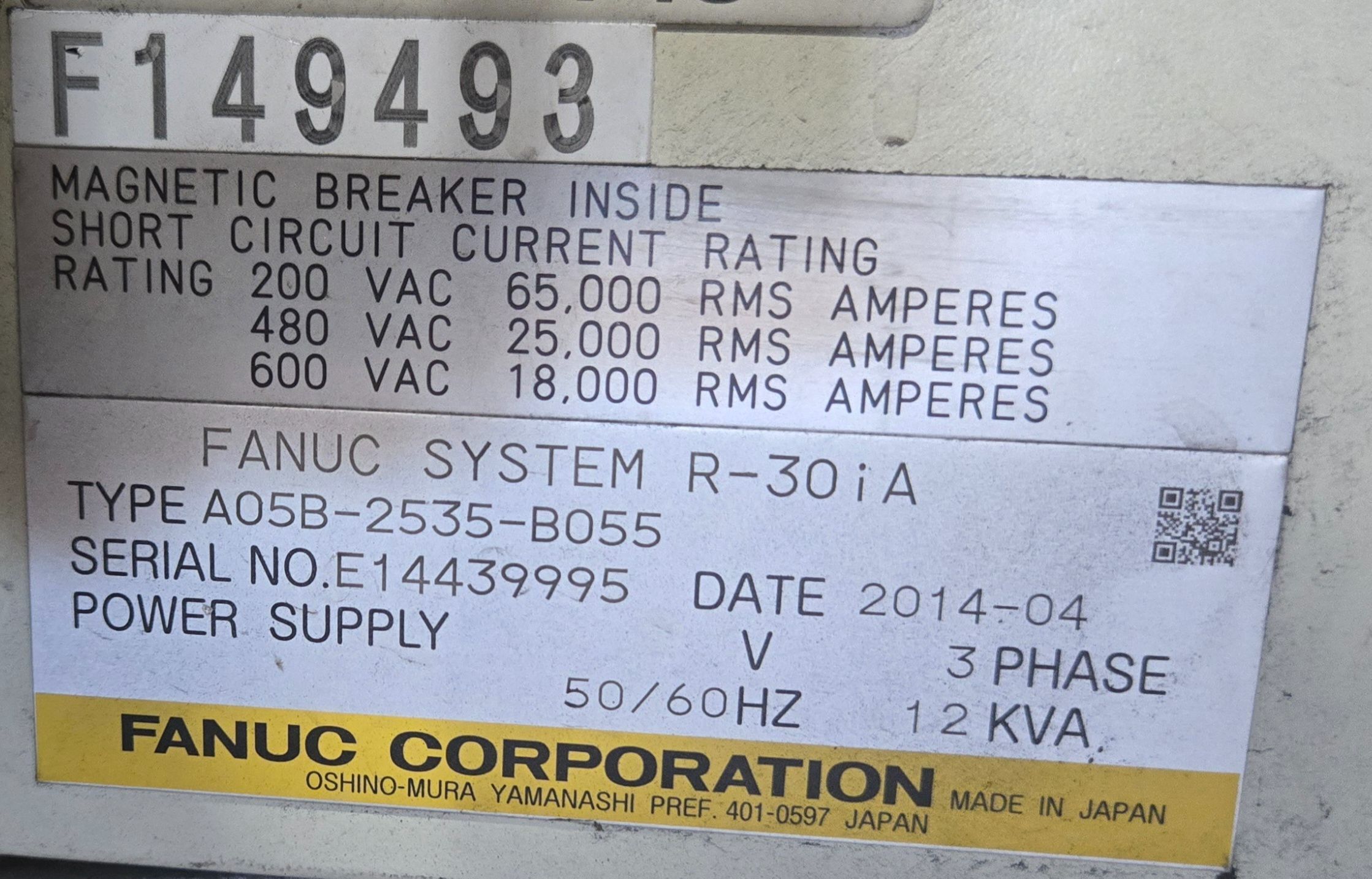

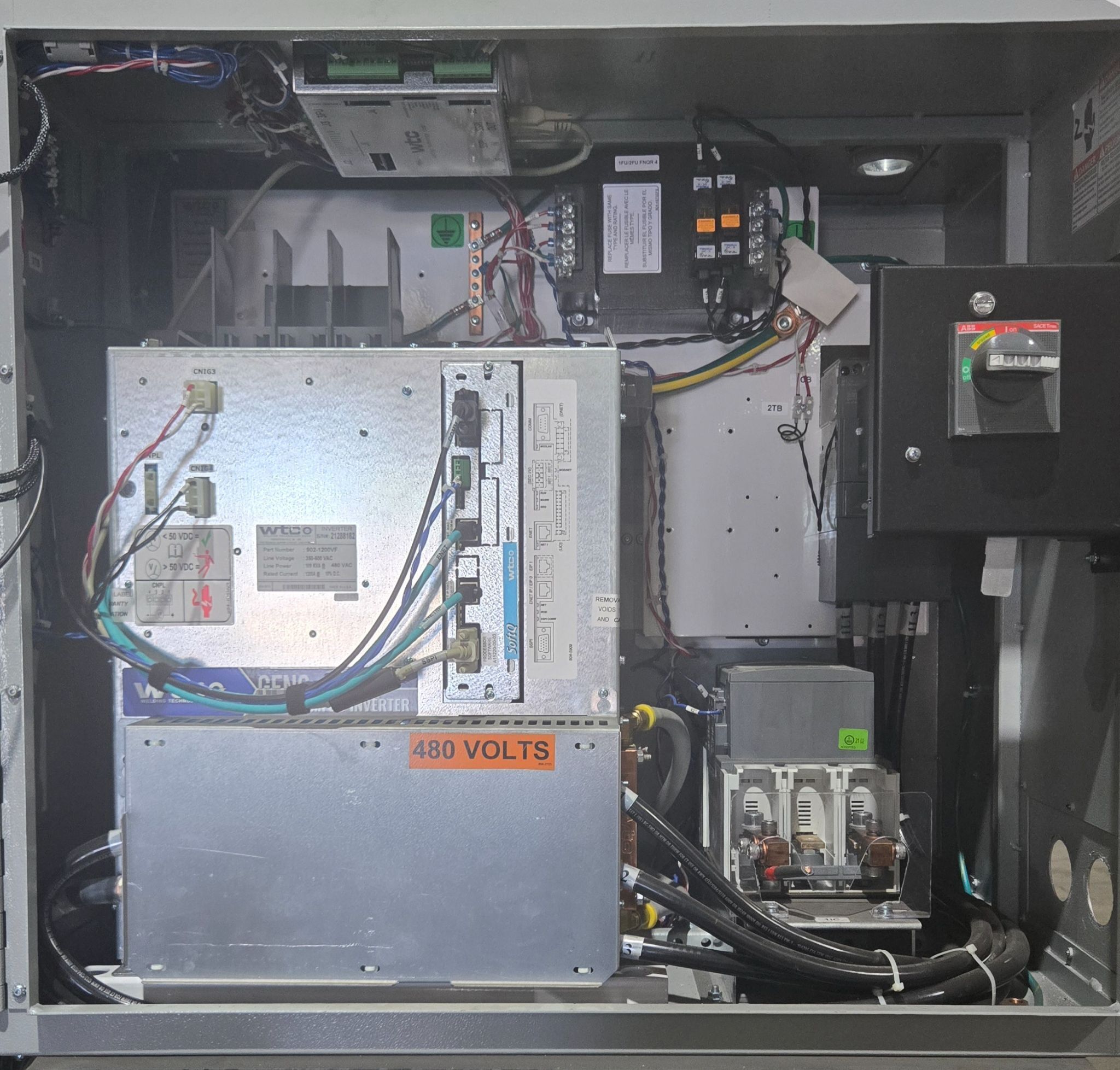

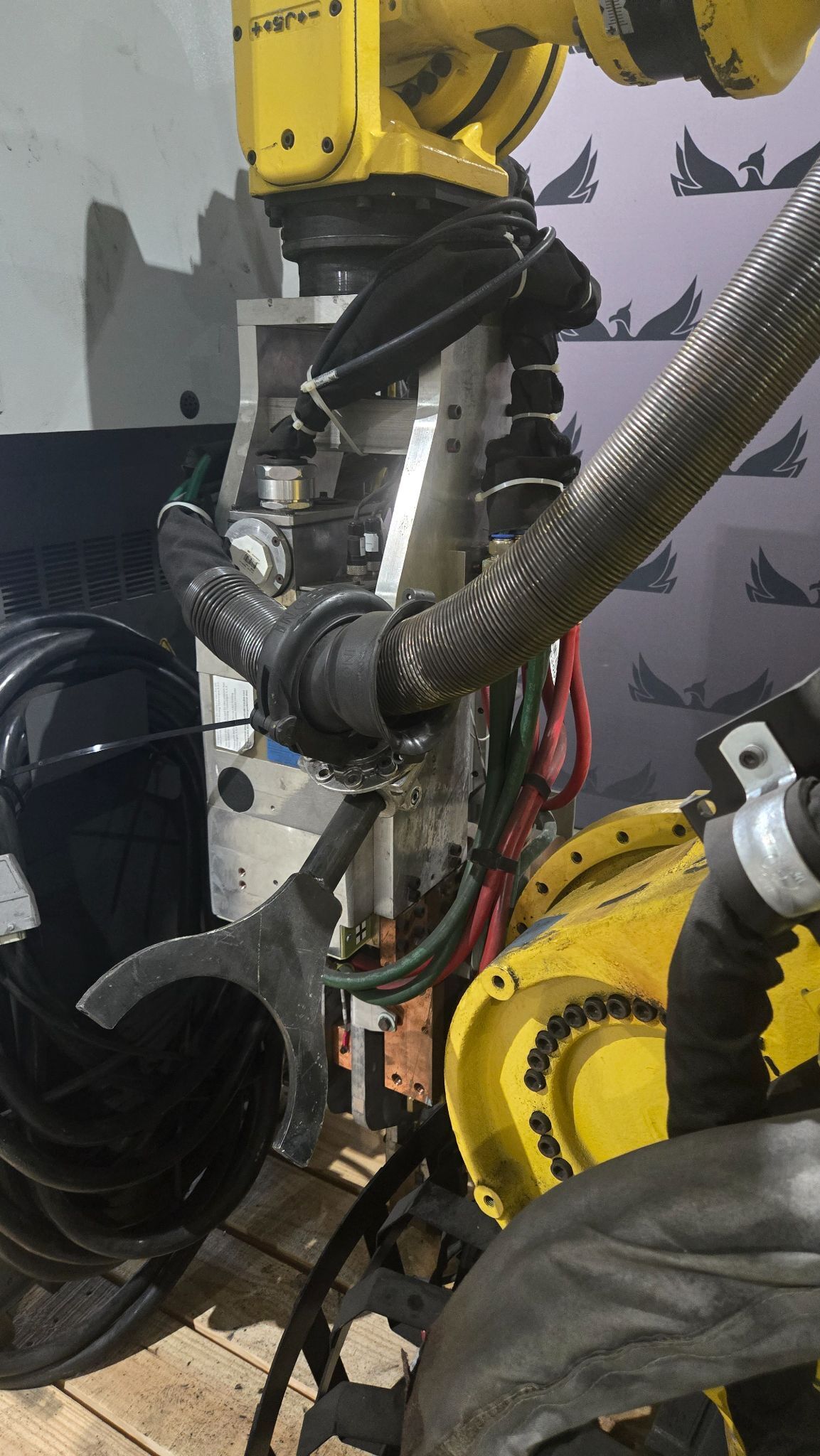

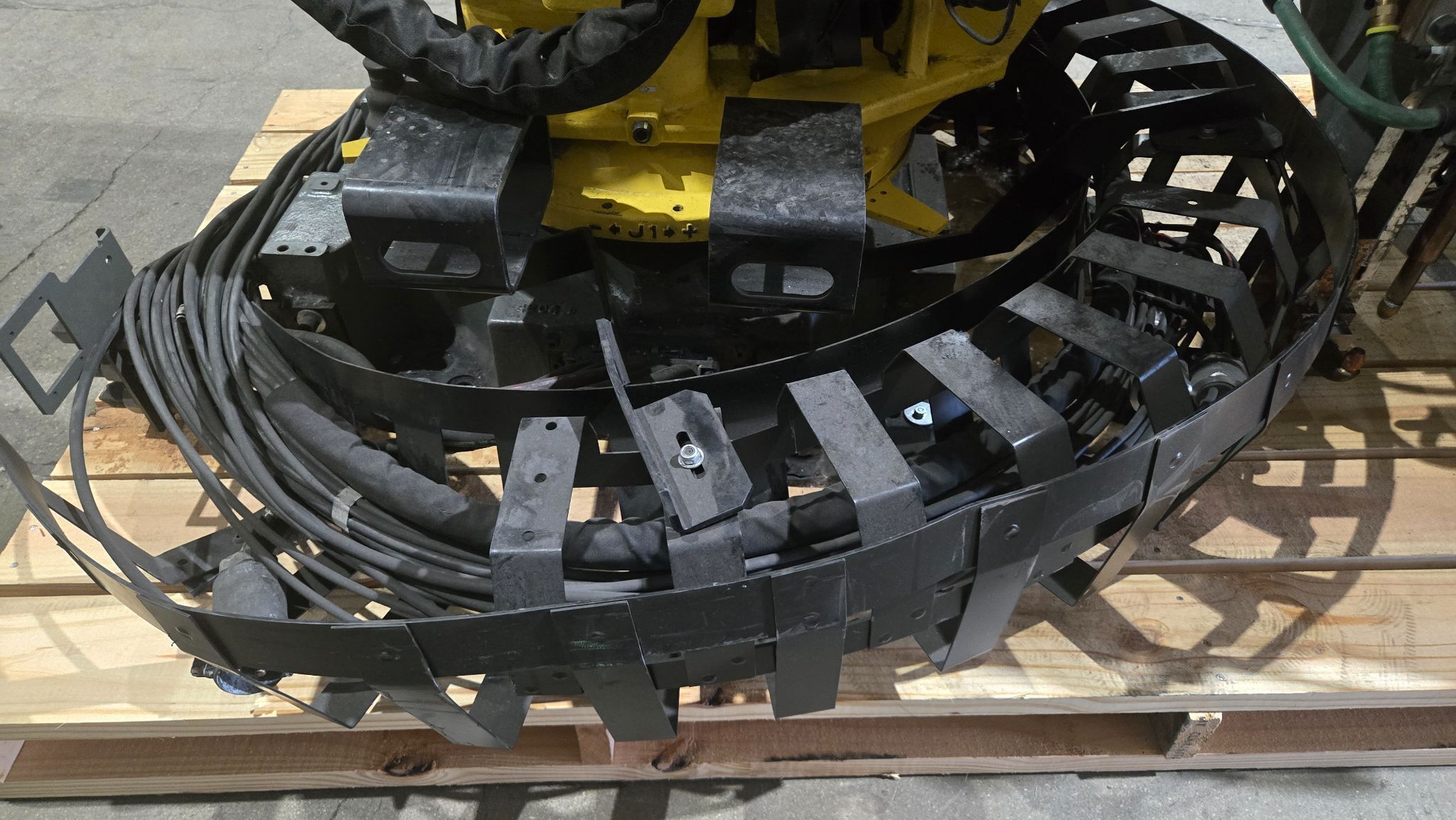

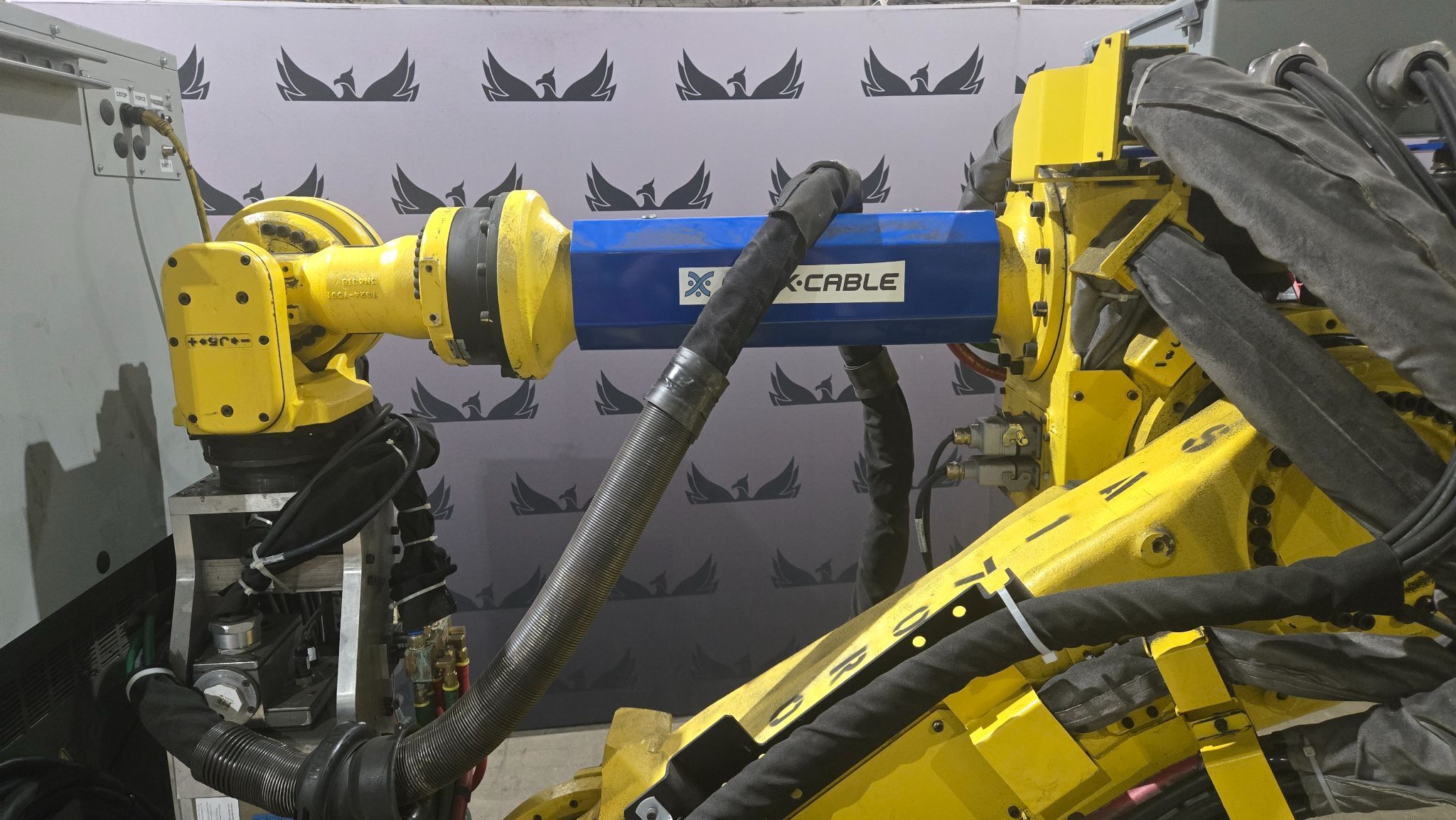

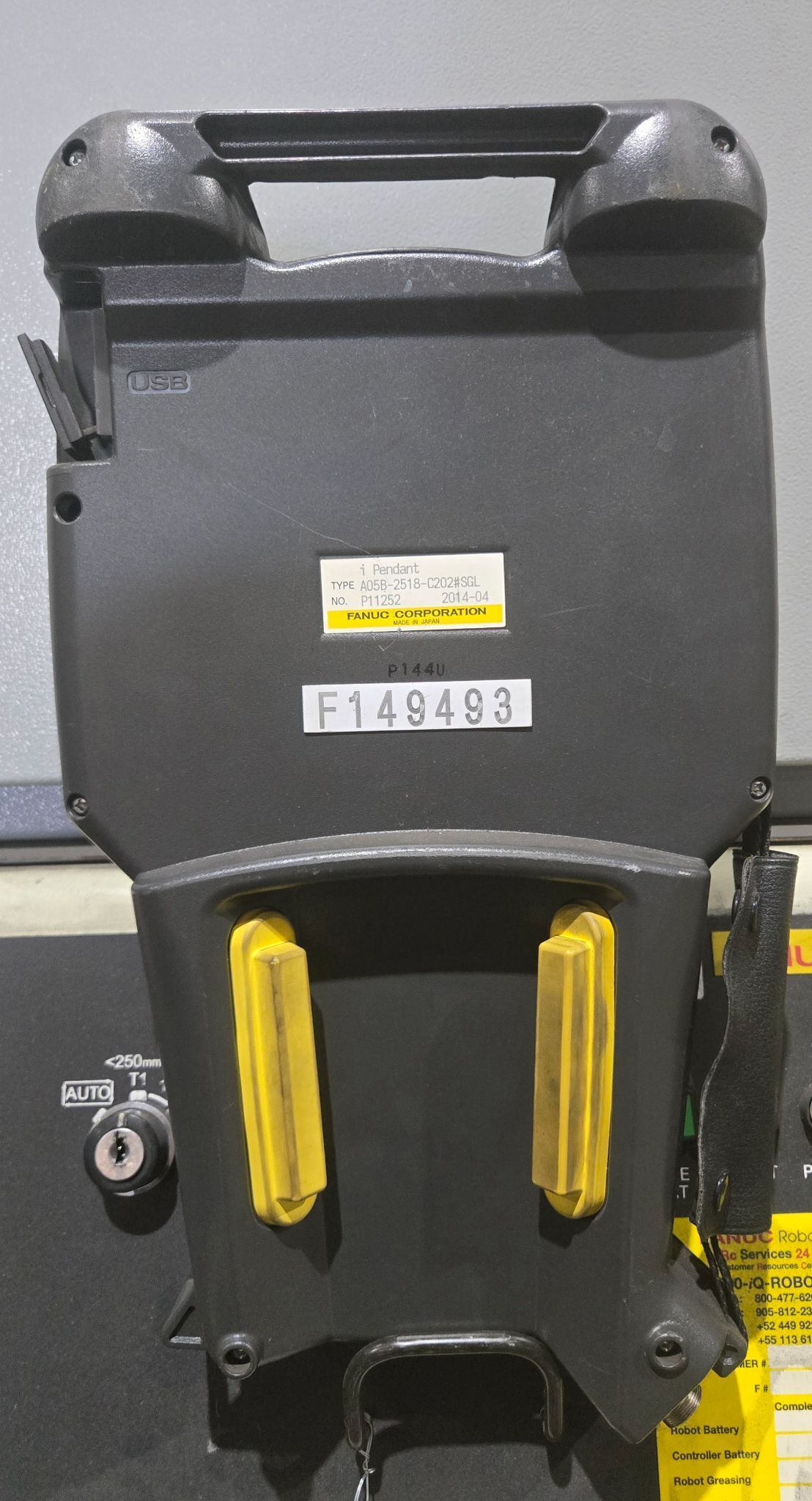

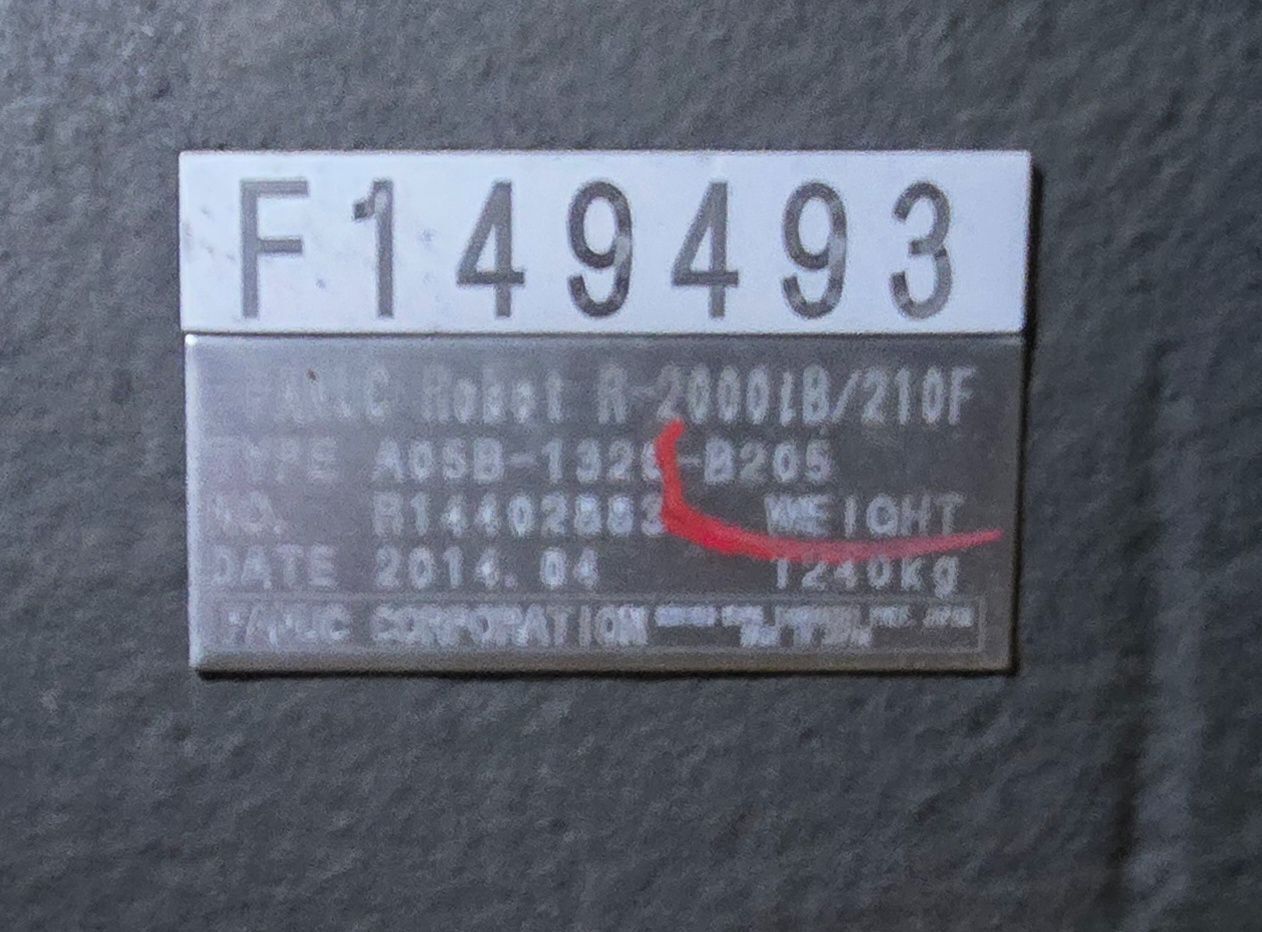

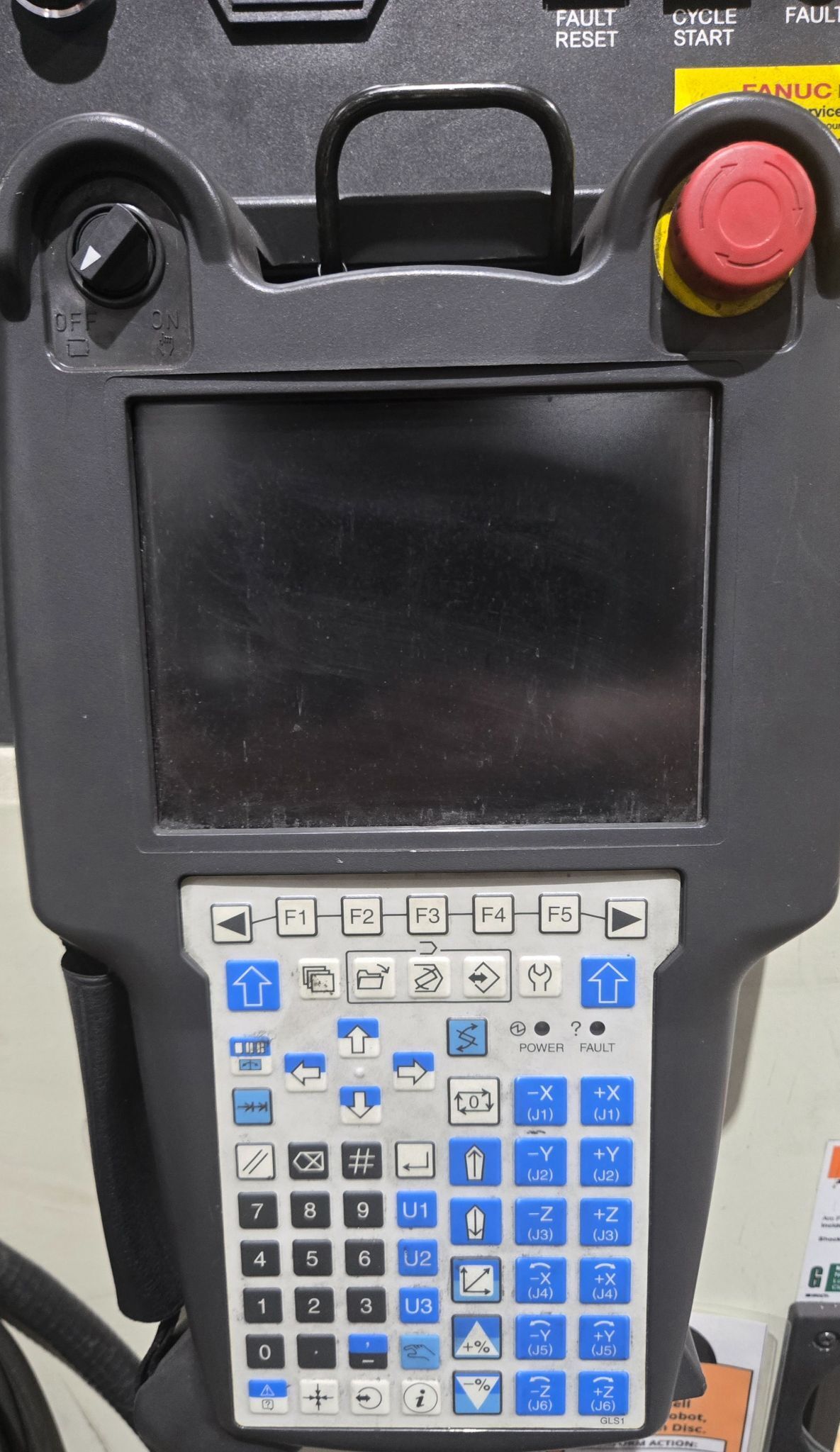

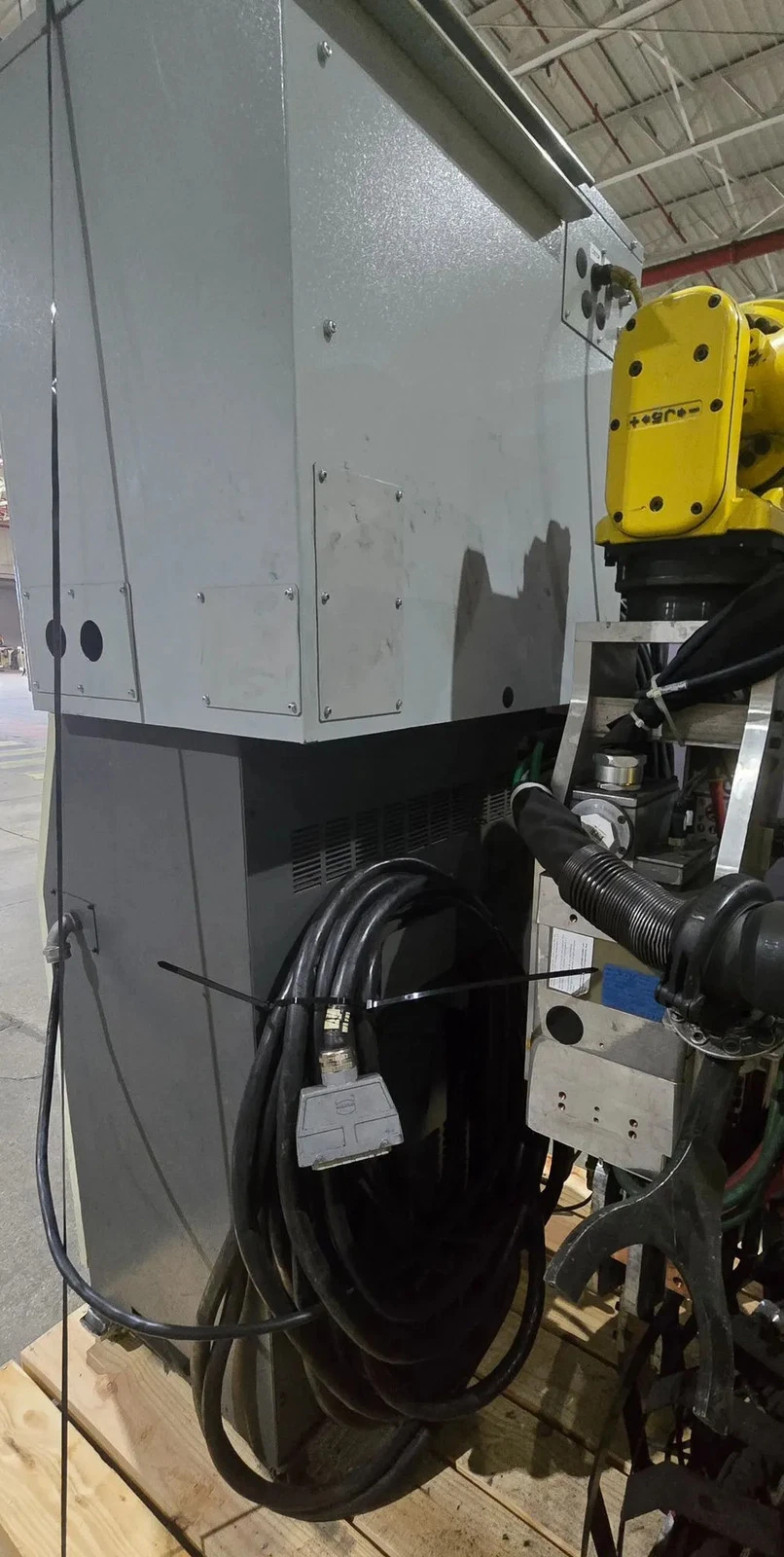

Manufacturer: FANUC Robot Model: R-2000iB/210F Robot Type: 6-Axis Articulated Robot Condition: USED YOM: 2014 Payload Capacity: 210 kg Reach: Approx. 2655 mm Mounting: Floor-mounted base Robot Weight: 1240 kg Robot Type Code: A05B-1329-B205 Robot Serial Number: R14402838 Controller Model: R-30iA Controller Type: Industrial Robot Controller Controller Type Number: A05B-2535-B055 Controller Serial Number: E14439995 Controller Phase: 3 Phase Frequency: 50/60 Hz Power Rating: 12 kVA Short Circuit Current Rating: - 200 VAC: 65,000 RMS Amperes - 480 VAC: 25,000 RMS Amperes - 600 VAC: 18,000 RMS Amperes Weld Controller Manufacturer: WTC Weld Controller Model: WT6000 Weld Controller Type: Gen 6 MFDC Inverter Weld Control Method: Medium Frequency DC (MFDC) Weld Input Voltage: 480 VAC Teach Pendant Model: A05B-2518-C202#SGL Teach Pendant Type: iPendant Teach Pendant Serial Number: P11252 Teach Pendant Date: 2014.04 System Components: - Robot arm - R-30iA controller cabinet - WTC WT6000 MFDC inverter cabinet - Teach pendant - Resistance weld gun assembly with electrodes - Weld cabling, hoses, and Flex-Cable dress system
