SOLD!

FANUC R-2000iB/210F Complete With R-30iA Controller & WT6000 Inverter USED

$10,000.00
Availability:

1 in stock
BRAND: FANUC MODEL: R-2000iB/210F + R-30iA CONDITION: used
SKU: IGAM2630043 Weight: 4532 lbs Freight (Item Must Ship Freight)

1 in stock

Make an offer
Get Shipping Quote

Overview

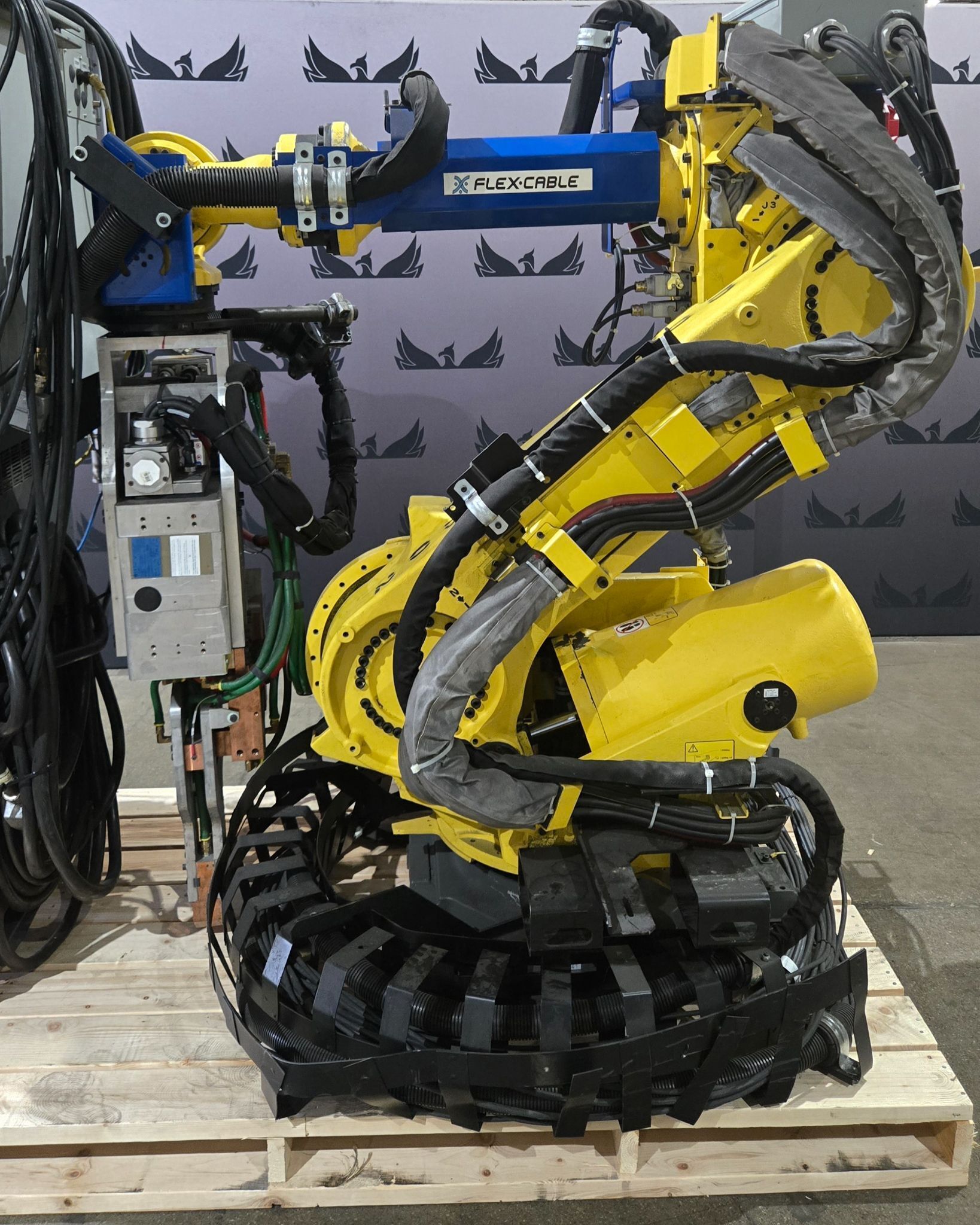

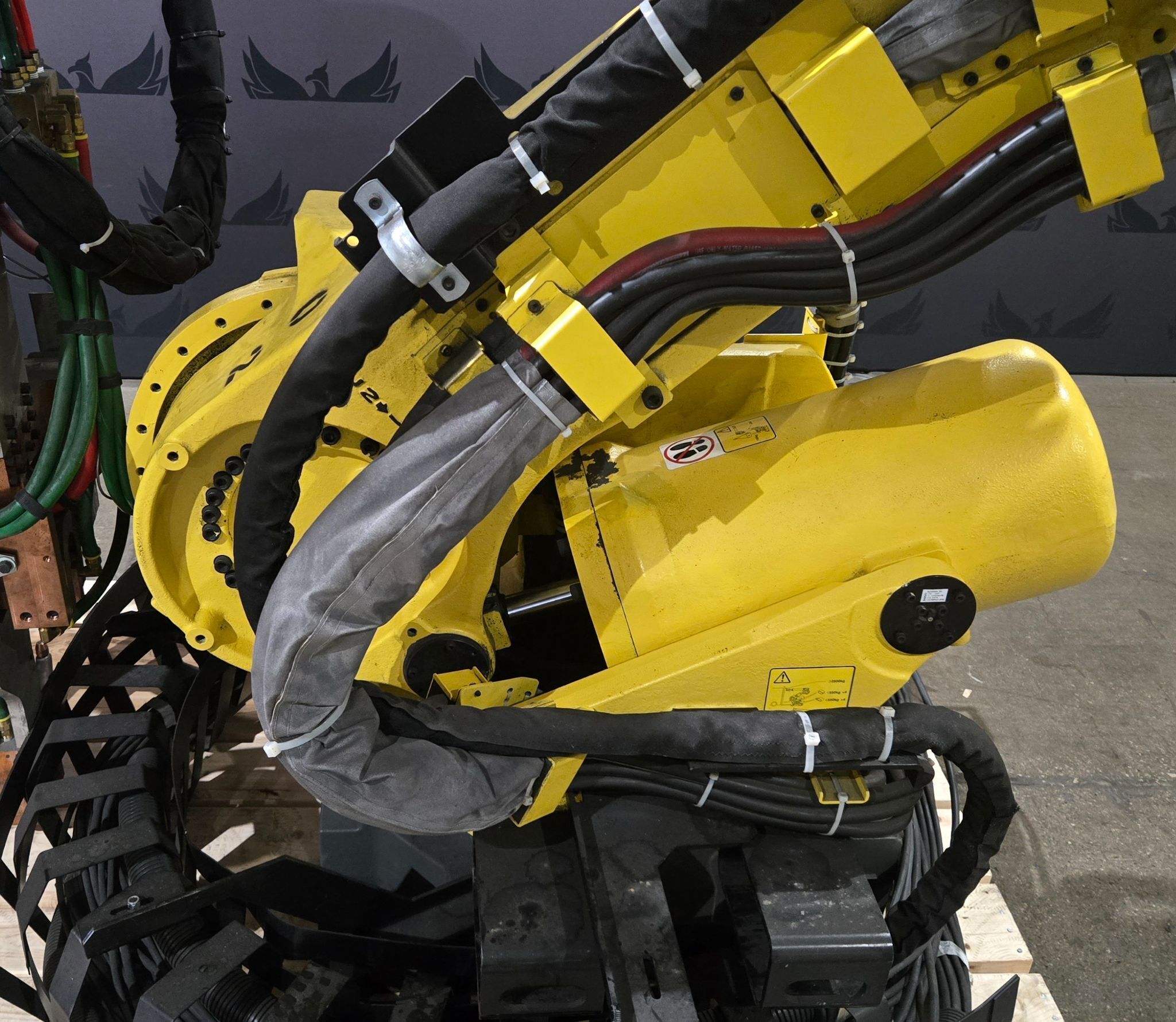

This listing is for a USED FANUC R-2000iB/210F. This system provides articulated robotic motion with integrated spot welding support, combining a FANUC R-30iA controller, WTCO WT6000 inverter, and teach pendant for coordinated motion control, weld process execution, and system interface within automated production environments.

Specification Table

# Axis 6
Payload 210 kg
Horizontal Reach 2,655 mm

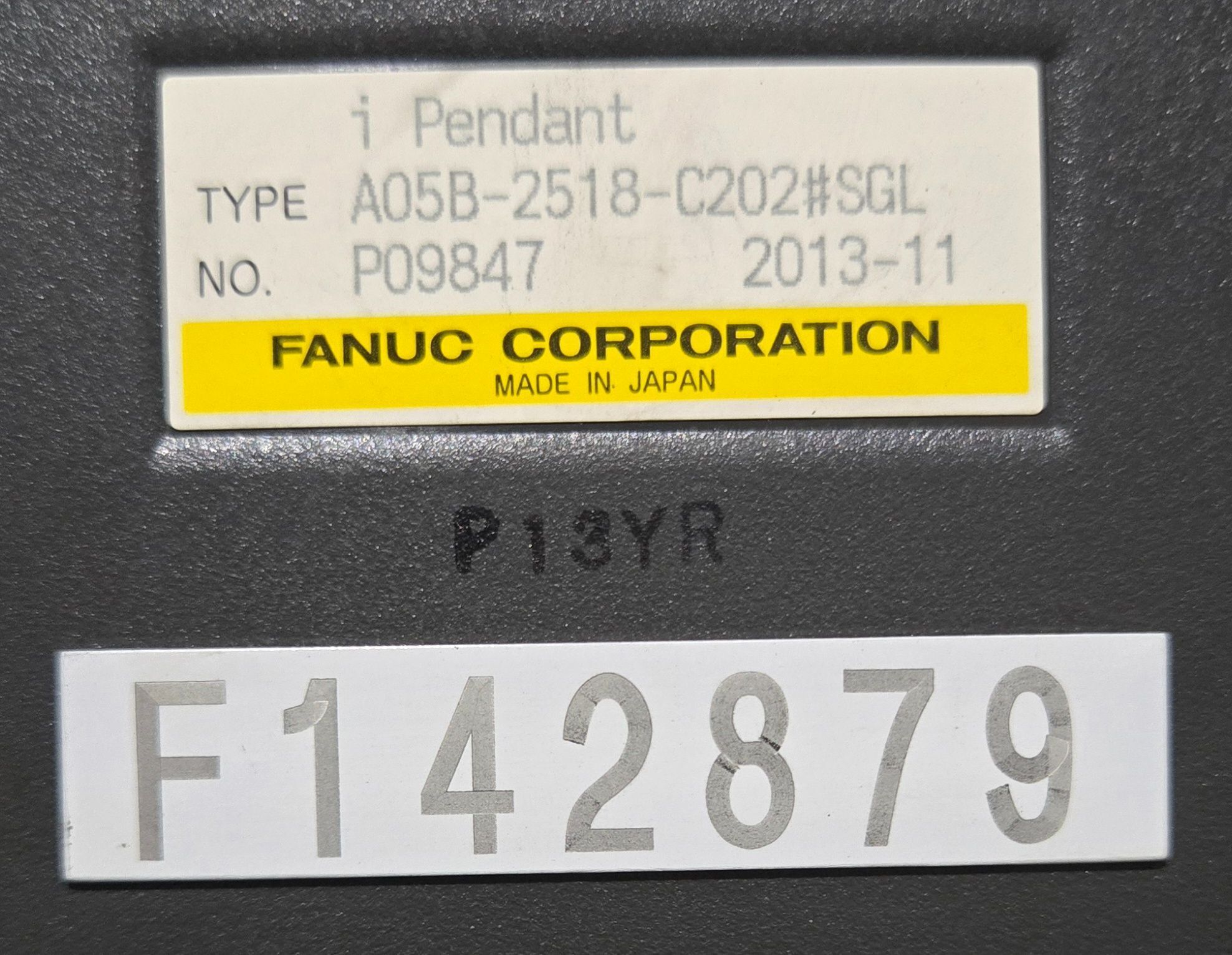

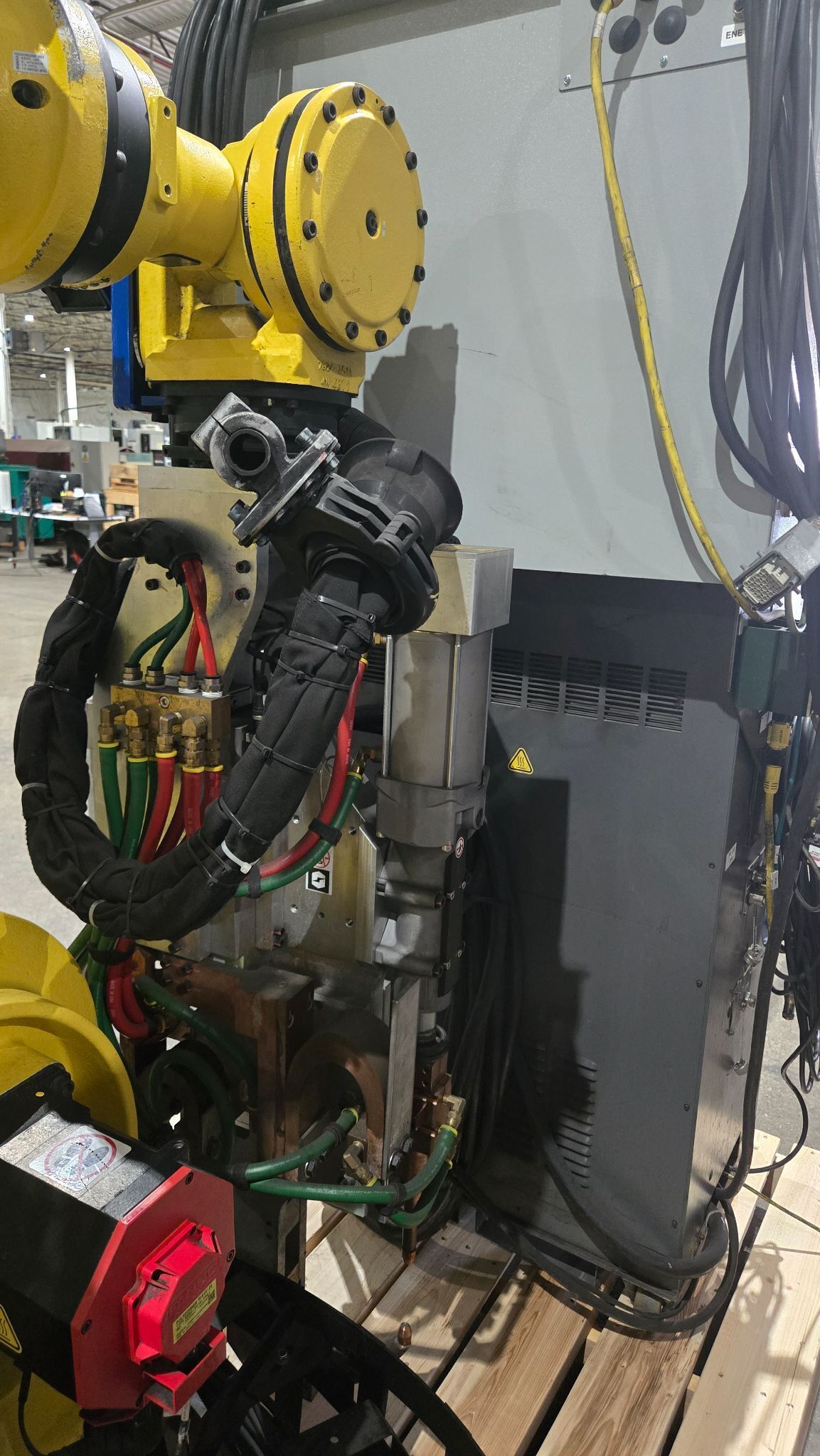

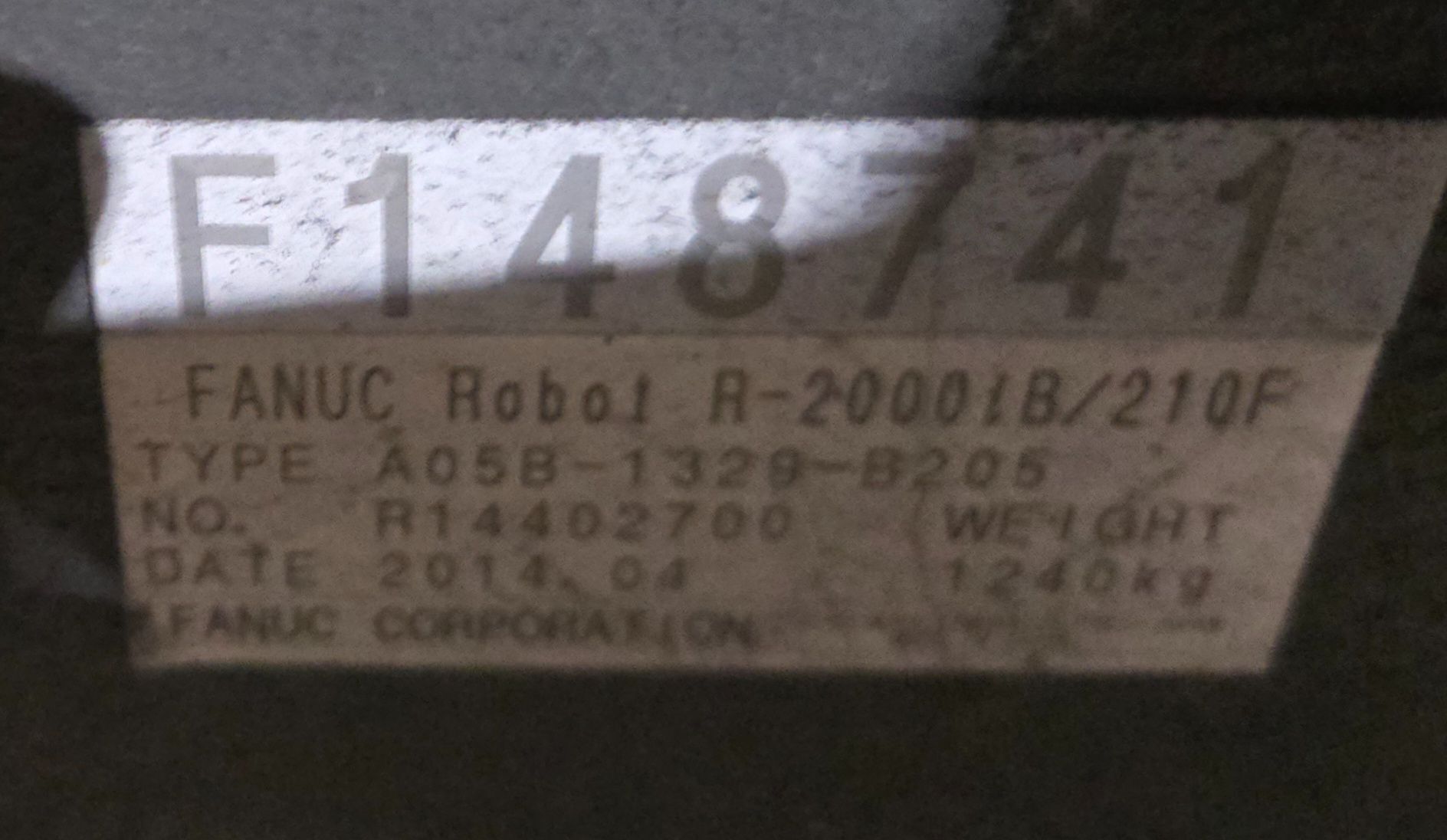

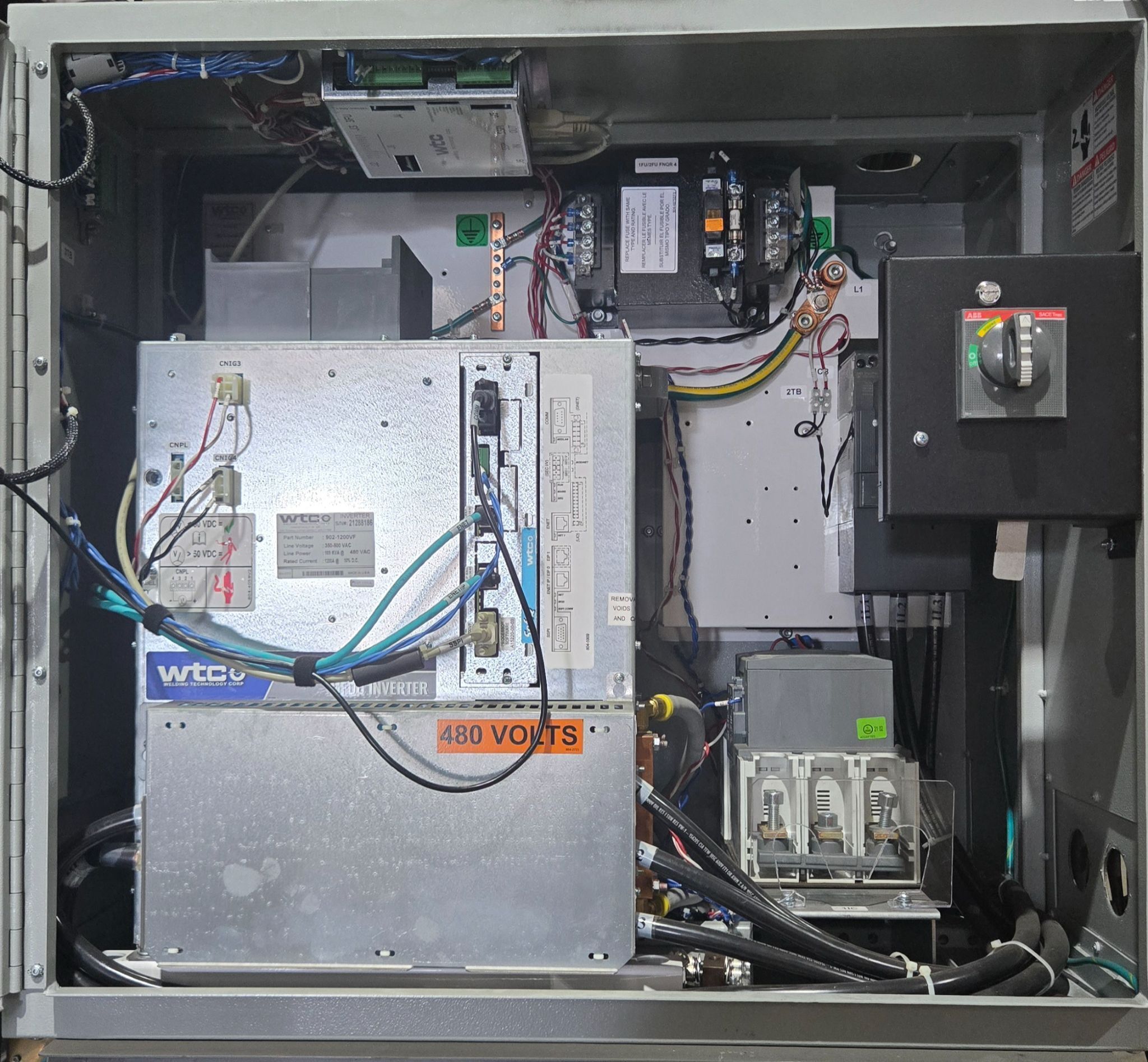

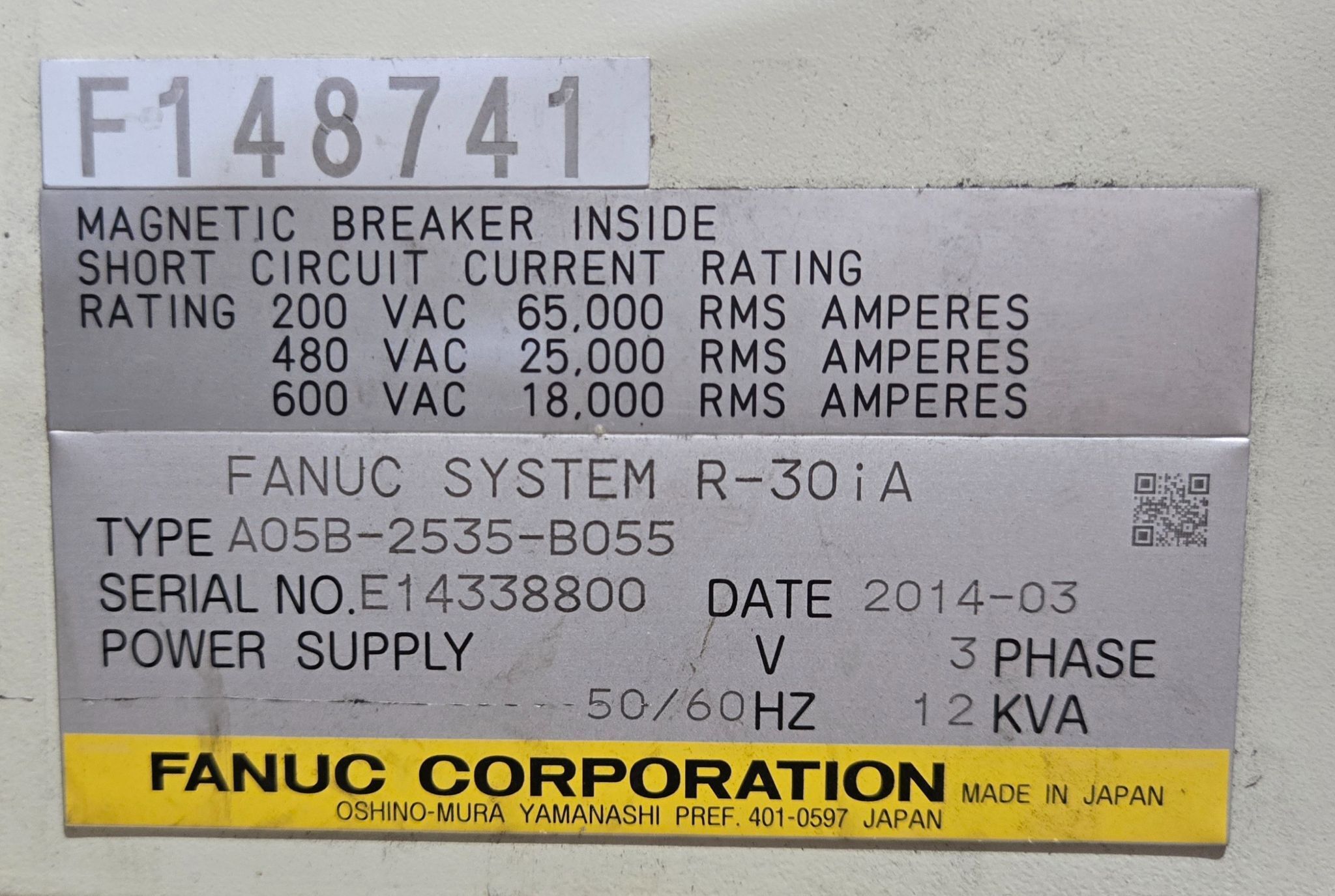

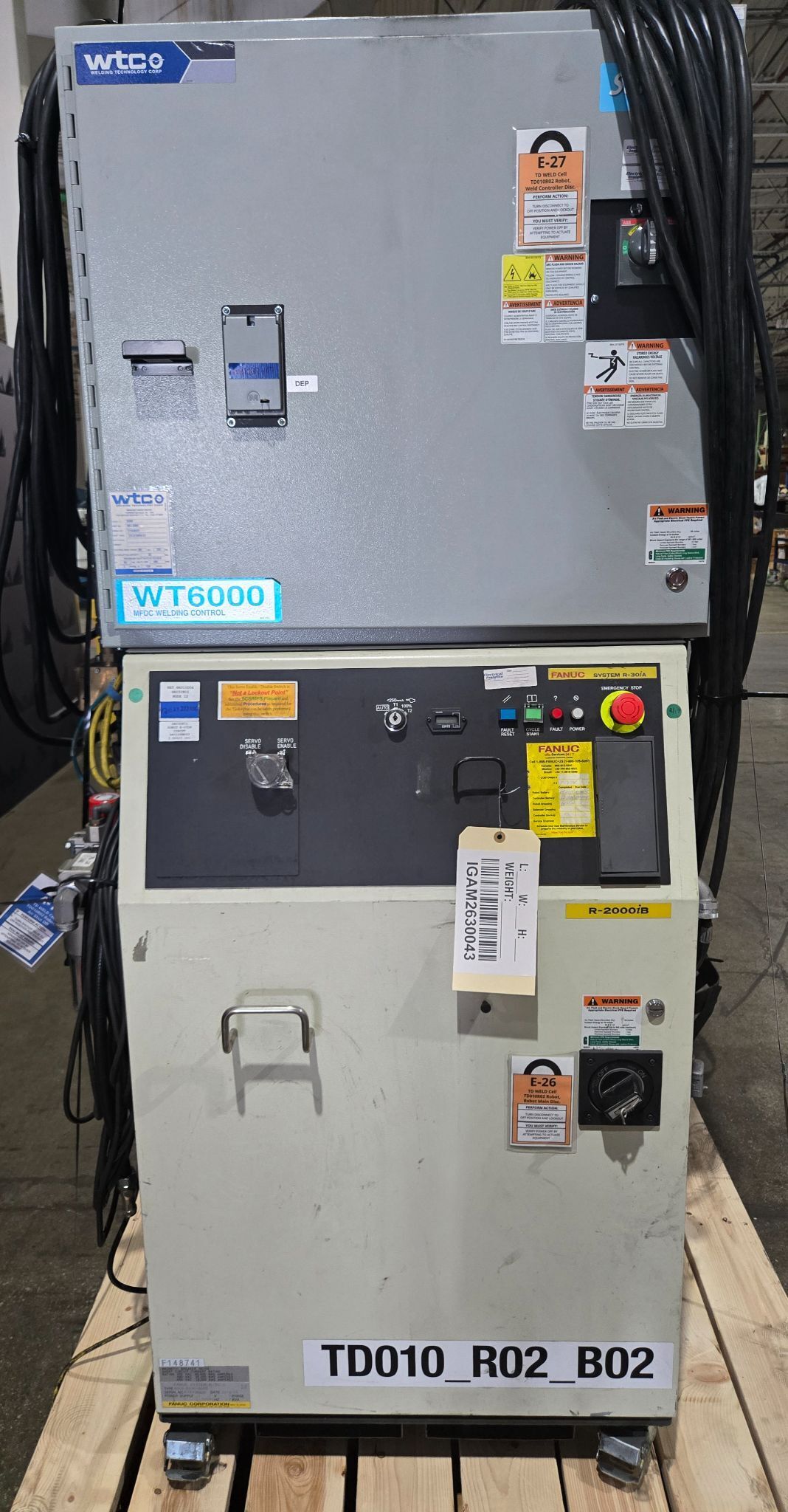

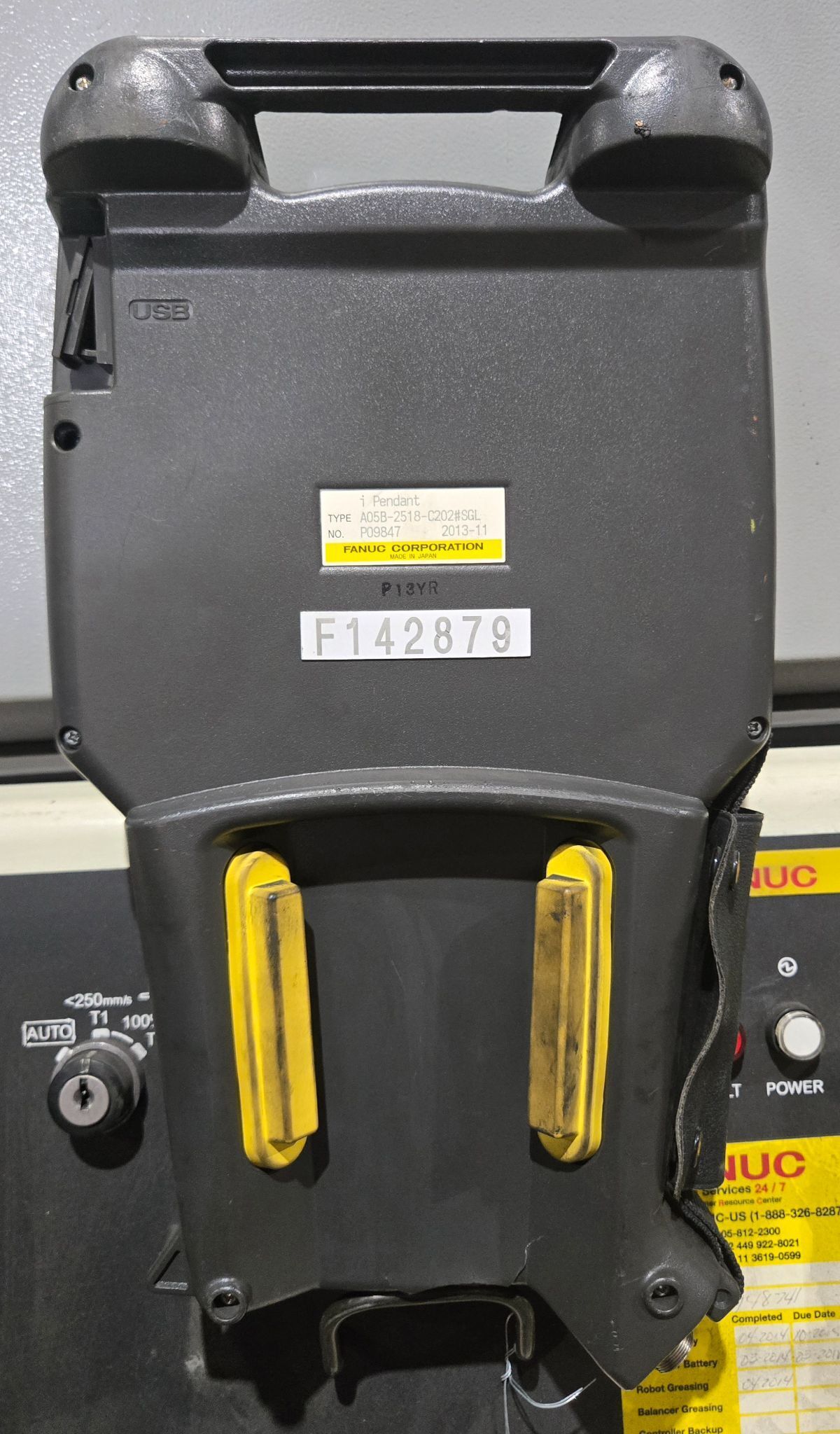

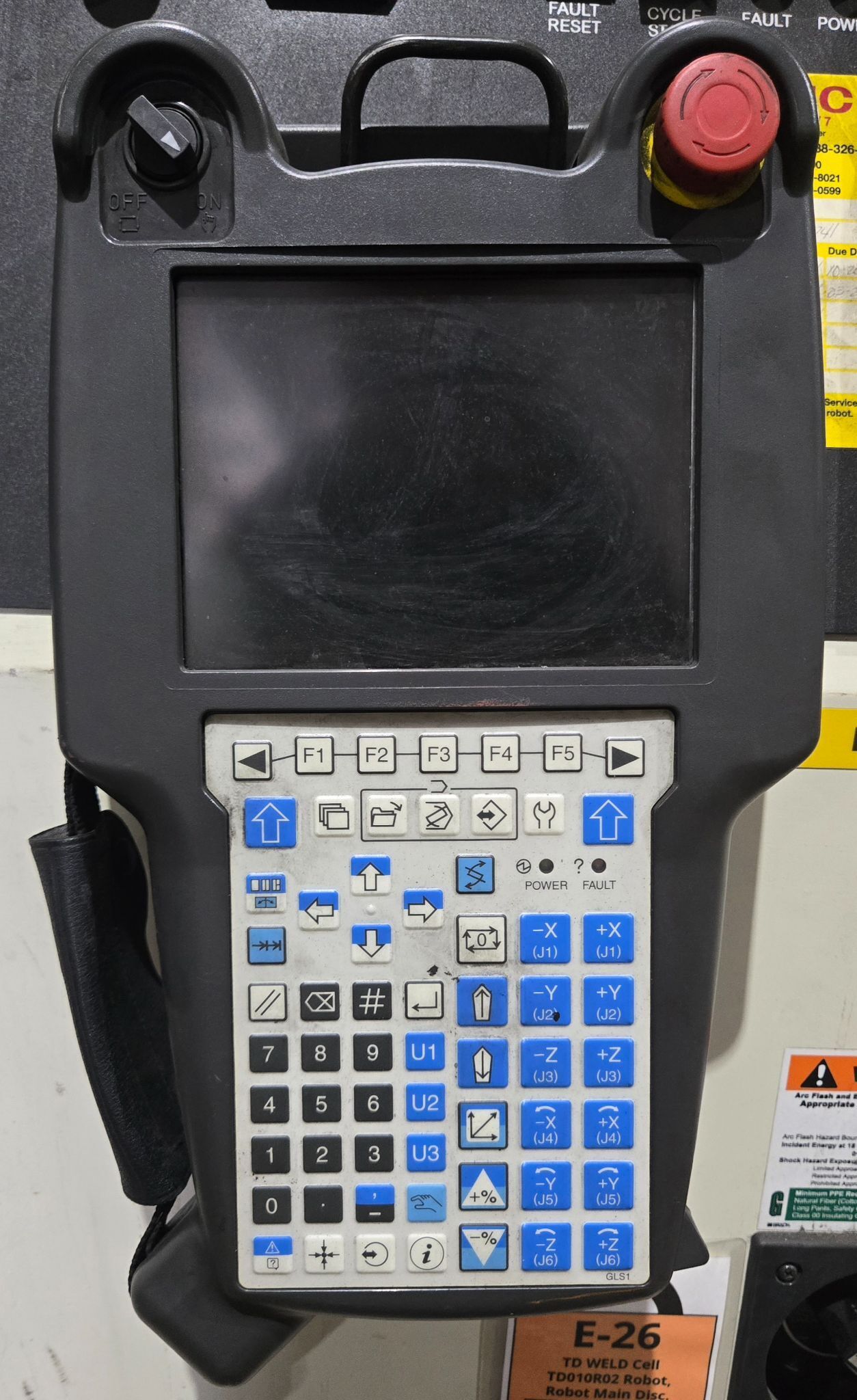

Manufacturer: FANUC Corporation Robot Model: R-2000iB/210F Robot Type Number: A05B-1328-B205 Robot Configuration: 6-Axis Articulated Payload Capacity: 210 kg Reach: 2655 mm Repeatability: ±0.2 mm Robot Weight: 1240 kg Controller Model: R-30iA Controller Part Number: A05B-2535-B055 Controller Mounting: Floor Cabinet Controller Power Supply: 3 Phase Input Voltage: 380–480 VAC Frequency: 50/60 Hz Apparent Power Rating: 12 kVA Short Circuit Current Rating: 200 VAC: 65,000 RMS A 480 VAC: 25,000 RMS A 600 VAC: 18,000 RMS A Weld Inverter: WTCO WT6000 Weld Process Capability: Spot Welding (supported by installed software) Teach Pendant Model: A05B-2518-C202#SGL Pendant Type: iPendant Software Version: V7.7 Spot + Runtime Hours: 7,272 YOM (Robot): 2014-04 YOM (Controller): 2014-03 YOM (Pendant): 2013-11 Axis Motion Range: J1: ±370° J2: ±136° J3: ±312° J4: ±720° J5: ±250° J6: ±720° Mounting Configuration: Floor Mounted Base Cable Package: Integrated Dress Pack End-of-Arm Tooling: Spot Weld Gun Assembly Installed Included Components: Robot Arm R-30iA Controller Cabinet WT6000 Weld Inverter Teach Pendant Interconnecting Cables
