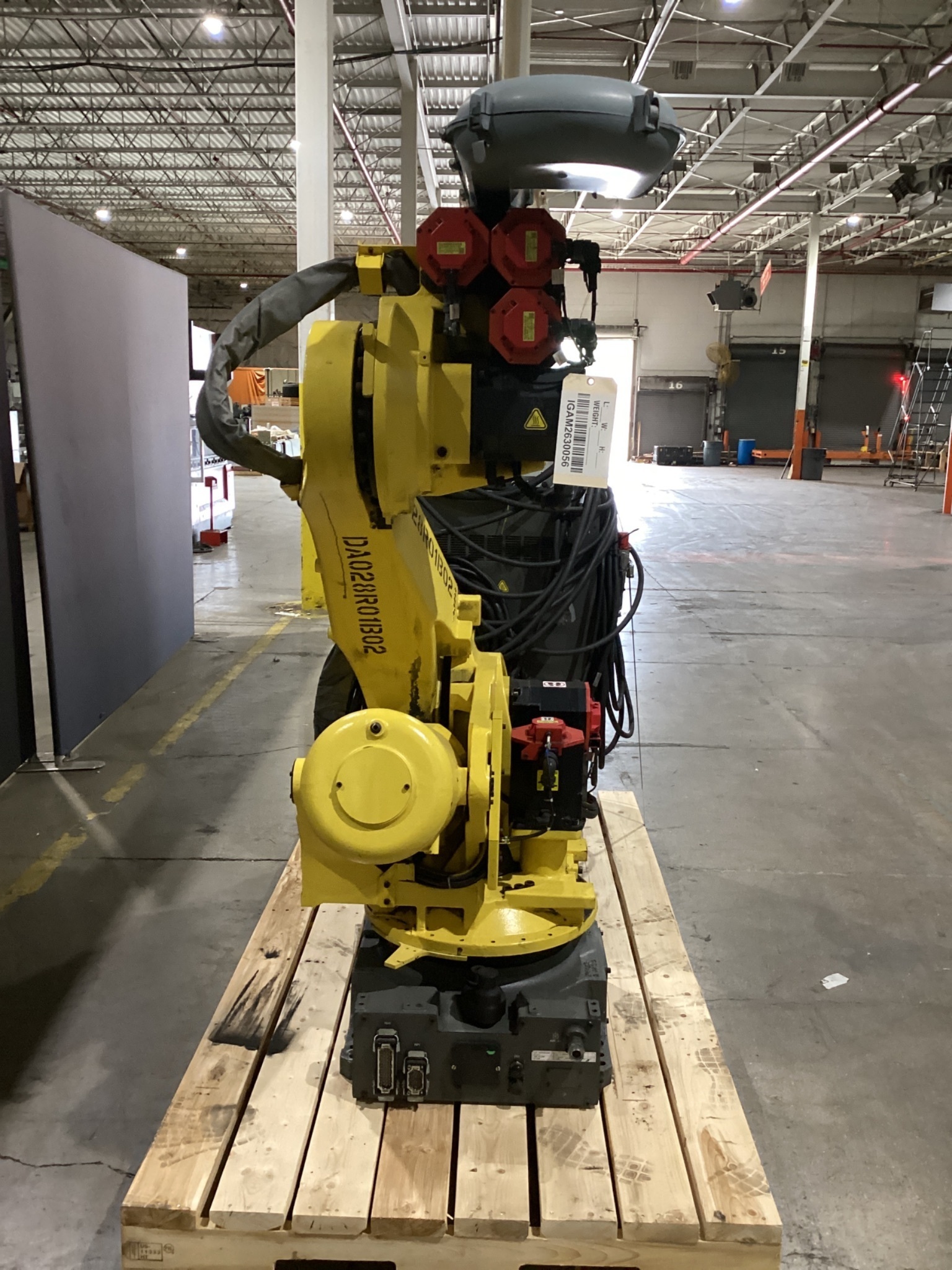

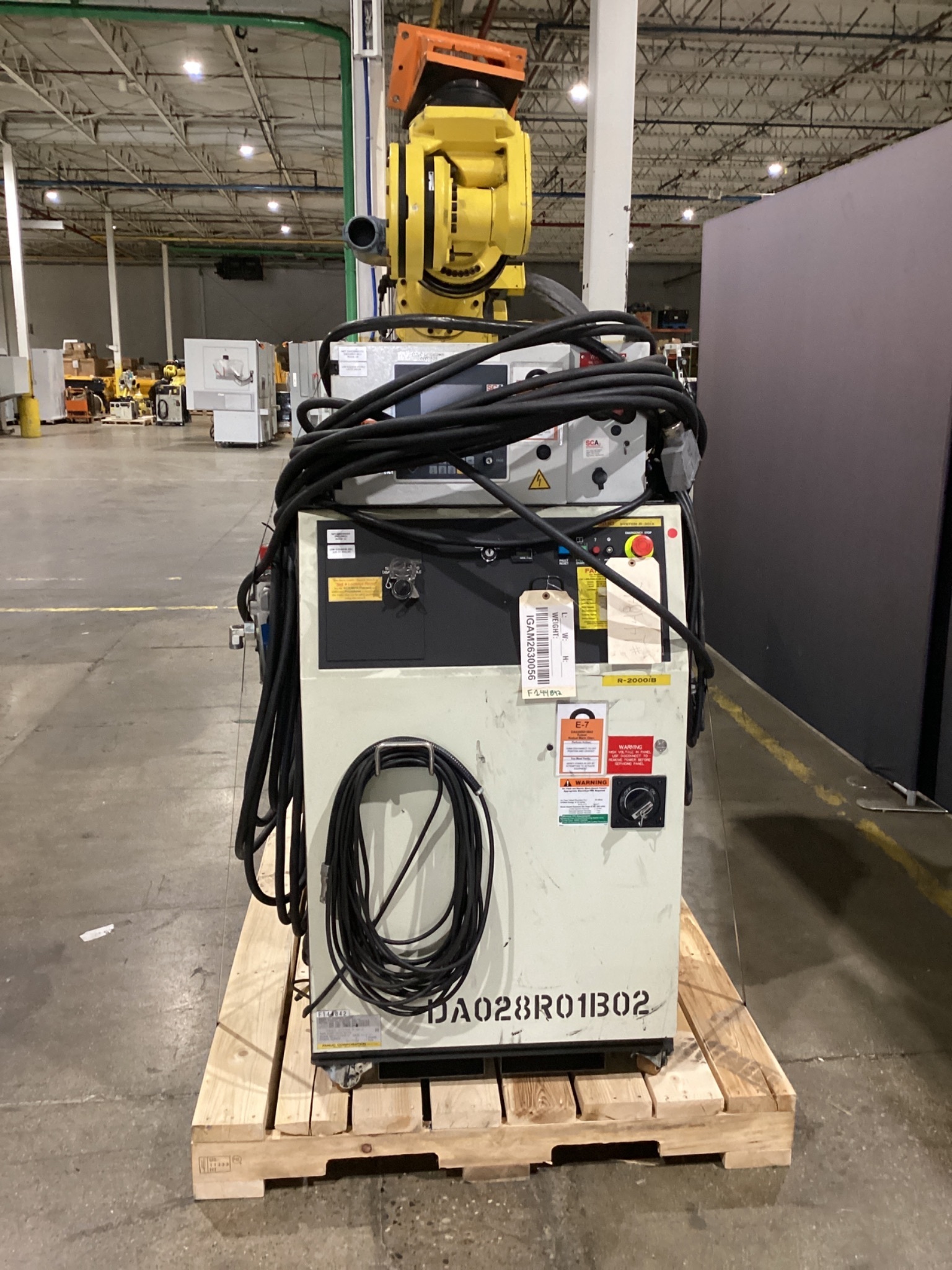

FANUC R-2000iB/185L Complete With R-30iA Controller & SCA Dispensing System USED

Specification Table

# Axis	6
Payload	185 kg
Horizontal Reach	3,100 mm
Vertical Reach	3,100 mm

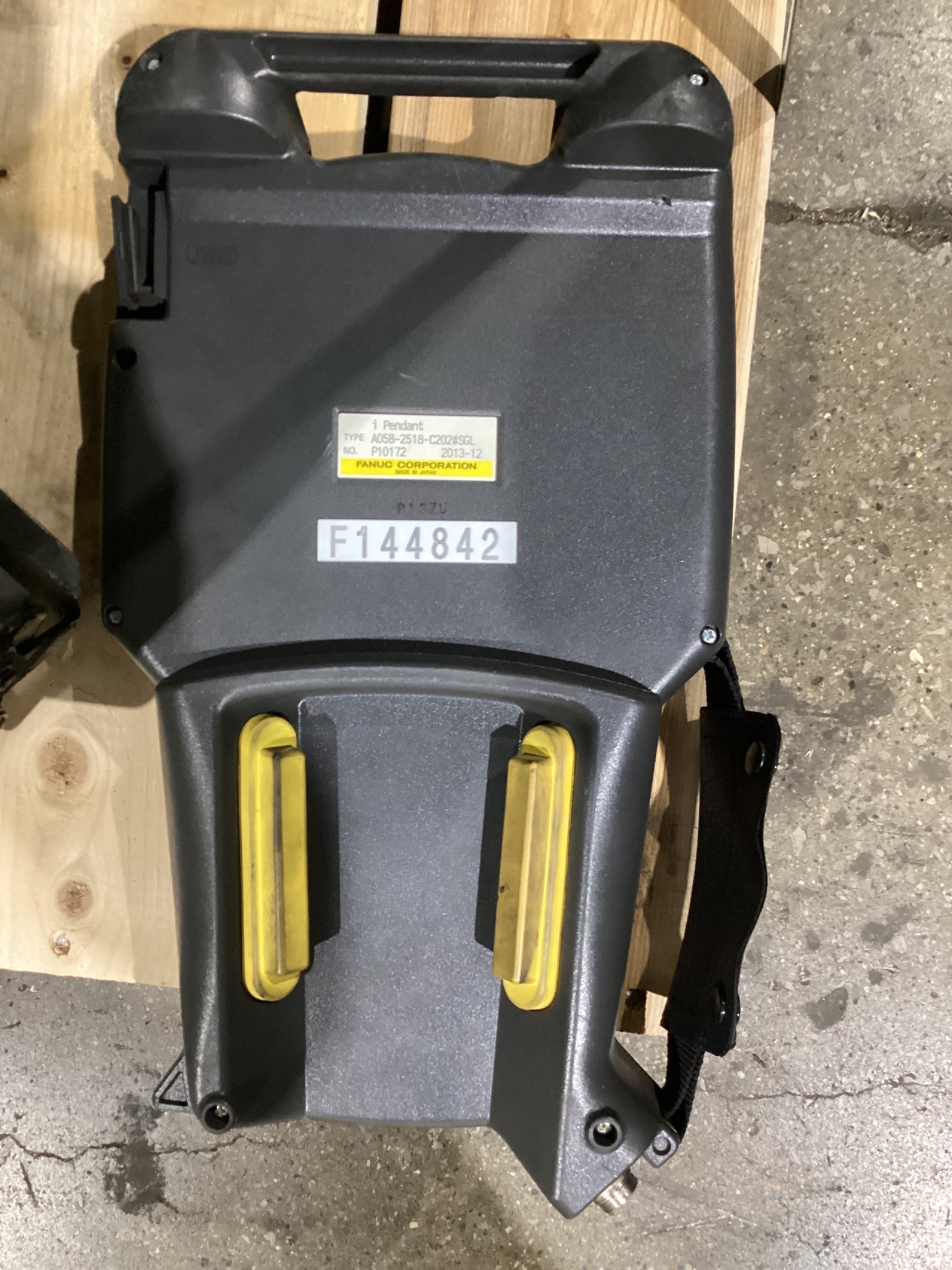

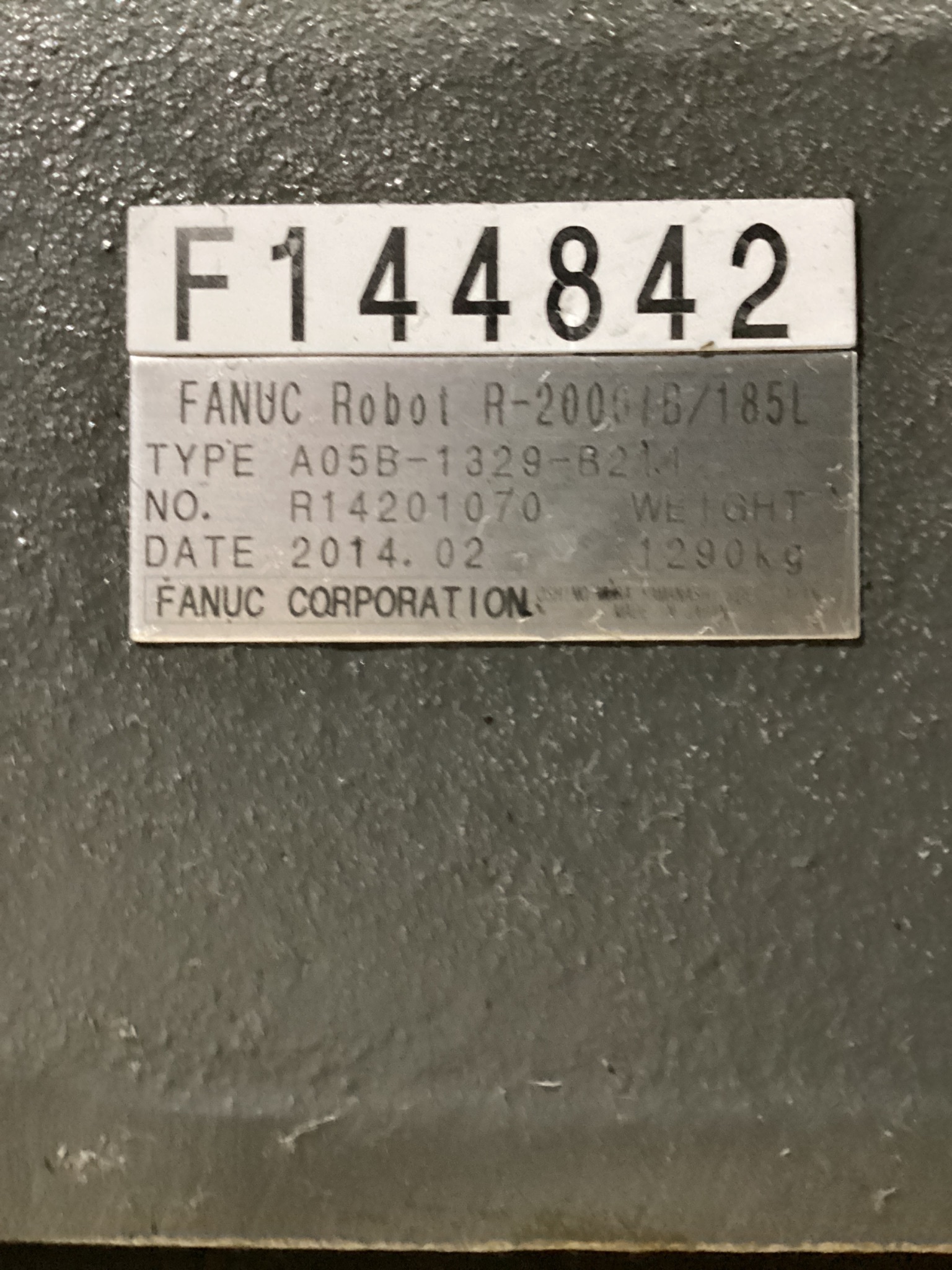

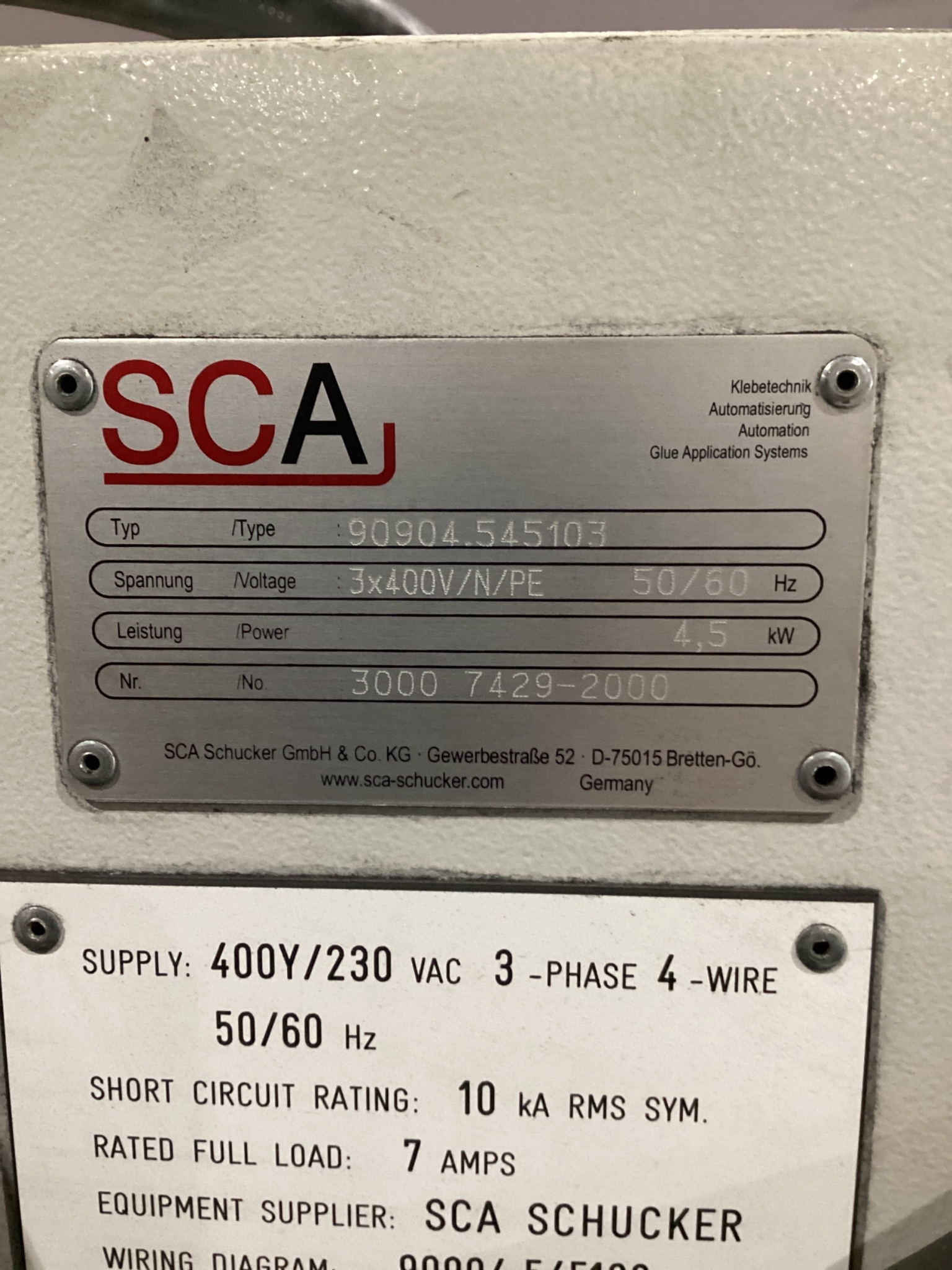

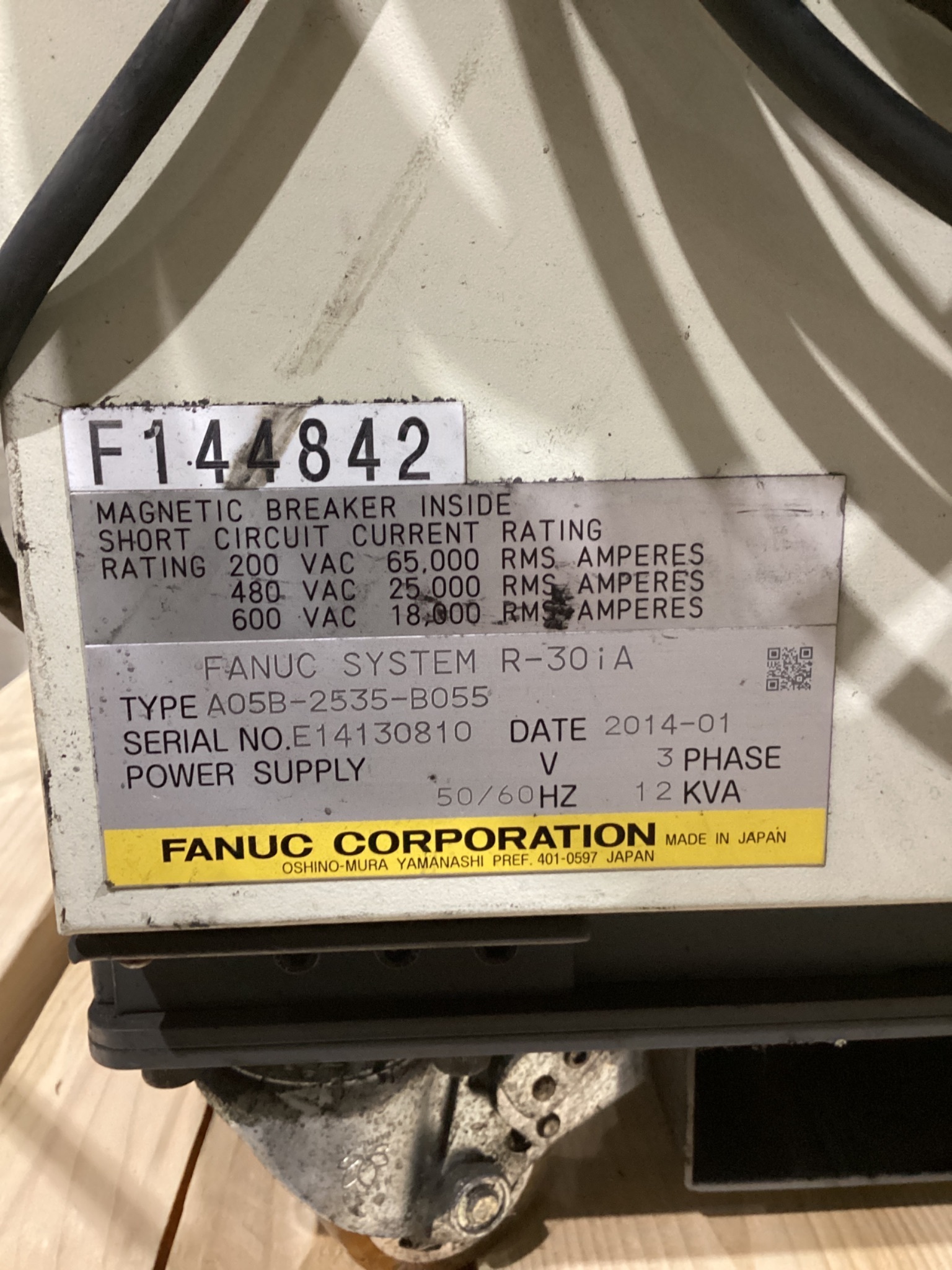

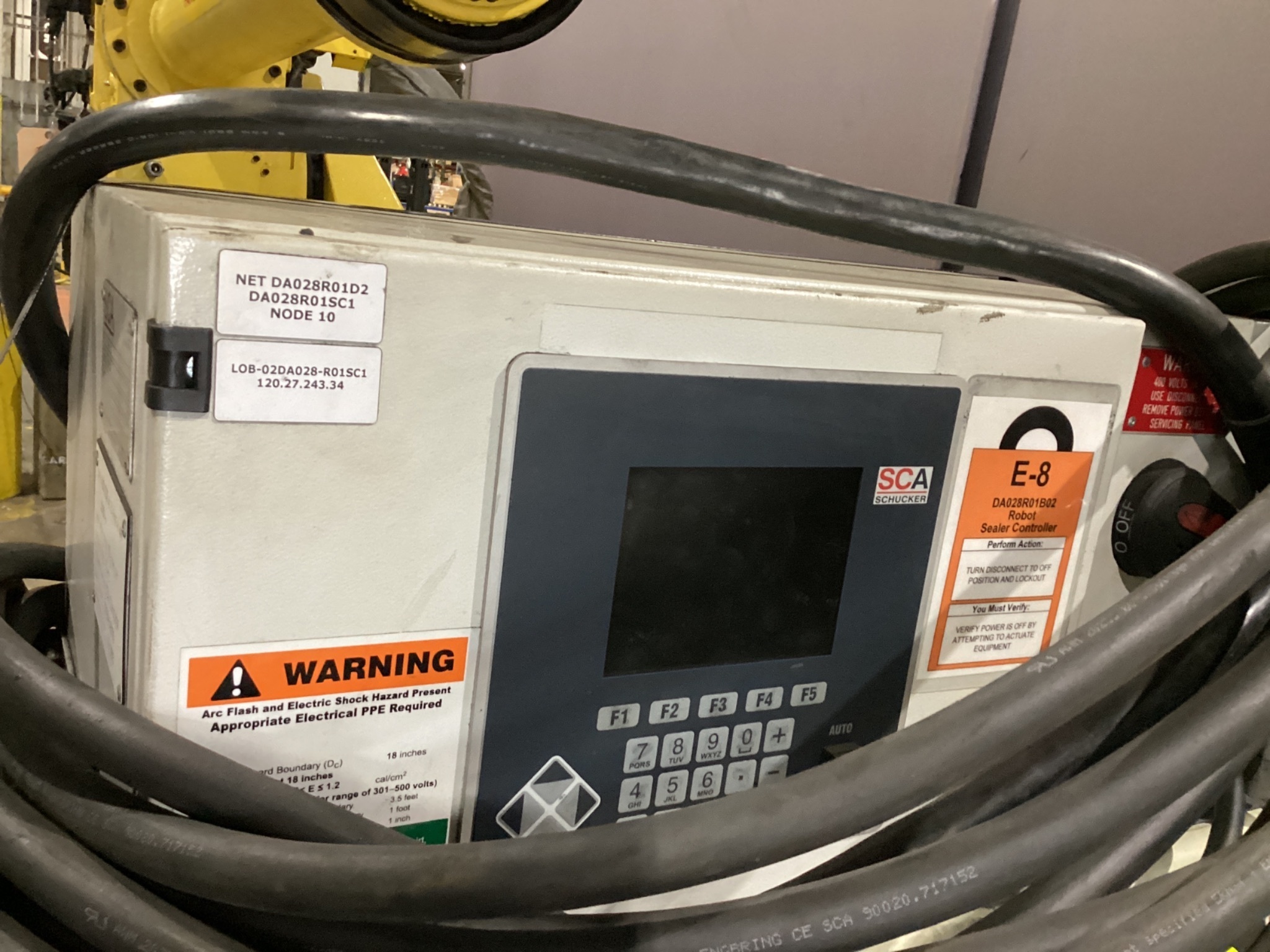

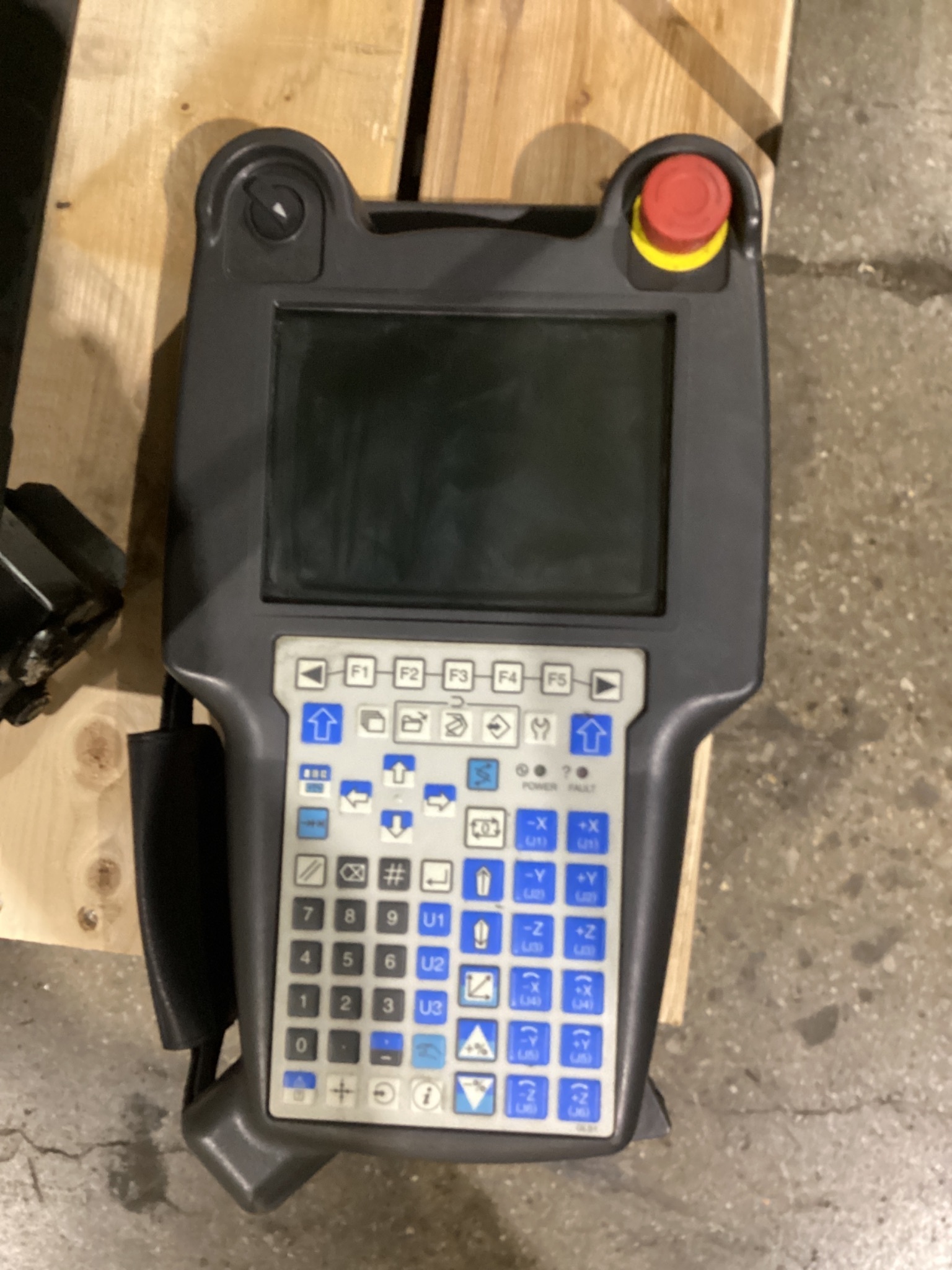

Manufacturer: FANUC   Robot Model: R-2000iB/185L Robot Type No.: A05B-1329-B201 Robot Serial Number: R14201070   Equipment Type: 6-Axis Robot   Payload Capacity: 185 kg Maximum Reach: 3100 mm Repeatability: ±0.2 mm Mechanical Weight: 1290 kg   Mounting Position: Floor   Controller Model: R-30iA Controller Type No.: A05B-2535-B055 Controller Serial No.: E14130810   Teach Pendant: Included Pendant Type No.: A05B-2518-C202#SGL Pendant Number: P10172   Process Equipment Manufacturer: SCA Schucker   System Type: Glue Application System Application: Adhesive Dispensing   SCA Type No.: 90904545103 SCA Serial No.: 3000 7429-2000   Voltage: 3x400V/N/PE Frequency: 50/60 Hz Power Rating: 4.5 kW   Supply Voltage: 400Y/230 VAC Phase: 3 Phase 4 Wire   Short Circuit Rating: 10 kA RMS Sym. Rated Full Load Amps: 7 A   Robot Manufacture Date: 2014-02 Controller Date: 2014-01 Pendant Date: 2013-12   Controller Frequency: 50/60 Hz Controller Phase: 3 Phase Controller Power: 12 kVA   SCCR @ 200 VAC: 65,000 RMS A SCCR @ 480 VAC: 25,000 RMS A SCCR @ 600 VAC: 18,000 RMS A   Country of Manufacture: Japan   YOM: 2014
