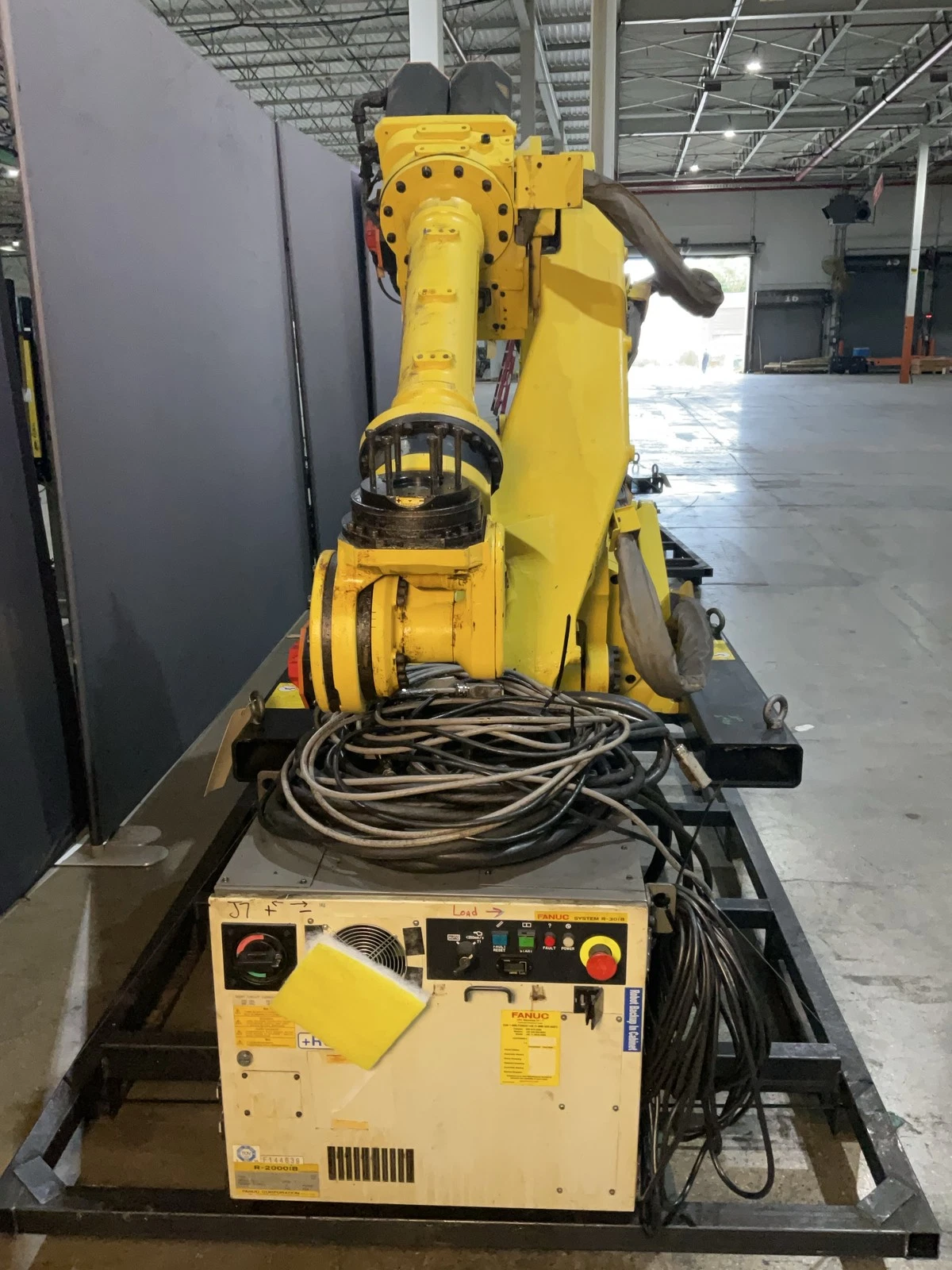

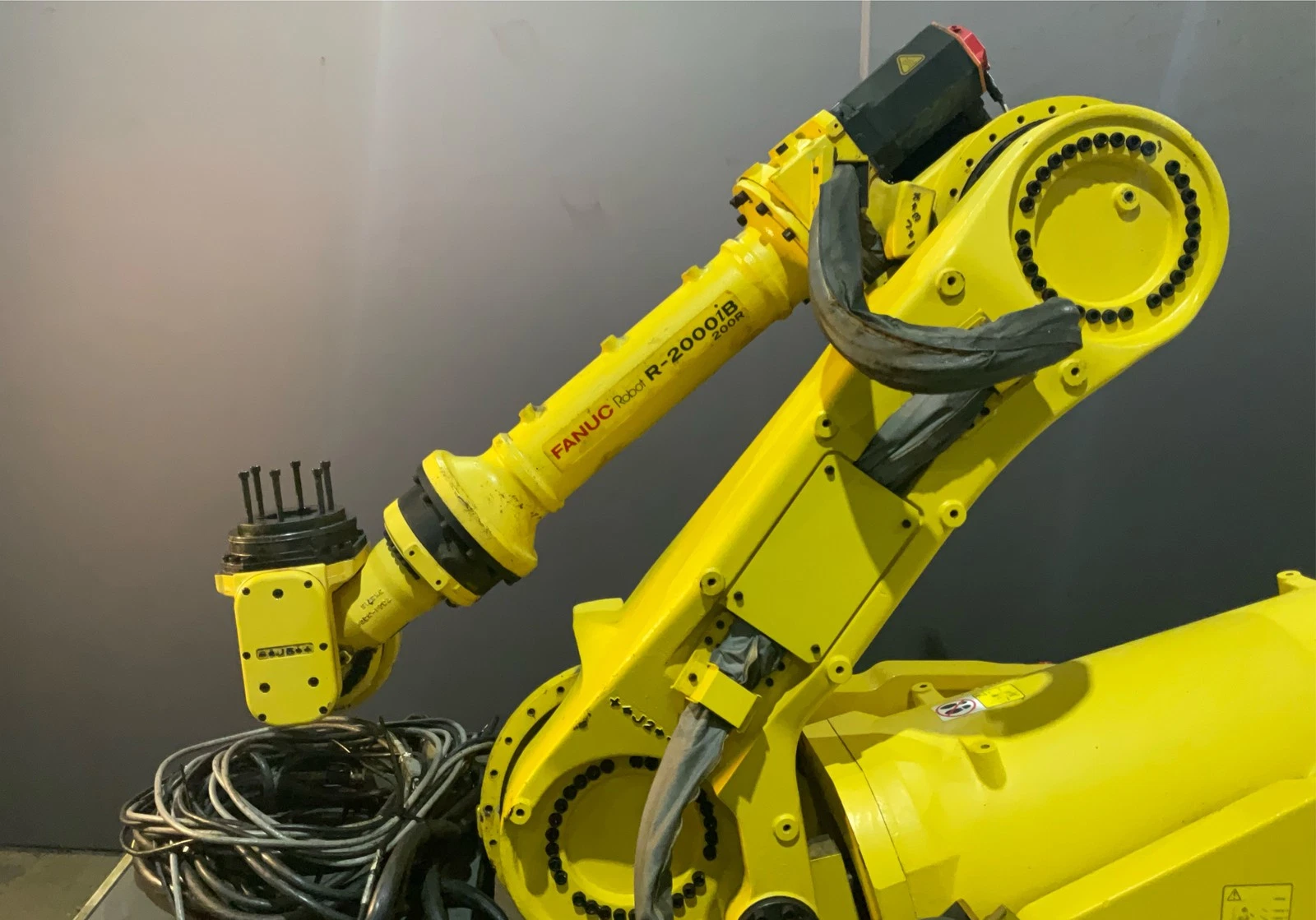

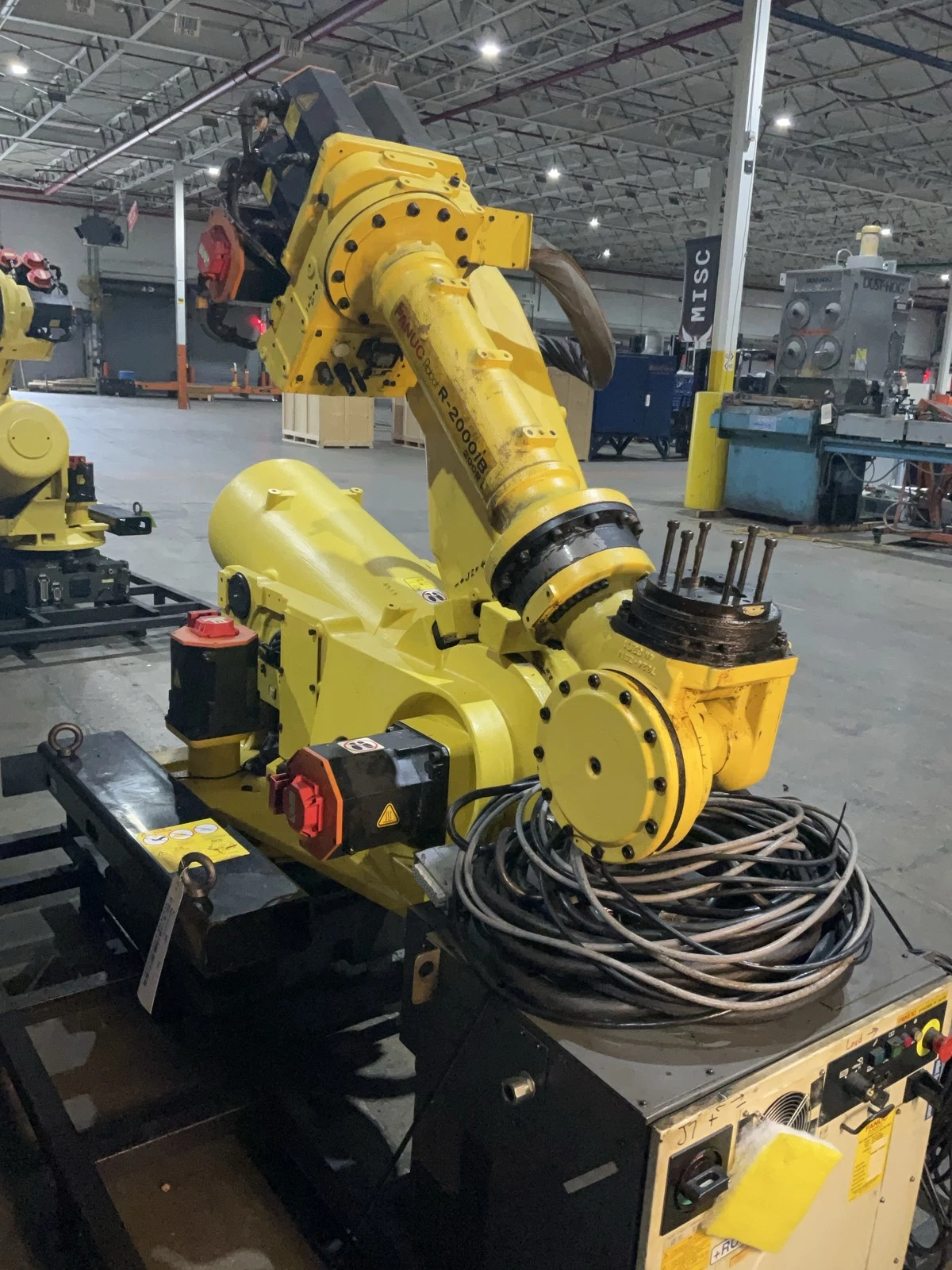

FANUC R-2000iB/200R Complete with R-30iB Controller USED

Specification Table

No. of Axis	6
Payload Capacity	200 KG
Arm Reach	3095 MM
Repeatability	0.2 MM
Robot Mass	1540 KG
Controller	R-30IB
Mounting	RACK/FLOOR
Teach Pendant Model	IPENDANT INCLUDED

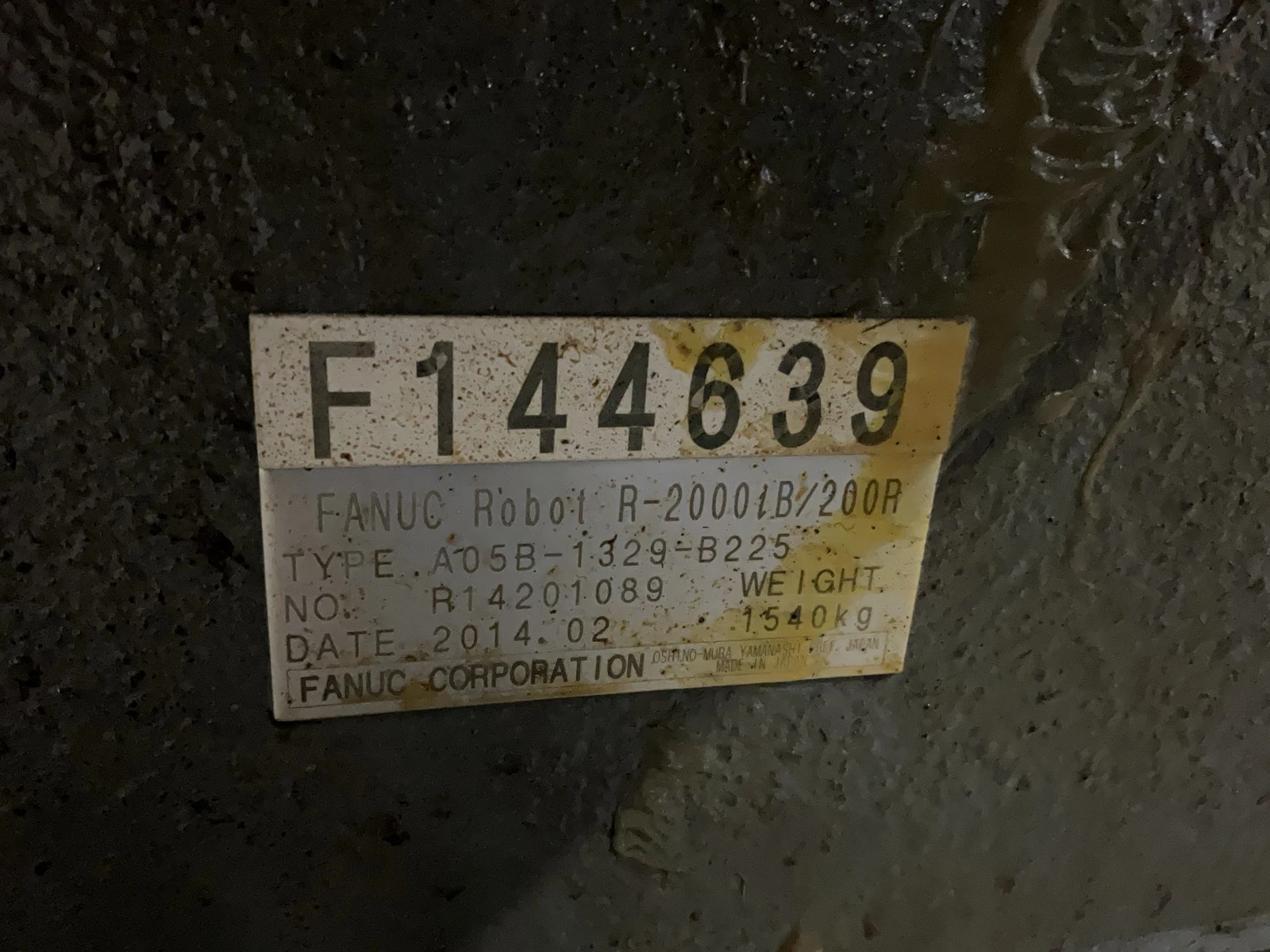

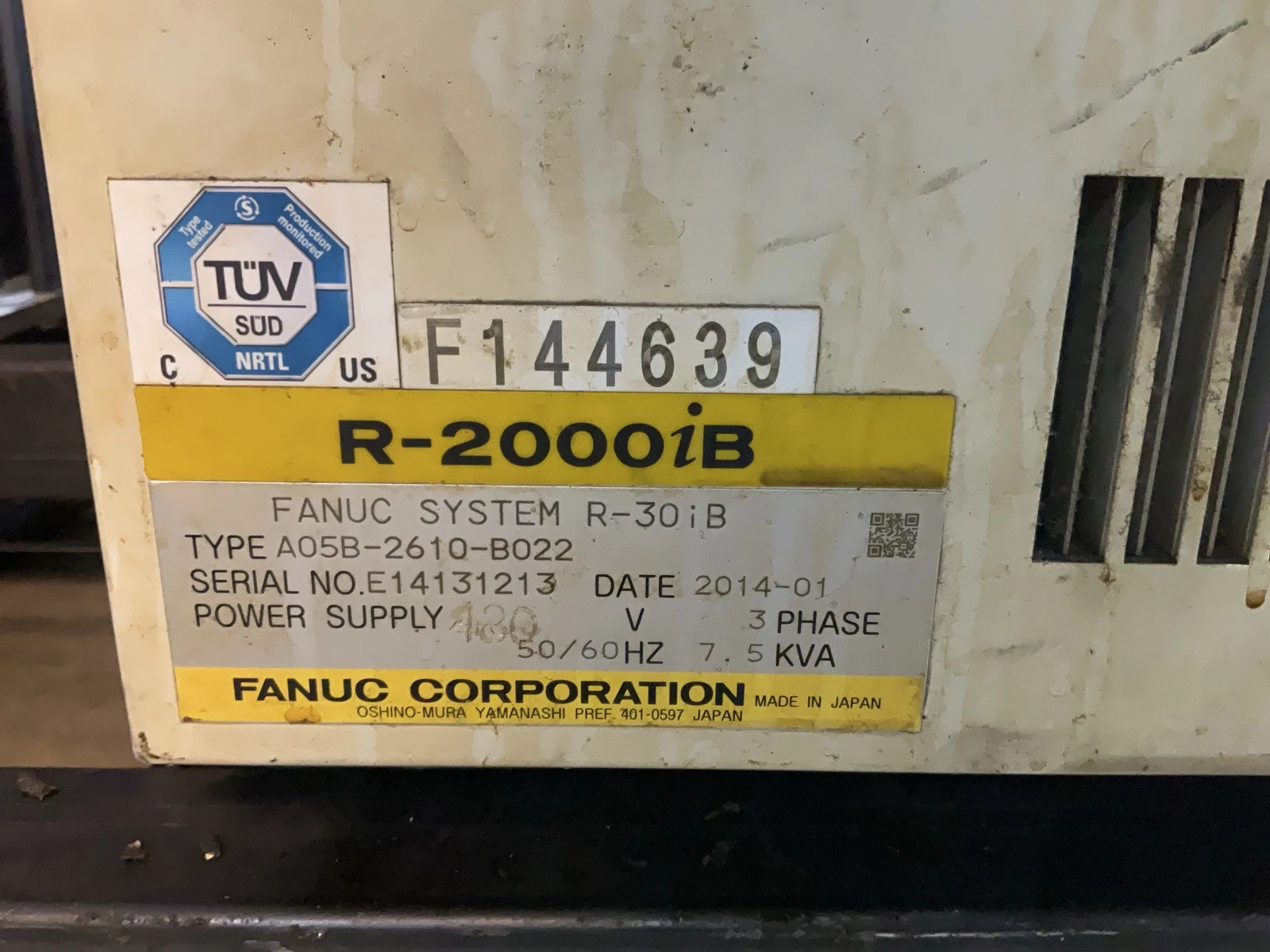

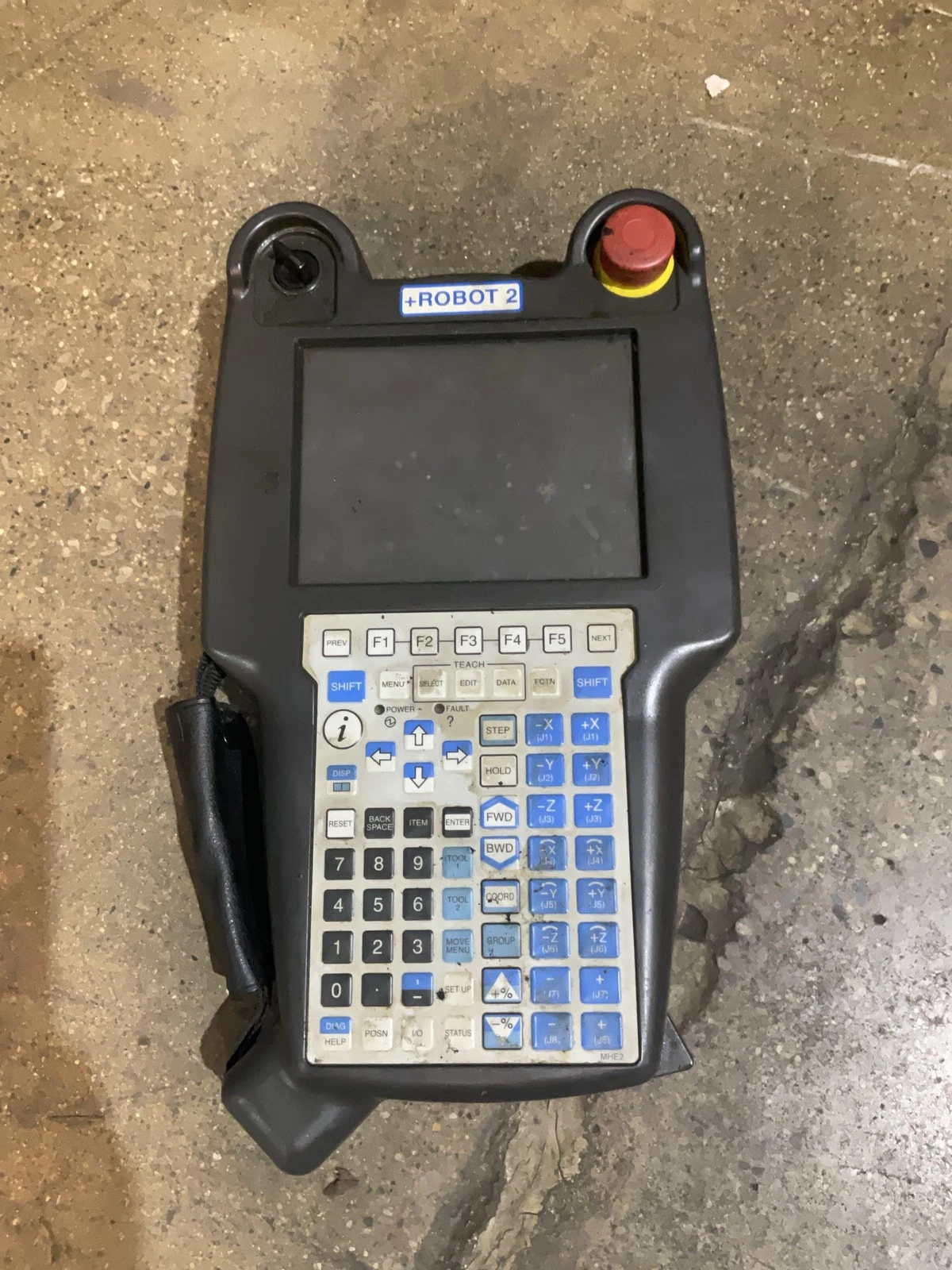

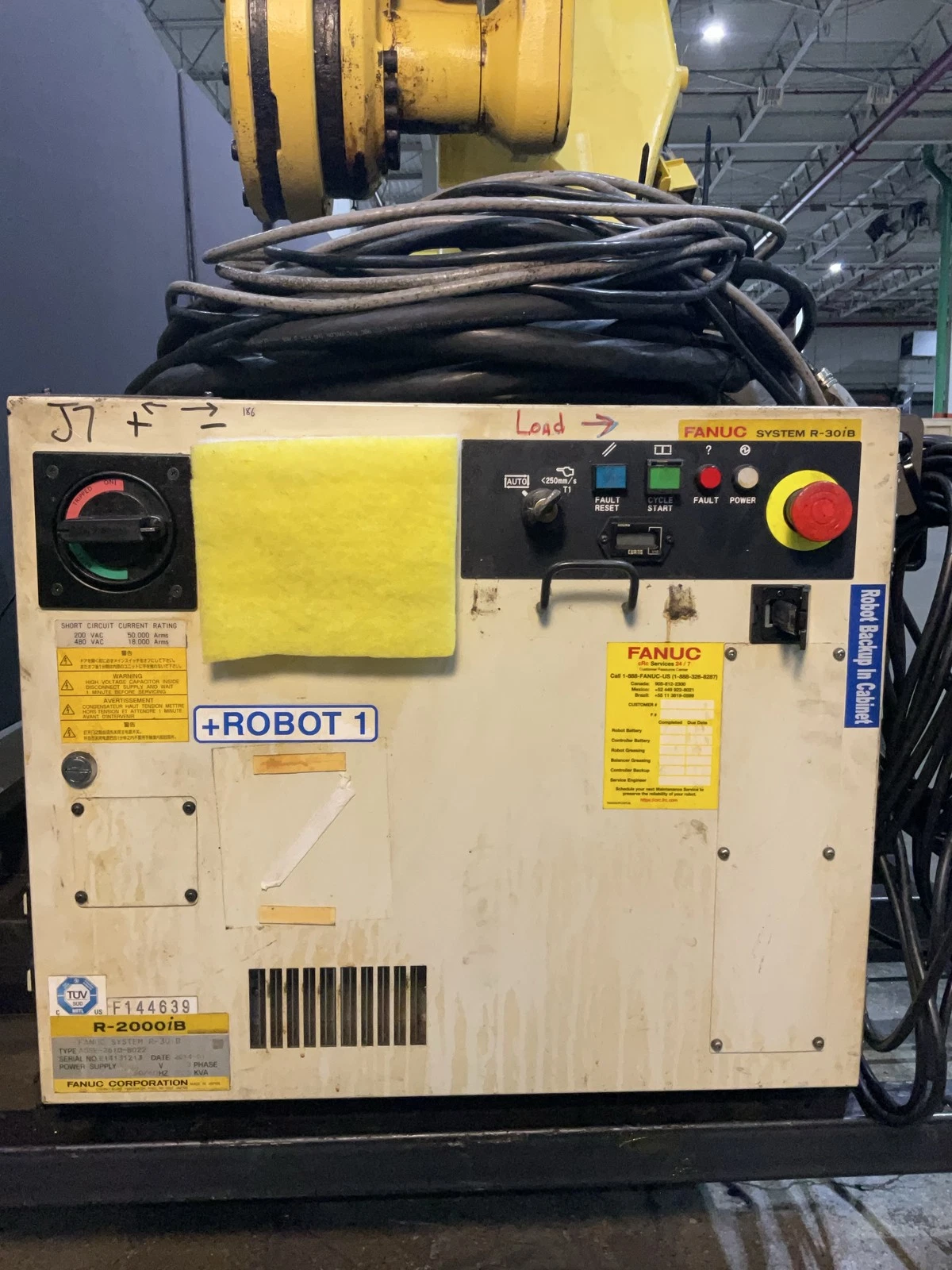

IDENTIFICATION Manufacturer: FANUC Robot Model: R-2000iB/200R Robot Type Number: A05B-1329-B225 Robot Serial Number: R14201089 Controller Model: R-30iB Controller Type Number: A05B-2610-B022 Controller Serial Number: E14131213 Condition: USED Robot Manufacture Date: 2014-02 Controller Manufacture Date: 2014-01 Country of Manufacture: Japan SYSTEM COMPONENTS Robot: Included Controller: Included Teach Pendant: Included Robot-to-Controller Cables: Included ROBOT DATA Configuration: 6-Axis Articulated Robot Variant: Extended Reach Payload Capacity: 200 kg Maximum Reach: 3095 mm Repeatability: ±0.2 mm Robot Weight: 1540 kg Robot Footprint: 771 x 610 mm MOUNTING CONFIGURATION Primary Mounting Style: Rack Mount Floor Mount Capability: Yes Angle Mount Capability: Yes Upside-Down Mount Capability: Yes MOTION DATA J1 Motion Range: ±185° J2 Motion Range: +75° / -60° J3 Motion Range: +230° / -132° J4 Motion Range: ±360° J5 Motion Range: ±125° J6 Motion Range: ±360° CONTROLLER DATA Controller Family: R-30iB Power Supply Voltage: 480 VAC Input Phase: 3 Phase Frequency: 50 / 60 Hz Power Requirement: 7.5 kVA TEACH PENDANT Manufacturer: FANUC Pendant Type Number: A05B-2255-C101#EMH Pendant Serial Number: P007501 Pendant Manufacture Date: 2014-01 INTEGRATED SERVICES Upper Arm Signals: 8 Inputs / 8 Outputs Integrated Air Supply: 2 Circuits PROTECTION Body Protection Rating: IP54 / IP56 Wrist Protection Rating: IP67 J3 Arm Protection Rating: IP67 ENVIRONMENTAL Ambient Operating Temperature: 0°C to 45°C Acoustic Noise Level: 70.5 dB APPLICATION DATA Material Handling: Yes Machine Tending: Yes Press Tending: Yes Palletizing: Yes Depalletizing: Yes Part Transfer: Yes General Automation: Yes
