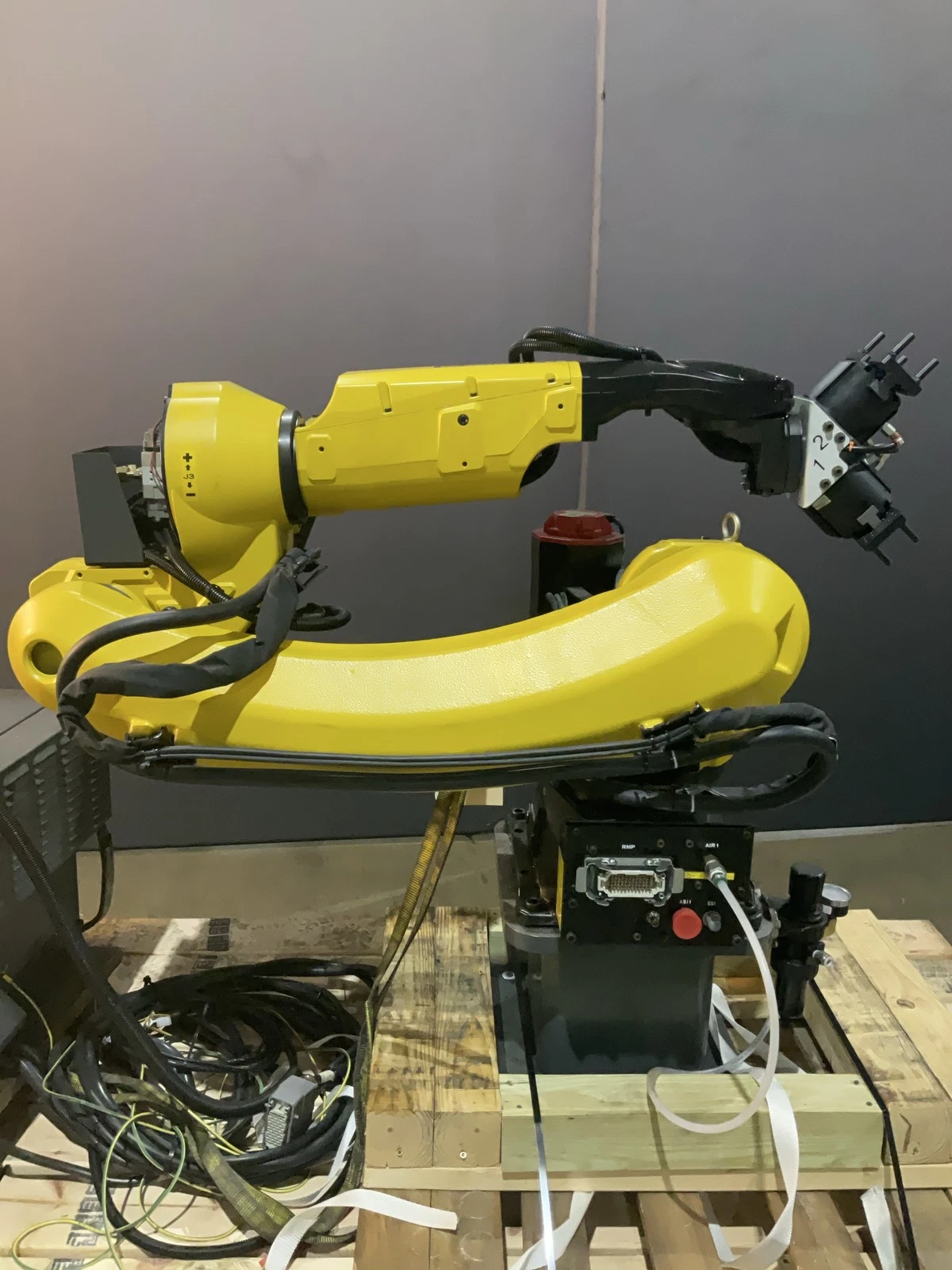

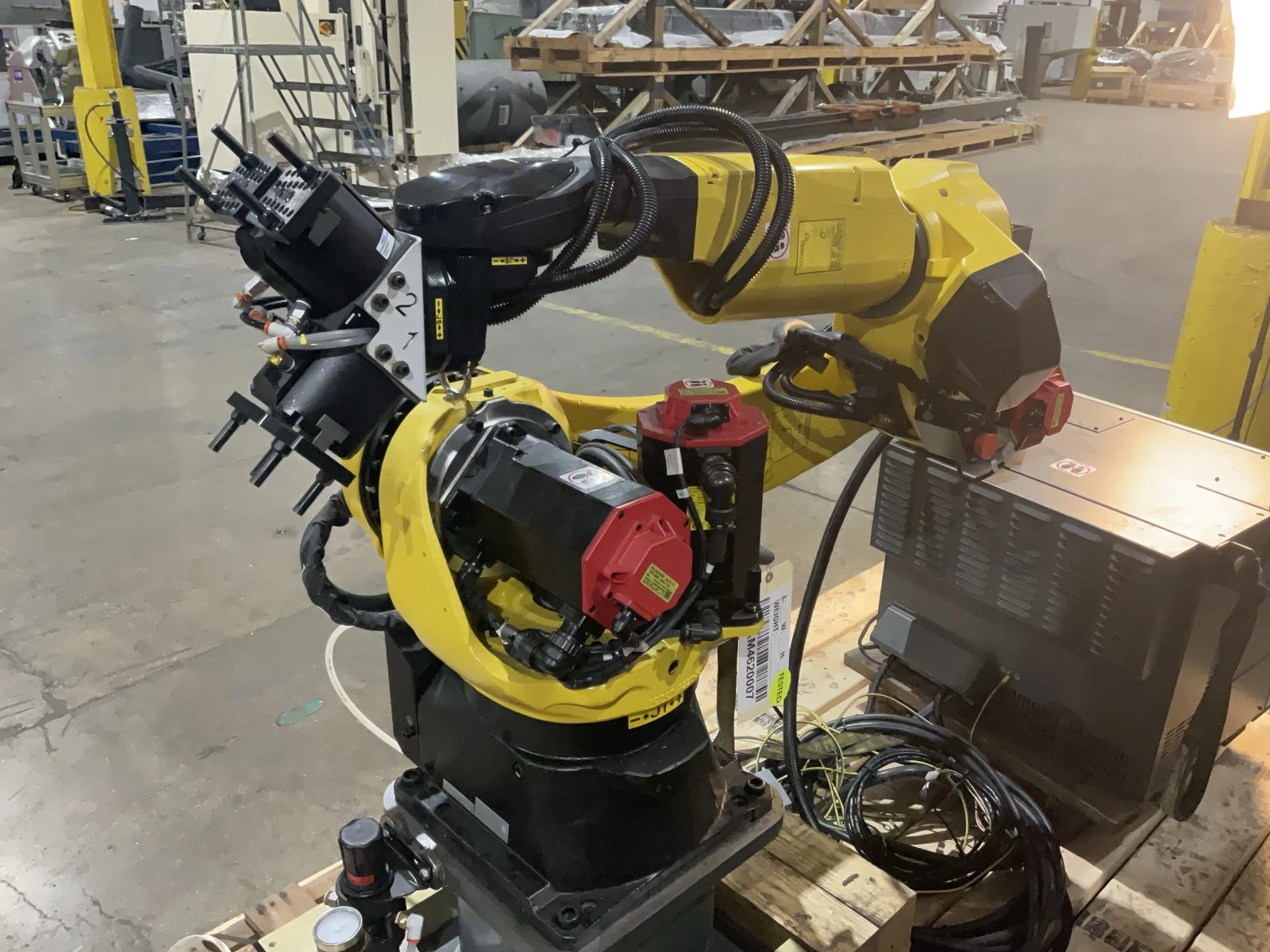

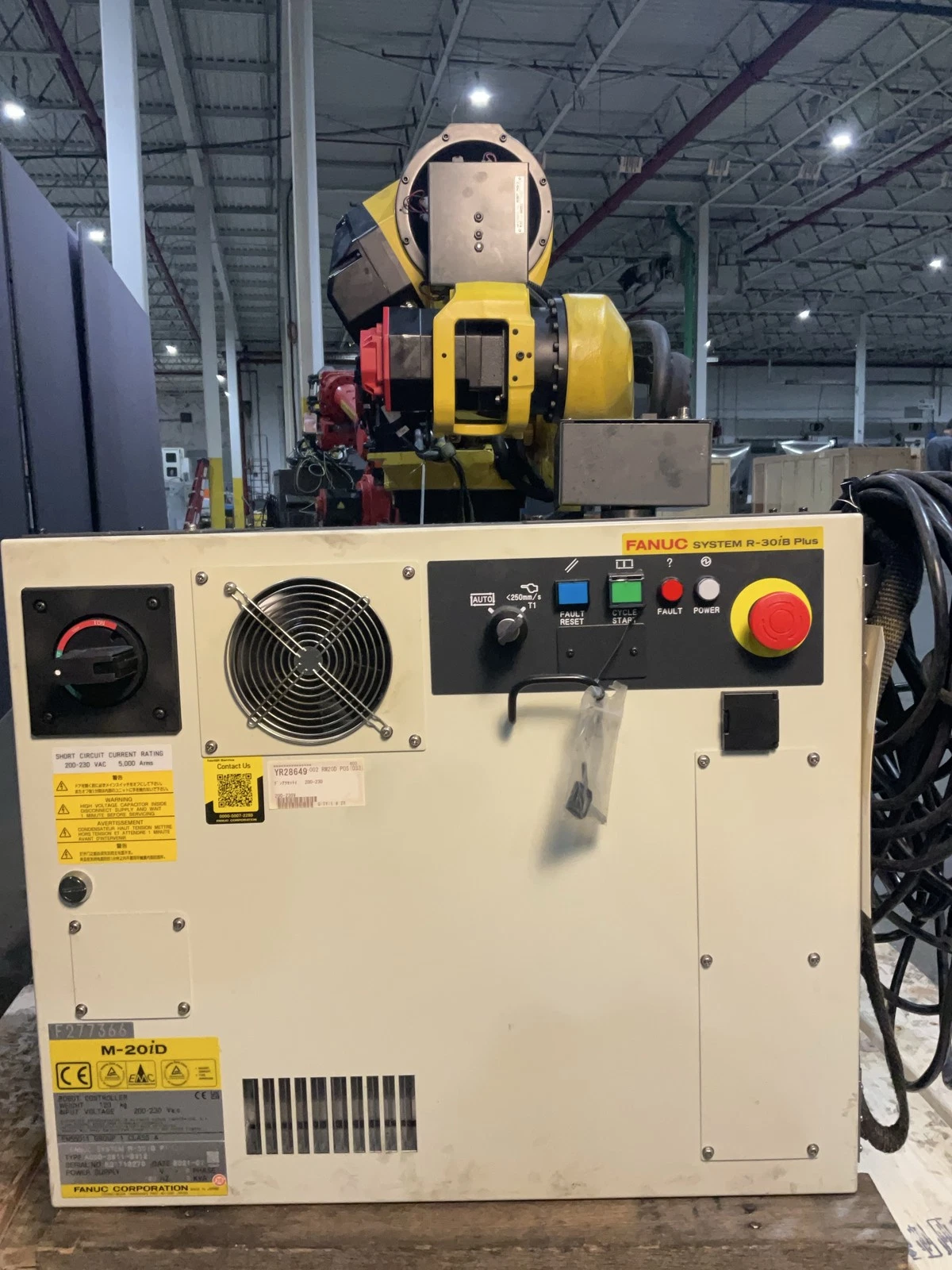

FANUC M-20iD/25 Robot with R-30iB Plus Controller – LOW HOURS -USED

Specification Table

No. of Axis	6
Payload Capacity	25 KG
Arm Reach	1831 MM
Repeatability	0.02 MM
Robot Mass	250 KG

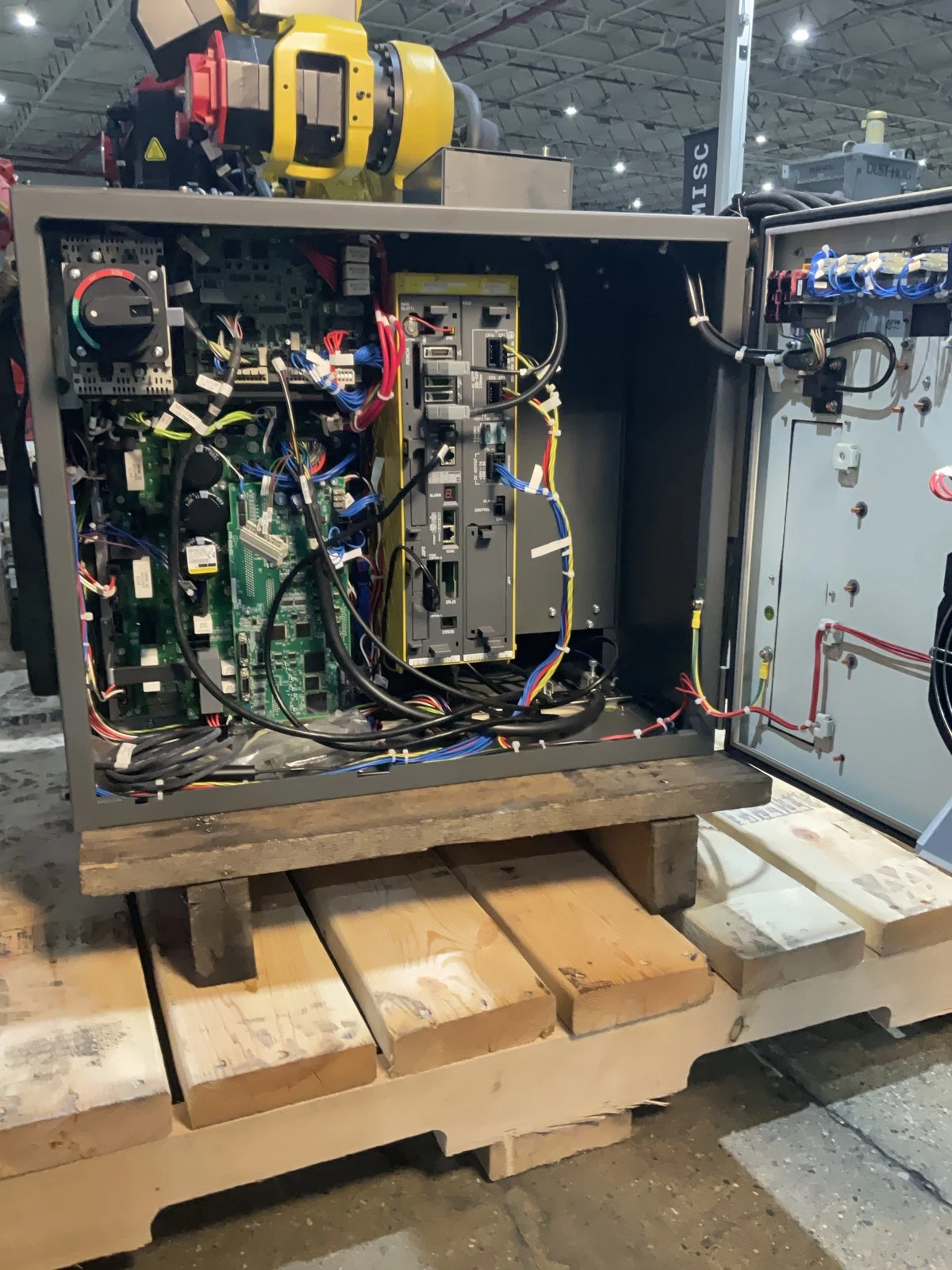

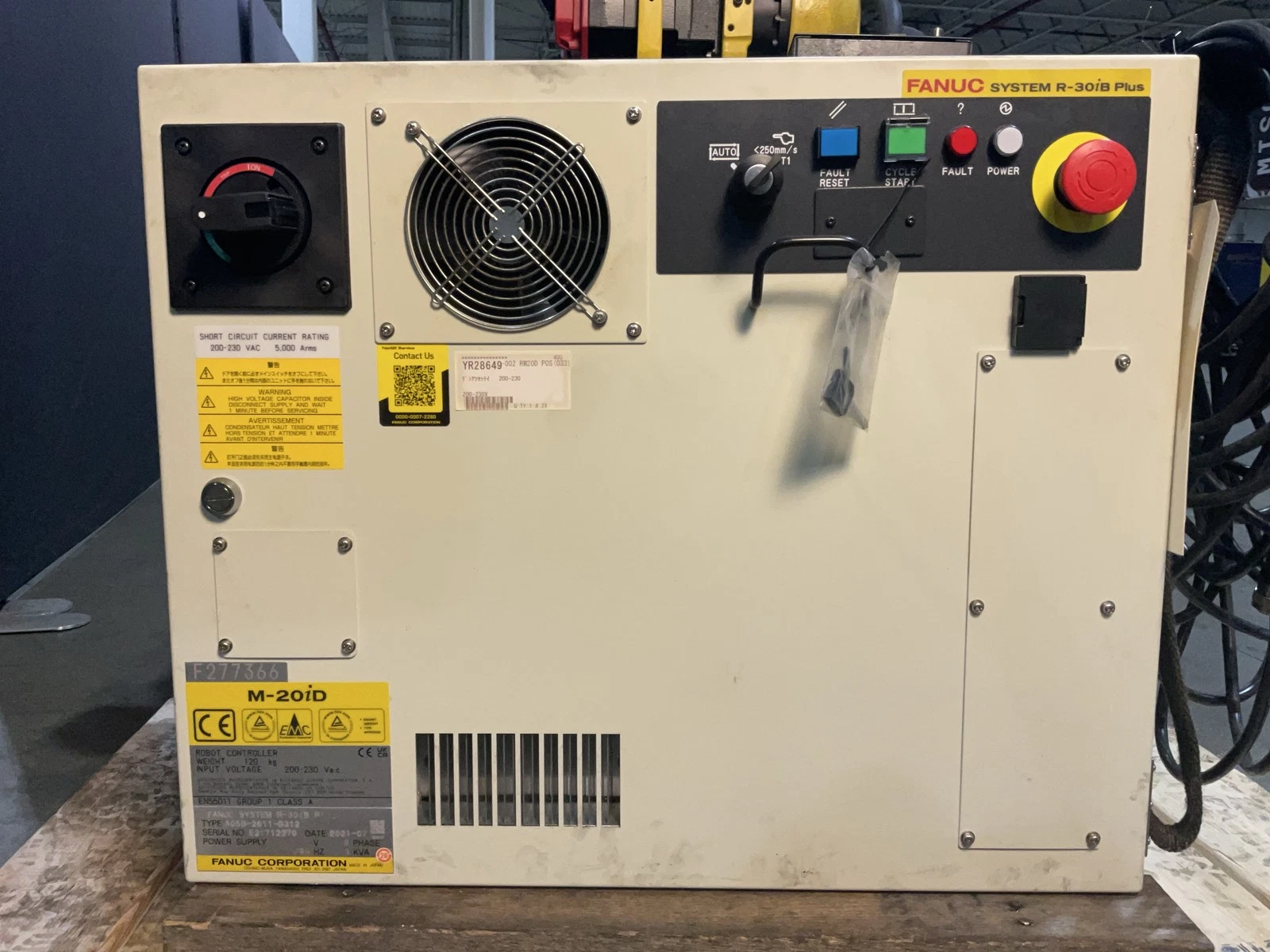

Controller	R-30IB PLUS
Mounting	FLOOR/ANGLE/WALL/INVERTED
Teach Pendant Model	NO PENDANT

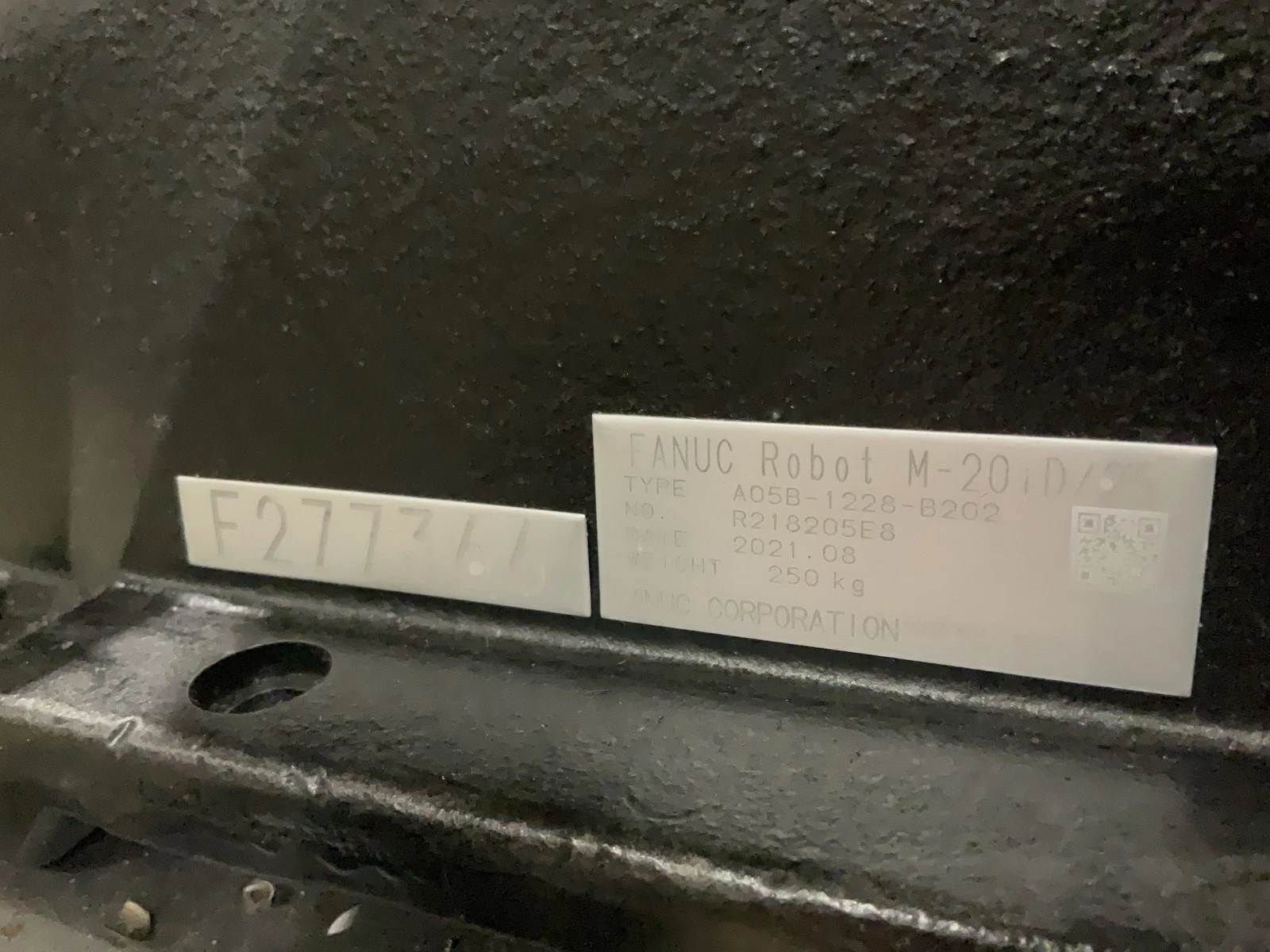

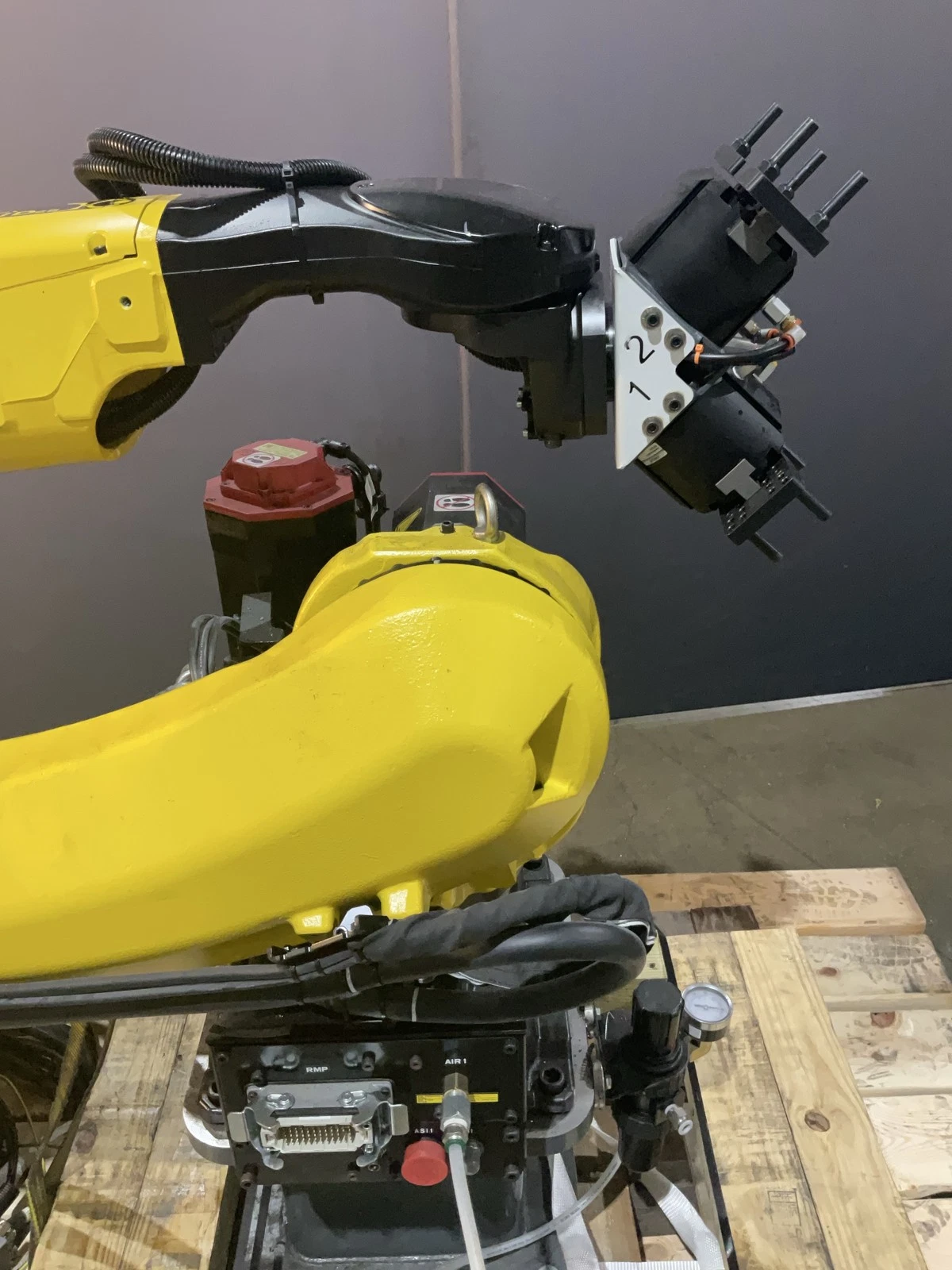

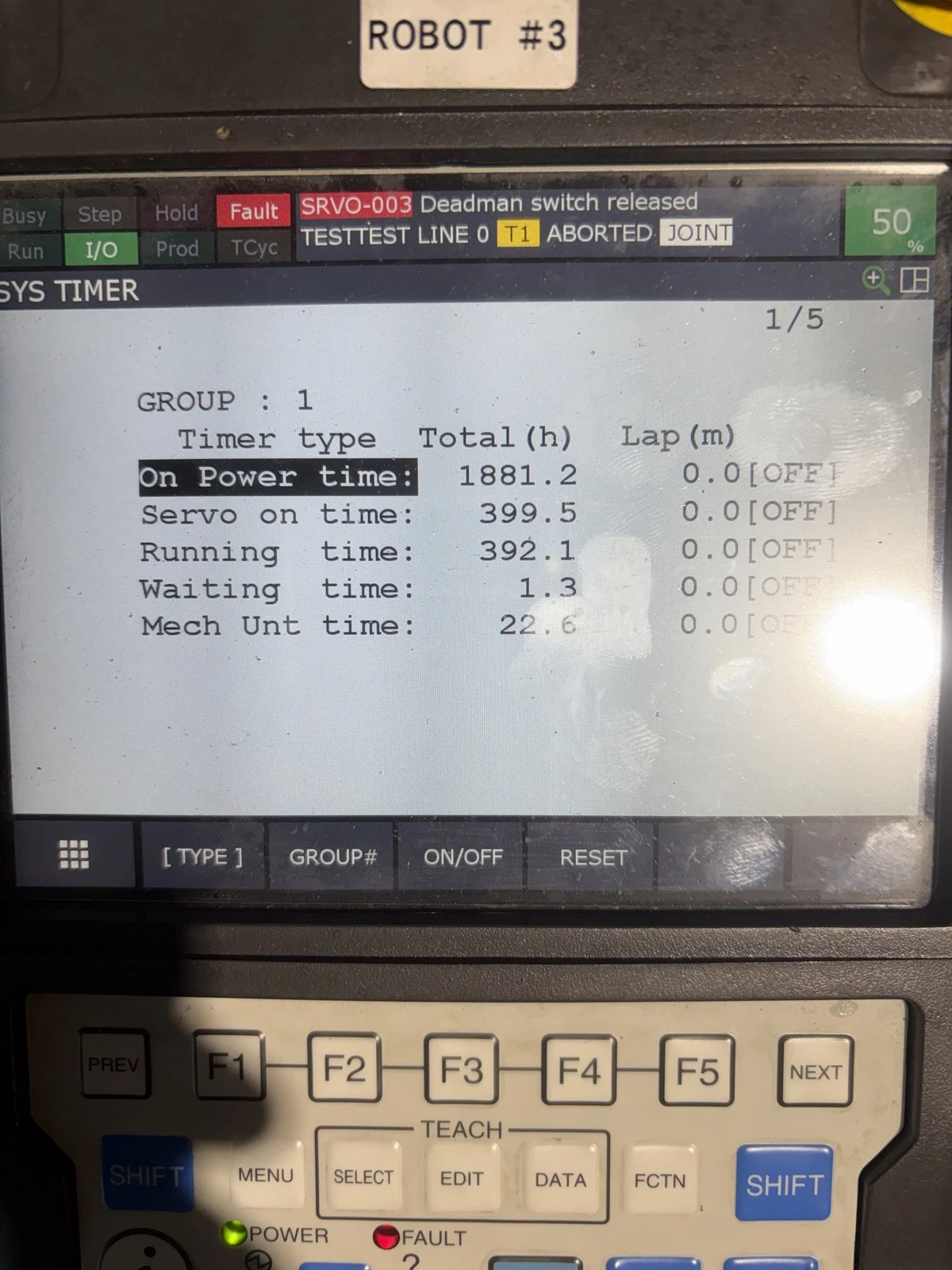

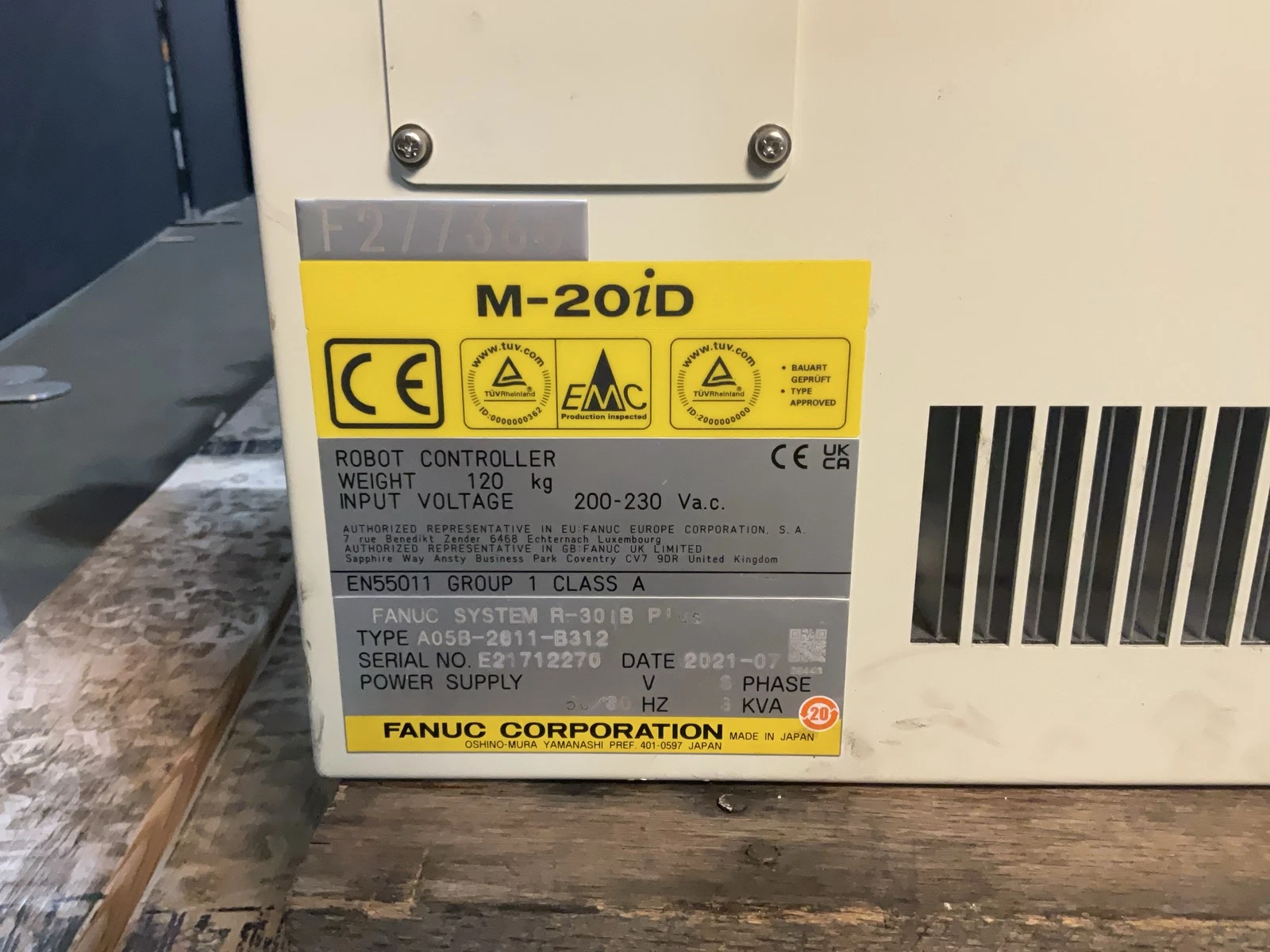

IDENTIFICATION Manufacturer: FANUC Robot Model: M-20iD/25 Robot Type Number: A05B-1228-B202 Robot Serial Number: R218205E8 Controller Model: R-30iB Plus Controller Type Number: A05B-2011-B312 Controller Serial Number: E21712270 Condition: USED Robot Manufacture Date: 2021-08 Controller Manufacture Date: 2021-07 Country of Manufacture: Japan SYSTEM COMPONENTS Robot: Included Controller: Included Robot-to-Controller Cables: Included End-of-Arm Device: Included Teach Pendant: Not Included ROBOT DATA Configuration: 6-Axis Articulated Payload Capacity: 25 kg Maximum Reach: 1831 mm Repeatability: ±0.02 mm Robot Weight: 250 kg Mounting Configuration: Floor, Wall, Angle, or Inverted MOTION DATA J1 Motion Range: ±340° J2 Motion Range: +260° / -100° J3 Motion Range: +455° / -131° J4 Motion Range: ±380° J5 Motion Range: ±270° J6 Motion Range: ±720° CONTROLLER DATA Controller Family: R-30iB Plus Input Voltage: 200-230 VAC Input Phase: 3 Phase Frequency: 50 / 60 Hz Controller Weight: 120 kg RUNTIME DATA Power On Time: 1881.2 Hours Servo On Time: 399.5 Hours Program Running Time: 392.1 Hours Waiting Time: 1.3 Hours Mechanical Unit Time: 22.6 Hours CONSTRUCTION Robot Structure: Hollow Wrist Design Cable Routing: Internal Dress Package Controller Style: Compact Cabinet PROTECTION Body Protection Rating: IP54 Wrist Protection Rating: IP67 APPLICATION DATA Material Handling: Yes Machine Tending: Yes Assembly Operations: Yes Packaging Systems: Yes Part Transfer: Yes Pick and Place: Yes General Automation: Yes
