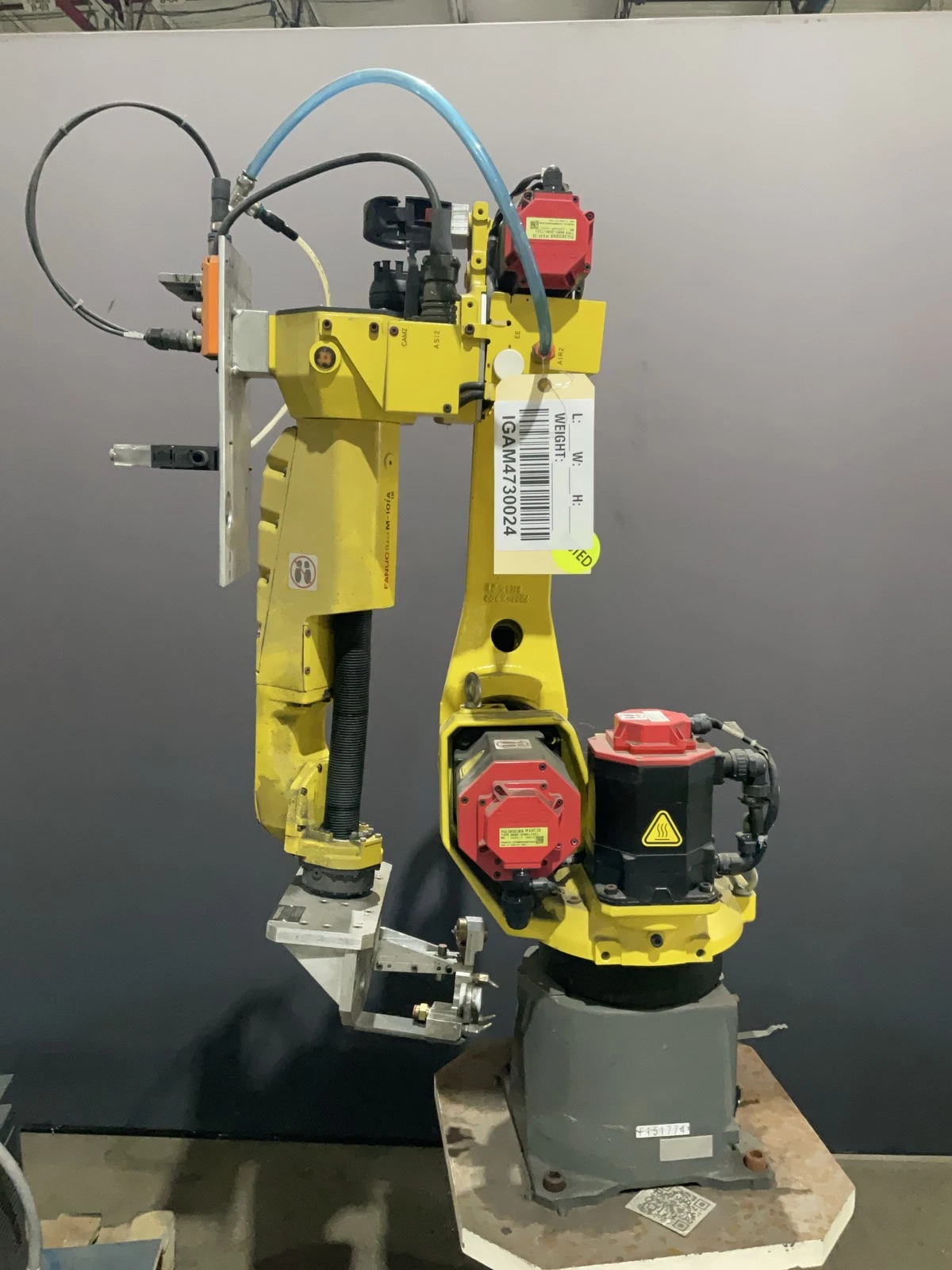

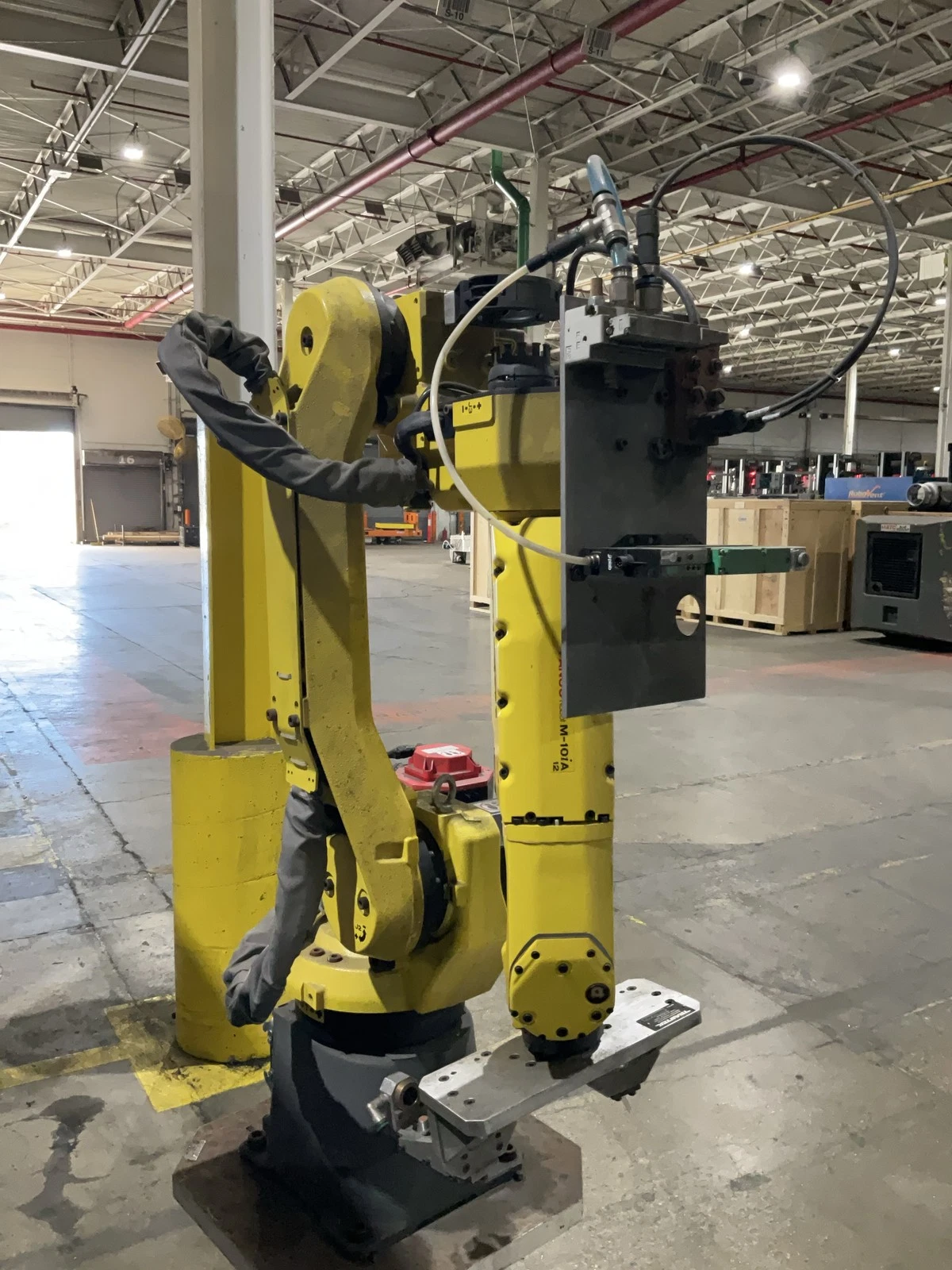

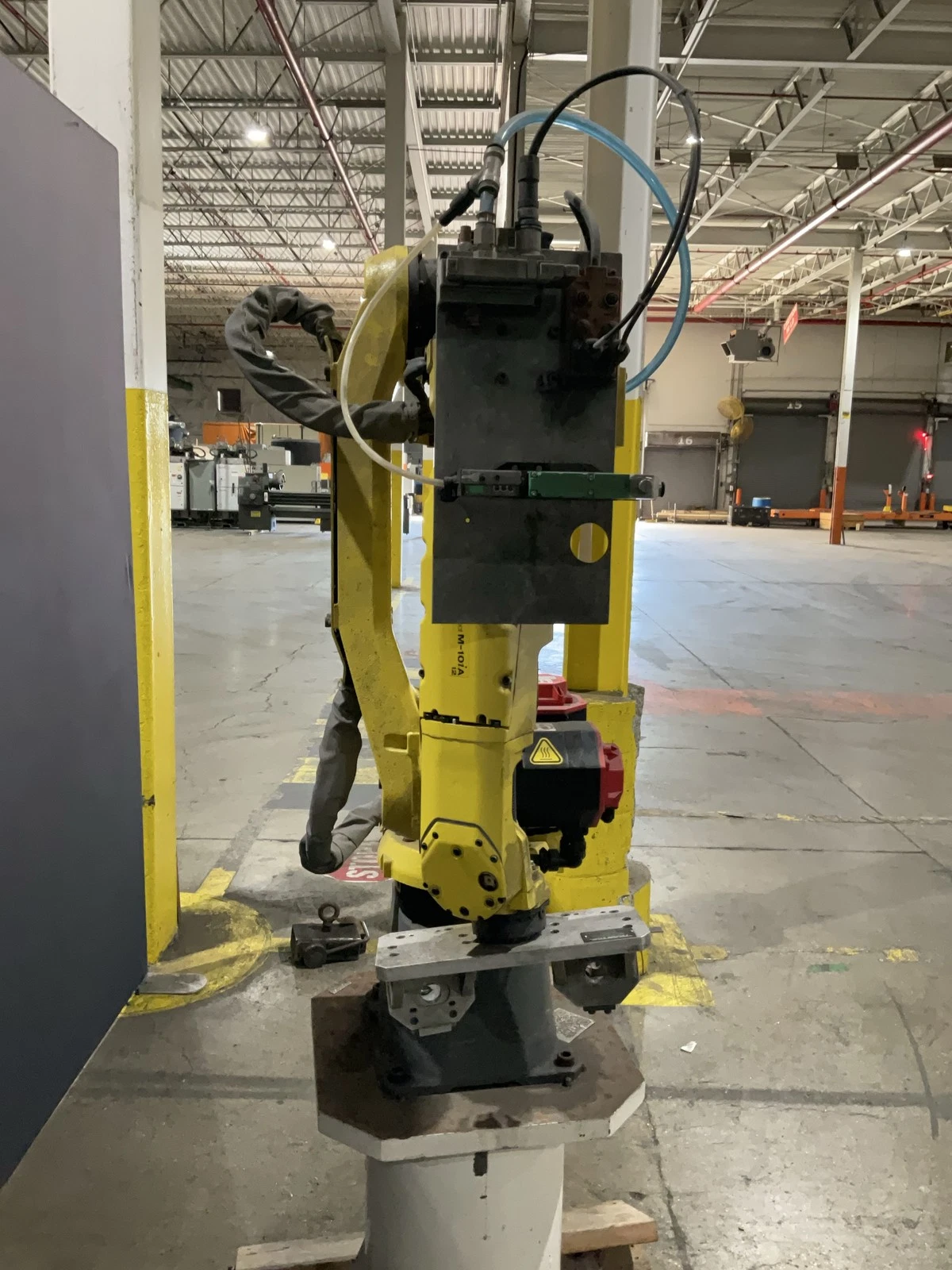

FANUC M-10iA/12 Complete with R-30iB Controller USED

Specification Table

No. of Axis	6
Payload Capacity	12 KG
Arm Reach	1420 MM
Repeatability	0.08 MM
Robot Mass	130 KG
Controller	R-30IB
Mounting	PEDESTAL MOUNTED
Teach Pendant Model	PENDANT INCLUDED

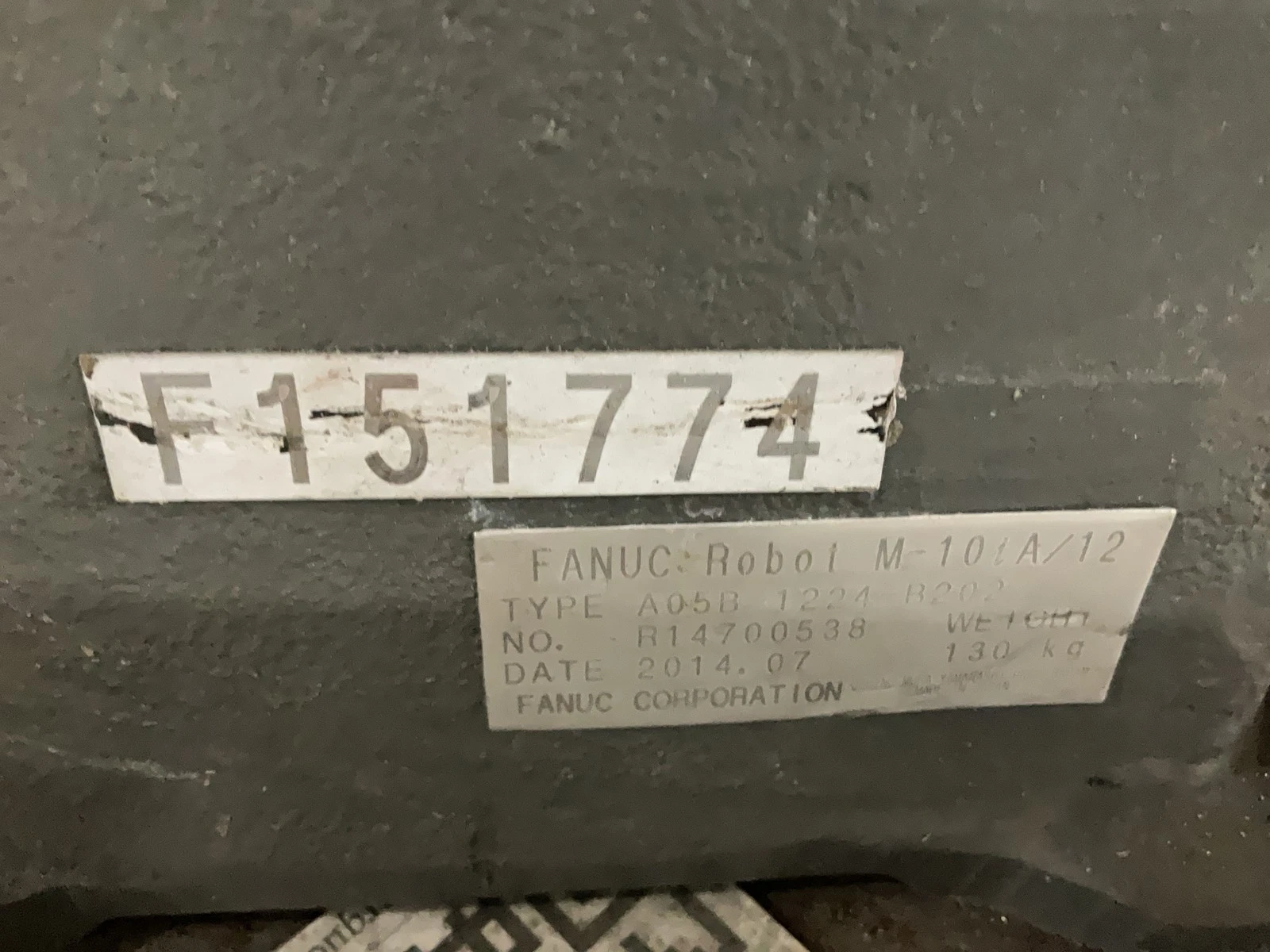

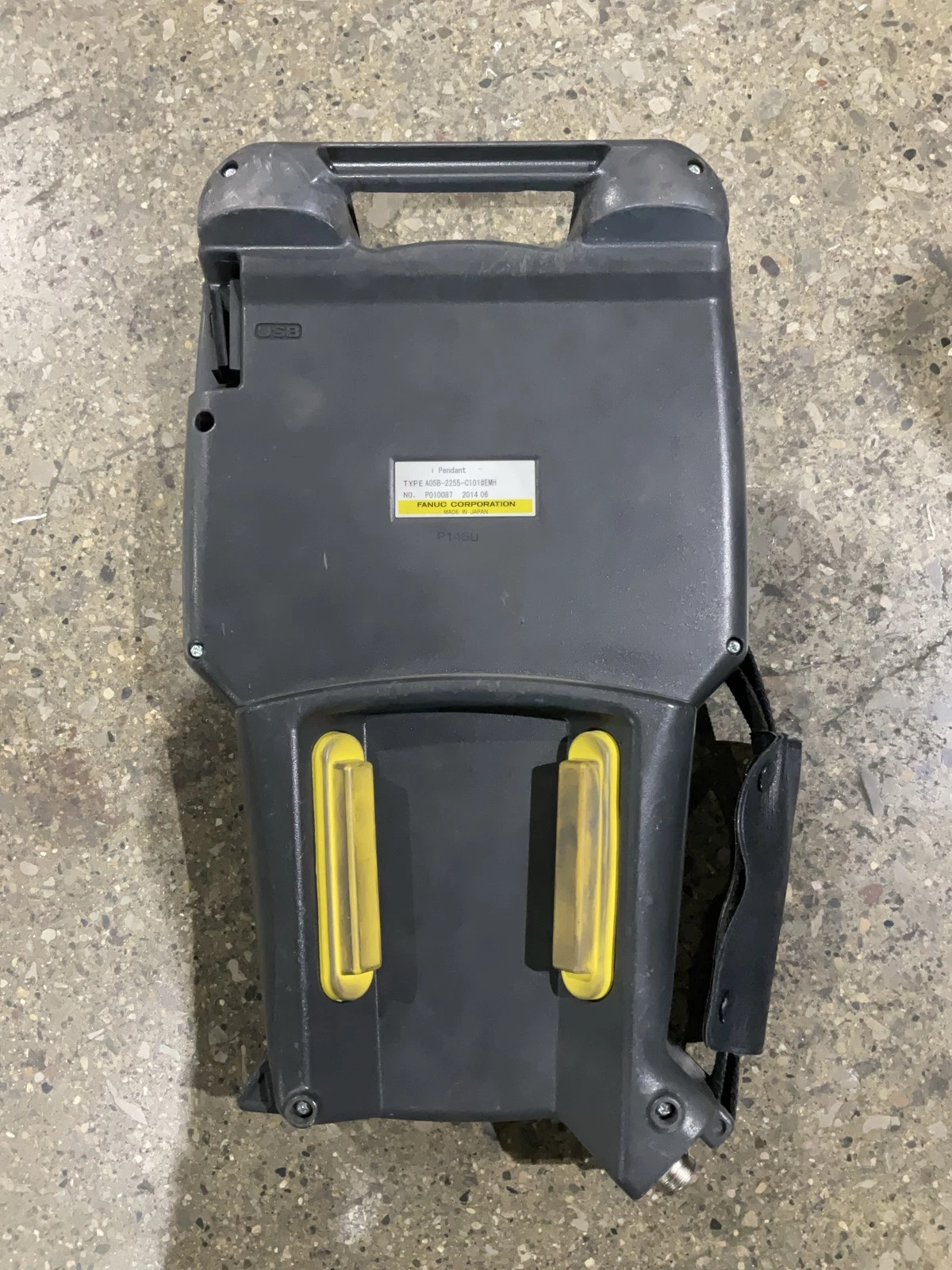

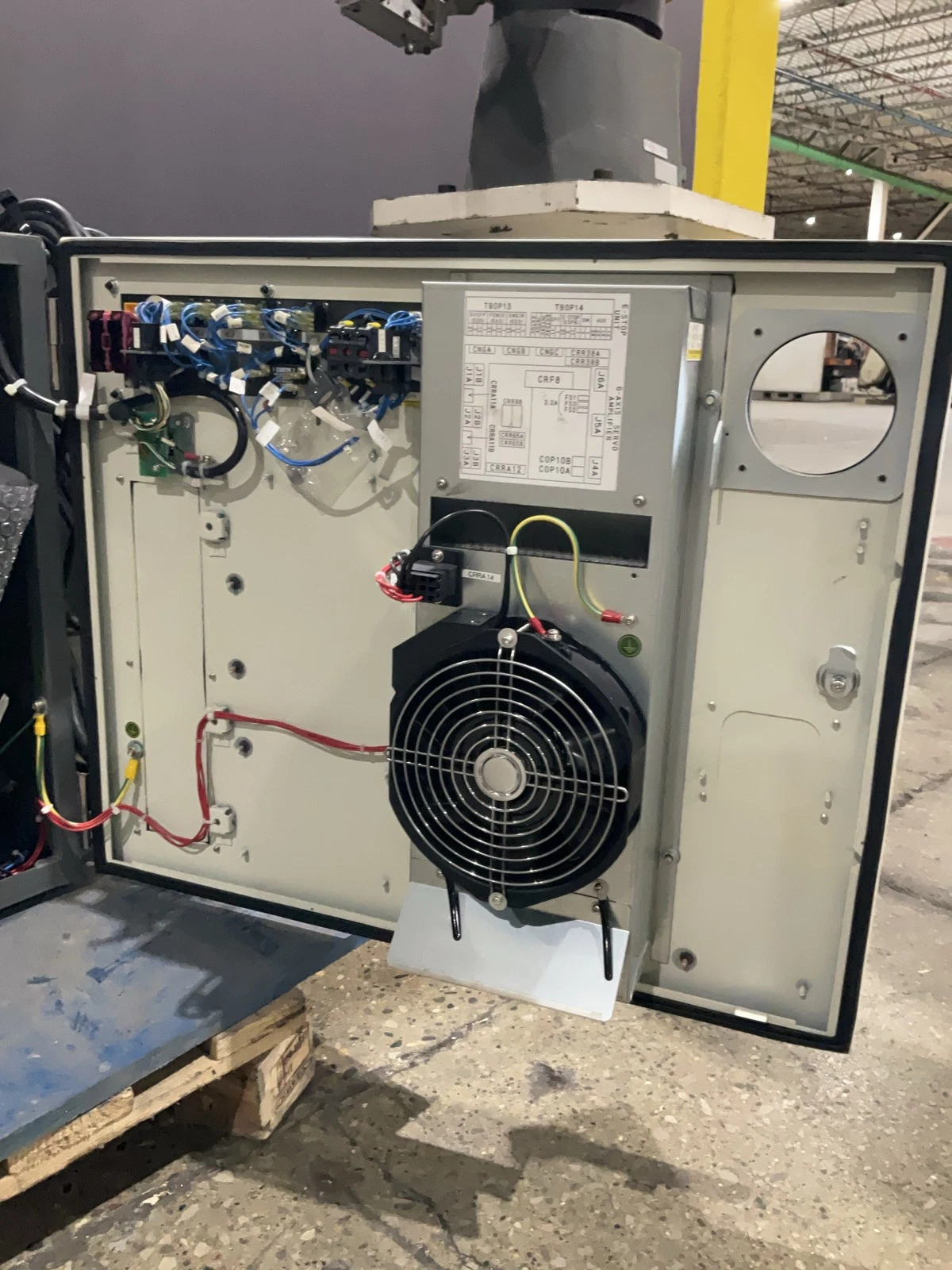

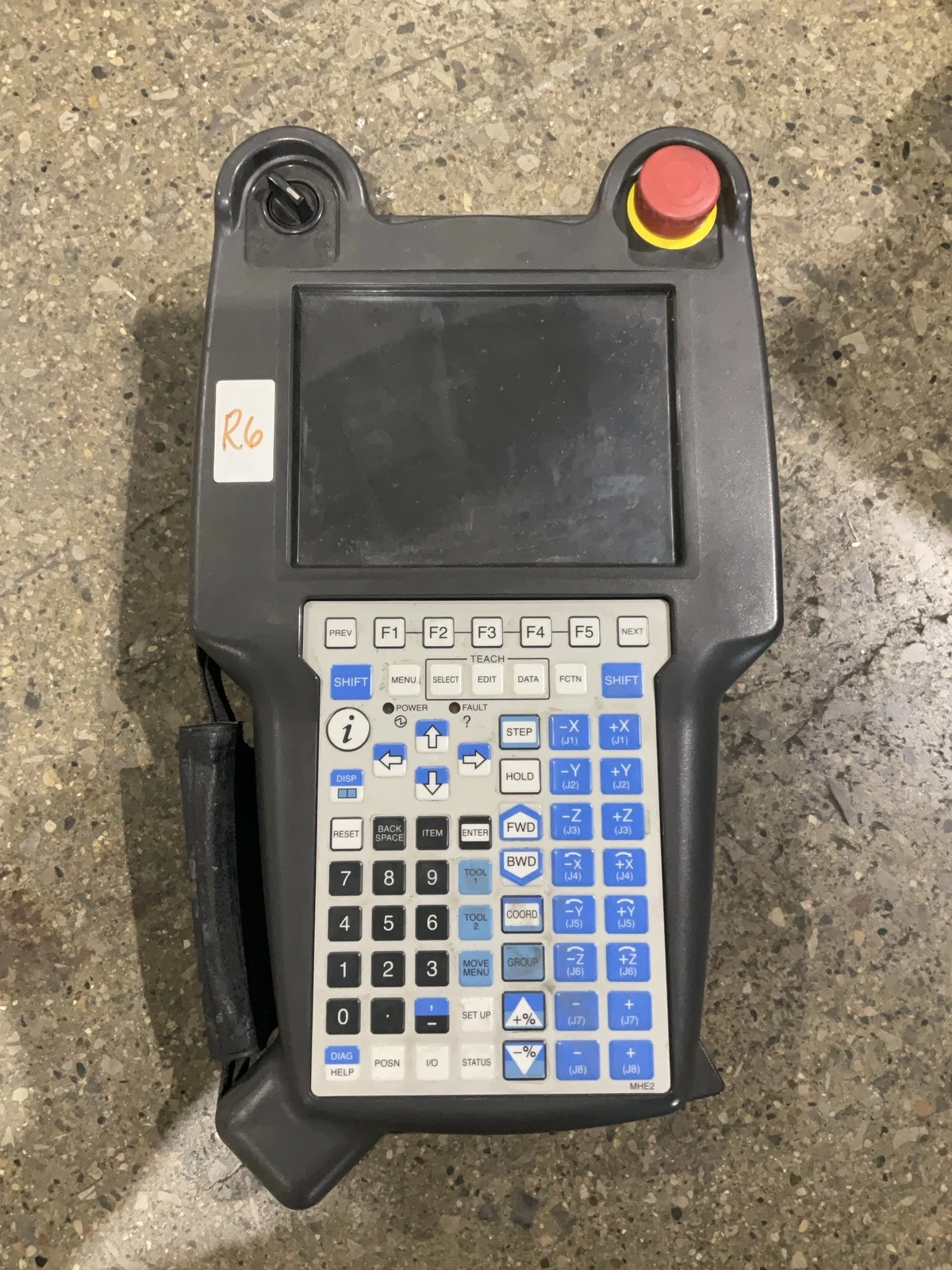

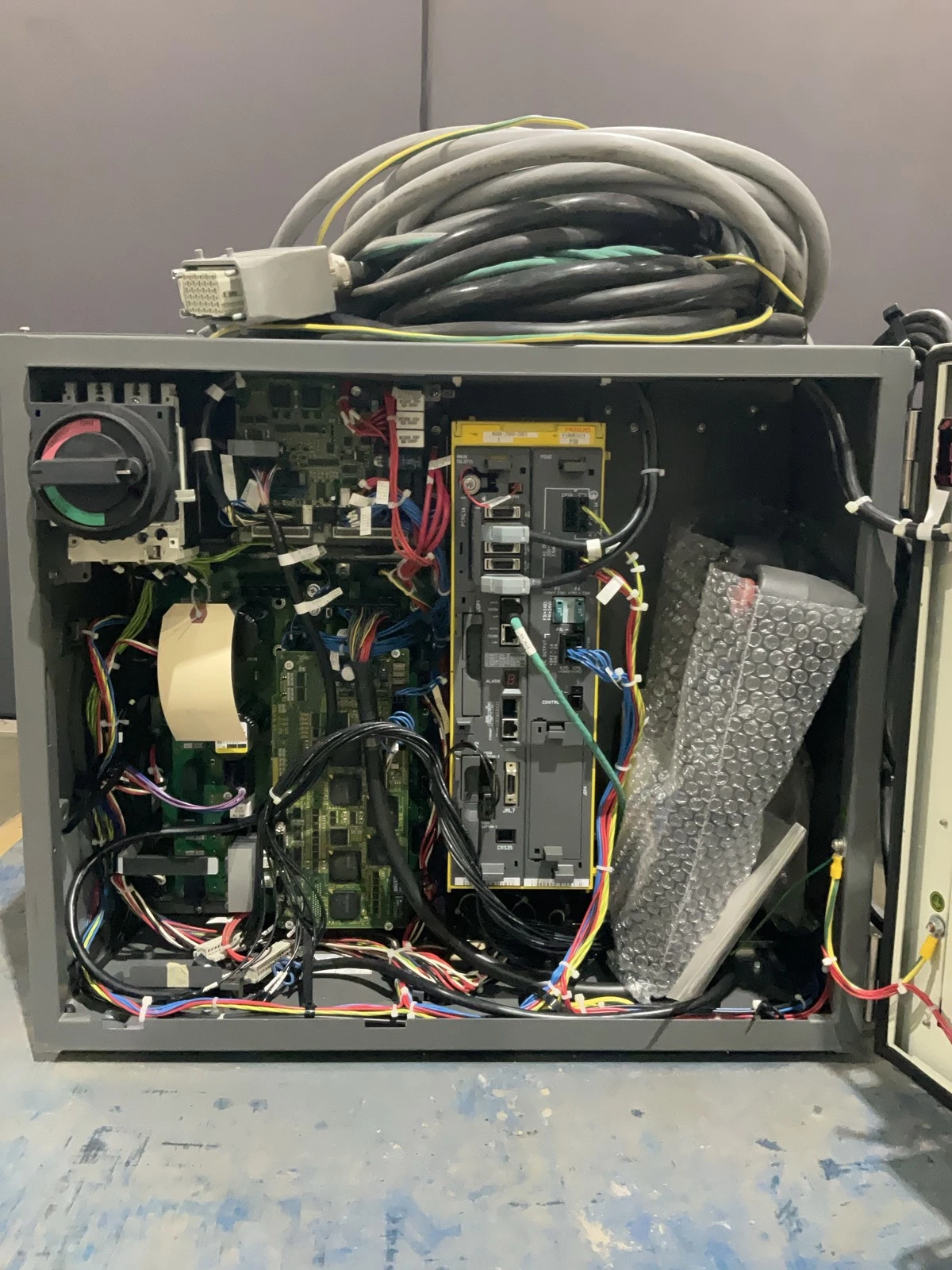

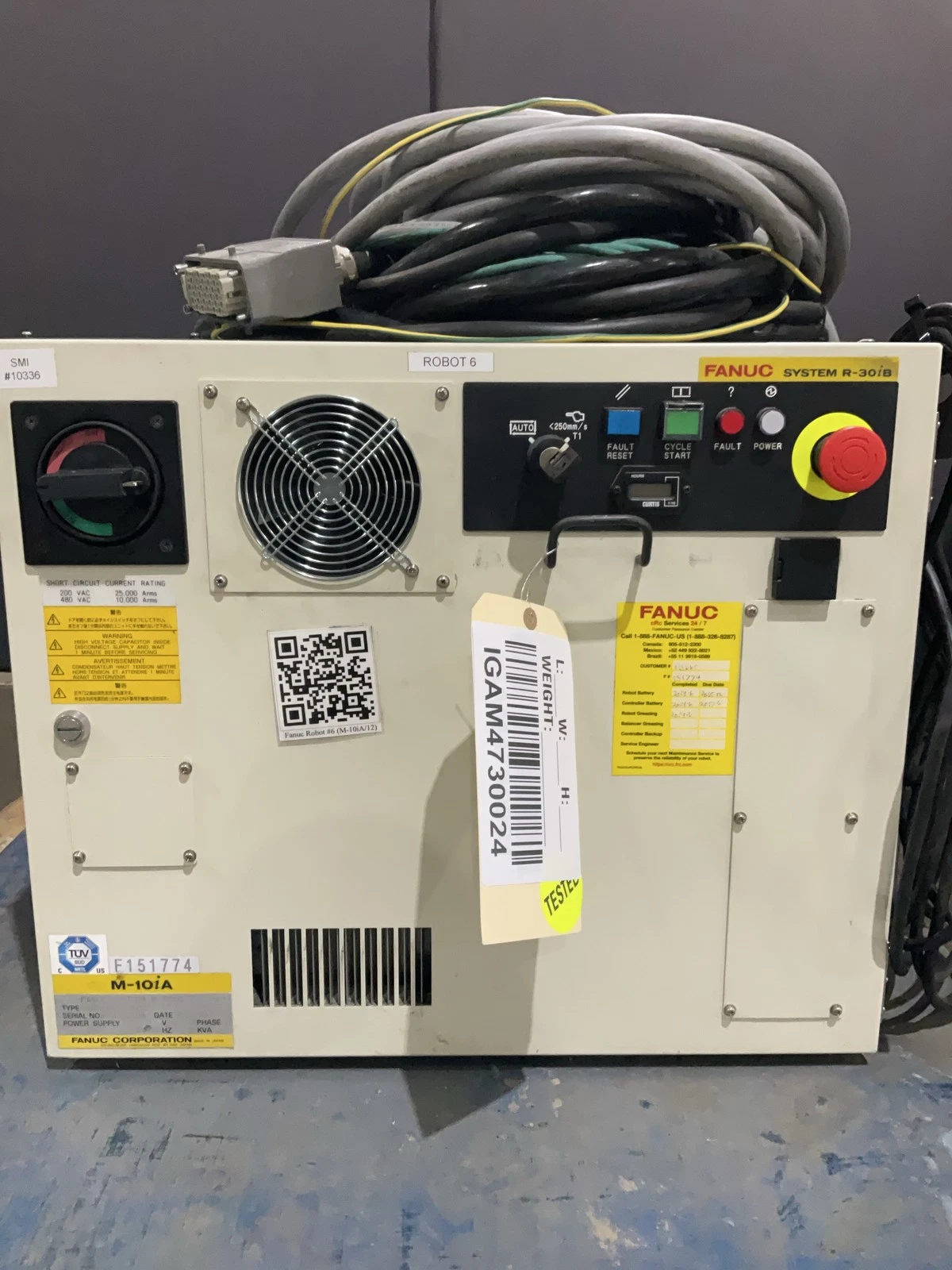

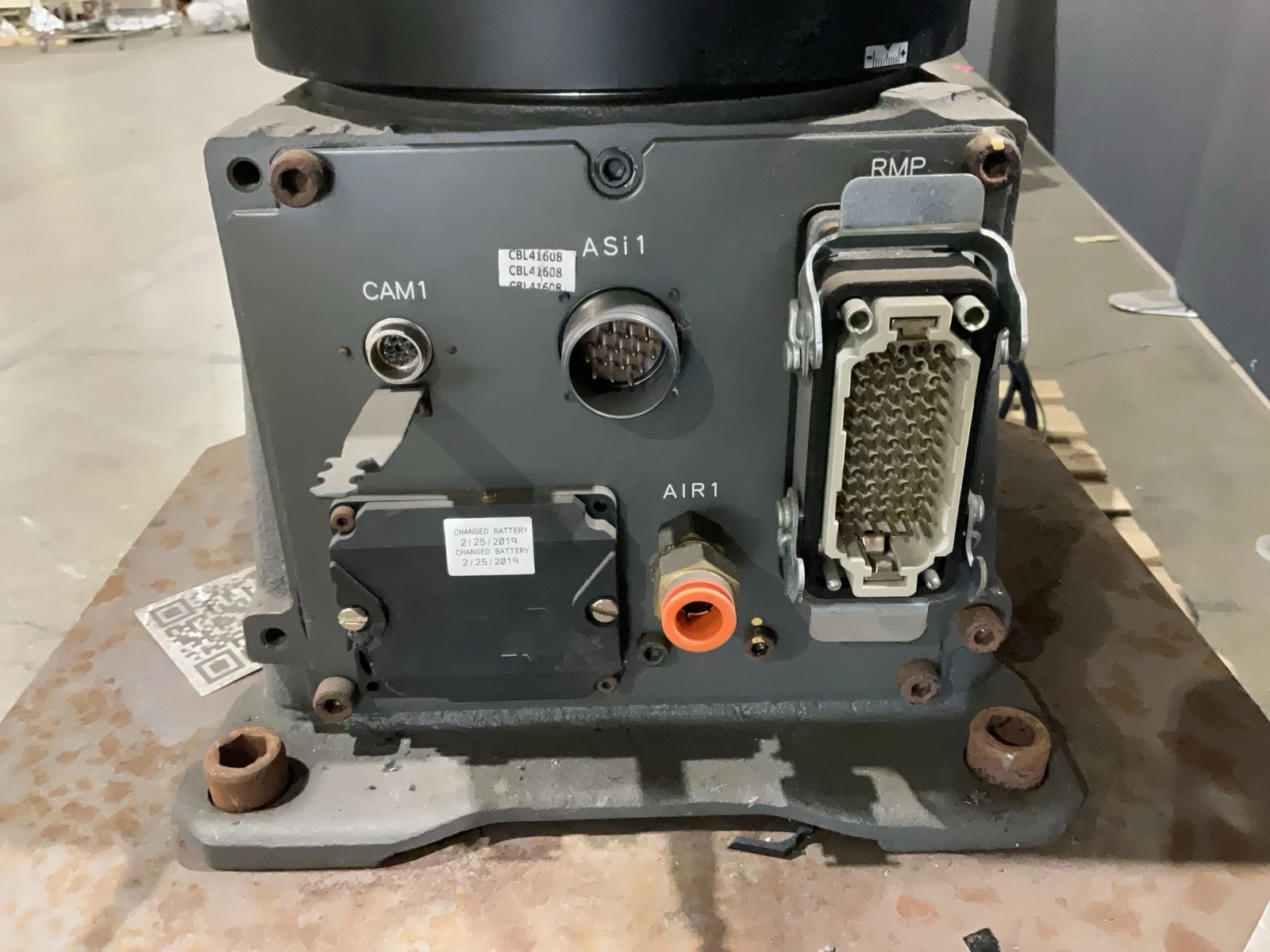

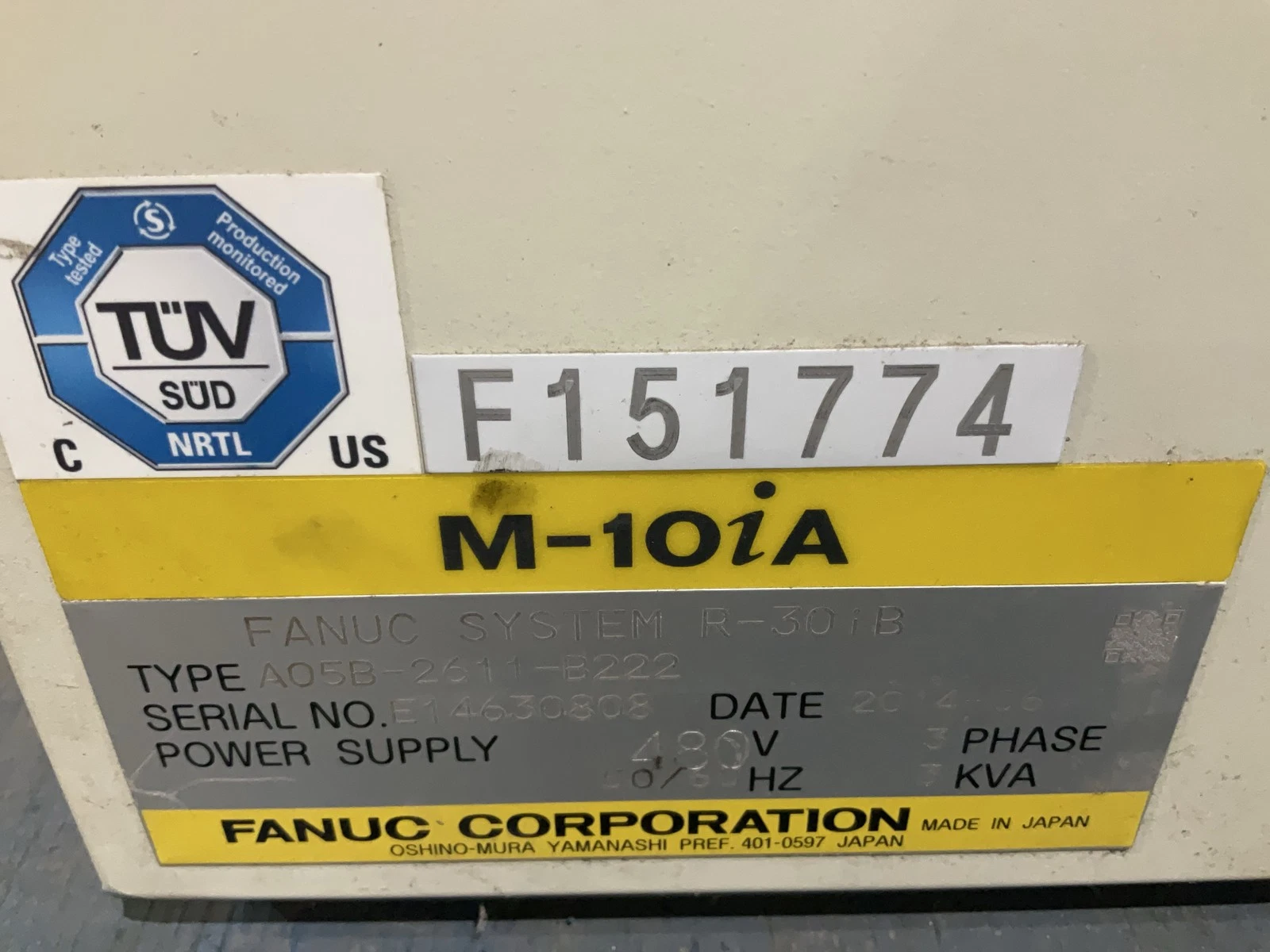

IDENTIFICATION Manufacturer: FANUC Robot Model: M-10iA/12 Robot Type Number: A05B-1224-B202 Robot Serial Number: R14700538 Controller Model: R-30iB Controller Type Number: A05B-2611-B222 Controller Serial Number: E14630308 Condition: USED Robot Manufacture Date: 2014-07 Controller Manufacture Date: 2014-06 Country of Manufacture: Japan SYSTEM COMPONENTS Robot: Included Controller: Included Teach Pendant: Included Robot-to-Controller Cables: Included End-of-Arm Tooling: Included ROBOT DATA Configuration: 6-Axis Articulated Payload Capacity: 12 kg Maximum Reach: 1420 mm Repeatability: ±0.08 mm Robot Weight: 130 kg Mounting Configuration: Floor, Wall, Angle, or Inverted MOTION DATA J1 Motion Range: ±360° J2 Motion Range: +260° / -160° J3 Motion Range: +411° / -273° J4 Motion Range: ±540° J5 Motion Range: ±250° J6 Motion Range: ±720° CONTROLLER DATA Controller Family: R-30iB Input Voltage: 480 VAC Input Phase: 3 Phase Frequency: 50/60 Hz Power Requirement: 7 kVA TEACH PENDANT Manufacturer: FANUC Pendant Type Number: A05B-2255-C101#EMH Pendant Serial Number: P010087 Pendant Manufacture Date: 2014-06 CONSTRUCTION Robot Structure: Hollow Wrist Design Cable Routing: Internal Utility Routing Controller Style: Compact Cabinet Controller Hardware: Installed PROTECTION Body Protection Rating: IP54 Wrist Protection Rating: IP67 APPLICATION DATA Machine Tending: Yes Assembly Operations: Yes Material Handling: Yes Packaging Systems: Yes Pick and Place: Yes Part Transfer: Yes Production Automation: Yes
