SOLD!

Fanuc Arc Mate 120iD Complete with R-30iB Plus Controller and TPS 400i Weld System USED

Name: Fanuc Arc Mate 120iD Complete with R-30iB Plus Controller and TPS 400i Weld System USED
Brand: FANUC
SKU: IGAM1180009
Price: 35000 USD
Availability: InStock

$35,000.00

Availability:

1 in stock

BRAND: FANUC MODEL: ArcMate 120iD + R-30iB PLUS + TPS 400i CONDITION: Used

SKU: IGAM1180009 Weight: 1442 lbs Freight (Item Must Ship Freight)

1 in stock

Make an offer

Get Shipping Quote

Overview

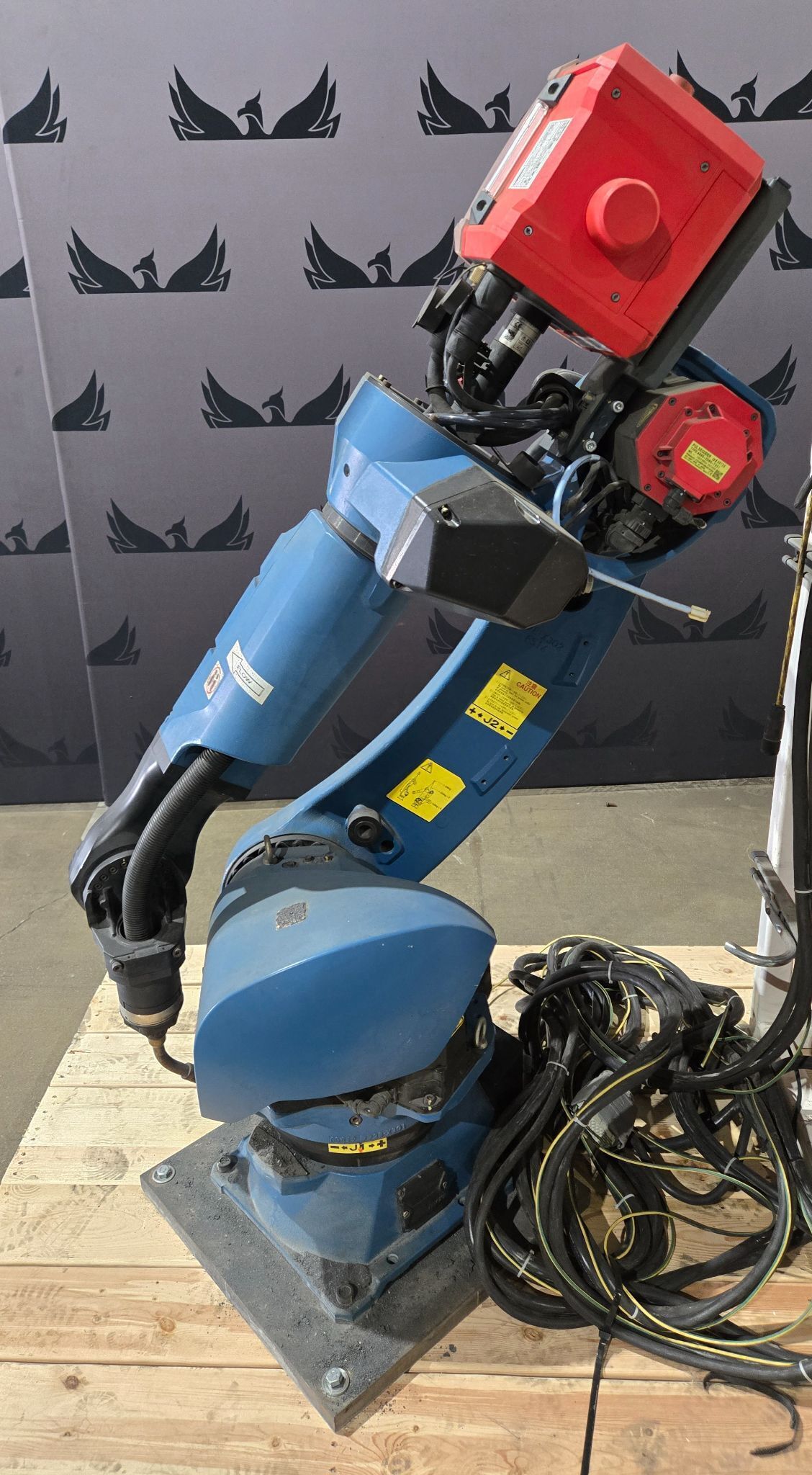

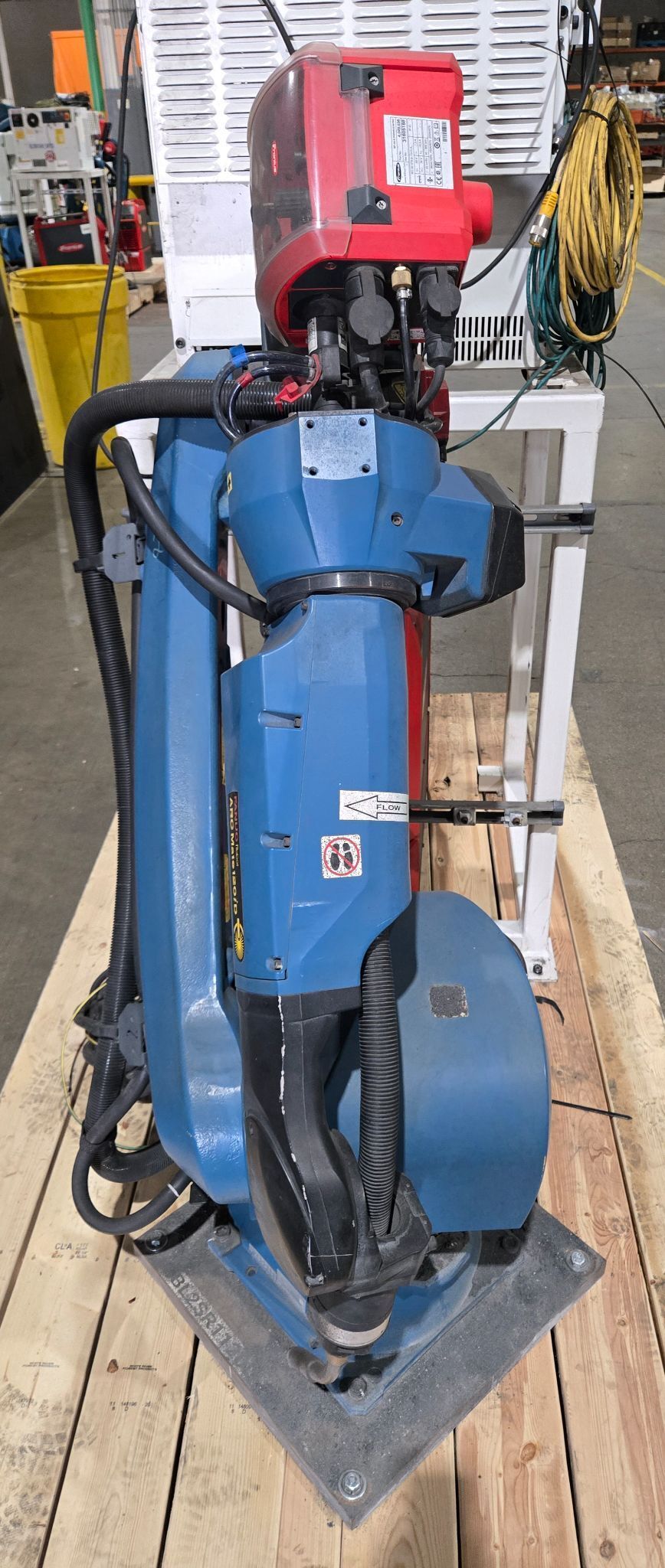

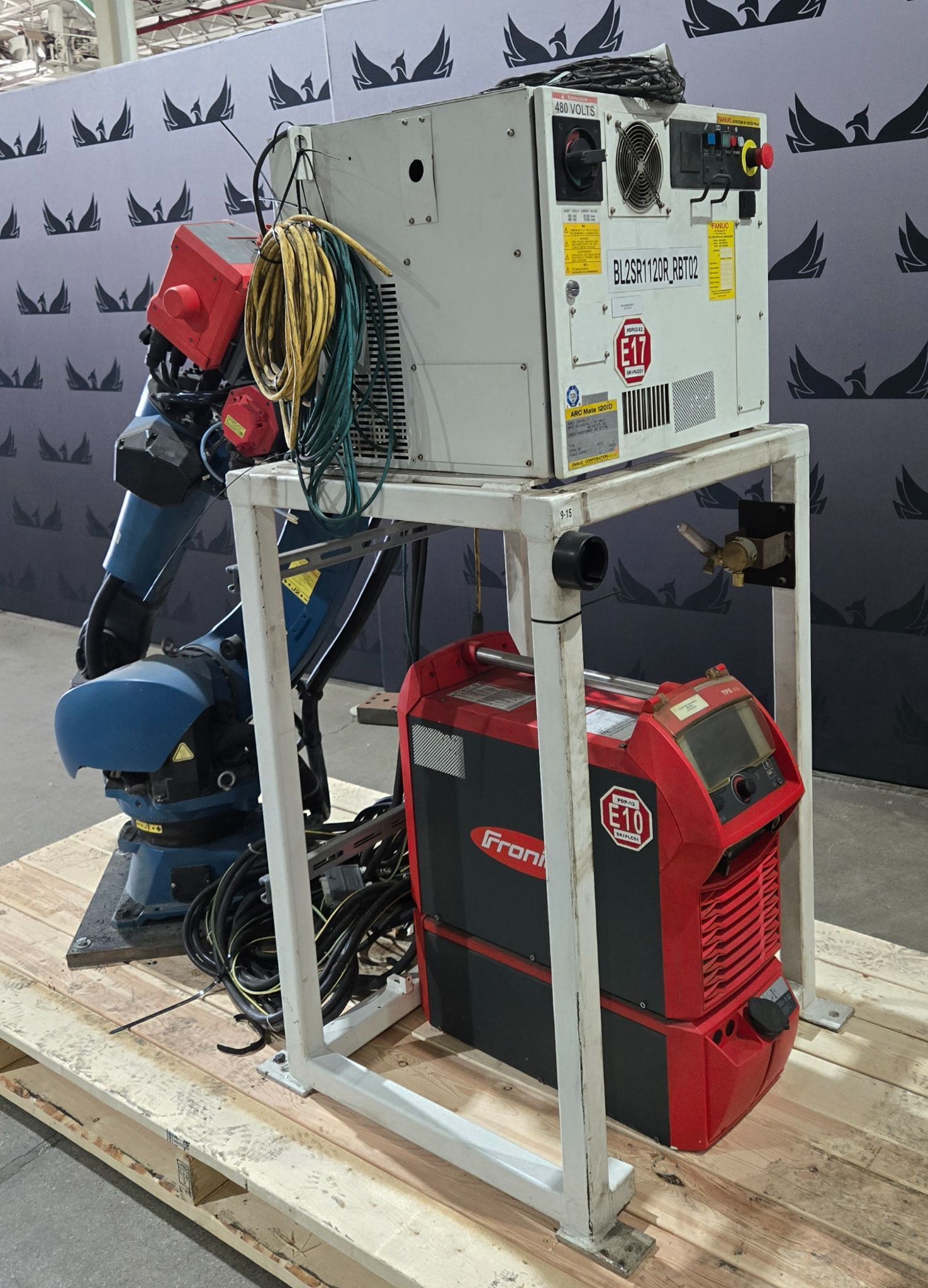

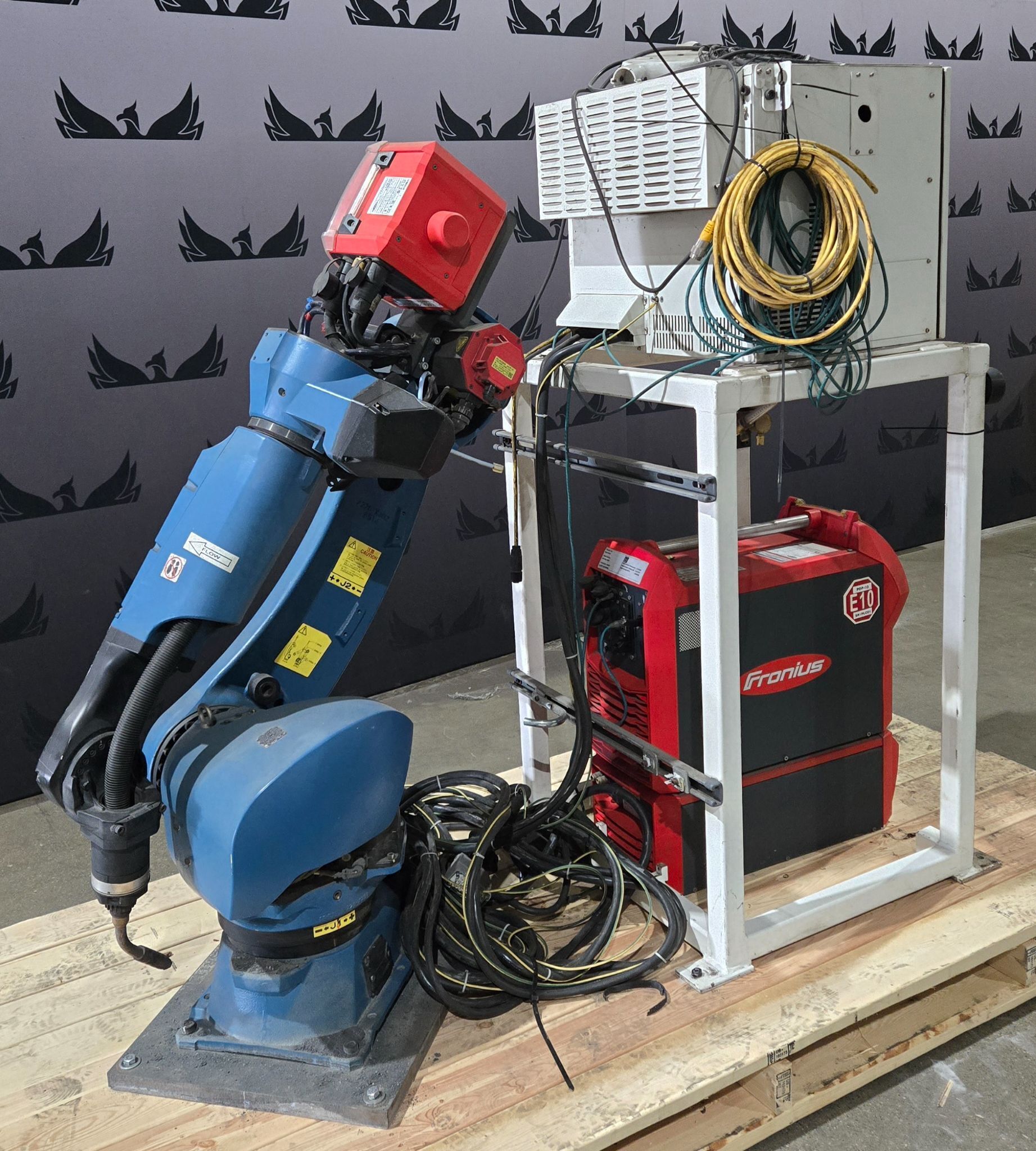

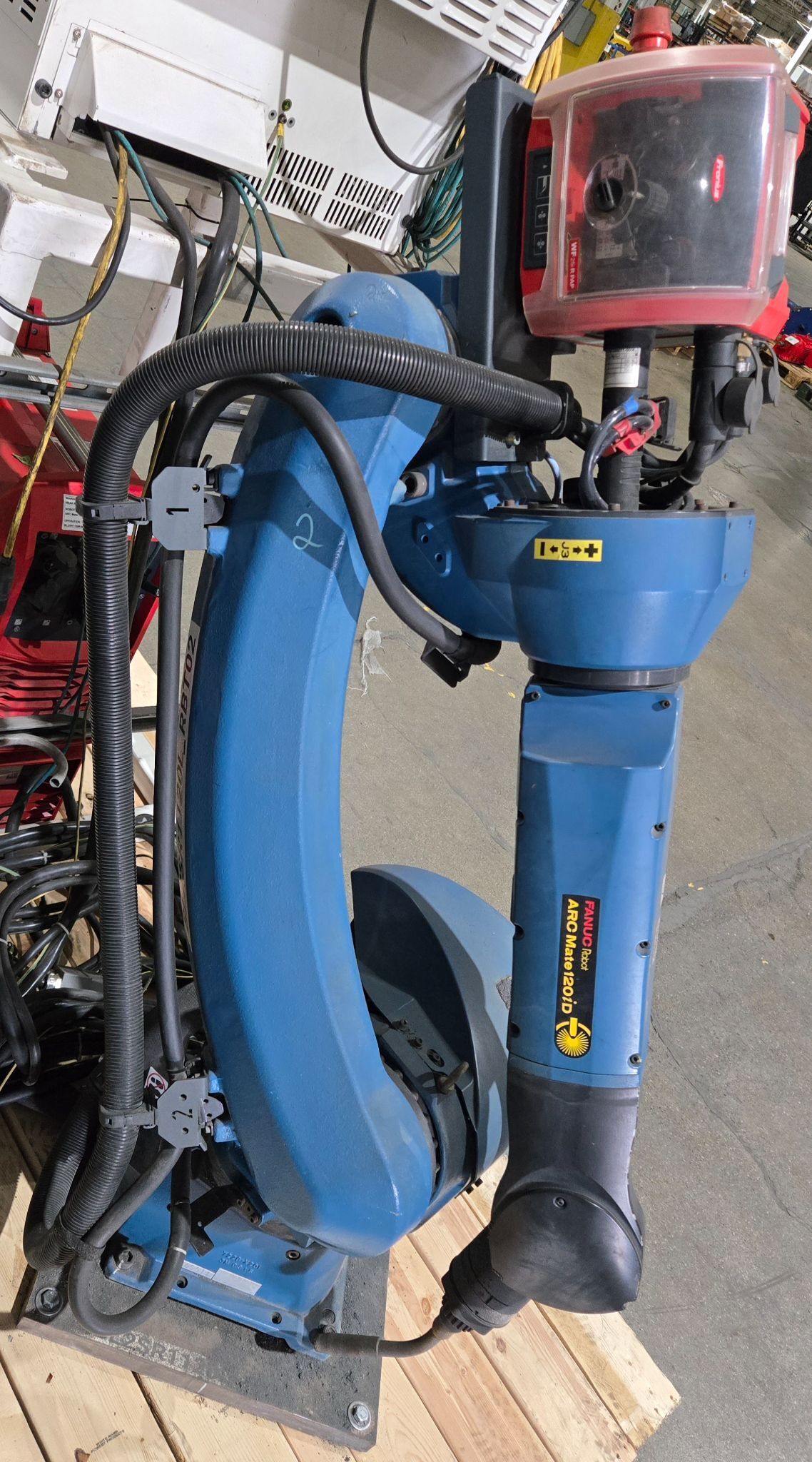

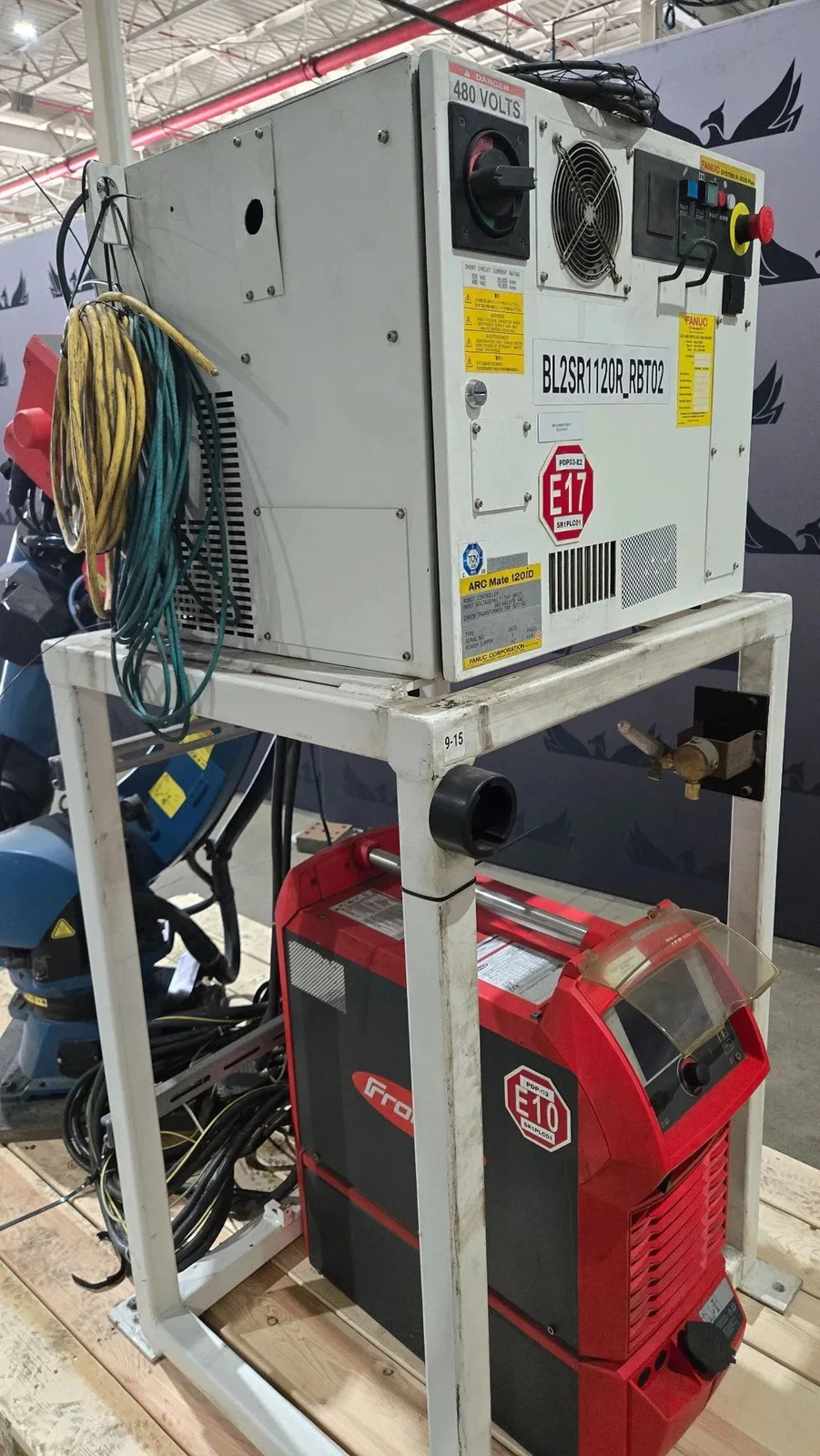

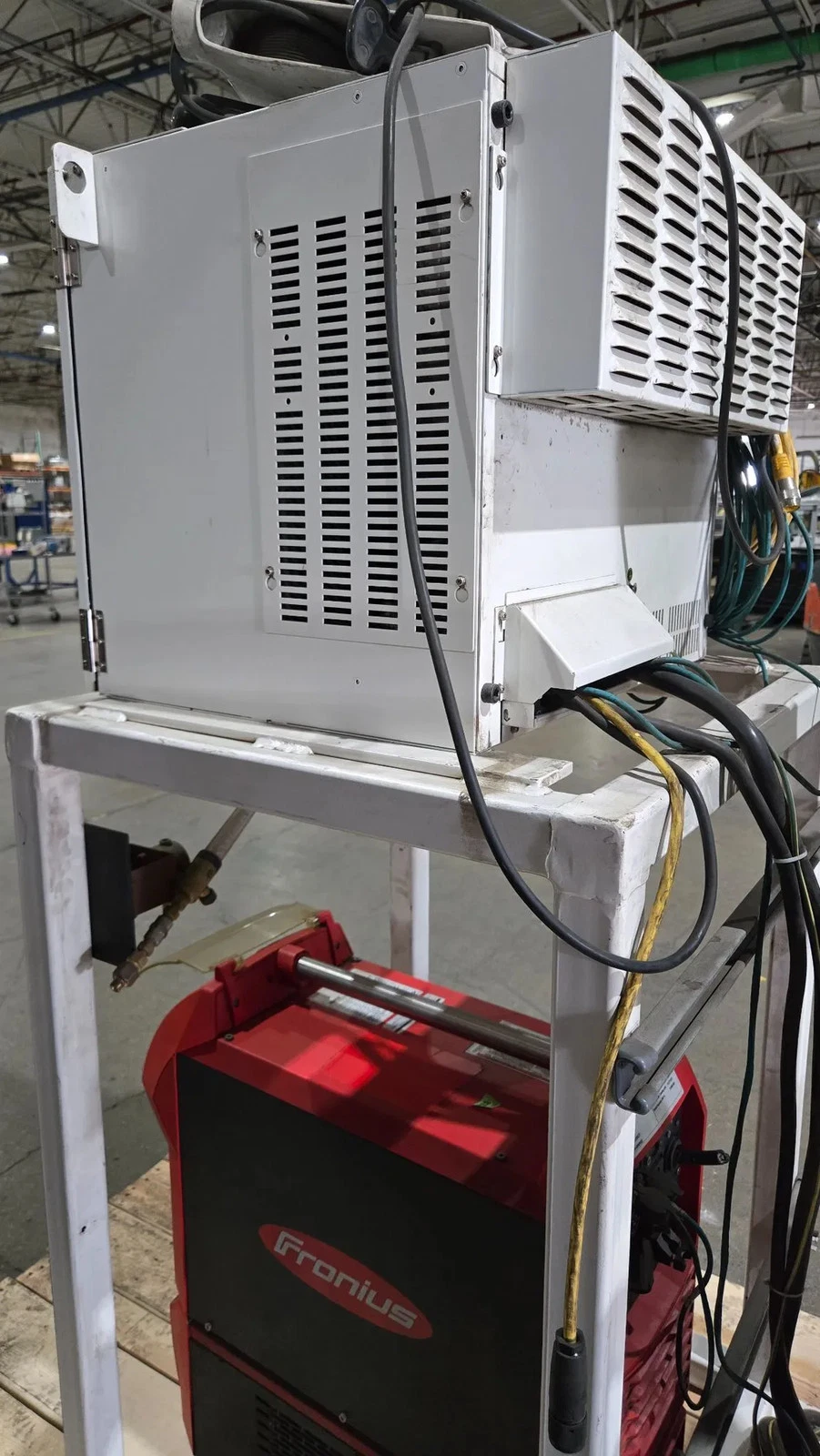

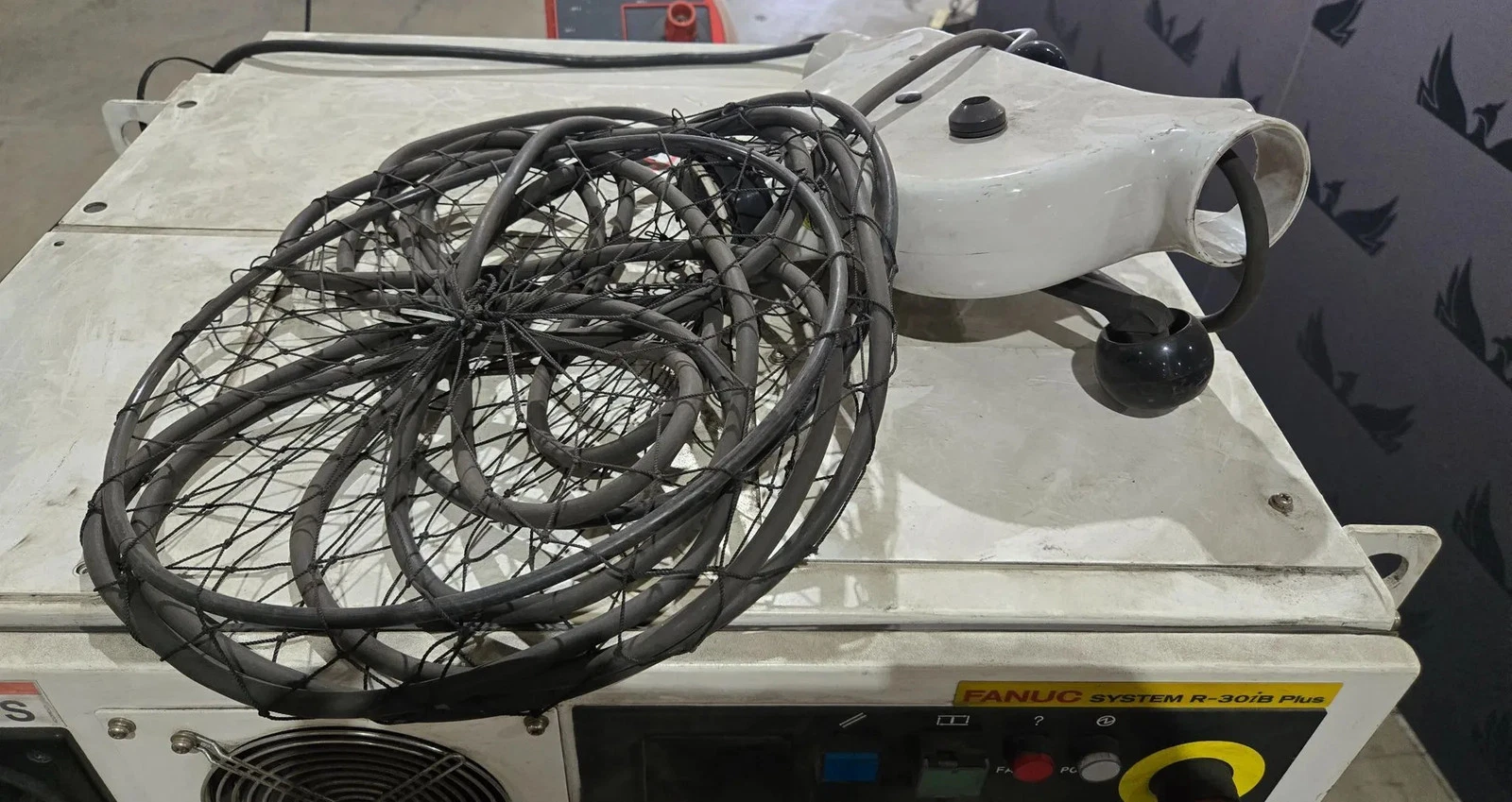

This listing is for a USED Fanuc Arc Mate 120iD complete system with R-30iB Plus controller, iPendant teach pendant, and Fronius TPS 400i weld system. The system delivers coordinated 6-axis robotic motion with integrated arc welding output, supporting programmable weld routines and synchronized control of motion, voltage, and current in automated welding environments.

Description
Tags

Specification Table

Payload Capacity	25 kg
Repeatability	±0.08 mm
Mounting	Floor Mount Base

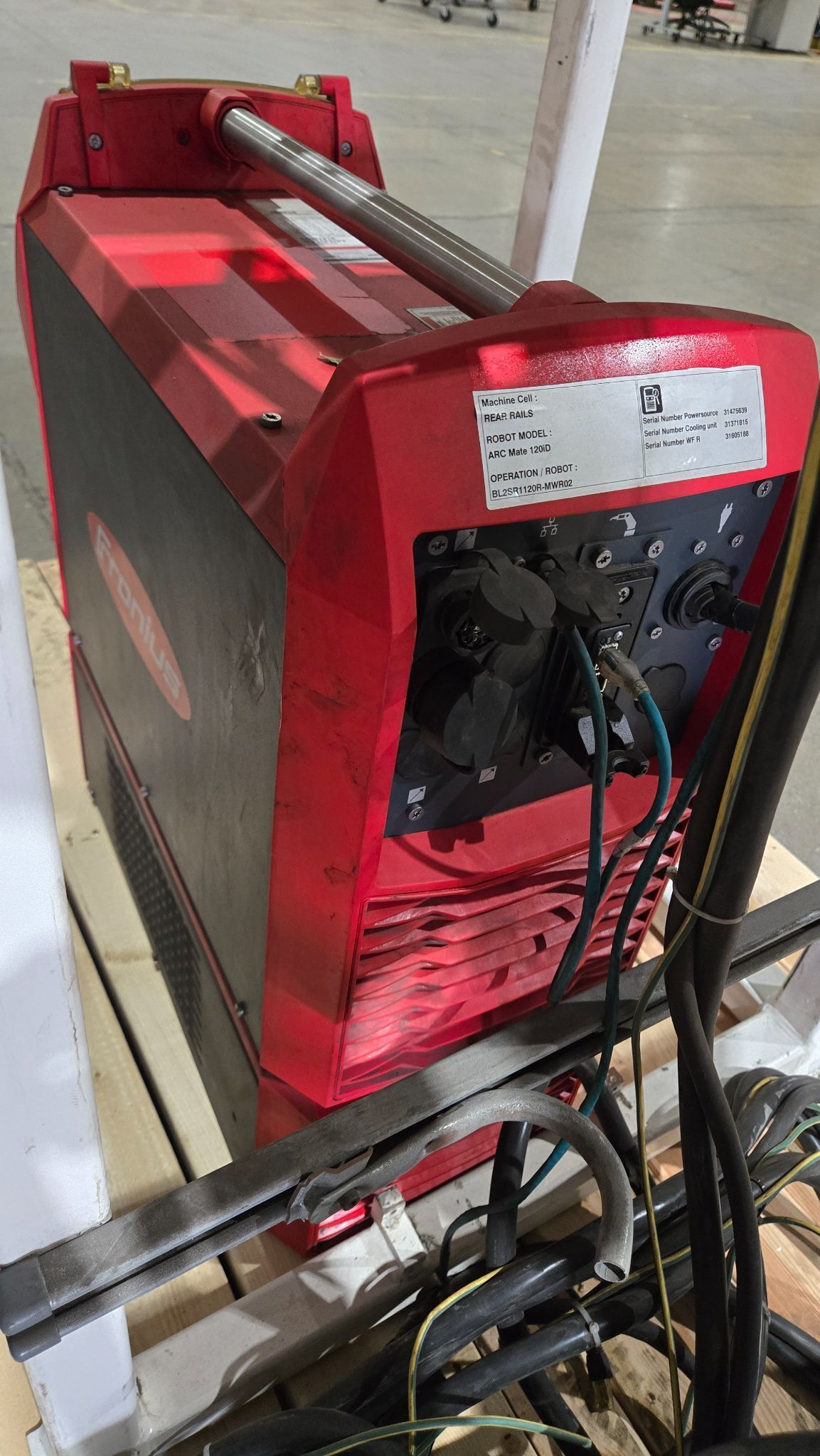

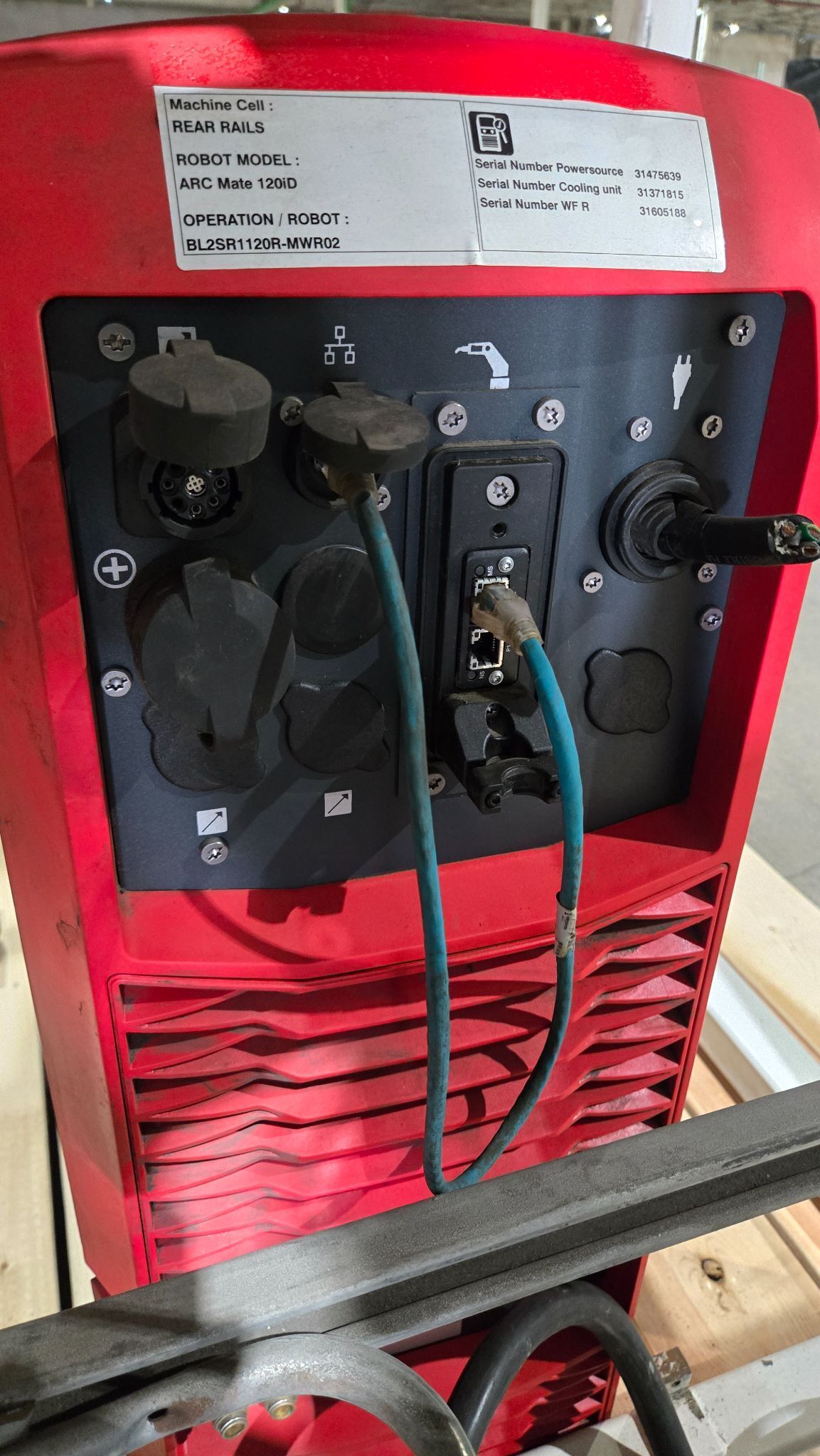

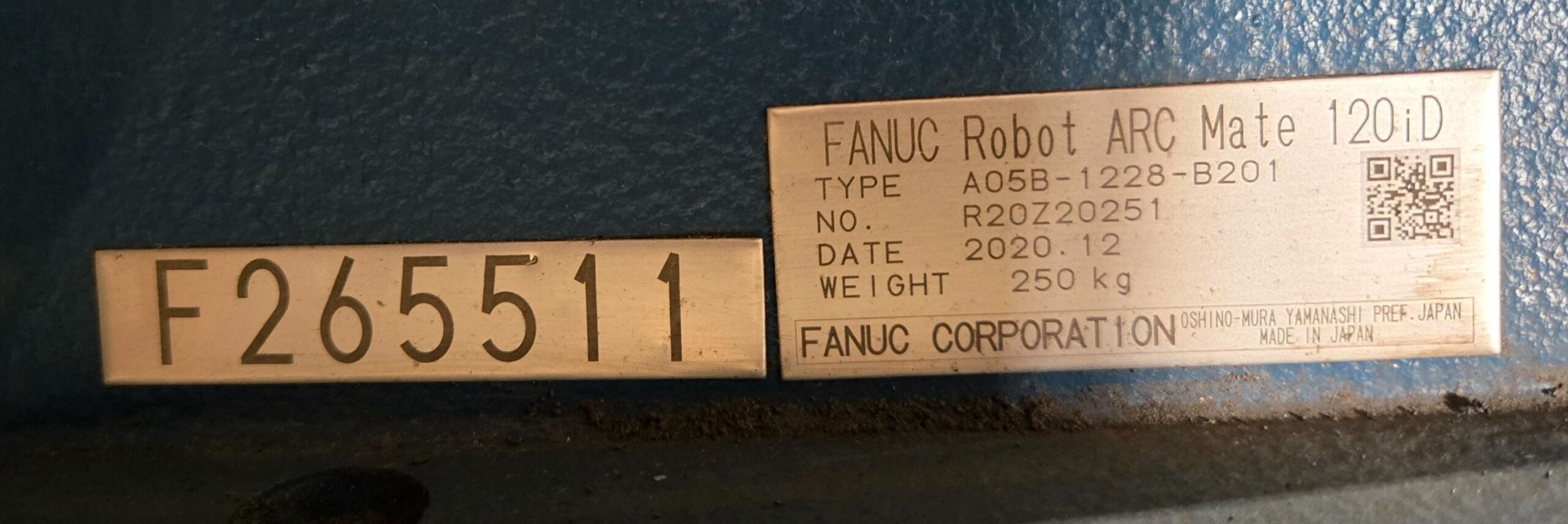

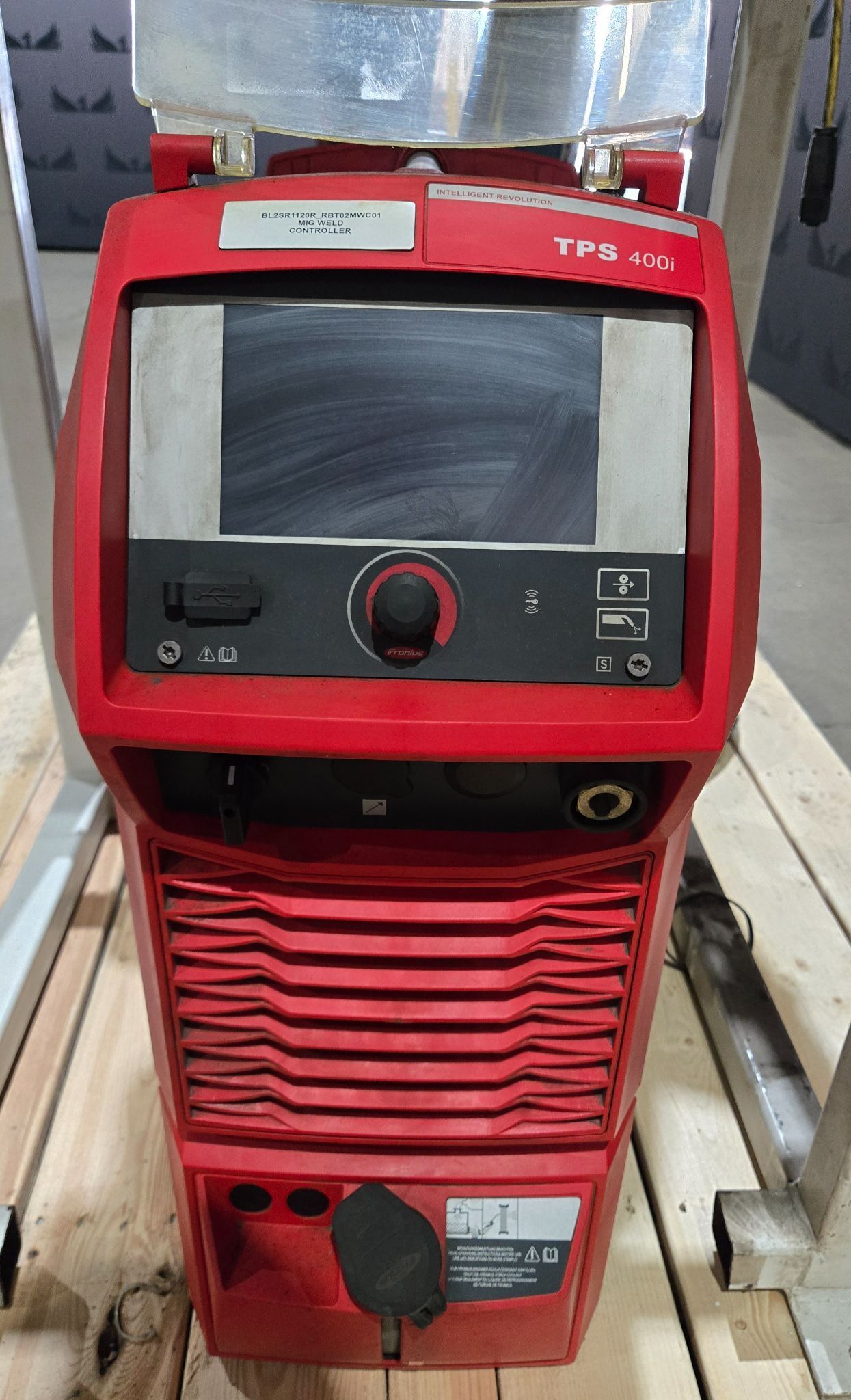

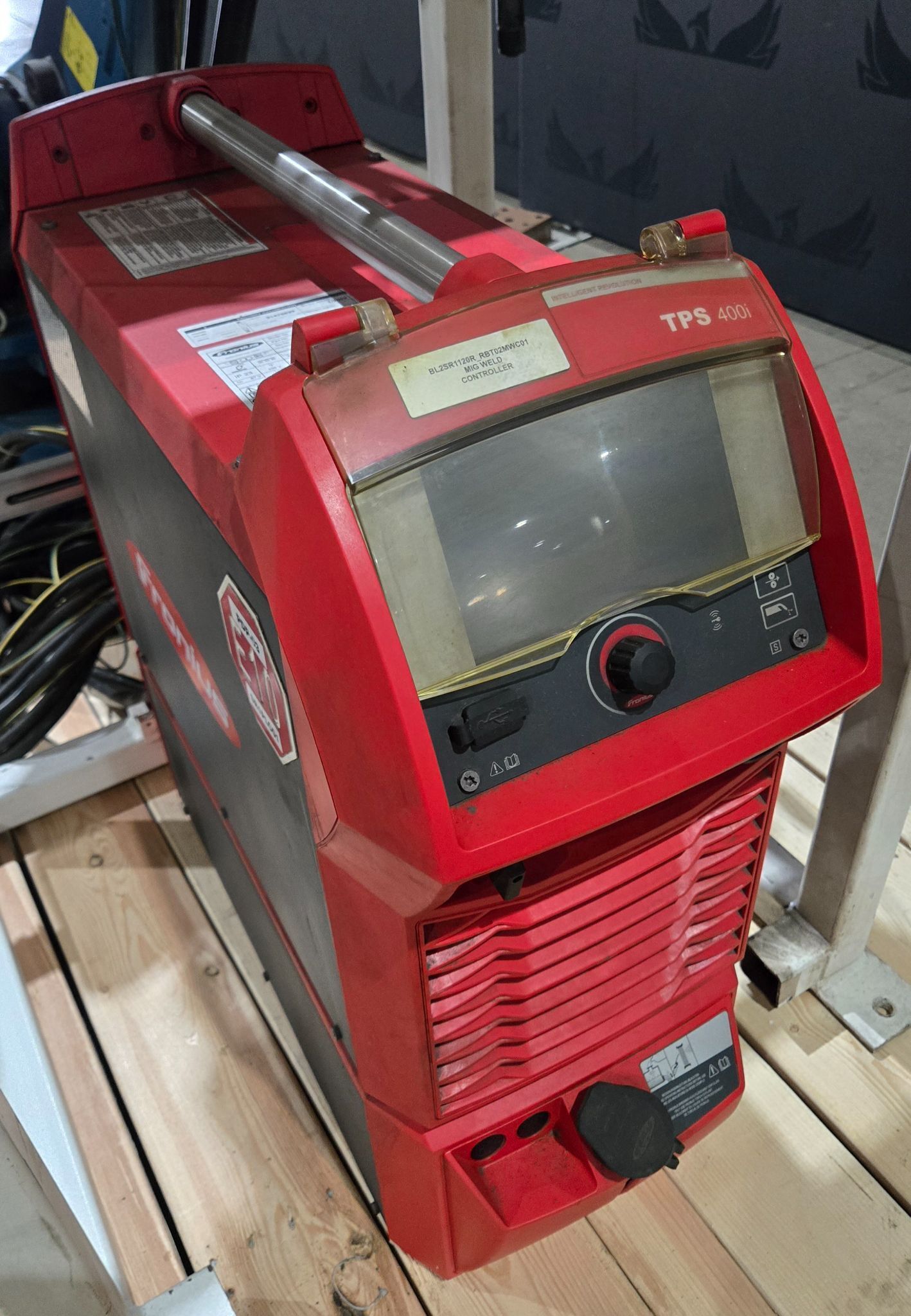

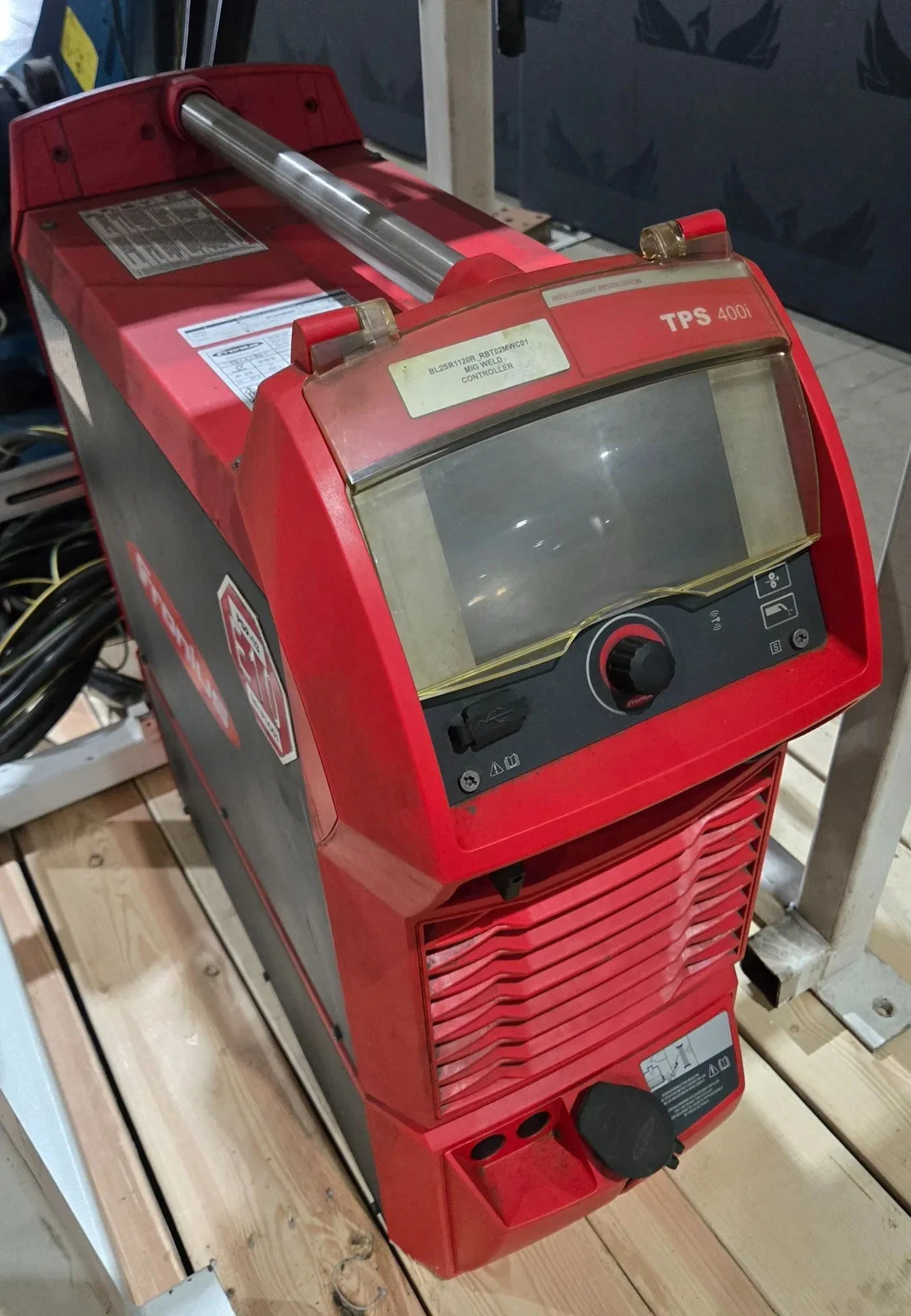

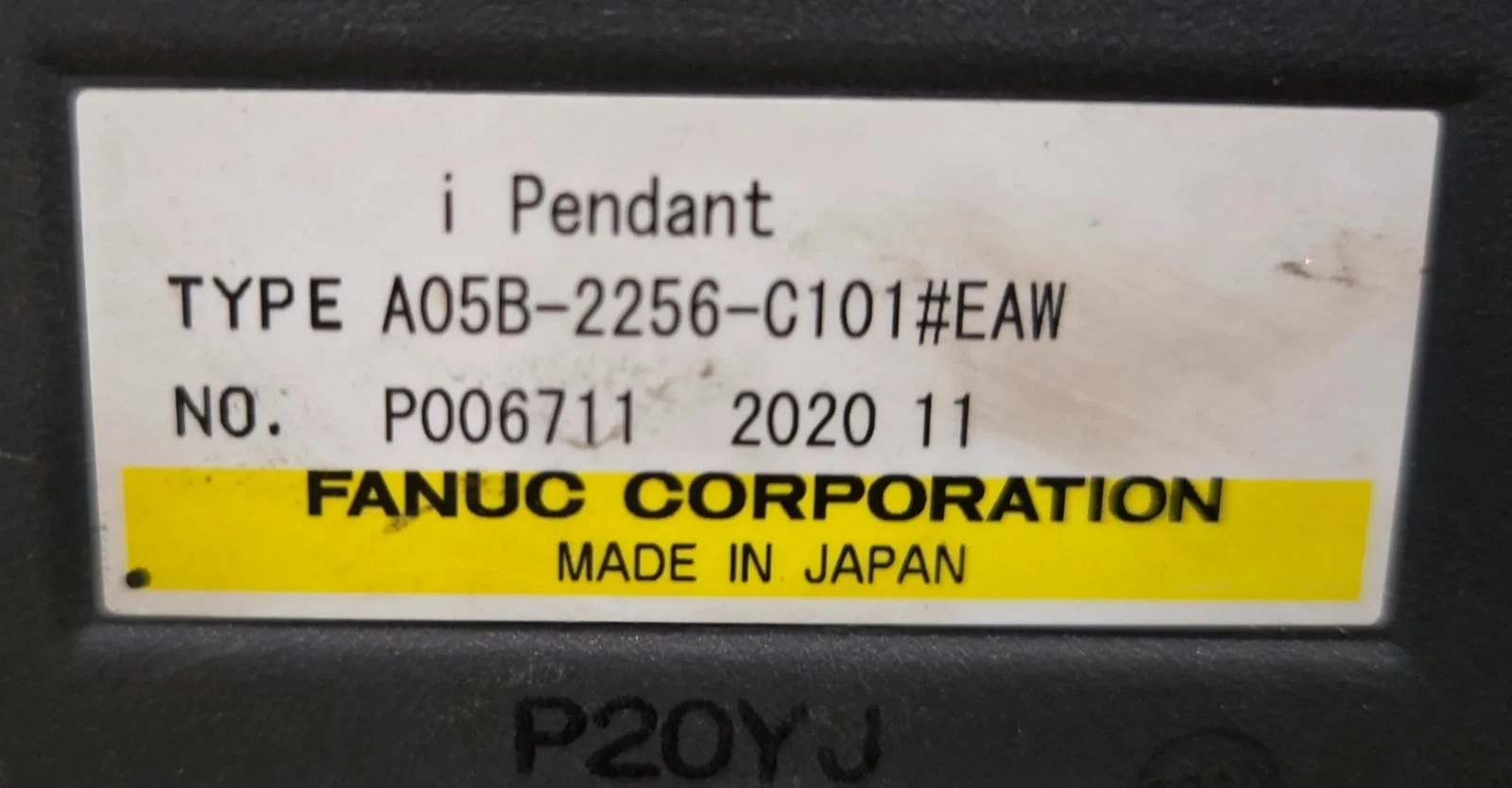

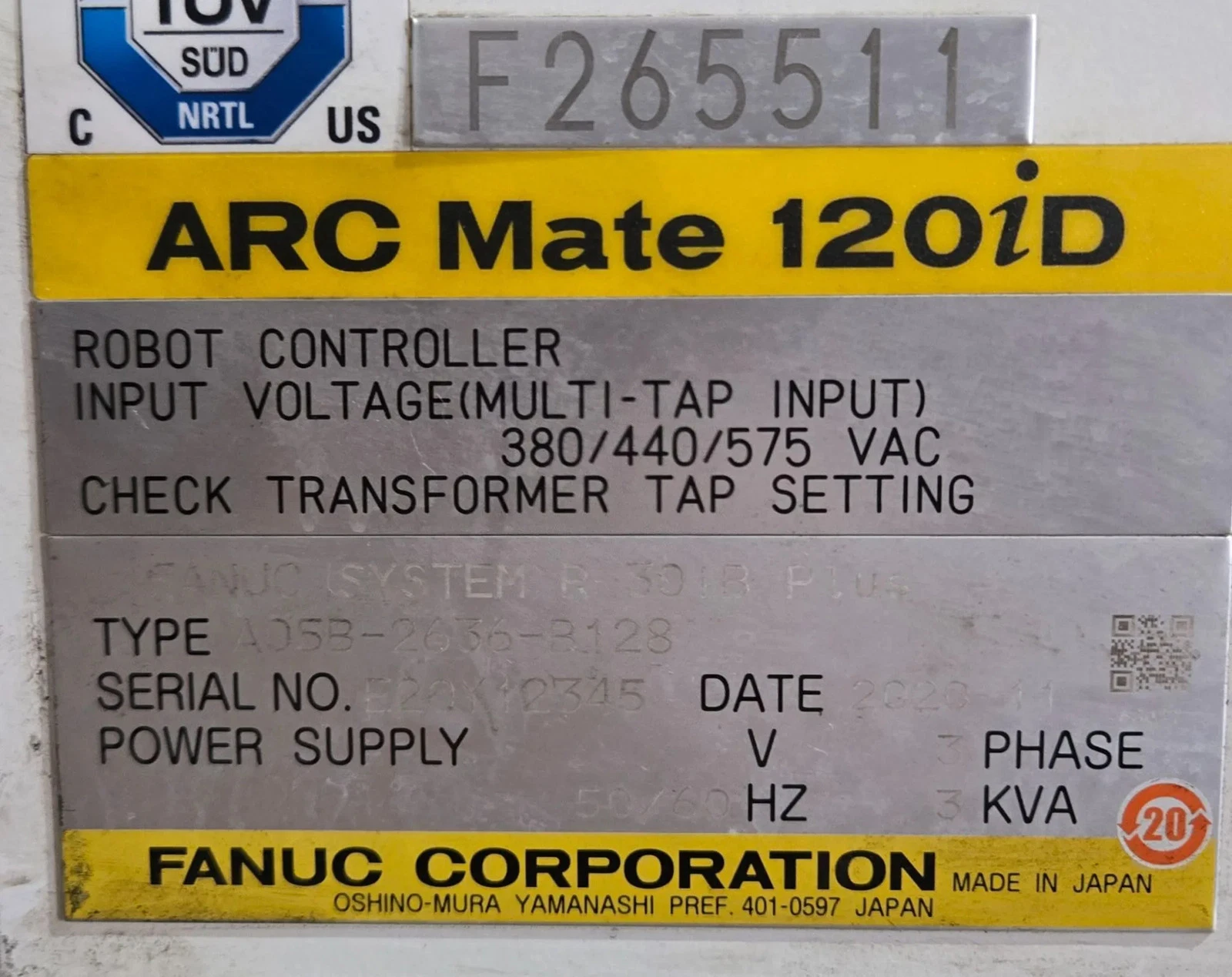

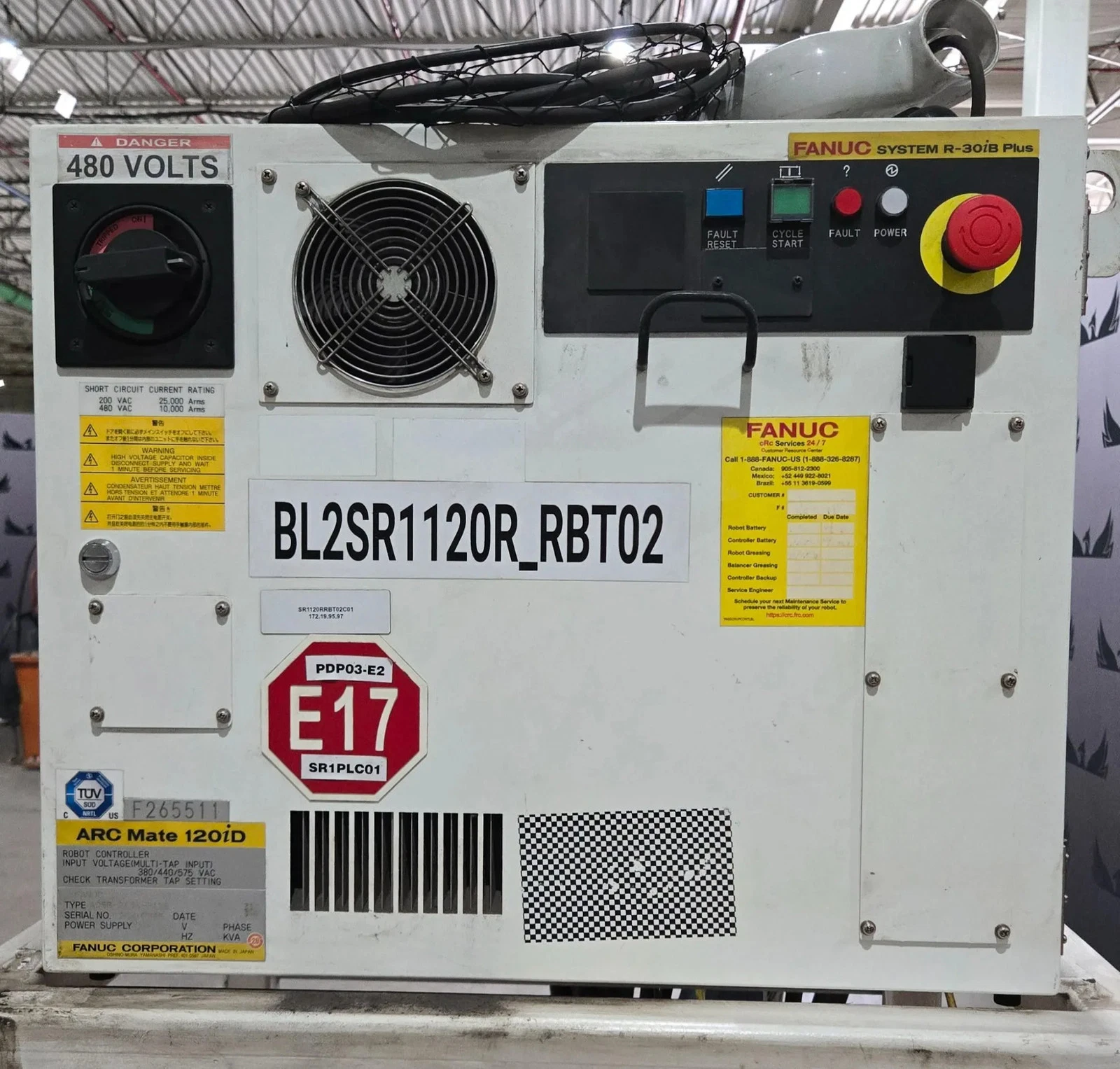

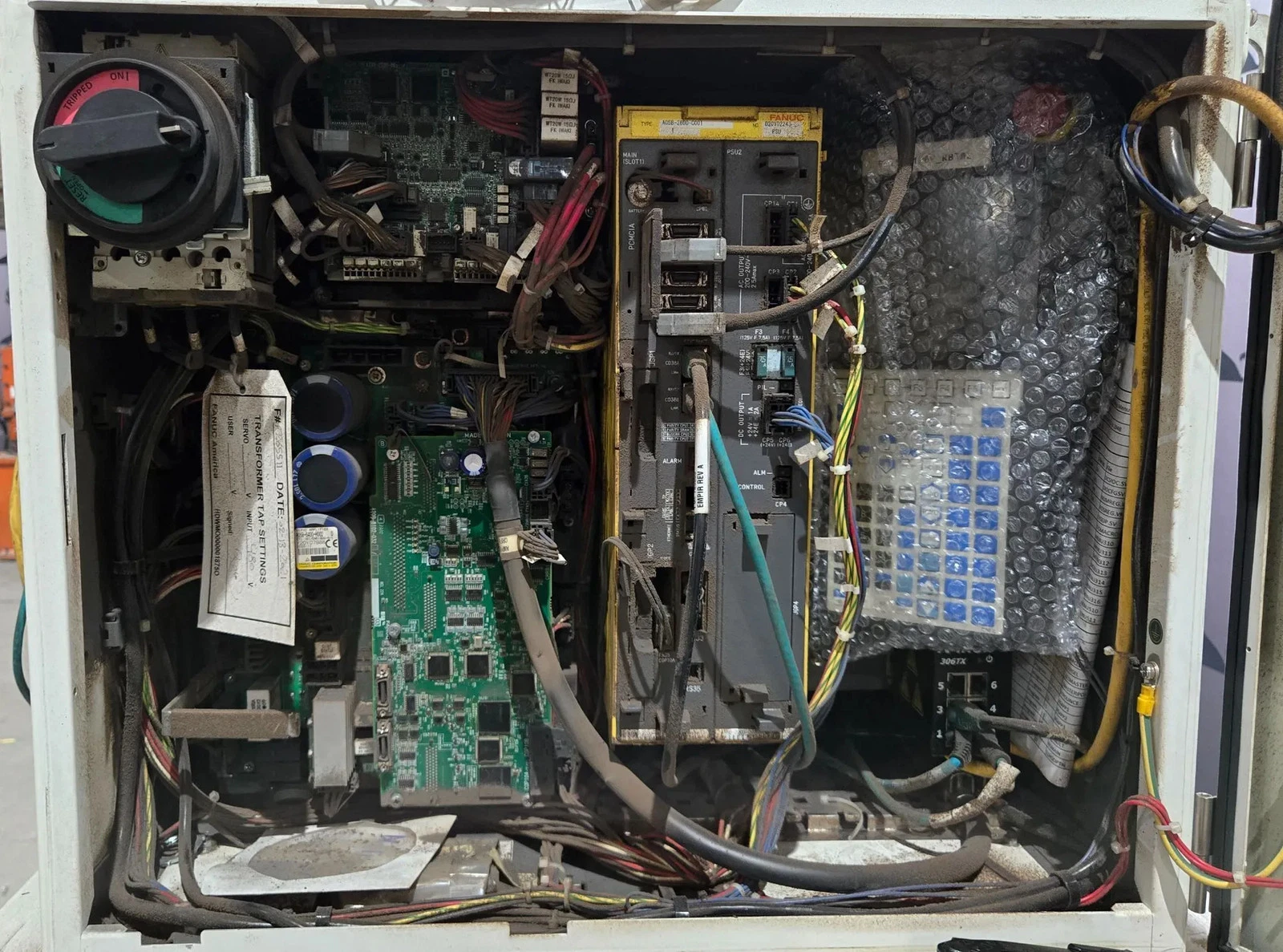

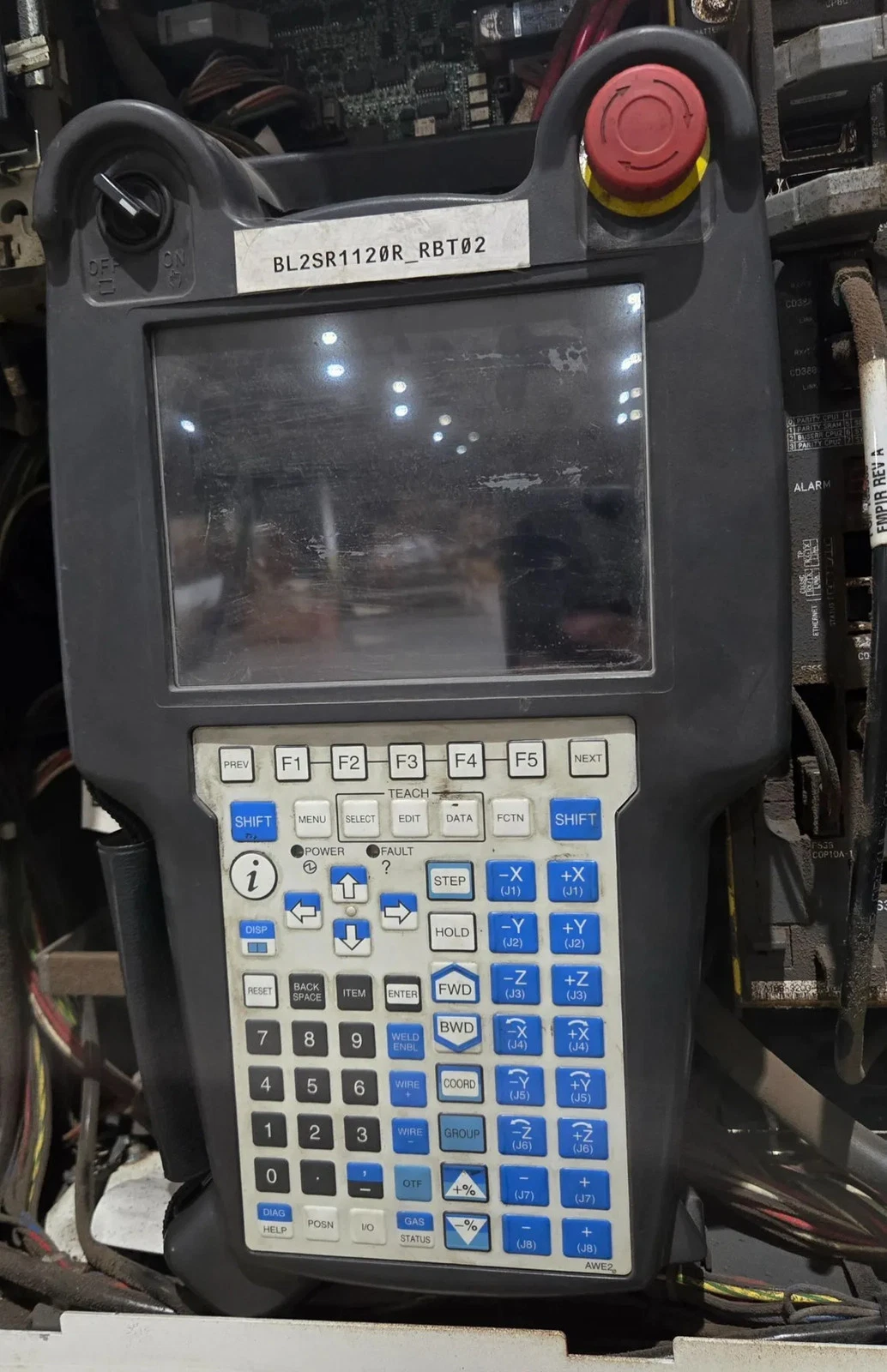

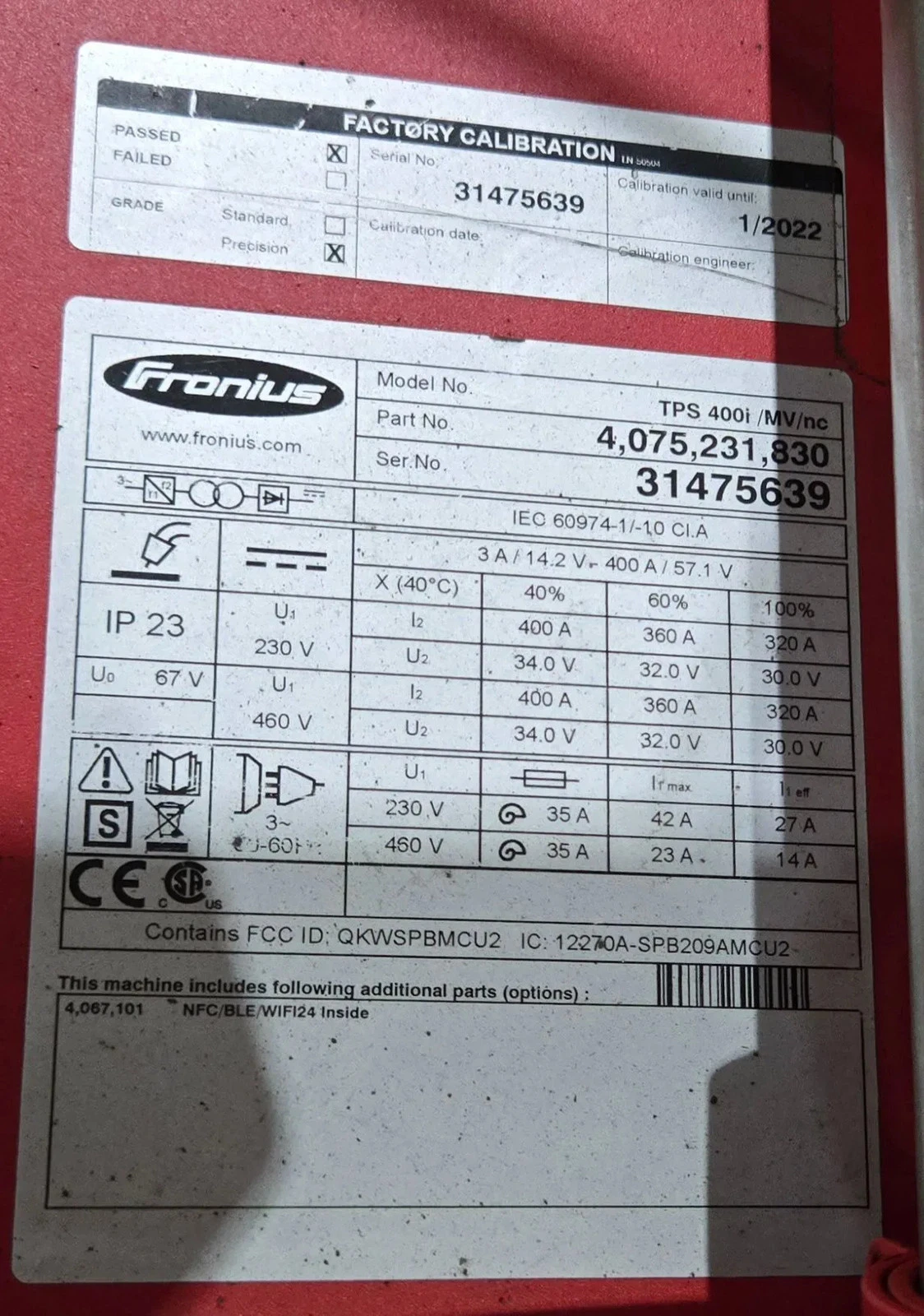

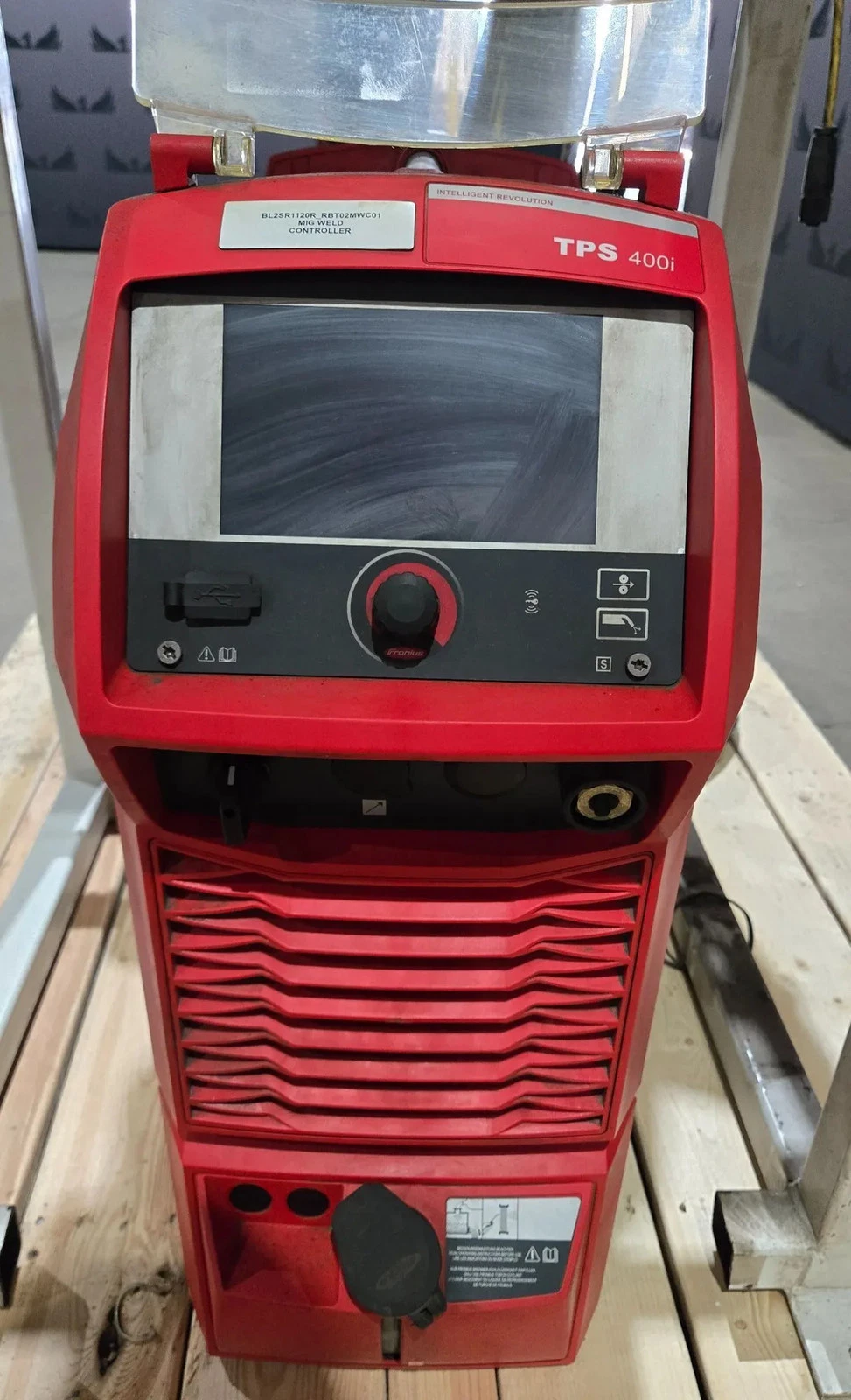

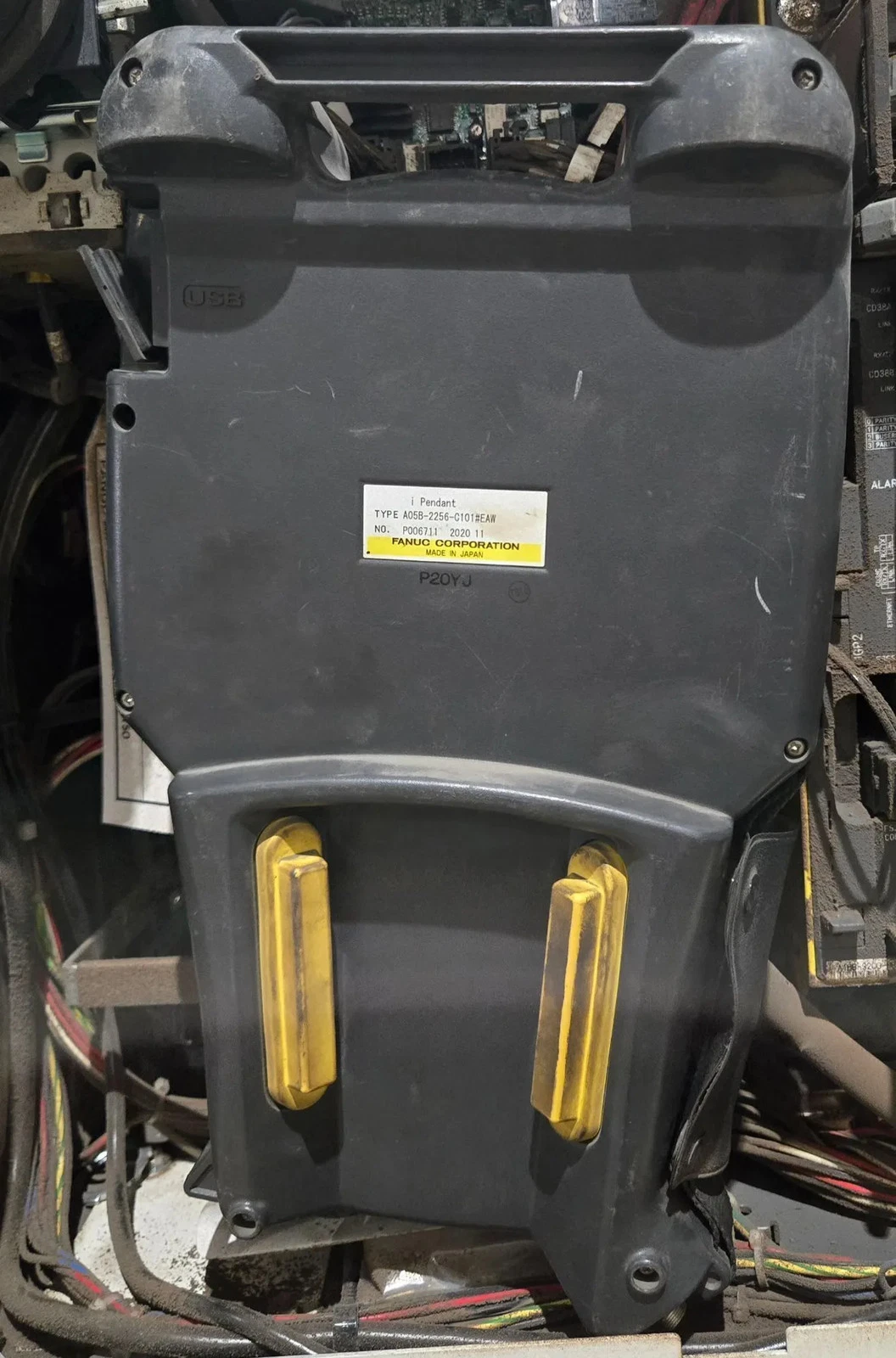

Robot Manufacturer: Fanuc Robot Model: Arc Mate 120iD Type: A05B-1228-B201 Condition: USED Hours: 22719 YOM: 2020 Robot Serial Number: R20Z20251 Robot Weight: 250 kg Payload Capacity: 25 kg Max Reach: 1831 mm Repeatability: ±0.08 mm Controller Manufacturer: Fanuc Controller Model: R-30iB Plus Controller Type: A05B-2636-B128 Controller Serial Number: E20Y12345 Controller Date: 2020-11 Input Voltage: 380 / 440 / 575 VAC Frequency: 50 / 60 Hz Phase: 3 Phase Power Rating: 3 kVA Teach Pendant: Model: iPendant Type: A05B-2256-C101#EAW Serial Number: P006711 Date: 2020-11 Welding Power Source Manufacturer: Fronius Model: TPS 400i / MV / nc Part Number: 4,075,231,830 Serial Number: 31475639 Welding Output: Voltage Range: 14.2 V – 57.1 V Max Output Current: 400 A Duty Cycle: 40%: 400 A 60%: 360 A 100%: 320 A Input Requirements (Welder): 230 V: 35 A 460 V: 35 A Protection Rating: IP23 System Configuration: Robot + Controller + Teach Pendant + Welding Power Supply Mounting: Floor Mount Base
