Fanuc Arc Mate 120iD Complete with R-30iB Plus Controller and TPS 400i Weld System USED

Name: Fanuc Arc Mate 120iD Complete with R-30iB Plus Controller and TPS 400i Weld System USED
Brand: FANUC
SKU: IGAM1180006
Price: 35000.0 USD
Availability: InStock

$35,000.00

Availability:

1 in stock

BRAND: FANUC MODEL: ArcMate 120iD + R-30iB PLUS + TPS 400i CONDITION: used

SKU: IGAM1180006 Weight: 1300 lbs Freight (Item Must Ship Freight)

1 in stock

Make an offer

Get Shipping Quote

Overview

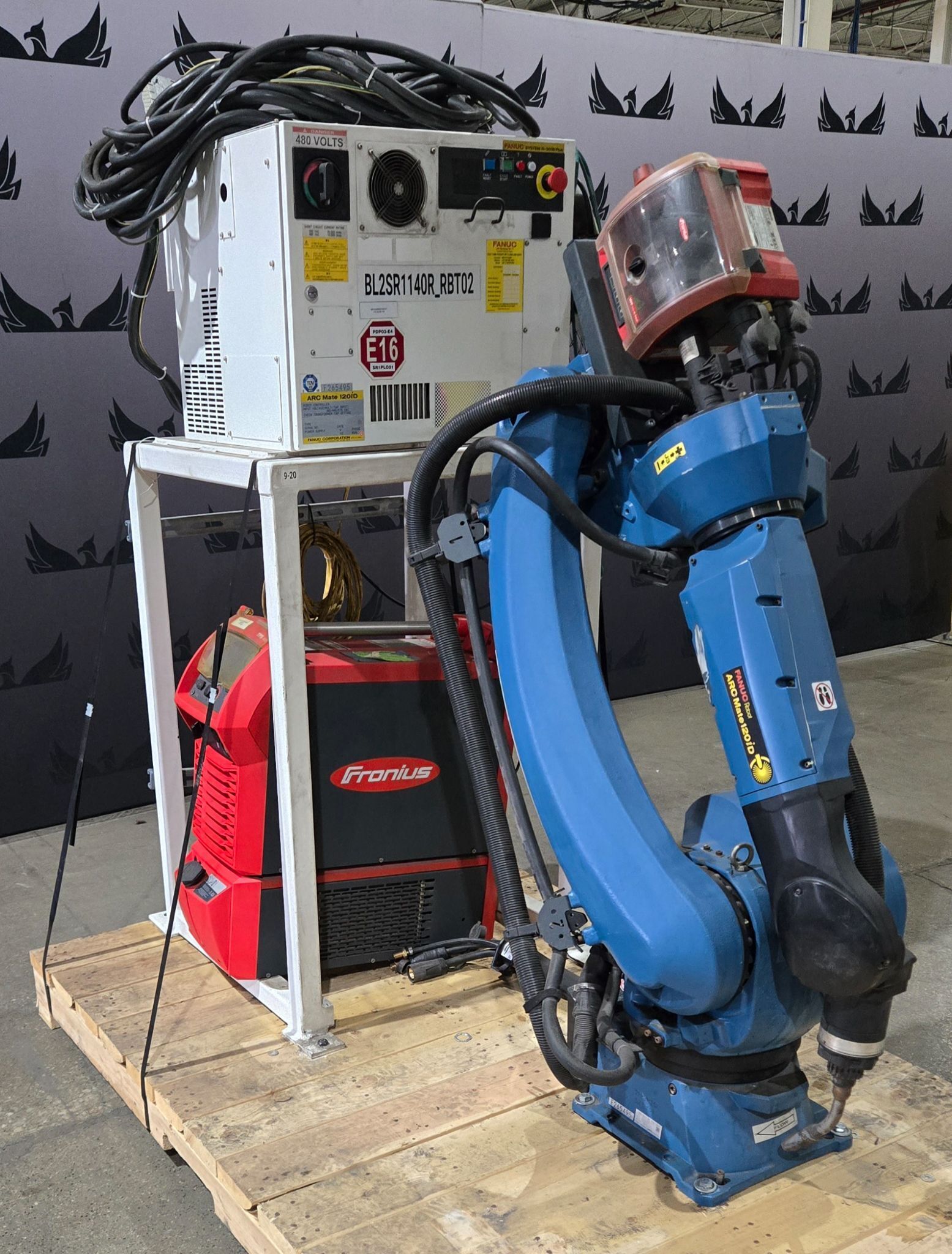

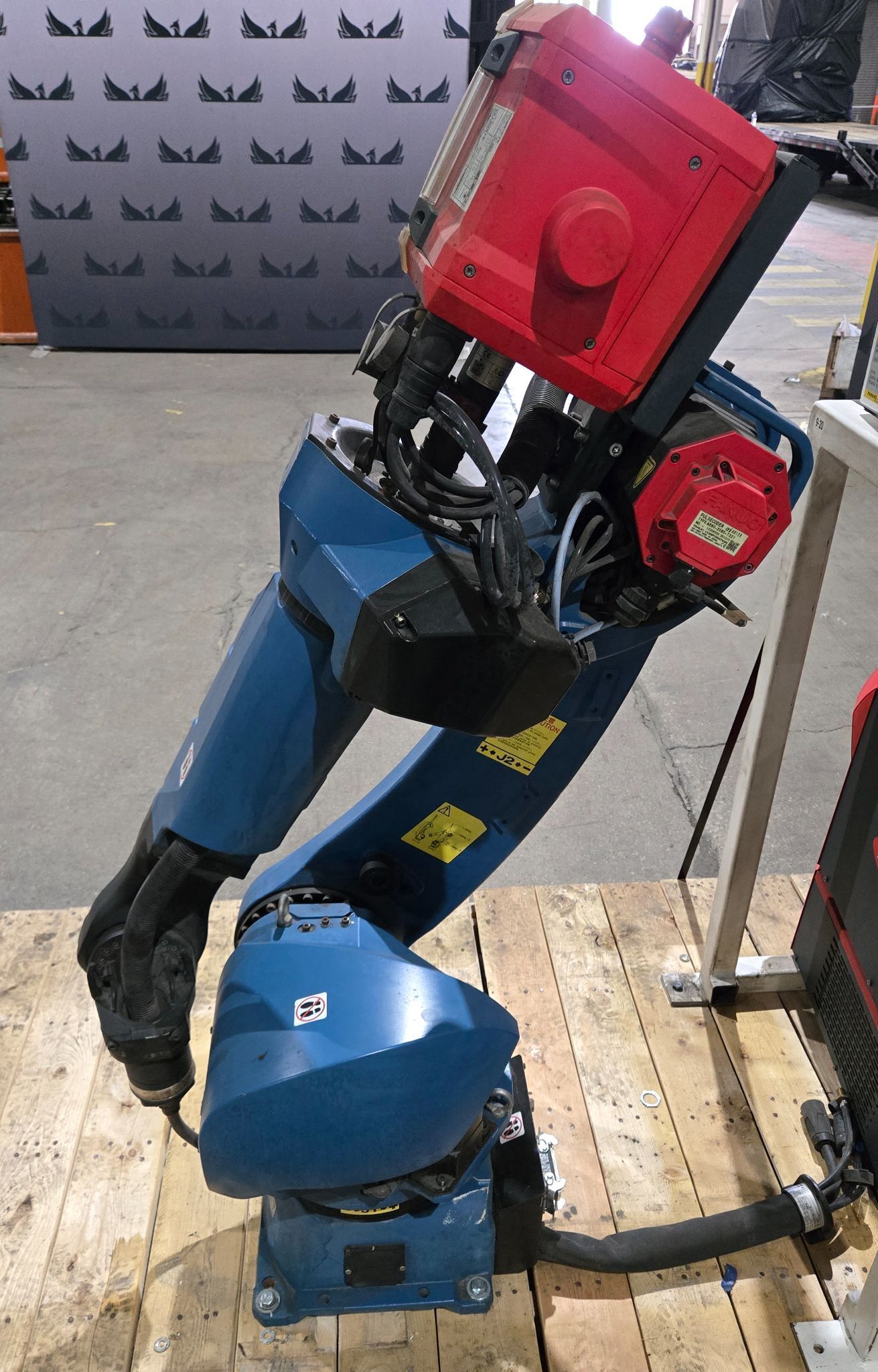

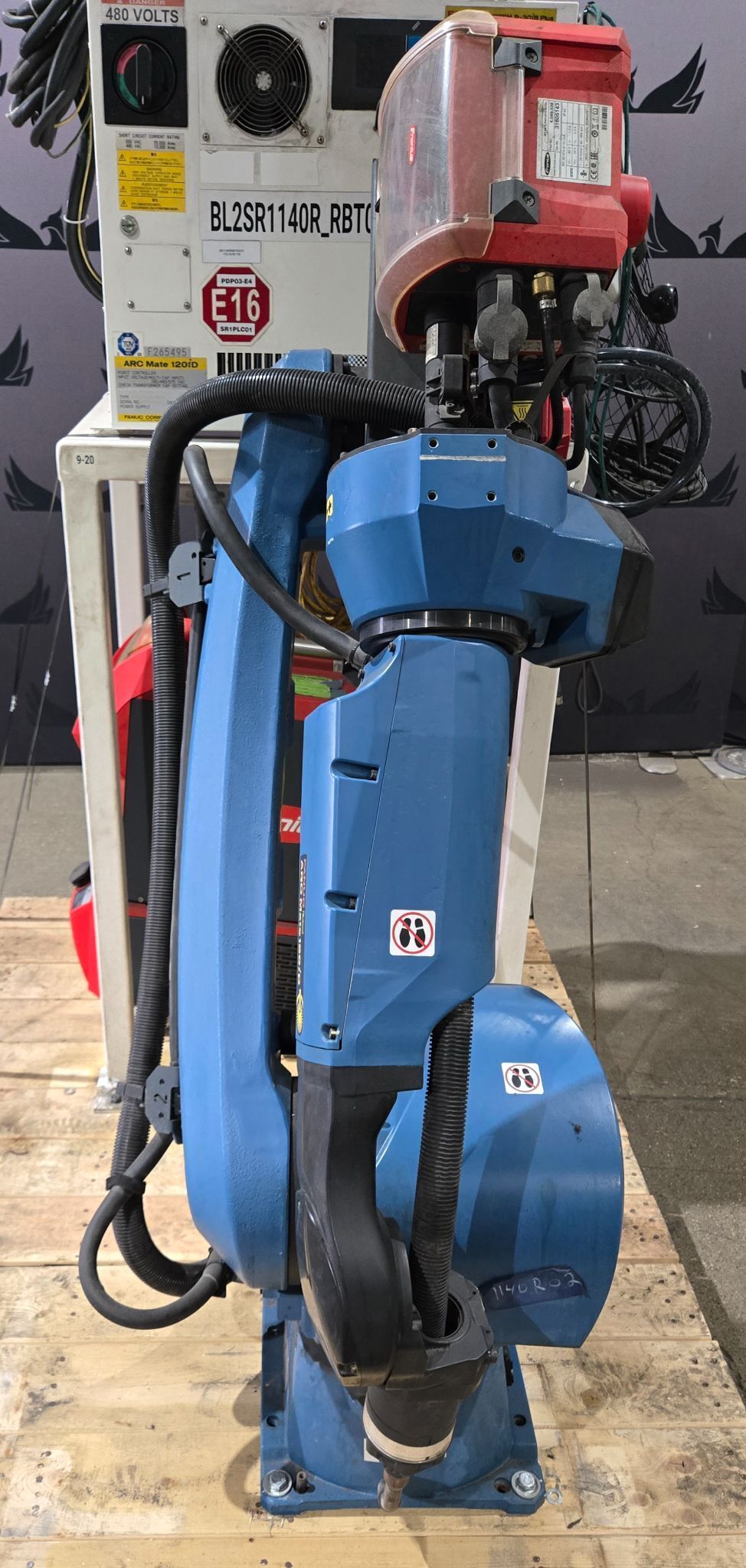

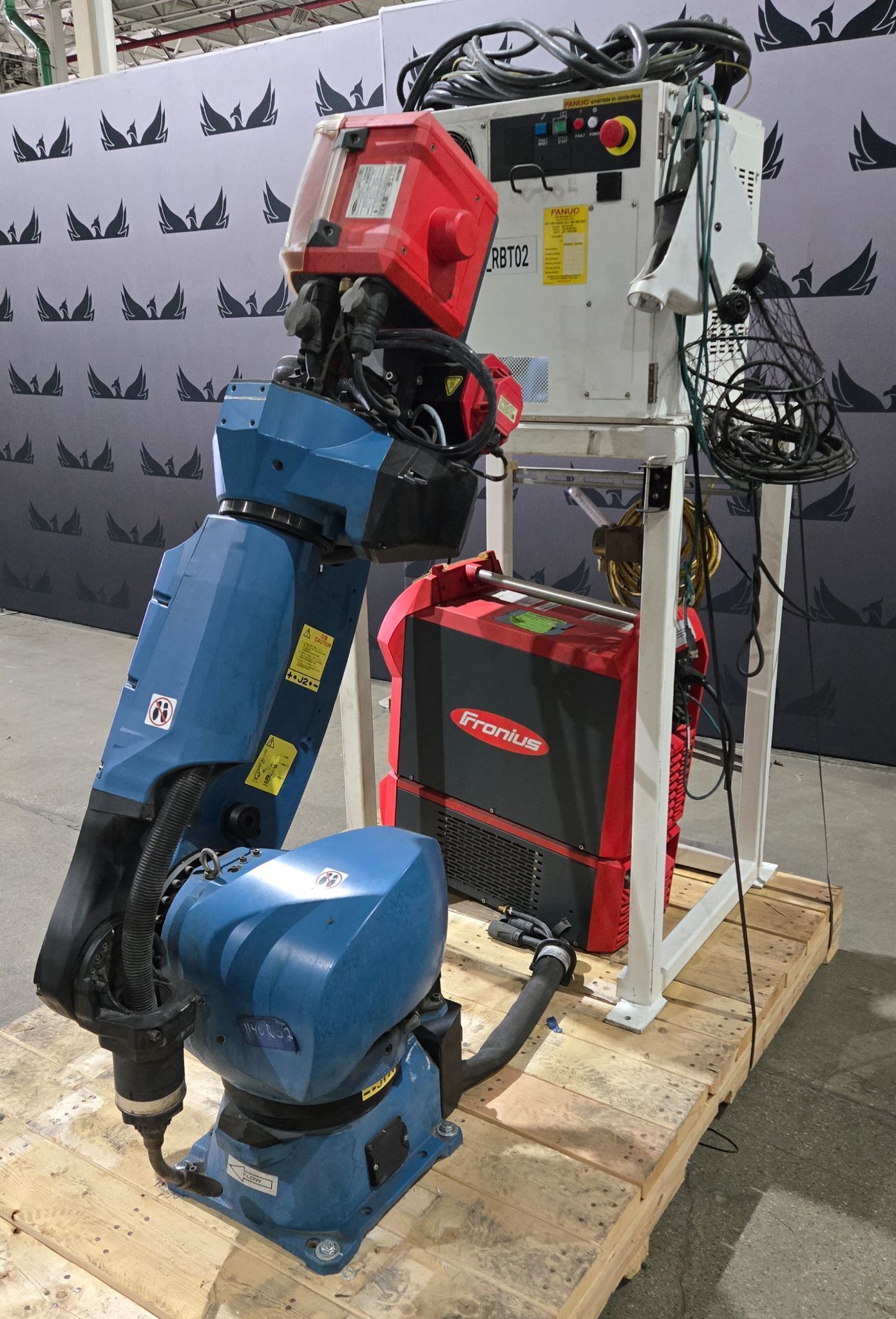

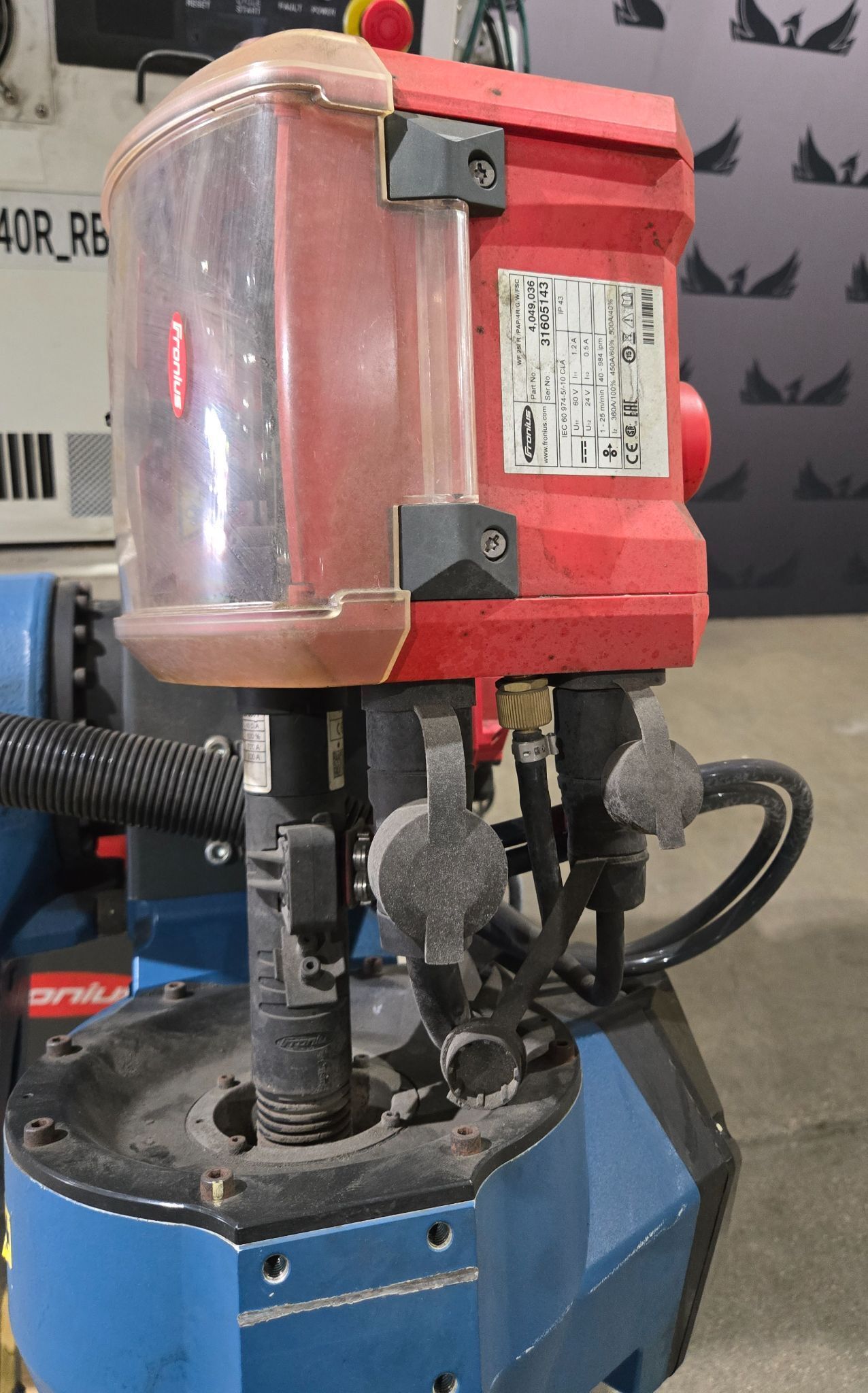

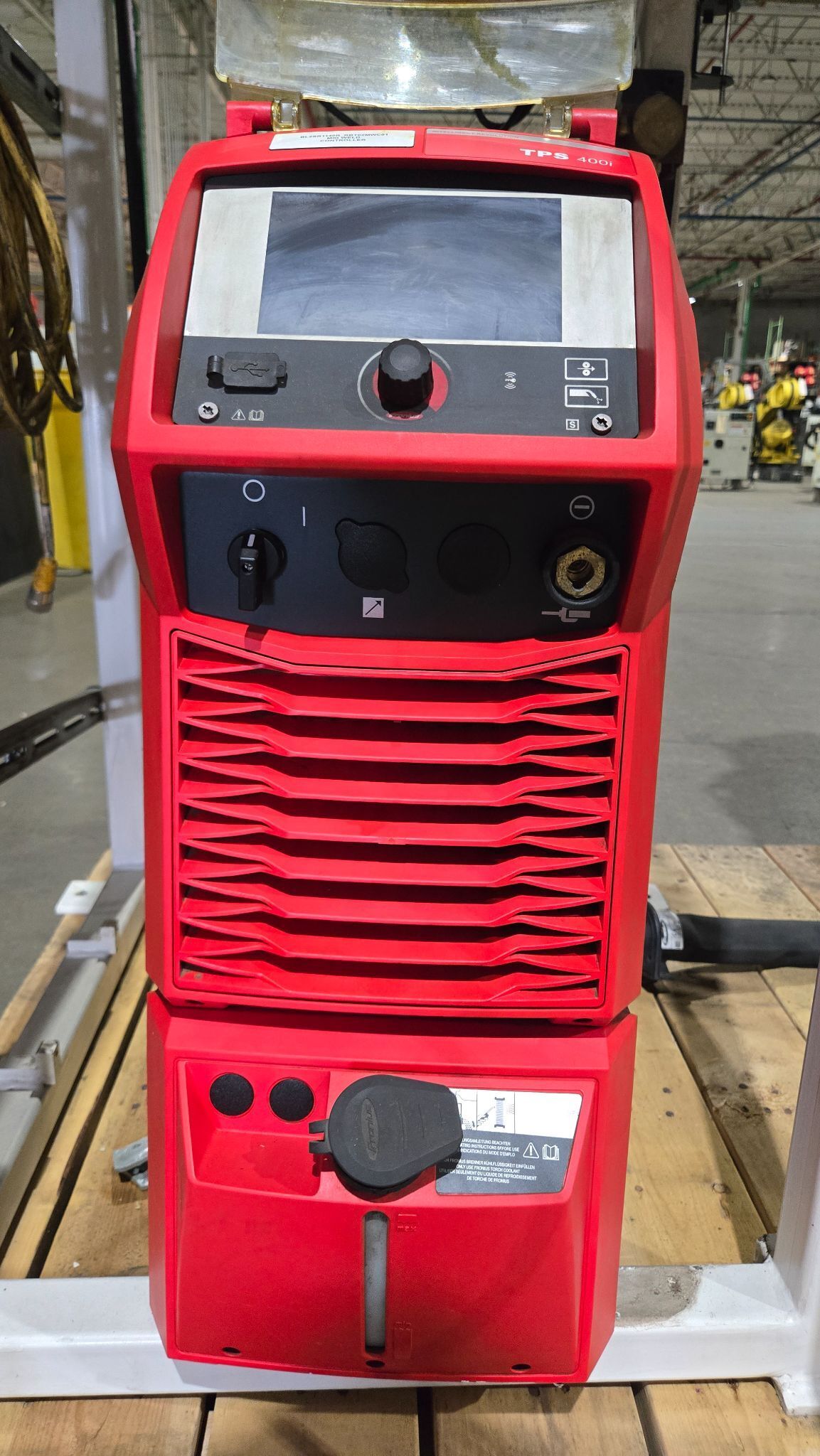

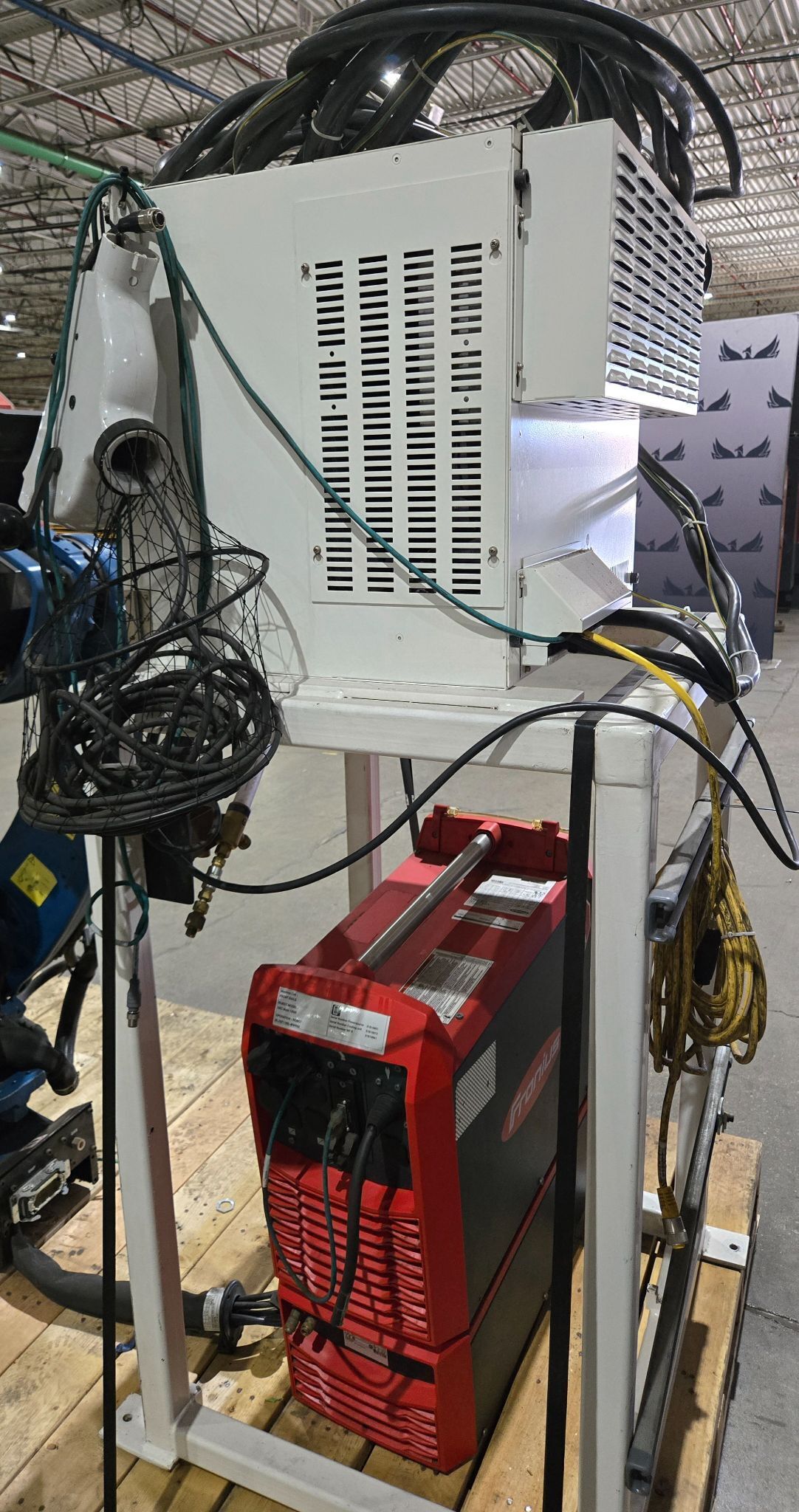

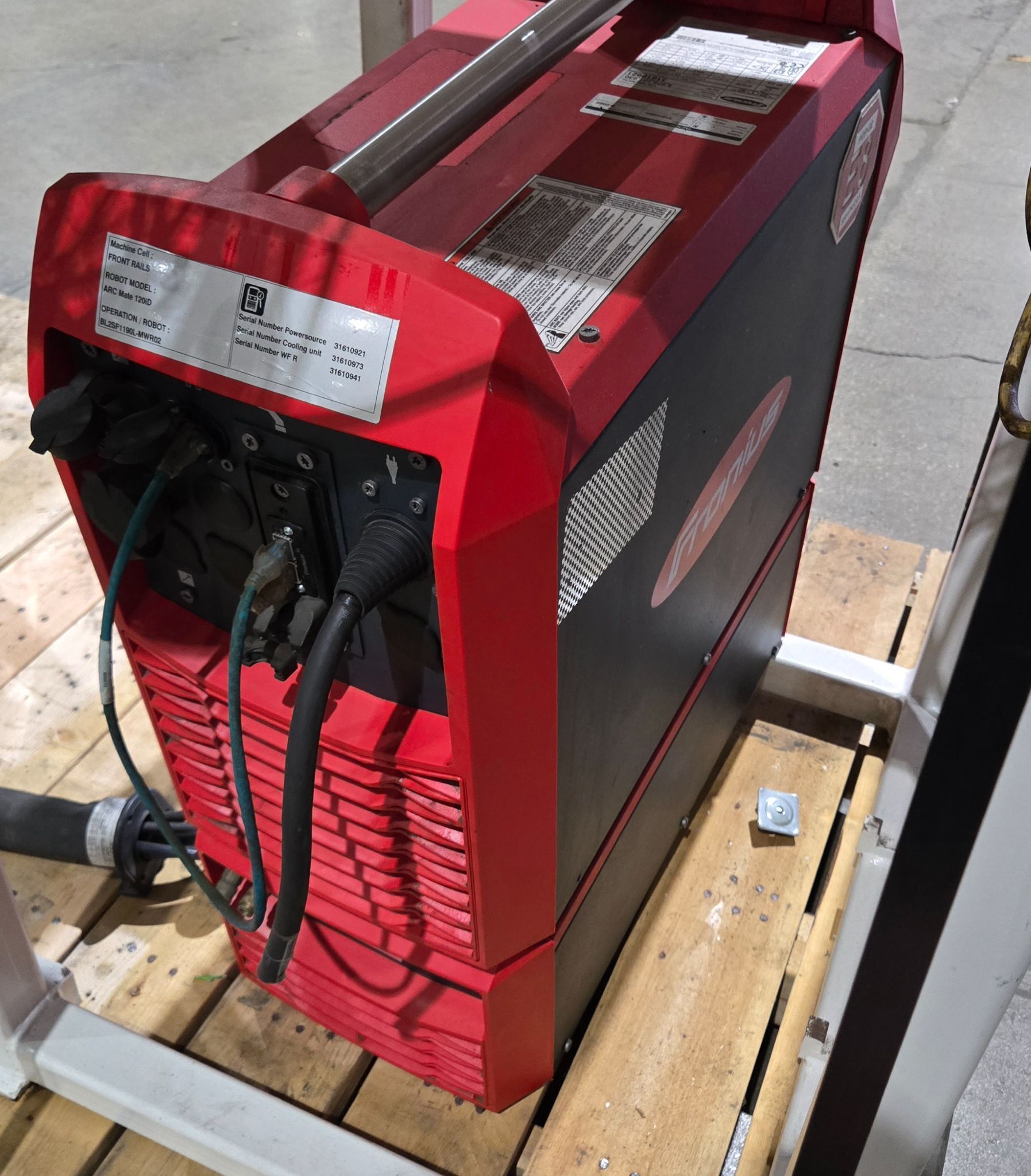

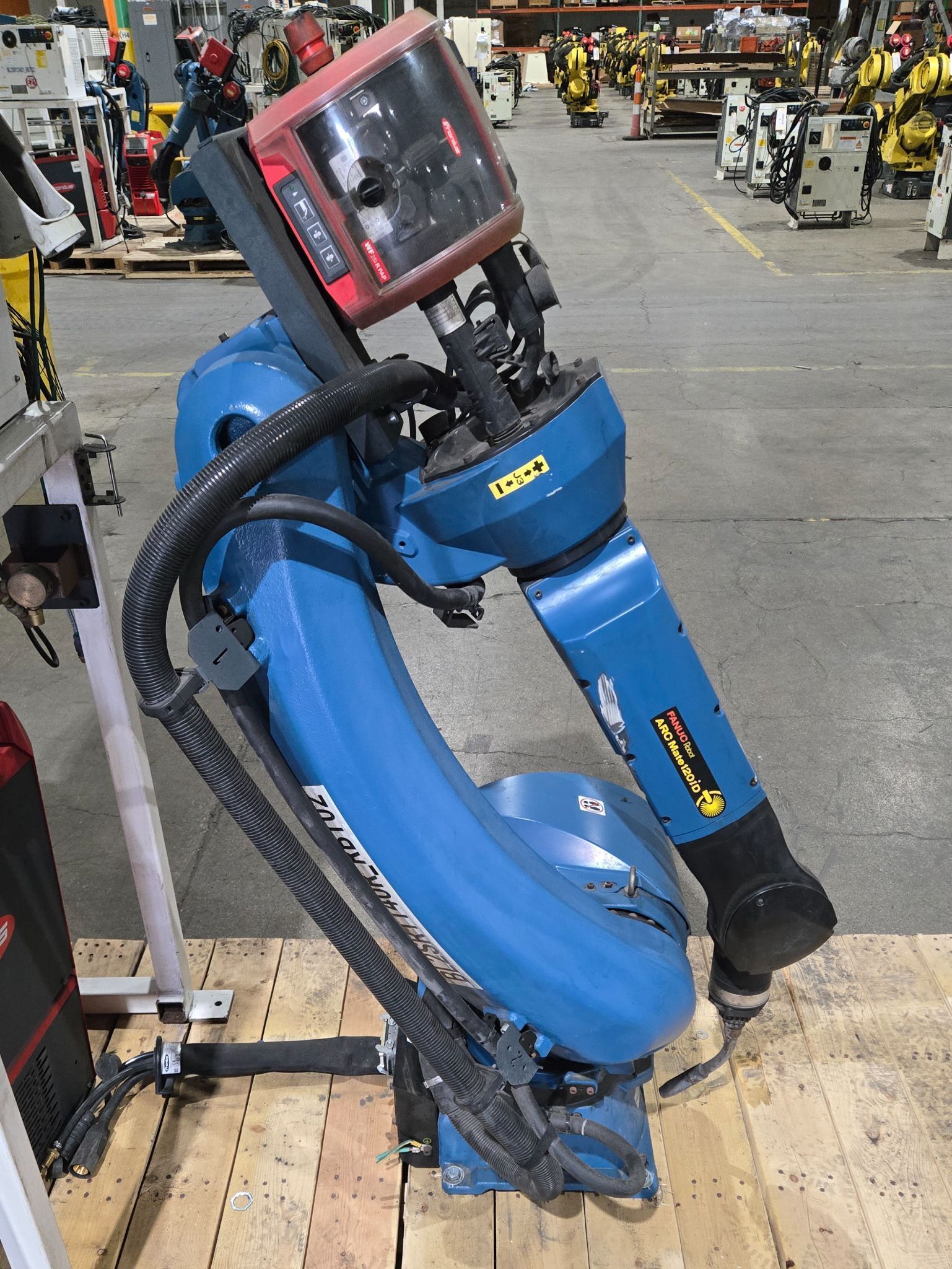

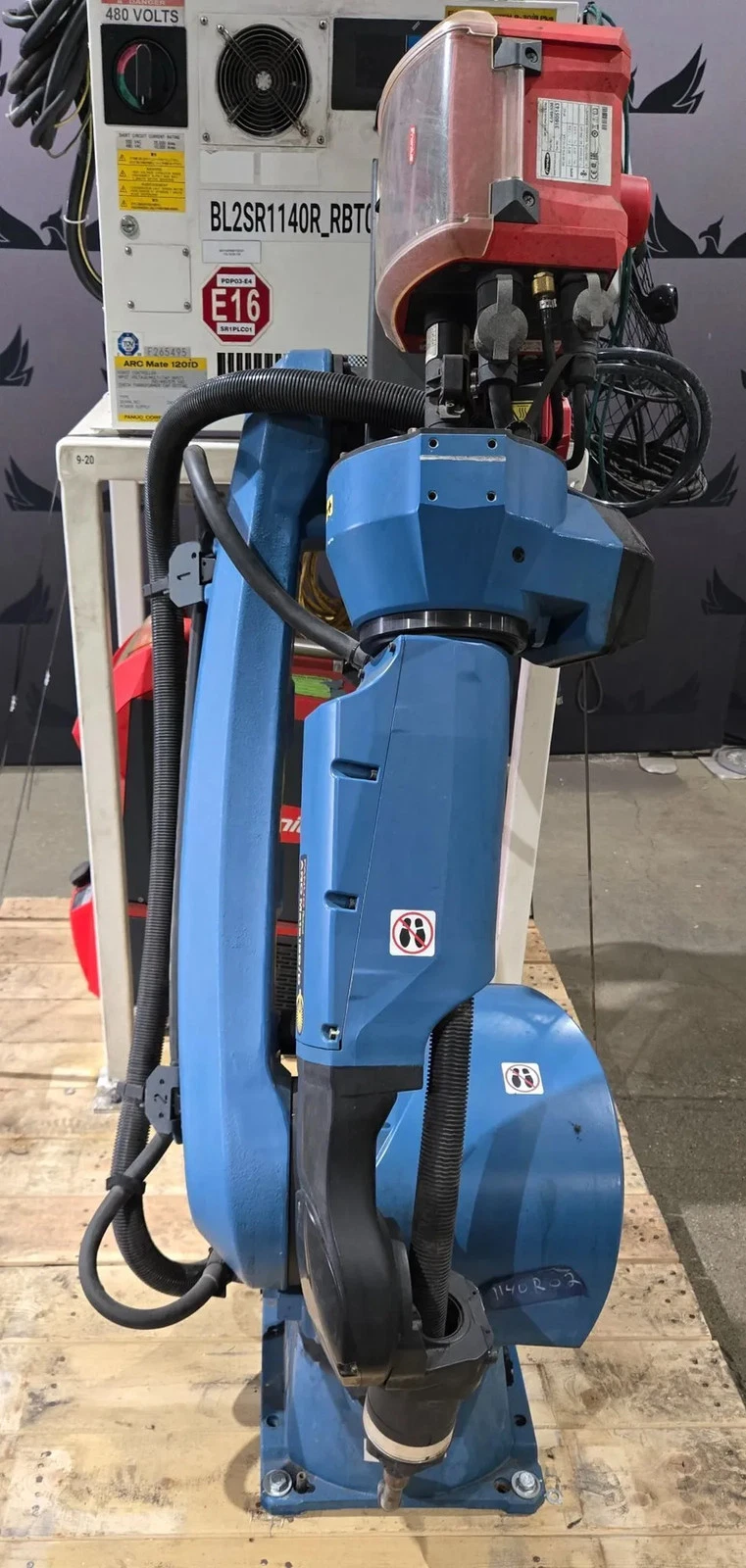

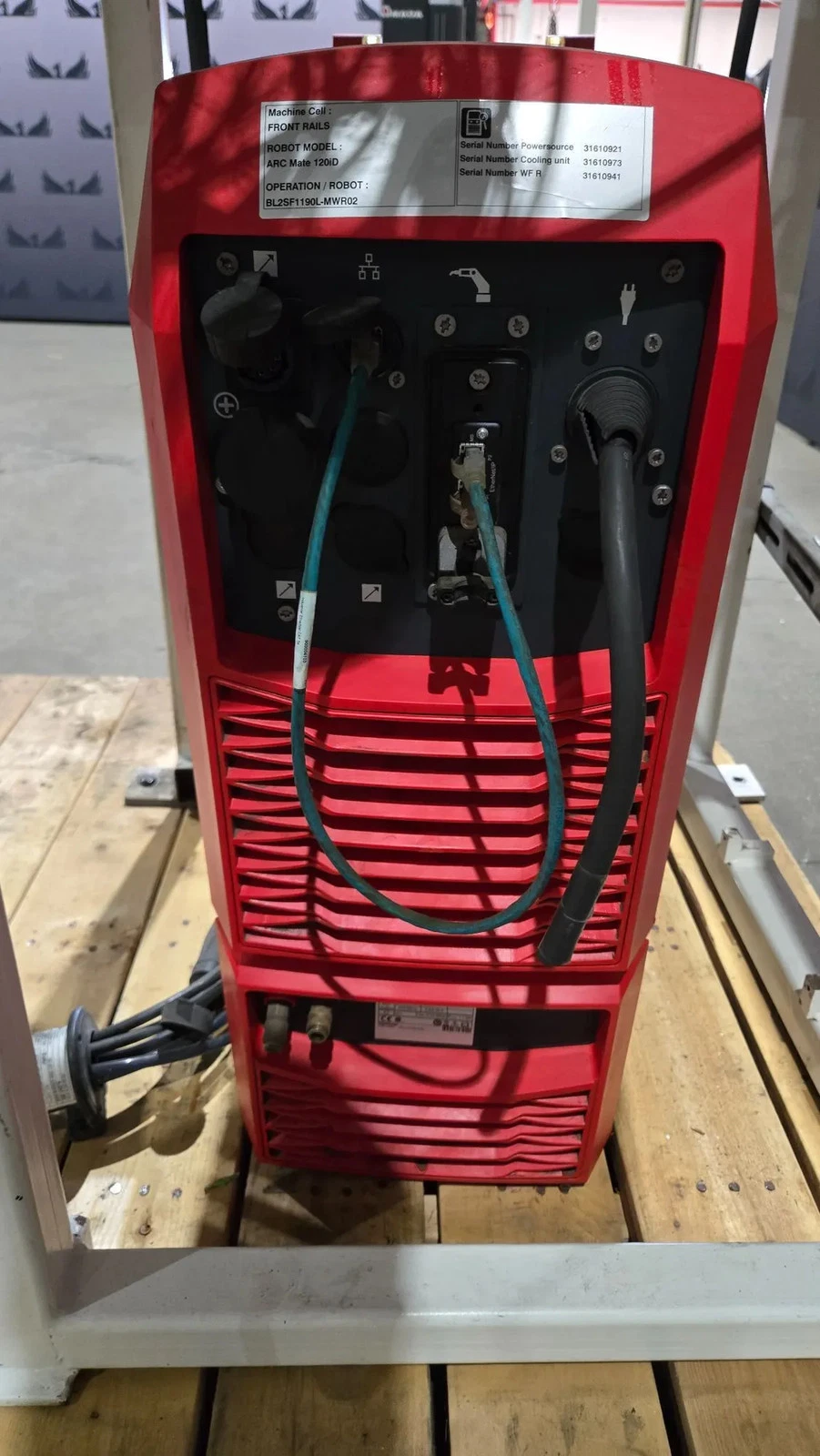

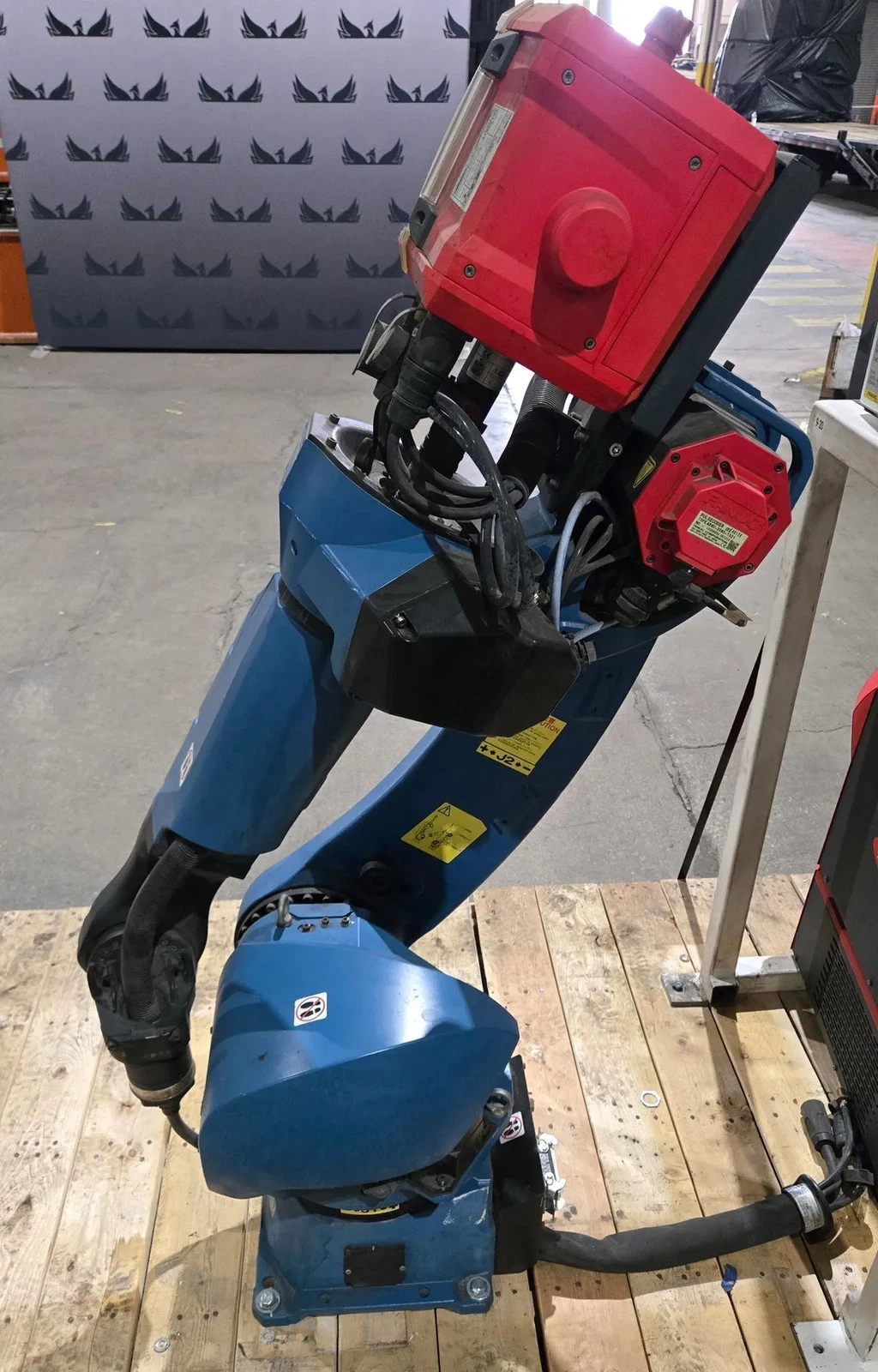

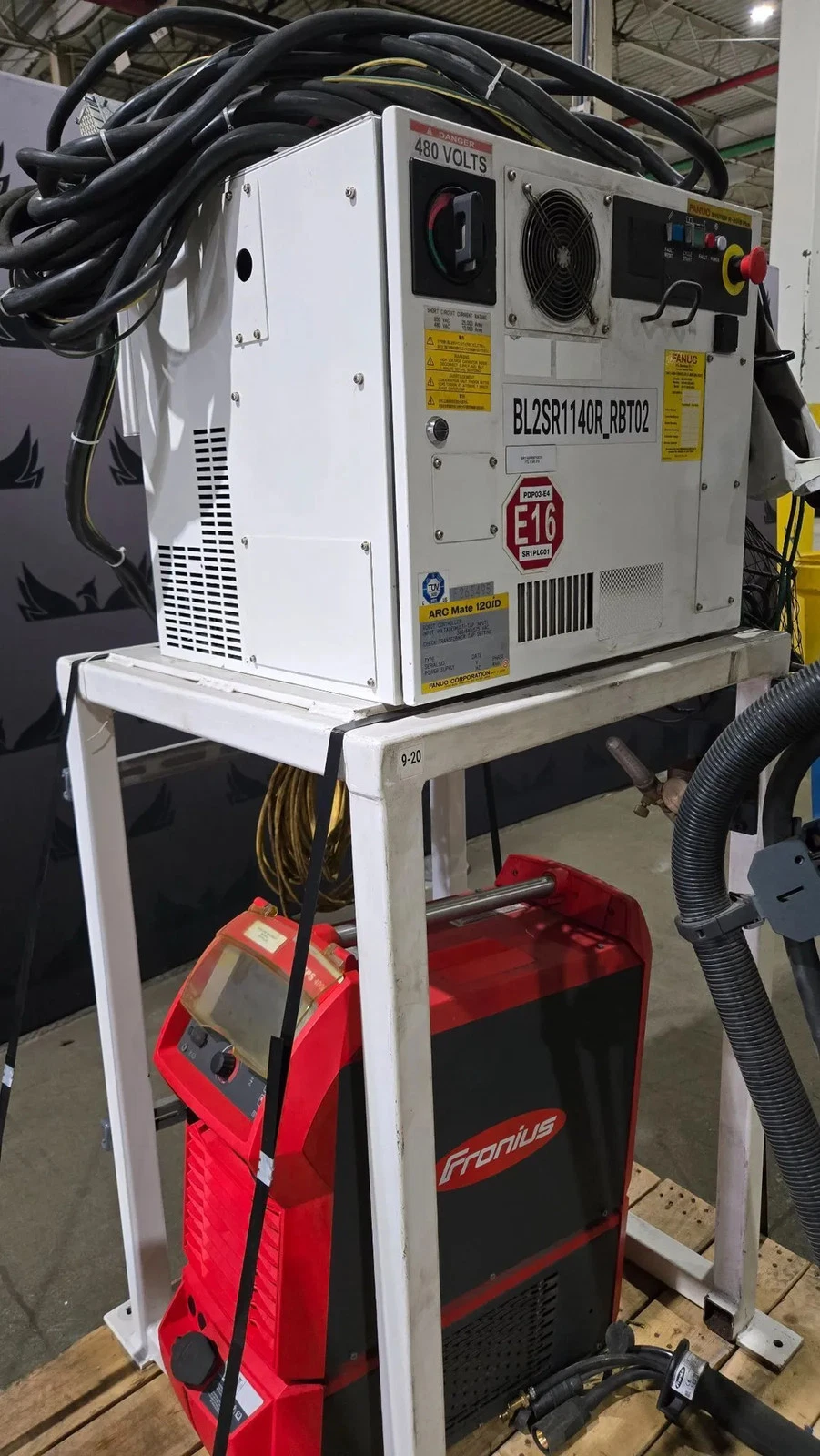

This listing is for a USED Fanuc Arc Mate 120iD complete system with R-30iB Plus controller, iPendant teach pendant, and Fronius TPS 400i weld package. The setup brings together articulated robot motion and arc welding output, enabling coordinated weld execution with integrated control and power delivery across the system components.

Description
Tags

Specification Table

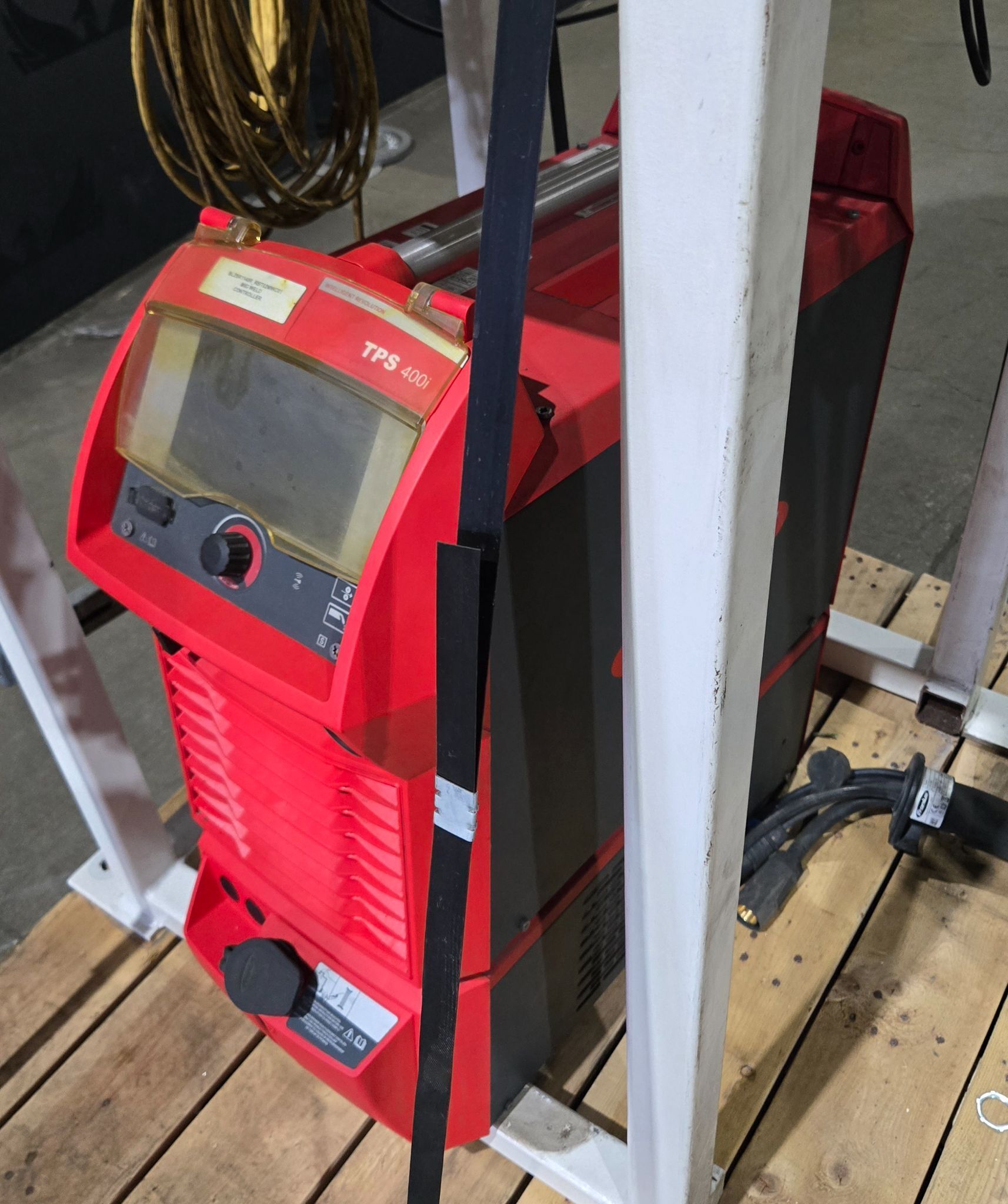

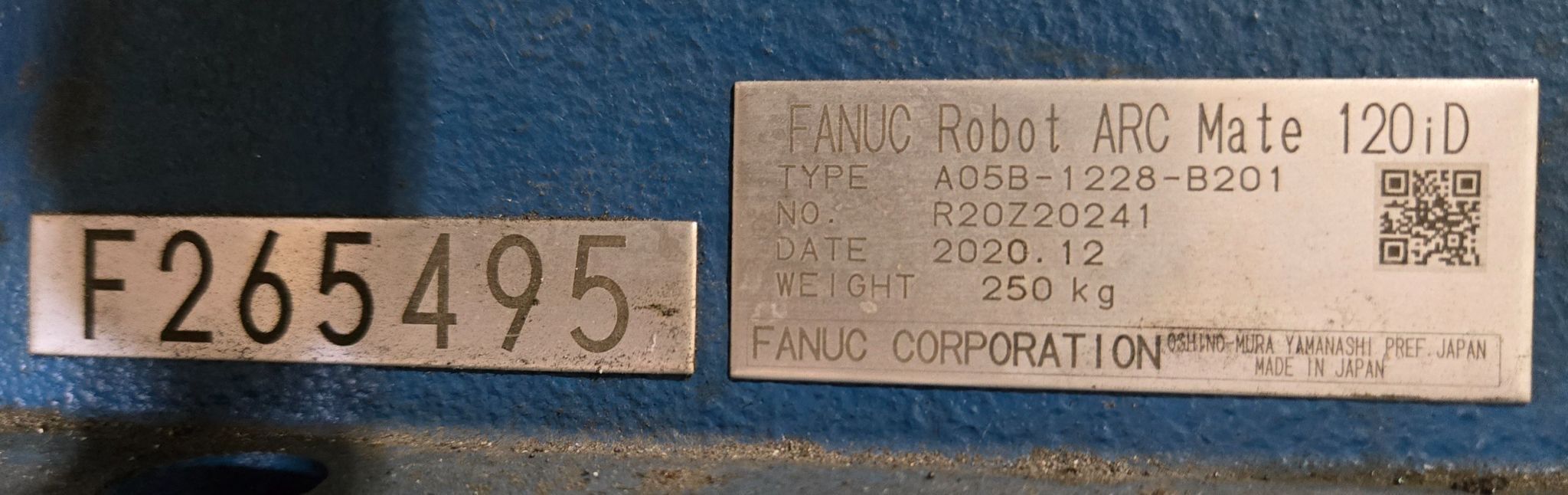

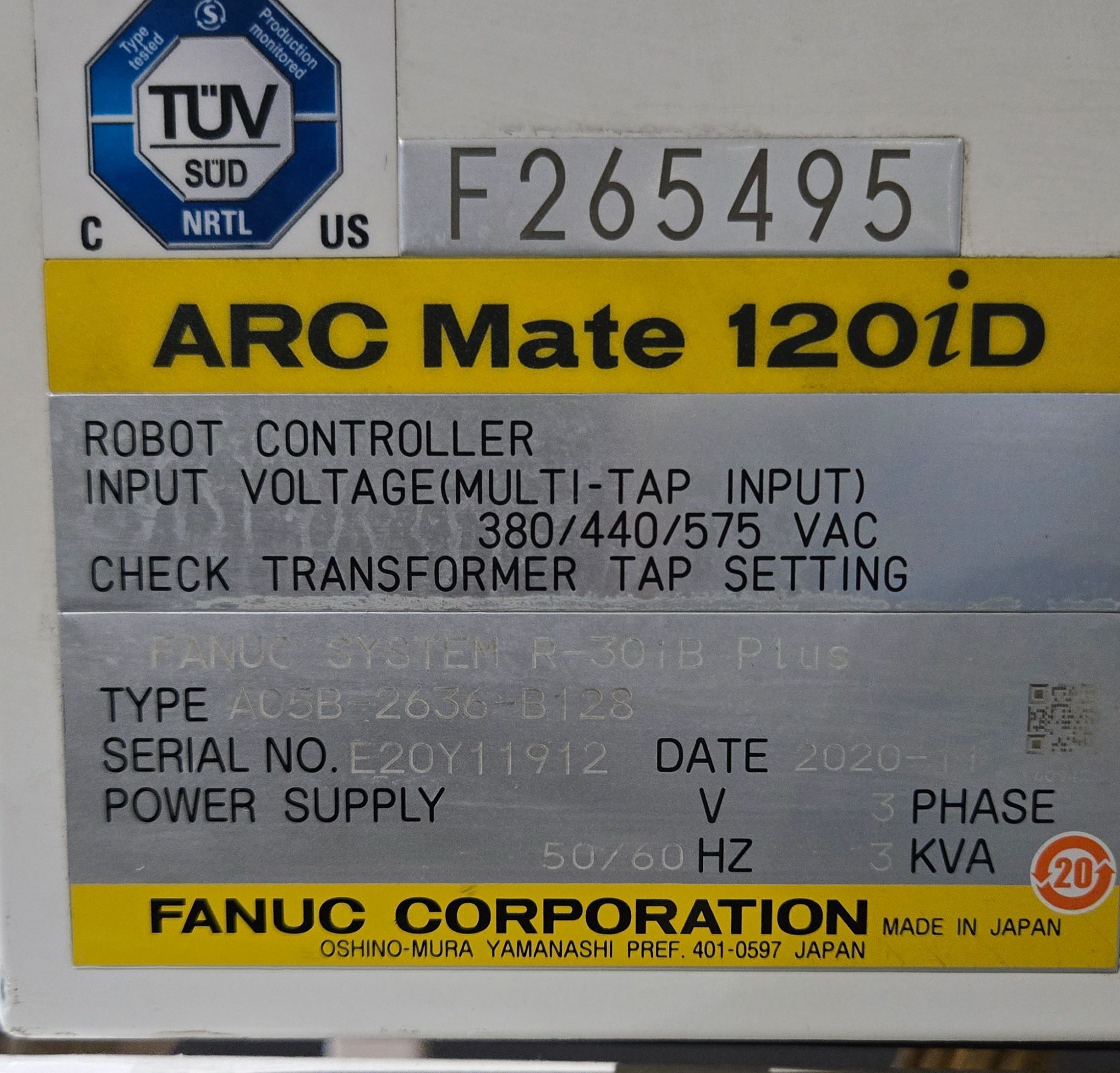

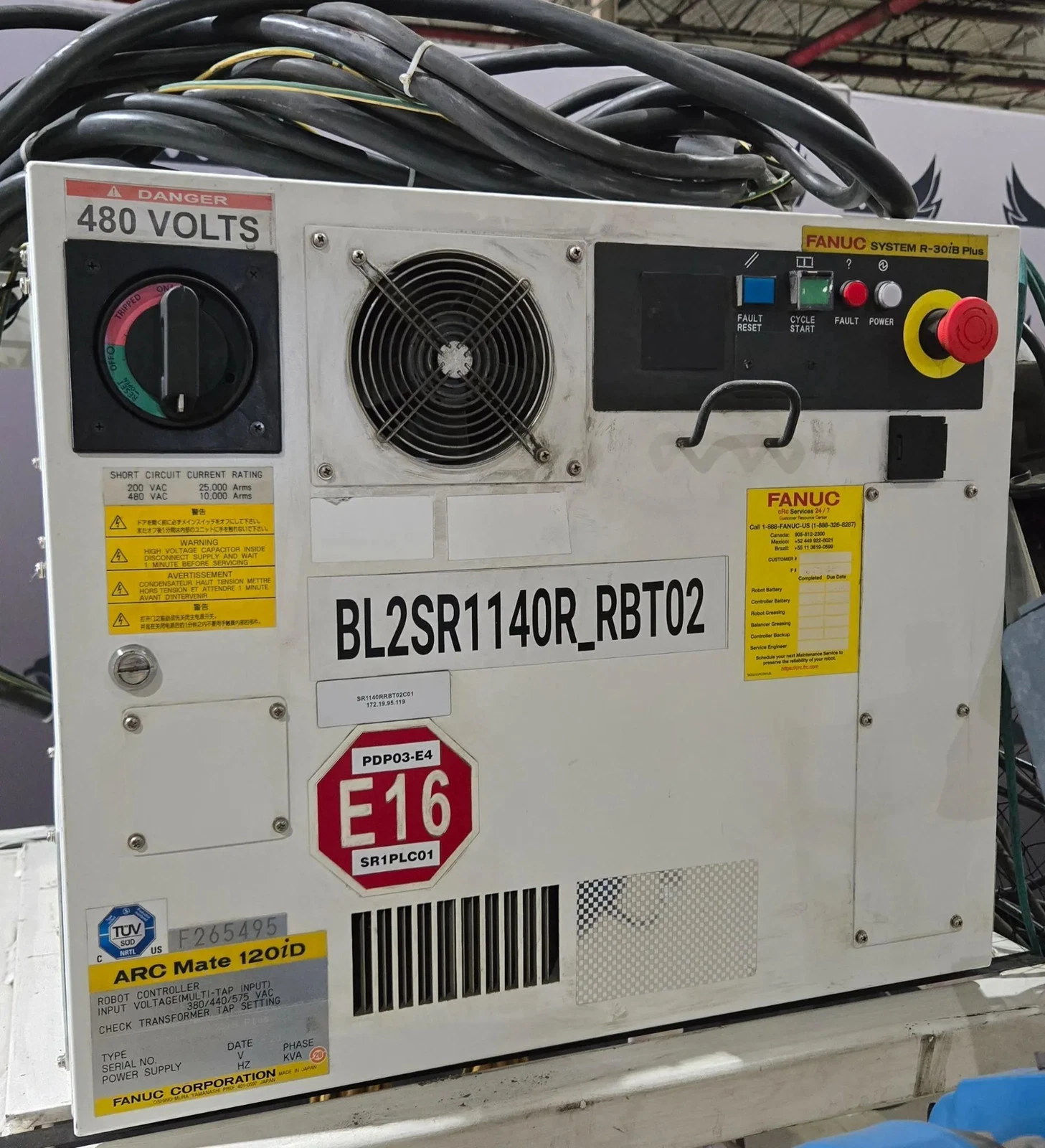

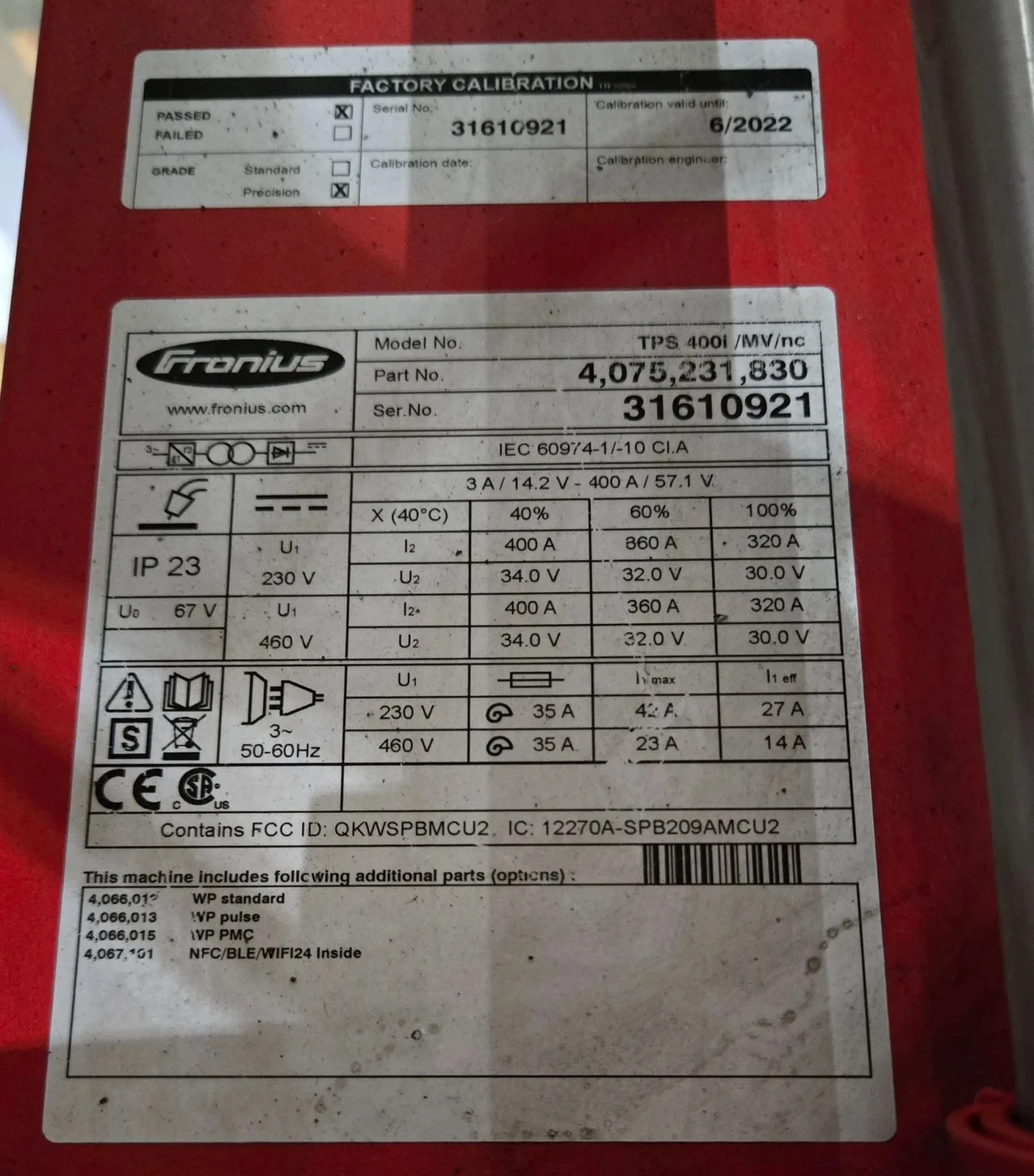

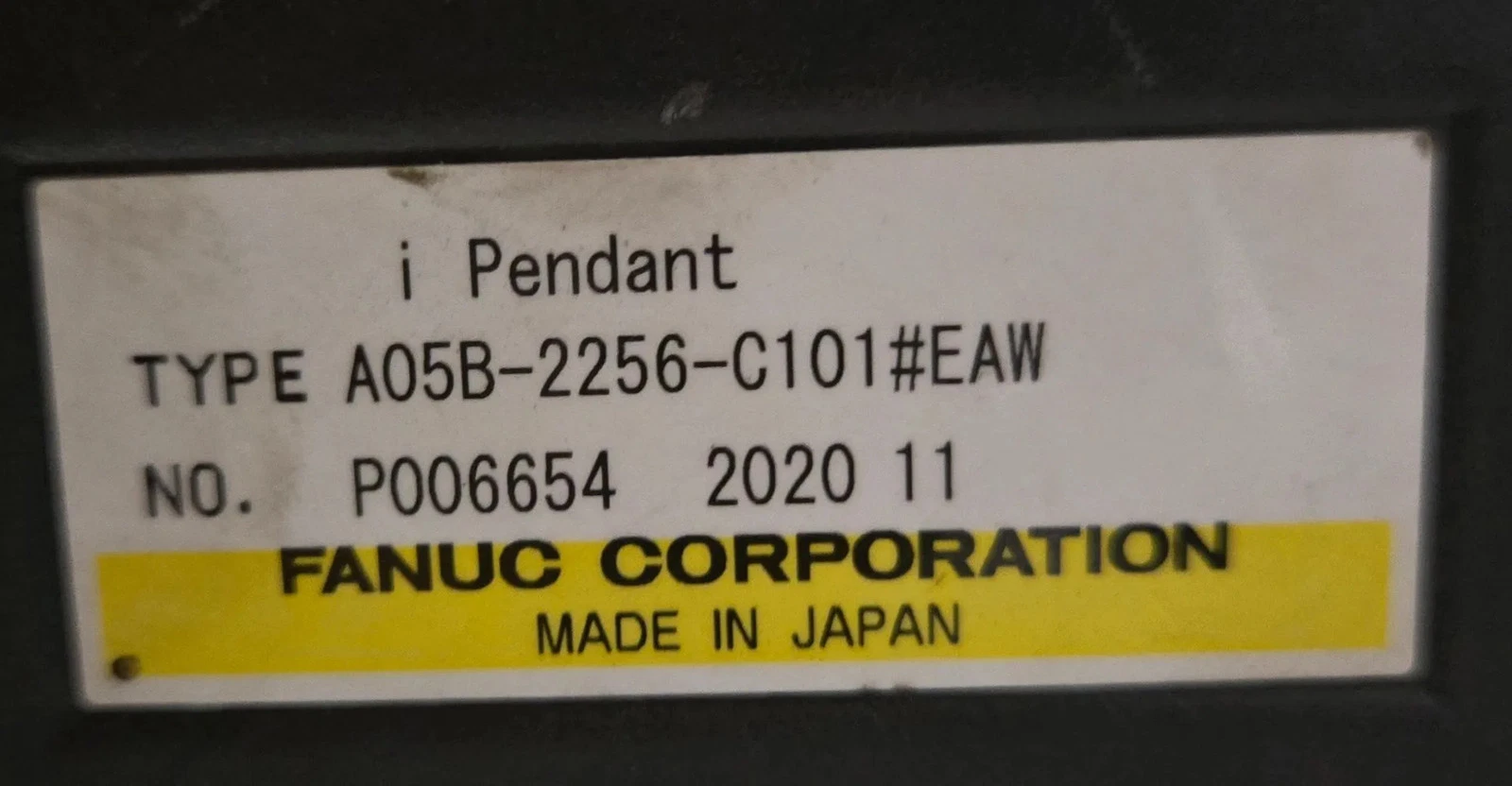

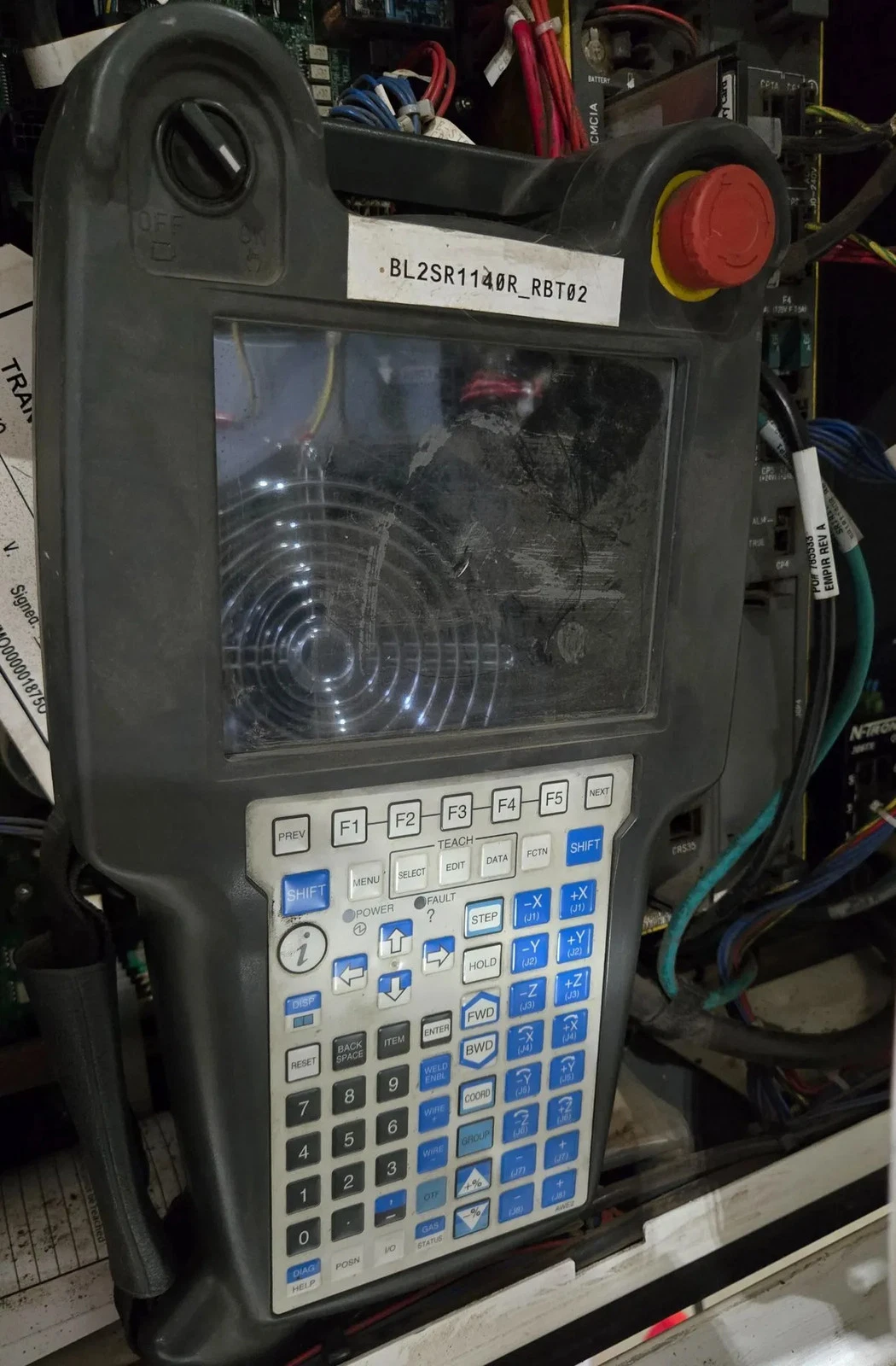

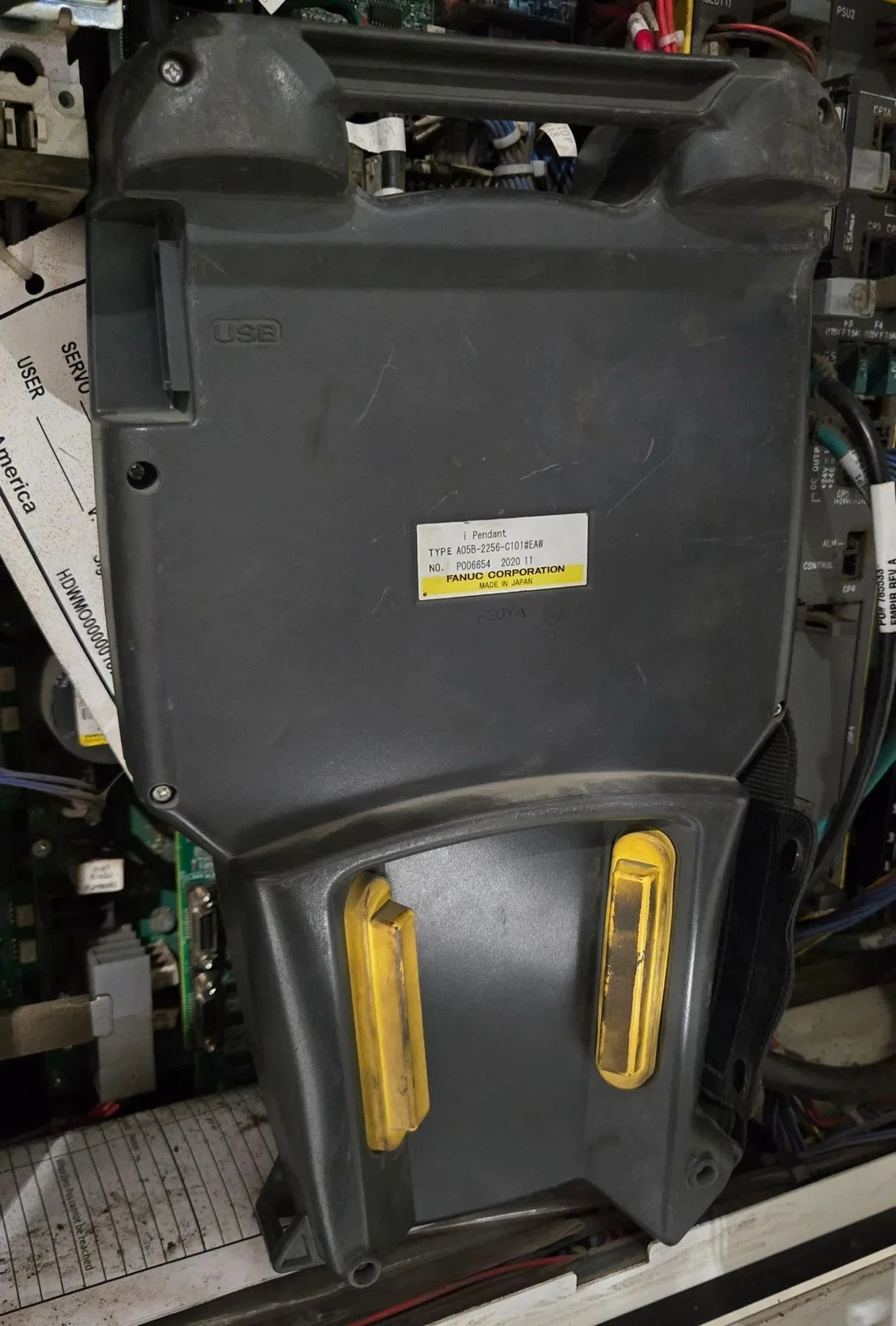

Robot Manufacturer: Fanuc Robot Model: Arc Mate 120iD Type: A05B-1228-B201 Condition: USED Hours: 22671 YOM: 2020 Robot Serial Number: R20Z20241 Robot Weight: 250 kg Controller Manufacturer: Fanuc Controller Model: R-30iB Plus Controller Type: A05B-2636-B128 Controller Serial Number: E20Y11912 Controller Date: 2020-11 Input Voltage: 380 / 440 / 575 VAC Frequency: 50 / 60 Hz Phase: 3 Phase Power Rating: 3 kVA Teach Pendant: Model: iPendant Type: A05B-2256-C101#EAW Serial Number: P006654 Date: 2020-11 Welding Power Source Manufacturer: Fronius Model: TPS 400i / MV / nc Part Number: 4,075,231,830 Serial Number: 31610921 Welding Output: Voltage Range: 14.2 V – 57.1 V Max Output Current: 400 A Duty Cycle: 40%: 400 A 60%: 360 A 100%: 320 A Input Requirements (Welder): 230 V: 35 A 460 V: 35 A Protection Rating: IP23 System Configuration: Robot + Controller + Teach Pendant + Welding Power Supply Mounting: Floor Mount Base
