Fanuc Arc Mate 120iD Complete with R-30iB Plus Controller and TPS 400i USED

$35,000.00
Availability:

1 in stock
BRAND: FANUC MODEL: ArcMate 120iD + R-30iB PLUS + TPS 400i CONDITION: used
SKU: IGAM1180004 Weight: 1268 lbs Freight (Item Must Ship Freight)

1 in stock

Make an offer
Get Shipping Quote

Overview

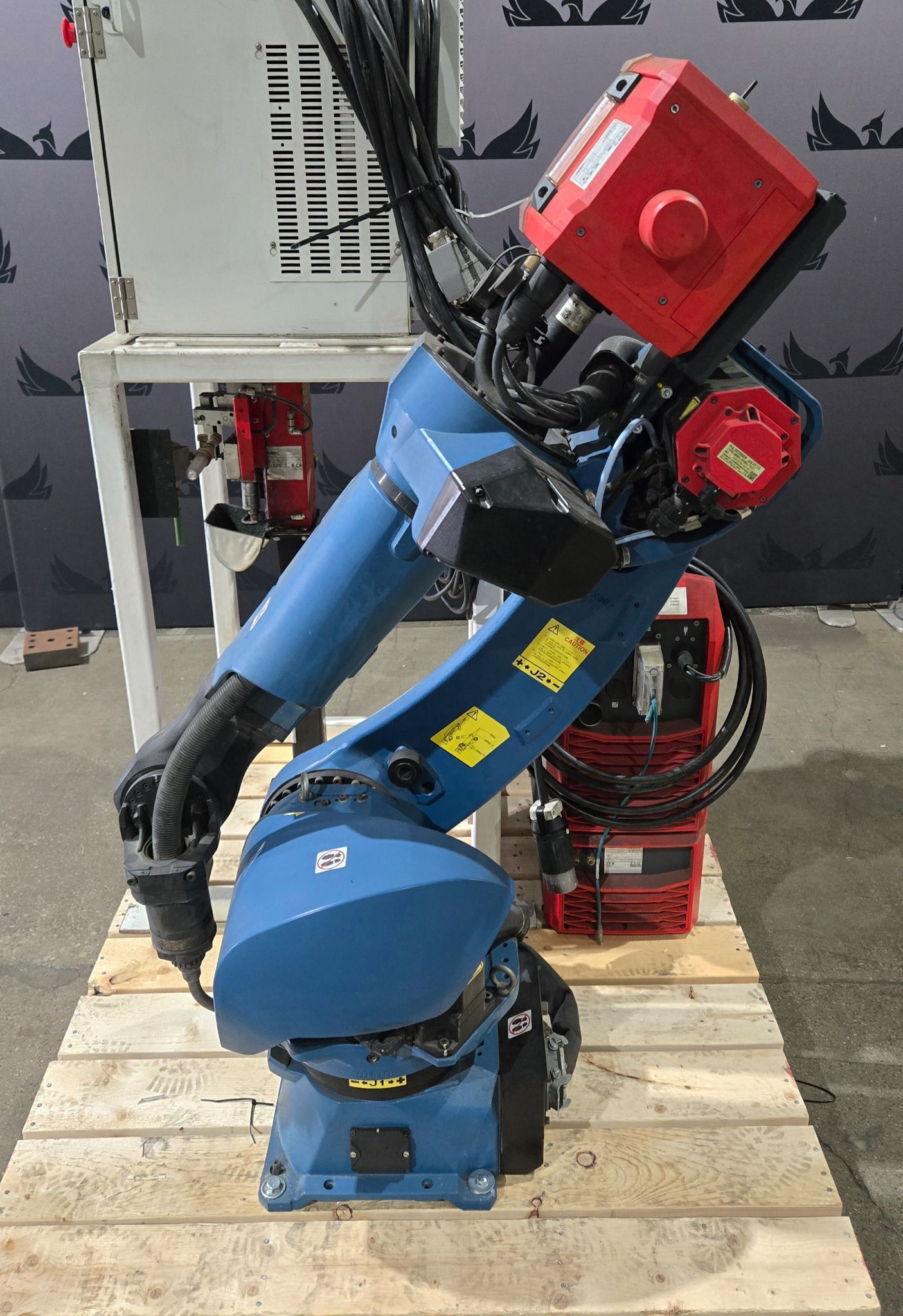

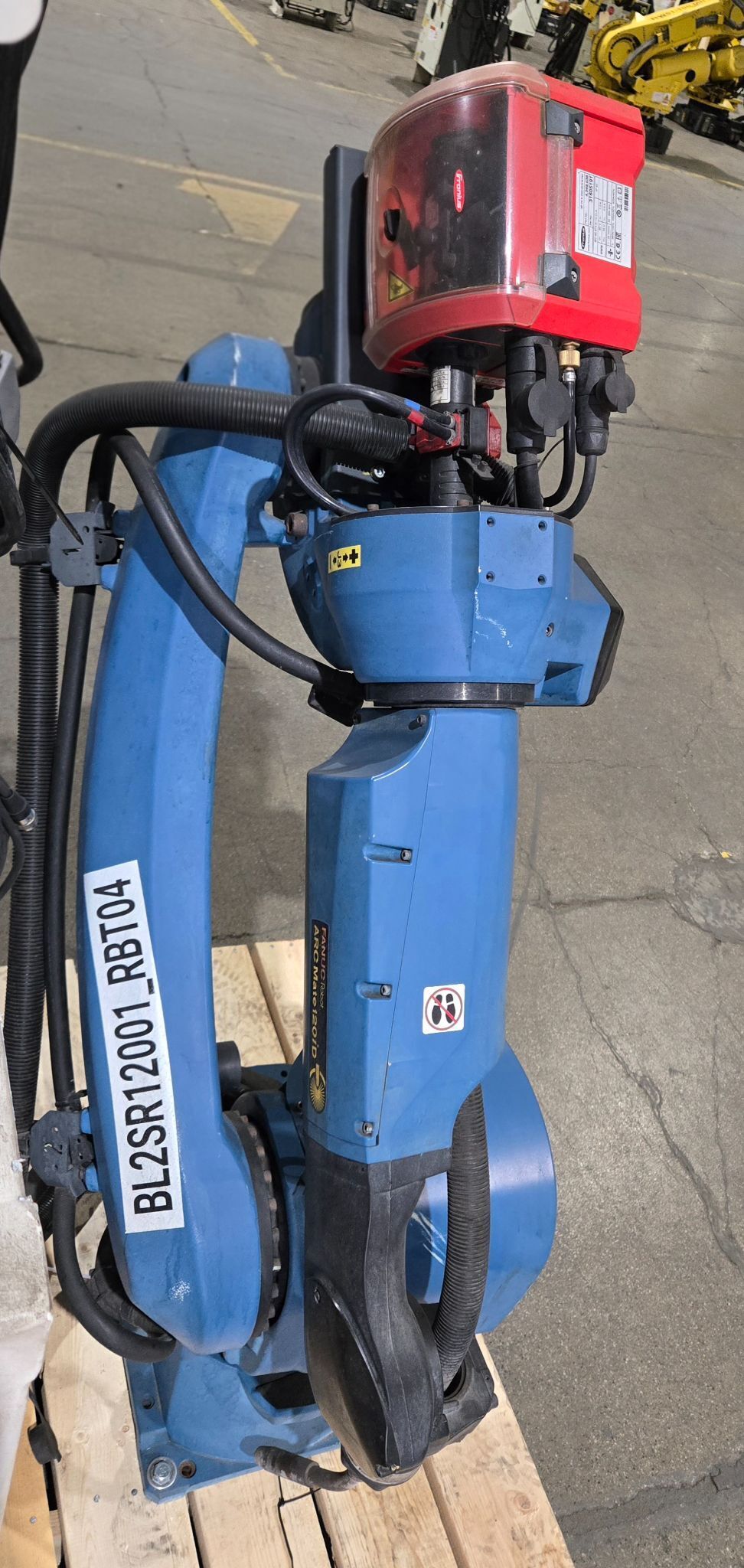

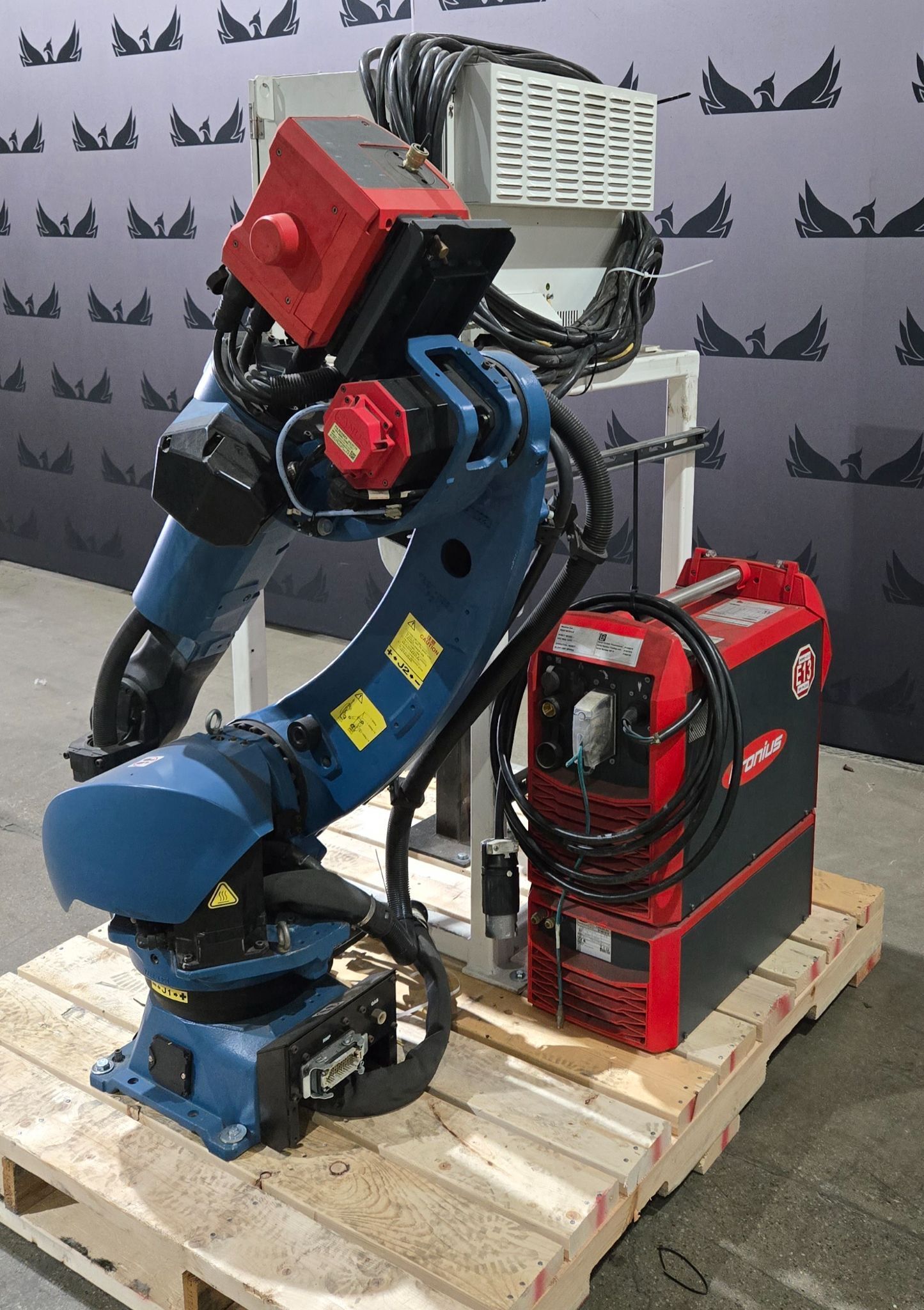

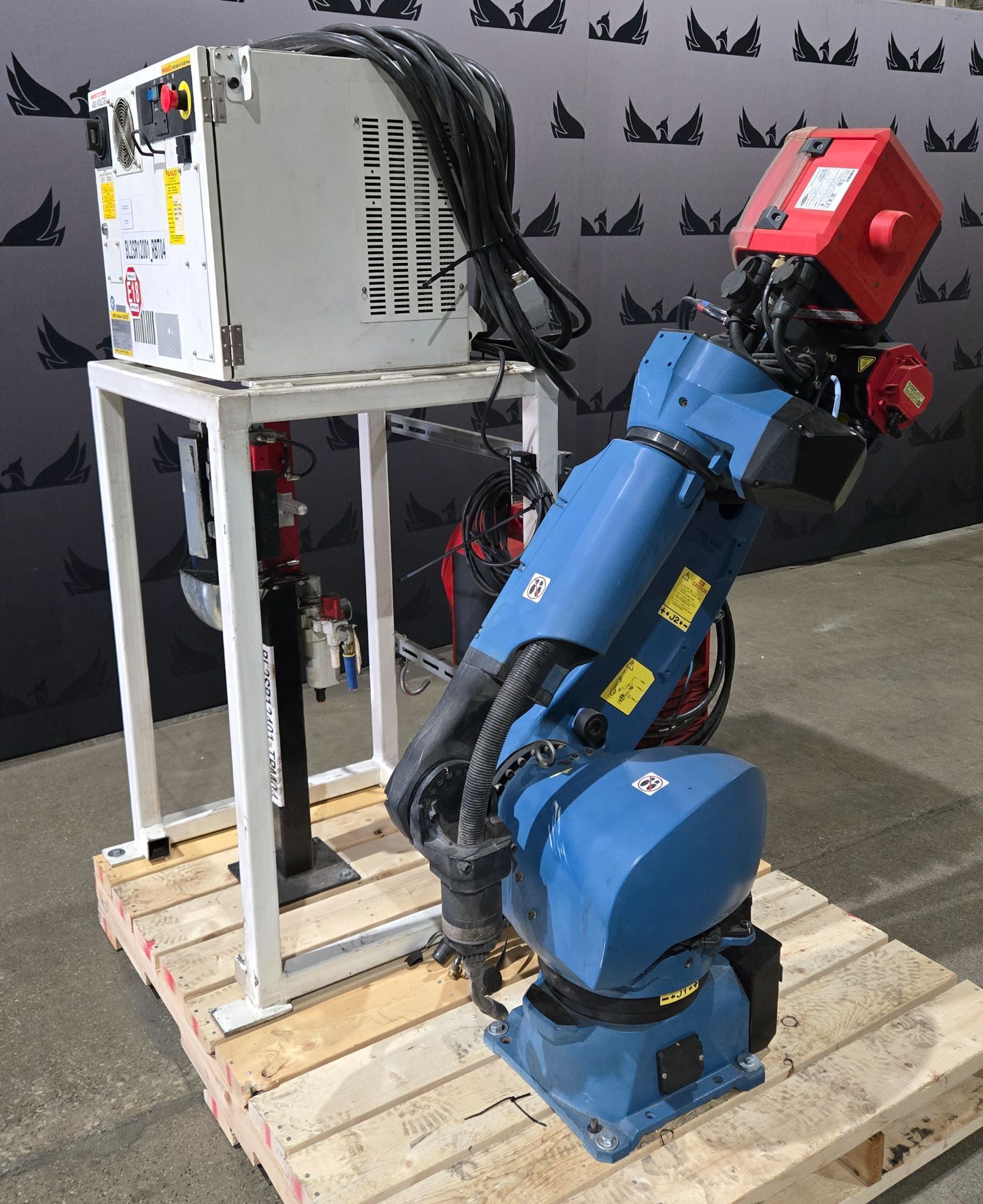

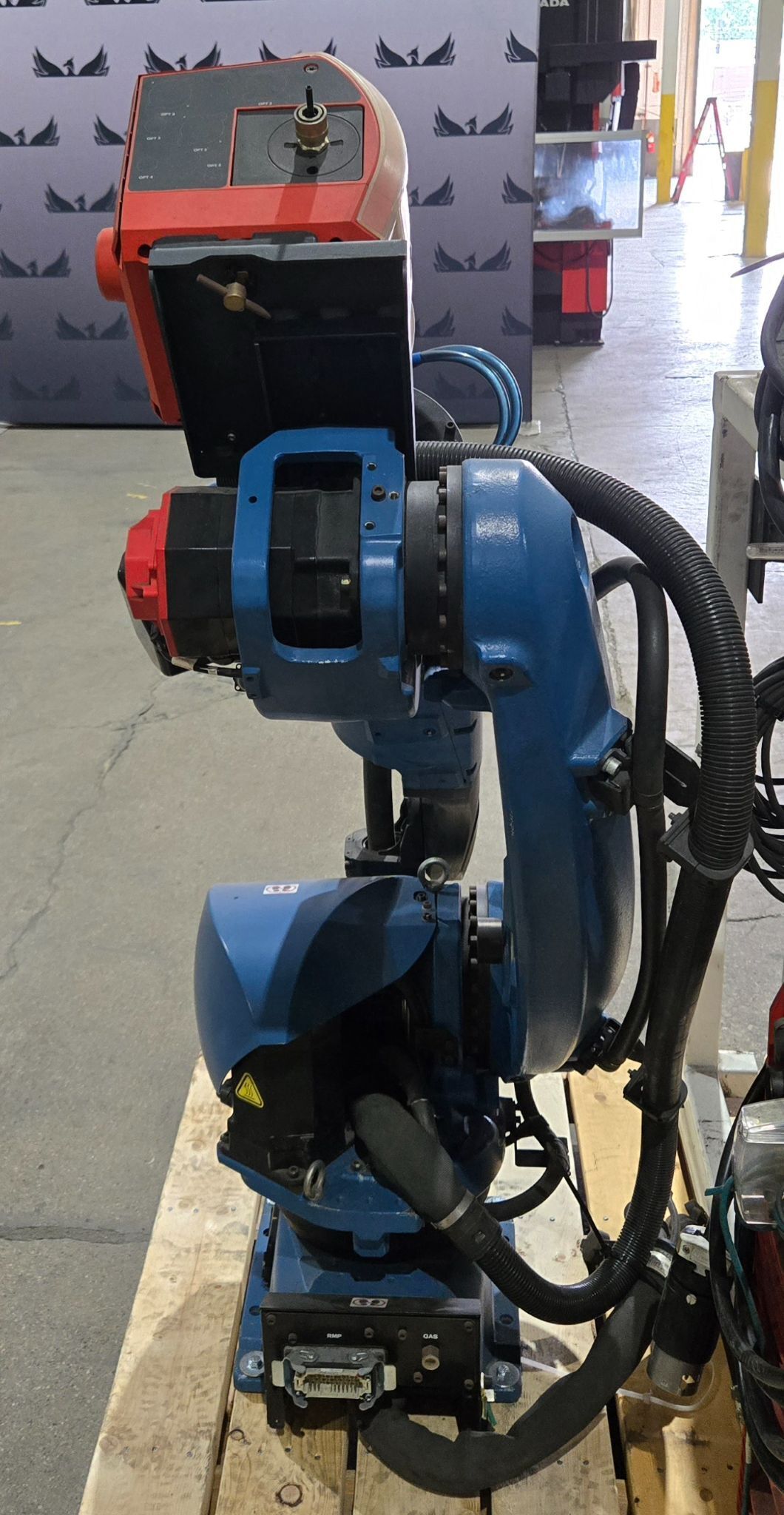

This listing is for a USED Fanuc Arc Mate 120iD complete robotic system with R-30iB Plus controller and Fronius TPS 400i welding package. The package combines multi-axis robotic motion with arc welding functionality, supporting programmed weld routines, coordinated motion control, and integrated torch maintenance through a reaming unit. Teach pendant, welding unit, and system integration components are included.

Specification Table

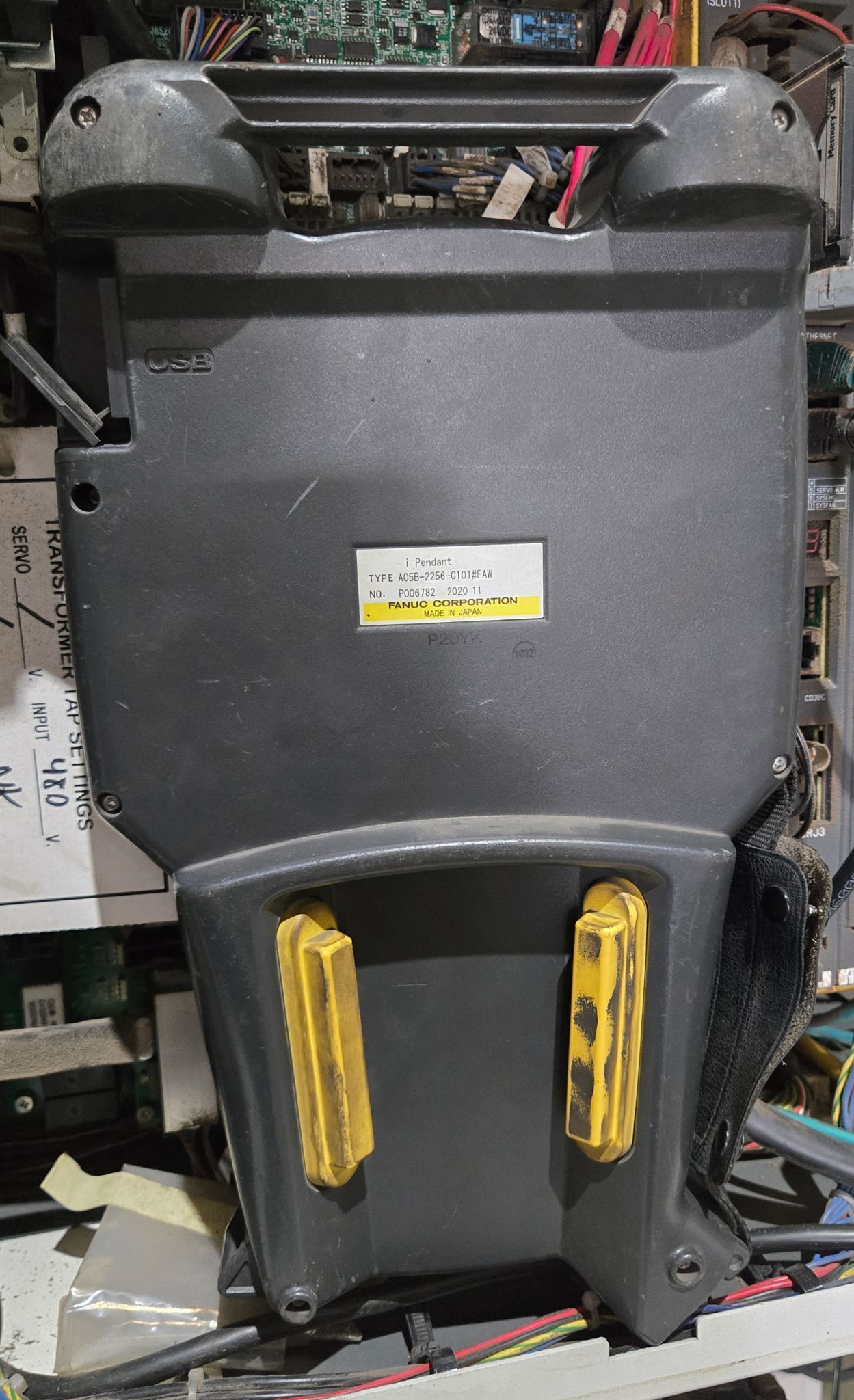

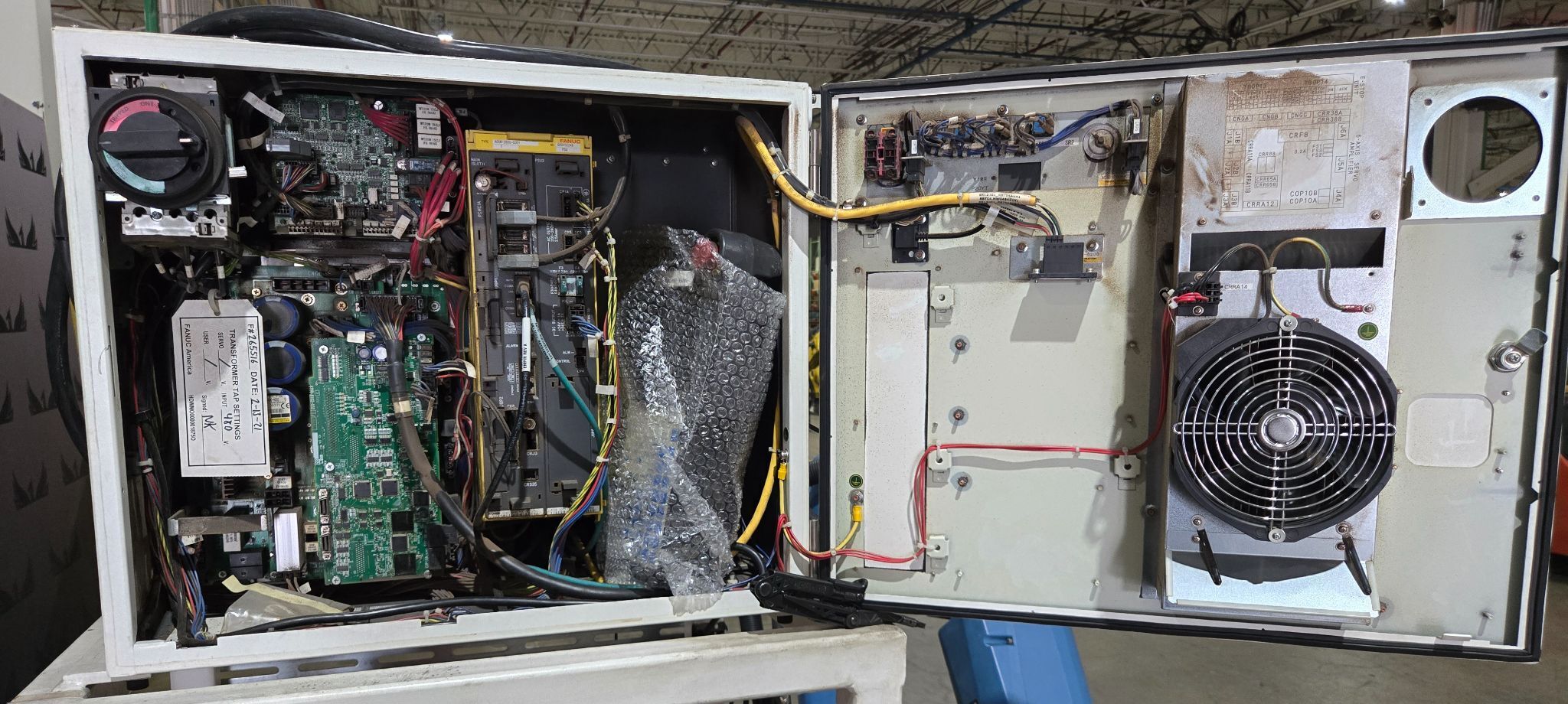

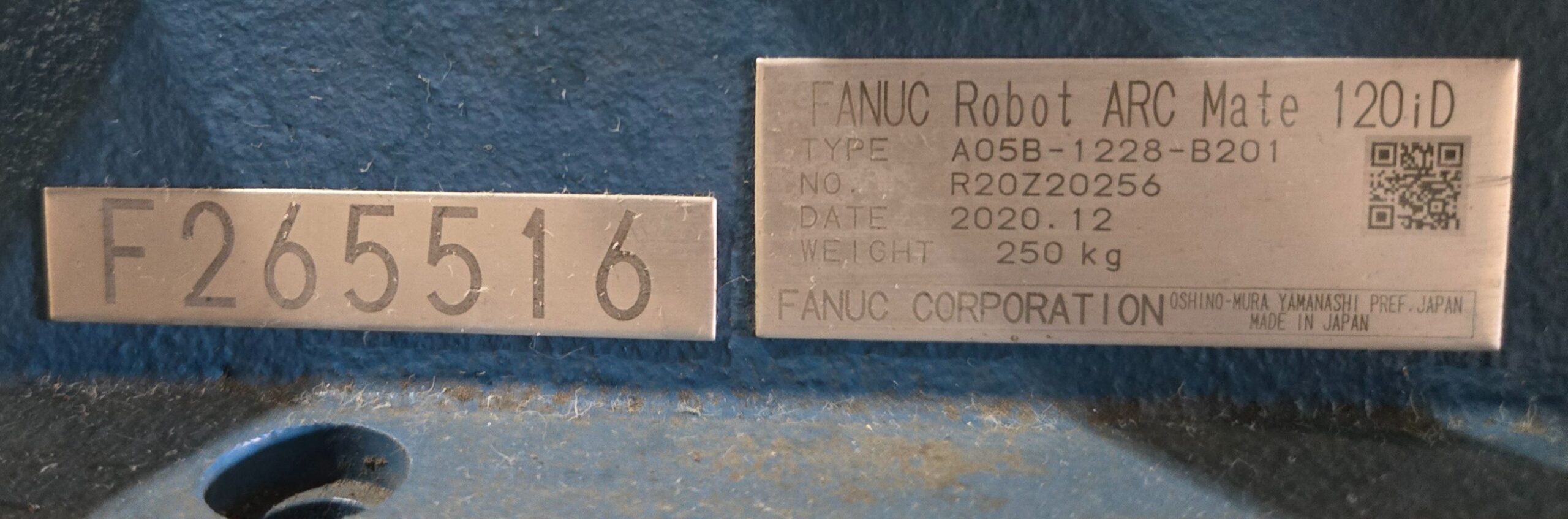

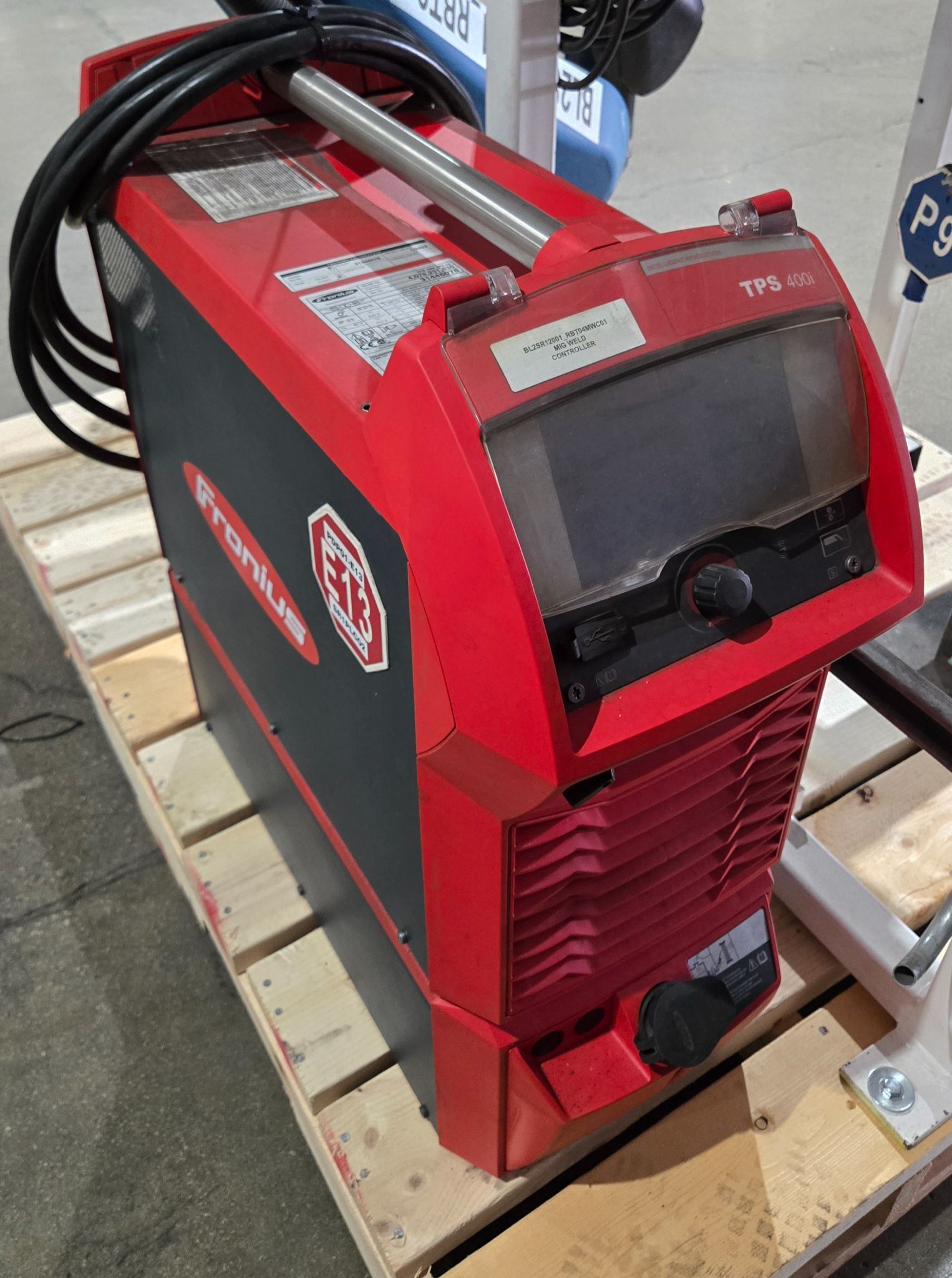

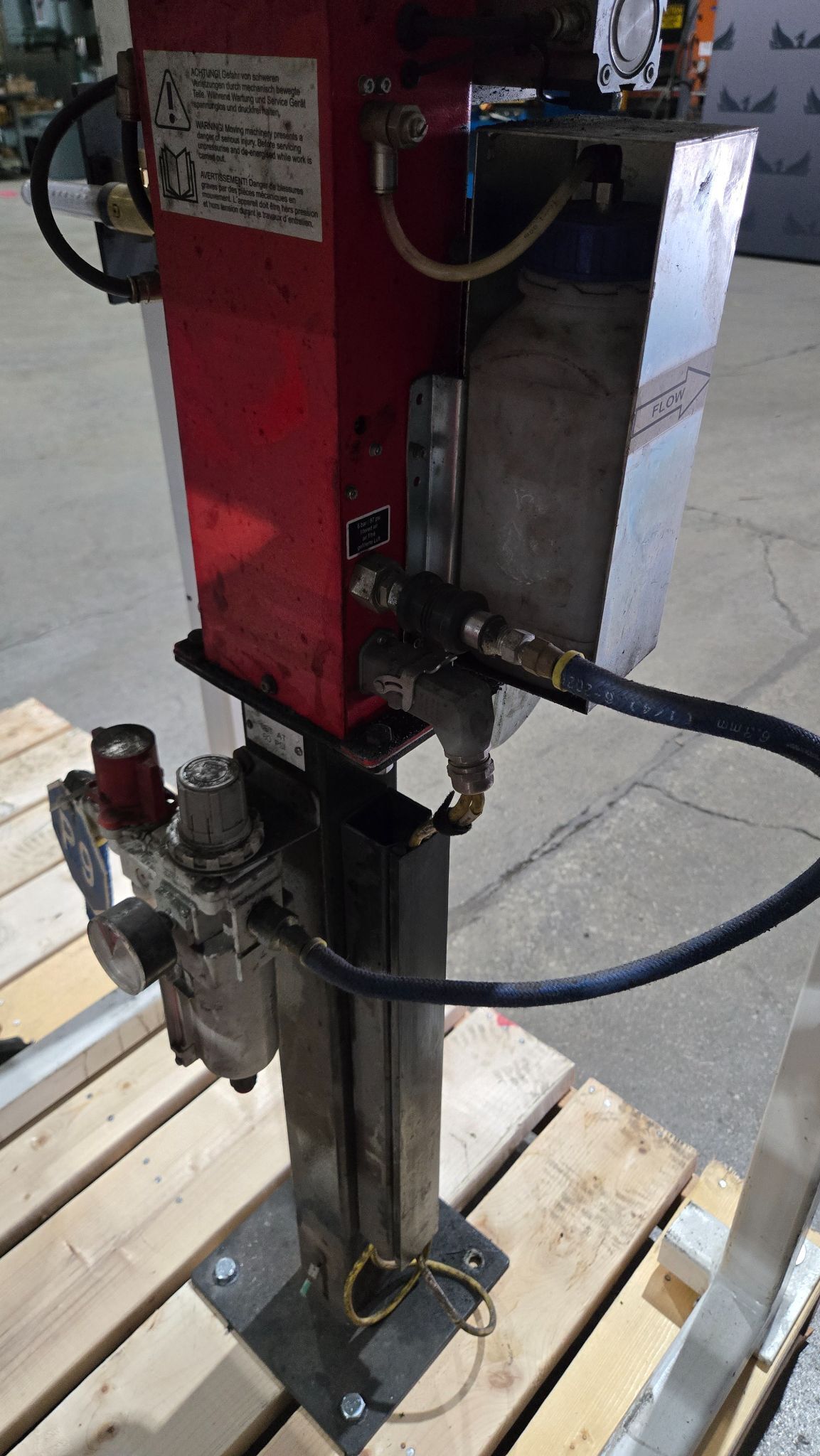

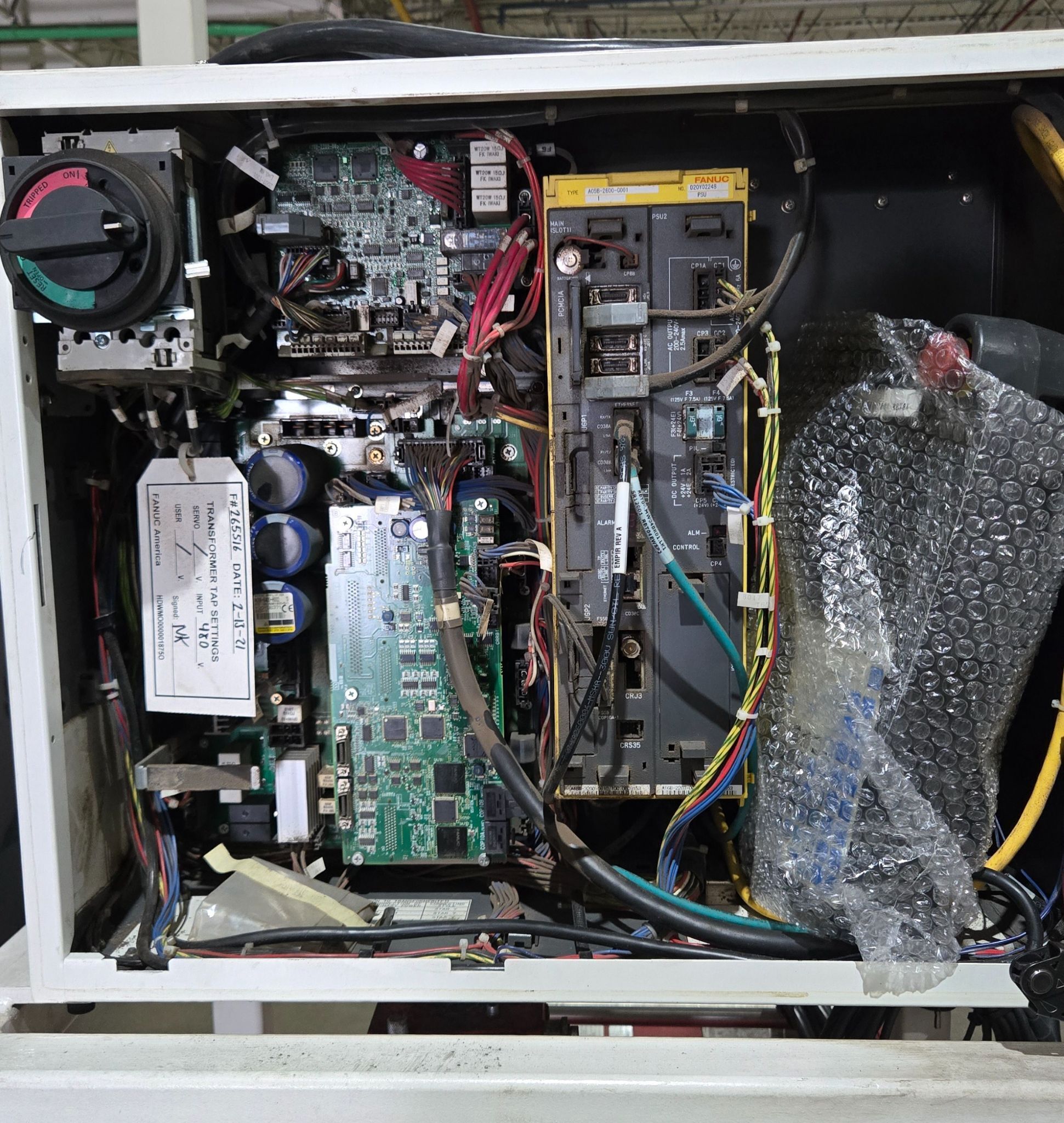

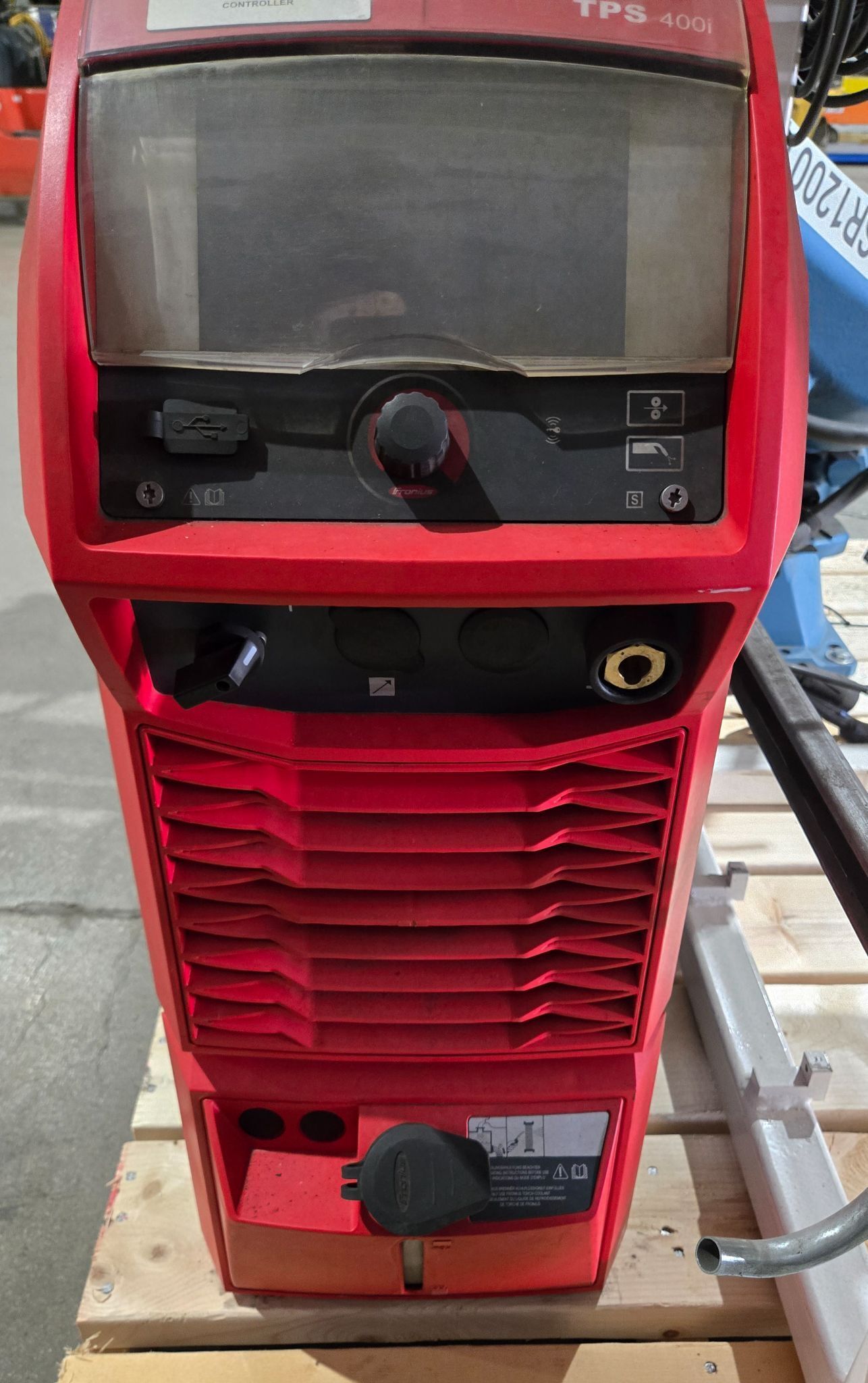

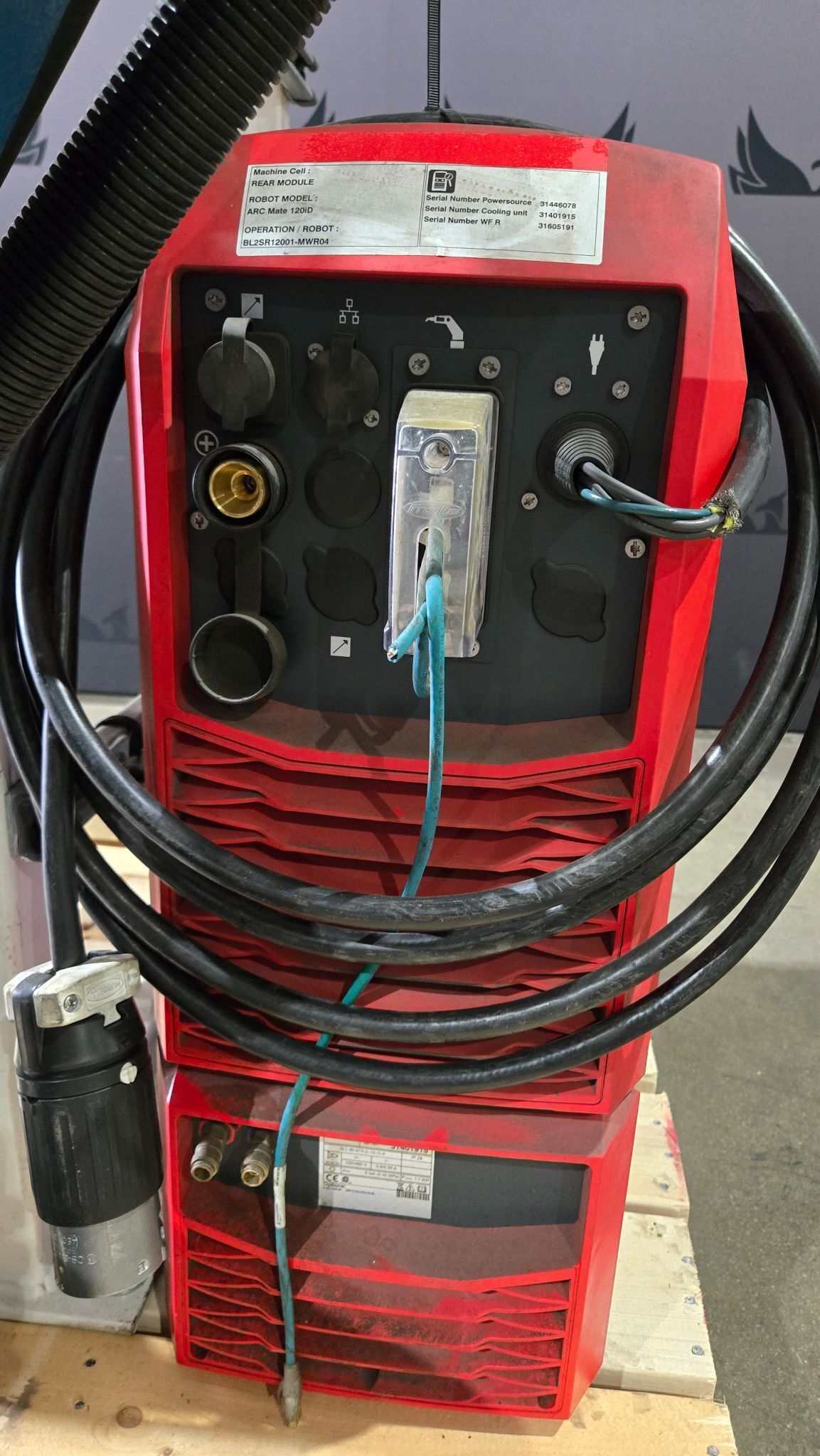

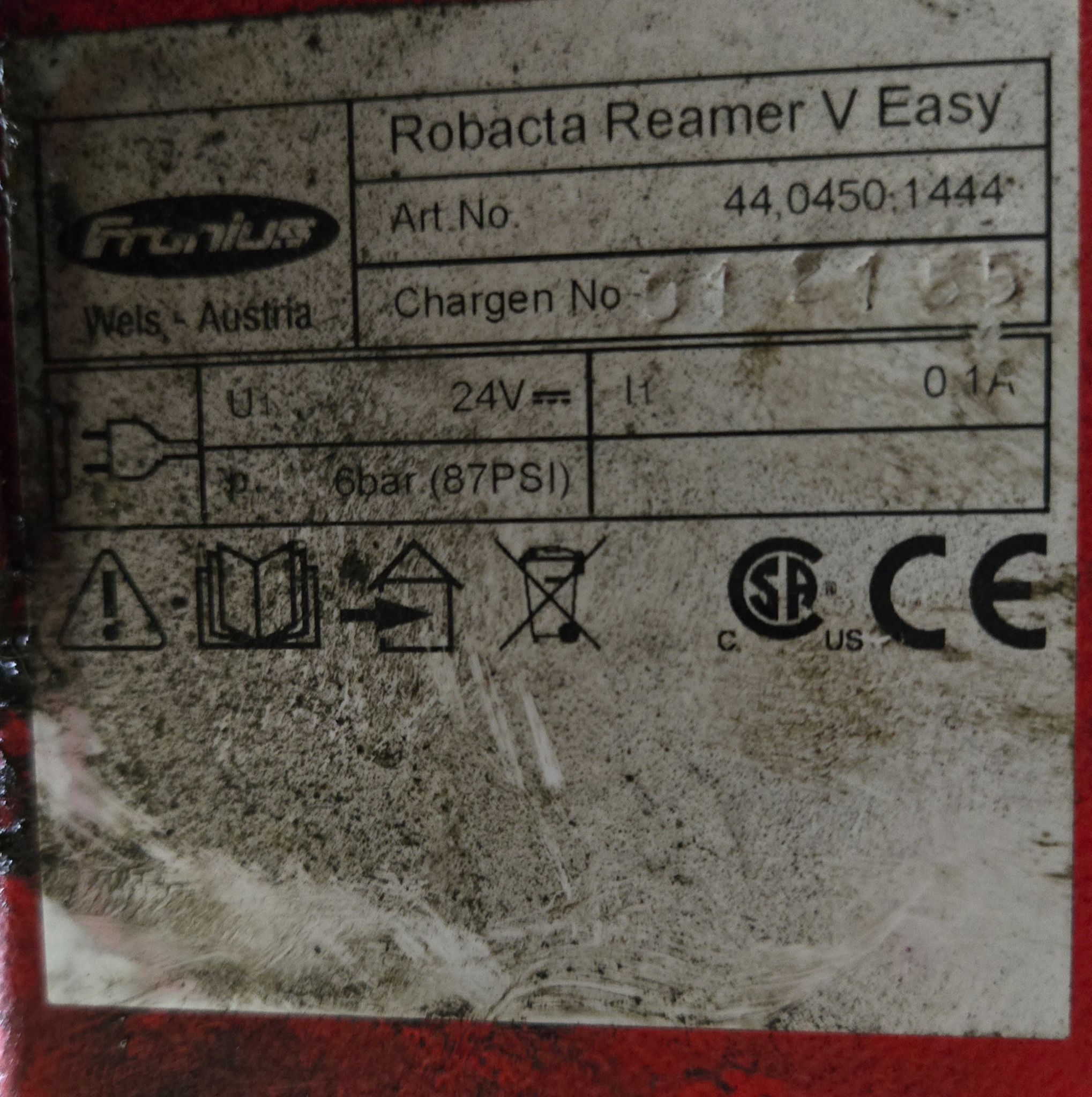

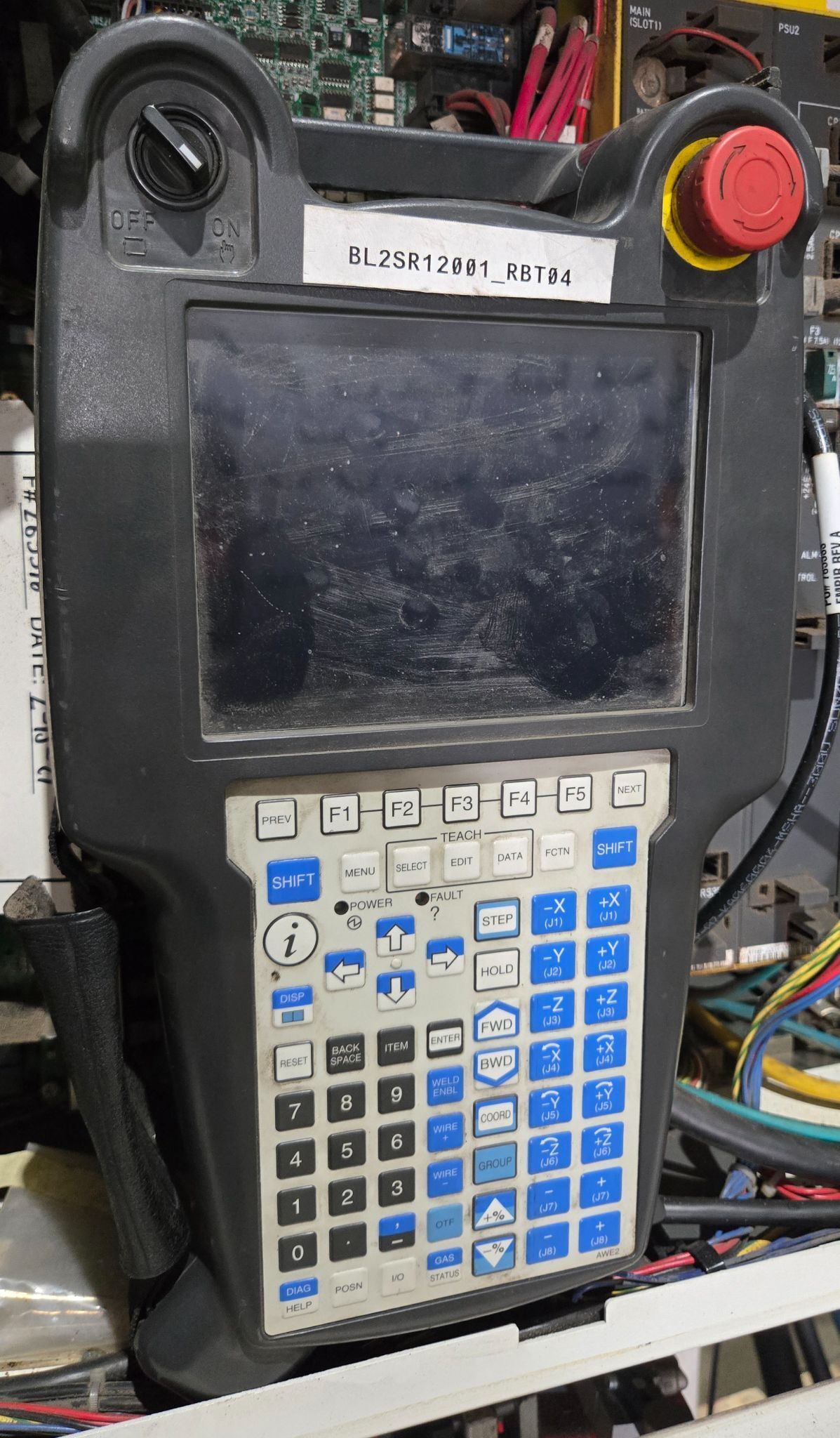

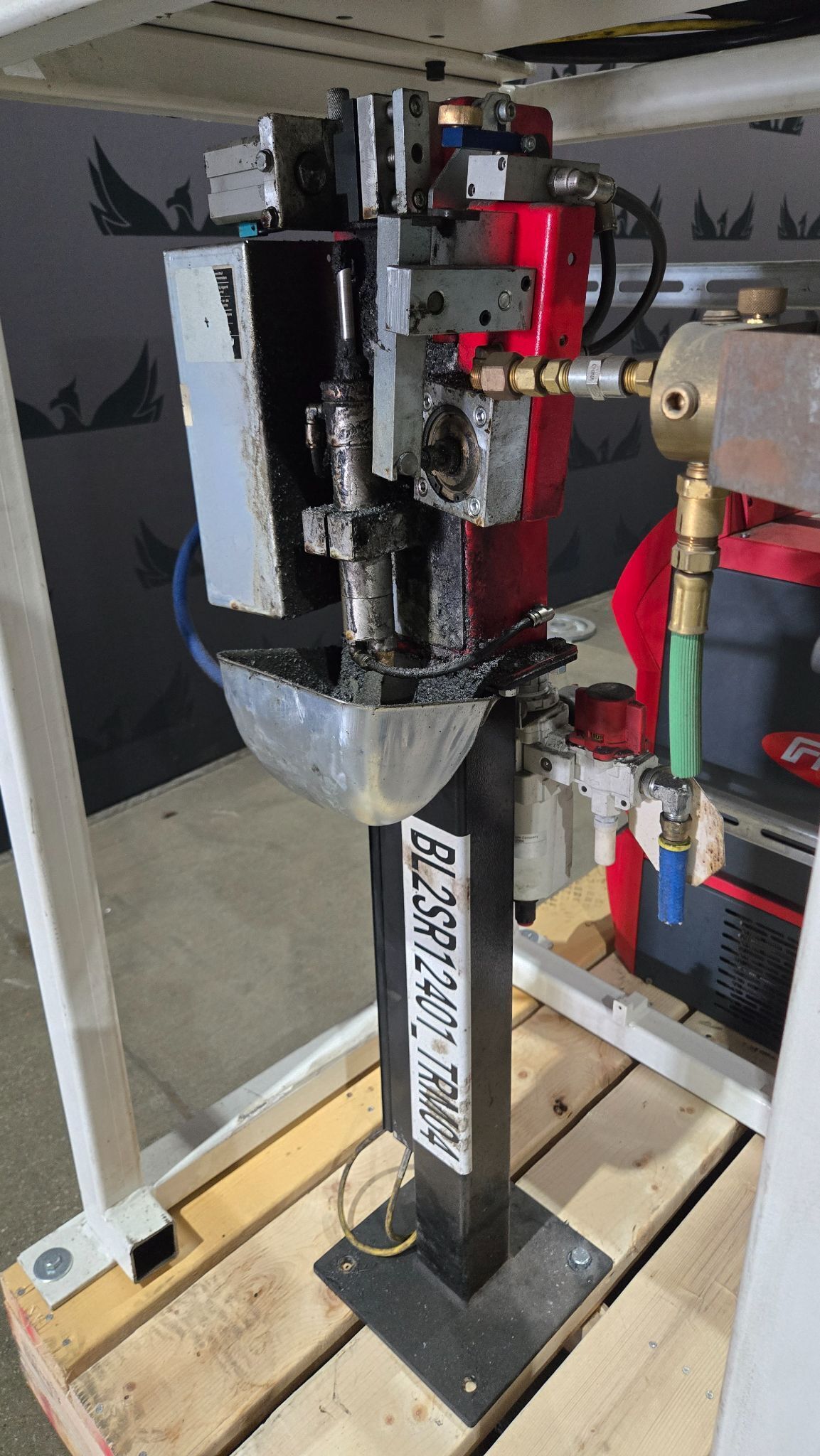

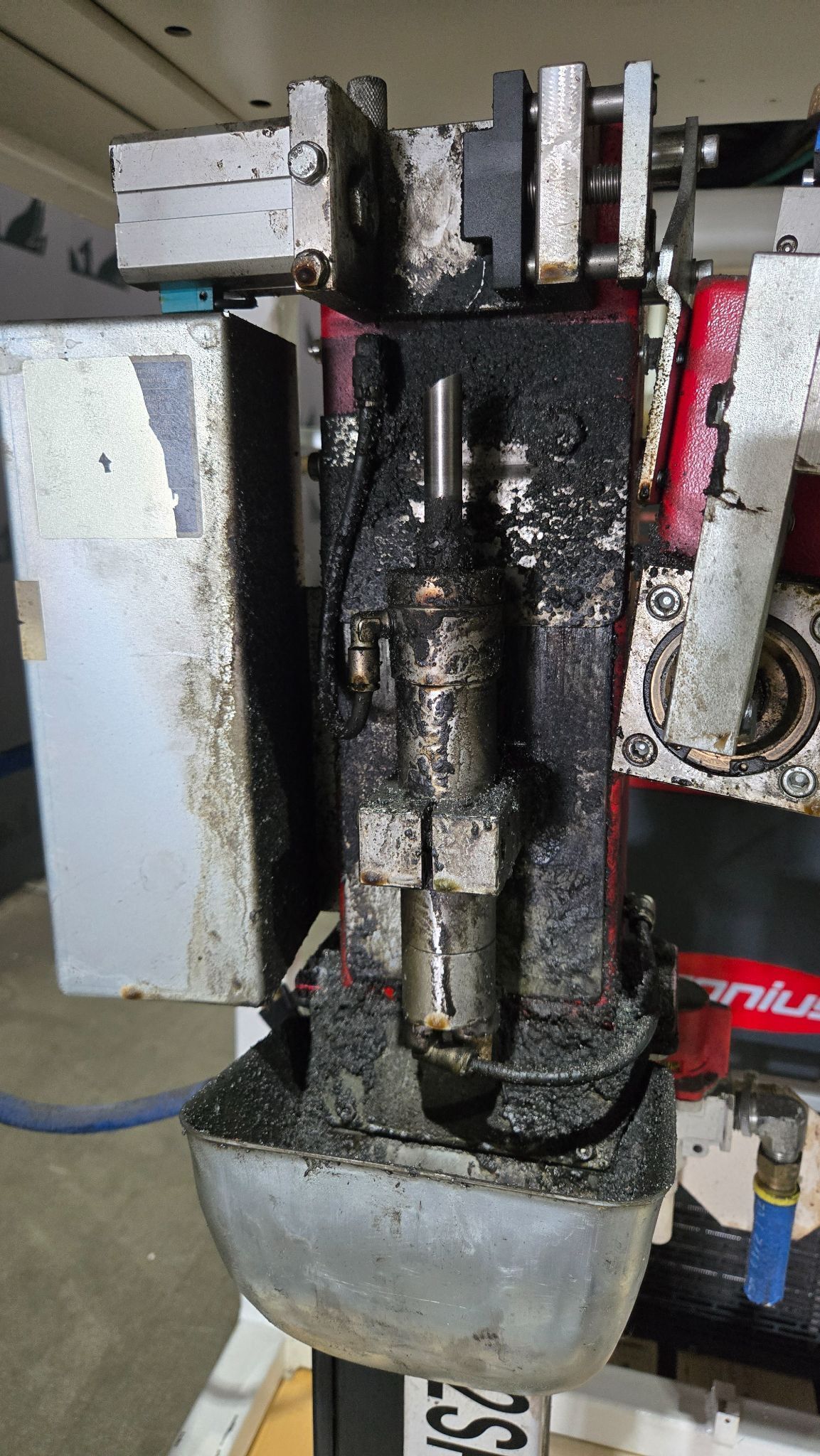

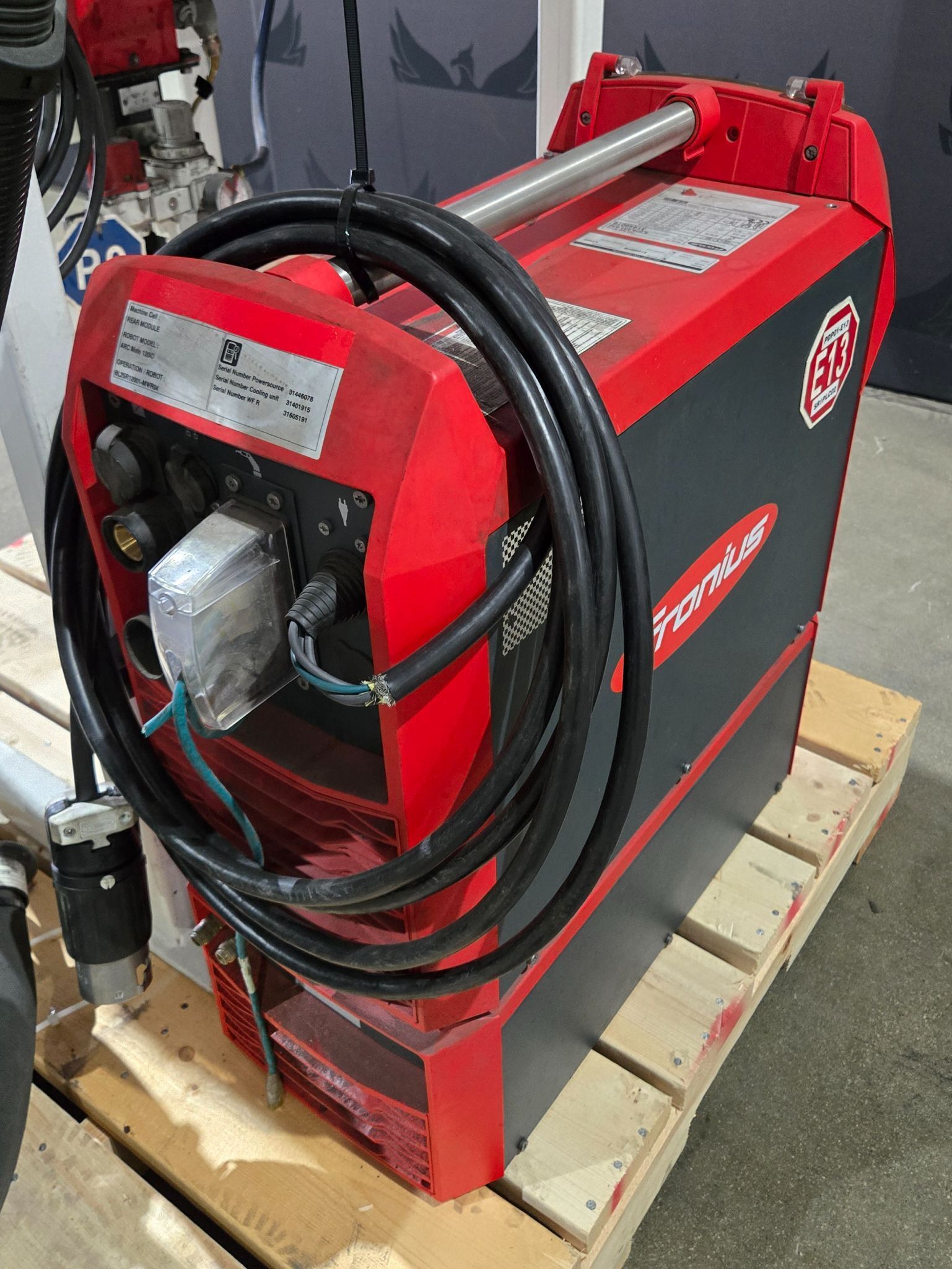

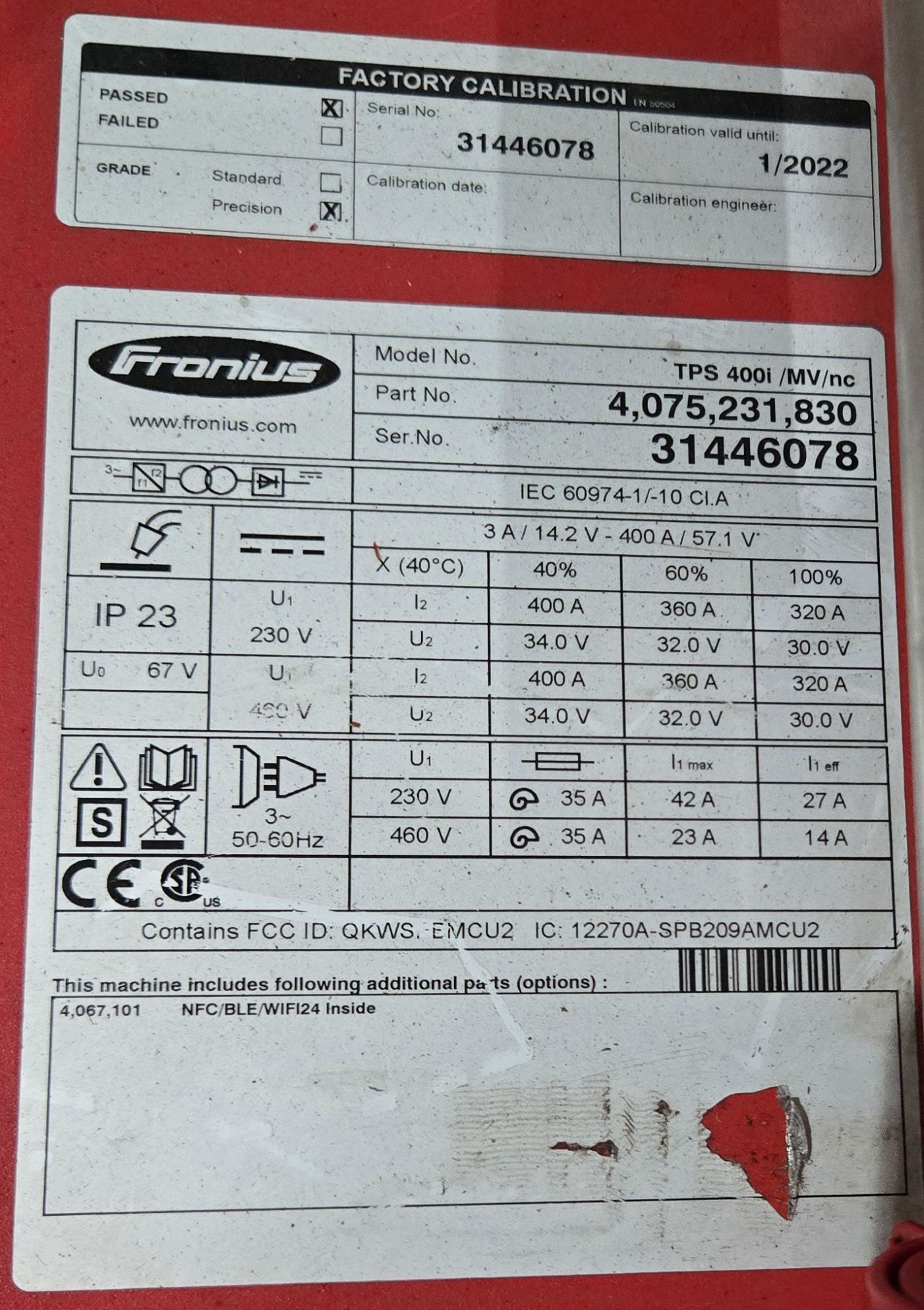

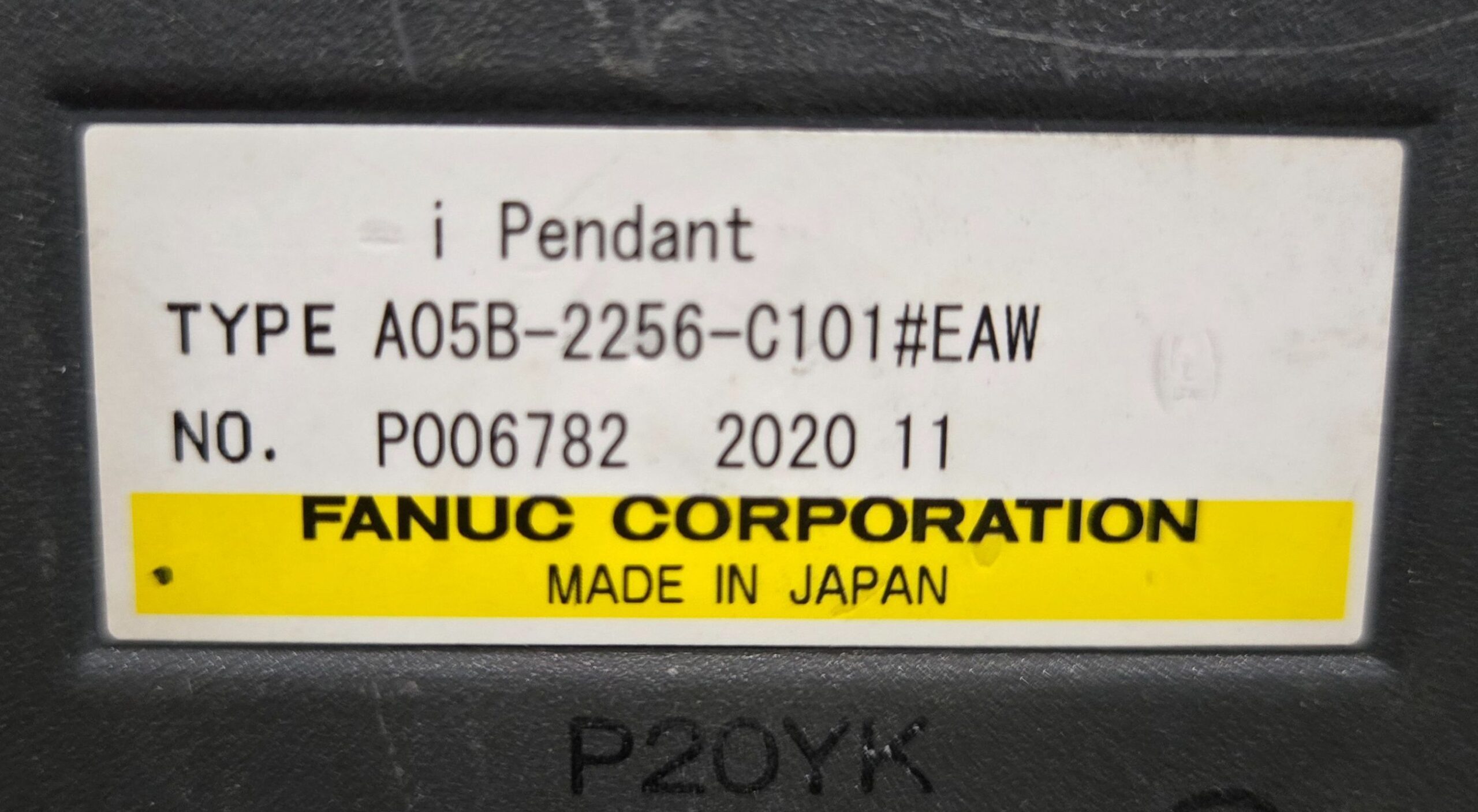

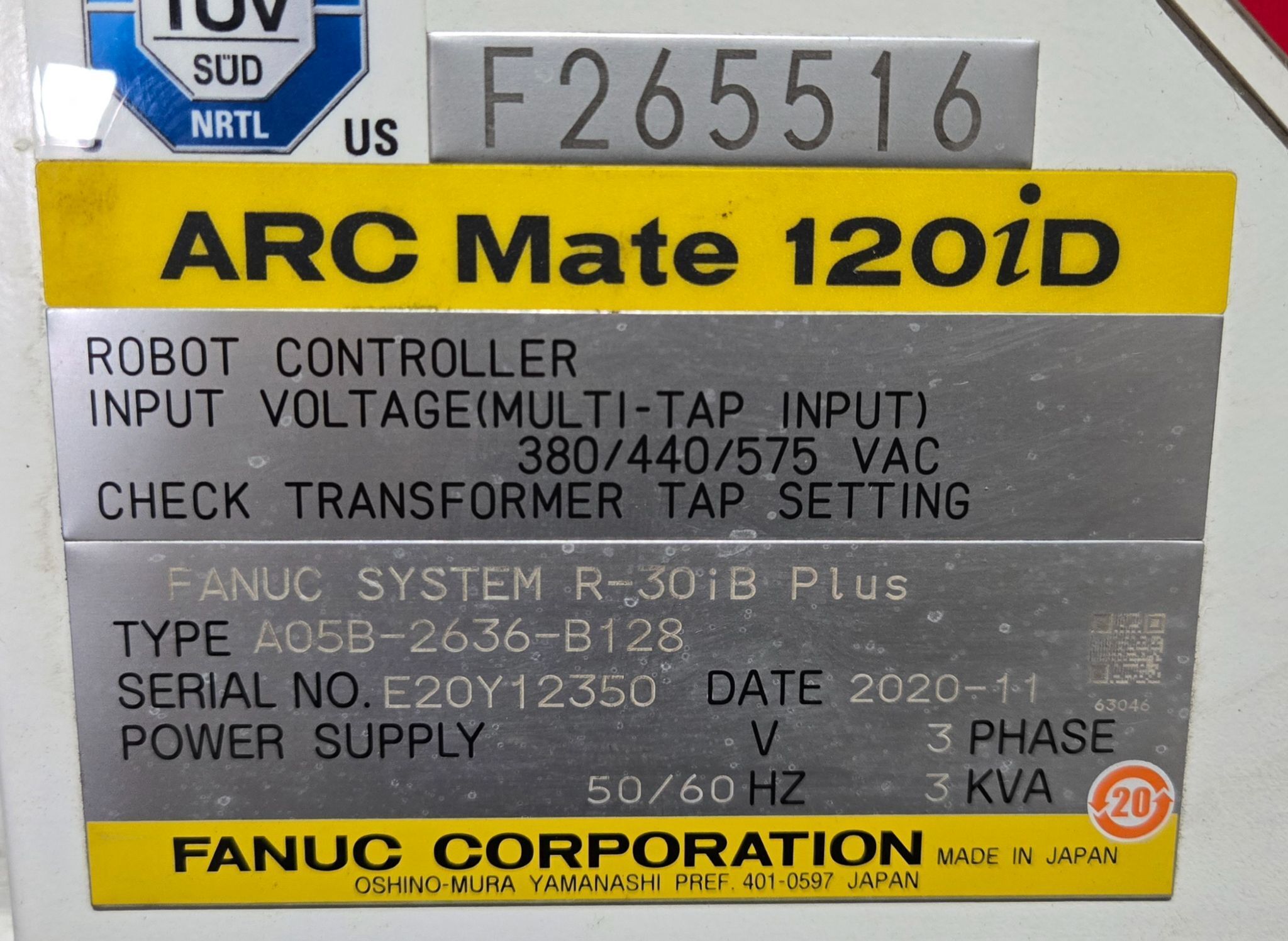

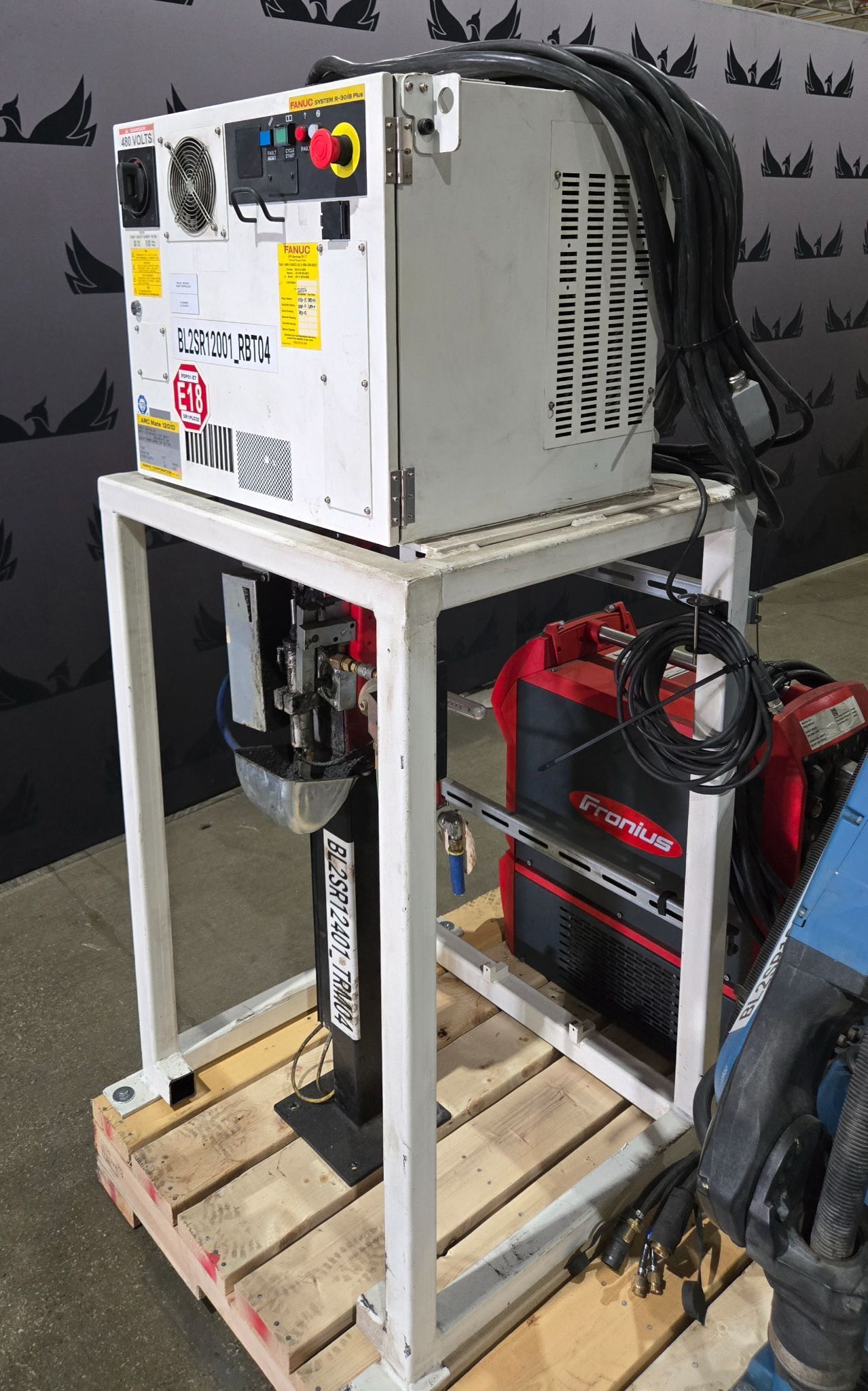

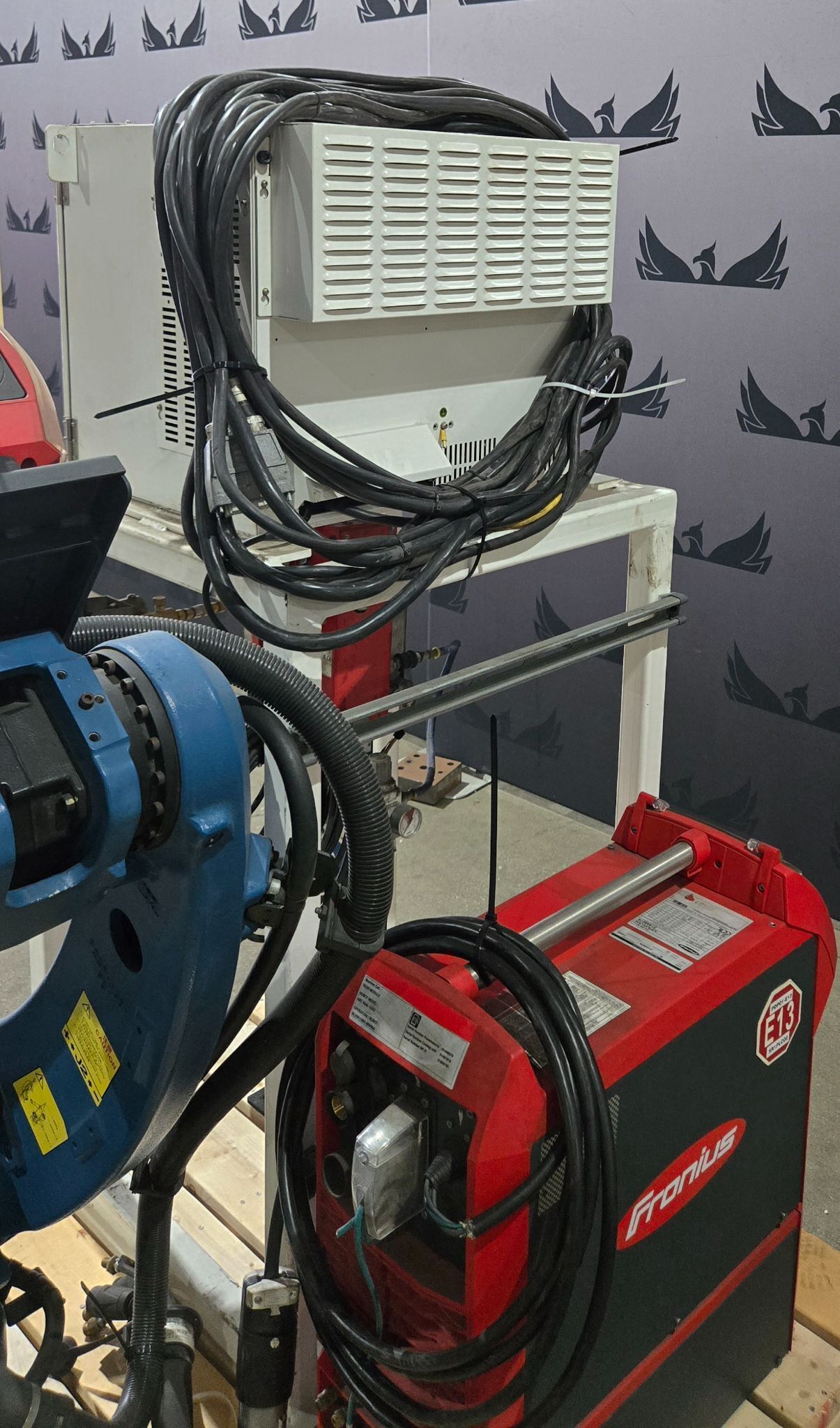

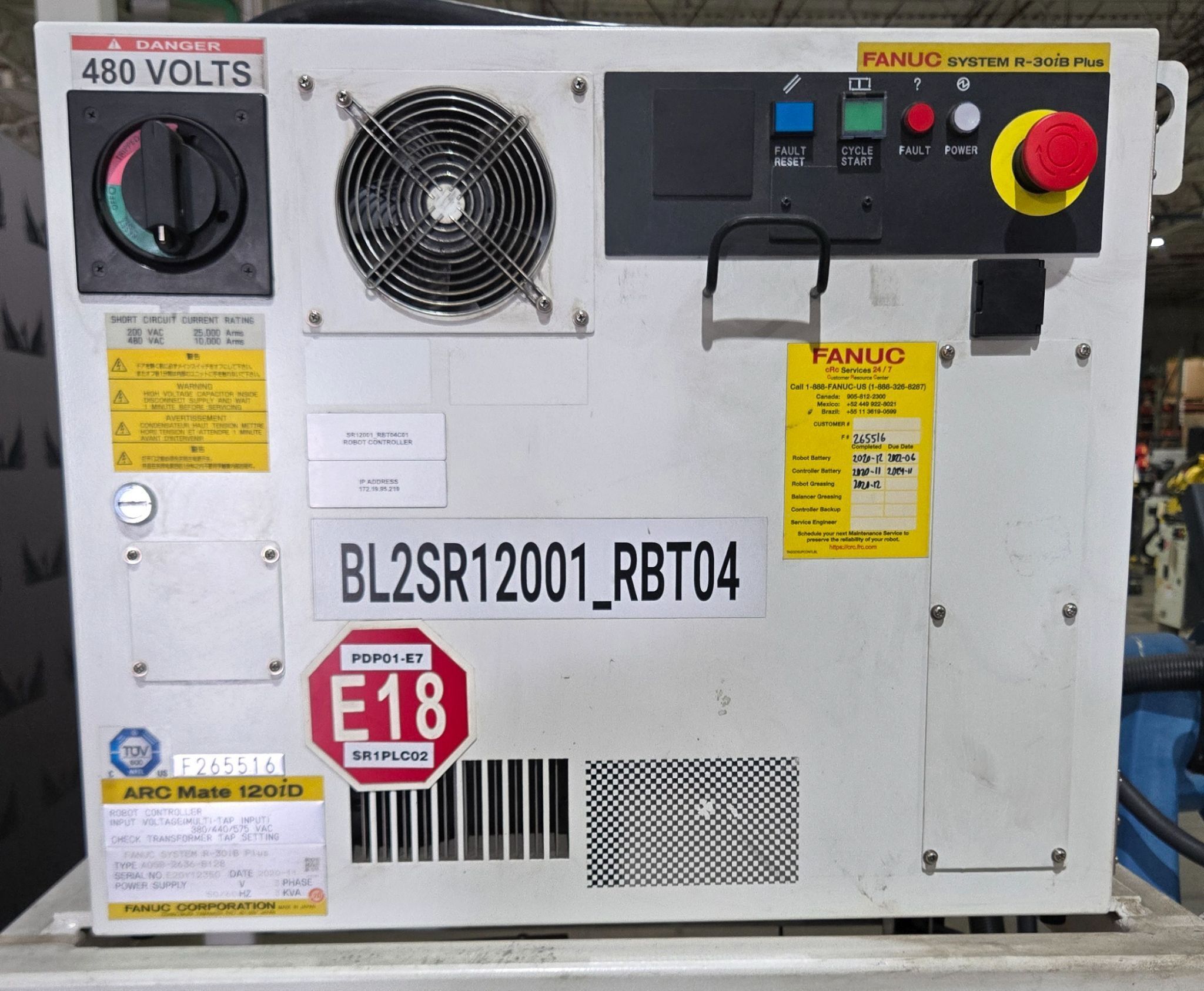

Robot Manufacturer: Fanuc Robot Model: Arc Mate 120iD Type: A05B-1228-B201 Condition: USED Hours: 23500 YOM: 2020 Robot Weight: 250 kg Controller Manufacturer: Fanuc Controller Model: R-30iB Plus Controller Type Number: A05B-2636-B128 Controller Serial Number: R20Y12350 Controller Date: 2020-11 Input Voltage: 380 / 440 / 575 VAC Frequency: 50 / 60 Hz Power Rating: 3 kVA Phase: 3 Phase Teach Pendant: Model: iPendant Type: A05B-2256-C101#EAW Serial Number: P006782 Date: 2020-11 Welding Power Source Manufacturer: Fronius Model: TPS 400i / MV / nc Part Number: 4,075,231,830 Serial Number: 31446078 Welding Output: Voltage Range: 14.2 V – 57.1 V Output Current: Up to 400 A Duty Cycle: 40%: 400 A 60%: 360 A 100%: 320 A Input Requirements (Welder): 230 V: 35 A 460 V: 35 A Protection Rating: IP23 Torch Maintenance Unit: Model: Robacta Reamer V Easy Supply Voltage: 24 V Air Supply: 6 bar (87 PSI) System Configuration: Robot + Controller + Teach Pendant + Welding Power Supply + Reamer Unit
