Specification Table
Manufacturer: FANUC / Fronius

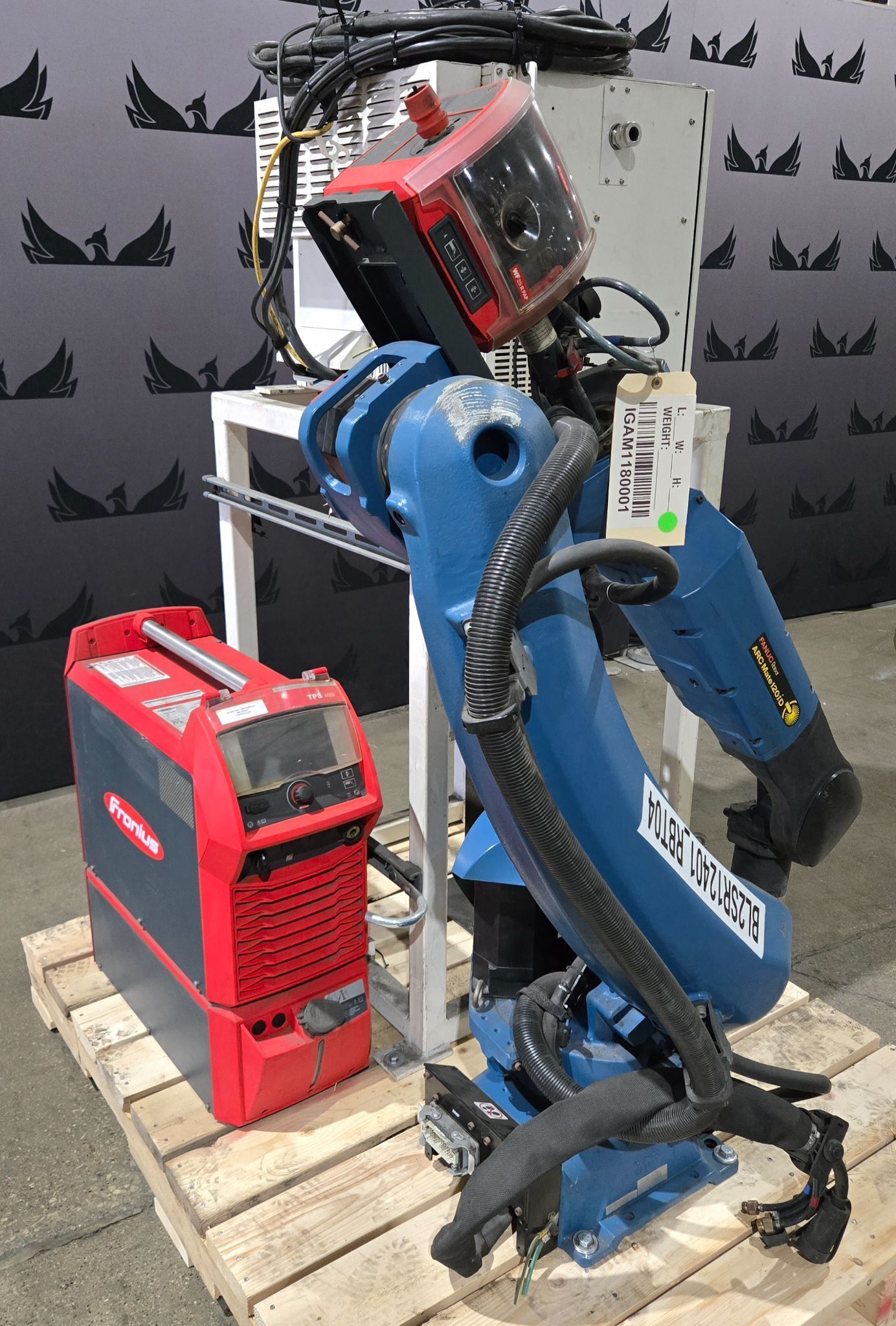

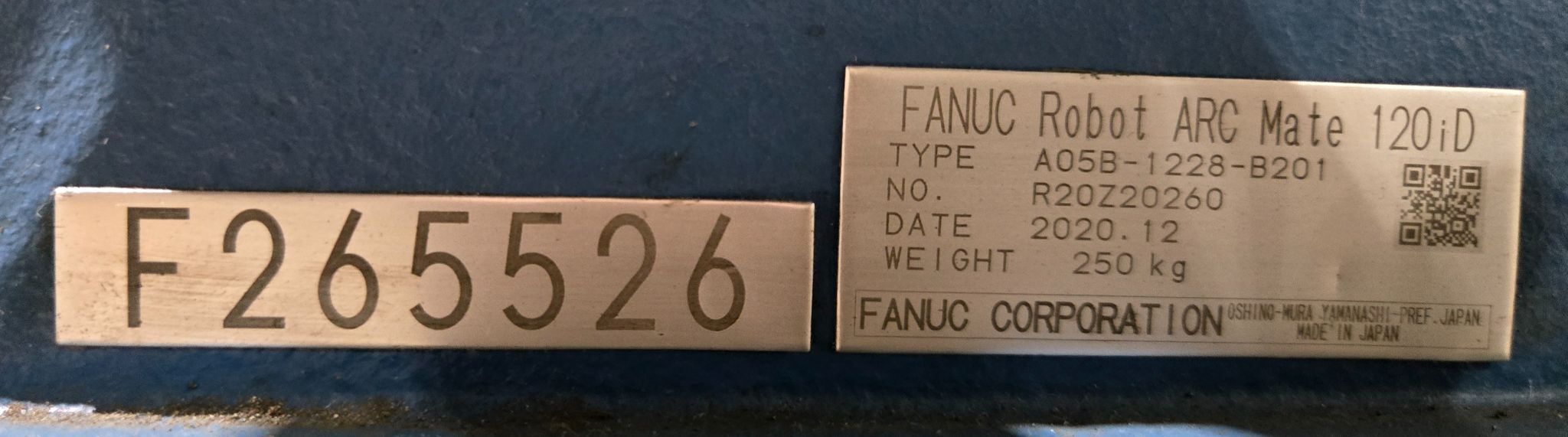

Robot Model: ARC Mate 120iD
Controller: R-30iB Plus

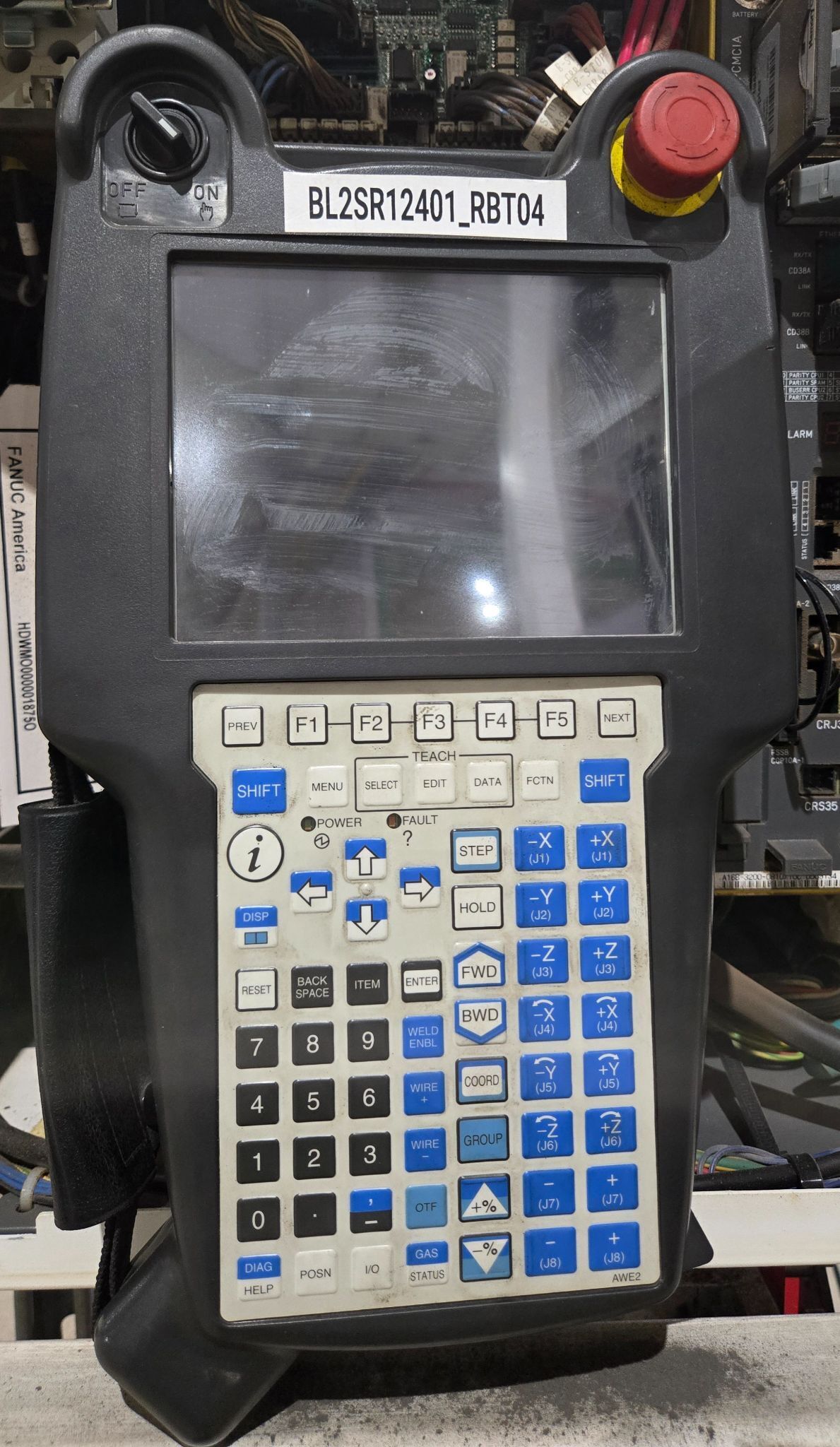

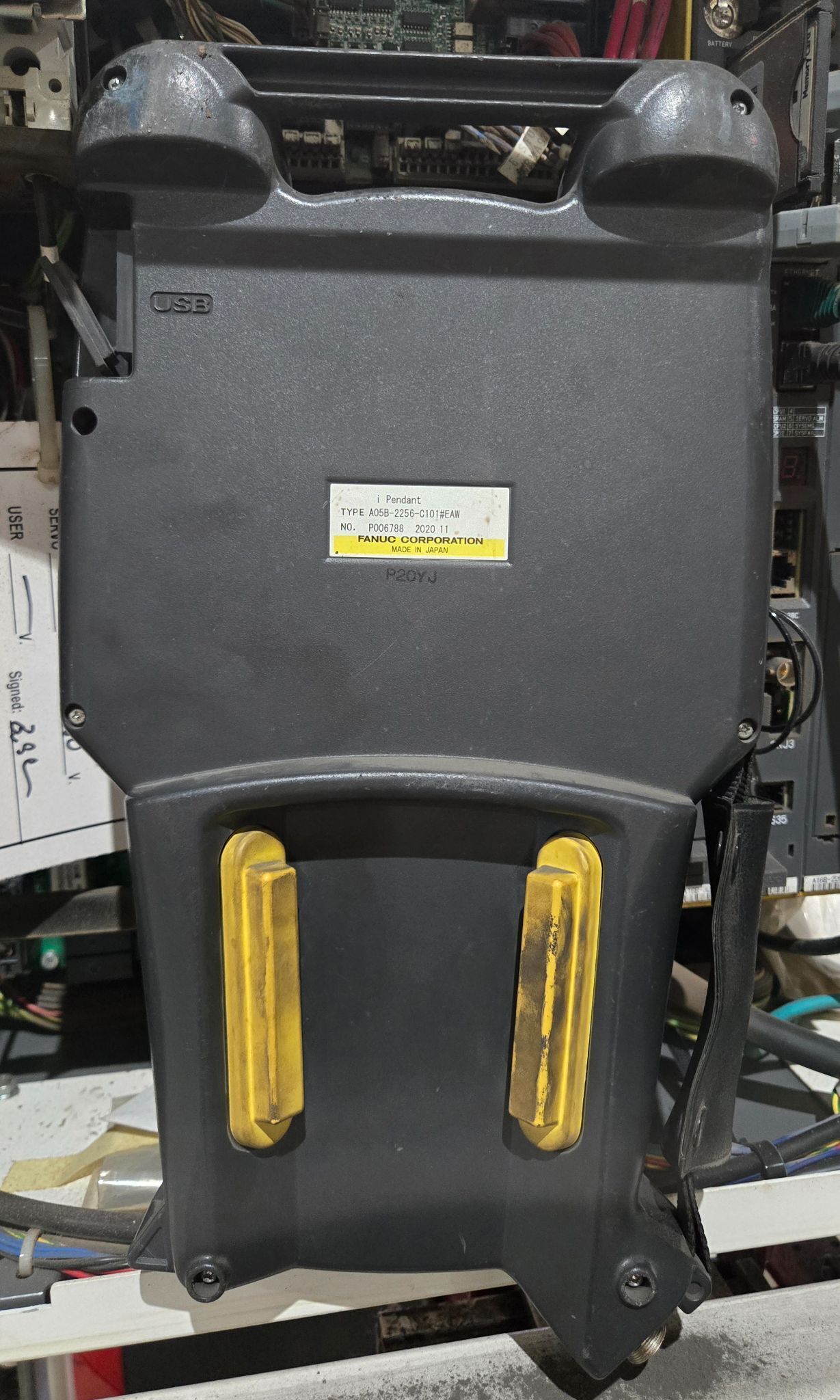

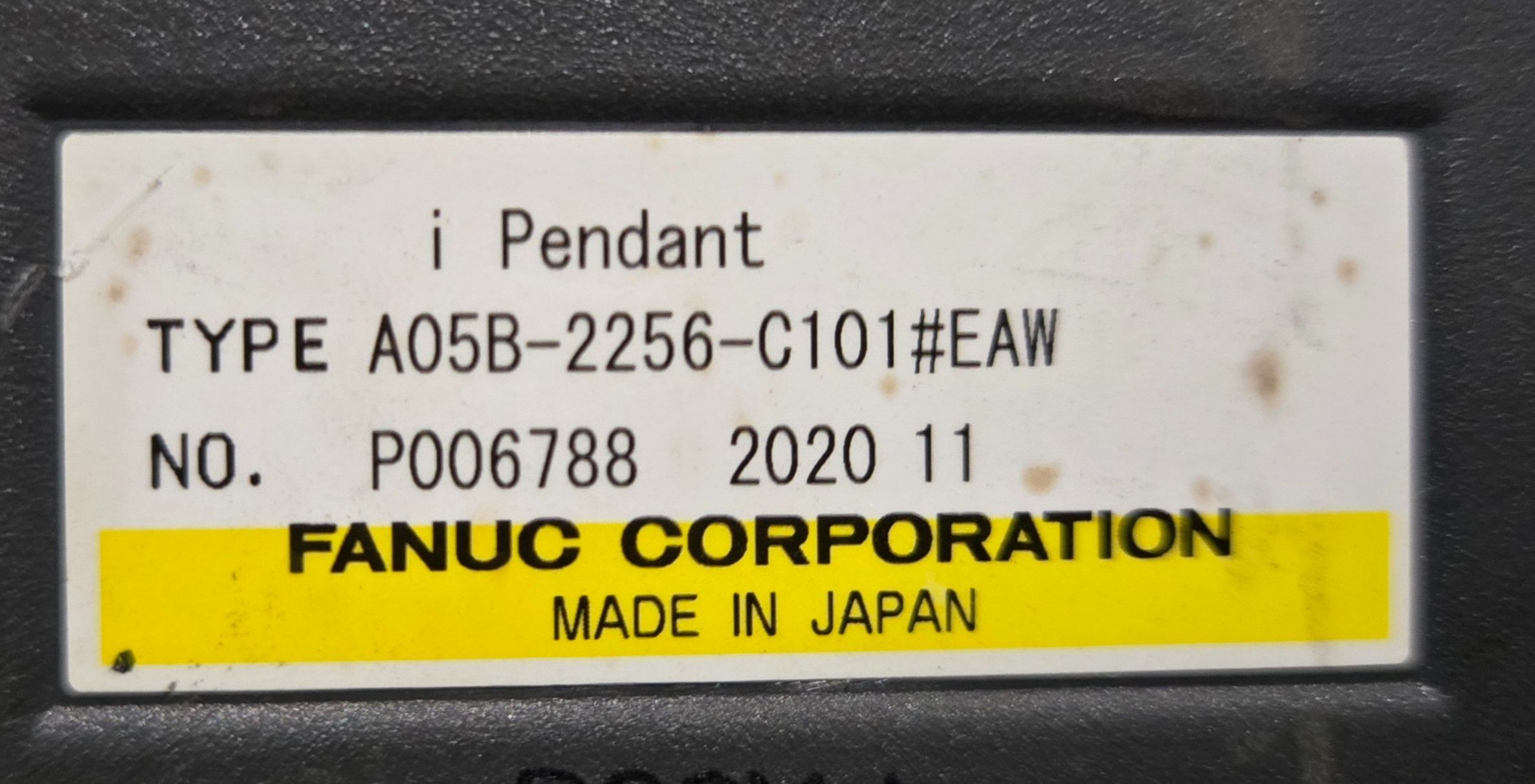

Pendant: FANUC iPendant (A05B-2256-C101#EAW)
Welding Power Source: Fronius TPS 400i / MV/nc
Condition: USED
YOM: 2020
System Type: Robotic Arc Welding System

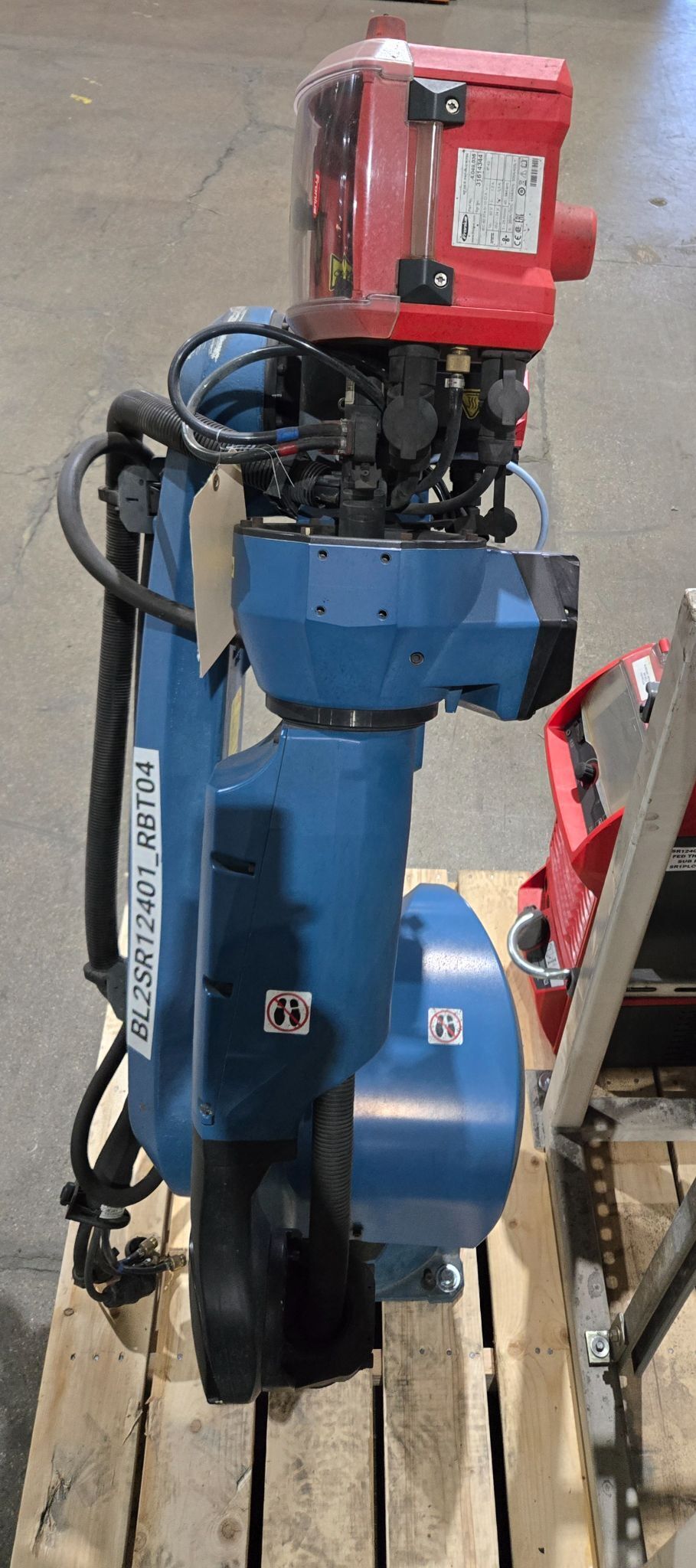

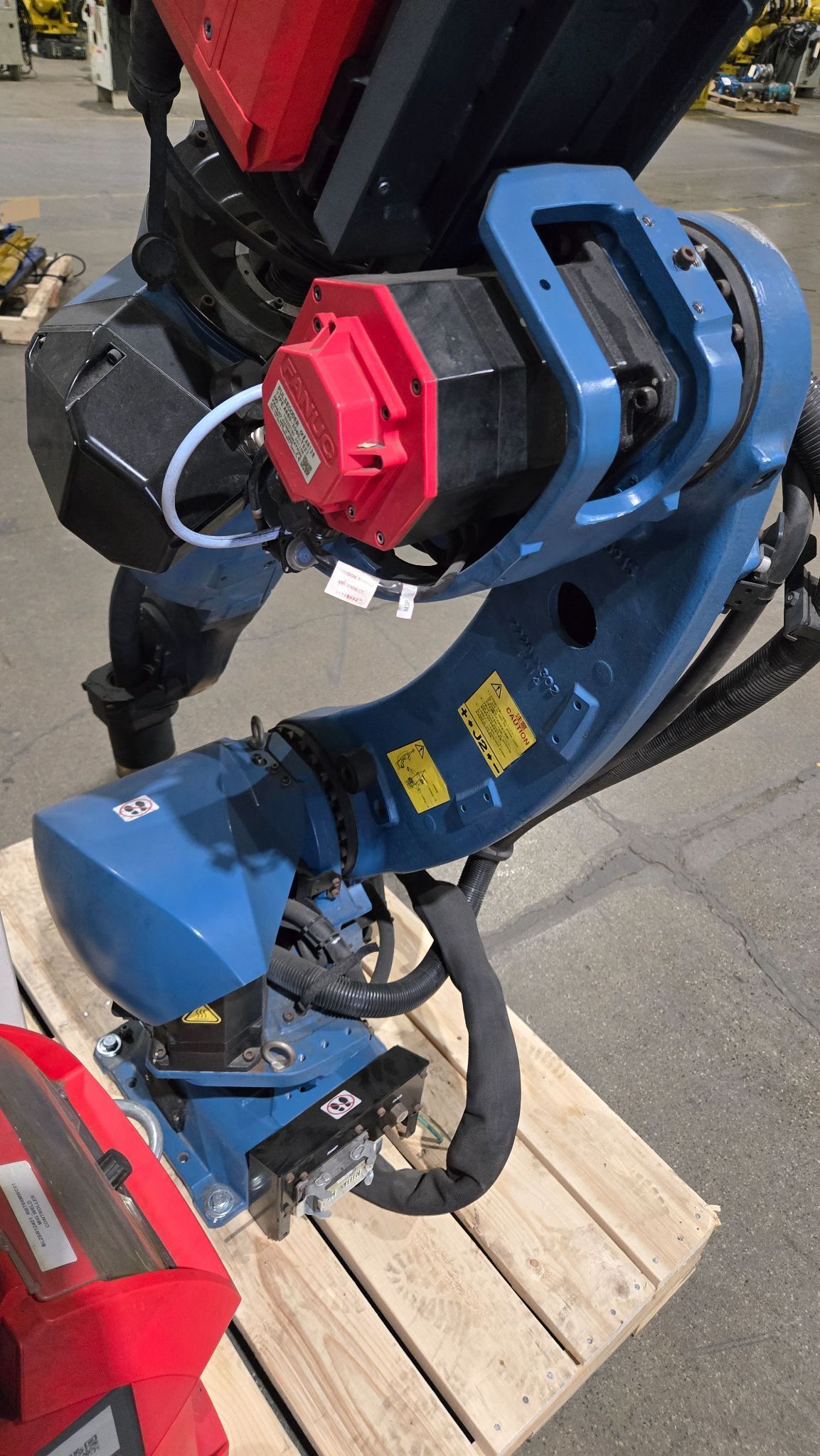

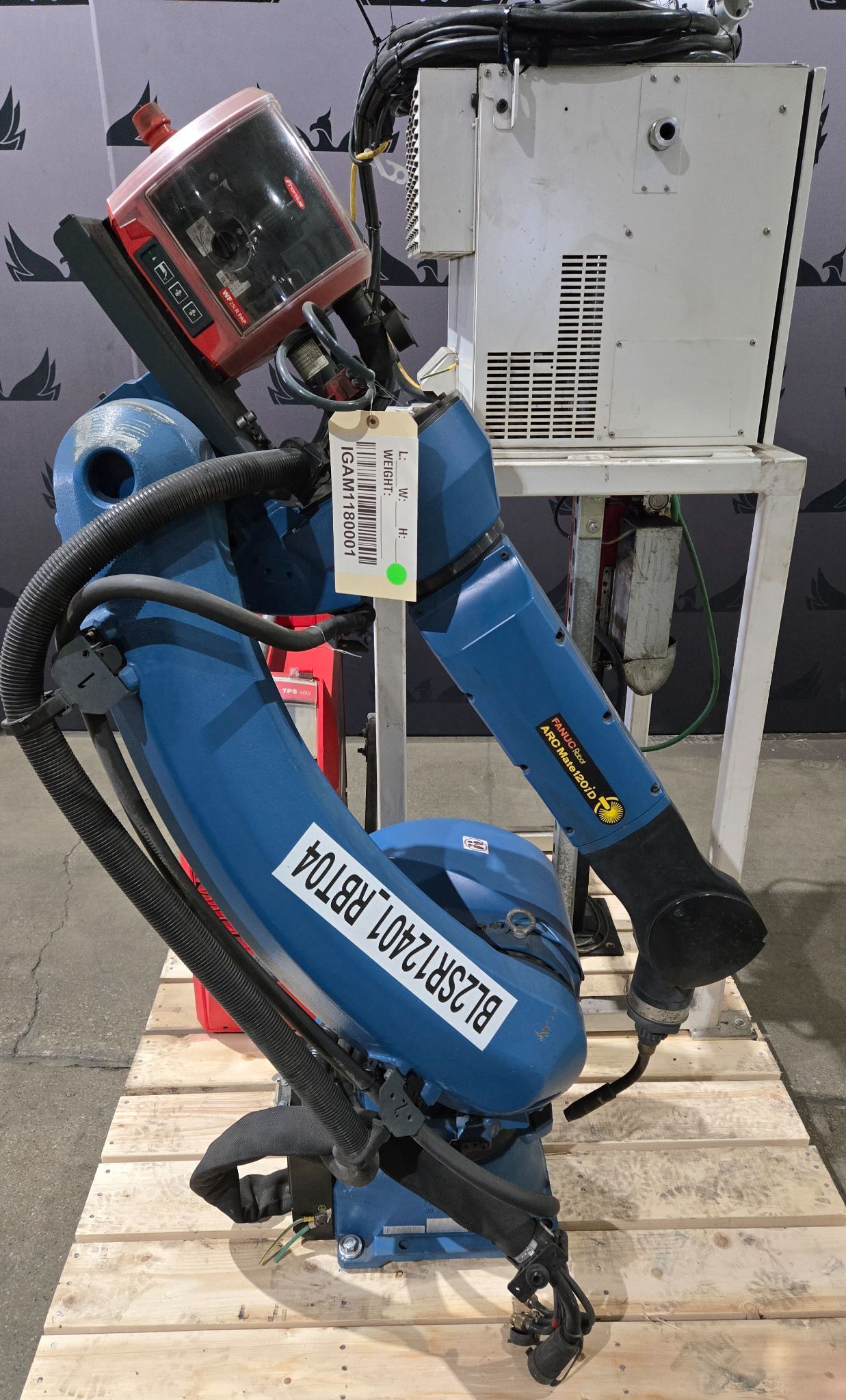

Robot:
Type: 6-Axis Articulated Robot
Weight: 250 kg

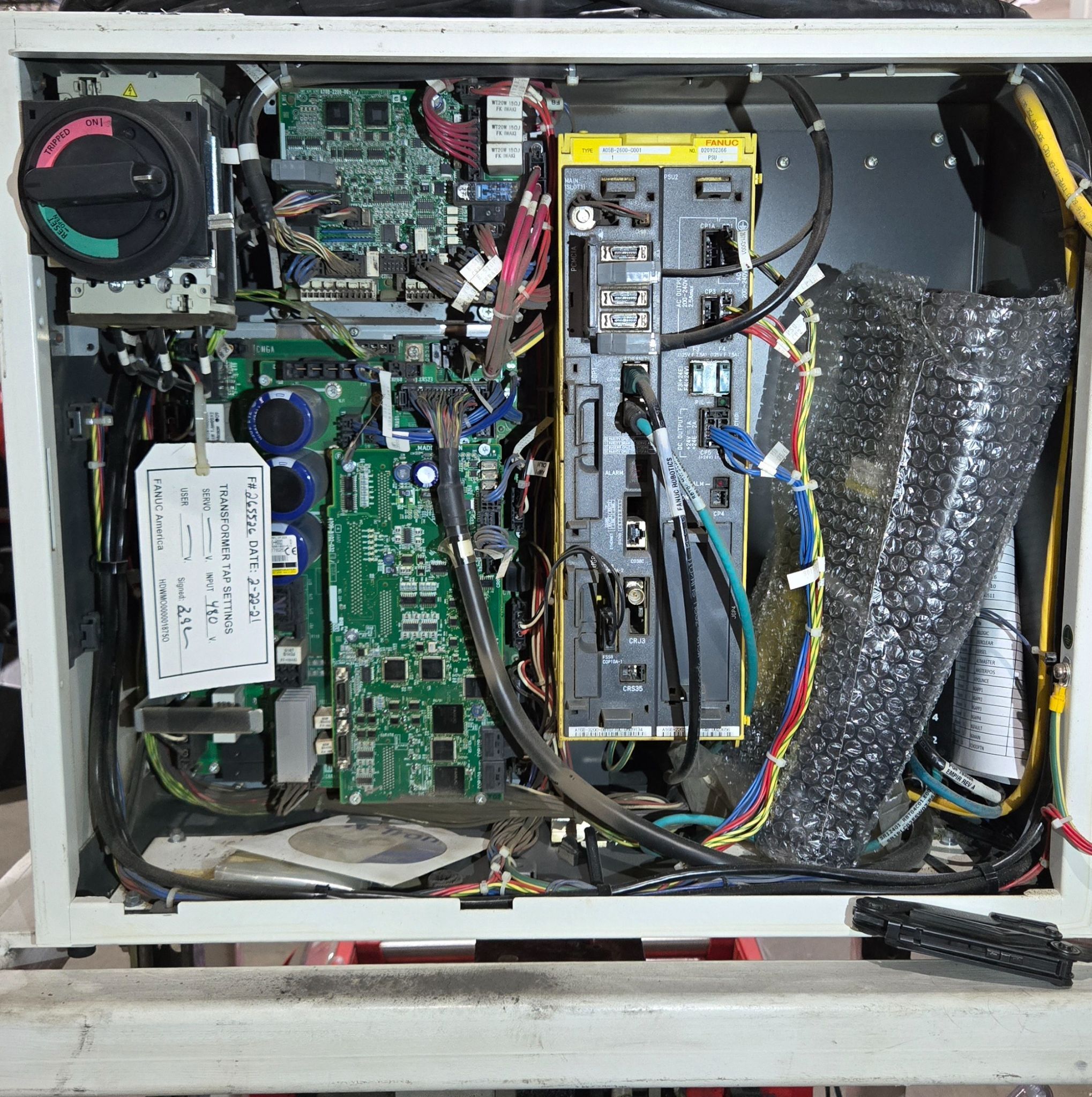

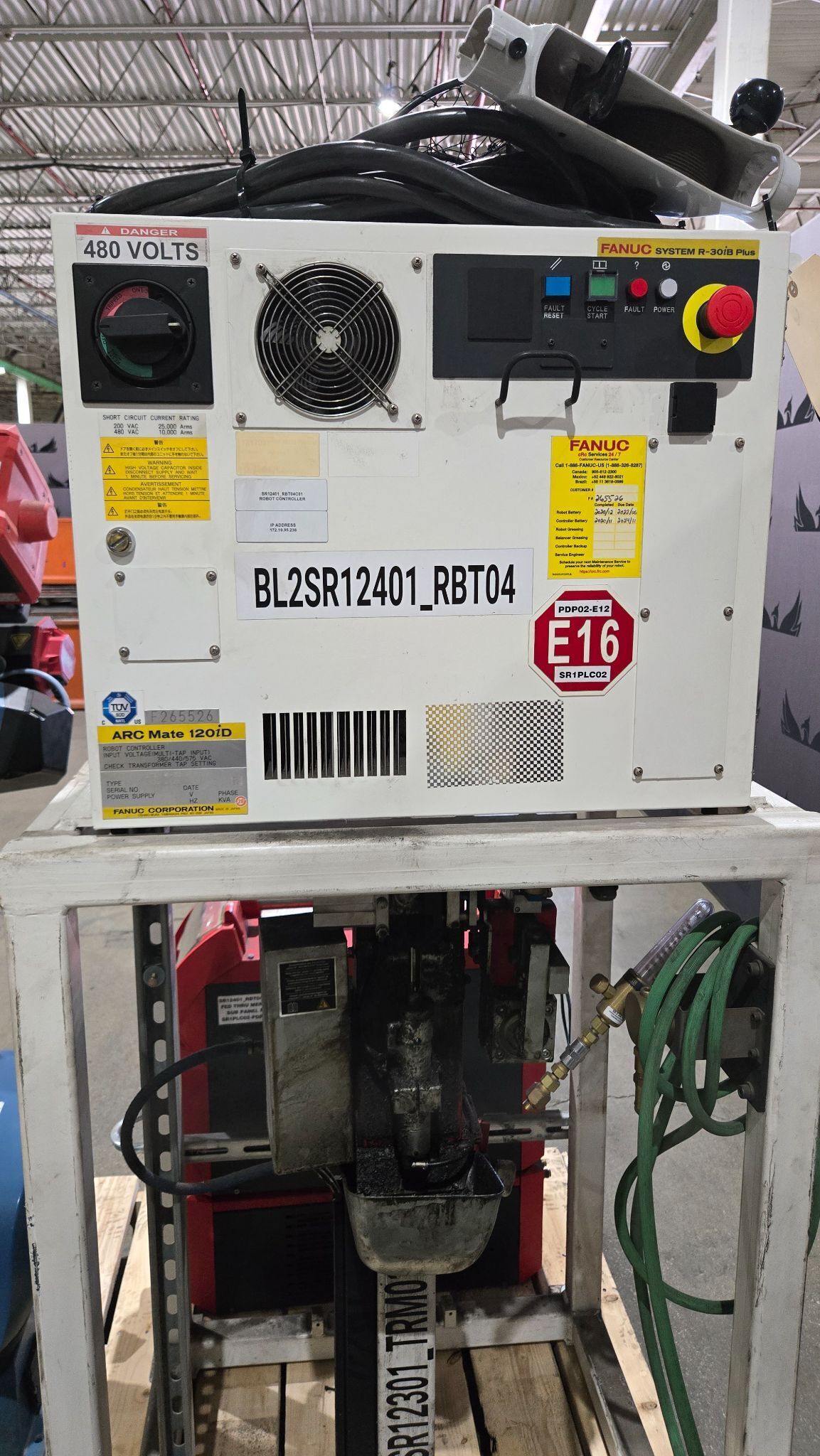

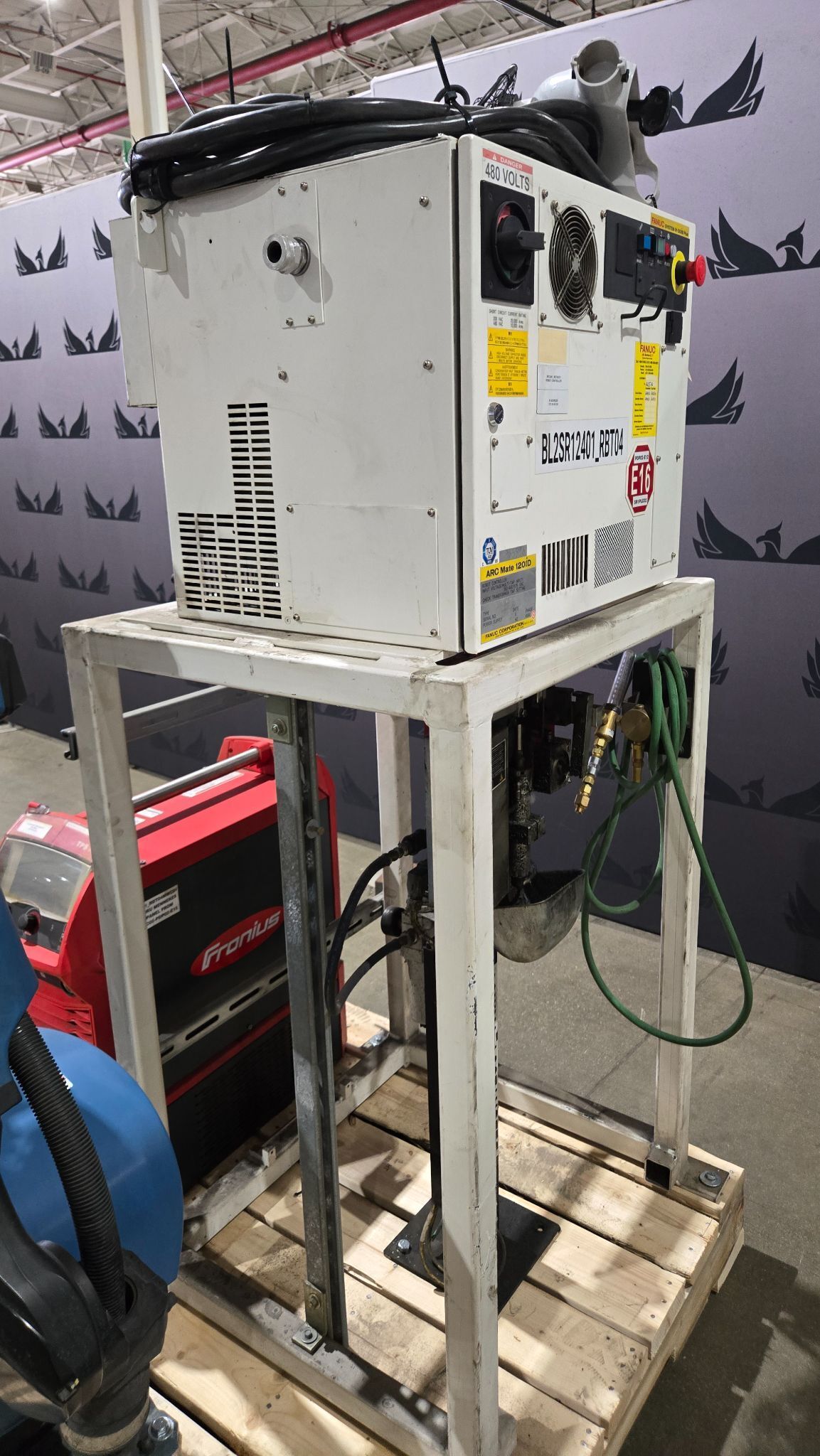

Controller:

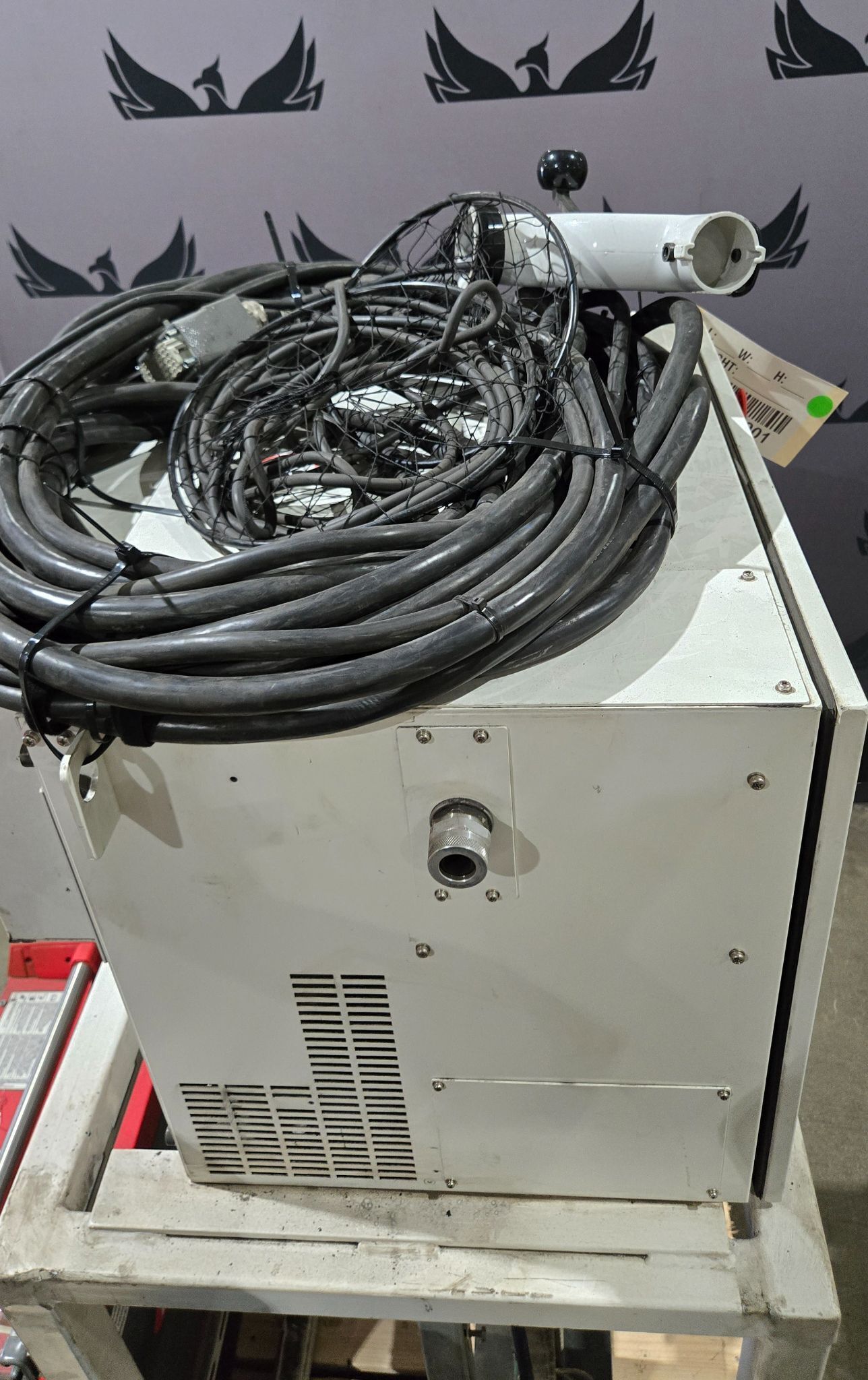

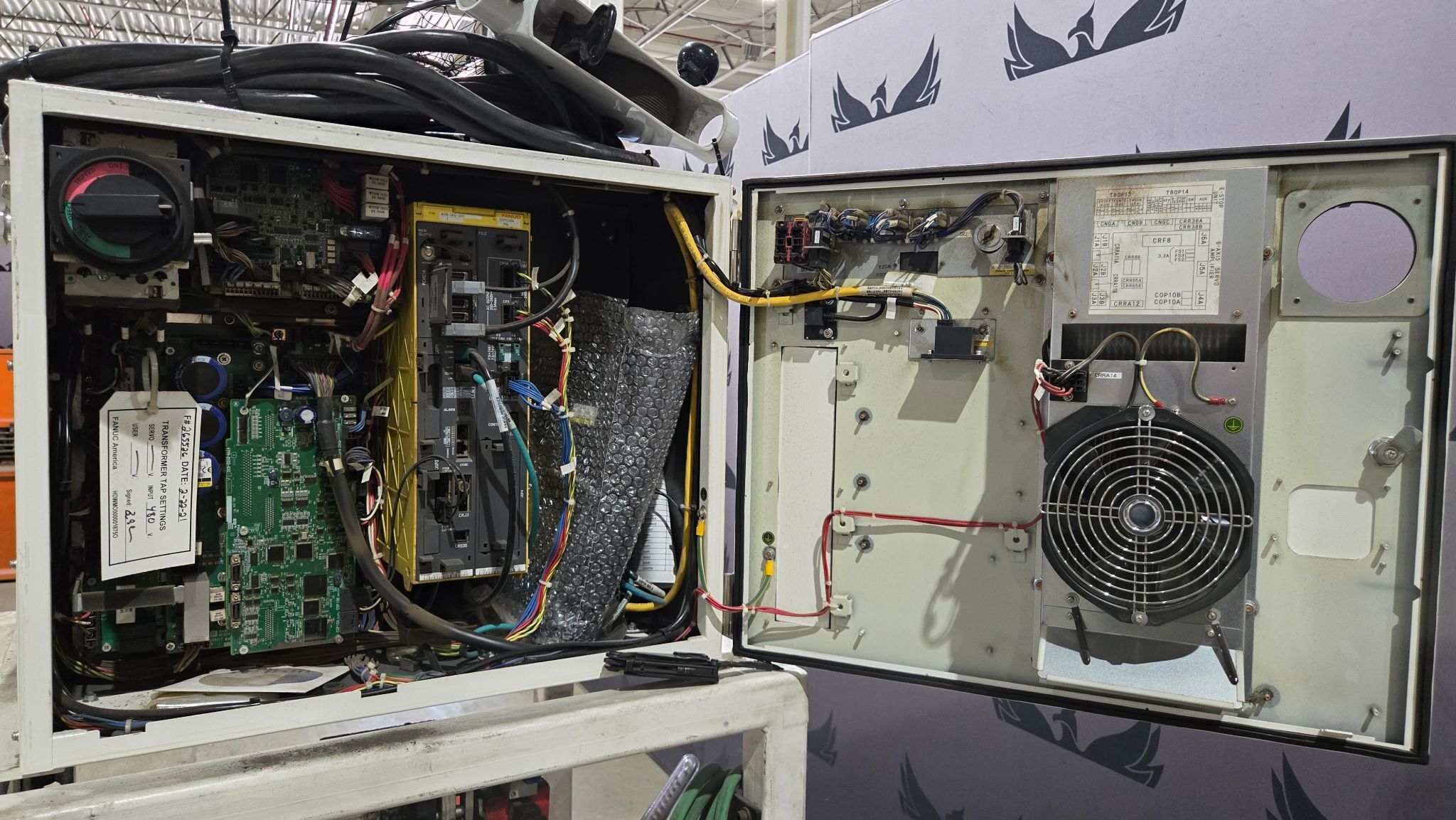

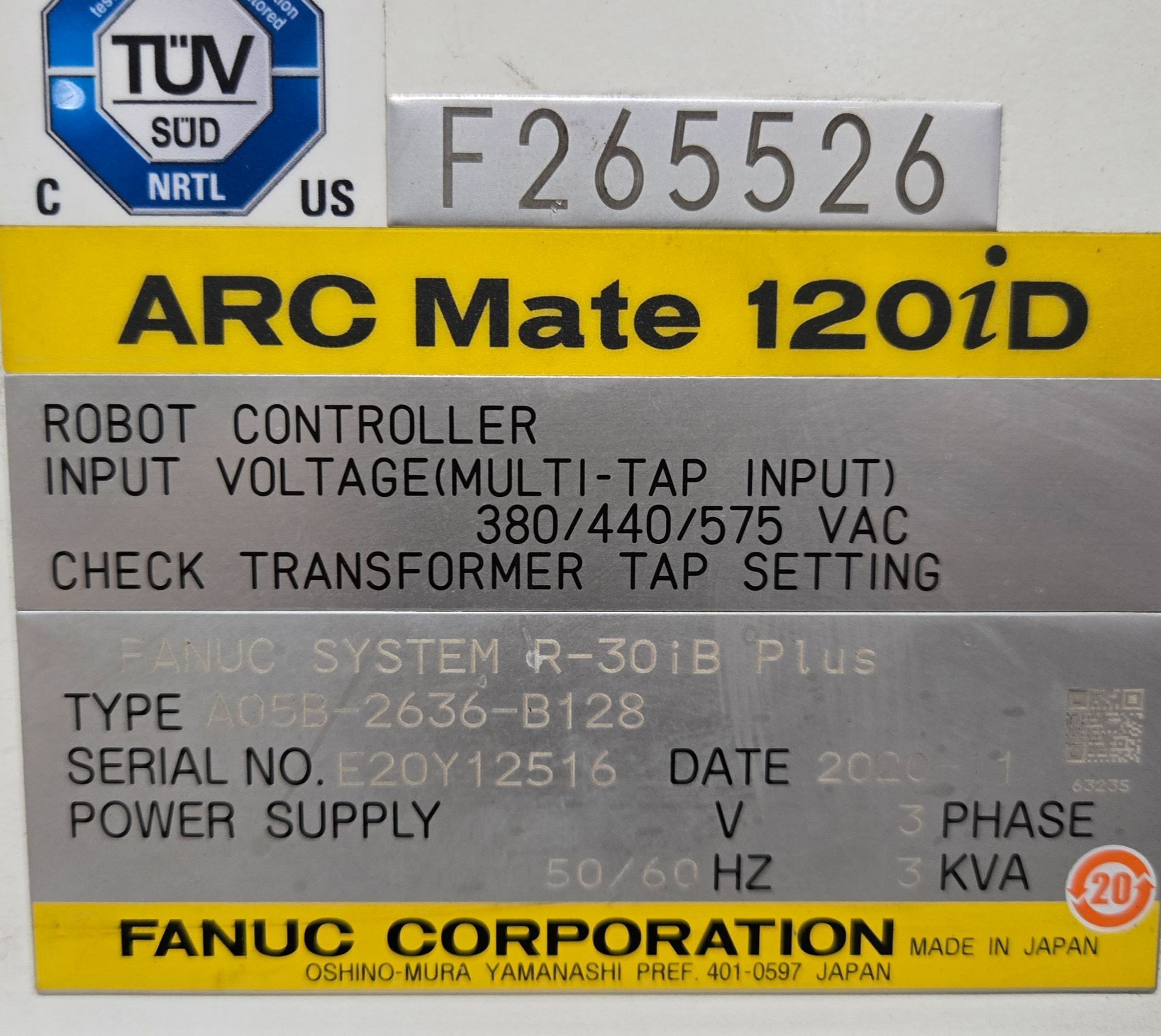

Model: R-30iB Plus
Input Voltage: 380 / 440 / 575 VAC
Phase: 3 Phase
Frequency: 50 / 60 Hz

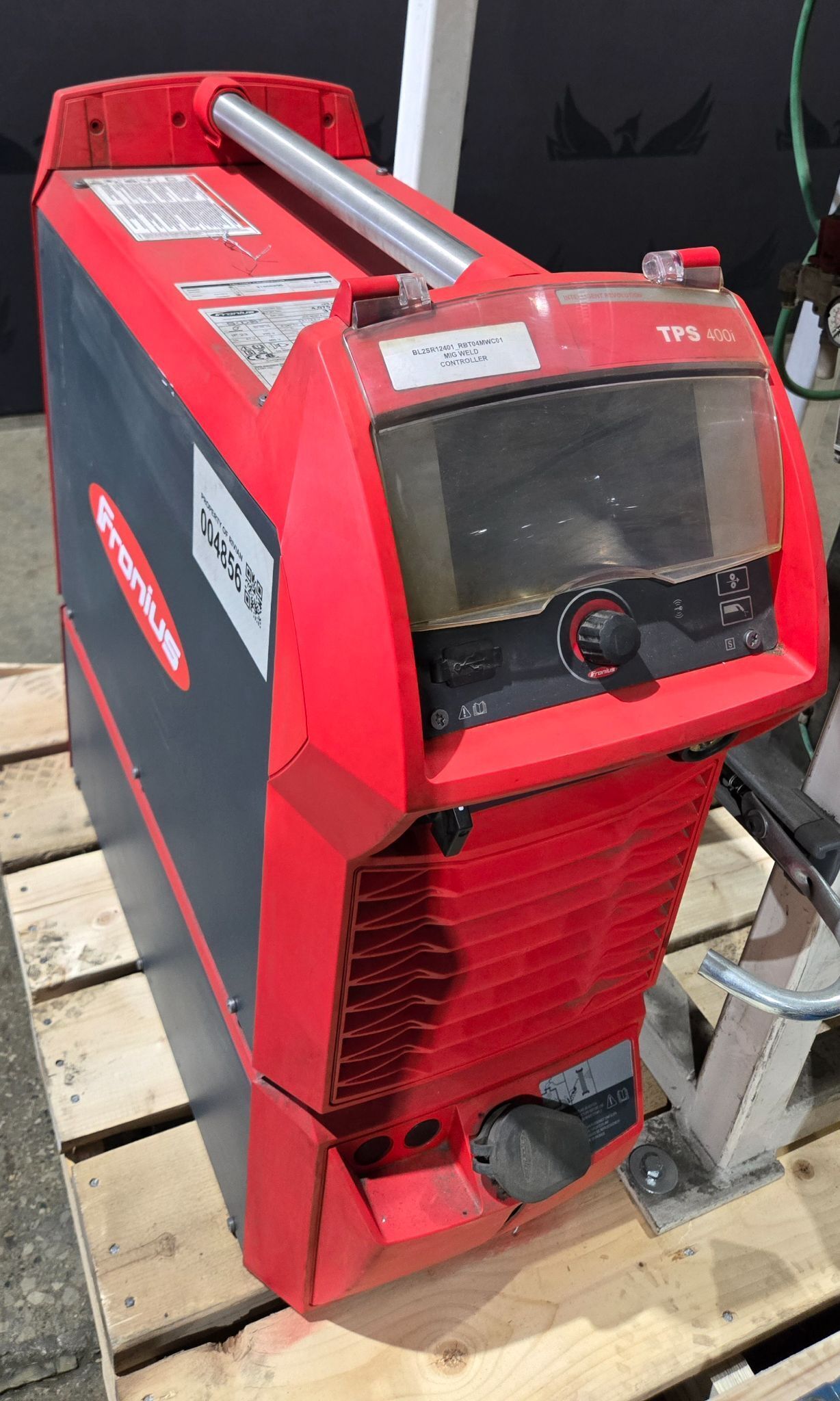

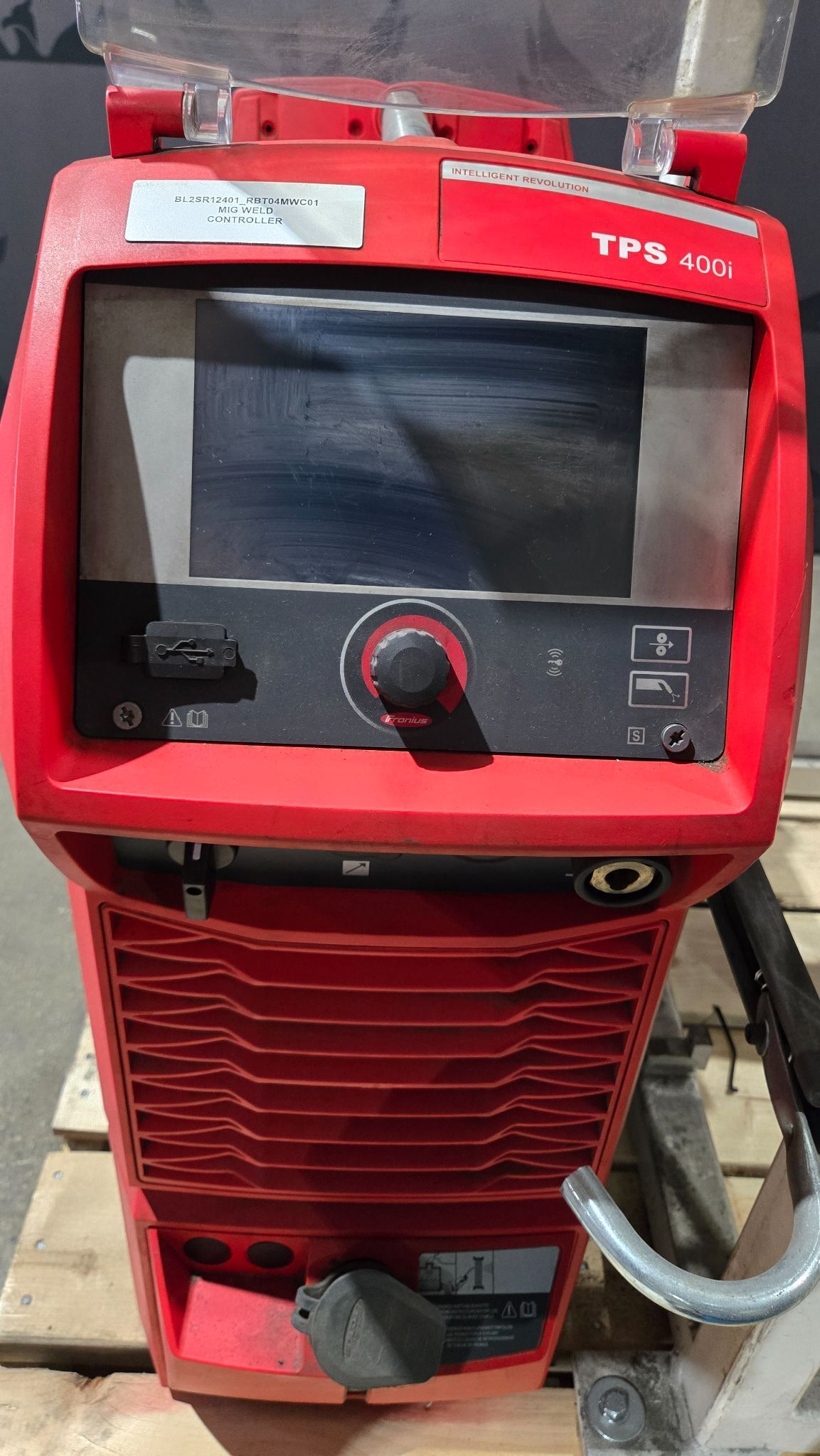

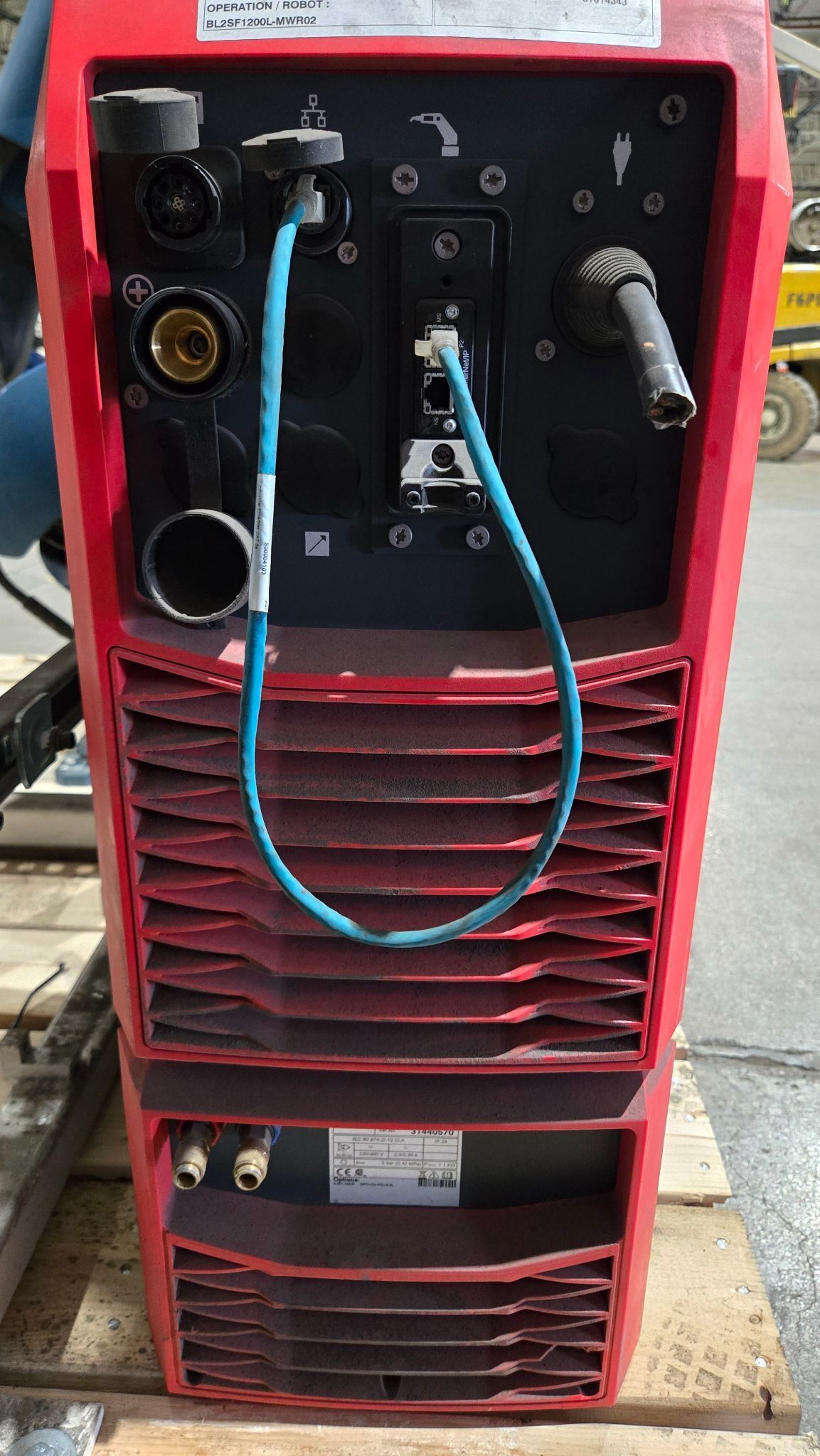

Welding Power Source:

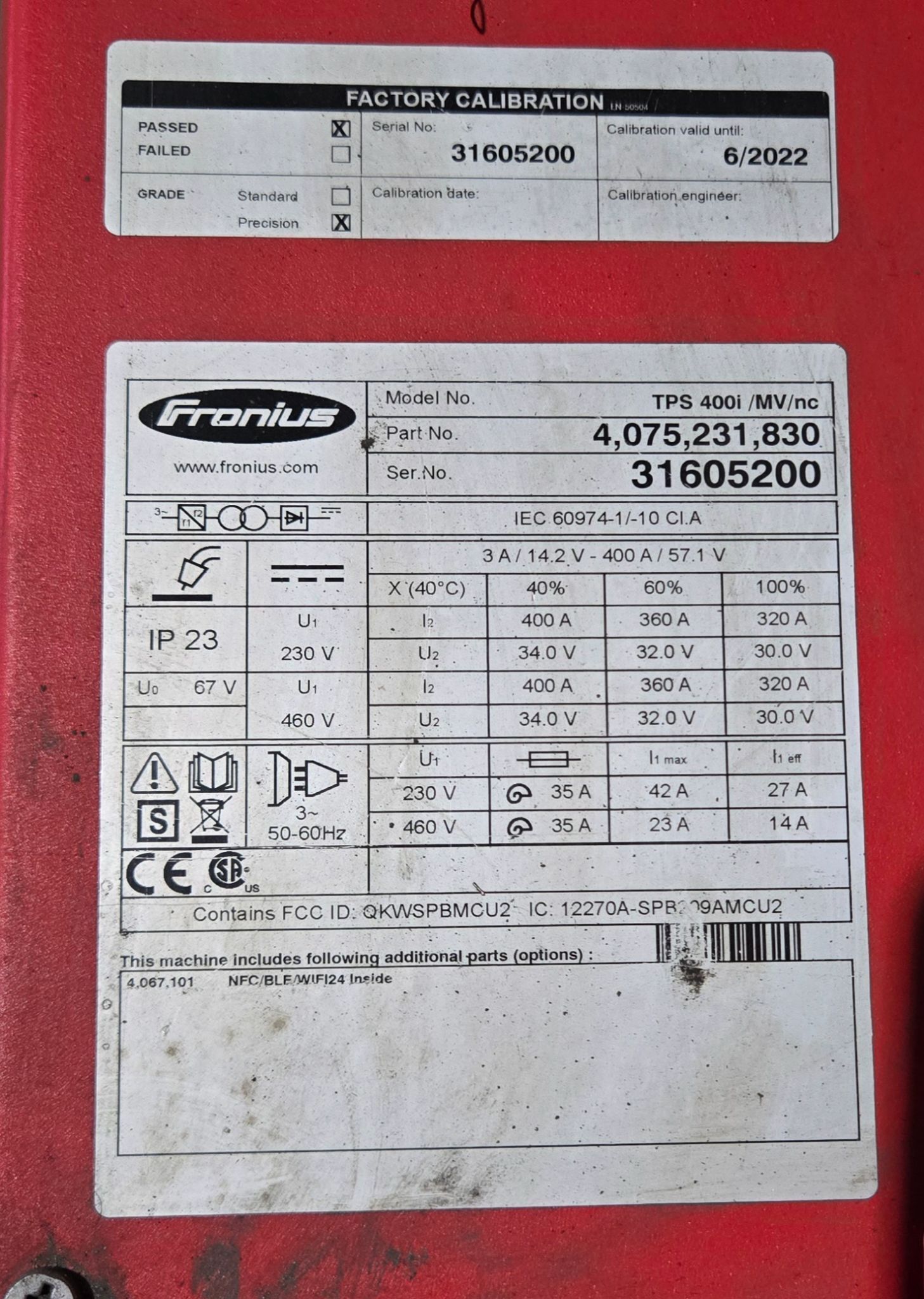

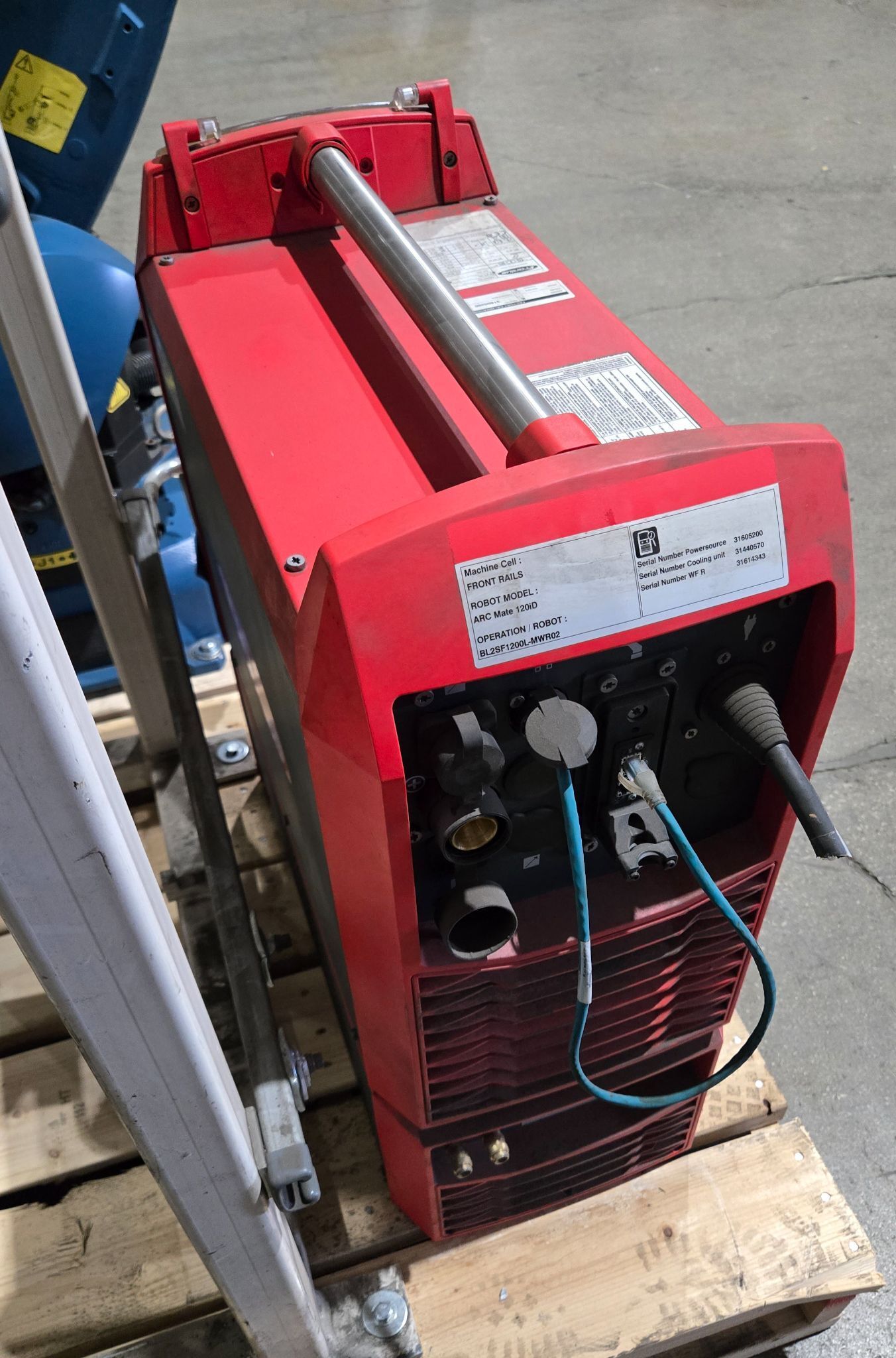

Model: TPS 400i / MV/nc
Output Range: 3 A / 14.2 V to 400 A / 57.1 V

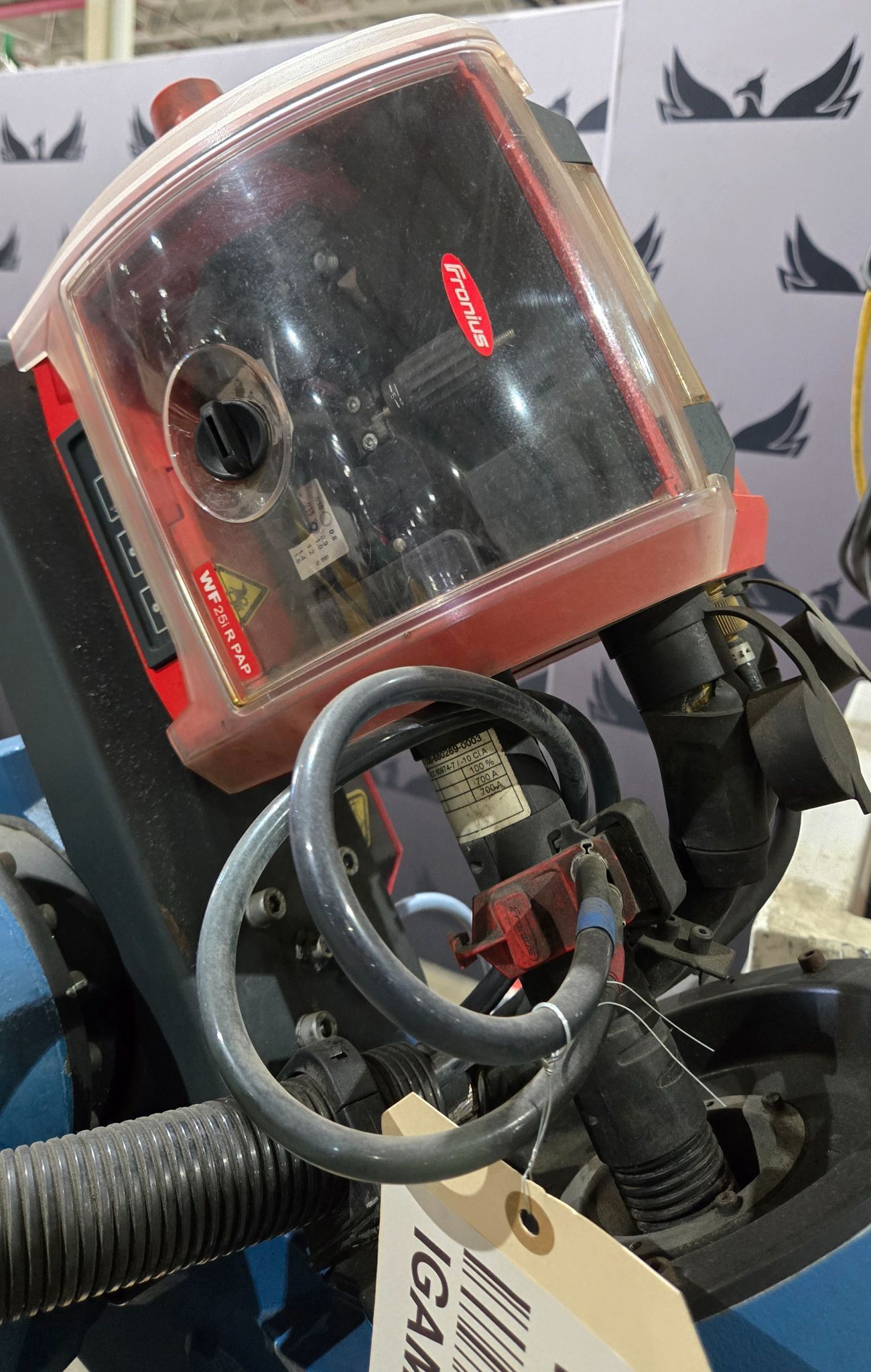

Torch Configuration: Robot-mounted welding torch with integrated wire feed interface
Duty Cycle (40°C):
40%: 400 A
60%: 360 A
100%: 320 A

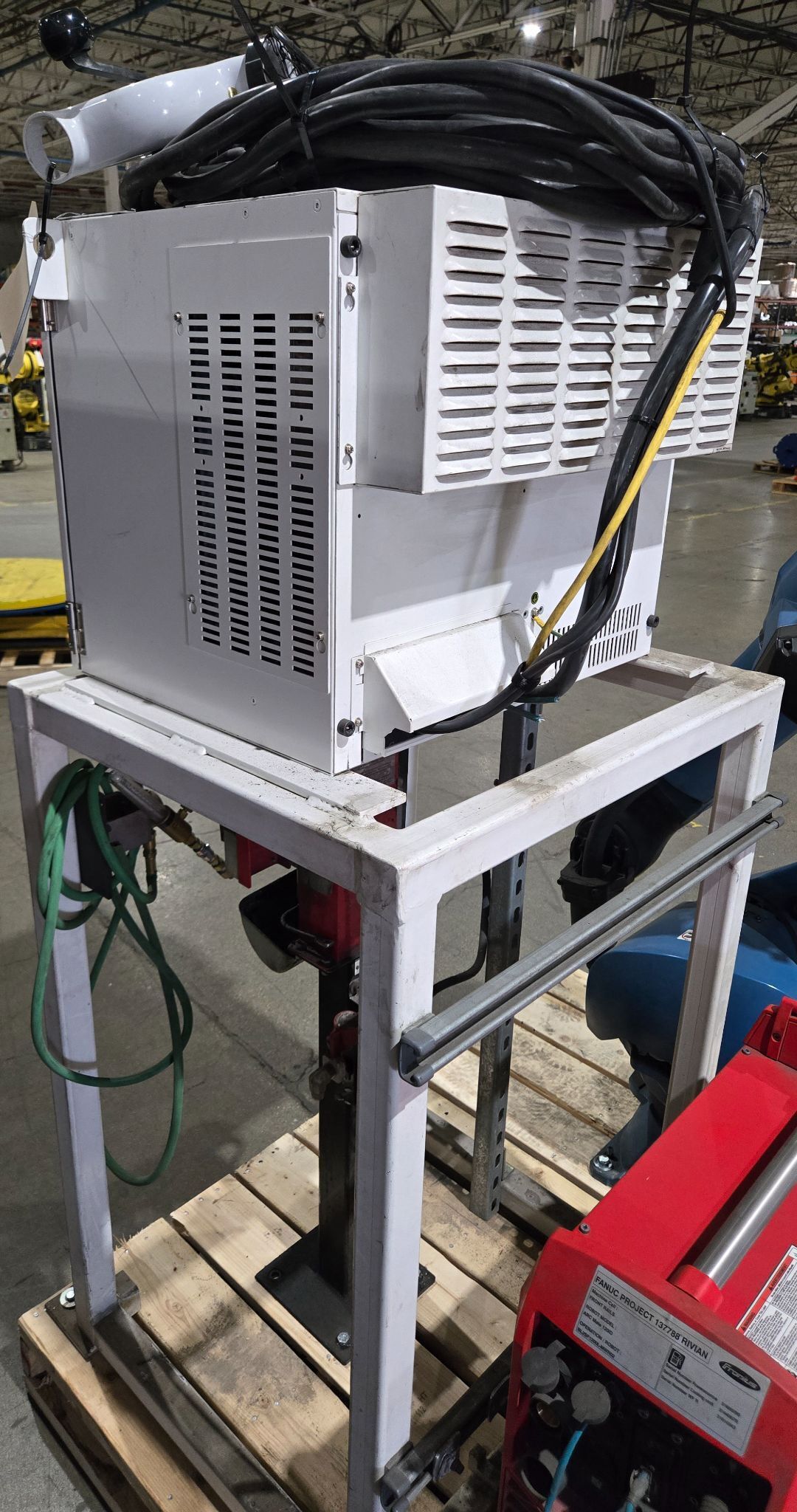

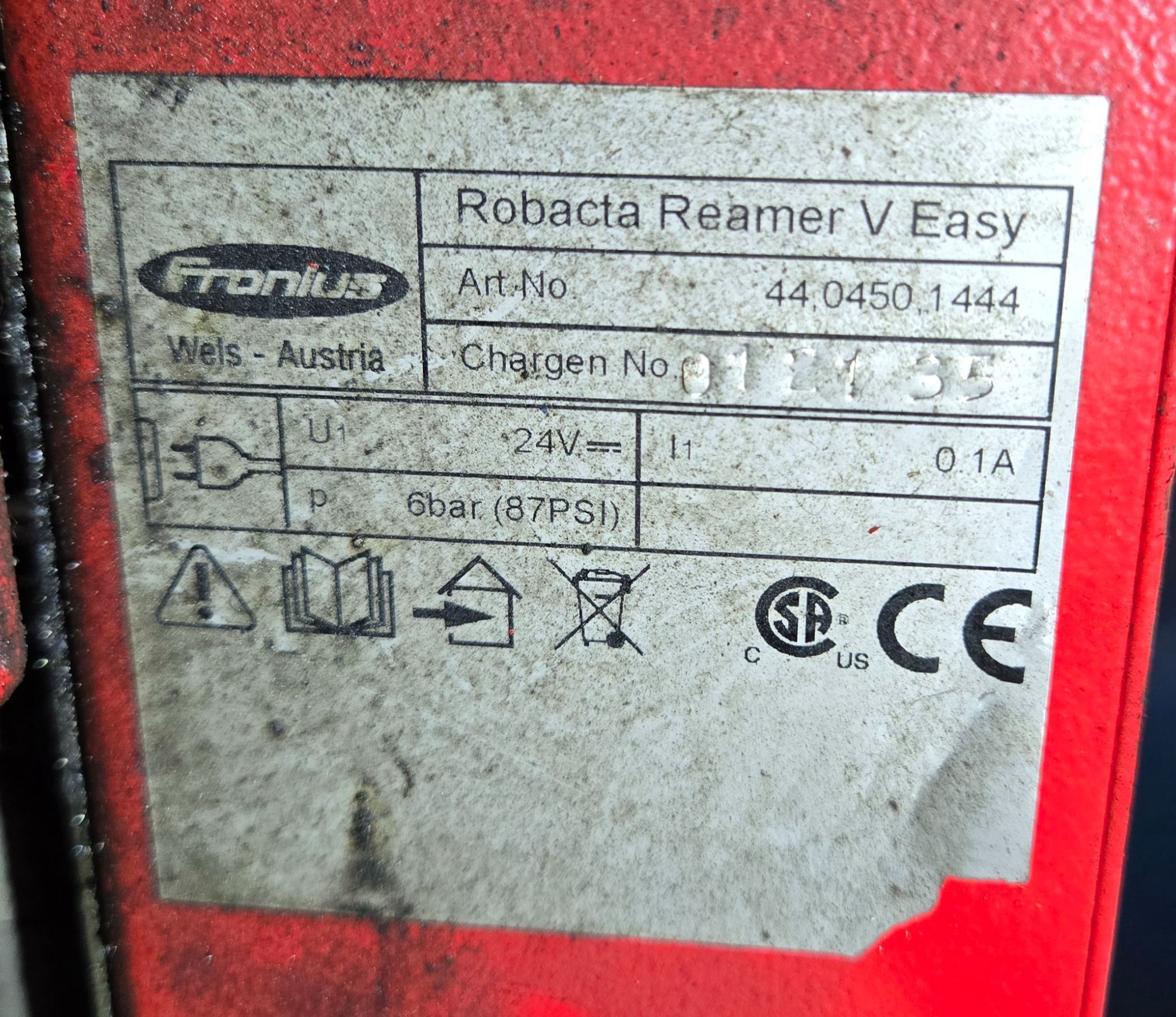

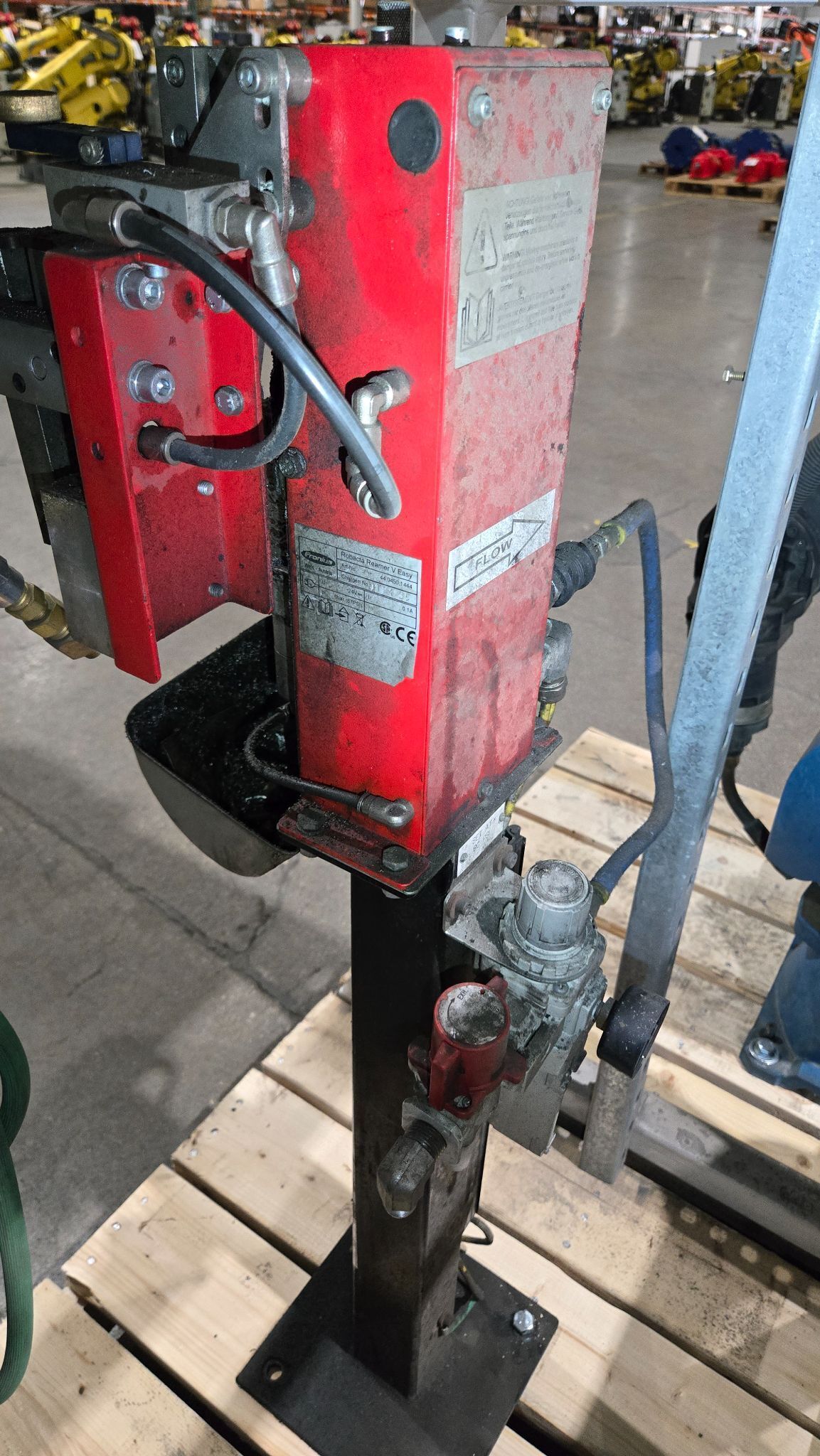

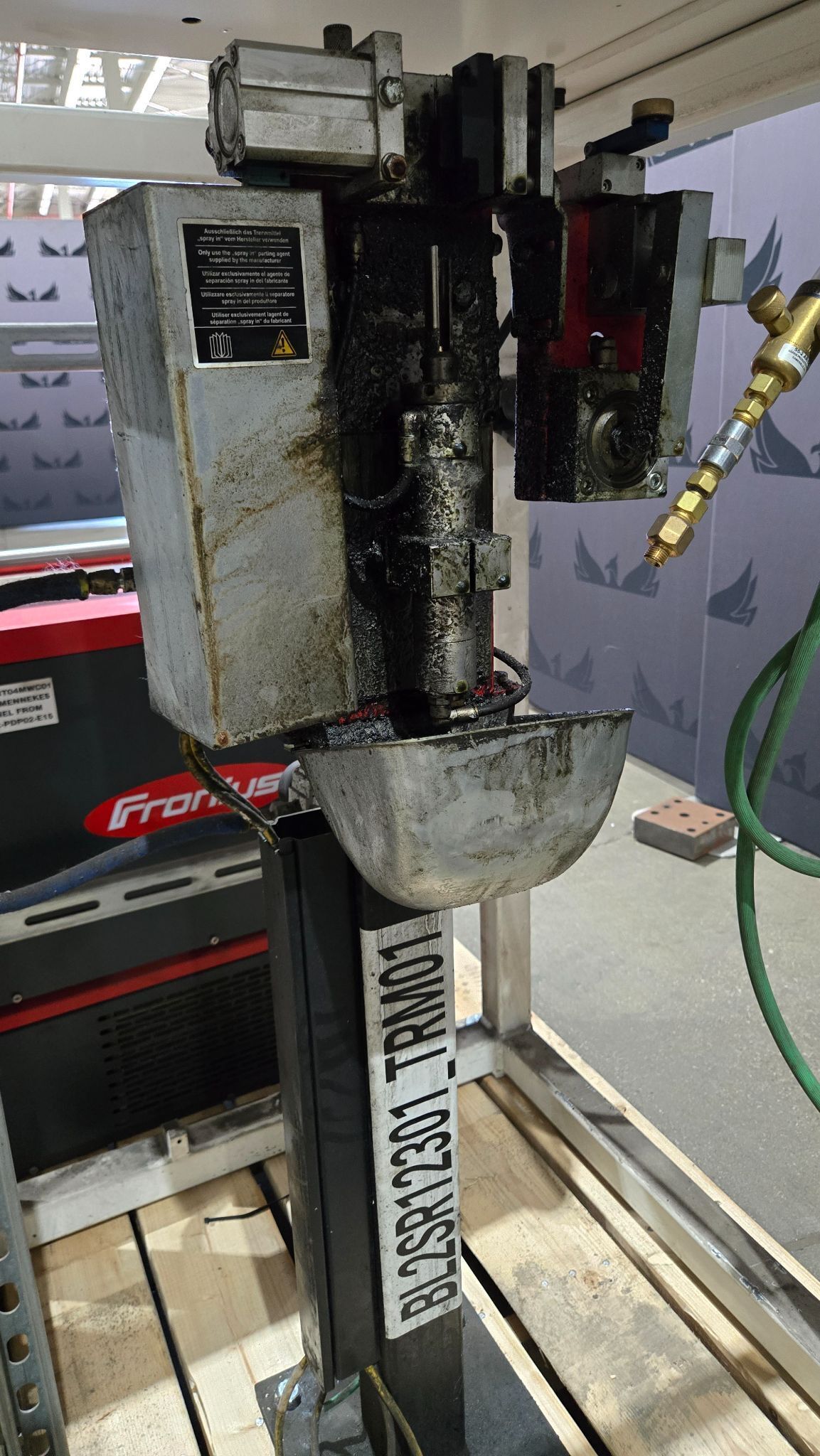

Torch Service Unit:

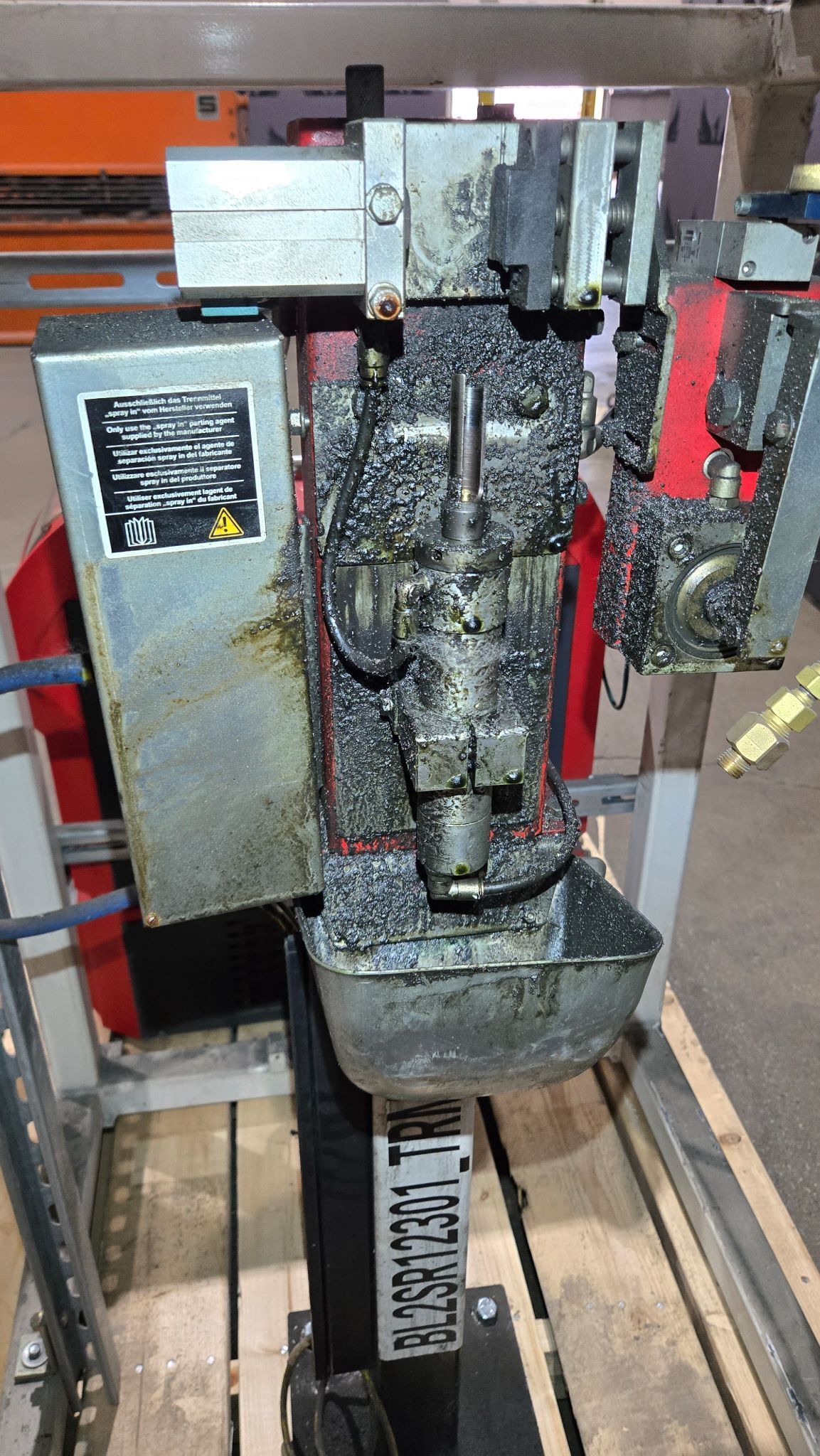

Model: Robacta Reamer V Easy
Voltage: 24 VDC
Air Supply: 6 bar (87 PSI)

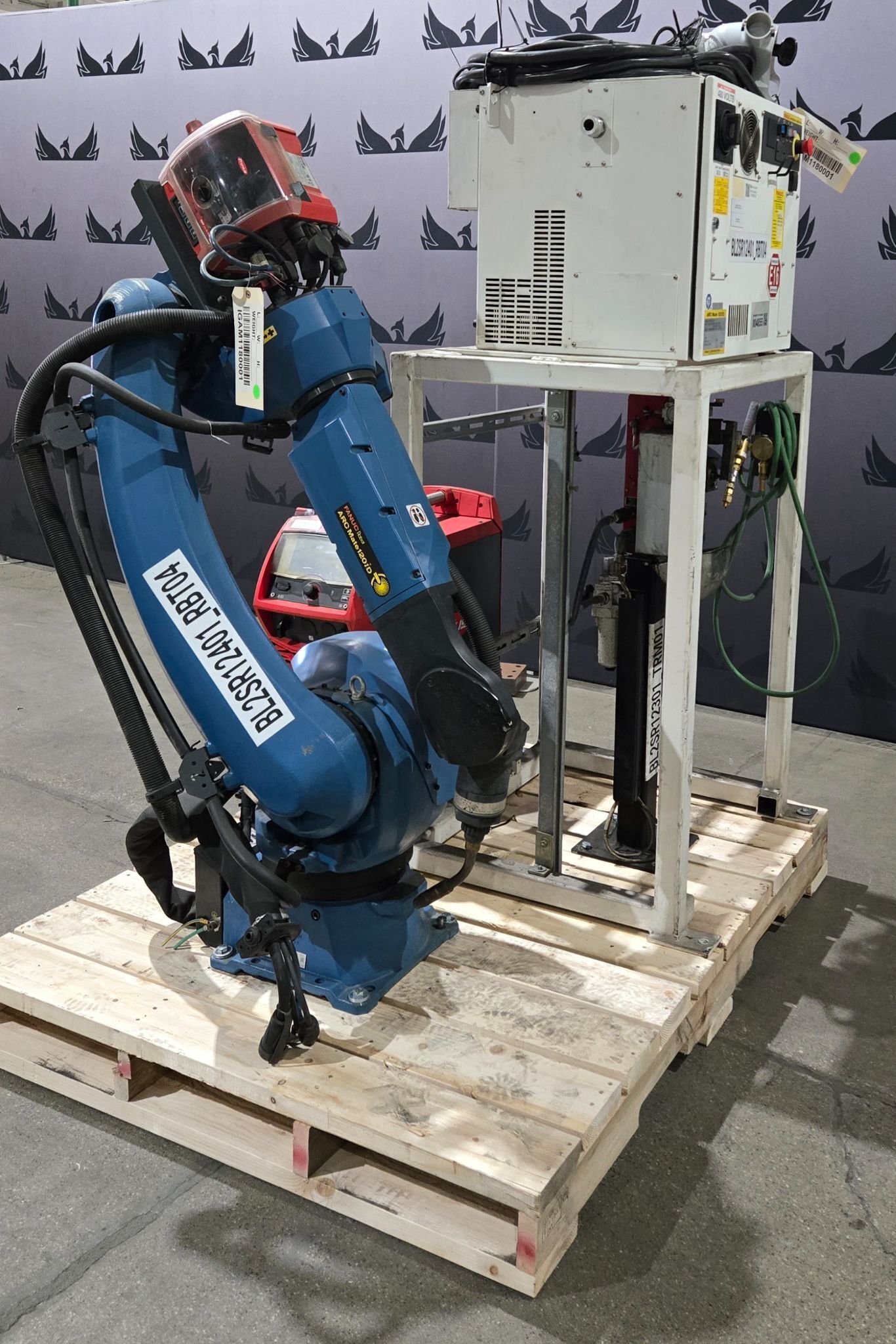

Included:
Robot Arm
Controller
Teach Pendant
Welding Power Source
Torch and Cabling
Reamer Unit
Product Specifications:
- Robot Model: FANUC ArcMate 120iD
- Controller: FANUC R-30iB Plus
- Pendants: Standard FANUC iPendant Touch (included)
- Power Supply: Fronius TPS400i MV (Multiprocess, high-performance MIG/MAG)
- Cooling System: Fronius Cooling Unit 1100i (optimized for TPS/i systems)
- Reamer: Robacta Reamer V Easy (automatic torch cleaning station)

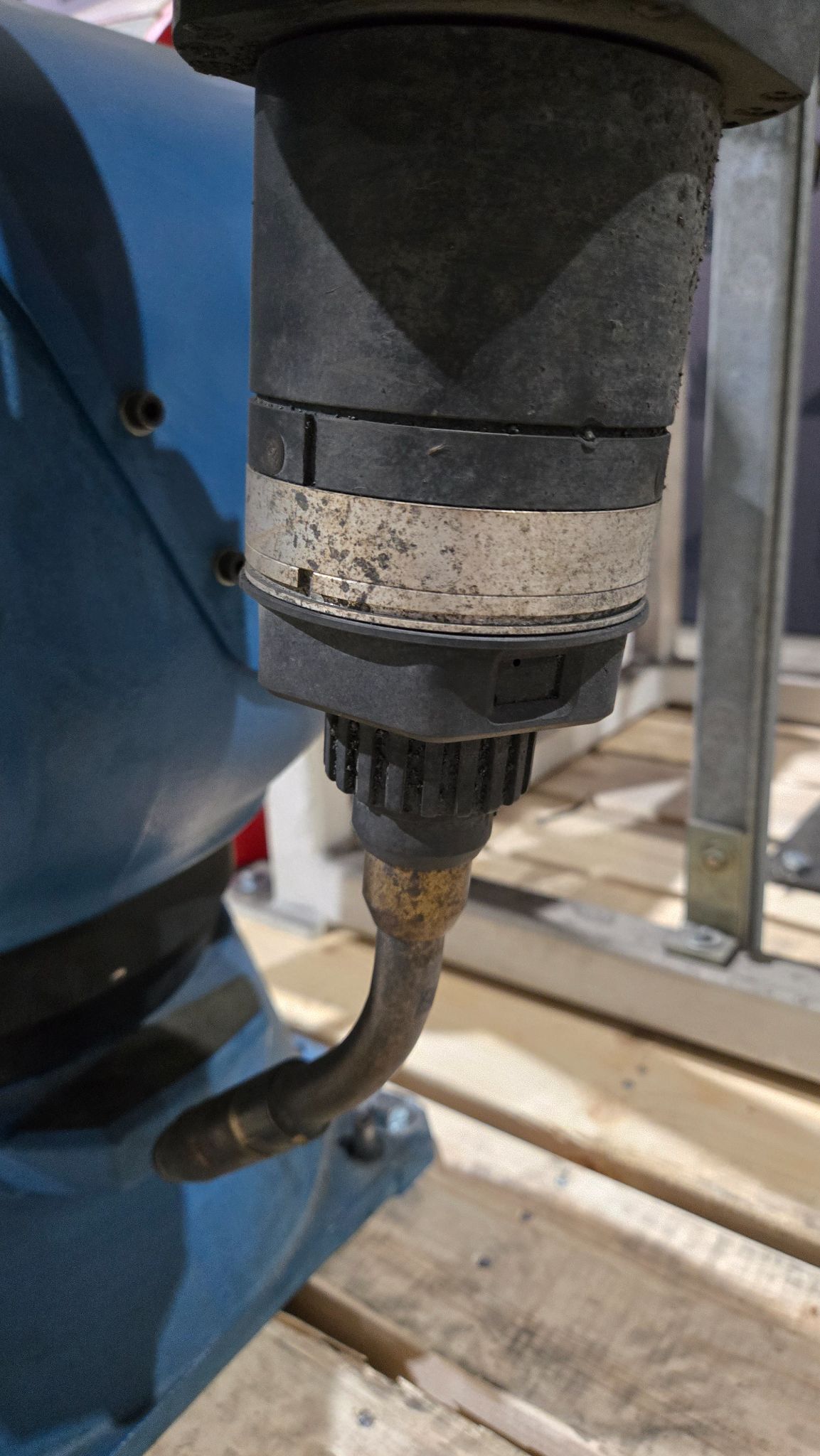

- Torch Neck: MTB 500i W R WWP / 45° / L209 / H107 (water-cooled, 500A rated)
- System Condition: Like-new (low hours, fully integrated, and tested components)
Key Features:
- Advanced Arc Welding Performance: High-speed, accurate welding with FANUC ArcMate 120iD and TPS400i MV synergy
- User-Friendly Operation: Intuitive FANUC iPendant Touch with real-time visual feedback and simplified programming
- Seamless Integration: All components fully compatible and pre-configured for efficient setup
- Automated Torch Maintenance: Robacta Reamer V Easy ensures consistent weld quality by cleaning spatter from the torch
- Water-Cooled Torch Assembly: Durable 500A torch neck designed for extended welding cycles without overheating
Applications:
- Automotive Manufacturing: Robotic MIG welding of chassis, brackets, and structural components
- Metal Fabrication Shops: Precision welding of mild steel, stainless, and aluminum assemblies
- Heavy Equipment Production: High-deposition welds for large-scale structural parts
- Industrial Welding Cells: Automated lines requiring consistent, repeatable welds
- Custom Robotic Welding Systems: Flexible integration into larger multi-robot welding setups
