FANUC A06B-2404-B103 AC Spindle Motor NEW

Specification Table

Max Speed

10,000 RPM

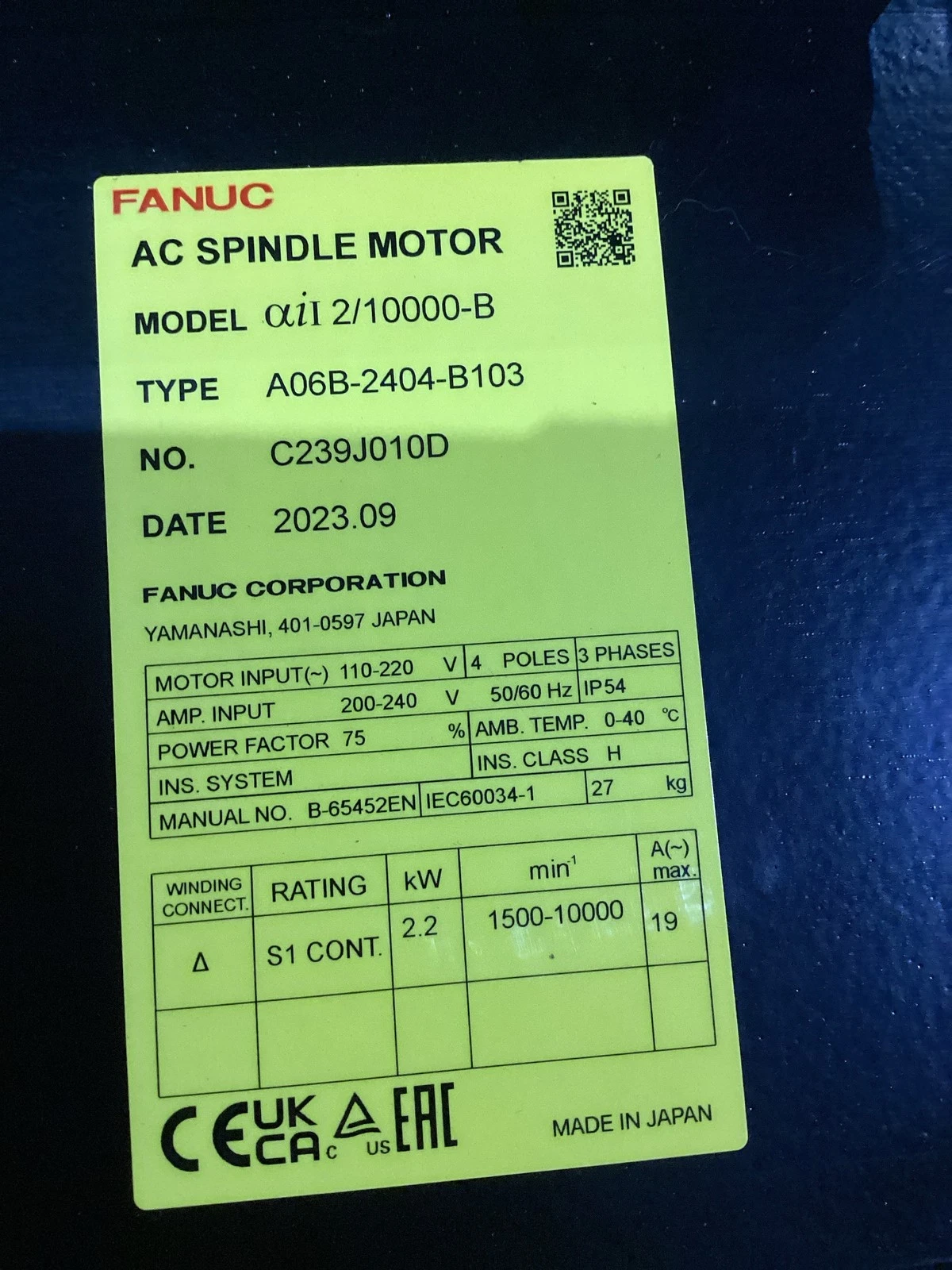

IDENTIFICATION -------------- Manufacturer: FANUC Product Type: AC Spindle Motor Series: αiI Model: αiI 2/10000-B Part Number: A06B-2404-B103 Serial Number: C239J010D Condition: NEW YOM: 2023.09 Country of Manufacture: Japan MOTOR CONFIGURATION ------------------- Motor Type: AC Spindle Motor Motor Construction: 4-Pole Phase Configuration: 3-Phase Duty Rating: S1 Continuous Duty Winding Connection: Delta (Δ) PERFORMANCE ----------- Rated Output Power: 2.2 kW Speed Range: 1500-10000 RPM Power Factor: 75% Maximum Current: 19 A ELECTRICAL ---------- Motor Input Voltage: 110-220 VAC Amplifier Input Voltage: 200-240 VAC Input Frequency: 50/60 Hz Insulation Class: Class H PROTECTION ---------- Protection Rating: IP54 Ambient Temperature Rating: 0°C to 40°C COMPLIANCE ---------- Standard: IEC 60034-1 CE Marked: Yes UKCA Marked: Yes EAC Marked: Yes PHYSICAL -------- Motor Weight: 27 kg DOCUMENTATION ------------- Manual Number: B-65452EN
