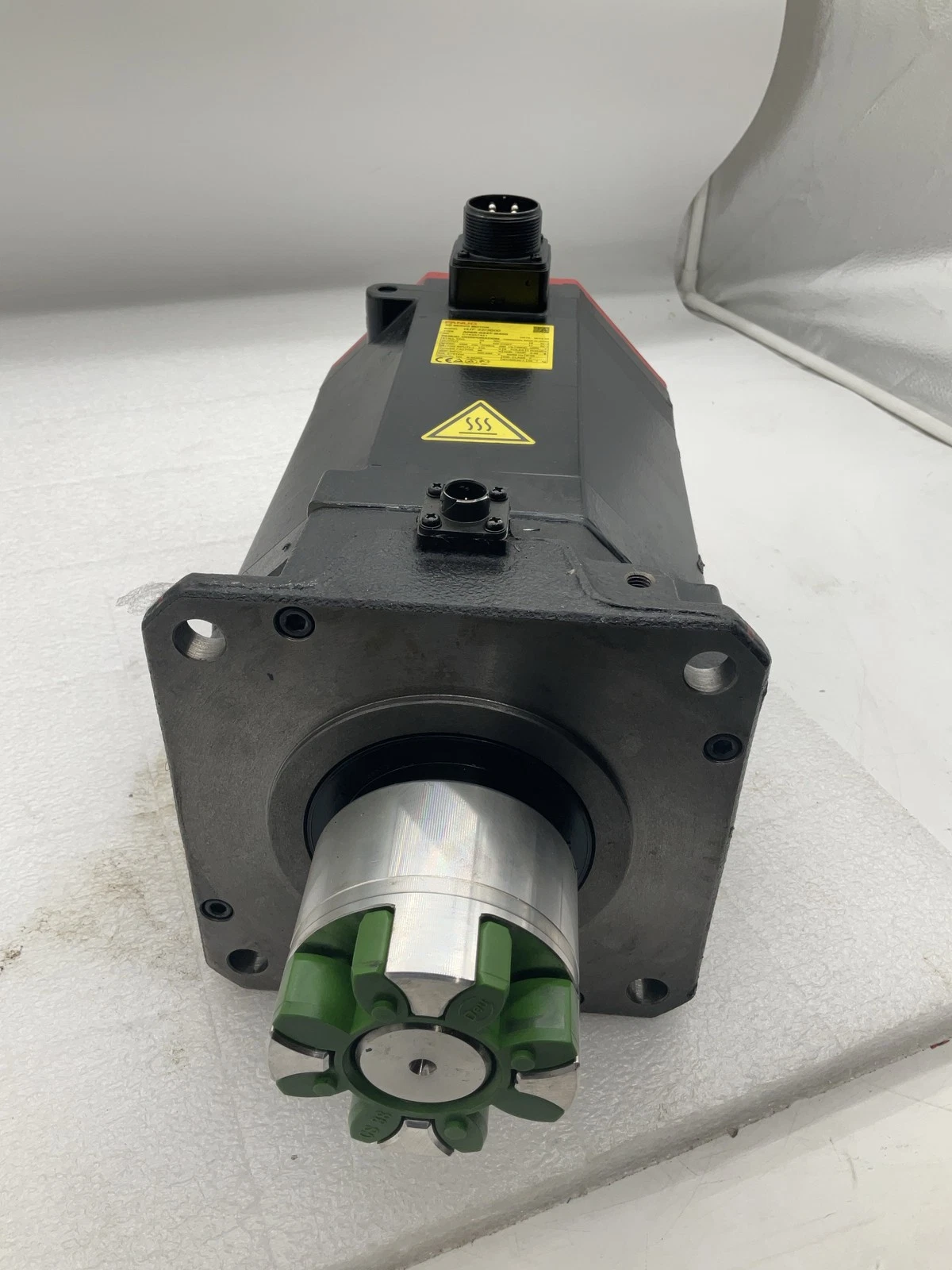

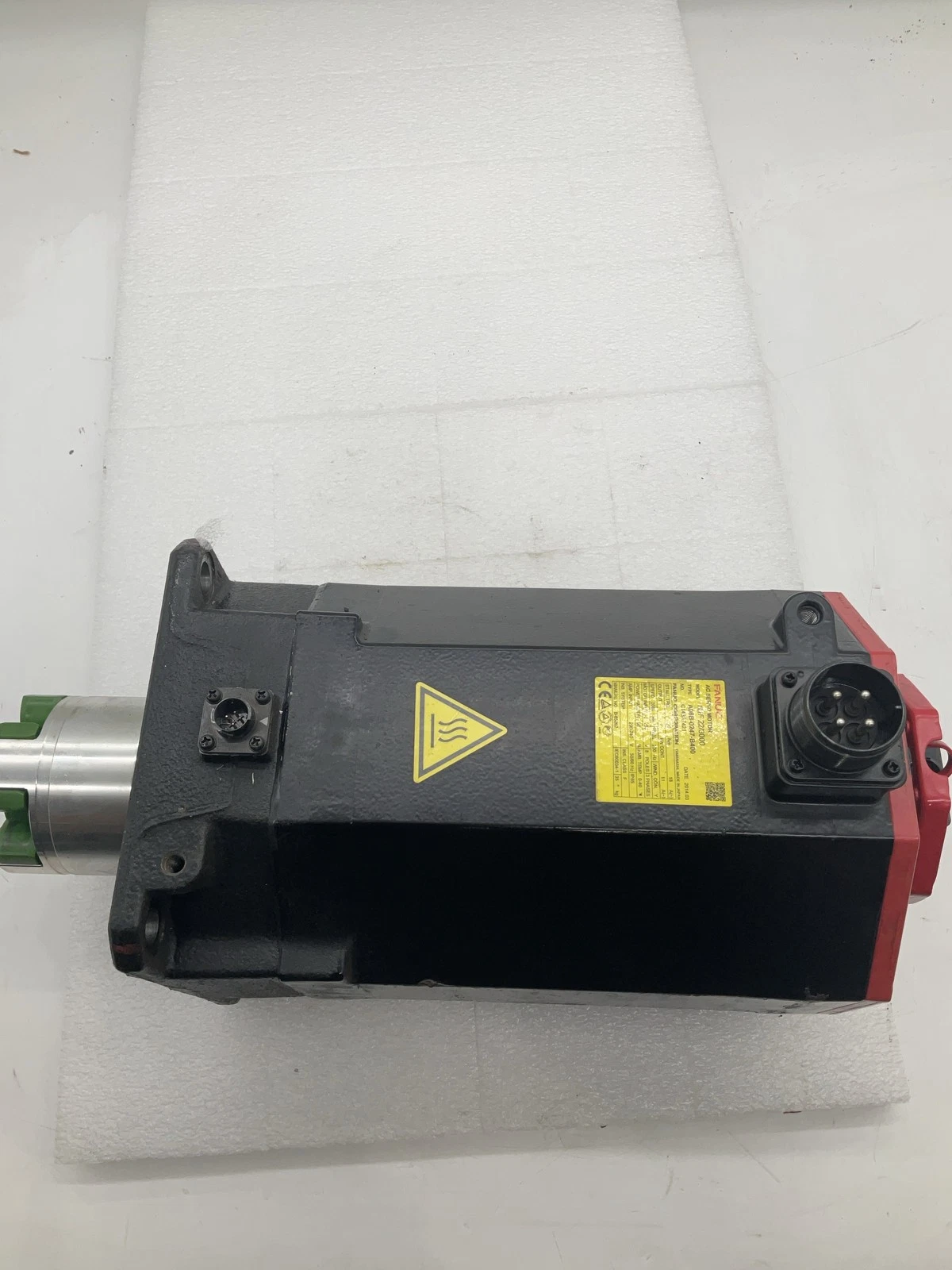

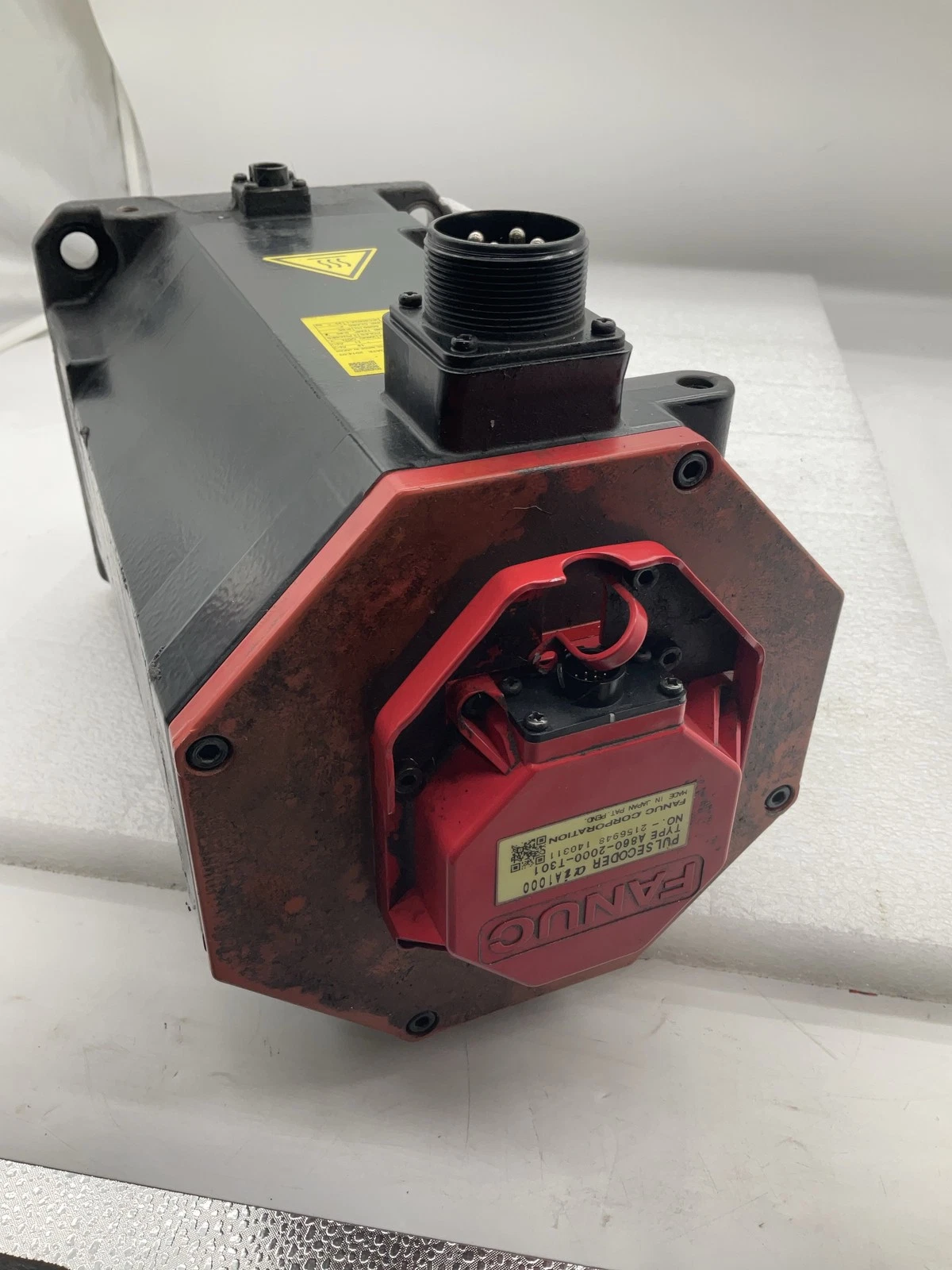

FANUC A06B-0247-B400 AC Servo Motor USED

Specification Table

Torque (Nm)	22 NM
Max Speed	3000 RPM

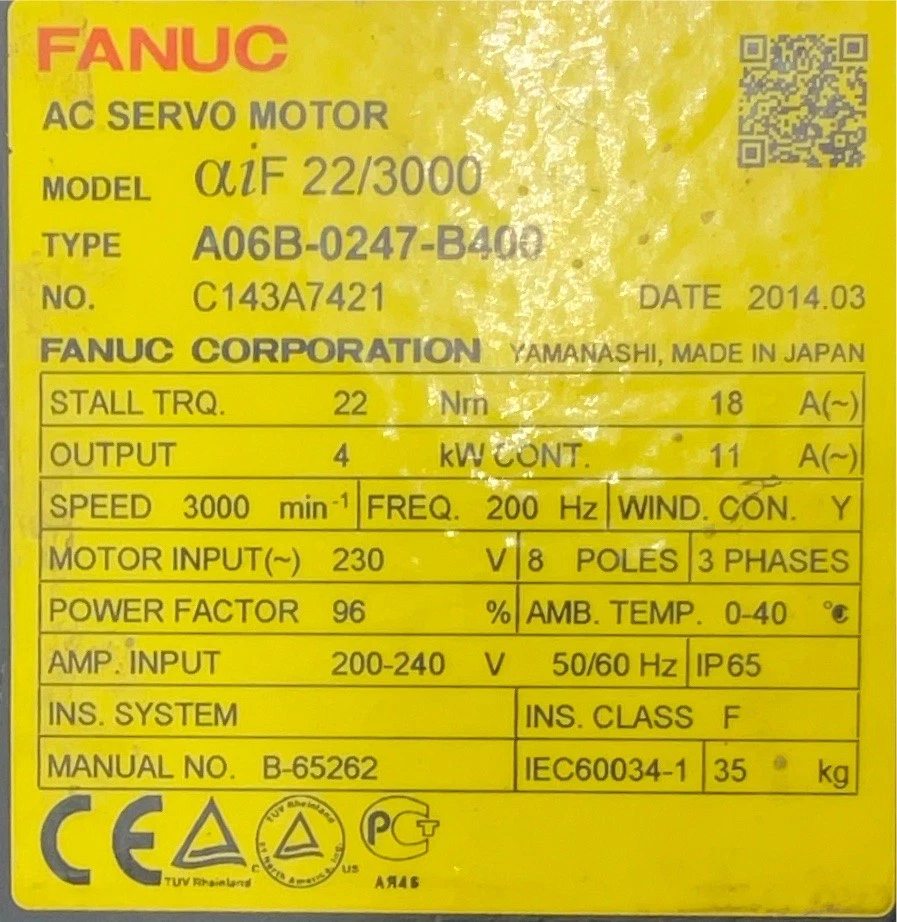

IDENTIFICATION -------------- Manufacturer: FANUC Product Type: AC Servo Motor Series: αiF Model: αiF 22/3000 Part Number: A06B-0247-B400 Serial Number: C143A7421 Condition: USED YOM: 2014.03 Country of Manufacture: Japan FUNCTION -------- Equipment Type: AC Servo Motor Motor Technology: Permanent Magnet Servo Motor Application: Precision Motion Control PERFORMANCE ----------- Continuous Output Power: 4 kW Stall Torque: 22 Nm Rated Speed: 3000 RPM Power Factor: 96% ELECTRICAL ---------- Motor Input Voltage: 230 V Amplifier Input Voltage: 200-240 VAC Frequency: 50/60 Hz Rated Frequency: 200 Hz Continuous Current: 11 A Stall Current: 18 A Phase Configuration: 3 Phase Winding Connection: Y CONSTRUCTION ------------ Number of Poles: 8 Protection Rating: IP65 Insulation Class: F Cooling Method: Self Ventilated ENVIRONMENTAL ------------- Ambient Temperature Range: 0°C to 40°C PHYSICAL -------- Weight: 35 kg DOCUMENTATION ------------- Manual Number: B-65262 COMPLIANCE ---------- CE Marked: Yes IEC Standard: IEC 60034-1 TUV Marking: Present
