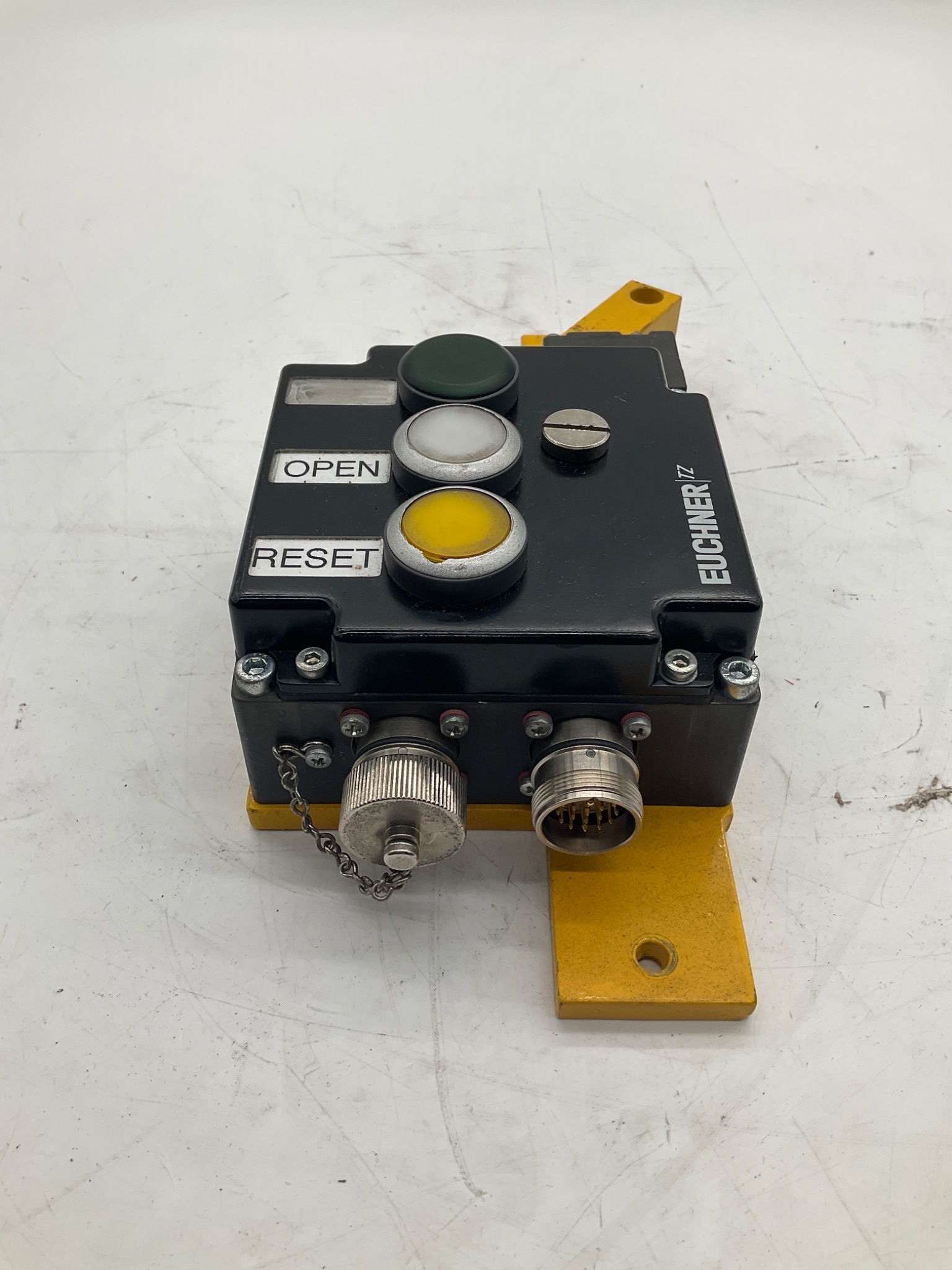

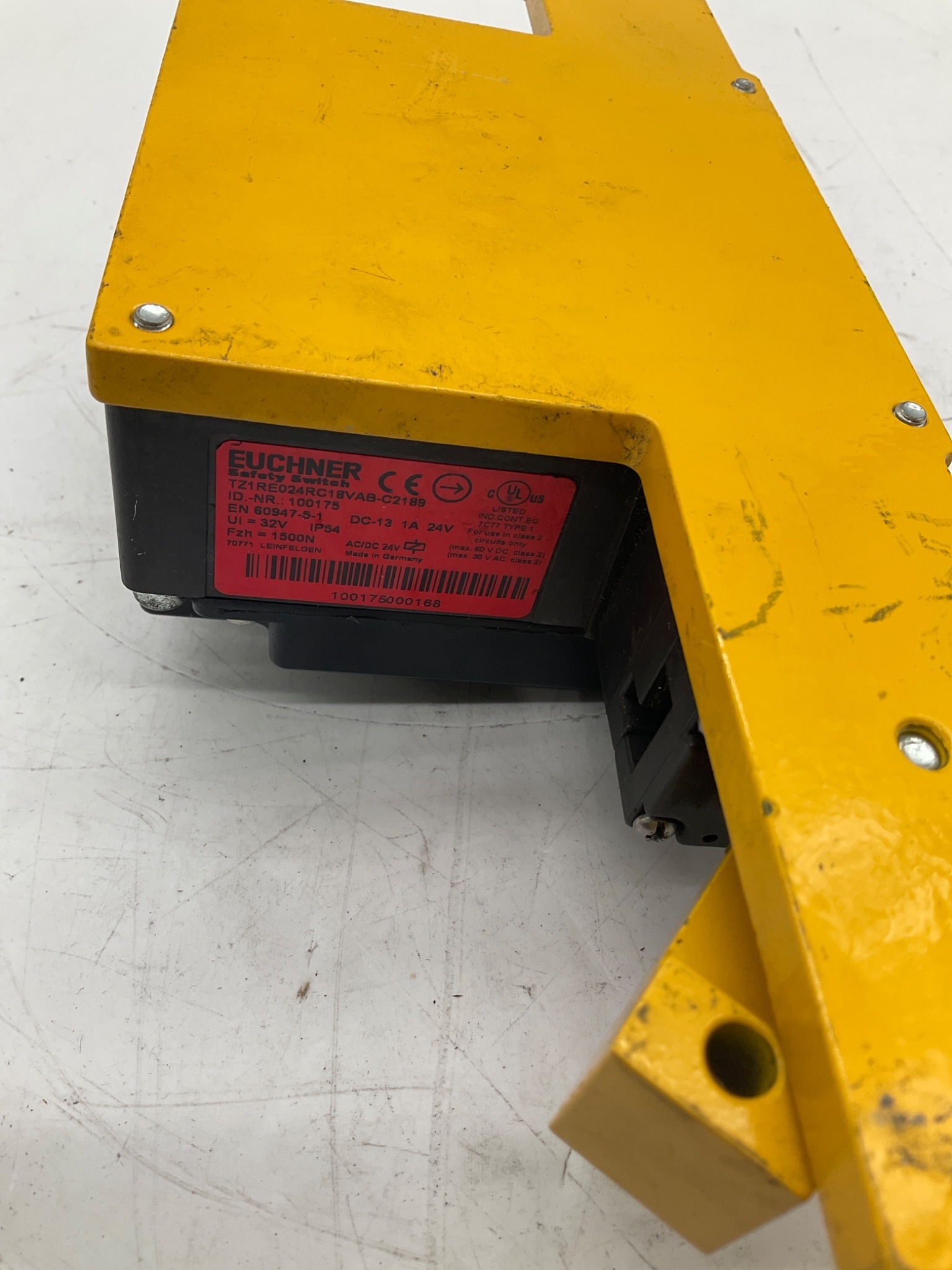

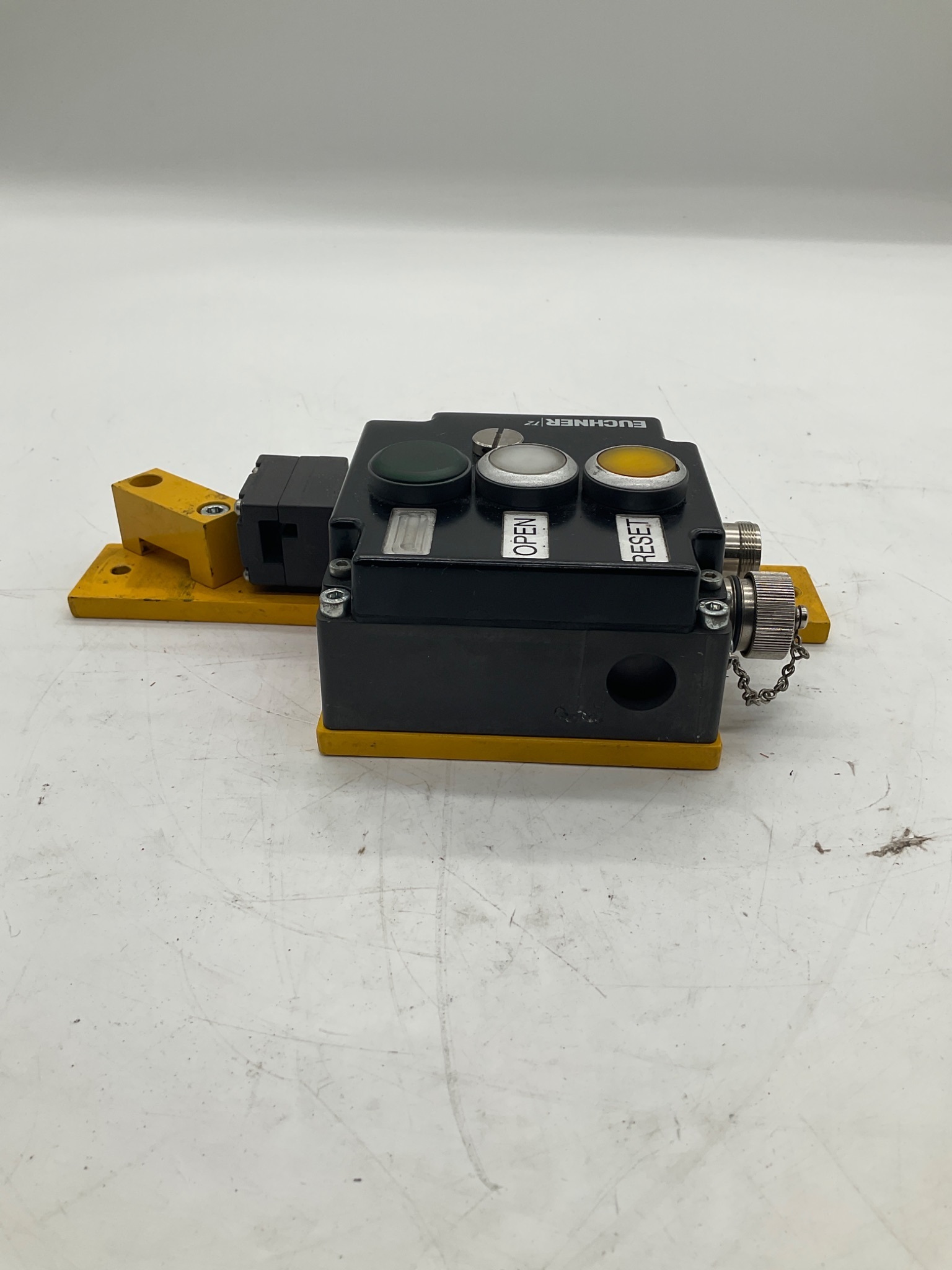

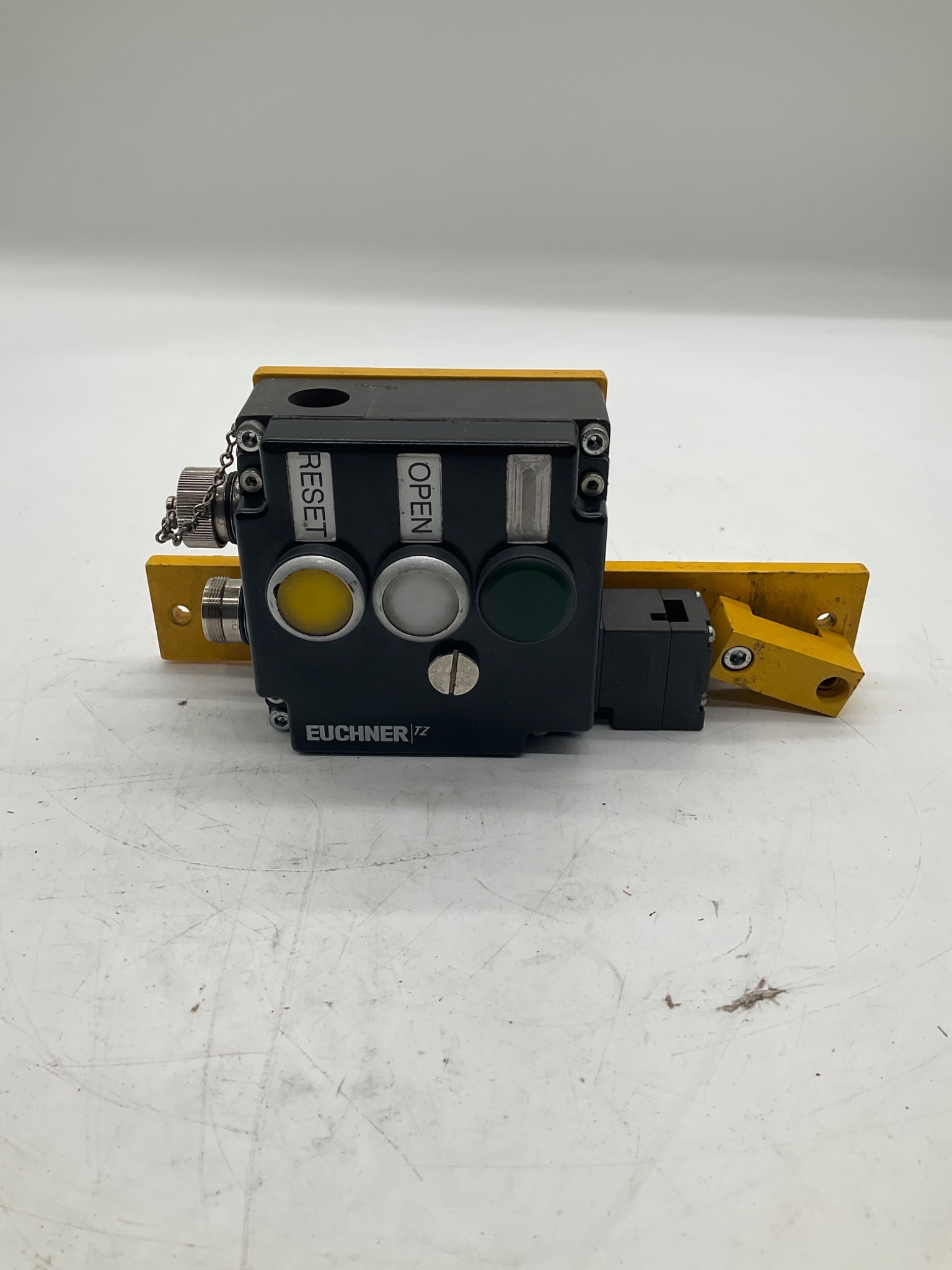

EUCHNER TZ1RE024C18VAB-C2189 Safety Switch With Guard Locking 24VDC USED

Specification Table

IDENTIFICATION Manufacturer: EUCHNER Series: TZ Model: TZ1RE024C18VAB-C2189 ID Number: 100175 Product Type: Safety switch with guard locking Variant: C2189 Condition: USED YOM: n/a Country of Manufacture: Germany   SAFETY / GUARD LOCKING Guard Monitoring: Mechanical actuator Guard Locking: Yes Locking Force Fzh: 1,500 N Actuator Configuration: Hinged / pivoting Actuator Included: Yes Manual Release Provision: Present   ELECTRICAL Control / Solenoid Voltage: 24 VDC Rated Insulation Voltage Ui: 32 V Utilization Category: DC-13 DC-13 Rating: 1 A at 24 VDC Supply Class: Class 2 Contact Configuration: Not specified   OPERATOR CONTROLS Green Operator: Present White Operator: Present Yellow Operator: Present OPEN Function: Present RESET Function: Present Operator Contact Functions: Not specified   CONNECTIONS Electrical Connectors: 2 Connection Type: Circular industrial Connector Configuration: Multi-pin Exact Connector Type: Not specified   ENCLOSURE / CONSTRUCTION Ingress Protection: IP54 Housing Construction: Industrial enclosed Safety Housing Color: Yellow / black Mounting Configuration: Fixed machine mounting Actuator Mounting: Adjustable   STANDARDS / APPROVALS Standard: EN 60947-5-1 UL: Listed CE: Yes
