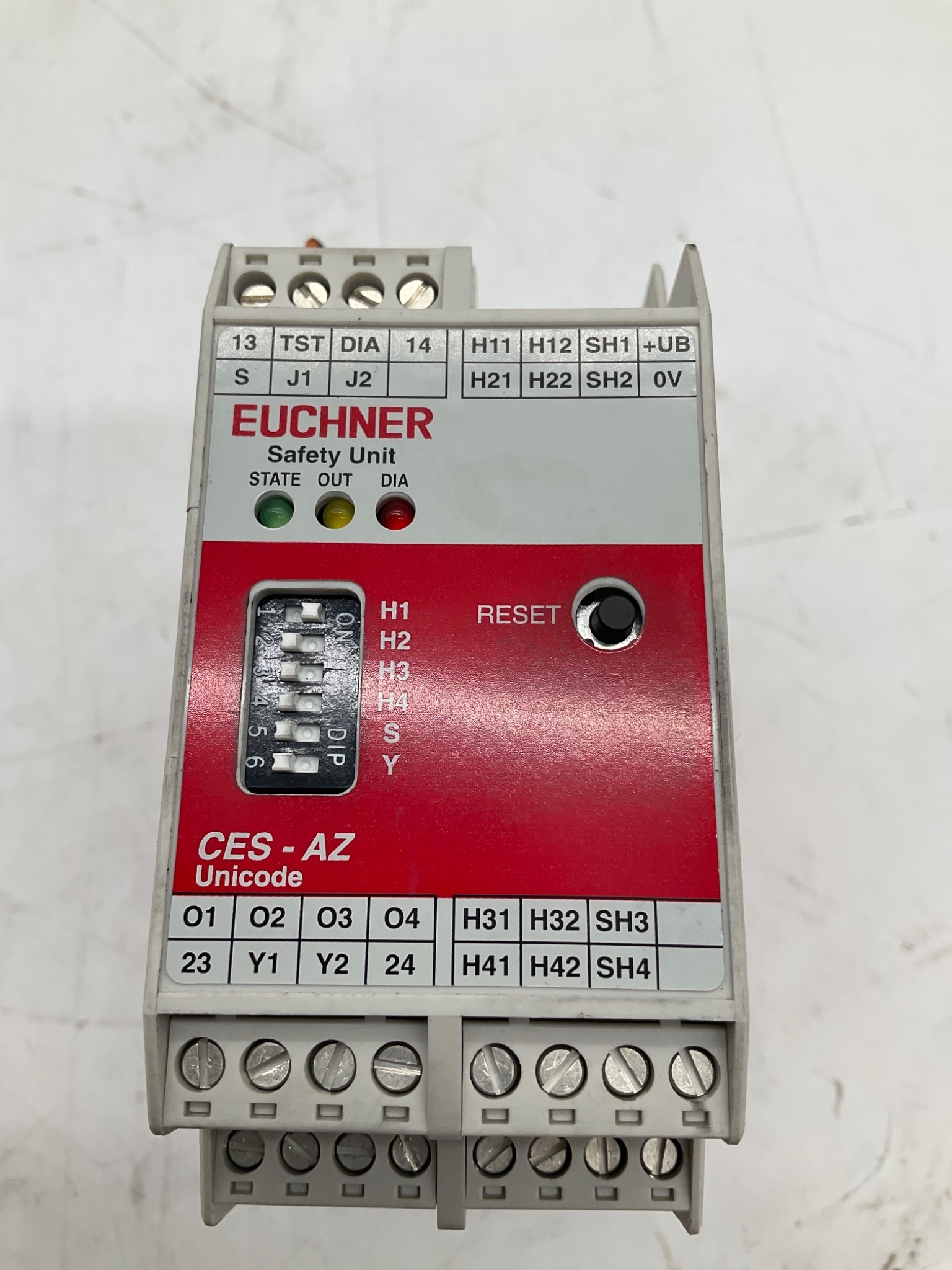

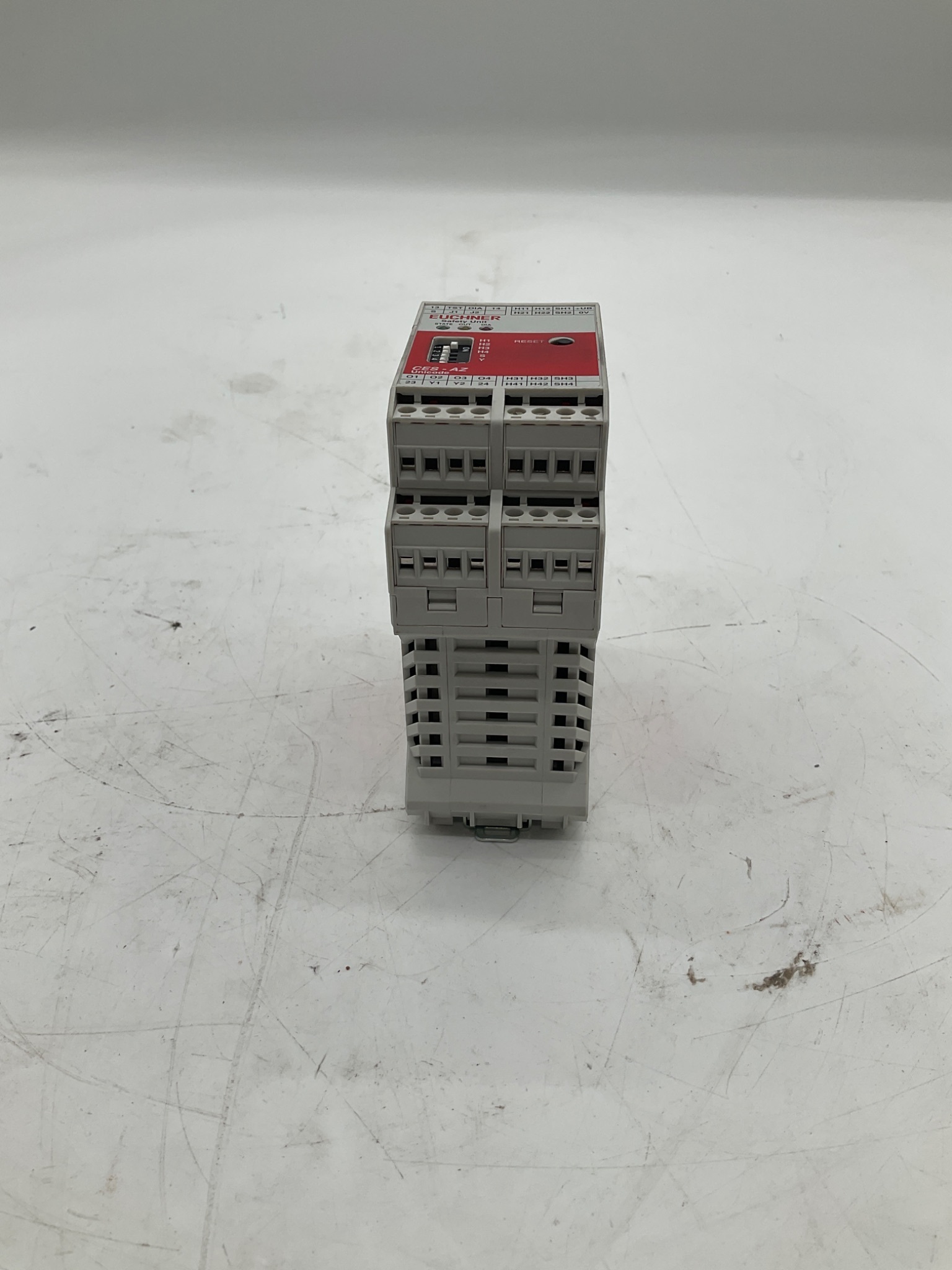

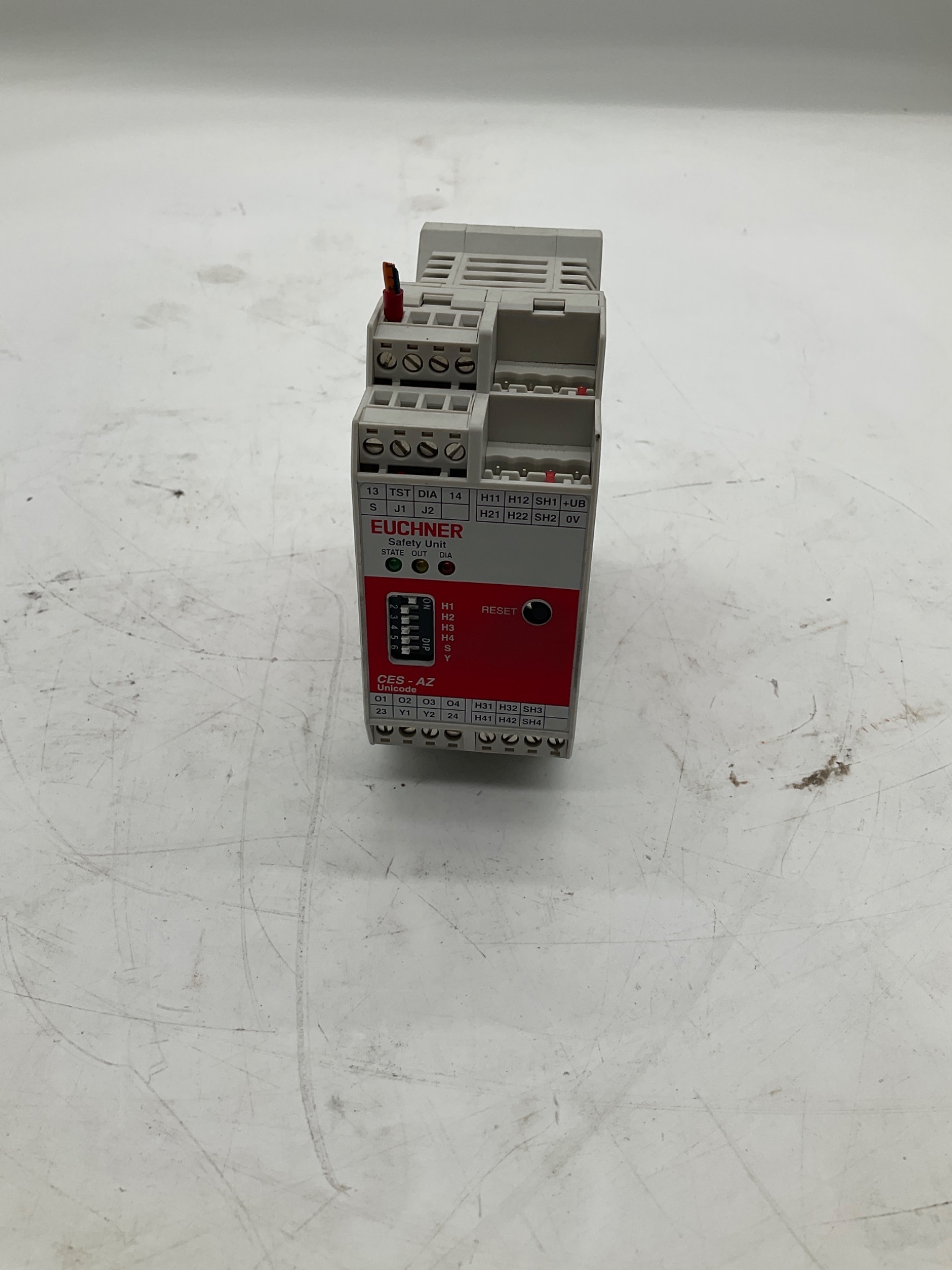

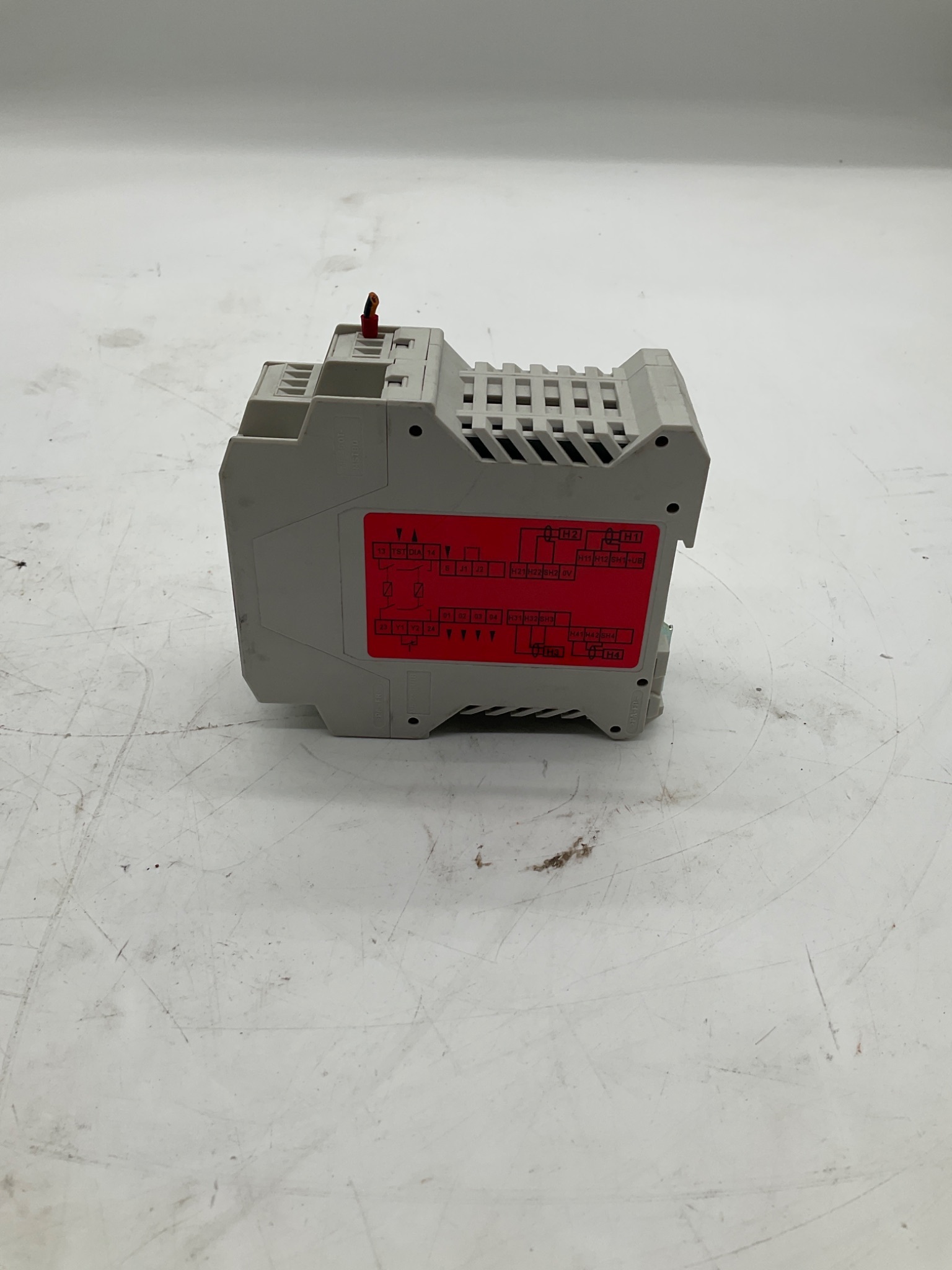

EUCHNER CES-AZ-AES-04B Safety Controller USED

Specification Table

IDENTIFICATION   Manufacturer: Euchner Series: CES-AZ Model: CES-AZ-AES-04B Part Number: 104780 Condition: USED YOM: n/a Country of Manufacture: Germany   TYPE   Equipment Type: Safety Controller Controller Function: Safety Evaluation Unit Technology: Unicode Transponder Safety System Product Family: CES-AZ Configuration: DIN Rail Safety Controller   PERFORMANCE   Safety Inputs: CES Safety Switch Interface Safety Outputs: 4 Safety Outputs Diagnostic Output: Yes Reset Function: Integrated Guard Monitoring: Supported   ELECTRICAL   Supply Voltage: 24 VDC Operating Voltage Range: 24 VDC Current Consumption: 150 mA   CONTROLS & INSTRUMENTATION   Status Indicators: STATE, OUT, DIA LEDs Reset Button: Integrated Configuration Method: DIP Switch Diagnostic Function: Integrated Output Monitoring: Integrated   CONSTRUCTION   Housing Style: Industrial DIN Rail Module Mounting Method: DIN Rail Terminal Type: Screw Terminal Protection Category: Safety Control Device   INSTALLATION   System Compatibility: Euchner CES Unicode Safety Systems Connection Style: Screw Terminals Mounting Orientation: DIN Rail Mounted
