ENCODER PRODUCTS 716-0600-S-S-6-D-S-N ACCU-CODER Incremental Encoder USED

$95.00
Availability:

1 in stock
BRAND: ENCODER PRODUCTS MODEL: 716-0600-5-5-6-D-S-N CONDITION: used
SKU: IGAM4120152 Weight: 2 lbs Shipping Calculated at Checkout

1 in stock

Make an offer

Overview

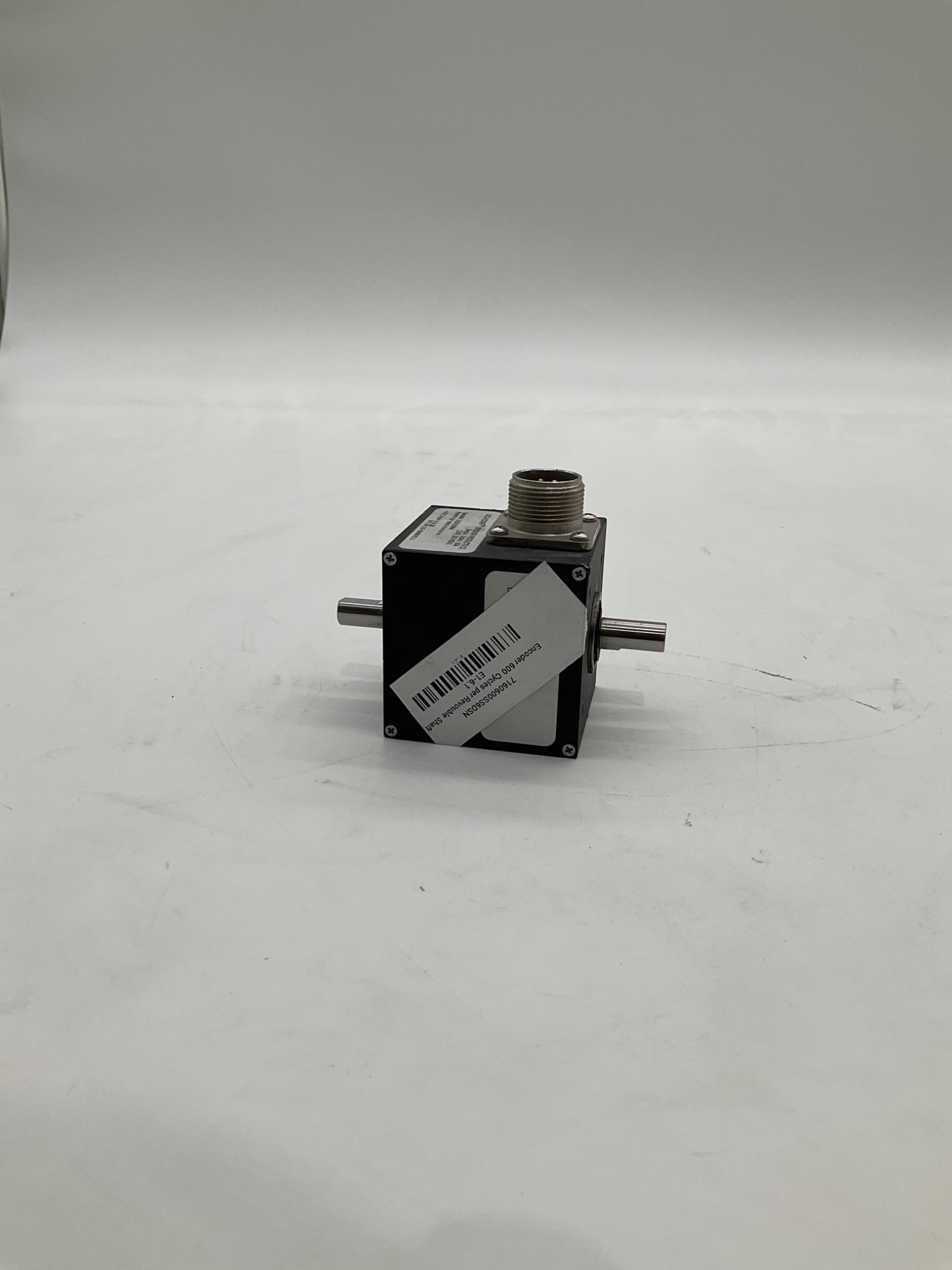

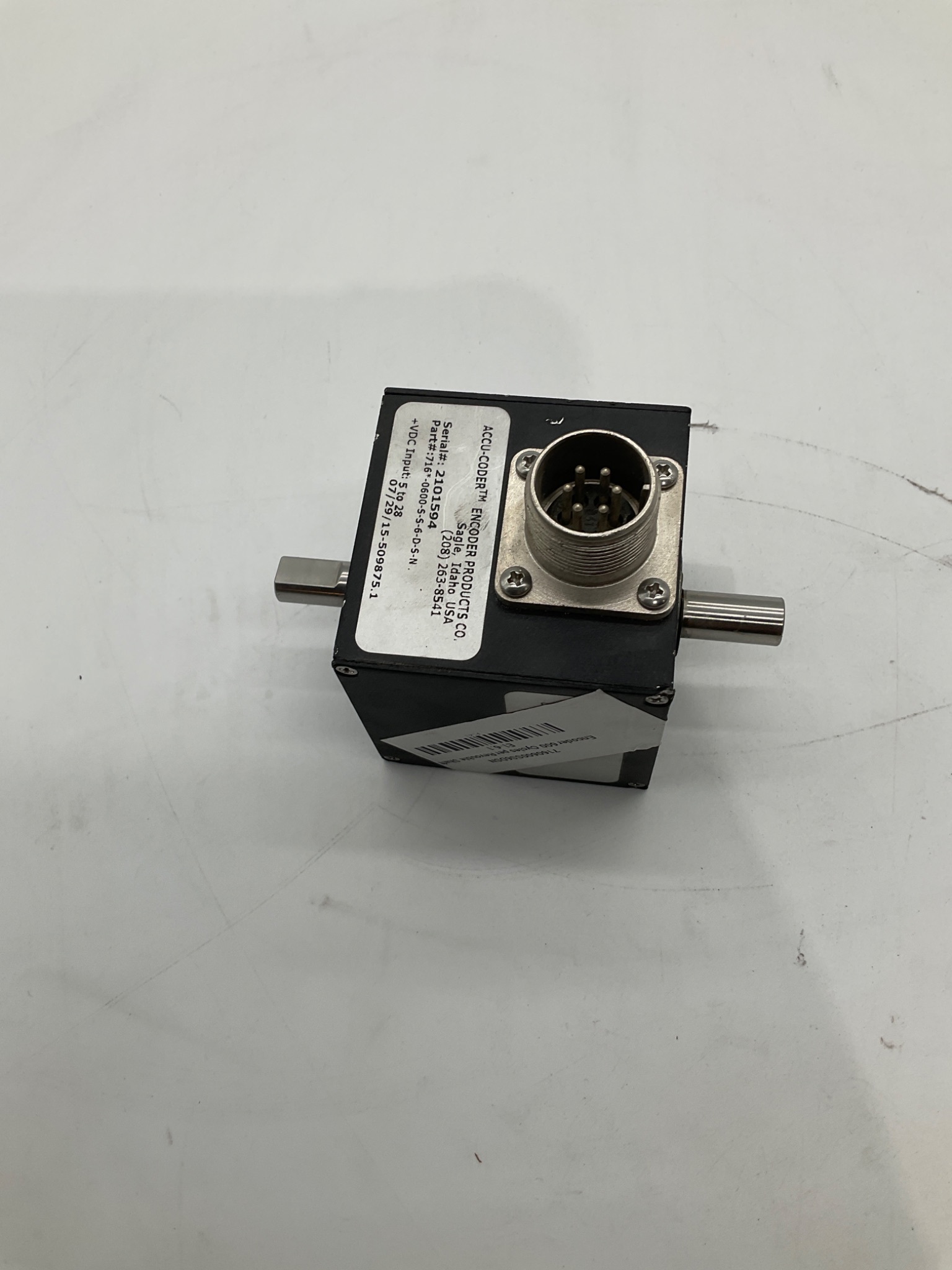

This listing is for a USED Encoder Products Company Accu-Coder 716-0600-S-S-6-D-S-N Incremental Rotary Encoder. The Model 716 series is designed for industrial motion feedback and position sensing applications requiring quadrature output for PLCs, motion controllers, counters, and motor drives. This encoder features 600 cycles per revolution (CPR), a 5-28 VDC operating range, a standard 6-pin MS connector, and a 3/8″ diameter single shaft. The industry-standard cube design provides reliable rotary position and speed feedback for a wide range of automation and machine control systems.

Specification Table

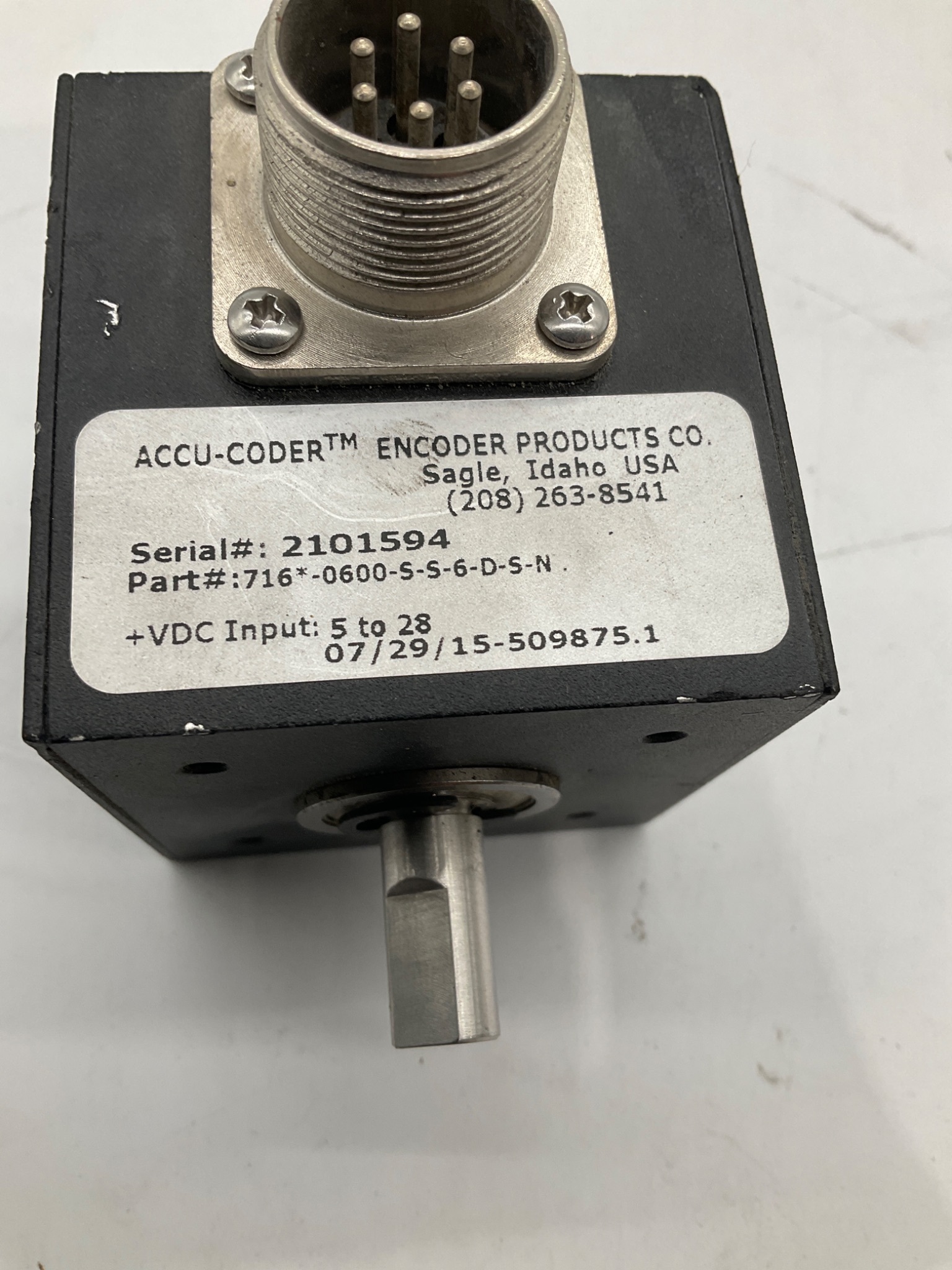

Manufacturer: Encoder Products Company (EPC) Model/Series: Model 716 Part Number: 716-0600-S-S-6-D-S-N Condition: USED Serial Number: 2101594 YOM: 2015 (label date code 07/29/15 shown) Function: Incremental Rotary Encoder Encoder Type: Quadrature Incremental Resolution: 600 CPR Voltage Input: 5 to 28 VDC Connector: Standard 6-Pin MS Connector Shaft Type: Single Shaft Shaft Diameter: 3/8" (Series Code 6) Housing Style: Standard Cube Housing Mounting: Industrial Encoder Mounting Application: Position & Speed Feedback Country: USA
â–¸ Key Features:
• Model 716 Accu-Coder incremental rotary encoder
• 600 cycles per revolution (CPR)
• Quadrature output design
• Operates from 5-28 VDC supply
• Standard 6-pin MS connector configuration
• Industry-standard cube housing design
• Designed for PLC, motion control, and drive feedback applications
• Single shaft configuration with 3/8″ shaft diameter
â–¸ Applications:
• PLC feedback systems
• Motion control systems
• Variable speed drives
• Industrial automation machinery
• Material handling equipment
• Packaging machines
• Measuring and positioning systems
• Motor speed and position feedback
â–¸ Alternative Model Numbers:
716-0600-S-S-6-S-S-N
716-0600/1-N-S-S-6-D-S-N
716 Series Accu-Coder
Model 716 Incremental Shaft Encoder
Accu-Coder 716 Quadrature Encoder
â–¸ Common Misspellings or Phrasing:
